Briquetting presses SPäNEX SHB 100 K2

Briquette Press Spänex
Briquetting press
Type SHB 100 K2
Year of construction: 2011

Pressing capacity 100 kg/h depending on material
Flow rate 0.7 m³/h depending on material

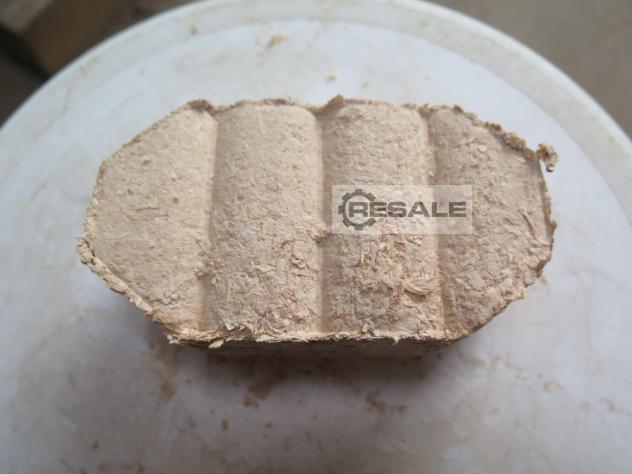

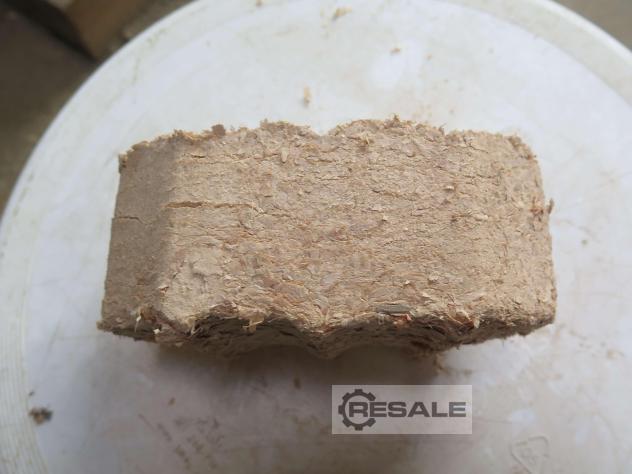

Briquette shape octagonal 127 mm x 72 mm
Hydraulic motor 7.5 kW

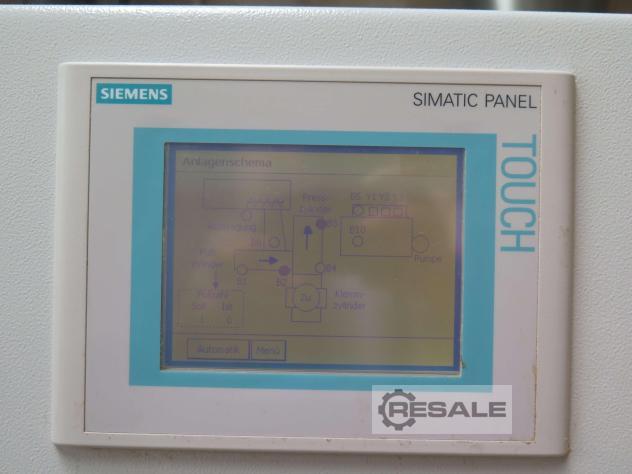

PLC Program Shb60-125
Chip container size 1500 mm x 1500 mm x height 600
Chip container with agitator and feed screw
With level monitor
Temperature monitoring

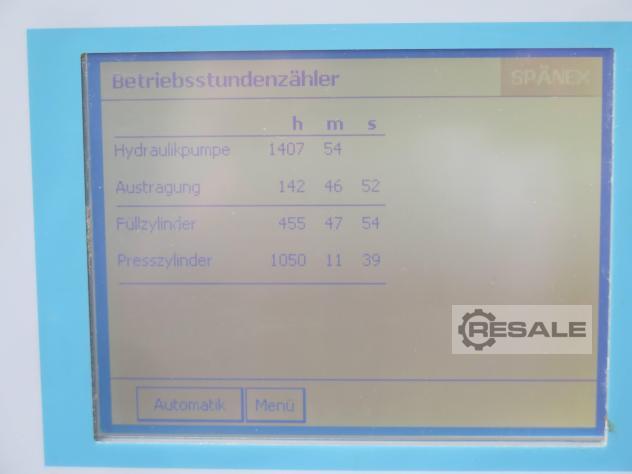

Operating hours according to the counter
Hydraulic pump 1407 h
Duration 142 h
Filling cylinder 455 h
Press cylinder 1050 h
With cyclone

Weight of the press 570 kg

Almost all shredded materials can be briquetted
with a residual moisture between 6% and 18% without binder.
e.g.: wood shavings, milling and sawdust, dust, paper, cotton flaky, coconut, wheat straw, hemp, hay, flax, plant stems, malt germs, ...
The maximum chip size should not exceed 20 x 1 mm.
Briquettes have a volume reduction of up to 90% due to their density in the material
and thus an extremely high energy and thus calorific value
2.5 kg of wood briquettes replace 1 l of heating oil, 1 t of wood briquettes replace 400 l of heating oil

seller offer No. resale 9818
