Mixers UNIPRE G22

TWO-COMPONENT DOSING AND MIXING SYSTEM
Little used. Only in the development department, no series production. The new price of the system was over 20,000 euros plus VAT.

Facility details:
- Total power requirement: 3.0 kW
- Basic housing G22 for 30/60 L container

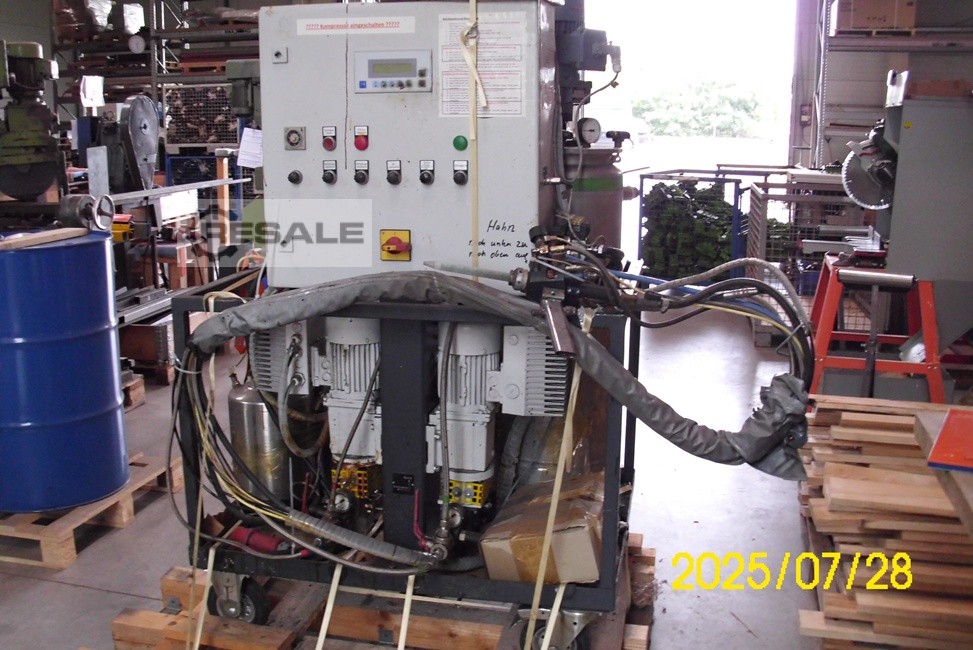

- Base frame with drip tray, protective frame, crane eyelet, motor mount, compressed air filter regulator, pressure gauge, quick couplings and control cabinet, mounted with fixed and swivel castors

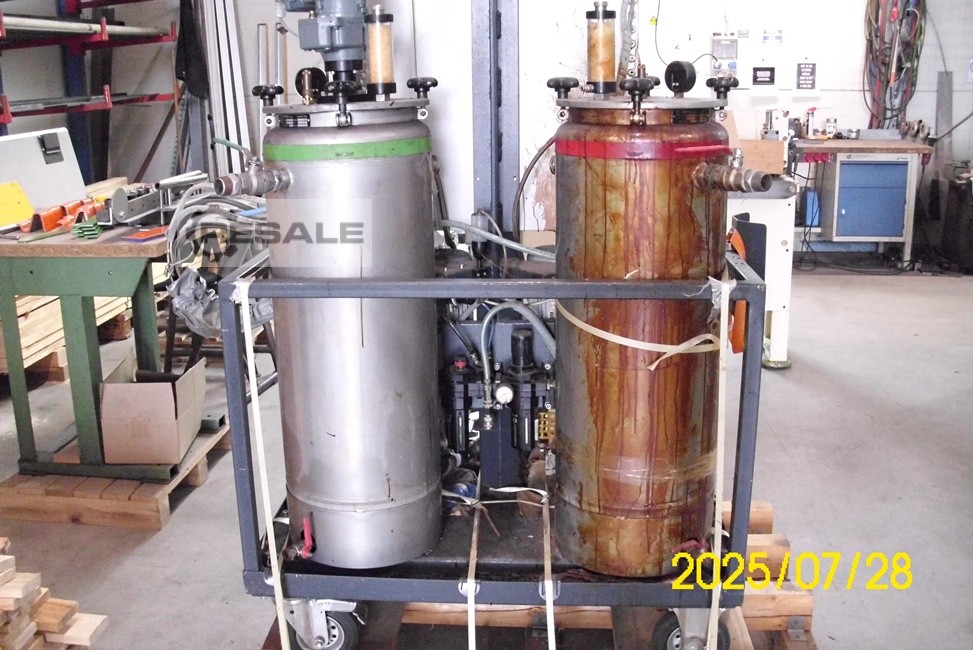

- 2x dosing pump drive 0.55 kW incl. frequency converter and pump carrier = 1x dosing pump KF0/4; 1x Dosing pump FP/S14-N19; 1x Tank VA 60L, Tank Agitator 0.18kW (A-Comp.)
- Respiratory dryer
- Recirculation
- Hoses

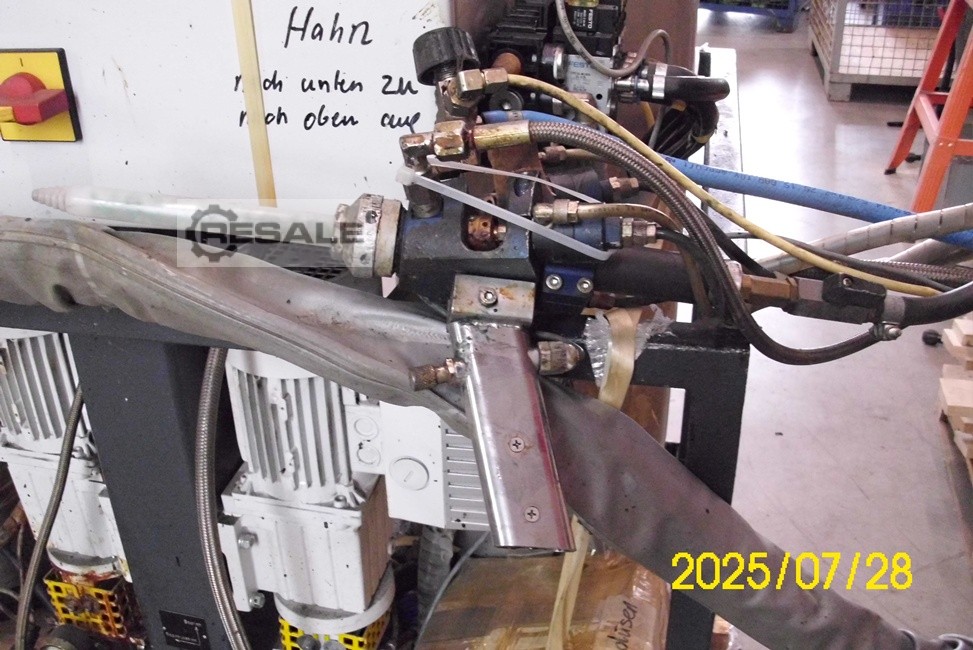

- Mixing head GP 23 static/D low dead space
- 2009 model with separately pneumatically W51244960 controlled fluid valves
- Air W51244960 purge valve autom. Handle with E-switch
- 4 solenoid valves 5/2-way
- Static mixer
- Instruction manual, documentation: 2 times, German.
Accessories:
2 barrels of type TX70ATT air diaphragm pumps; Housing: Aluminum; Membrane: PTFE; Valves: PTFE, ATEX marked; incl. needle valves and filter pressure regulators.

seller offer No. resale A20763802RE
