window production machines used for sale (159)

Bore diameter: variabel mmNumber of heads horizontal: 3 St.Number of heads vertical: 4 St.Dimensions (length / width): 4800 x 1600 x 2400 mmweight: 1500 kgGötzinger Power Drill Type BF 297With the Götzinger PowerDrill you can, depending on the type and design:Griffoliven drill on the loose frame part or for finished wings,with multi-spindle drilling head, quick-change, also for millingof the lock case for WK 2 or intermediate gearEcklager drill on loose frame part, with Mehrspindelbohrkopf,quick-change, corner-oriented over stop or custom made (tilt window)Drill vertically from above for fitting, pre-drill for clip on loose frame partMilling vertically from above for pushers, profile cylinders, 3-D hingesHorizontal drilling with 2 drilling units, different drilling diameters,Dowel drill front and long side, plywood / fighter, sprouts,Corner connection, front door etc.Milling horizontal ...

TECHNICAL DATA: Trimming Saw Ø max mm: 400 Tenoning spindle: 1 Ø max mm: 350 Profiling spindles: 2 Ø max mm: 240 Glass frame trimsaw Feedrate max/min: 2.5/15

-) Working area X: approx. 3,300 mm -) Working area Y: approx. 1,300 mm -) Working area Z: approx. 300 mm -) Main engine: approx. 7.5 kW -) Tool change points: 2 x 24 pieces Fix and 1 x 10 with you -) Lock box unit: permanently installed -) Machine table: console table -) Positioning aid: Yes -) Workpiece special clamping system: Yes -) Software: SCM XILOG 3 -) Number of milling spindles: 1 piece -) Speed: 18,000 max rpm. -) Torque support: Yes -) Tool clamping system: HSK-F63 -) Design: boom machine -) Vacuum pump: Yes -) DXF interface: Yes -) Chip conveyor belt: Yes -) CE mark: J Yes -) Total connection: approx. 22 kW -) Weight: 9,600 kg

Cone cutter and profiling machine First working area - OPENING TABLE WITH TRANSPORTBAND Length: 2600 mm, adjustable speed, inverter controlled. Second work area: PRODUCTION AREA Group of eight with movable longitudinal slide and cone cutter unit, numerically controlled. MULTIPLE CONE CUTTER UNIT: Motor with 7.5 HP, 3000 rpm, inverter-controlled, Spindle diameter: 50 mm, length: 270 mm WORKPIECE RETURN

Saw units: 2 Cutting length max mm: 2200 Cutting height mm: 70 Saw blades tiltable: Yes Diameter saw blade mm: 250 Cutting length min mm: 240 Main motor kW: 1.1 Pneumatic tensioner: Yes Saw feed: pneumatic

) for double pot MAKO-DT/130 ) with two drills ) incl. automatic Mittelbohreinstellung ) Cycle time per frame is less than 15 seconds ) Clamping and centering device with pneumatic cylinders, which are vertically and horizontally ) this machine streamlines the beating of wood window

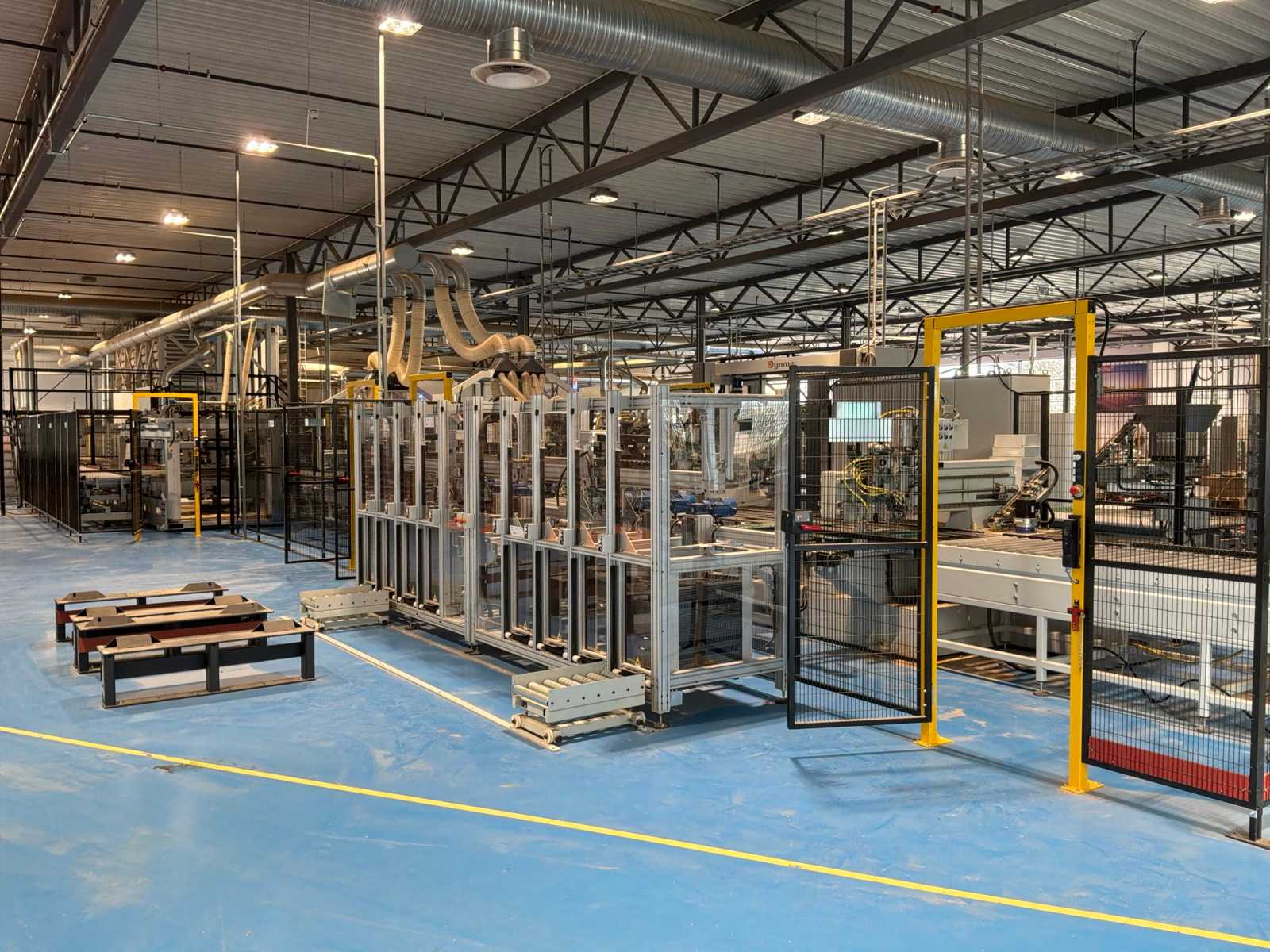

Consisting of: infeed roller conveyor, cross transport belt conveyor, driven feed through roller conveyor, two-sided horizontal multi drill aggregate, 2x Gasco dowel vibratory feeder model BV25, feed through driven roller conveyor, 3x vertical multi drill aggregate, belt feed through conveyor table, 3x vertical multi drill aggregate, driven feed through roller conveyor table, 1x Gasco vibratory feeder model BV45-2R, 5-headed glue deposition unit, belt feed through conveyor table, 2x 3-station drawer slide insert units, 1x Gasco vibratory feeder model BV45-2L, 5-headed glue deposition unit, outfeed driven roller conveyor table, 3x 3-door switch cabinet, control desk with monitor, cameras, safety fence and stairs with walking platform. Used floor space approximately 26.000x7000mm Auction-ID: A1-48377-1

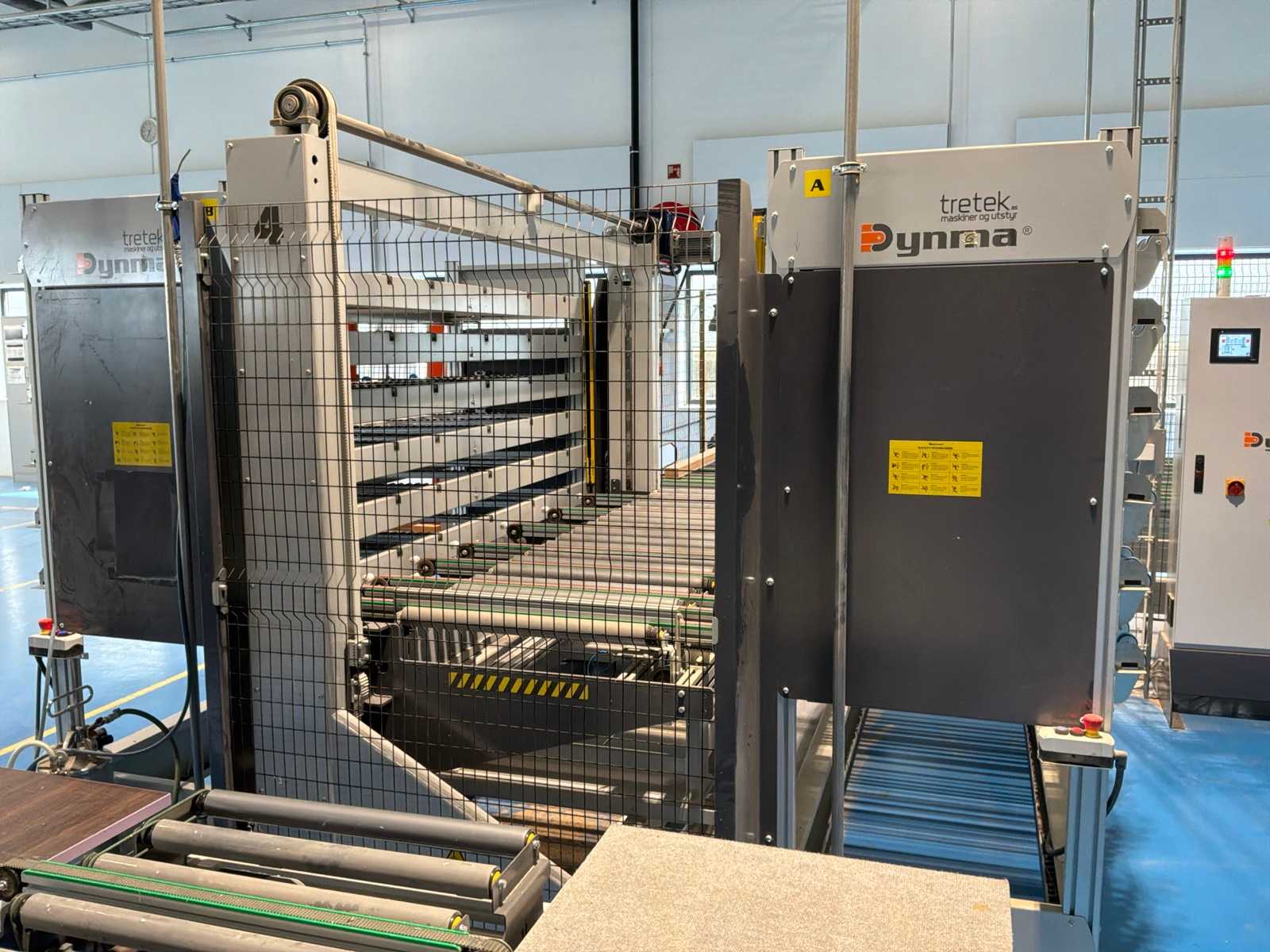

Consisting of: belt conveyor in-feed system, 6-level double sided storage, central switch cabinet with Omron touchscreen controller and safety fence. Used floor space approximately 6000x7500mm Auction-ID: A1-48377-20

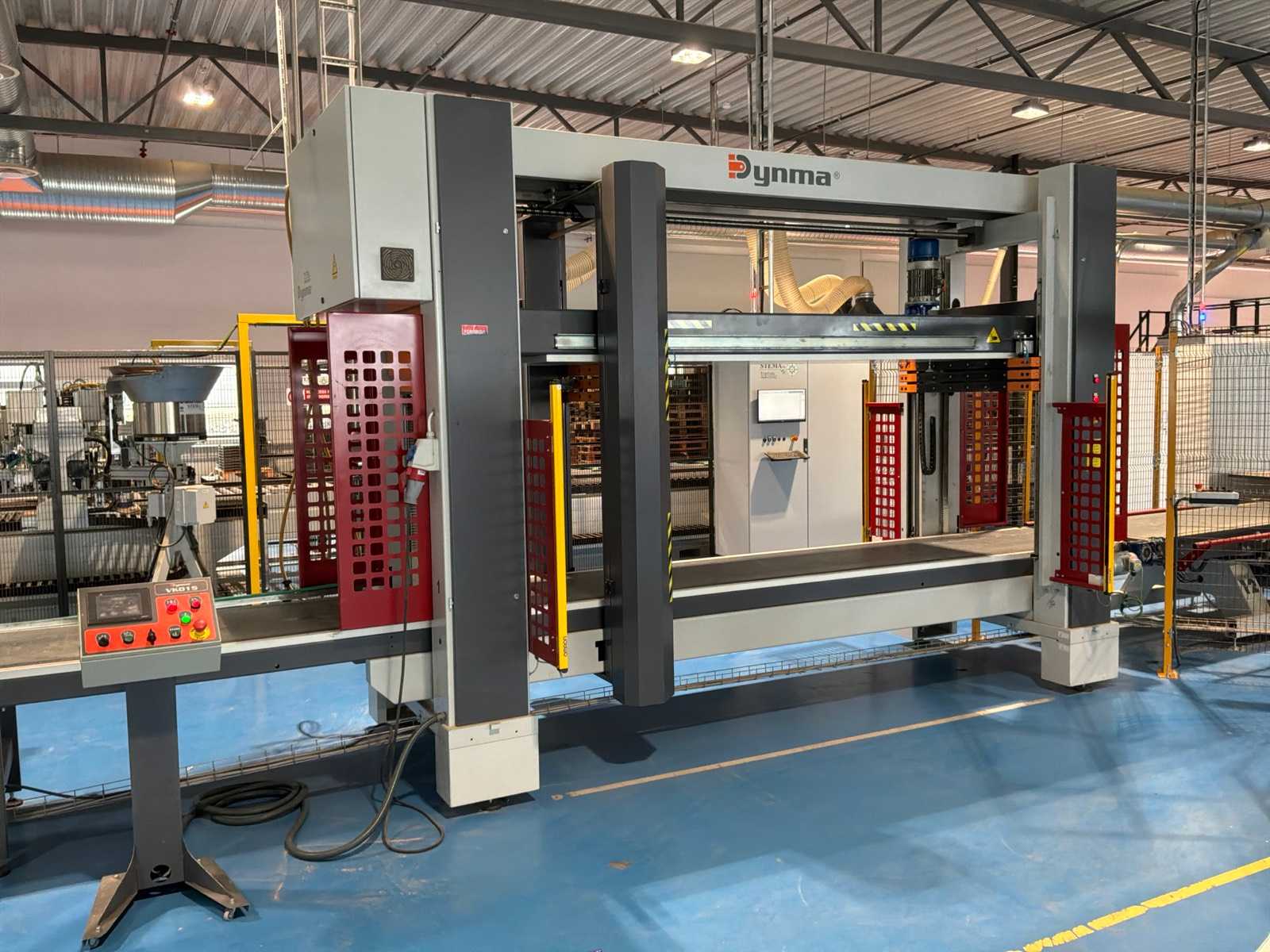

Consisting of: automatic feed through clamp, infeed roller conveyor and lifting table, 1x Dynma rotating belt conveyor size approximately 2500x700mm, 5x Dynma belt conveyor size approximately 5000x1000mm, 3x cross feed belt conveyor, 1x 2-lane belt conveyor size approximately 3000x1100mm, 1x Dynma roller tilting station, 1x Schmalz vacuum lifting device model Jumbo ergo with column and vacuum pump, central switch cabinet , control panel, safety fence and stair Auction-ID: A1-48377-21
