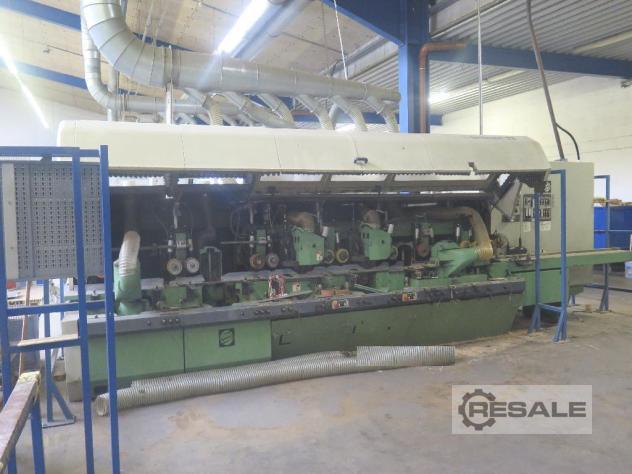

Four-sided planing machines WEINIG Unimat 23

Number of spindles: 10 Working width: 240 mm Four-sided planer Weinig
Type: Unimat 23 / U 23
Year of manufacture 1994 CE

Planing width 240 mm
Planing height 160 mm (240 mm universal shaft)
With 2 universal shafts 360° clamping length 240 mm
Length of dressing table 2350 mm

10 planing shafts

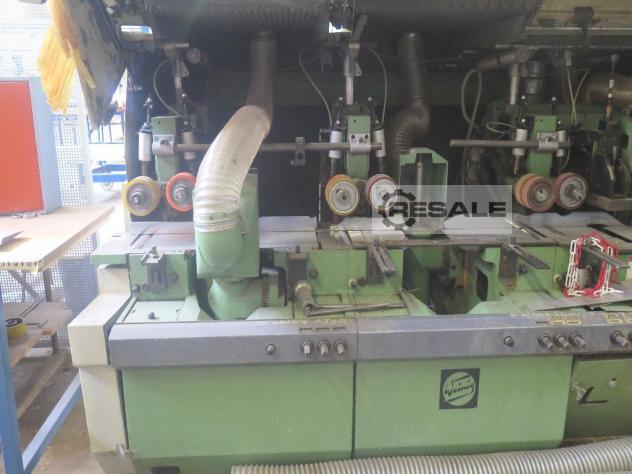

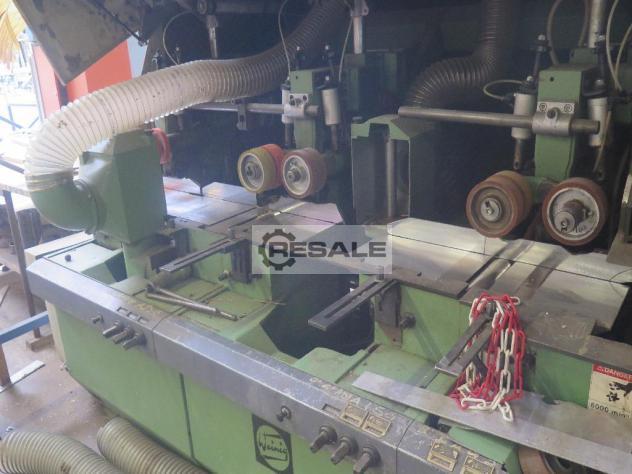

Arrangement of planing shafts and table rollers
1.Shaft bottom 7.5kw
smooth driven roller in the table
2nd shaft right 7.5 kW
3rd shaft left 7.5 kW
4th shaft right 7.5 kW
smooth driven roller in the table
5.Shaft top 7.5 kW
6.Shaft bottom 7.5kw
smooth driven roller in the table
7.Shaft top 7.5 kW
8.Shaft bottom 7.5kw
smooth driven roller in the table
9.Shaft Universal u, right, li, o 360° 7.5 kW
smooth driven roller in the table
10.Shaft Universal u, right, li, o 360° 7.5 kW
Smooth driven pull-out roller in the table
Spindle diameter 40 mm
Cardan feed, feed motor 8.6 kW
Feed speed 6 – 36 m/min.
Electric height adjustment approx. 1.1 kW
Spindle speed 8000 rpm
Total connected load 86 kW, rated current 186 A
Manual Waxilit Pump
Soundproofing enclosure
Extraction pipes with distributor
Planer heads 4 pieces length 240 mm (3 with 4 knives, 1 with 2 knives)
And 2 planer heads length approx. 150 mm

Dimensions L 7.4 meters x W 1.9 meters x height 2.0 meters

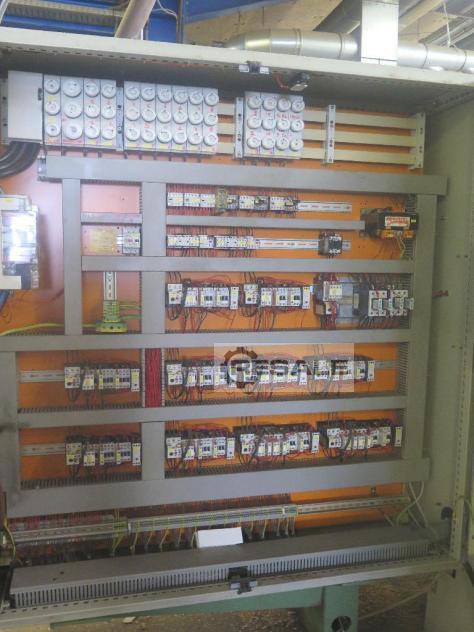

with attached control cabinet
Weight approx. 10 tons.

seller offer No. resale 9370
