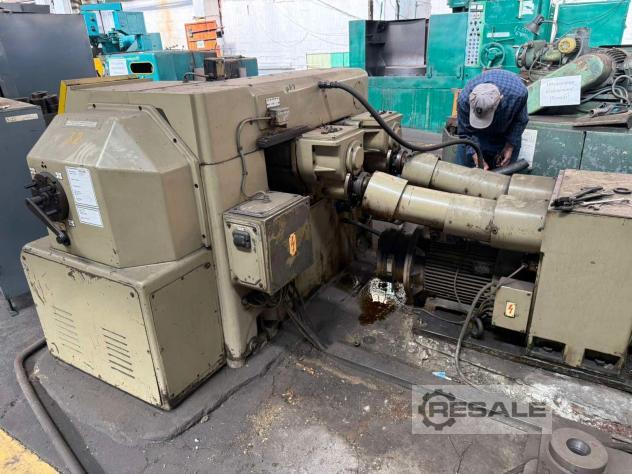

Thread Rolling Machines WMW BAD DüBEN UPW 63

Pressure: 63 t Max. workpiece diameter: 250 mm Threading length: 300 mm
Thread and Profile Rolling Machine

Machine Type Cylindrical 2-Roll Thread Rolling Machine

Max. Rolling Capacity (Force) 630 kN (63 tons)
Workpiece Diameter (Min. / Max.) 25 mm / 200 – 250 mm
Max. Diameter of Tools (Dies) 300 mm
Spindle Diameter 110 mm
Spindle Speed Range 10 – 100 rpm
Spindle Drive Motor Power 22 kW

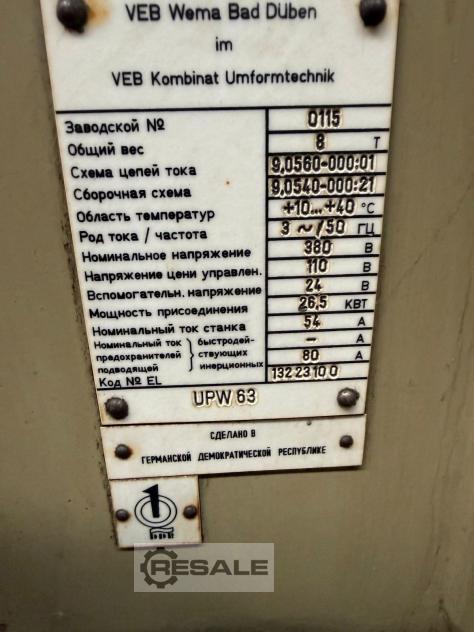

Total Power Requirement (Connected Load) 26.5 kW
Operating Rated Current 54 A
Electrical Power Supply 380 V / 50 Hz (Three-phase current)

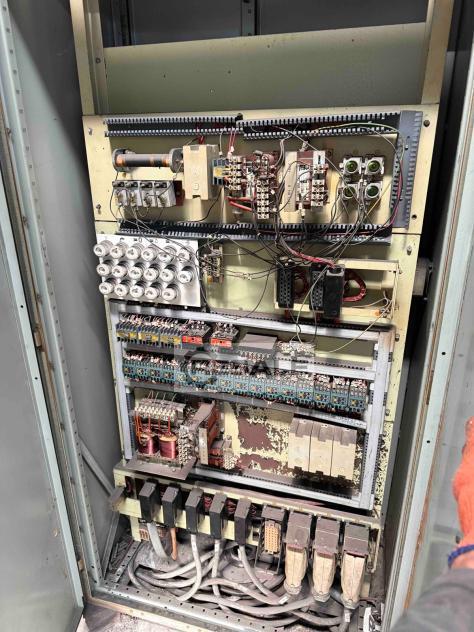

Control / Auxiliary Voltage 110 V / 24 V
Required Floor Space (Dimensions) 3072 × 2140 mm
Total Machine Weight approx. 7500 – 8000 kg (7.5 – 8 tons)

Design Features

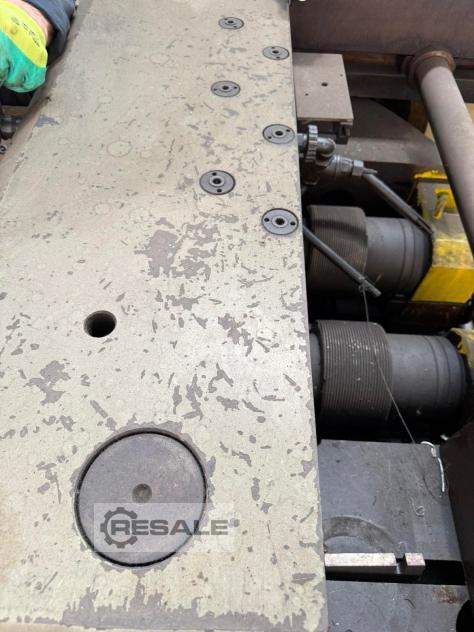

Twin-roller system: Works with a pair of cylindrical profile rollers.

Materials: Suitable for working with high-strength steels, rods, and pipes.

Application: Used in heavy engineering to create fasteners, shafts, and other components with increased strength requirements (rolled threads are stronger than cut threads).
