5 FOOKE used machine for sale

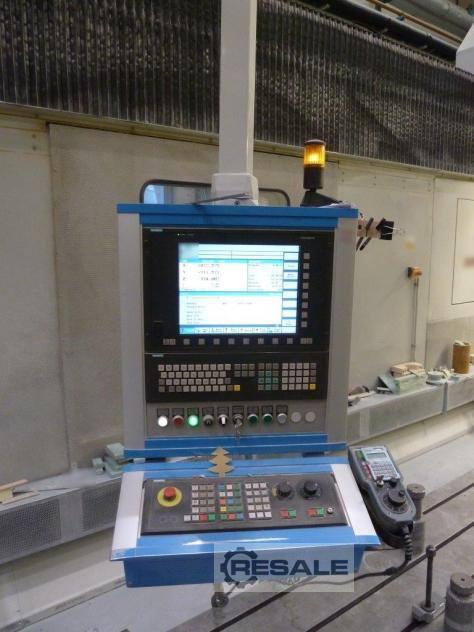

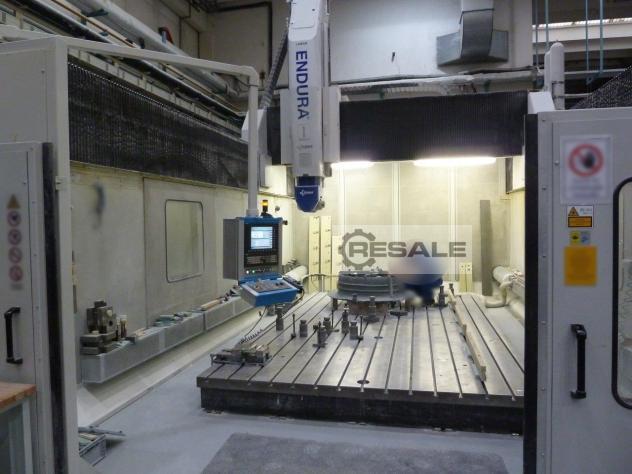

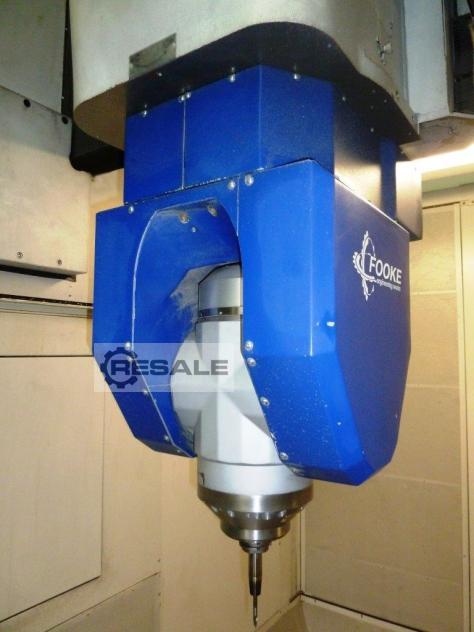

5-axis gantry milling machine Fooke Endura 905 linear Year of manufacture 2007 Control Siemens 840D CNC Table size: 5,000 x 3,000 mm 2-axis NC swivel milling head: A-axis +95°/-120° (0.001°) degrees C-axis +/- 275° (0.001°) degrees Distance between uprights: 4,700 mm Distance spindle - table: 1,419 mm Travels: X 5,000 mm Y 3,000 mm Z 1,500 mm Linear motors for fast feeds : X/Y/Z 65,000 mm/min. Rapid traverses: X/Y/Z 65,000 mm/min. Spindle drive power: 28 kW Spindle speeds: max. 18,000 rpm Spindle torque: max. 89 Nm Tool holder: HSK-A63 Tool positions: 20-fold autom. Tool Changer Machine weight: approx. 95,000 kg Space requirements: L x W x H 8,850 x 9,370 x 6,200 mm Accessories: Full fairing 3 x chip conveyor CNC control on swivel arm Protective covers for drives and s ...

First commissioned: 2006 Control: Fidia C20 incl. handwheel X-axis: approx. 7,000 mm Y-axis: approx. 3,000 mm Z-axis: approx. 1,751 mm A-axis: + 125° / - 95° C-axis: ± 275° Clamping table Clamping surface: approx. 6,000 x 2,000 x 400 mm Head Spindle power: 20 kW Spindle speed: max. 20,000 min-1 Tool holder: HSK 63A Tool tensioning: hydraulic Drives Linear axes Feed speed X-, Y-, Z-axis: 65 m/min Axle acceleration X-, Y-, Z-axis: 5 m/s2 Connection data Connected load: approx. 150 KW Dimensions, weights Space required Machine with protective cabin Dimensions: approx. 12,200 x 6,300 x 5,800 mm Total weight: approx. 105,000 kg Auxiliary - 20-fold tool changer - Engine room surveillance (camera) Options at extra cost: - Renishaw RMP60 probe - Fidia HMS System Condition of the machine Fully functional, very good condition

A walk-in CNC 5-axis large-format portal milling machine Fooke is available. Travel X/Y/Z: 3000mm/2500mm/1150mm, bridge height: 800mm, table dimensions X/Y: 3000mm/2500mm, spindle power: 28kW, spindle speed: 16000rpm, swivel range A: +/-100°, rotary range C: +/-181.5°, feed rate: 15m/min, rapid traverse X/Y: 20m/min, rapid traverse Z: 10m/min, rotary speed A/C: 8rpm, tool holder: HSK-63A. Machine dimensions X/Y/Z: approx. 6000mm/6000mm/5200mm, weight: approx. 50000kg, control: Siemens 840D powerline. Documentation available. On-site inspection is possible.

x-travel: 3000 mm y-travel: 2500 mm z-travel: 1150 mm Control: 840 D Powerline tool taper: HSK-A63 table-size: 3000 x 2500 mm turning speeds: 16000 U/min total power requirement: 60 kW weight of the machine ca.: 50 t dimensions of the machine ca.: m - 5-Axis-Fräsmachine - max. rpm: 16.000 - X-Way: 3000 mm - Y-Weg: 2500 mm - Z-Way: 1150 mm - A-Axis: +/- : 100 mm - C-Axis: +/- : 181,5 mm - Tabelsize: 3000 mm x 2500 mm - option: Blowing air outside - kinematics: Clevis The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 5000 mm y-travel: 2500 mm z-travel: 1500 mm Control: Typ Fidia C20/6H-SB total power requirement: 90 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
