GERA arcade used machines

Bottle washing machine GERA type: Arcade year of manufacturing: 2010 working hours: 32767 capacity: approx. 33.000 bph by 1,0 ltr. bottles control range: 13.200 - 36.300 bph cell pitch: 110 mm bottle cells per row: 30 bottle cells complete: 7.860 with pre-soaking The machine is still in production in Germany and will be available in February 2025

GERA Bottle Washing Machine – Arcade GEL 6 RV1-VL 362/110-30 (Year 2010) High-capacity industrial bottle washing machine designed for efficient cleaning of returnable PET and glass bottles in beverage production lines. The GERA Arcade GEL 6 RV1-VL 362/110-30 provides reliable multi-zone washing performance and high throughput, making it ideal for breweries, soft drink producers, and mineral water bottlers. General Information - Manufacturer: GERA - Model: Arcade GEL 6 RV1-VL 362/110-30 - Article Number: 1334 - Year of Manufacture: 2010 - Operating Hours: approx. 35,000 h - Condition: Excellent used condition, regularly serviced Technical Specifications - Production Capacity: approx. 30,000 bottles per hour (1.0 L format) - Control Range: 13,200 – 36,300 bottles per hour - Cell Pitch: 110 mm - Bottle Cells per Row: 30 - Total Bottle Cells: 7,860 Washing System  ...

Cleaning machine, Fabr. GM Gera, Type: Arcade, for 24,000 bph, control range 7,600 - 26,400 bph, 25 bph, cage pitch 95mm, chain pitch 140mm, with Siemens S7 control

Cleaning machine, Fabr. GM Gera, type: Arcade GEK2.1RV1, for 4,000 bph, 9 b/row, with 0.5 lt NRW bottle, cell pitch 95mm, with pre-soak, caustic bath 1+2, hot water bath 1+2, cold water and fresh water spraying, year 2007

Bottles-cleansing machine 12000 bottles / h completely V2A

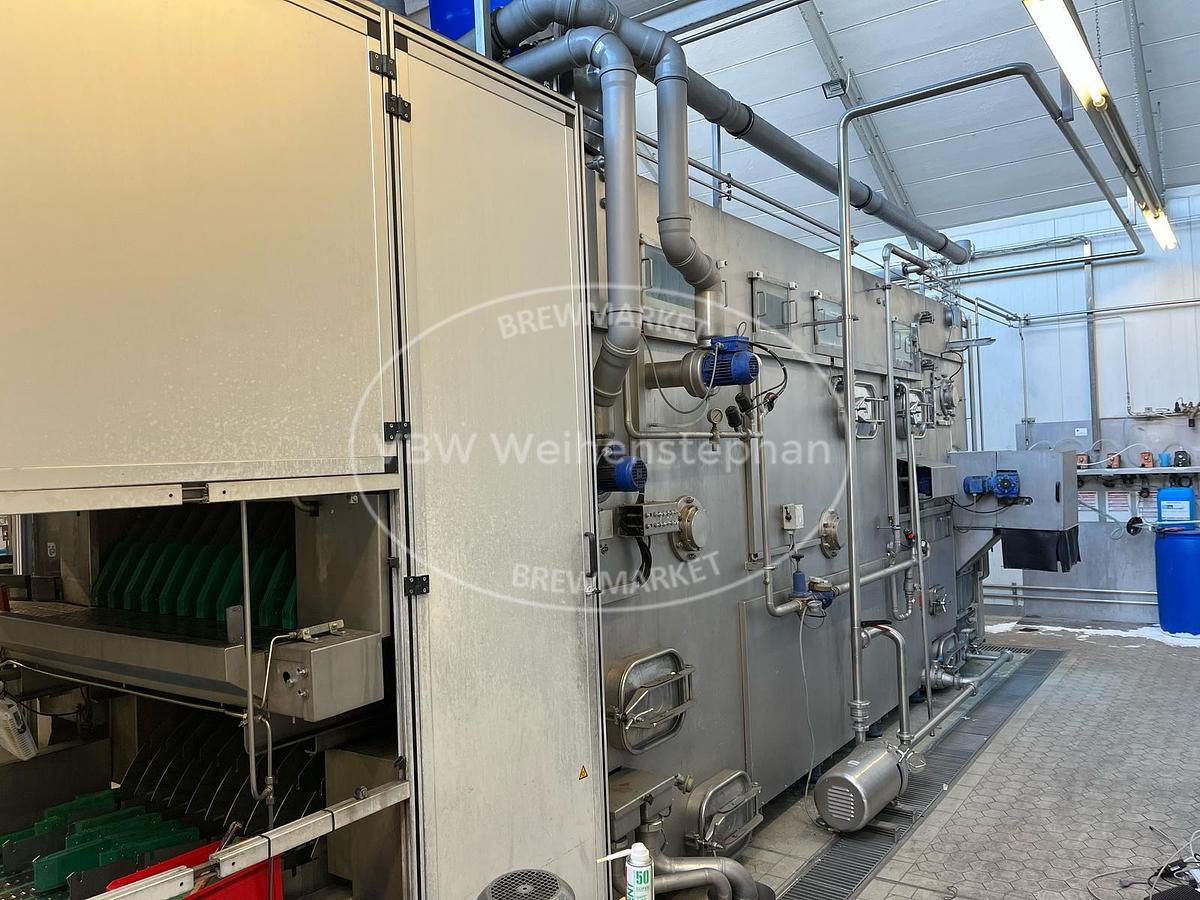

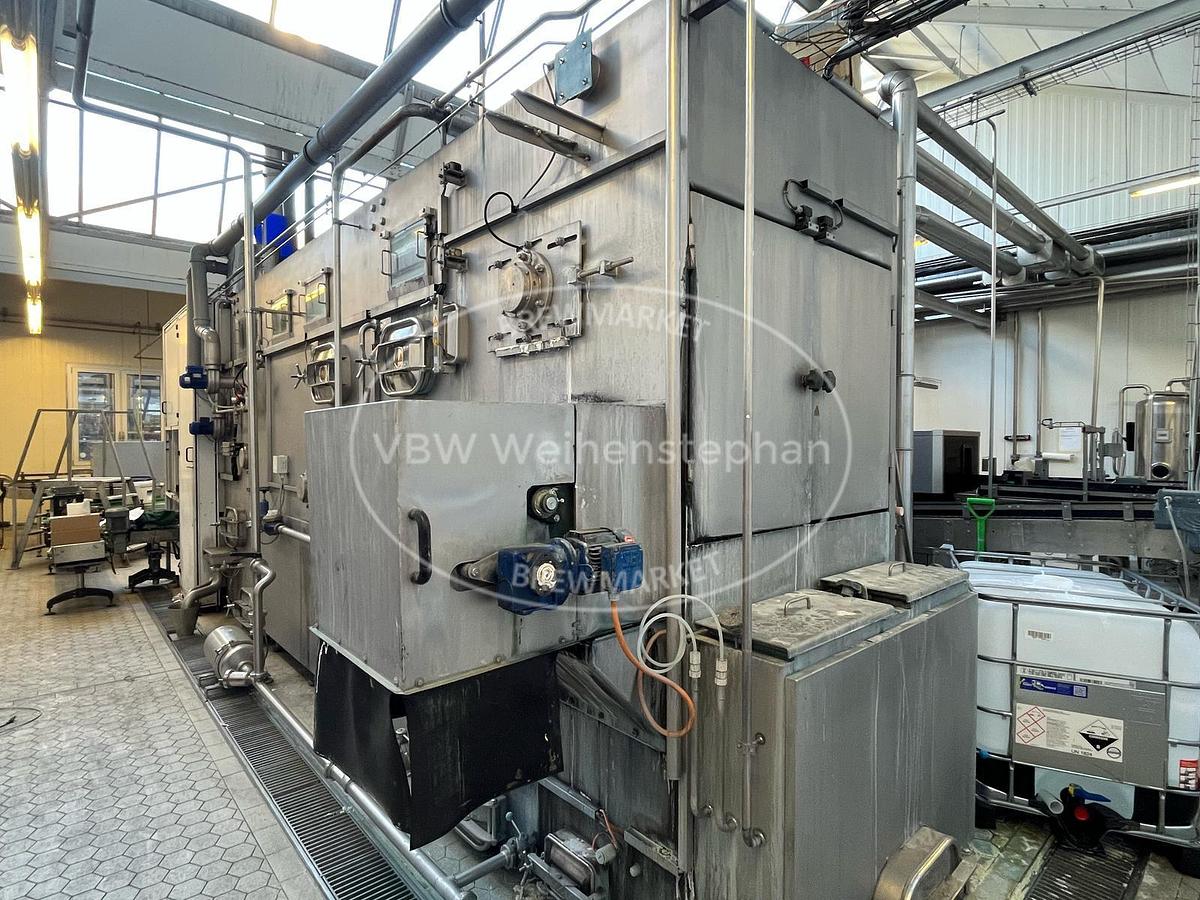

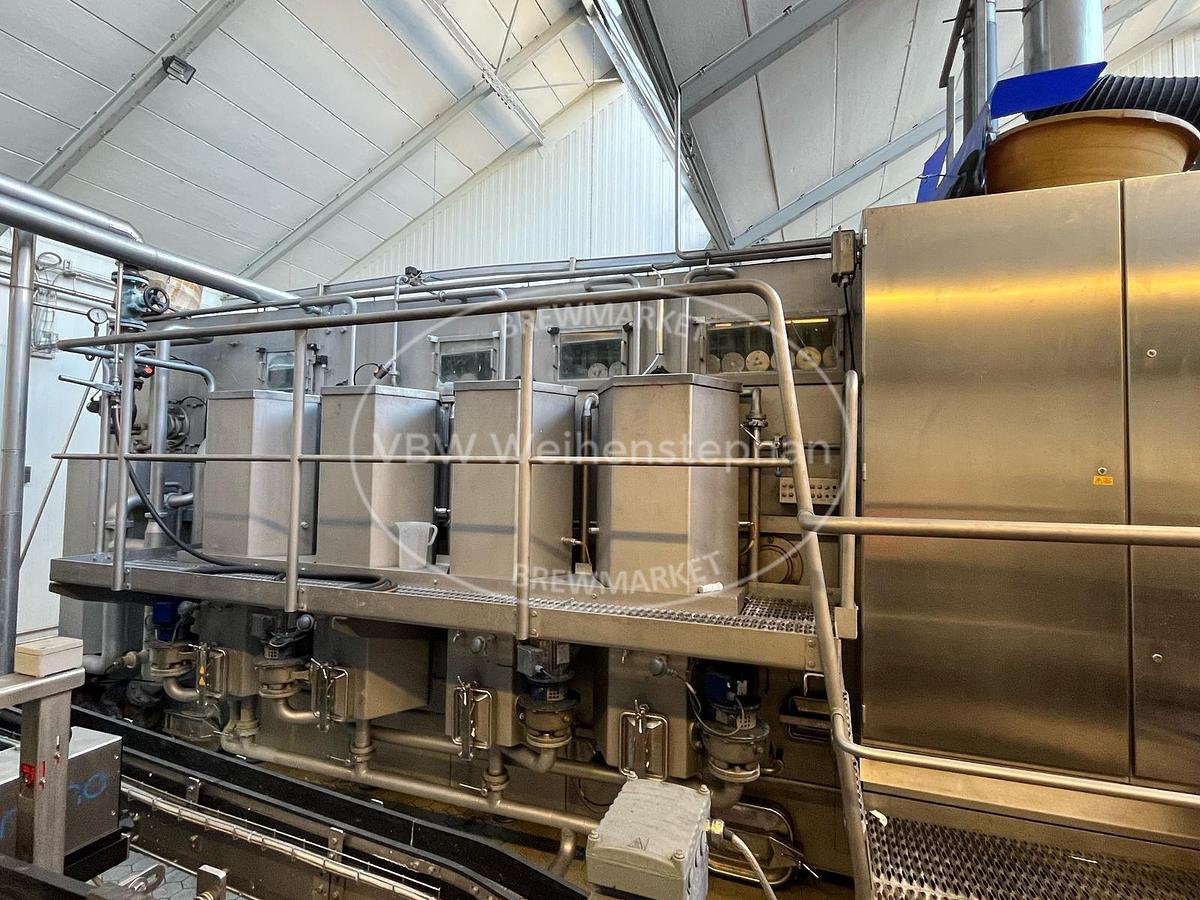

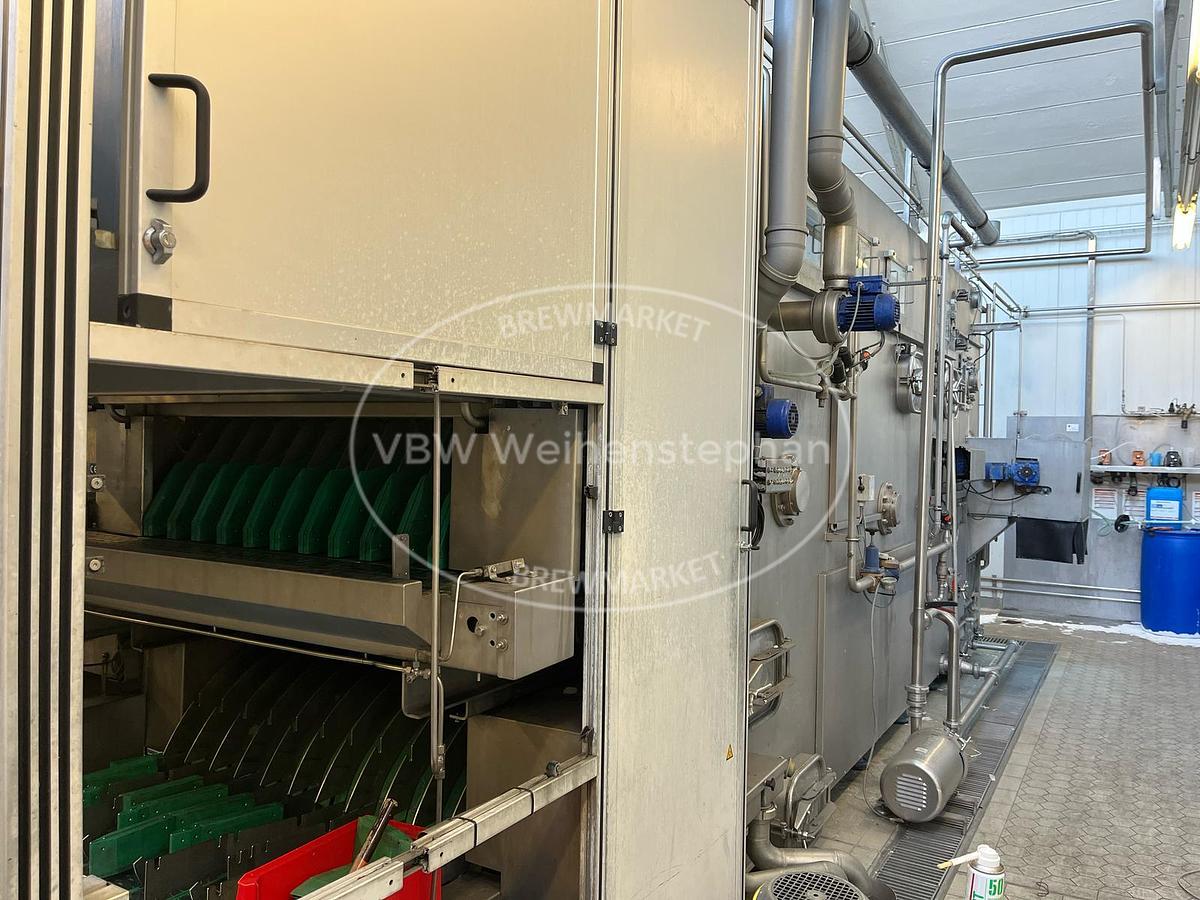

Overview   This ARCADE GEL 6 bottle washer was built in 2010 by the German manufacturer GM Gera. The machine is still in operation and can be inspected in person at any time. The ARCADE GEL 6 is fully functional and must be replaced due to an increase in performance.   Technical details   Nominal output: 33,000 bph   Control range: 13,200 - 36,300 bph   Chain pitch: 169 mm   Cell pitch: 110 mm   Bottle cells per row: 30 pieces   Total bottle cells: 7,860 pieces   Bottle cells, loaded: 7,680 pieces   Consumption  Compressed air: 1m³   Steam (operation): 489 kg/ h   Steam (heating): 4,430 kg/ h   Electrical power: 48.4 kW   Water: 7.35 m³/ h   Bath volume   Pre-soak: 2,263 l   Pre-caustic: 7,240 l   Caustic 1: 31,755 l   Caustic 2: 350 l   Hot water 1: 350 l  Hot water 2: 350 l   Cold water: 350 l

x-280 ,y- 200 , Z 315 , Table dimensions 380x380/250x500 A lot of writings,much more than pictured

Modular vise, jaw width 125mm Gerardi Modular 125 Stable Machine Vise, Drill Vise Total length approx. 345mm Clamping range approx. 150mm Jaw width 125mm with pull-down jaws Additional prism jaw Mechanical clamping actuation with 19mm wrench or ratchet The machine can be demonstrated on site by appointment. We offer only machines that are ready for demonstration in our warehouse, see "other offers of this year". provider".

* General * SKU267N238 * LocationBarneveld * MakeGerhard+Rauh GmbH * TypeRZE counterflow column, DN900/700 * No.6321 * Pressure * Working pressure1 Bar * Vacuum possiblecheck * Main Features * MaterialStainless steel * Volume4000 Ltr. * Motor5.5 KW * Specified Features - Extraction * Capacity4000 Ltr * Diameterdia. 700 mm * Length10 m * Max. temperature95 °C * With rotorcheck * Motor5.5 kW (230/400 V) * With variable speed drivecheck * Rotor speed88 rpm * MaterialStainless steel 1.4539 (904L) * General * Year of construction1996 * Floorspace1,2 x 1,2 m * Total height12 m * Weight3000 kg * ATEX designedcheck * Extra Specifications-1/1 bar working pressure * Technical specs * Extra information-1/1 bar working pressureFine chemicalsBiotechnologyAgrochemicalsFeed additivesCosmeticsFood additivesLubricants & oleoAnimal feedOther feedBiopharmaceuticalExtractionOils & fatGerard + RauIndustries ...

Machine vise, stable vise, milling machine vise, modular vise -Manufacturer: Gerardi, Modular Vise - Jaw width: 195 mm - Jaw height: 60 mm -Clamping range: 345 mm -Total dimensions: 595/195/H130 mm -Quantity: 1 piece available -Weight: 63kg

Machine vice, stable vice, milling machine vice, modular vice -Manufacturer: Gerardi, Modular Vice -Jaw width: 195 mm -Back height: 60 mm -Clamping range: 450 mm -Dimensions: 695/195/H130 mm -Weight: 70 kg

Tool holder, milling holder, chuck, milling tool, adapter, clamping unit, tool holder, collet sleeves -Milling holders: MK4 holder -Type: Ø27 x 60 mm Z 03 1-02 -Dimensions: 245/43/43 mm -Weight: 1.3 kg

Tool holder, milling tool holder -Number: 21x SK50 recording -Receptacles: Ø 22-50 mm -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills -Sale: only complete set -Weight: 88 kg

Single-end bottle washer. Factory overhauled in 2005., Additional title: one end machine, Nominal capacity: 6700 bo/h, Control range: 7370 bo/h, Number of bottle cells: 1620 pcs., Number of bottle cells per row: 10 pcs., Length: 7790 mm, Width: 3450 mm, Height: 2950 mm, Weight: 20000 kg, Machine partitioning: Chain division 150 mm, cell division 110 mm, Operation / Control: Siemens S 5, Material: Stainless steel, Position: Free-standing on spherical feet, Base construction: Housing in one-piece block design, Features: Bottle insertion and removal finger system, chemical dosing stations with dosing pumps, format parts for inlet and outlet

A washing machine for cleaning glass bottles prior to beverage filling. The soiled empty bottles are loaded into bottle baskets and pass through the system for approximately 14 minutes. First, the bottles pass through a pre-soaking bath and a lye bath in the lower section, and are then rinsed in the upper section with lye, twice with hot water, cold water and finally fresh water. The cleaned bottles are discharged onto the bottle conveyor above the bottle inlet., Additional title: single-ended machine for cleaning glass bottles, Operating hours: 5259, Nominal capacity: 33000 Fl/h ; mechanical control range: 13.200 - 36.000 Fl/h, Number of basket holders: 269 pcs. ; of which 259 were filled – total number of bottles: 7.770 pcs., Processing time: 14,14 min, Heating / Cooling: 1.352.712 kJ/h, Water: 7,92 m³/h, Formats: 0,5 l NRW bottles, Material: housing from stainless steel, Position:  ...

Tool holder, milling holder, milling tool, long milling arbor, attachment holder, cutter head holder, cutter head holder -Milling chuck: SK40 chuck, 3 pieces -Type: 40x16x63 TGL 30 1359 -Hole: Ø 16 mm -Dimensions: 203/60/55 mm -Weight: 1.2 kg

Overview This returnable glass bottling line consists of equipment from KRONES, KETTNER, GM GERA, RINK, SYSCONA, MATEC, FALTERBAUM, Bohrer and further supporting manufacturers. The line is designed for the processing of returnable glass bottles in crates, mainly in 0.33 L and 0.75 L formats. It includes the key process steps from crate depalletizing, crate sorting, bottle decapping, unpacking, bottle washing, empty bottle inspection, filling and screw capping to labelling, full bottle inspection, crate packing, crate inspection and palletizing. The existing crate depalletizer and palletizer are available on site; however, due to their age and outdated technology, it is recommended not to include this unit in the line acquisition. Instead, suitable modern depalletizing equipment can be offered and integrated into the line concept according to the buyer’s requirements. The line has a nom ...

Used KRONES Gera Returnable Glass Bottling Line, 20000 BPHTechnical Specifications & Performance DataThis used bottling line is a complete returnable glass bottling line designed for handling bottles in crates, covering the process from crate preparation through filling, labeling, inspection, crate packing and palletizing. The line combines equipment from Krones, Kettner, Rink, Syscona, Matec, Falterbaum and Bohrer.Filler capacity: 20,000 bphFilling type: isobaric filling (counter-pressure) - ( Heineken-style)Premix capacity: 22,000 L/hContainer formats: 0.33L and 0.75L returnable glass bottlesPackaging configuration: bottles in cratesClosure type: plastic screw caps Labeling technology: wet-glue labeling with 2 aggregatesMain equipment years: 1996–2016Advanced Automation & Control SystemsThe line includes automated systems for crate sorting, crate decapping, bottle unloading, washing, ...

6-colour format: 720 mm<br>TYP: 500, 6 INTAGLIO + 1 FLEXO, PAPIER & FOLIEN 50-150 GSM, ROLLS of 800 MM WIDTH: 750 MM;<br><br>Still in operation: Yes<br>Verf Gbar: immediately

6-colour format: 900 MM<br>ROTOPAK 1/S, 50-200 G, WEB WIDE: 820 MM, ROLLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

<br>DECOIL DURCHMESSER: 1000 MM, AUFWICKLER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-colour format: 900 MM<br>ROTOPAK 1/S, 50-200 G, WEB WIDE: 820 MM, ROLLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Complete system installed in 1997 - still in production - Avantra 44S with 3600 dpi - Online Rapiline for Avantra44 - Collecting basket, cable, everything with The whole system was under maintenance contract, is complete tested and cleaned Available: in production

<br>AGFA APIS-Board Rev. A5. For AccuSet 800 / 1000 and Avantra 25<br><br><br>br>Verf Gbar: now

R23801/12 JAGENBERG Roller cutter Model: Vari Major Built: 1974 Width: 3,800 mm Materials: - coated paper, glossy and matte, grammage from 50 to 250 g/m2. max. speed: 1,500 m/min. for paper 250 g/m2 (The speed depends on the quality and grammage of the paper.) max. unwinding diameter: 2,500 mm max. winding diameter: 1,525 mm min. cutting width: 100 mm Number of upper knives: 6 Winder: 5 Single Winder max. roll width: 1,730 mm min. roll width: 450 mm max. unwinding diameter: 1,525 mm min. unwinding diameter: 300 mm 600 mm max. roll weight: 35 kN Available: immediately
