5 GILDEMEISTER ctx 420 linear used machines

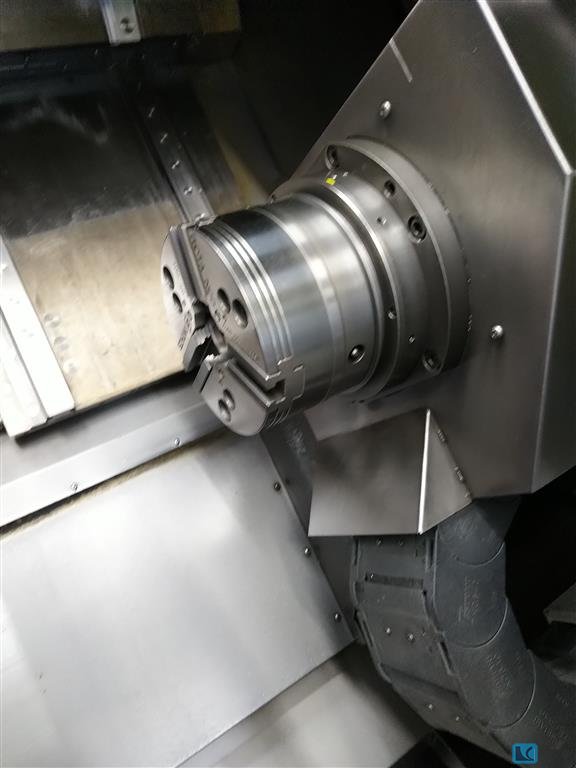

CNC lathe GILDEMEISTER CTX 420 linear With control Heidenhain ELTROPILOT 4290 Year of Make: 2003 Max. rotatable diameter: 324 mm Max. rotatable length: 600 mm Max. circumferential diameter: 680 mm Spindle bore: 79 mm Max. spindle speed: 4500 rpm With the following accessories: Slide protection with interior lighting 12-speed revolver Various tool holders VDI 40 Tailstock with quill Chip conveyor Hydraulic jaw chuck SMW Autoblok 0 250 mm Foot switch for jaw chuck + tailstock adjustment Oil mist extraction Coolant Setup Operating Instructions

Key data: 685 mm, 635 mm

Circumference over bed 685 mm Turning diameter over carriage 465 mm Turning length 635 mm Speed range 5000 rpm Drive power 100/40% 25 /37 KW Weight 6500 KG CNC HEIDENHAIN Pilot BERG Chuck 12-fold SAUTER revolver VDI 40 m. WZ Tailstock hydraulic Chip conveyor 25 steel holders 8 drill rod holders 10 antr. Holder axisl u.radial

turning diameter: 680 mm turning length: 600-635 mm control: Siemens total power requirement: kW weight of the machine ca.: 6500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 324 mm, 600 mm

Control: HEIDENHAIN CNC Pilot 4290 Max. spindle speed: 5,000 1/min C-axis Max. bar passage: 65 mm Travel: X= 260, Z= 630 mm 12-station turret (all driven, max. 4,500 rpm) Tailstock Tailstock stroke: 580 mm Chip conveyor Dimensions LxWxH: 3500 x 2440 x 2100 mm (without chip conveyor) Weight: 6,000 kg Switch-on hours: 32,600 h Spindle hours: 7,600 h

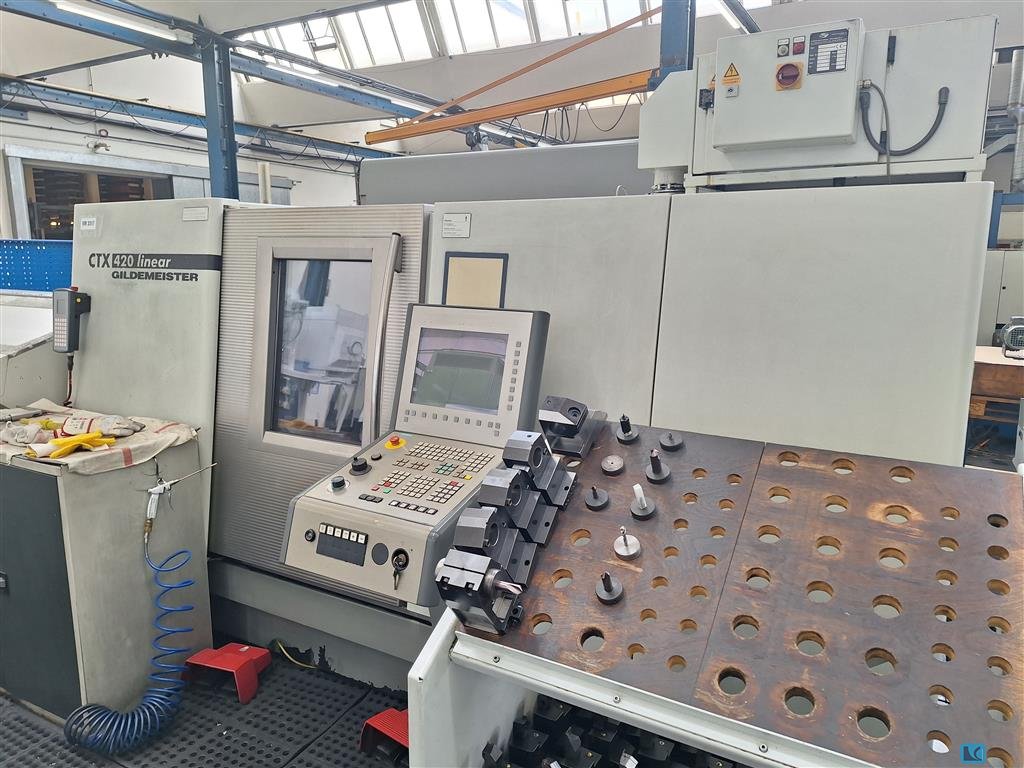

This 3-axis Gildemeister CTX 420 linear was manufactured in 2003. It features a max turning diameter over bed of 680 mm and a chuck diameter of 250 mm, suitable for diverse turning tasks. Equipped with a bar feeder and driven tools, it enhances productivity and precision. If you are looking to get high-quality turning capabilities, consider the Gildemeister CTX 420 linear machine we have for sale. Contact us for more information about this machine.
