7 HAUSER jig grinding machines used machines

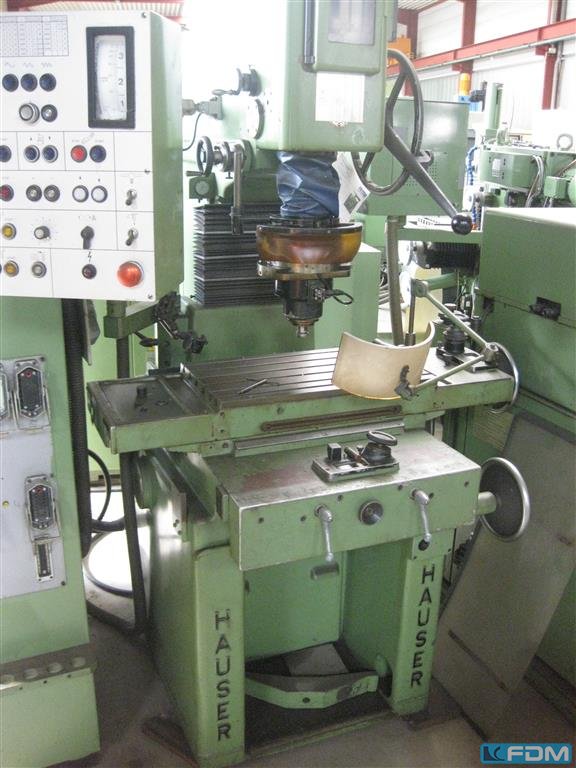

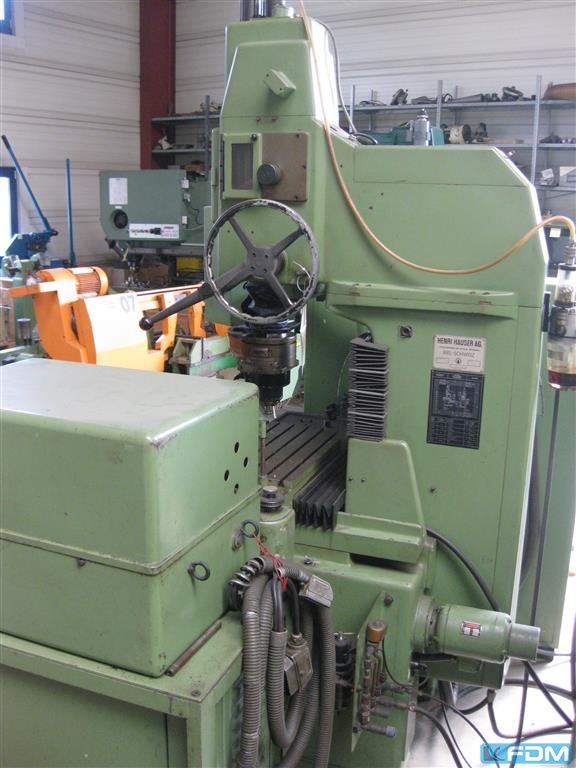

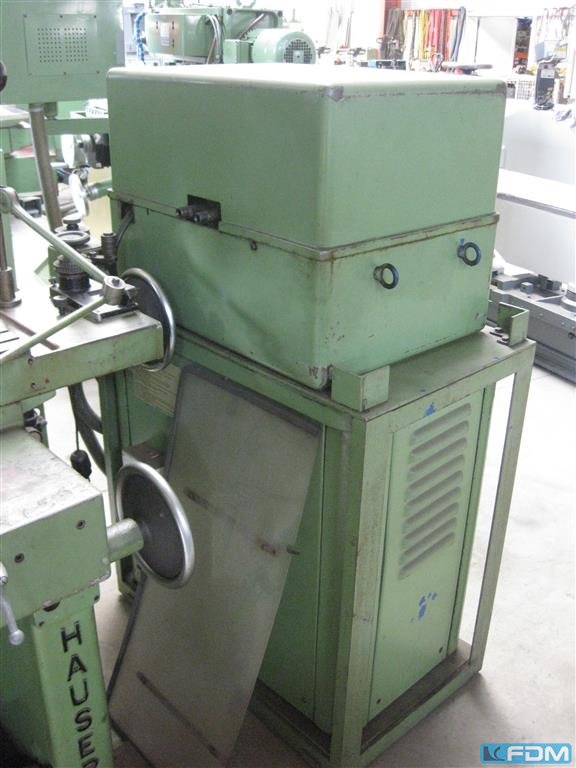

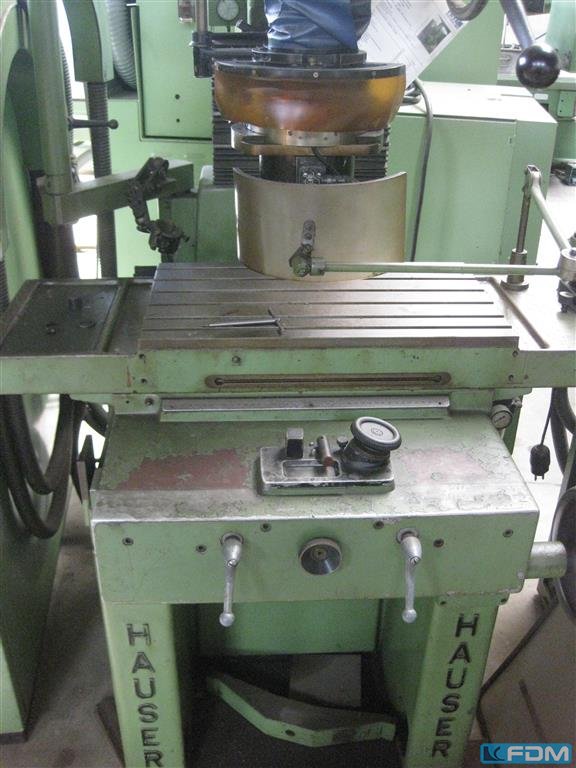

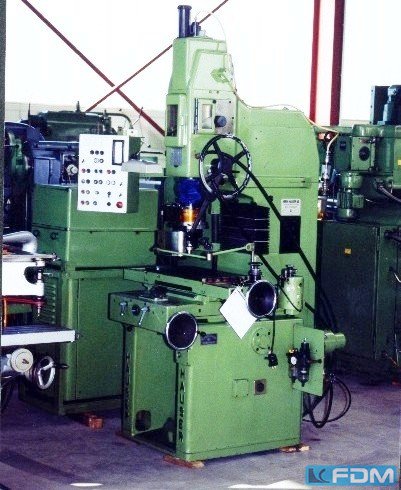

Code 9602 DESCRIPTION Vertical JIG Grinder Make HAUSER Modell 3 SMO Serial No. 257 Machine No. 1519-2564 Table surface 600 x 320 mm Table movement longitude (X) 400 mm Table movement cross (Y) 250 mm Max. grinding diameter Ø 190 mm Column-Spindle 300 mm Max. height under spindle 500 mm Vertical movement spindle 90 mm Vertical movement grindinghead 500 mm Max. speeds grindingspindle up to 80.000 omw./min Weight 2000 kg Total power 6,6 kW – 380 Volts Accessories Grinding spindles, etc. Condition Machine is in good condition

x-travel: 400 mm y-travel: 250 mm workpiece height: 400 mm total power requirement: - kW weight of the machine ca.: 1,5 t dimensions of the machine ca.: 2 x 3 x 2 m No. 0444 Jig grinder HAUSER 3 SM Working area: 400 x 250 x 400 2-axis digital display The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 400 mm y-travel: 250 mm workpiece height: mm Control: CNC 314 ELESTA total power requirement: 15 kW weight of the machine ca.: 5500 kg dimensions of the machine ca.: m H A U S E R (Switzerland) CNC - Controlled High Precision Jig Grinding Machine Model S 3 – CNC 314 Year approx.. 1990 S/N 32086 ____________________________________________________________ Table size, approx. 600 x 380 mm Max. load on table, approx. 300 kg Table travel, longitudinal, max. (X Axis) 400 mm Table travel, cross, max. (Y Axis) 250 mm Vertical adjustment of grinding head max. (W Axis) 450 mm Stroke of grinding spindle, max. (Z Axis) 120 mm Table Longitudinal and cross feeds (X/Y-Axis) 0 – 1.500 mm/min Speed of grinding head stroke 15 – 12.000 mm/min Vertical distanc ...

x-travel: 400 mm y-travel: 250 mm workpiece height: 485 mm Control: ELESTA CNC 314 total power requirement: 10 kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m H A U S E R CNC - Controlled Vertical Precision Coordinate Grinding Machine Model S 3 – CNC 314 Year 1987 / 1998 partially reconditioned by Swiss-HTT # 0463 ____________________________________________________________ Table size, approx. 600 x 380 mm Max. load on table, approx. 300 kg Table travel, longitudinal, max. (X Axis) 400 mm Table travel, cross, max. (Y Axis) 250 mm Vertical adjustment of grinding head max. (W Axis) 450 mm Stroke of grinding spindle, max. (Z Axis) 120 mm Table Longitudinal and cross feeds (X/Y-Axis) 0 – 1.500 mm/min Speed of grinding head stroke 15 – 7.500 mm/mi ...

x-travel: 650 mm y-travel: 450 mm workpiece height: 585 mm Control: ADCOS CNC 400 total power requirement: 15 kW weight of the machine ca.: 5000 kg dimensions of the machine ca.: m H A U S E R (Switzerland) CNC Controlled Hi Precision Double Column Jig Grinder Model S 40 – CNC 311 / ADCOS 400 CNC Year 1981 / CNC modernized in 2008 # 0126 _____________________________________________________________________ Table size approx. 630 x 770 mm Table load capacity approx. 500 kg Table travel longitudinal max. (X) 650 mm Grinding head slide cross max. (Y) 450 mm Vertical adjustment of cross rail max. (W) 500 mm Grinding spindle stroke max. (Z) 140 mm Stroke number of grinding head (4cycles) 0,5-12 m/min. Vertical distance between Table/grinding spindle 0-585 mm Dista ...

Jig grinding machine HAUSER S3-111

HAUSER S40 400 CNC coordinate grinding machine TECHNICAL FEATURES: X-axis travel: 650 [mm] Maximum speed X-axis travel: 4000 [mm/min] X-axis working feed speed: 0 - 1800 [mm/min] Y-axis travel: 450 [mm] Y-axis working feed speed: 0 - 1800 [mm/min] Z-axis travel: 130 [mm] Minimum speed. Z-axis travel: 0.5 [mm/min] Maximum speed Z-axis travel: 12000 [mm/min] Z-axis stroke frequency: max. 4 [Hz] W-axis travel: 500 [mm] C-axis speed (planetary): 5 - 250 [rpm] Maximum speed W-axis travel: 800 [mm/min] U-axis stroke (radial advance): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clear passage between grinding motor and table: 585 [mm] Maximum weight Tabletop Allowable: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] EQUIPMENT INCLUDED: x1 HI-CUT pack including: -protection of the work area -Exhaust device with ele ...

HAUSER S40-400 CNC coordinate grinding machine TECHNICAL FEATURES: X-axis travel: 650 [mm] Maximum speed X-axis travel: 4000 [mm/min] X-axis working feed speed: 0 - 1800 [mm/min] Y-axis travel: 450 [mm] Y-axis working feed speed: 0 - 1800 [mm/min] Z-axis travel: 130 [mm] Minimum speed. Z-axis travel: 0.5 [mm/min] Maximum speed Z-axis travel: 12000 [mm/min] Z-axis stroke frequency: max. 4 [Hz] W-axis travel: 500 [mm] C-axis speed (planetary): 5 - 250 [rpm] Maximum speed W-axis travel: 800 [mm/min] U-axis stroke (radial advance): 5.5 [mm] Distance between columns: 750 [mm] Table length: 770 [mm] Table width: 630 [mm] Clear passage between grinding motor and table: 585 [mm] Maximum weight Tabletop Allowable: 500 [Kg] Supply voltage: 400 [V] Weight: 4550 [Kg] ADDITIONAL INFORMATION: x1 HI-CUT pack including: -protection of the work area -Exhaust device with ...

x-travel:400 mm y-travel:250 mm workpiece height:500 mm grinding diameter:220 mm table surface area:600 x 320 mm throat:310 mm range of angles:12 ° grinding wheel stroke - vertical:110 mm stroke speeds:0 - 6 m/min grinding spindle speed:bis 50000 U/min peripheral speed:max. 35 m/sec capacity:ca. 7 kVA power capacity:6 kW weight of the machine ca.:2 t dimensions of the machine ca.:3 x 3 x 3 m rotary table d = 300 mm frequency changer Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

spindle diameter: 85 mm x-travel: 400 mm y-travel: 250 mm z-travel: 140 mm w-axis: 450 mm table surface area: 600 x 380 mm table load: 300 kg speeds: 30 - 2500 U/min adjustment speed: 0,02 - 0,08 mm/min tool taper: SK 30 Control: Elesta CNC 211 total power requirement: 9,2 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2750 x 1700 x 2700 mm - CNC Control Elesta 211 - with misc. tool holders The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control: Fanuc 16MB Max.travel range: X 1300 mm Y 800 mm Z 635 mm Clamping table: 1440 x 860 mm Spindle speed ? 4500 - 80000 rpm Taper ? HSK25 Tool changer ? 12 positon Automation: Erowa Easy changer XT for 4 UPC pallets, Robot.Made in Switzerland

Control: Fanuc 16MB Max.travel range: X 1300 mm Y 800 mm Z 635 mm Clamping table: 1440 x 860 mm Spindle speed ? 4500 - 80000 rpm Taper ? HSK25 Tool changer ? 12 positon Automation: Erowa Easy changer XT for 4 UPC pallets; Robot Made in Switzerland

Grinding spindle to Hauser coordinate grinding machines. 2 electric spindles with mounting shaft 3mm and 1 compressed air grinding spindle for receiving shaft 3mm. All spindles are tested for function.

A CNC jig grinding machine Hauser is available. Weight: approx. 3000kg, control: ADCOS CNC 400, control option: ASS. Includes a coolant system and various accessories. An on-site inspection is possible.

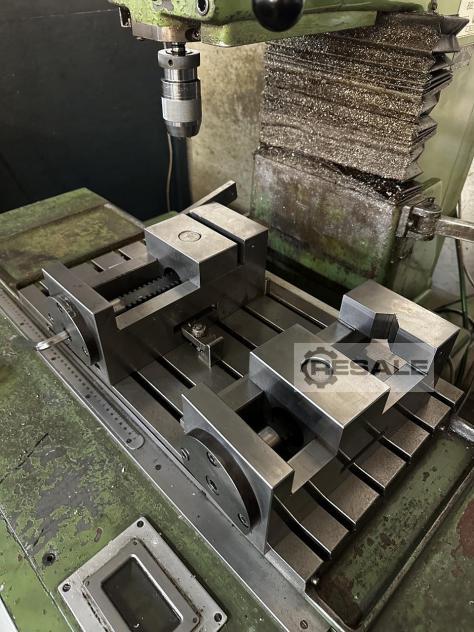

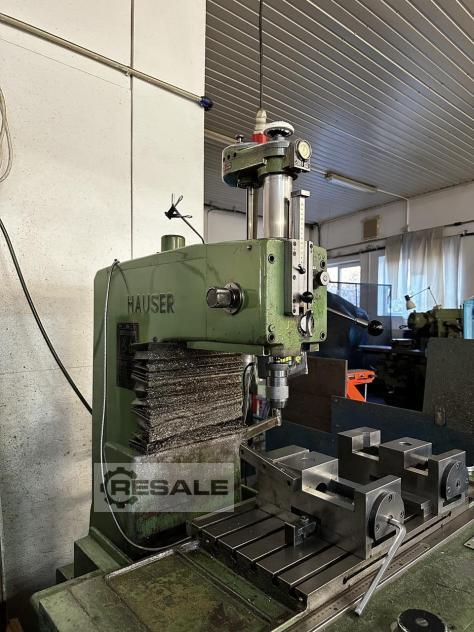

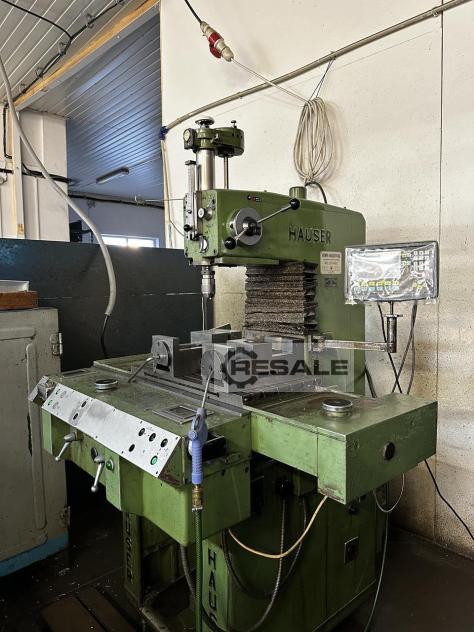

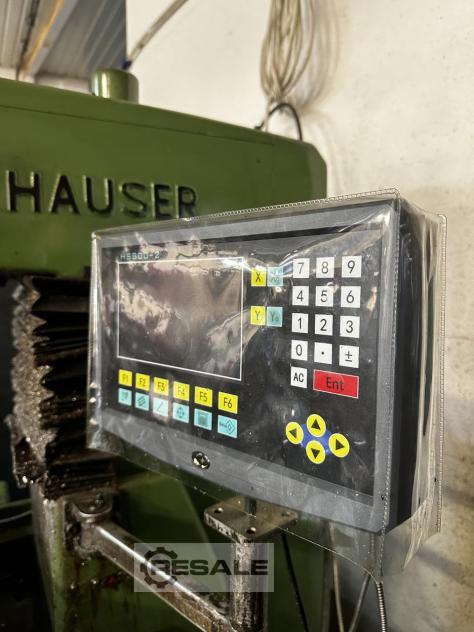

Jig boring/Milling machine HAUSER 3DR Travel X: 400 mm Travel Y: 200 mm Travel Z: 400 mm Spindle: 2 speeds Cone:CM2 Spindle exit: 120 mm 2 speed ranges 60-1500 RPM / 1500-3000 RPM Table size: L 590 mm x W 320 mm Speed variator at the spindle 2 advances Auto descent: 0,03 mm/min - 0,06 mm/min X-axis functional with Mitutoyo devise Y and Z axis: defective scale Voltage: 380 V Width: 1500 mm Depth: 1700 mm Height in low position: 1800 mm Weight: approx 1,5 T

Magnetic swivel table as shown in the pictures. Further information on request
