4 HOMAG numerically controlled machining centres used machines

I sell radius copy milling unit for edges suitable for CNC machining center machines with edge banding HOMAG, WEEKE, BIESSE, SCM, MORBIDELLI, HOLZ-HER, IMA, FELDER, MASTERWOOD, BUSELLATO, etc. n 12,000 rpm. Radius R2mm. HSK63 posture. Available the same.

Key data: 4500 , 1300 , 485

CNC machining center VEGA 5X 5 axis center

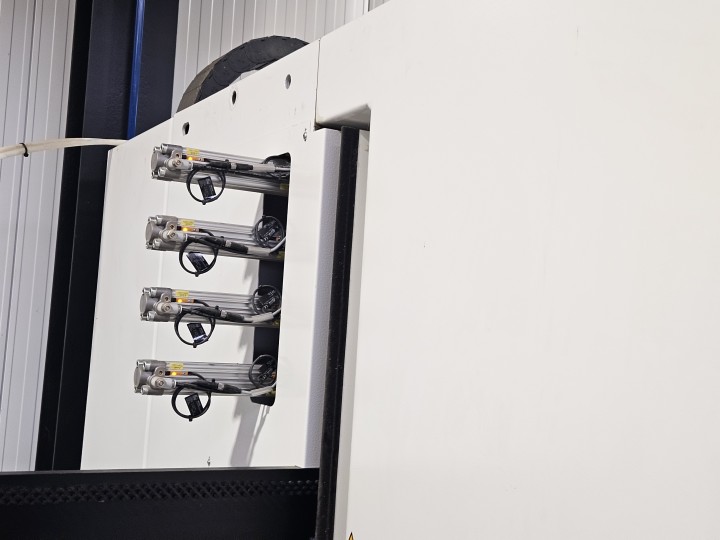

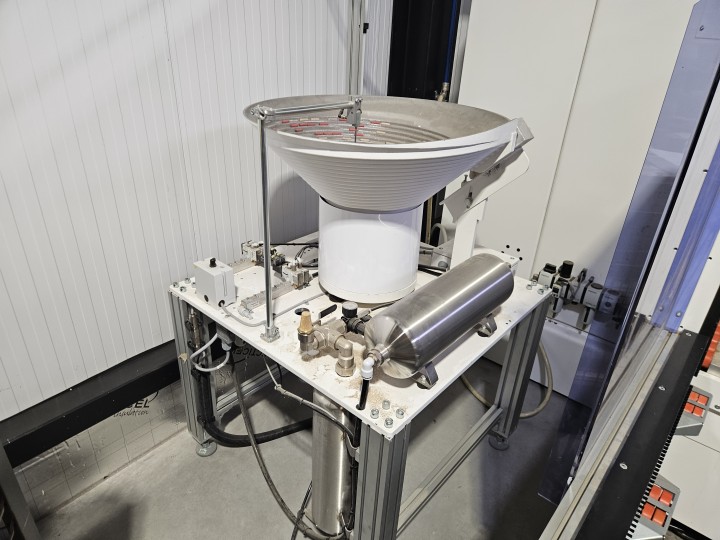

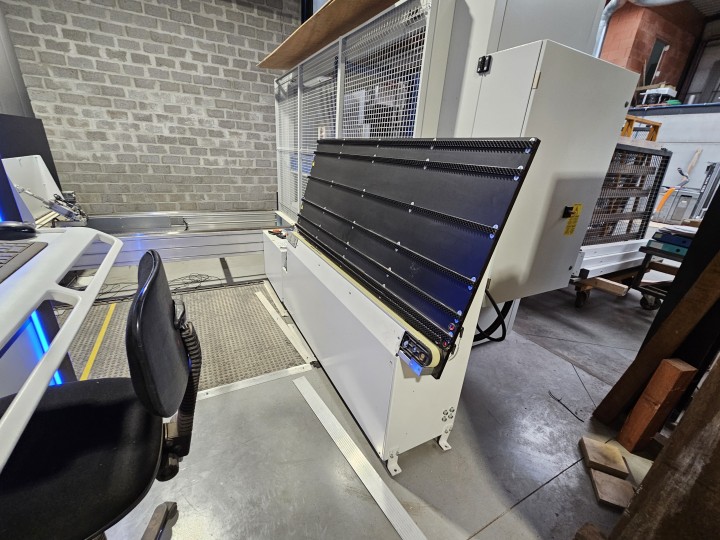

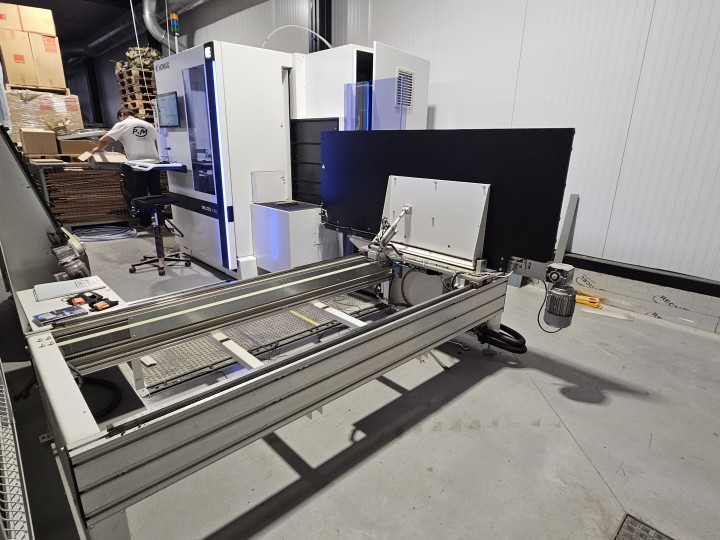

I am selling a vertical continuous CNC milling and drilling machine HOMAG Weeke Drillteq V-200 (formerly BHX 055), built in 2023. Configuration: 1 pc. milling unit with tool change 4-positions HSK63 13 + 4 + 2 pcs Drilling Spindles 1 pc grooved saw Feed back, which slices the elements back to operator or rear as the conveyor machine. Condition as good as new. With full documentation and CE Available the same.

axis stroke (X,Y,Z): 6175x1550x300 mm Number of spindle head vertical: 20 St. Number of spindles head horizontal: 10 St. Number of milling agregates: 1 St. Speed: 24.000 U/min. Capacity: 300 kg/h Sawing unit: ja_yes 0 Control: Homag PC85 CNC powerTouch HOMAG BMG 511 /60/12/F/K Profi ----------------------------------- Machine already professionally dismantled and stored at our warehouse in Oberkochen: - 5-axis CNC processing center - Moving gantry machine (dual-drive gantry system) - 1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm - 1 HOMAG Multi Processing Unit Drilling head with 30 spindles: V20 / H10 / S360° MPU MultiProcessingUnit with C-axis +/- 185° - 1 Chain tool changer, 30-position - Includes SL laser projector - Includes vacuum suction cups (as available) - Spare parts and accessories as shown in photos - Last HOMAG 5-axis service: 2024 - Last HOMA ...

Key data: 4200 mm, 1500 mm

Homag CNC BAZ, Optimat 232/40/K Power Control PC85, Woodwop, ATC 12-fold, A lot of accessories, Gluing unit, ... 2 retractable and extendable changing tables, two-part clamping table with 2 processing stations for pendulum assignment, edge height max. 65 mm, chip and offcut disposal, drill head 17 spindles, main spindle 14.5 KW, speed 24000 1/min Incl. many accessories Condition: dismantled

Key data: 6000 mm, 1580 mm

HOMAG Optimat BOF 311 - Year of construction 2008 - Software WoodWOP 5 - Main spindle 18.5 kW (overhauled in 2024) - Tool changer 30 places (sale without tools/aggregates) - Main spindle with C-axis (Flex-5 interface) - Automatic table - Immediately available - Including dismantling and loading

Manufacturer: Homag, Type: BAZ 20 - 50 -12, Year: 1994, Control: Homatic, Working range X: 6000, Working range Y-axis: 1400, C axis: yes, Number of milling spindles: 1, Tool adaption system: HSK, Milling engine 1 hours power: 12, pm: 1800-24000, pm: 1800-24000, raster table: yes, Vacuum pumps m³/h: 2 X 100, Drill vertical: 14+7, Saw unit: yes, Edgebanding unit: yes, Verleimhöhe max.: 45, Vorbeschichtete Kante: no, Radial arm machine: yes, Year :1994

Manufacturer: HOMAG Optimat , Type: BOF 32/30/K, Year: 1999, Control: Homatic, Maschinensteuerung: 80, Programming station office: 3600, Work piece width min-max mm: 1200, Min.-max. workpiece length in mm: 150, Min.-max. workpiece height in mm: 1, Throuh running machine: 2, Feeding speed max m/min: HSK 63, Working range X: 12, Working range Y-axis: 24000, Working range Z: 12, Working range Y-axis: 24000, B-axis: 2, Pendulum processing: 12, Tool adaption system: 2 X 12, Milling engine 1 hours power: 2 X 7, U/min 1) Vertikal: 2 X 6, Milling engine 2 hours power: 2 X 6, Frässpindel horizontal 1 kW: 4, U/min 1) Horizontal: yes, Bohrergetriebe Horizontal: 2 X 120 , Kettenwechsler: no, Working widht max mm: yes, Max. working depth in mm: inkl Werkzeuge und Zubehör, Year :1999

Manufacturer: Homag, Type: Optimat BAZ 311/40/K, Year: 2007, Software: PC85 CNC CORE Z, Feeding speed max m/min: X,Y-80, Z-30, Working range X: 4000, Working range Y-axis: 1220, Working range Z: 12-300, Year :2007

Manufacturer: Homag, Type: Genius 20/50/14/G, Year: 1996, Control: Homatic, Work piece width min-max mm: 1400, Min.-max. workpiece length in mm: 5300, Min.-max. workpiece height in mm: 40 / 60, C axis: yes, Tool adaption system: HSK 63F, Milling engine 1 hours power: 12, rpm 1): 1500 - 18.000, Number of tool changers: 1, Number of tools per tool-magazine: 30, Vertical drills-X: 11, raster table: yes, 2 station allocation: yes, Saw unit: yes, Edgebanding unit: yes, Magazine for edges: 1-fach, Edgeband hight mm: 40, Marking laser: yes, Year :1996

This 4-axis HOMAG PROFI BAZ20/30/16/V/D was manufactured in 2003. It features a Homatic CNC control, WOODWOP CNC programming, an 18-position disk changer, and a main spindle with a 12 kW three-phase motor. Capable of handling workpieces up to 3000 mm in length and 1400 mm in width, it includes a continuous table with adjustable vacuum clamps. Consider the opportunity to buy this HOMAG PROFI BAZ20/30/16/V/D CNC Wood Machining Centre. Contact us for more information.

Manufacturer: Homag Doppelspindelfräse 4 Achsmaschine, Type: BMG 512, Control: Woodwoop 6.0, Min.-max. workpiece length in mm: 4500, Min.-max. workpiece height in mm: 1600, Aluminium processing: 300, Throuh running machine: yes, Feeding speed max m/min: yes, C axis: 2, B-axis: HSK 63, Pendulum processing: ca.12, Work piece width min-max mm: 1800-24000, Min.-max. workpiece length in mm: ca.12, Horizontal: 1, Number of milling spindles vertical: 14, rpm 1): 9, Milling engine 2 hours power: 6, rpm 2): 2, Number of tool changers: 2, Kettenwechsler: yes, Pickup Wechlser: yes, Working widht max mm: 6, Horizontal drills-X: yes, Belt conveyor: yes, Number of tables: yes, Traverse table: 120, Aluminium sleeking table: Automatisch, roller table: 16, 2 station allocation: yes, Stops in the table rear: yes, Drill vertical: yes, Edgeband hight mm: yes, Magazine Qty: no, Schnittstelle DXF: ink.Werkze ...

Manufacturer: Homag BAZ , Type: 211 Venture 22 L, Year: 2006, Control: Woodwop/Powercontrol PC 85, Software: Softwarepaket AV, Work piece width min-max mm: 4400 X 1550, Feeding speed max m/min: X= 80/Y=80/Z=30, C axis: yes/Schnittstelle Flex 5, Pendulum processing: yes, Work piece width min-max mm: 4400 X 1550, Number of milling spindles: 1, Number of milling spindles vertical: 1, Tool adaption system: HSK 63 F, Milling engine 1 hours power: 12, rpm 1): 1500-24000, Number of tool changers: 1, Tellerwechseler: 1, Pickup Wechlser: Verleimteil/Easy Edge, Number of tools per tool-magazine: 18, Vertical drills-X: 11, Drill vertical Y: 7, Horizontal drills-X: 1, Drill horizontal Y: 2, Traverse table: 8 Traversen, 2 station allocation: yes, Stops in the table front: yes, Stops in the table rear: yes, Vacuum pumps m³/h: 250, Saw unit: yes, Edgebanding unit: yes, Edgeband hight mm: 60, LED-Rüst ...

Manufacturer: HomagTürenfertigung mit mit Verleimteil und KUKA Roboter, Type: BOF / BAZ20/50/18/2/D, Year: 2002, Control: Homatic PC 83, Software: Woodwop, Work piece width min-max mm: 1600, Min.-max. workpiece length in mm: 800 - 3500, Min.-max. workpiece height in mm: 12 - 60/120, Working range X: 5800, Working range Y-axis: 1600, Working range Z: 160, C axis: 2, Work piece width min-max mm: 1600, Min.-max. workpiece length in mm: 800 - 3500, Min.-max. workpiece height in mm: 12 - 60/120, Number of milling spindles vertical: 2, Tool adaption system: HSK F63, Milling engine 1 hours power: 14,5, rpm 1): 1500 - 18.000, Milling engine 2 hours power: 14,5, rpm 2): 1500 - 18.000, Kettenwechsler: 70, Pickup Wechlser: 6, Number of tools per tool-magazine: 6 + 70+ 20, Mitfahrender Werkzeugwechsler: yes, Belt conveyor: yes, 2 station allocation: yes, Vacuum pumps m³/h: 2 x 66, Rigging support  ...

Manufacturer: Homag mit Verleimteil, Type: Optimat BOF / 40 / G , Year: 2000, Control: WoodWOP, Programmierplatz Büro: yes, Work piece width min-max mm: 1050/1200, Min.-max. workpiece length in mm: 4800, Min.-max. workpiece height in mm: 60/200, C axis: yes, Tool adaption system: HSK F63, Milling engine 1 hours power: 12, rpm 1): 1500 - 18000, Number of tool changers: 1, Number of tools per tool-magazine: 12, Mitfahrender Werkzeugwechsler: yes, Vertical drills-X: 11, Drill vertical Y: 7, Horizontal drills-X: 4, Aluminium sleeking table: yes, 2 station allocation: 2, Stops in the table front: 6 , Vacuum pumps m³/h: 120, Saw unit: yes, Edgebanding unit: no, Marking laser: Laserpositionerhilfe, Radial arm machine: yes, Foot mats: yes, Available: ca. 03/2017, Year :2000

Manufacturer: Homag , Type: Genius 20/50/16/V/G, Year: 1998, Control: Homatic, Feeding speed max m/min: 80, Working range X: 5600, Working range Y-axis: 1600, Working range Z: 60/120, C axis: yes, B-axis: no, Tool adaption system: HSK F 63, Milling engine 1 hours power: 12, rpm 1): 1500 - 18000, Number of tool changers: 1, Number of tools per tool-magazine: 30, Vertical drills-X: 5, Drill vertical Y: 5, raster table: Glattisch, 2 station allocation: yes, 4 station allocation: yes, Stops in the table front: 14, Stops in the table rear: 3, Vacuum pumps m³/h: 66 + 100, Saw unit: yes, Edgebanding unit: yes, Edgeband hight mm: 40, Marking laser: yes, Year :1998

Manufacturer: HOMAG Year of manufacture: 2008 Model: PROFI BAZ 723/58/16/V/AP Type of machine: CNC Machining Center Voltage: 400 V, 50 Hz, 3 phase plus neutral Current: 90 A Control voltage: 24 V Find more here - .ucymachines/ Contact us at - sales@ucymachines

Bridge type Capacity for all units: 3300 x 1100 mm (alternating: 2 x 1025 x 1100 mm) Capacity for routing with tooldiameter 25 mm: 1550 mm Workpiece thickness up to 300 mm (stroke Z-axis 600 mm) Speed in X and Y: 60 m/min, Z: 25 m/min, Vector: 85 m/min 6 Support rails with LED positioning indication Vacuum: 100/140 m3/h Controlls: Powercontrol PC85 Waste/chip removal belt in machine base Machine pneumatically prepared to take pneumatic clamps, 3 pcs clamps included Drilling unit V9/H4, 13 spindles, motor 2,2 kW Main spindle DRIVE5C+, 5-axis, 10 kW, HSKF63 taper, speed 1000 to 24000 r/min, tooldiameter up to 180 mm for routing, 350 mm for cutting 14-fold rotary toolchanger and pick-up place for a sawblade Woodwop software

Bridge type Capacity for all units: 3300 x 1100 mm (alternating: 2 x 1025 x 1100 mm) Capacity for routing with tooldiameter 25 mm: 1550 mm Workpiece thickness up to 300 mm (stroke Z-axis 600 mm) Speed in X and Y: 60 m/min, Z: 25 m/min, Vector: 85 m/min 6 Support rails with LED positioning indication Vacuum: 100/140 m3/h Controlls: Powercontrol PC85 Waste/chip removal belt in machine base Machine pneumatically prepared to take pneumatic clamps, 3 pcs clamps included Drilling unit V9/H4, 13 spindles, motor 2,2 kW Main spindle DRIVE5C+, 5-axis, 10 kW, HSKF63 taper, speed 1000 to 24000 r/min, tooldiameter up to 180 mm for routing, 350 mm for cutting 14-fold rotary toolchanger and pick-up place for a sawblade Woodwop software

Edge gluing machine - see picture Next: Edge gluing machine NEY-SENIOR SKM 100/3 gemaess Pictures

Board repair line with double end profiling line in top condition !! Workpiece parameters of the plates: Min.: 900 mm x 200 mm Weight min. : 17 mm Max .: 5000 mm x 1250 mm Max. Weight: 60 mm Weight: max. 150 kg < Accuracy: +/- 0.2 mm The portals have a max. Clock power of: max. 6 cycles / min The max. Partial performance: 18 parts / min (DEP line) Year of construction 2008 Condition: good (Original price of the line 2008 Euro 4.9 million) Consisting of: * Feeding station with feeding rollers, * Automatic vacuum lifting table for lengths up to 6 m * Conveyor systems * Repair line 1 * Turning station * Transfer service * Repair line 2 * automatic vacuum lifter for stacking (6m) * Stacking roller conveyor * Control cabinet with machine control * Profilfraessanlage * Stacking Tables; very well

ID-Nr. 1-056-11-0400

Overview of the assembly: - Release agent spray unit top & bottom - Joining milling unit 2 x 4 kW - Glued part with workpiece preheating, 2 rolls, pressure zone C and QA34 application unit for PU with quick clamping system - autom. Adjustment pressure zone - Preparation for Lasertec activation unit - Hl84 cross-cut unit 0.8 KW - pneum. Adjustment pre-milling unit - Pre-milling unit Bf10 1.5 kW - Mould milling unit Fk11 Manual - Autom. Adjustment of chamfer to radius milling machines - Rolling side probe FK - Pneumatic adjustment FA11 for lateral displacement from the working area - Multi-drawing blade MN 21 autom. for a maximum of 5 different profiles. - Finishing unit (glue joint drawing blade and swabbing ridge) - Detergent spray unit top & bottom - powerControl PC22 Workpiece and edge parameters: - Workpiece width without edge min: - For workpiece thickness  ...

Overview of equipment: - Workpiece support scissor design with roller support, 1000 mm extendable - Infeed ruler automatically adjustable - Fixed stop side left - Inlet interlock pneumatically controlled - Upper pressure via driven composite V-belt - Height adjustment electric - Workpiece transport device via transport chain with rubber support - Release agent spray unit top/bottom - Joint milling unit 2 x 3 kW - Gluing part A20 with 2 rollers, consisting of workpiece preheating, Quickmelt application unit with quick clamping system, 2-roll magazine, pressure zone C (auto-adjustable, with 1 pre-press roll and 6 repress rollers) - Cross-cut unit HL84 0.8 kW, with autom. Adjustment chamfer/straight as well as pneum. Adjustment flush/protrusion caps - Pre-milling unit 1.5 kW, pneum. Adjustment of bündi/protrusion milling machines - Mould milling unit FK11 with autom. Adjustme ...

Interchangeable heads used, good condition 16 pcs. Interchangeable heads FK 11/13 devices, exchangeable at the top below. 1 Quickmelt incl. evaluation device level.
