KASTO hb used machines

BRAND: KASTO YEAR: 1995 MODEL: HBA 1060/1260AU APPLICATION TYPE: SAWING LOCATION: GERMANY MACHINE TYPE: SAWING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 5800 MM MEASUREMENTS DEPTH: 6700 MM MEASUREMENTS HEIGHT: 3400 MM MACHINE WEIGHT: 19000 KG CONTROL UNIT BRAND: KASTO MODEL: CNC TABLE OUTER LENGTH: 2500 MM OUTER WIDTH: 1250 MM TABLE LOAD: 20000 KG Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - MATERIAL DIAMETER 1060 MM - STRIP LENGTH 11400 MM - CUTTING WIDTH 1260 MM - CUTTING RANGE AT 90 DEGREES: SQUARE 1060 X 1060 MM, FLAT MATERIAL 1260 X 1060 MM - FEED LENGTH 2100 MM - CUTTING SPEED 16-80 M/MIN - AUTOMATIC PROGRAM - CHIP CONVEYOR - DIMENSIONS OF BAND SAW [M] 11430X80X1. 6MM - DIMENSIONS OF SAW BELT [INCHES]. 37' 6" X 3-1/8" X 0. 063" QUALITATIVE MACHINE BENEFITS: - B ...

Key data: 1 mm, 6300 mm

LHS Lagertechnik, supplier of shelving systems and general storage technology. Due to a customer's production closure, we are selling a KASTO HBA 420 band saw. In this ad, you will buy as follows: - 1 piece KASTO band saw HBA 420 - Year of construction: 1990 - Serial number: 17809 - Belt length: 6,300 mm - Band height: 41 mm - Band thickness: 1.3 mm -Conveyor - Connection voltage: 400 volts - Sale in as-is condition without guarantee and warranty - Loading with forklift, shipping and self-collection possible Sale in as-is condition without guarantee and warranty. Loading by forklift, shipping and self-collection possible.

Horizontal Band Saw Machine Fabr. KASTO Type HBA 340 AU Specifications: Cutting range 90° round 340 mm Cutting area 90° flat 340 x 380 mm Saw blade length 5334 x 32 x 1.06 mm Table height 700 mm Feed length 600 mm Multiple feed 1800 mm infinitely variable cutting speed 20 - 130 m/min. Drive power 6.5 kW External dimensions L x W x H approx. 2200 x 2600 x 2000 mm Weight approx. 2.1 t with-chip conveyor used, in good condition All information to the best of our knowledge but without guarantee until the order confirmation The machine can be demonstrated at the site near Aachen.

range L-W-H: 400x300x200 mm saw diameter: 420 mm weight of the machine ca.: 3500 kg Producer: KASTO Type: HBA 420U Year of manufacture: 1985 Dimensions (width x height x depth): approx. 400x200x300 cm At7Zcq Fully automatic NC horizontal bandsaw 1 chip conveyor, 1 external chip conveyor, 1 person. driven roller conveyor approx. 450 cm. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

range L-W-H: 3,50/2,40/2,20 mm weight of the machine ca.: 3500 kg Producer: KASTO, Type: HBA 420 AU, C93I8De Year of production: 1995 Fully automatic NC horizontal band saw with hydraulic clamping device up to 400 mm, 1 chip conveyor, 1 external chip conveyor, 1 roller conveyor, 1 roller conveyor, hydraulic drive, motor switched off, Dimensions (width x height x depth): approx. 400x200x350 cm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydr. Hacksaw KASTO HBS 210 / 240Masch. No. 1116 145 220 Year of construction 1994Saw range at 90 round 210 mmflat 240 x 190 mmsquare 210 x 210 mmat 45 round 150 mmSaw blade length 400 mmStroke rates 62 / 125 strokes per min. Material support height: 500 mmMotor power: 0.5 / 0.75 kWNerg connection: 400 volts, 50 Hz- Drive motor with 2 speeds- Coolant pump in the machine baseSpace required: L x W x H: 1200 x 500 x 1200 mmWeight: 170 kgGood condition; used

Key data: 1060 mm

Band saw Kasto HBA 10×12 built in 2007 Cutting areas: Cutting range around 1,060 mm Square cutting area 1,060 x 1,060 mm Cutting area flat 1,060 x 1,260 mm Clamping range 300 – 1,260 mm Smallest dimension to be sawn approx. Ø 300 mm Smallest section length 10 mm Minimum offcut length single cut 20 mm Minimum off-piece length automatic operation 100 mm Table load maximum 50to Travel table 6100mm Total drive power 20 kW Saw motor 11 kW Continuous cutting speed at 50 and 60 Hz 12 – 90 m/min Automatic feed length single 2,100 mm Clamping force machine vise 50,000 N Saw blade dimensions 11,430 x 80 x 1.6 mm Cutting feed: infinitely variable Material feed: hydraulic Material tension: hydraulic Saw blade guide: carbide, replaceable Saw blade tension: hydraulic Saw blade cleaning: by easily replaceable brush, motor-driven ...

cutting diameter: 320 mm saw band length: 6300 mm cutting range: 420 x 320 mm control: Siemens Simatic HMI cutting speed: 20 - 130 m/min height of material-table: 950 mm total power requirement: 15 kW weight of the machine ca.: 2920 kg dimensions of the machine ca.: 6,35 x 6,76 x 2,41 m Machine overhauled by Kasto in 2016 Equipment/accessories: - Cutting feed continuously adjustable - Pneumatic connection 6 bar - Coolant 75 l - Pump capacity 40 l - Roller conveyor - Chip conveyor - Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cutting diameter: 1060 mm saw band length: 11.430 x 80 x 1,6 mm cutting width: 1,6 mm cutting range: 1060x1260 mm Control: CNC cutting speed: 12-90 m/min power capacity: 11 kW table load: 20 t Cutting Length max.: 6100 mm total power requirement: 20 kW weight of the machine ca.: 21,1 t dimensions of the machine ca.: m Automatic feed length 2,100 - 6,100 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your vis ...

cutting diameter: 520 mm saw band length: 7239 mm cutting width: 1,3 mm Control: POSIMOD cutting range - square -: 520 x 520 mm feed length: 500 mm feed length: multiple: 4500 mm min. cut-off length: 6 mm length of rest piece min/max: 10 / 100 mm cutting speed: 20 - 130 m/min dimensions of saw-band: 7239 x 50 x 1,3 mm sawing motor: 5,5 kW total power requirement: 10,0 kW weight of the machine ca.: 3,8 t dimensions of machine L x W x H: 3,42 x 2,30 x 2,40 m - 2 column guided - Accessories: roller track 2500 mm length, chip conveyor, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cutting diameter: 520 mm saw band length: 7239 mm cutting range square: 520 x 520 mm feed length: 500 mm feed length: 4500 mm cutting length min.: 6 mm : 10/100 mm cutting speed: 20 - 130 m/min dimensions of saw-band: 7239 x 50 x 1,3 mm weight of the machine ca.: 4,2 t dimensions: 2300 x 3420 x 2385 m Control: MINIPOS 807 CNC control Minipos 807 Special accessories: - Coolant device - Chip conveyor - Removal roller conveyor - Standard jaws The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CONTROLS   PLC TECHNICAL SPECIFICATION   max. cutting height: 360 mm   sawband length: 5334 mm   sawband width: 41 mm   max. bar feed (single stroke): 600 mm   cutting speed min.: 14 m/min   cutting speed max.: 102 m/min   power of band drive: 5.5 kW ELECTRICAL SPECIFICATIONS   total power consumption: 10 kW DIMENSIONS / WEIGHTS   space requirements -left/right-: 2840 mm   space requirements -front/back-: 2800 mm   total height: 2130 mm   total weight approx.: 2540 kg

Key data: 360 mm

SPECIFICATIONS Max. cutting height: 360 mm Saw blade length: 5334 mm Saw band width: 41 mm Max. bar feed (single stroke): 600 mm Cutting speed of: 14 m/min Cutting speed up to: 102 m/min Saw blade drive power: 5.5 kW Power consumption 10 kW Space requirement -left/right-: 2840 mm Space requirement -front/rear-: 2800 mm Total height: 2130 mm Total weight approx.: 2540 kg from warehouse 95643 Tirschenreuth, loading free Shipping possible, transport costs are borne by the buyer The price includes 19% VAT! This will be shown separately in the invoice. This offer is aimed exclusively at entrepreneurs within the meaning of § 14 BGB. No returns for used goods! No warranty. A viewing of the goods is possible by arrangement. If you have any questions, please send us a message, we will answer as soon as possible. Thank you very much! Changes / errors in the techni ...

2001 Kasto KASTOFUNCTIONAL A Kastofunctional type 6420 (year 2001) GHA SCH Cutting range max. 260 mm Mitre angle +/- 45° Drive power 1.5 kW 2000 Kasto SSB 260 VA-CC Kasto automatic band saw SSB 260 VA (year 2000) GGA Cutting range max. 260 mm - Automatic material feed - Infeed and outfeed - roller conveyors Drive power 4 kW

BRAND: KASTO YEAR: 2018 MODEL: KASTOmicut U 4.6 PRODUCTION HOURS: 0 APPLICATION TYPE: SAWING LOCATION: IRELAND MACHINE TYPE: SAWING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 1540 MM MEASUREMENTS DEPTH: 3010 MM MEASUREMENTS HEIGHT: 1560 MM MACHINE WEIGHT: 1500 KG CONTROL UNIT BRAND: KASTO MODEL: SMARTCONTROL CNC MAIN LANGUAGE: ENGLISH CNC LANGUAGE CUSTOMIZABLE: YES WORKPIECE WORKPIECE X: 520 MM WORKPIECE Z: 335 MM MEDIA MAIN ELECTRONIC CONNECTION: 400 V POWER CONSUMPTION: 5,5 KW Additional Information MACHINE BENEFITS QUALITATIVE MACHINE BENEFITS: - PERFECT CONDITION - EX SHOWROOM MACHINE - NEVER USED

cutting diameter: 15 - 560 mm : 560 x 630 mm dimensions of saw-band: 7.400 x 54 x 1,60 mm Control: KASTO material feed - single: 900 mm multiple feeding length: max. 9.999 mm cutting length min.: 6,00 mm sawing motor: 5,50 kW cutting speed: 13 - 127 m/min height of material-table: 700 mm total power requirement: 12,00 kW weight of the machine ca.: 6,00 t dimensions of the machine ca.: 3,70 x 2,50 x H2,50 m Automatic two-column band saw with KASTO Compact Control, frequency-controlled saw band drive, chip conveyor, infeed roller-conveyor electrically driven (6m), 3x roll-conveyor 1m and outfeed roller 2m, Machine can be inspected under power. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A fully automatic metal band saw Kasto with roller conveyors is available. Mitre min./max.: -45°/60°, max. cutting diameter: 260mm, max. cutting dimensions X/Y: 300mm/260mm, saw band dimensions X/Y/Z: approx. 2910mm/27mm/0.9mm, machine dimensions X/Y/Z: approx. 1500mm/1850mm/1500mm, weight: approx. 900kg, control: Kasto BasicControl. Certain parts of the machine are defective. An on-site inspection is possible.

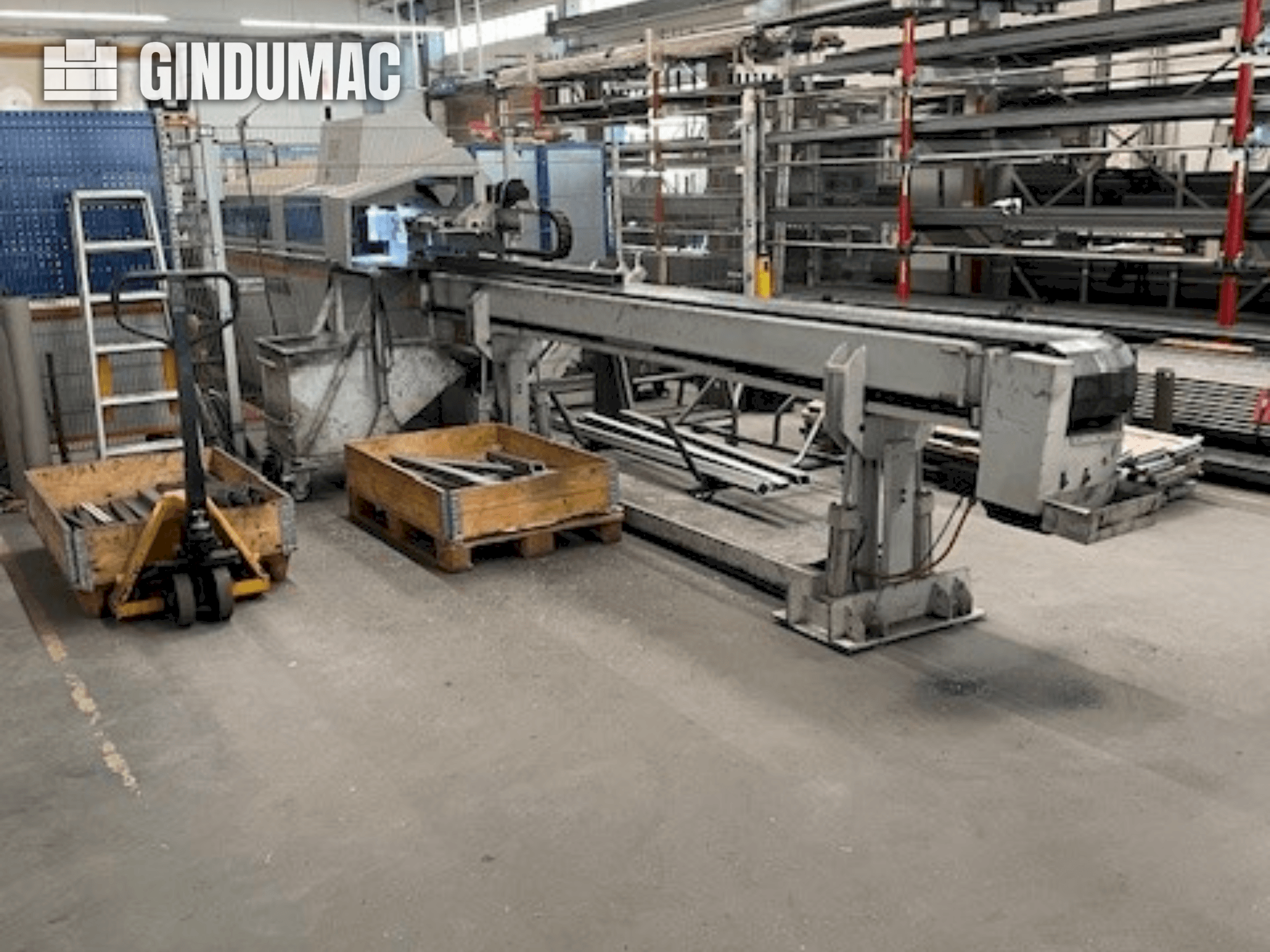

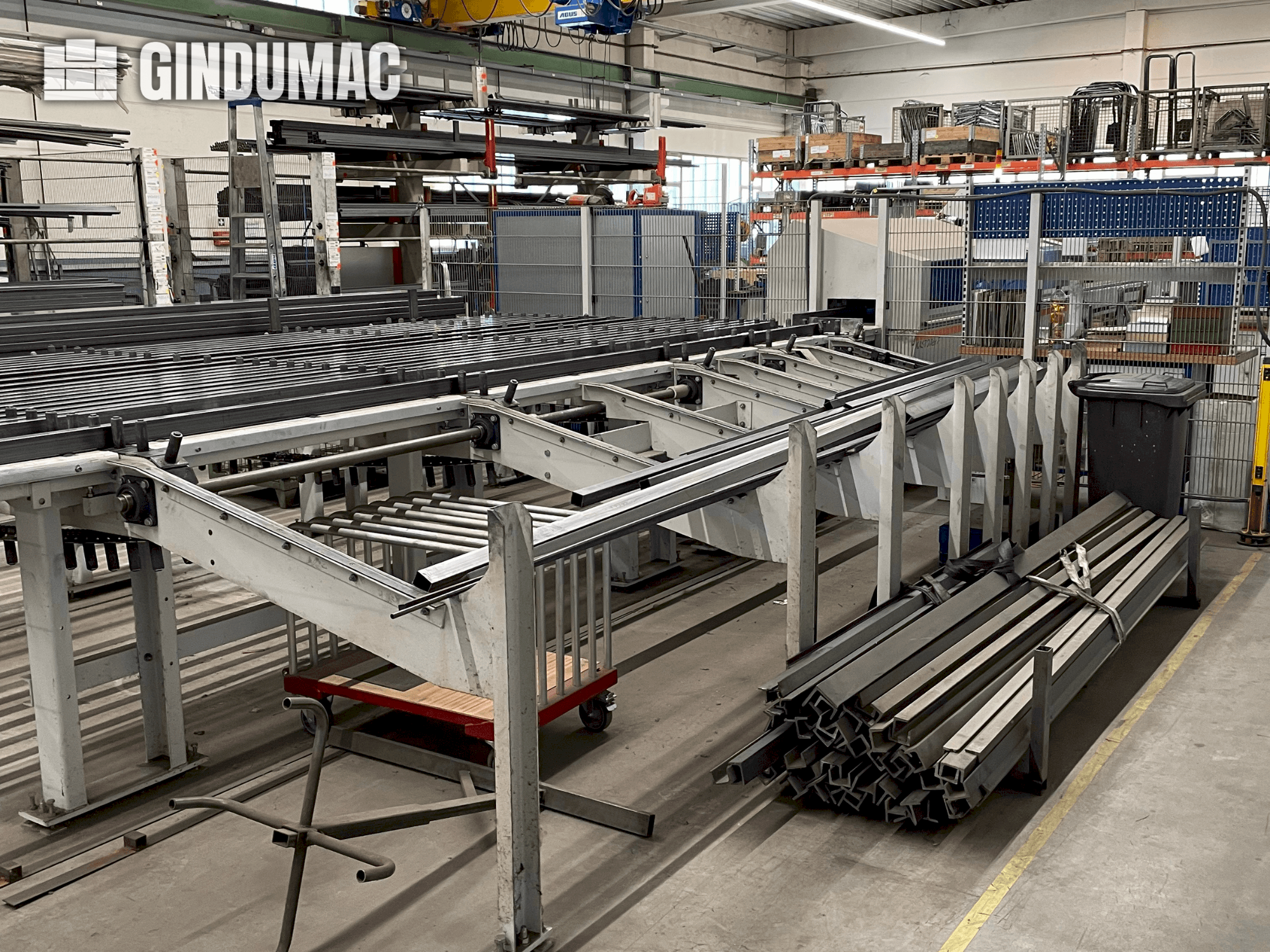

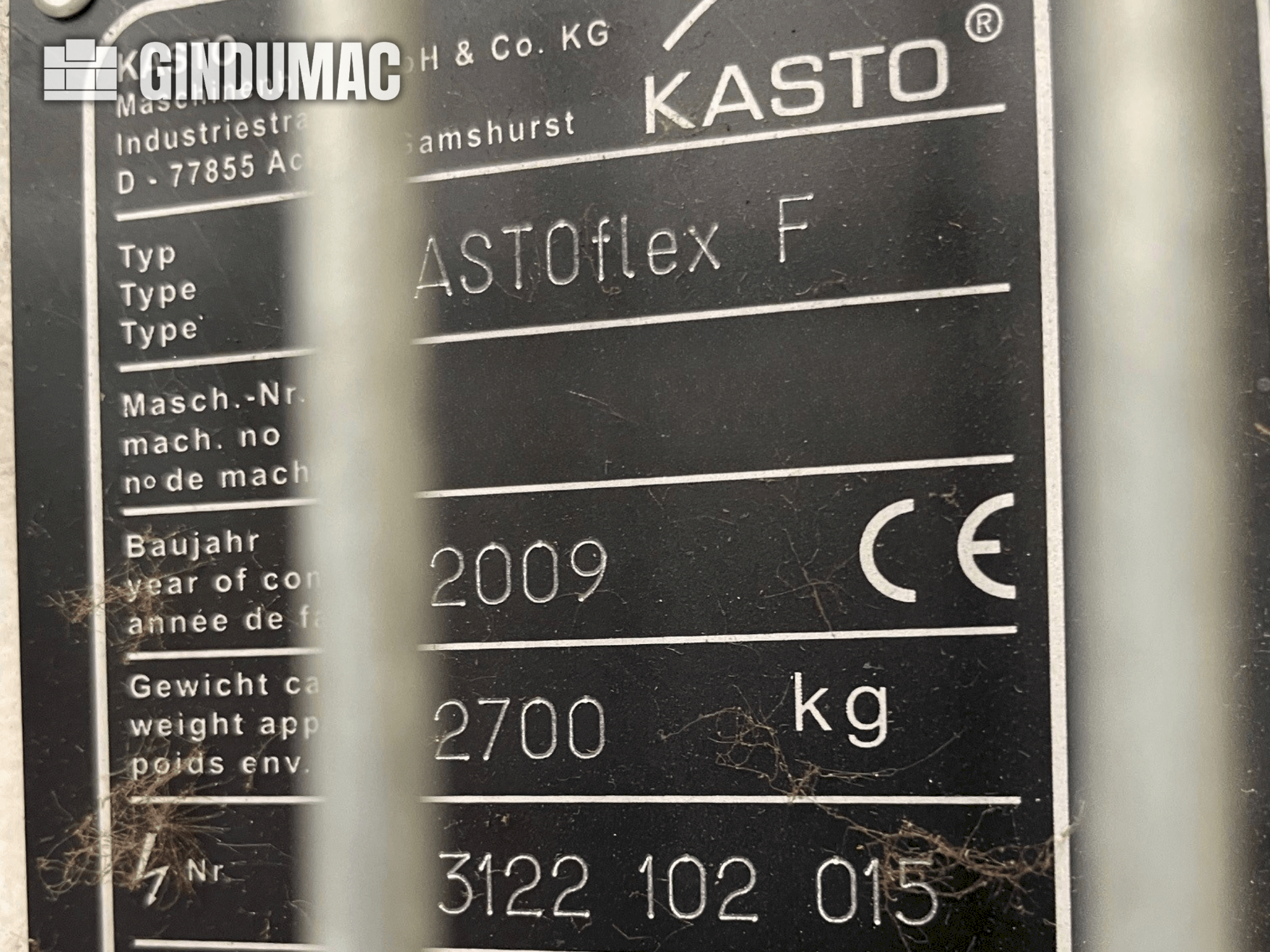

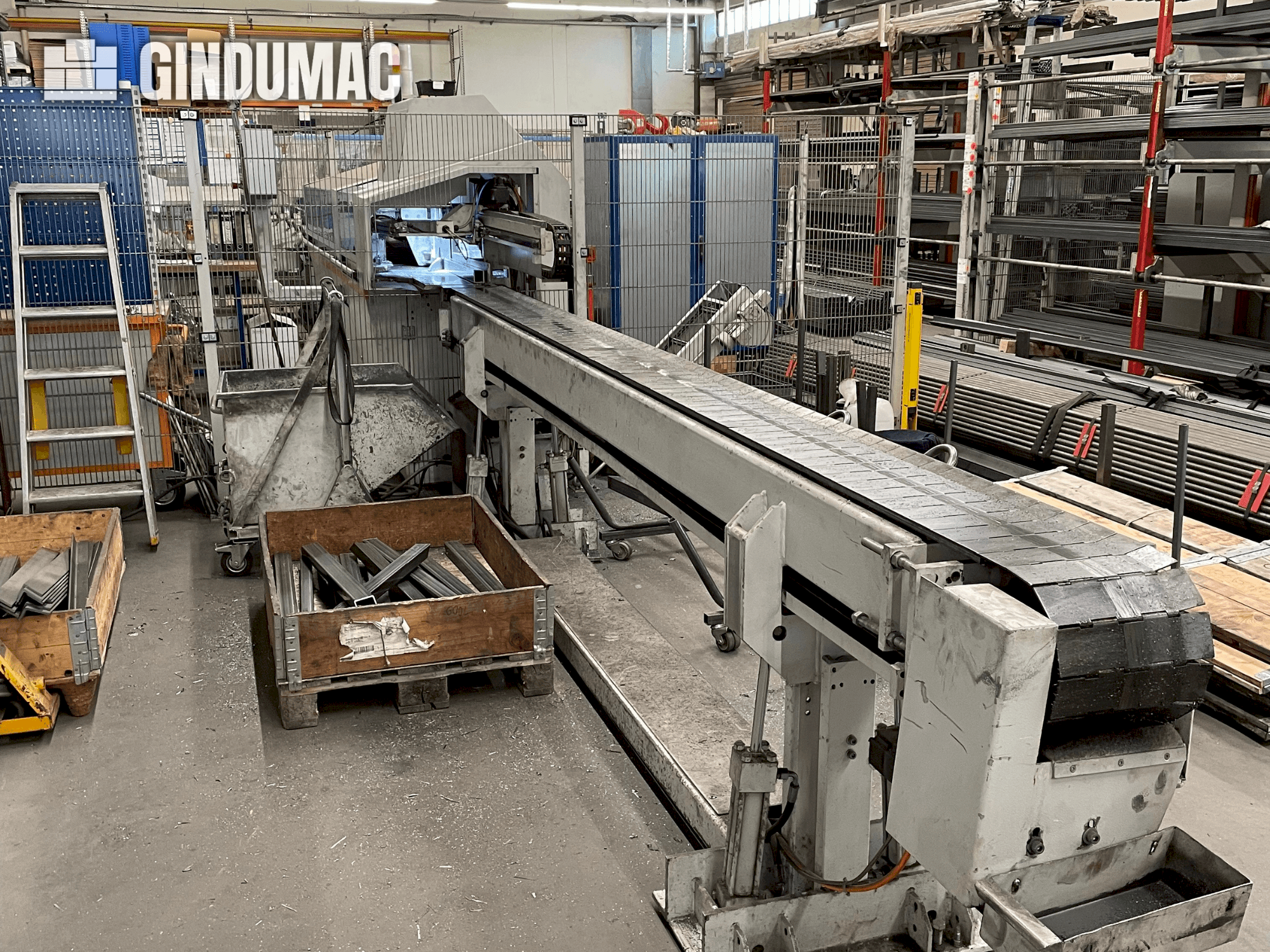

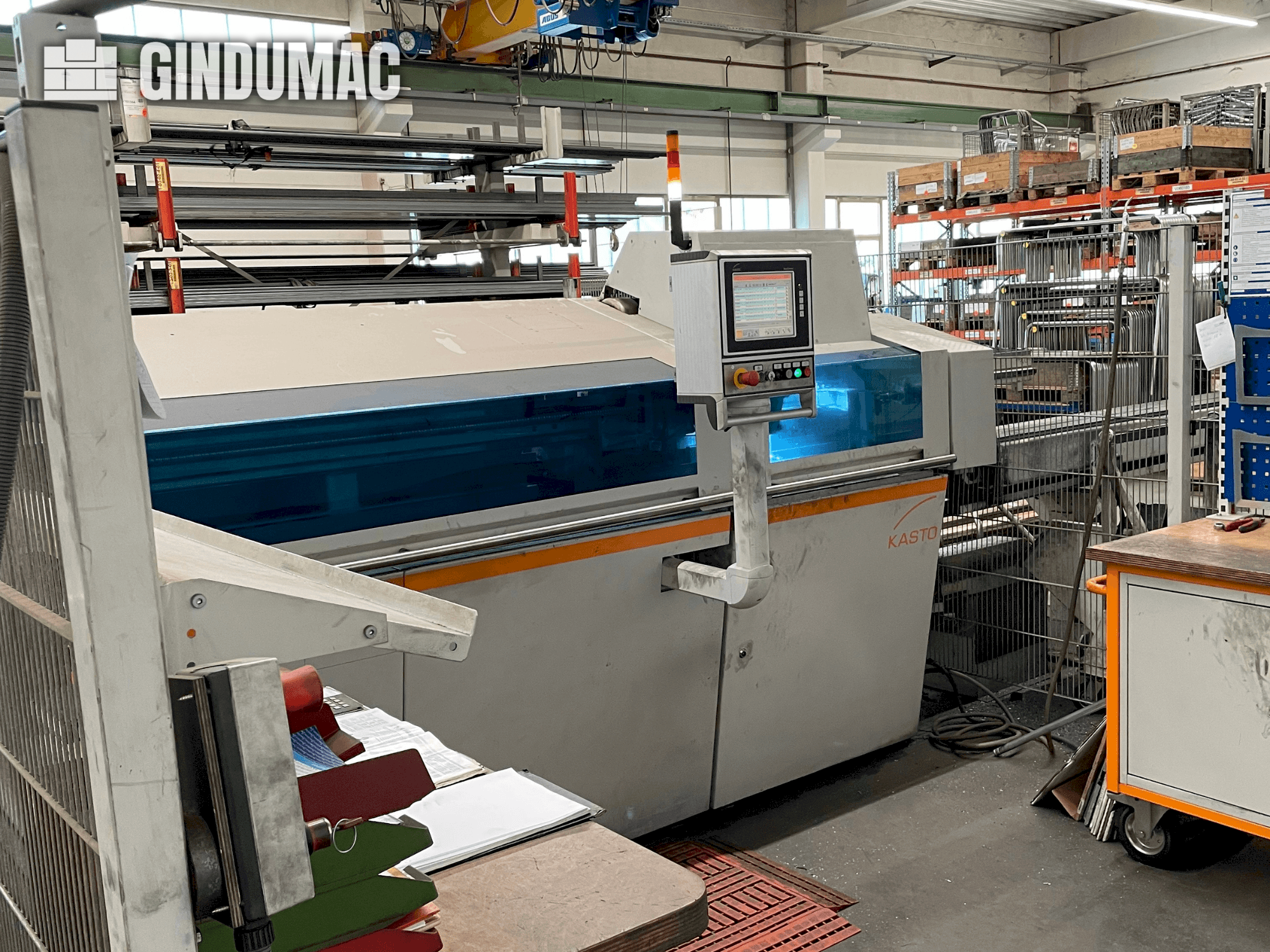

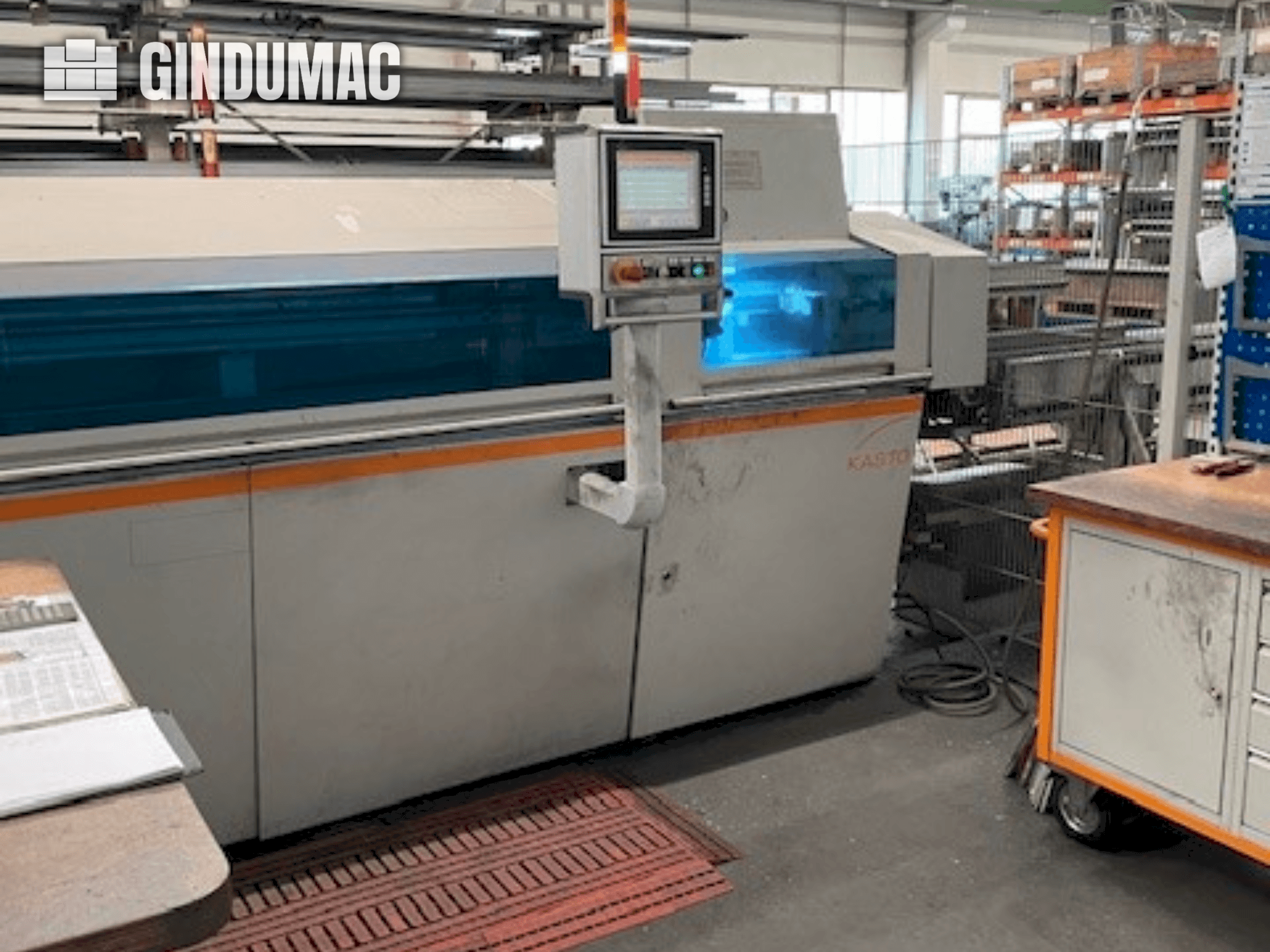

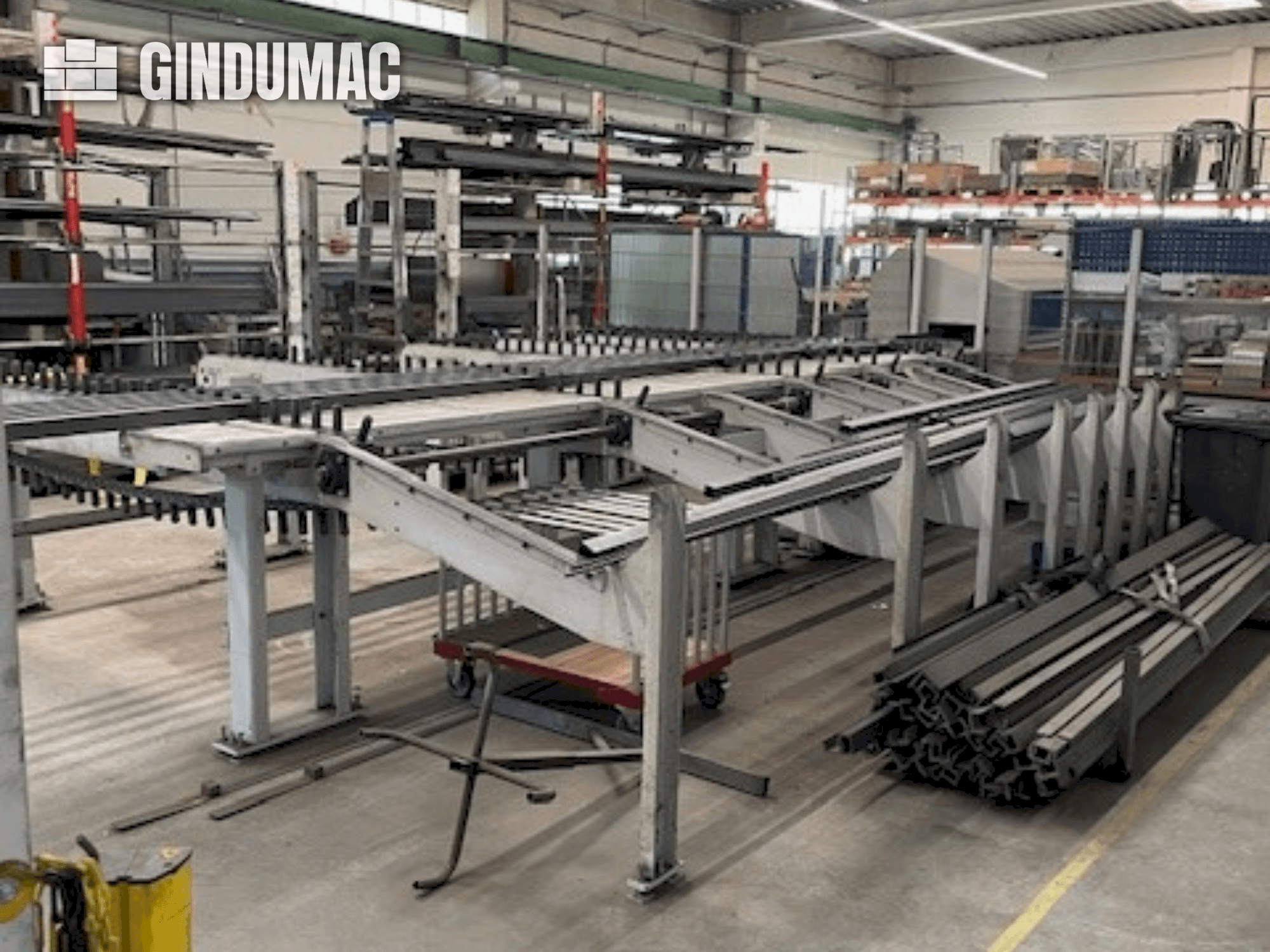

This KASTO KASTOflex F Circular Metal Saw was manufactured in 2009. It features a weight of 2700 kg, operates on 400 V, and includes an automatic feed, residue bunker, and coolant device. It supports mitre cuts and has a loading station with a 20-compartment chain magazine. The discharge side boasts a 5 m long apron conveyor with programmable discharge stations. Consider the opportunity to buy this KASTO KASTOflex F Circular Metal Saw. Contact us for more information.

Qty. 1 Second-hand plate storage system Mfc.: Kasto Maschinenbau GmbH Type: UNITOWER B1.5 Built: 2018 Still in operation! Number of storage spaces: 86 Pallets size: Usable dimensions: 3000 x 1500 x 90 mm – L x W x H External dimensions: 3290 x 1616 x 160 (70) mm – L x W x H Payload per pallet: 1500 kg Use for surface elements made of wood, polycarbonate, etc. Only about 300 movements have taken place since 2018 - one movement takes about 2 minutes. The system is regularly serviced by the manufacturer. Speeds Hoist: 16.0 m/min. Pull and push device: 20.0 m/min. System dimensions approx.: 8855 x 5900 x 5730 mm – H x L x W

The KASTOtec AC5 is a fully automatic High-performance metal band saw for steel Manufacturer: Kasto Type: Tec AC5 Built: 2007 Saw band: 7675 x 54 x 1.3 mm Connected power: 23 KW Working area square 90° max.: 530 x 530 mm Working area Flat 90° max.: 530 x 630 mm Working range Around 90° max.: 530 mm Feed length (600mm in one stroke): 6-9999 mm Clamping device: hydraulic Weight (saw) approx.: 5750 Kg Dimensions LxWxH (without chip scraper)ca.: 2225 mm x 3855 mm x 2680 mm Installation area LxW approx.: 2225 mm x 3855 mm Addition: The sawing plant is in working condition and was used until dismantling. The condition of the machine is to be evaluated as good. The sale of this system is only to traders without guarantee and to the exclusion of any rifle performance. We accept no liability for errors or printing errors.

Metal Circular Saw Cold Circular Saw Manufacturer Kasto Type GKS400P YOC 1998 Saw blade 400mm coming from below automatic hydraulic vice for material expansion Top condition, ready for immediate use.

Specifications Tower storage system for sheet metal Manufacturer: KASTO Type: UNITOWER B3.0 Year of construction: 2008 Number of magazines: 49 Pull-out trolley on rail

Hacksaw Kasto BSM 403

BRAND: KASTO YEAR: 2010 MODEL: CUT DU 4 APPLICATION TYPE: SAWING LOCATION: AUSTRIA MACHINE TYPE: SAWING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 2460 MM MEASUREMENTS DEPTH: 2890 MM MEASUREMENTS HEIGHT: 2185 MM MACHINE WEIGHT: 1300 KG Additional Information MACHINE BENEFITS TECHNICAL MACHINE BENEFITS: - SAW BAND: 5090 X 34 X 1,1 MM - SAWING LENGTH: 10 MM - CUTTING SPEED: 20 TO 110 M/MIN

Alternativ Saw KASTO PSB 280 U Blades dimensions: 450 mm x 40 mm x thickness 2 mm Cutting capacity in the round: 280 mm Square cutting capacity: 240 x 240 mm Rectangular cutting capacity: 280 x 160 mm Cutting capacity at 45°: 170 mm Automatic descent 2 speeds rotation Swivel jaws from 0 to 45° Jaws length : 350 mm x Height 150 mm Maxi jaws opening: 310 mm Lubricant pump Voltage: 380 V Dimensions (L x W x H): 1800 x 800 x 1300 mm Weight: approx 1 T
