7 MAS radial drilling machines used machines

High quality - Low price! Radial drill MAS VR5A Arm 1600mm Max dia in steel 50mm Max dia in cast iron 60mm Max threading in steel M30 Max threading in cast iron M42 MT 4 Spindelmotor 4 kW - 28 - 2500 RPM Distance table-spindle nose 1600 mm Clamiping area 1800 x 1000 Weight 3,7 Ton

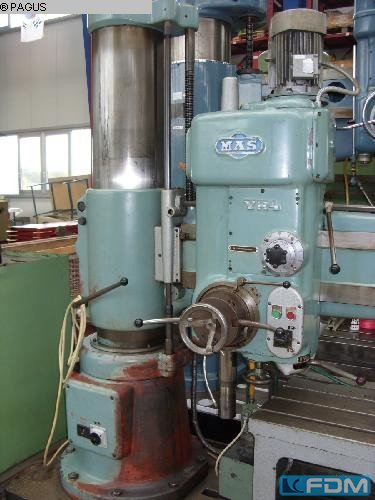

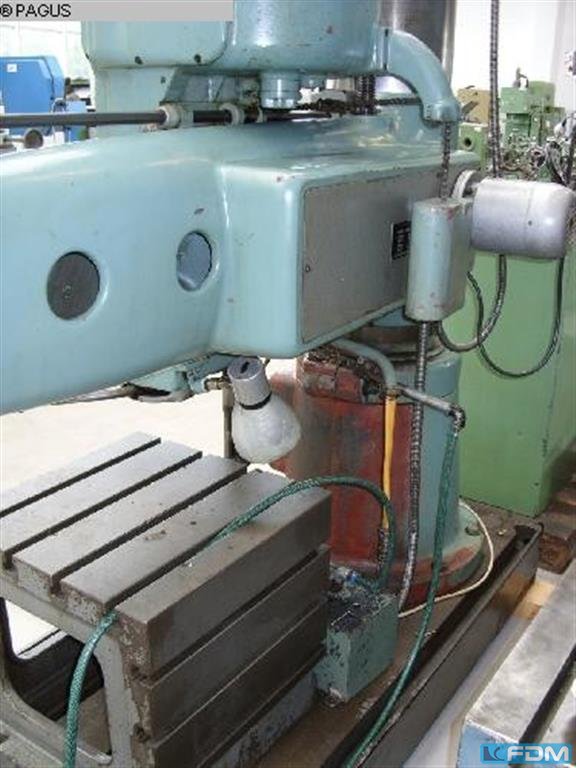

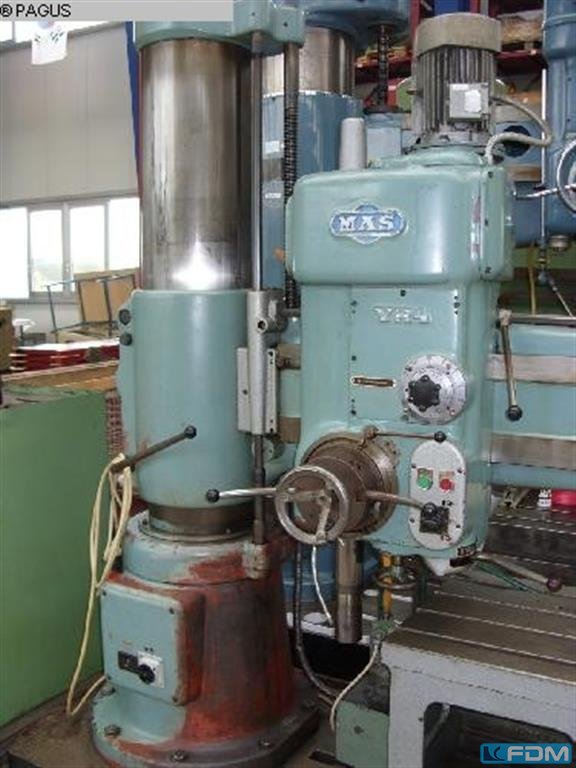

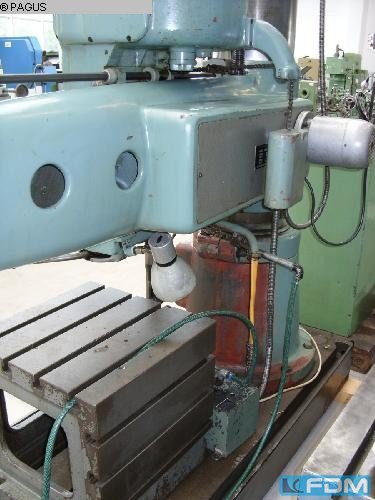

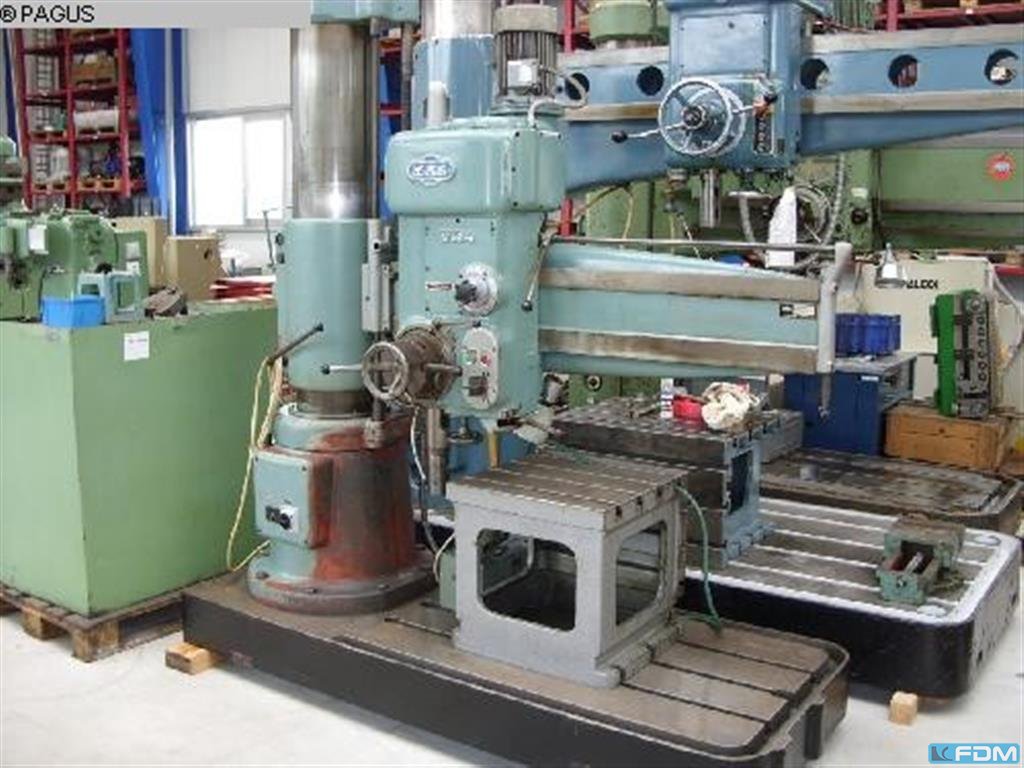

VR 4A/1250 Producer Mas Max. drilling diameter 50 mm Max. vertical arm adjustment 750 mm Taper in spindle 4 Morse Main motor output 4 kW Dimensions l x w x h 2250x1055x2970 mm Machine weight 2700 kg

Radial drilling table Dimensions LxWxH 600 x 750 x 550 mm Tilting 0o - 90o This radial drilling table is unused

Arm length: 1600 mm Drilling capacity in steel: Ø 50 mm Tapping in steel: M50 x 1.5 mm Spindle holder: MK 5 Spindle speeds: 28 - 2500 rpm. Spindle feed: 0.05 - 2 mm/rev Spindle stroke: 310 mm Spindle -> slab: 1500 mm max. Tension throwers; 1000 x 750 mm Clamping flat floor plate: 1820 x 986 mm Complete with: - Kuhlanlage - Operating instructions Spindle motor: 4 kW Country of origin: Czech Republic Machine Weight: 4300 kg Machine LxWxH: 3250 x 1120 x 3400 mm

Bohrleistung in Stahl (-Ø: 50 mm throat: 1500 mm workpiece height max.: 1380 mm Bohrleistung in Guß (-Ø: 60 mm Abstand Spindelmitte bis Säule: 320 - 1250 mm swival range +/-: 180 ° base plate surface area: 2640 x 1000 mm max. torque on the spindle: 310 Nm Bohrspindel-Ø/ Aufnahme: 75 mm /MK 5 bore spindle stroke: 310 mm spindle turning speed range: 28 - 2500 U/min feed:: 0,05 - 2 mm/U power capacity: 4 kW weight of the machine ca.: 4,3 t cube table 500 x 500 x 500 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Maximum drilling capacity in steel/casting 63/80 mm The maximum drilling diameter in steel 300 mm leadership Maximum distance spindle axis to the leadership mantle 2000 mm Vertical adjustment arm 950 mm spindle speed - The number of stages 16 - Range from 11 to 2000 /min Main engine power of 5.5 kW Total input 8,5 kVA Weight 7100 kg

Type VR 6A Producer Mas Year of manufacture Max. drilling diameter iron/casting 63/80 mm Max. vertical arm adjustment 950 mm Max. motion of milling head on arm 1613 mm Dimensions l x w x h 3240x1300x3900 mm Machine weight 5800 kg Main motor output 5.5

MAS VR5A, Radial drill, 1500mm arm, MT 4, low price, Can be inspected under power in our warehouse, Arm : 1600mm, Weight : Weight 3,7 Ton, Spindelmotor: 4 kW - 28 - 2500 RPM, Clamiping area : 1800 x 1000, Max dia in steel : 50mm, Max dia in cast iron: 60mm, Max threading in steel : M30, Max threading in cast iron : M42, Distance table spindle nose : 1600 mm

Max. Drilling Diameter... 50mm Spindle holder ... ISO 50. Max. vertical arm adjustment ... 875mm Max. distance of the spindle axis from the stand ... 1250mm Main engine power ... 4kW Total power requirement ... 6kVA L x W x H ... 2750 x 1120 x 3271mm Machine weight ... 4550kg

bore capacity in steel (diameter): 50 mm arm length: 1100 mm workpiece height max.: ca. 1000 mm bore capacity in cast iron: 60 mm spindle taper: MK 5 spindle turning speed range: 28 - 2500 U/min feeds: 0,05 - 2 mm/U quill stroke: 300 mm distance basic plate - spindle nose: 630 - 1380 mm crossrail adjustment vertical: 750 mm total power requirement: 6 kW weight of the machine ca.: 4 t dimensions of machine L x W x H: 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Accessories: box table 550 x 550 x 550 mm, vice, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 60 mm / MK5 arm length: 1600 mm quill stroke: 310 mm spindle speed:: 28...2500 U / min table-size: 1470 x 986 mm total power requirement: 4 kW weight of the machine ca.: 4,6 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 60 mm Center of spindle to wall or column: min./max. 320 - 160 mm spindle turning speed range: 20 - 2.500 U/min quill stroke: 310 mm total power requirement: 4 kW weight of the machine ca.: 4.500 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 50 mm arm length: 1250 mm workpiece height max.: 1500 mm bore capacity in cast iron: 60 mm threading: . diameter of quill: . mm spindle taper MT: 5 turning speeds: 28-2.500 U/min Feed: mm/U surface area: mm total power requirement: kW weight of the machine ca.: t Max. drilling capacity taper: Diameter: 50 mm Max. spindle-to-table distance: 1500 mm Min. spindle-to-table distance: 320 mm Travel spindle: 310 mm KW: ??4 Volts: 400 Machine number: 869 Included: Clamping cube 1000x750x500 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machi ...

Arm length: 1000mm, max. drilling diameter steel/cast iron: 32mm/40mm, spindle stroke: 250mm, spindle holder: MK4, max. tapping capacity: M20, spindle table distance min./max.: 270mm/1040mm, table dimensions X/Y/Z: 1150mm/800mm, speed: 4500rpm. Machine dimensions X/Y/Z: approx. 1700mm/1100mm/2600mm, weight: approx. 2000kg. The emergency stop switch of the machine is defective. Documentation available. On-site inspection is possible.

: 40 1008 rated current: 20 A voltage: 24 V weight of the machine ca.: 3,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

Drilling machine, column drilling machine, pillar drilling machine, pillar drilling machine, multi-spindle head, multi-spindle drilling head, drilling gear -with two-spindle drilling head Manufacturer Sigloch Schrieder Type: V602 -Drive power: 1.02/0.88 kW -Drill distance adjustable: 18-110 mm -Max. Drill: 2x Ø 6 mm -Table size: 275 mm -Spindle mount: MK3 -Projection: 220 mm -Speeds: 100-2900 rpm -Columns: Ø 100 mm -Spindle stroke: 75 mm -Transmission -Dimensions: 900/400/H1910 mm -Weight: 230kg

Manufacturer | Manufacturer: Chemnitzer Maschinenbau GmbH Chemnitz Type | Type: CMB 16 Pinole Lift | Quill stroke: 120 mm Speed (infinitely variable) | speed (stepless): 460 - 1840 rpm ; 140 - 560 rpm Dimensions table | Table dimensions: 280 x 360 mm Adjustment range table | Adjustment travel table: 540 mm Recording | Holder: MK 2 Connected load | Connection Value: 0.8 kW Total weight | Total Weight: 350 kg

Masterwood K29S Multi-Spindle Drilling Machine Number of spindles 29 Rpm 2800 rpm Distance between first and last drill bit 896 mm Number of pneumatic clamps 4 Distance between the centers of the individual spindles 32 mm Max drilling depth 80 mm Operating pressure 6 – 7 bar Motor power 3kW Technical documentation

Code: 0359 Brand: MASTERWOOD Model: TEKNOMAT 2000-P - CE Standard Electronic anuba inserting machine with 2 controlled axis for inserting anuba hinges – CE Standard Technical specifications: Working stroke length 3100 mm – Displacement speed 72 mt/min Working stroke height 350 mm – Displacement speed 15 mt/min Working stroke depth 150 mm - Displacement speed 15 mt/min Working table mm 150 x 3800 N° 2 rear stops with manual positioning N° 4 rear bracket-type clamps with reference stops Side stops with manual positioning 1 right - 1 left 2 pneumatic front clamps Anuba unit with double magazine for male female anuba hinges - Diameter 14 mm Tilting head - 7 + 90° Double stem anuba screw device Front fences on machine table for machining of assembled doors and windows Control CNC 2: Microprocessor control unit – Digital display – Multitasking operating syst ...

TECHNICAL DATA: Clamping height max mm: 1040 Tenoning depth max mm: 150 Slot length max mm: 340 Main motor power HP: 3 Weight Kg: 340

New machines: Chocolate tank, dissolving agitators, Temperature control machines, chocolate pumps. Various sizes and services, stainless steel, very good quality. We are a sales and service partner for MASSA in German-speaking countries.

New machines: Chocolate tank, dissolving agitators, Temperature control machines, chocolate pumps. Various sizes and services, stainless steel, very good quality. We are a sales and service partner for MASSA in German-speaking countries.

Tape washing machine, paddle washing machine for fruit and vegetables used Manufacturer: BINDER Maschinenbau GmbH Type SFB 80 Built: 1998 Power max 3000 kg/h VA stainless steel with stud strip width approx. 1000 mm Tub approx. 1500 x 1100 mm with 2 washing paddles Dimensions: approx. 3000 x 1300 x 1800mm A use for washing plastic is also conceivable. Subject to changes and errors in the technical data, dates and prices as well as intermediate sale.
