105 PEDDINGHAUS used machine for sale

Mechanical punch with a punching force of 1000kN. tool holder for stamps up to 90 mm can be mounted on request. A wide range of stamps and dies is included in the scope of delivery.

This cube has 3 magnetic clamping area. Dimension each area: Length: 2,000 mm Width: 2,000 mm Height: 2000 mm

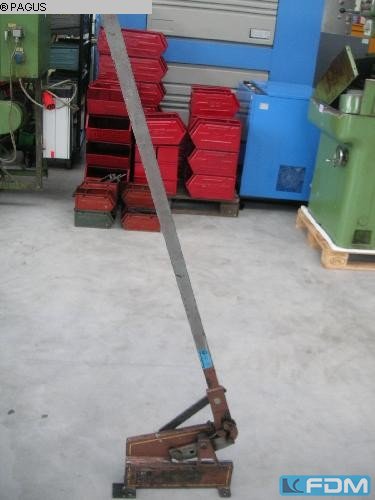

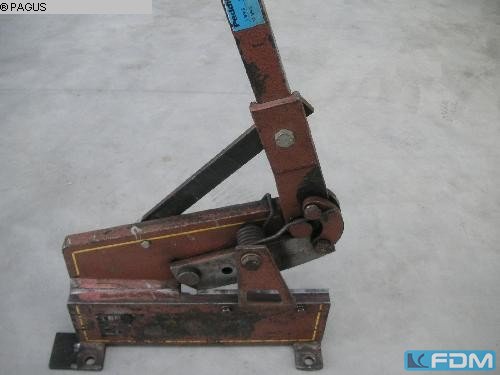

plate thickness:4 mm blade length:180 mm weight of the machine ca.:21 kg dimensions of the machine ca.:400 x 100 x 1500 mm

working pressure: 300 bar total power requirement: / kW weight of the machine ca.: 1 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 100 t punching cross-cut in cmm: Ø 31 in 25 mm stroke: 10 - 50 mm column arm: 510 mm work height max.: 1100 mm no. of strokes: 14 - 45 Hub/min punch diameter: max. Ø 90.0 mm oil volume: 103 l total power requirement: 7.5 kW weight of the machine ca.: 2400 kg. range L-W-H: 1750 x 1020 x 2050 mm maintained condition () New price without accessories approx. 25.000 euros Special price on request Furnishing: - heavy / robust electro-hydraulic hole punch, with large throat - Punching station with material/sheet metal scraper - stepless stroke adjustment .. 10-50 mm - freely movable foot switch including protective cover - hydraulic low pressure finder for foot switch operation - Crane hanging eye for easy transport - side storage area - Hydraulic unit, integrated - Three-phase motor, 400 volts, 50 Hz - original instruction manual The data for this ad was created with ModulMWS ...

round bar steel: - mm square edge steel: - mm L-beam: - mm total power requirement: 7,5 kW weight of the machine ca.: 4,5 t dimensions of the machine ca.: 2,212,35 m div. punches and dies Foot switch Spare blade The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 50 mm square edge steel: 45 mm L-beam: 150 x 14 mm total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2,3 x 1 x 2,1 m No. 3418 5-fold combined profile steel shears with flat steel shears PEDDINGHAUS 210 Super 16 pressure capacity 80 to Round steel 50 mm Square steel 45 mm angle steel 150 x 14 mm Punching up to 90 mm diameter 5.5 HP Space requirement 2.30 x 1.0 x 2.1 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

punching pressure: 28.0 t punching cross-cut in cmm: 31 in 7.0 mm ST throat: 250 mm dayligth: 223 mm no. of strokes: 10 - 30 Hub/min oil volume: 32.0 ltr. work height max.: 1033 mm total power requirement: 3.0 kW weight of the machine ca.: 553 kg dimensions of the machine ca.: 730 x 540 x 1530 m Furnishing: - Punch quick-change device up to Ø 31 mm - green series - installed: round punch no. 5 Ø 25.0 mm and round die no. 3 Ø 25.7 mm - Free: LED lighting in the punching area - Swiveling scraper (plates exchangeable) - Various material support tables are available separately - Brace - 2-step foot switch, with double press for grain search function - electrical controls - Stroke length and stroke position continuously adjustable - integrated hydraulic unit with oil filling - Performance specifications apply to a material strength of 450 N/mm² - Main connection cable and plug for 16 amp ...

Cutting blades, replacement blades for guillotine shears, replacement cutting edges, cutting knives, shear blades, flat steel blades for profile steel shears, lever shears, sheet metal knives -Manufacturer: Peddinghaus, 3 cutting blades for profile steel shears 210/16 210 Super 16, unused -Zg. No.: 44085 510 00 Cutting length: 260 mm -Hole spacing: 140 mm / 2x M20 see photos -Submission/Price: complete -Dimensions: 280/18/H70 mm -Weight: 2.6 kg/pc.

Offered is a combined Peddinghaus section shear with punch unit for punching, shearing and notching flat bar, sections and bar stock. Punching force: approx. 80t, punching capacity: 31mm in 20mm steel, throat depth: 510mm, max. round bar diameter: 50mm, max. square bar size: 45mm, max. angle iron dimensions X/Y/Z: 140mm/140mm/13mm, weight: approx. 3400kg. An on-site inspection is possible.

: 5 weight: 5 t : . The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 63 mm square edge steel: 55 mm flat steel: 100 x 25 mm : engine: 380 V, 6,3 kW weight: ca. 2.450 kg Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 45 mm square edge steel: 40 mm L-beam: 120 x 13 mm flat steel: 500 x 12 mm punching pressure: 60 t throat: 510 mm : 500 x 12 oder 400 x 16 mm punch diameter: 27 in 17 mm punch diameter: 39 in 12 mm oil volume: 80 l total power requirement: 7,5 kW weight of the machine ca.: 2,4 t dimensions of the machine ca.: 1,8 x 0,9 x 1,8 m Hydraulic machine with 5 stations so punching, notching, shearing flat iron, angle iron, solid material, punching with hand lever, profile steel side with foot switch. Punching discharge: 510 mm! All performance data refer to a material strength of 450 N / mm². Electric 380 volt The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

volt: 380 V weight: 1,4 t : The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Die holder, separating tool, punching tool, punch, punch die, punch stamp, gill forming tool, die holder -Stamping tool: die holder -Hole: Ø 45 mm -Bore: Ø 33 mm -Hole spacing: 180 x Ø20 mm -Dimensions: 240/85/H120 mm -Weight: 7.3 kg

Cutting blades, replacement blades for guillotine shears, replacement cutting edges, cutting knives, shear blades, flat steel blades for profile steel shears, lever shears, sheet metal knives -Manufacturer: Peddinghaus, 2 cutting blades for profile steel shears 210/16 -Cutting length: 229 mm -Hole spacing: 140 mm / M18 see photos -Submission/Price: complete -Dimensions: 260/18/H70 mm -Weight: 2.4 kg

Stop, depth stop, length stop for press brake, bending machine, guillotine shear..., electric stop for profile steel shear, contact length stop -Manufacturer: Peddinghaus, electric stop contact length stop for profile steel shears flat steel shears -Stop head, tiltable, swiveling -Hole: Ø 50 mm -Transport dimensions: 440/270/H155 mm -Weight: 6.4 kg

Punch holder, die holder, notching tool, punching tool, punch, punch die, punching die, for eccentric press, hydraulic press, quick-change punch holder -Stamp holder: Stamp holder -Hole: Ø 30 mm -Hole spacing: 94x63 mm / Ø13 mm, see photos -Dimensions: 120/90/H135 mm -Weight: 4.2 kg

Keeldiepte: 405 mm slag: 21 mm 55 slagen per minuut Punching pressure: 45 ton Max punching dia: Ø 27 in 13 mm / Ø 39 in 9 mm Power needed: 2,2 kW Length: 1300 mm Depth: 800 mm Height: 2050 mm Weight: 1000 kg

Punching capacity steel: 25x16mm, material strength: 45/60/80kg/mm² depending on hole diameter, angle steel 90°: 110x10mm, angle steel 45°: 90x9mm, T-steel 90°: 110x10mm, T-steel 45°: 90x9mm, U and I profiles: up to NP/IPE 18, round steel diameter: 42mm, square steel: 38x38mm, max. sheet thickness for notching: 12mm, notching width: 50mm. An on-site inspection is possible.

round bar steel: 32 mm square edge steel: 60 x 6 mm L-beam: mm pressure: 50 t stroke: 10 - 28 mm total power requirement: 4 kW weight of the machine ca.: 1 t dimensions of the machine ca.: 0,65 x 1, 2 x 1, 67 m Maximum pressing force 50 t FLAT STEEL SHEAR PERFORMANCE Flat steel: 150 x 15 mm or: 180 x 18 mm PERFORMANCE OF PROFILE STEEL SHEARS Steel 90°: 80 x 8 mm 45°: 50 x 6 mm Angle steel 90°: 100 x 10 mm 45°: 50 x 6 mm PERFORMANCE OF BAR STEEL SHEARS Round steel: 32 mm Square steel: 30 x 30 mm PERFORMANCE SQUARE NOTCHER: 60 x 6 mm Sheet metal up to: 10 mm Notch width: 42 mm: Notch depth: 55 mm PERFORMANCE HOLE PUNCH Punching force: 50 t Stroke: 10 - 28 mm Punches: 27 in 14 mm Projection: 155 mm GENERAL DATA Drive power: 4.0 kW Oil capacity: 40 lDimensions L x W x H: 650 x 1200 x 1670 mm Weight approx.: 840 kg Translated with DeepL.com (free version) The data for this ad was creat ...

serial number: 4412956673057 : 95 to. ca. engine output: 7,5 kW weight of the machine ca.: ca 5 t dimensions of the machine ca.: 2,2 × 1,0 × 2,3 m Technical specifications (from the label)Angle steel (L-profile):150 × 15 mm at 90°100 × 14 mm at 45°Flat steel:up to approx. 150 × 16 mmlarger cross-sections up to 340 × 16 mm (depending on function)Beam profiles:U-profiles (UPN): 220I-sections (IPN) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Separating tool, punching tool, punch, punching die, punching punch, gill forming tool -Punching tool for: holding matrices -Bore diameter: 70 mm -Dimensions: 220/317/H115 mm -Weight: 32 kg

Hand lever shears, lever shears, long-blade sheet metal and round steel shears, sheet metal shears, profile steel shears -Manufacturer: Peddinghaus, Lever shear, sheet metal and round steel shear type 3R 4 -Steel sheet: up to 4 mm -Round steel: up to 11 mm -Lift-down device: -Overall dimensions: 295/125/H865 mm -Transport dimensions: 690/125/H310 mm -Weight: 11 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Shearing tool for channel steel: 50 mm -1x dimensions: 140/140/H30 mm -1x dimensions: 135/135/H30 mm -Weight: 8 kg

Separating tool, punching tool, punch, punch die, punch stamp, gill forming tool -Punching tool for: holding dies -Borry hole diameter: 50 mm -Dimensions: 335/220/H180 mm -Weight: 42 kg

Punch holder, die holder, notching tool, punching tool, punch, punch die, punching die, for eccentric press, hydraulic press -Stamp holder: with slotted punch tool, without die -Socket: Ø 51 mm / Bolt circle Ø 110x18 mm see photos -Punch tool: Slotted hole 22.5x50 -Dimensions: Ø 135 x 180 mm -Weight: 6.7 kg

Profile steel knife, shearing tool, cutting tool, cutting tool, punching tool, punch, punching die, punching punch -Shearing tool for channel steel: 50 mm -Type: 440065124502 -Type: 440065124501 -1x dimensions: 136/130/H25 mm -1x dimensions: 128/132/H25 mm -Weight: 6 kg

Separating tool, punching tool, punch, punch die, punch stamp, gill forming tool -Manufacturer: Peddinghaus, die-cutting tool for holding dies -Type: unfortunately without a type designation -Dimensions: see photos -Dimensions: 350/340/H245 mm -Weight: 58.5 kg
