4 PFAUTER gear hobbing machines used machines

max. wheel diameter: 630 mm gear width: 375 mm max. module: 10 clamping table: 550 mm table hole: 125 mm milling spindle speeds infinitely variable: 62 - 390 U/min taper: MORSE 5 axial-feeds: 0,40 - 6,80 mm/U radial feeds: 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle: 50 - 425 mm no. of teeth: min. 8 milling cutter dia. x width: 192 / 215 mm shifting: 200 mm main drive motor: 7,5 kW total power requirement: 21 kVa weight of the machine ca.: 8,2 t Main features: -Universal hob head with tangential movement -Automatic shifting -Automatic dwell attachment -Hydraulic clamping in table -Pressure reduce valve for outer steady -Magnetic swarf conveyor Accessory: 1 set of tools for operating and maintenance 1 set differential gears, module 1,75 1 set indexing change gears module 2,5 1 change gear cabinet The data for this ad was created with ModulMWS - the software solution of Lo ...

Gear hobbing machine PFAUTER 1200mm, modul 12, with change gears

Gear hobbing machine vertical Pfauter P251 With accessories

Pfauter RS 2 With accessories

max. wheel diameter: 250 mm gear width: 242 mm max. module: 4 min. module: 0,5 table diameter: 250 mm table bore diameter: 68 mm milling cutter dia. x width: 130 x 130 mm spindle stroke - max.: 110 mm min. number of teeth: 6 center distance betw. workpiece-tool min/max.: 10 - 210 mm milling spindle speeds (infinitely variable): 80 - 500 U/min feeds axial: 0,32 - 4 mm/WU radial feed: 0,05 - 1,6 mm/WU feeds - tangential: 0,16 - 2 mm/WU Control: LAUER PCS table diameter: 250 mm table hole: 62 mm milling cutter dia. x width: 130 x 130 mm total power requirement: 16 kVa weight of the machine ca.: 3,6 t dimensions of the machine ca.: 2,8 x 2,4 x 1,9 m Machine ideal for electrical retrofitting Equipped with: - LAUER PCS NC control - Siemens Simatic S5 PLC - Loading device/magazine for workpiece size max. 140 mm Ø - Shifting - 2-cut cycle The data for this ad was created with ModulMWS - the s ...

cone distance min./max.: 0-108 mm Pitch angle min/max: 5°/84° Control: GE Fanuc Series 0-GC Pitch diameter (1:1 ratio): 152 mm pitch diameter (10:1 ratio): 216 mm Diametral pitch (finest/coarsest): 1.3/8.5 Mod. Face width gear wheel max.: 35 mm Knife spindle - Speed range: 41-121 U/min working spindle speed range: 0-33.33 U/min weight: 9025 kg dimensions of the machine ca.: 2707 x 2720 x 2200 mmxmmxmm Equipment/accessories: -Knife -Chip conveyor -Technical documentation The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: 160 mm gear width: 355 mm max. module: 4,5 min. module: 0,5 centre distance: 450 mm total power requirement: 11 kW weight of the machine ca.: 3,8 t dimensions of the machine ca.: 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation The data for this ad wa ...

max. wheel diameter: 3000 mm gear width: 1200 mm max. module: 30/40 min. module: 2 table diameter: 2500 mm table load capacity: 400 kN hob dia. - max.: 450 x 500 mm milling spindle speeds: 10 - 165 U/min hob length max.: 500 mm tip circle diameter: 2050 mm tooth helical angle min/max: 0 - 45 ° center distance betw. workpiece-tool min/max.: 150 - 1750 mm milling slide swivelling: 50 Grad distance table / counter stay: 1050 - 2050 mm shifting: 300 mm workpiece weight: 40 t table bore diameter: 800 mm depth of hole: 1100 mm main drive motor: 37 kW min. workpiece diameter: 290 mm min. number of teeth: Wälzfräsen 20 min. number of teeth: Formfräsen 2 taper: MK 100 feeds axial: 1 - 1800 mm/min radial feed: 1 - 500 mm/min feed: Tangential 1 - 450 mm/min rapid traverse: 1875 / 530 / 470 mm/min electrics - voltage/frequency: 380 / 50 V/Hz control: Siemens Sinumerik 3M total power requirement: ...

max. wheel diameter: 4400 mm gear width: 645 mm max. module: 35 Control: Siemens main drive motor: 37 kW table diameter: 2500 mm max.helical angle: +/- 30 ° workpiece weight: 40000 kg total power requirement: 142 kVA weight of the machine ca.: 75 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A Pfauter vertical CNC gear hobbing machine is available. Modules min./max.: 1/3, max. workpiece diameter: 150mm, max. tooth width: 150mm, milling head tilt: +/-45°, milling cutter axis-table axis distance: 10mm-160mm, table diameter: 160mm, table bore: 63mm. Tool holder: SK40, max. cutter diameter: 130mm, max. cutter length: 220mm, speed: 600rpm, feed: 1500mm/min, tangential path: 170mm, rapid traverse: 3m/min. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2500mm, weight: approx. 6500kg. On-site inspection is possible.

max. wheel diameter: 900 mm gear width: 500 mm max. module: 1 min. module: 10 total power requirement: 16 kW weight of the machine ca.: 8.500 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

max. wheel diameter: --- mm gear width: --- mm max. module: --- min. module: --- total power requirement: --- kW weight of the machine ca.: --- t dimensions of the machine ca.: --- m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Wheel diameter: 160mm, max. wheel width: 355mm, module range: 0.5-4.5, max. cutter diameter: 115mm, max. cutter length: 105mm, cutter head swivel range: 120°, speed: 400rpm, distance between centers: 410mm. Machine dimensions X/Y/Z: approx. 2000mm/1500mm/2000mm, weight: approx. 3500kg. An on-site inspection is possible.

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed

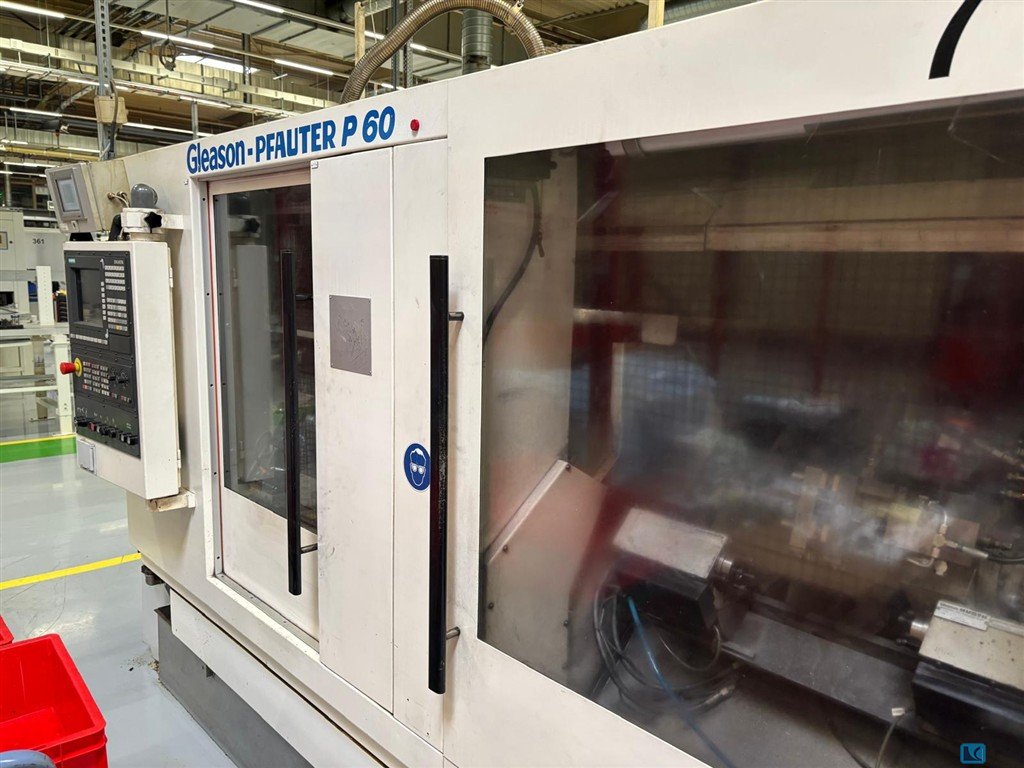

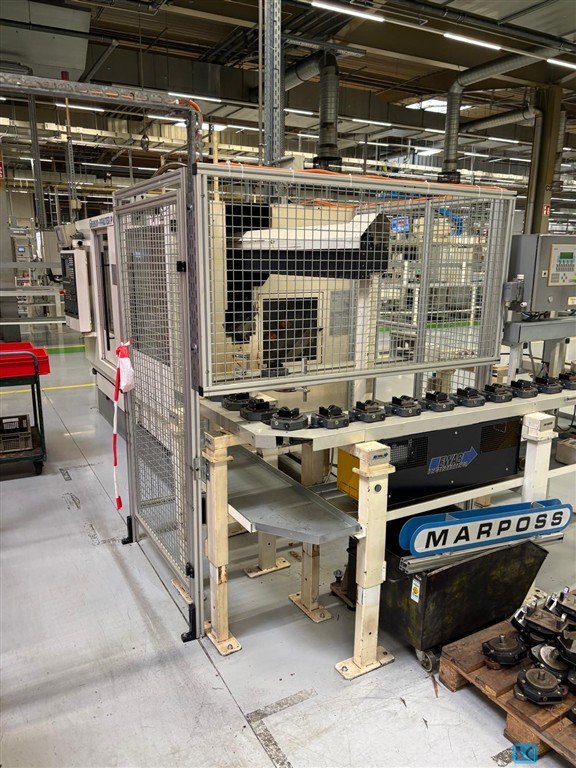

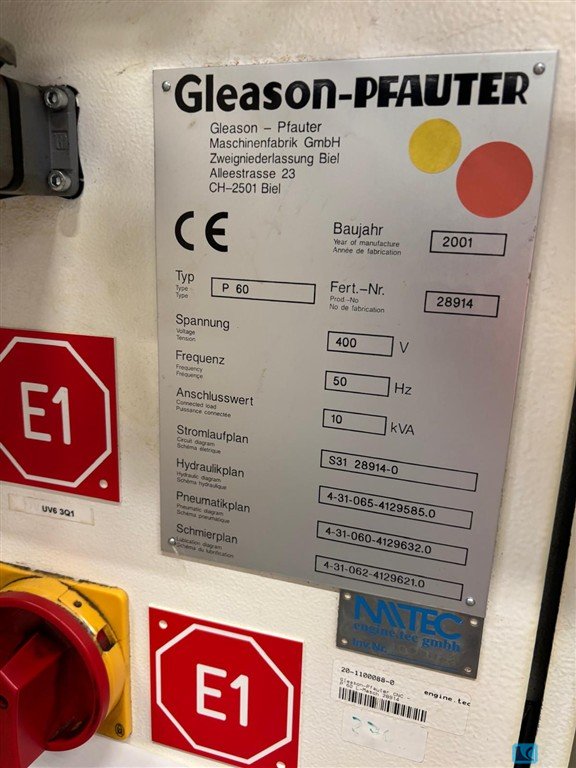

max. wheel diameter:80/120 mm max. module:2,5 max. top circle diameter:65 mm :22 mm :140 mm :120 mm slide travel axial ( Z-axis ):320/400 mm Dimensions (L/W/H):3270 x 3240 x 2020 mm weight of the machine ca.:6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1

max. wheel diameter:180 mm gear width:* mm max. module:4 total power requirement:14 kW weight of the machine ca.:8 t slide travel axial ( Z-axis ):300 mm work piece - max.:490-640 mm

amount: 2 STK weight - pallet system: 11 kg dimensions: 540 x 2000 x 100 mm Hobbing cutter possibly Pfauter P 400 - 2 pcs. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

For sale a milling head without counter bearing

Div. Interchangeable wheels for the gearbox Speed...

max. wheel diameter: 350 mm gear width: 350 mm max. module: 8 min. module: total power requirement: 7,5 - 22 kW weight of the machine ca.: t dimensions of the machine ca.: m Gear hobber with gear shaping device, 2-cut cycle The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Generating Grinding Machine Grinding Machine Gleason Pfauter G320 CNC + Promot Automation Hersteller [manufacturer]: Gleason Pfauter G320 + with Promot Automation handling unit Type [ type]: G 320 Control unit: Siemens 840 Incl. control panel Baujahr[construction year]: 10/2001 Module [ ]: 0.5-7.0 Min. workpiece diameter [ ]: 10 mm Max. workpiece diameter [ ]: 380 mm Number of teeth [ ]: 10-600 Vertical carriage stroke "Z" [ ]: 200mm Horizontal carriage stroke "X" [ ]: 230mm Tangential carriage stroke (SHIFTING) "Y" [ ]: 135mm Swivel angle clamping head "A" [ ]: +-45° Tailstock tip stroke [ ]: 125mm tangential slide stroke – dressing [ ]: "V" 180mm radial carriage stroke – dressing [ ]: "U" 110mm Rotation speed – grinding wheel in progress [ ]: 3000rpm max - infinitely variable Egg speed - linear axes [ ]: 10000 mm/min Max. table rotation speed [ ]: 240 RP ...

Max. Pitch circle diameter External gearing: 300 mm Max. Pitch circle diameter internal gearing: 300 mm Max. Outer diameter of workpiece (equipment): 450 mm max. module: 6 gear hobbing width -max.: 100 mm Max. Helix angle (with tool Ø 125 mm): +/- 45 ° strokes - infinitely variable: 130 - 1300 Hub/min workpiece weight: 1000 kg Minimum distance table top - tool spindle: -55 / +300 mm Maximum distance table top - tool spindle: 200 mm Maximum distance table top - tool spindle: 350 mm Manual Upright side shift: +/- 25 mm Manual swivelling angle of the tool spindle: +/- 0,5 ° Max. Tool speed: 15 UpM Max. Workpiece speed: 27 UpM Max. Tool diameter: 7 Zoll voltage: 400 V frequency: 50 Hz Max. Line power: 70 A total power requirement: 48 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 4,27 x 3,11 x 2,87 m control: Siemens Sinumerik 840 C table hole: 40 mm taper in main spind ...

Gear Hobbing Machine Pfauter P 400 With interchangeable wheels
