PFIFFNER hydromat used machines

16 stations, max. 12 mm , reel, ring straightener, Knoll scratch tape foerderer, various hoistand and spare parts

16 stations, max. 12 mm , reel, ring straightener, Knoll scratch tape foerderer, various hoistand and spare parts

Key data: 18

Machine name: Rotary Transfer Machine Pfiffner HB45 - 18 Hour Manufacturer: Pfiffner Machine number: HB45 Year of construction: 2006 Condition: used Functionality: Fully functional

Horizontal transfer machine manufactured in 2012. This PFIFFNER HW 25-12 features a 12-station indexing rotary table and can accommodate up to 18 machining units. With a maximum clamping diameter of Ø 25 mm and a workpiece length of 100 mm, it offers versatile capabilities. Consider the opportunity to buy this PFIFFNER HW 25-12 machine. Contact us for further details.

Pfiffner RT 100-12Year of manuf. : 2013 Control : Siemens 840 D ____________Description:Rotary-Indexing-table/Spindle:Clamping stations:12 motorised spindlesDrive:Torque drive, water-cooledPosition measuring system:DirectSwitching time:1.5 secondsSpindles:Water-cooled motor spindlesC-axes:0.001°, hydraulic clampingSpeed:5,500 rpmPower:11 kWClamping device:ChuckBasic modules:Technology:Positioning module, 3-axisX-axis:50 mmY-axis:100 mmZ-axis:100 mmPosition measuring systems:Direct in all axesCoolant supply:Integrated::Workpiece size (max.):100 x 100 x 100 mmStation 1:Horizontal:feeding of raw parts (indexing conveyor + Stäubli robot)Vertical:Measuring raw partStation 2:Horizontal:4-fold turret without driveVertical:Measuring reclamping error (C-axis zeroing)Station 3:Horizontal:4-fold turret without driveVertical:Not usedStation 4:Horizontal:4-fold turret without driveVertical:No ...

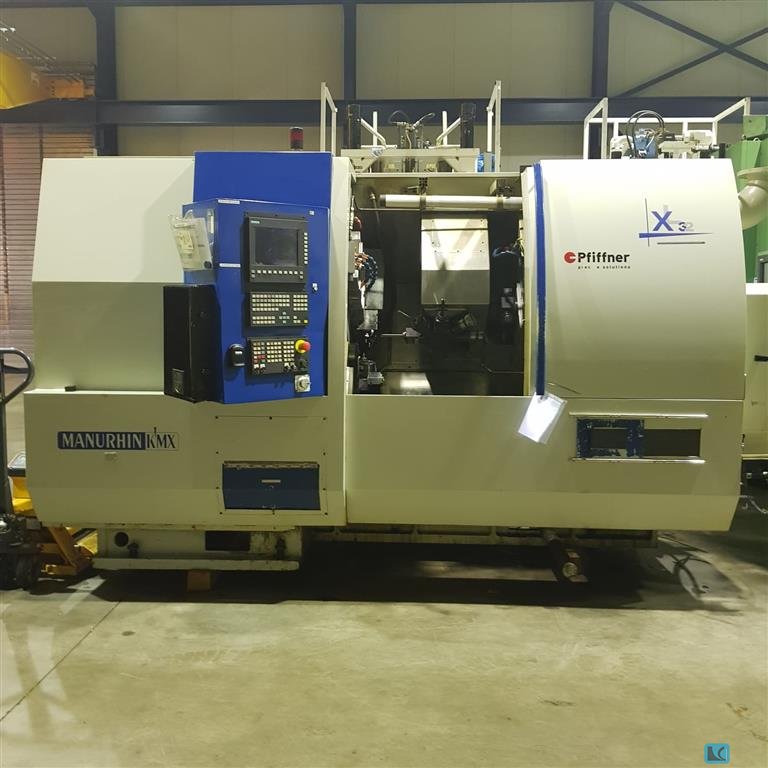

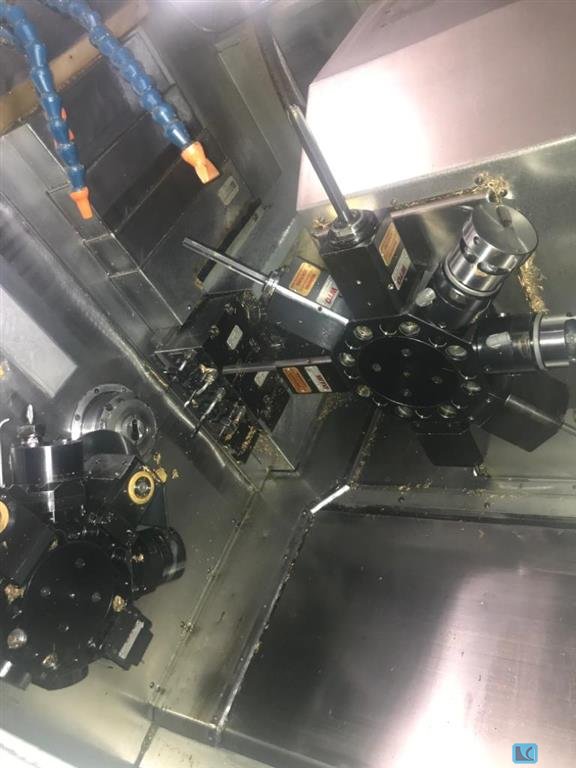

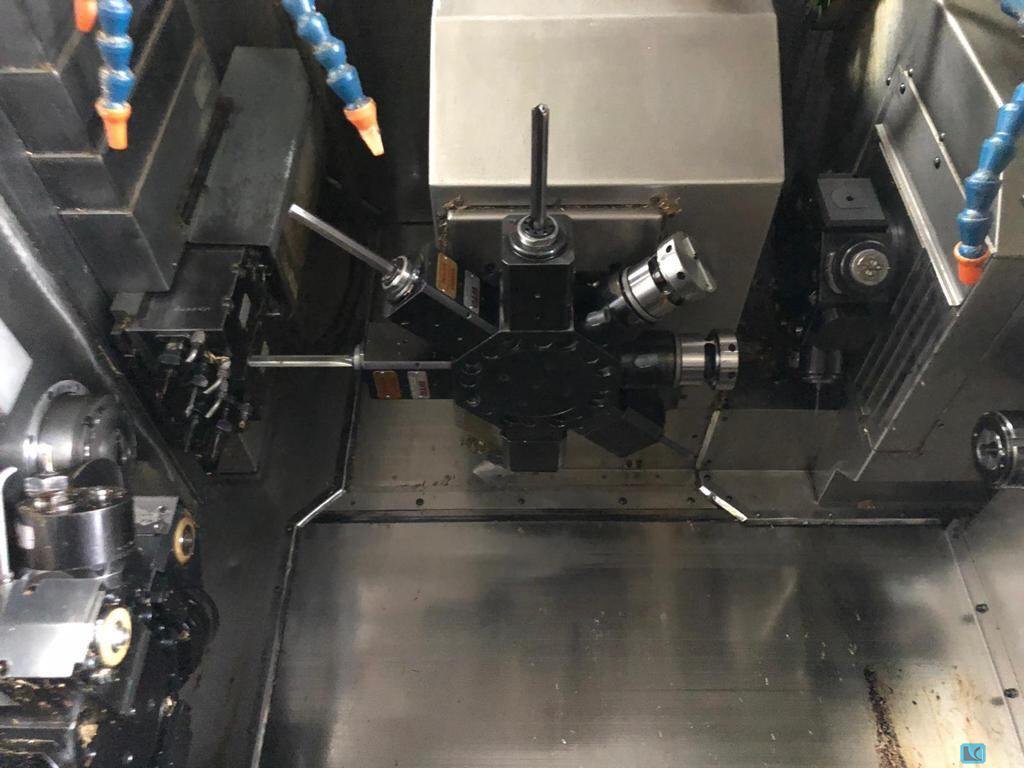

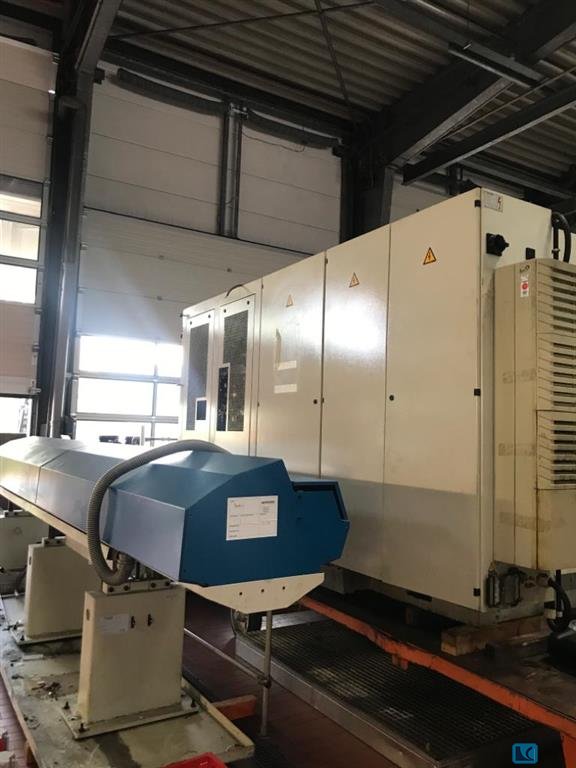

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

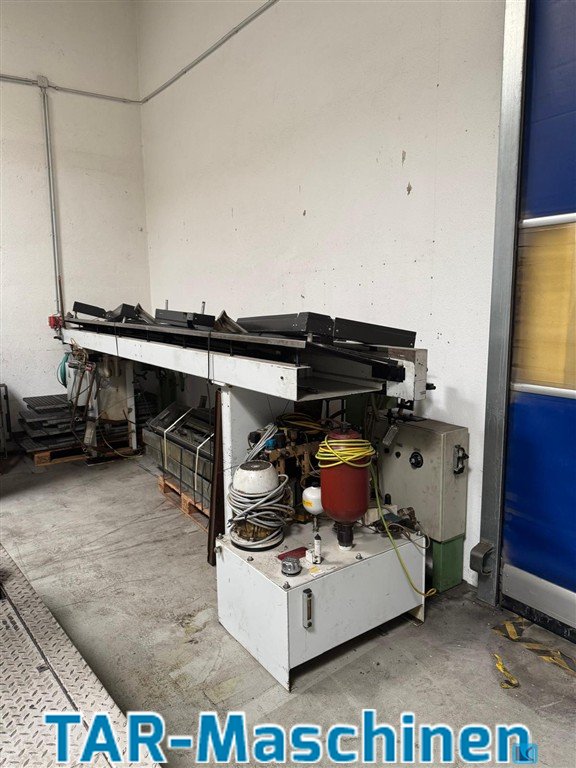

automatic switch plate 1x saw unit with saw, head and saw valve 40/80 1x turning unit with turning valve 30/60 with flange 9x units 30/60 with valve normal and flanges 5x units 20/50 with valve normal and flanges 1x oil distributor WK9; 1x bar feeder 4 meters; 1x chip conveyor VR500; 1x hydraulic unit 1 Knoll oil filter Without collets and ejectors, without platform and without tool monitoring. supplied tooling may differ from the pictures. We can send you more pictures. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: Rotary transfer machine Manufacturer: Pfiffner Type: Hydromat HB-32/45 Yob: 2002 Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

WEINIG high speed moulder, type Hydromat Super 30-B, Machine specifications:, - Planing width 300 mm, - Planing height 120 mm, - Electric driven feeding system, motor 55 kW, - Feed speed 8 - 180 m/min, Spindle lay-out:, 1. Horizontal spindle bottom, motor 22 kW, 2. Horizontal spindle top, motor 30 kW, 3. Vertical spindle right, motor 18,5 kW, 4. Vertical spindle left, motor 22 kW, 5. Horizontal spindle top, motor 30 kW, 6. Horizontal spindle bottom, motor 37 kW, 7. Horizontal spindle bottom, motor 45 kW, 8. Horizontal spindle top, motor 30 kW, 9. Horizontal spindle top, motor 22 kW, - Front bearing for horizontal spindles 1+2+5, 6, 7, 8 and 9, - Digital positioning for spindle 3+4+8, - Short infeed table, - Bed plates hard chrome, - Automatic lubrication system, - Heavy duty feed rollers 220 mm, - Driven feeding rollers in table, - Heavy duty cardan feeding, - Feed speed frequency contro ...

WEINIG high speed moulder, type Hydromat Super 30-B, Machine specifications:, - Planing width 300 mm, - Planing height 120 mm, - Electric driven feeding system, motor 55 kW, - Feed speed 8 - 180 m/min, Spindle lay-out:, 1. Horizontal spindle bottom, motor 22 kW, 2. Horizontal spindle top, motor 30 kW, 3. Vertical spindle right, motor 18,5 kW, 4. Vertical spindle left, motor 22 kW, 5. Horizontal spindle top, motor 30 kW, 6. Horizontal spindle bottom, motor 37 kW, 7. Horizontal spindle bottom, motor 45 kW, 8. Horizontal spindle top, motor 30 kW, 9. Horizontal spindle top, motor 22 kW, - Front bearing for horizontal spindles 1+2+5, 6, 7, 8 and 9, - Digital positioning for spindle 3+4+8, - Short infeed table, - Bed plates hard chrome, - Automatic lubrication system, - Heavy duty feed rollers 220 mm, - Driven feeding rollers in table, - Heavy duty cardan feeding, - Feed speed frequency contro ...

Planing machine Weinig hydromat H30 W baujar 1990 36m/min Working width 300mm working-high 200mm memeeser of the fresspindel 50mm with suction

WEINIG HYDROMAT 22 BL Year of construction 1995 with splitting unit (lamellar saw) Feeding (Automatic feeder and pull-out unit!) With safety hood and soundproof cabin! Machine specifications:  - Planning capacity 220 x 120 mm  - Feeding, 8– 80 m/min, motor 18.5 kW Spindle layout:  Bottom-right-left Top - bottom, table rigid Bottom, table rigid, spindle prepared Top - bottom, table rigid, spindle prepared Gap unit, consisting of 1 right and 1 left spindle each 30 kW (4500 rpm) incl. table roll, sliding roller, spray barrier and gap wedge removal 4 roller pull-out Special pressure and fixtures for the production of top layer slats Feeder (all-in) for slats and pull-out tape

Bread dough dividing machine, Fabr.Winkler, Type Hydromat

Mayfran coolant system with Knoll high-pressure pump for internal cooling Scraper Belt Chip Conveyor Mayfran Bar loading magazine 3 m Equipment: 1 x Sawing unit 6 x Feed unit 1 x Turning unit 1 x Grooving Unit 1 x Thread Rolling Unit 16 x Collet SW36 1 x Saw and Turning Bushing SW36 1 x conversion kit of the turning unit up to SW41 1 x Control Pin Turning Station Unit 8 2 x Hydraulic Drill Head 3 x Angle Milling Head

A Weinig four-sided planer including automation, double cross-cut saw, infeed and extraction system is available. 1) Four-sided planer Weinig Hydromat 22 BL with automatic lubrication, year of manufacture: 1987, working width: 220mm, working height: 140mm, number of heads: 7, head arrangement: bottom/right/left/right/top/bottom/bottom, spindle diameter: 50mm. 2) Kellfass automation unit consisting of double cross-cut saw, length: 5000mm, buffer cross conveyor and pneumatic roller infeed. On-site inspection is possible.

Manufacturer: Langzauner, Type: FPS Hydromatik, Control: yes, Longitudinal cutting guillotine: yes, Cutting lenght mm: 3100, Schnittbreite min-max mm: 600, Working hight mm: 50, Required space L x W x H mm: 3900x1170x1500, Wight approx. kg: 3200,

WEINIG moulder, type Hydromat 22B, Machine specifications:, Planing width 220 mm, Planing height 120 mm, Feed speed 6 – 60 m/min, Motor power hydraulic feeding 15 kW, Spindle layout:, 1. Horizontal bottom spindle, motor power 11 kW, 2. Vertical right spindle, motor power 7.5 kW, 3. Vertical left spindle, motor power 11 kW, 4. Vertical right spindle, motor power 7.5 kW, 5. Vertical left spindle, motor power 7.5 kW, 6. Horizontal top spindle, motor power 11 kW, 7. Horizontal bottom spindle, motor power 15 kW, 8. Horizontal top spindle, motor power 11 kW, 9. Horizontal bottom spindle, motor power 7.5 kW, - Hydraulic front bearing for spindle 1, 6 - 8, - Equipped with jointers, - Surface table 2500 mm, - Spindle diameter 50 mm, - Automatic lubrication system, - Driven feeding rollers in table, - Heavy duty cardan feeding, - Digital read out feeding speed, - Incl. accessories

Inv. Num. : 8653 Type: Hydromat 23 Producer: Weinig Generated: 2000 Parameters: Maximum vertical spindle speed: 6000 1/min Number of Spindles: 8 Spindle diameter: 50 mm Machine height: 1740 mm Machine length: 3900 mm Machine width: 1900 mm Machine weight: 4600 kg

SPECIFICATIONS: Feed length: 1980 mm Working width: 220 mm Working height: 120 mm Spindle: Ø 40 mm Number of Spindles: 8 Shaft drive (7.5 kW) Installed power: 64 kW Voltage: 380 V SPINDLE CONFIGURATION: 1: bottom (5.5 kW) 2: right (5.5 kW) 3: left (5.5 kW) 4: right (5.5 kW) 5: top (7.5 kW) 6: bottom (7.5 kW) 7: top (11 kW) 8: bottom (7.5 kW) EQUIPMENT: Complete with accessories

Weinig Hydromat 23C four-sided planer Working width 230mm Working height 160mm Number of spindles 7 Spindle layout: 1.Down 15kw 2.7.5kw rights 3.Left 7.5kw 4.Top 15kw 5.Lower 30kw (multi-saw) 6.Lower 7.5kw (hydro support) 7.Upper 7.5kw (hydro support) Spindle speed 6000r.p.m Spindle Diameter 50mm 4 pulling rollers in the working table Inverter-adjustable feed speed up to 36m/min Cardan shaft driven feed Pneumatic Clamps Technical documentation

Weinig Hydromat 23 four-sided planer 60m/min Working width 230mm Working height 160mm Number of spindles 5 Spindle layout: 1.Lower 15kw 2.11kw rights 3.Left 11kw 4.Upper 15kw 5.Lower 7.5kw Spindle speed 6000r.p.m Spindle Diameter 50mm 3 pulling rollers in the working table Inverter-adjustable feed speed up to 60m/min Cardan shaft driven feed Pneumatic Clamps Technical documentation Machine dimensions 300x180x170cmH Weight 3500kg Net price 130.000PLN

Working width: 220 mm Working height: 120 mm Working height 4-sided: 120 mm Number of Spindles: 10 Spindle arrangement: urlrlououuni Spindle diameter: 50 mm Spindle speed: 6000 rpm Counter bearings: 1-6-7-8-9 Jointer: 1-2-3-4-5-6-7-8-9 Motor powers: 7.5-7.5-11-11-11-15-7.5-11-11- kW Feed speed: 8-80 m/min Feed motor: 18.5 kW Feed: Hydraulic Table lubrication: automatic Weight: 9000 kg Space requirement: 700x160x140 mm Voltage/Frequency: 380V

WEINIG Hydromat H23 – with 10 spindles, S/N 89321, built in 1999 ** WEINIG Cross Transport HighMech E-1, with 6 flat chains approx. 2000 x 3500 mm ** Hydraulic WEINIG Roller Accelerator Model 814 ** Short infeed table with heavy 4-roller feed Automatic planing machine with reinforced KASCHWIG soundproofing booth 3-sided • Working width max. 230 mm • Working height max. 160 mm • Electronic feed frequency-controlled 8 – 80 m/min. • Feed motor 18.5 KW • 1st spindle bottom 11.0 KW • 2nd spindle right 11.0 KW • 3rd spindle left 11.0 KW • 4th spindle right 11.0 KW • 5th spindle left 11.0 KW • 6th spindle top 15.0 KW • 7th spindle bottom 11.0 KW • 8th spindle top 15.0 KW • 9th spindle bottom 15.0 KW • 10th spindle universal 11.0 KW (4-sided) • Spindle speed 6,000 rpm. • Spindle diameter ø 50 mm • All spindle motors wi ...

WEINIG Hydromat H23 – with 10 spindles, S/N 89321, built in 1999 ** WEINIG Cross Transport HighMech E-1, with 6 flat chains approx. 2000 x 3500 mm ** Hydraulic WEINIG Roller Accelerator Model 814 ** Short infeed table with heavy 4-roller feed Automatic planing machine with reinforced KASCHWIG soundproofing booth 3-sided • Working width max. 230 mm • Working height max. 160 mm • Electronic feed frequency-controlled 8 – 80 m/min. • Feed motor 18.5 KW • 1st spindle bottom 11.0 KW • 2nd spindle right 11.0 KW • 3rd spindle left 11.0 KW • 4th spindle right 11.0 KW • 5th spindle left 11.0 KW • 6th spindle top 15.0 KW • 7th spindle bottom 11.0 KW • 8th spindle top 15.0 KW • 9th spindle bottom 15.0 KW • 10th spindle universal 11.0 KW (4-sided) • Spindle speed 6,000 rpm. • Spindle diameter ø 50 mm • All spindle motors wi ...
