RINK km used machines

A case unscrewer/case uncorker Rink is available. Unscrewing heads: 4, uncorking heads: 2, container configuration: 20x0.5l NRW. Machine dimensions X/Y/Z: approx. 2900mm/1300mm/2000mm, control system: Siemens Simatic S7. Documentation available. An on-site inspection is possible.

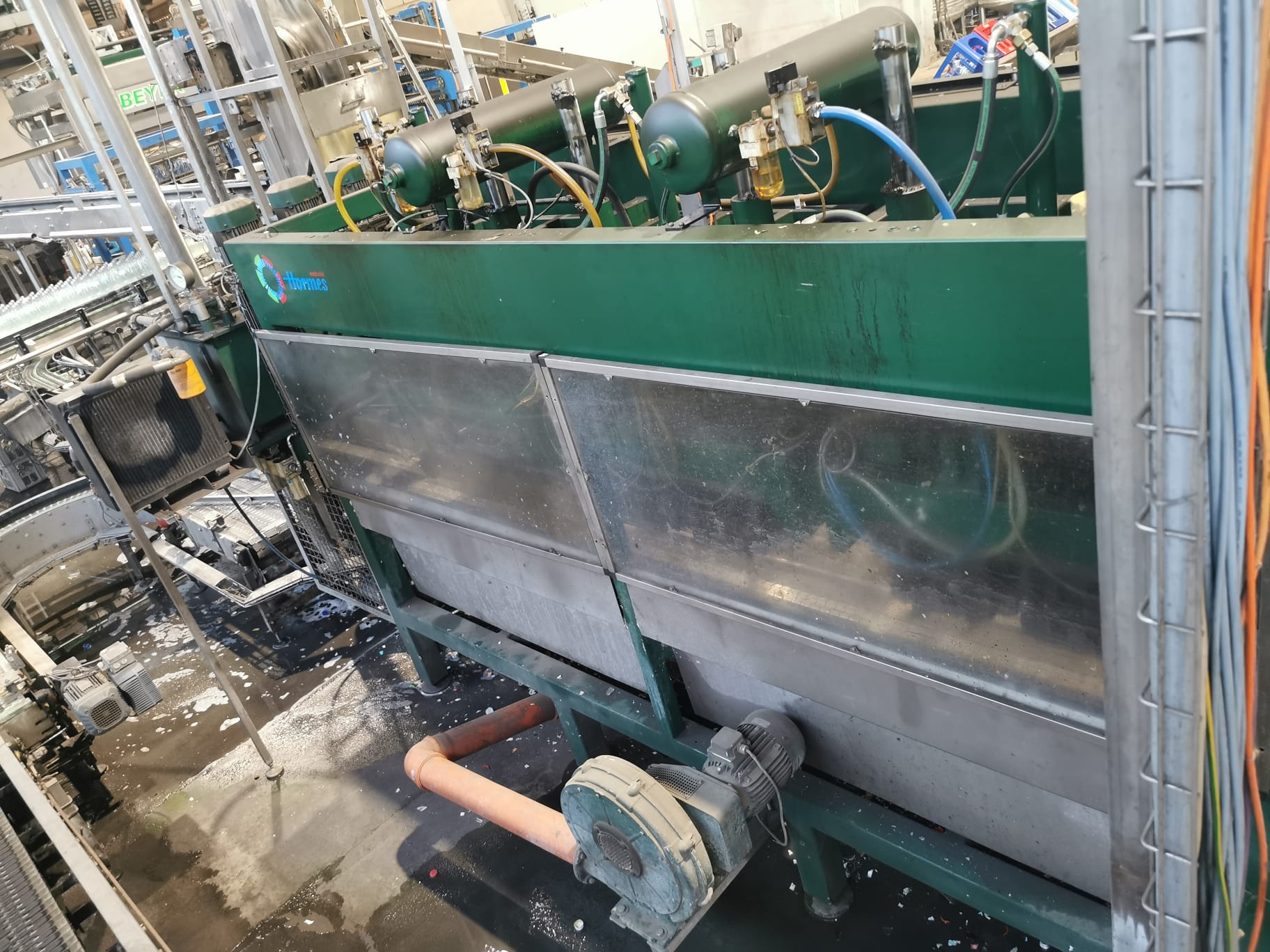

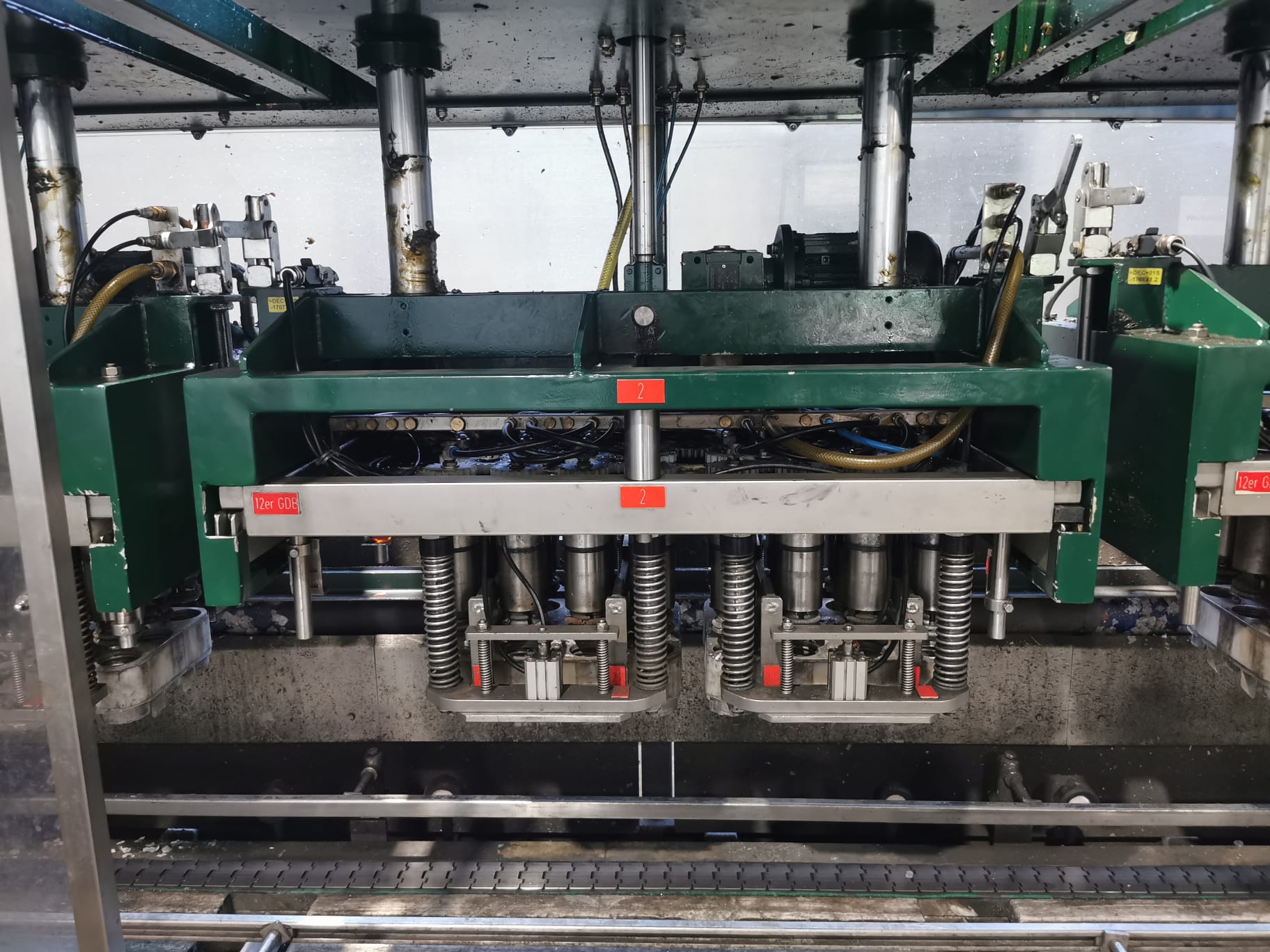

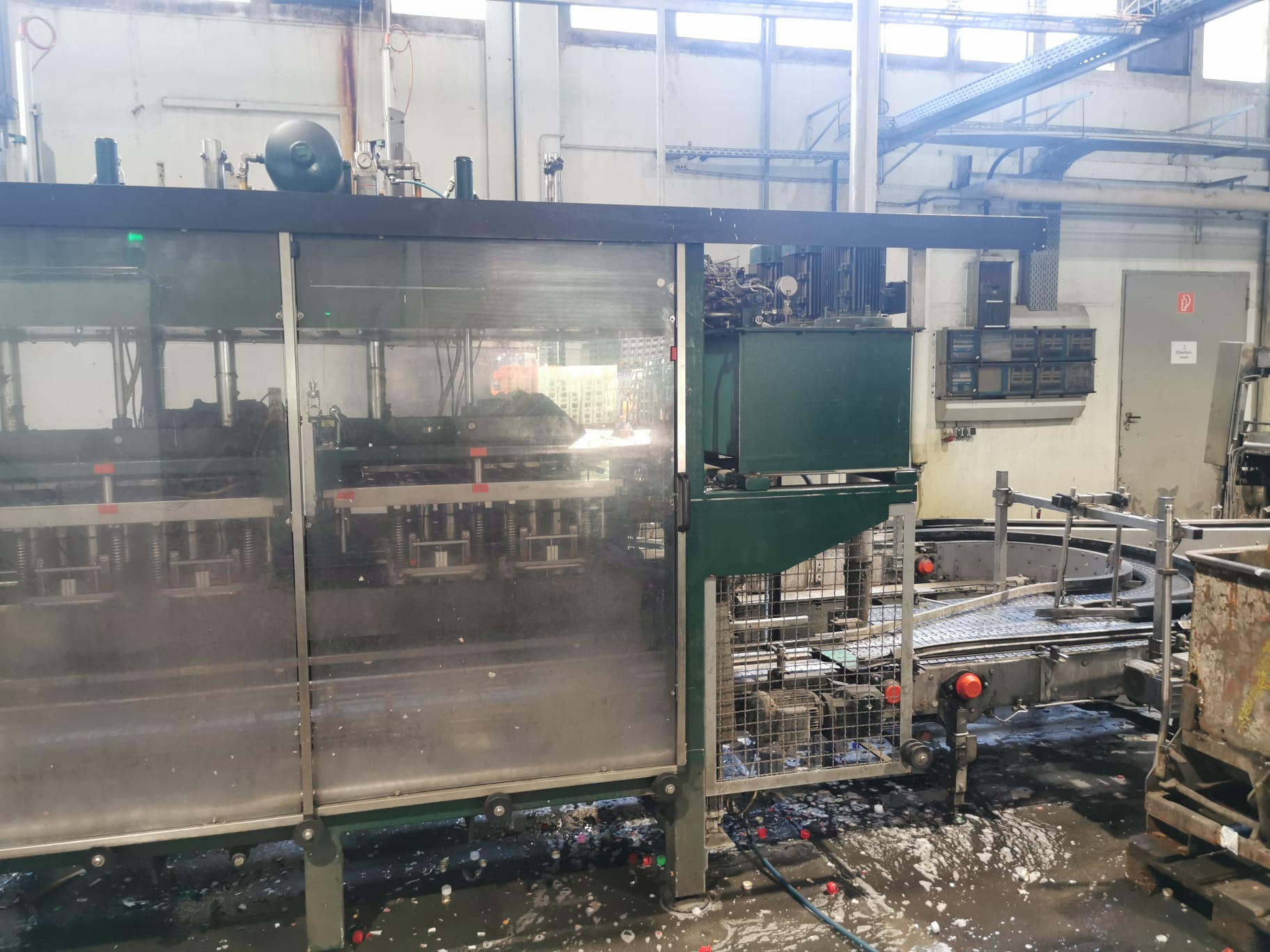

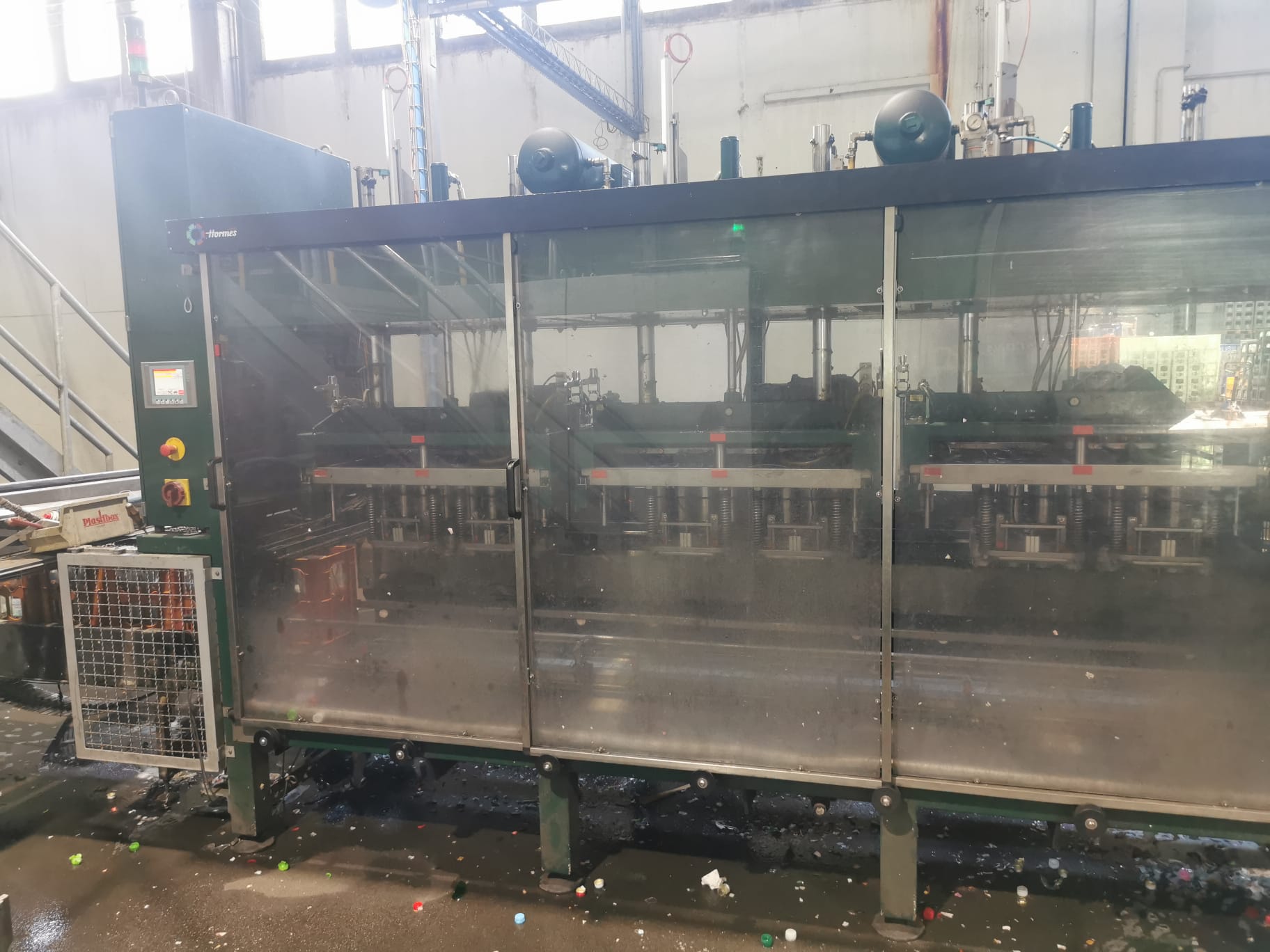

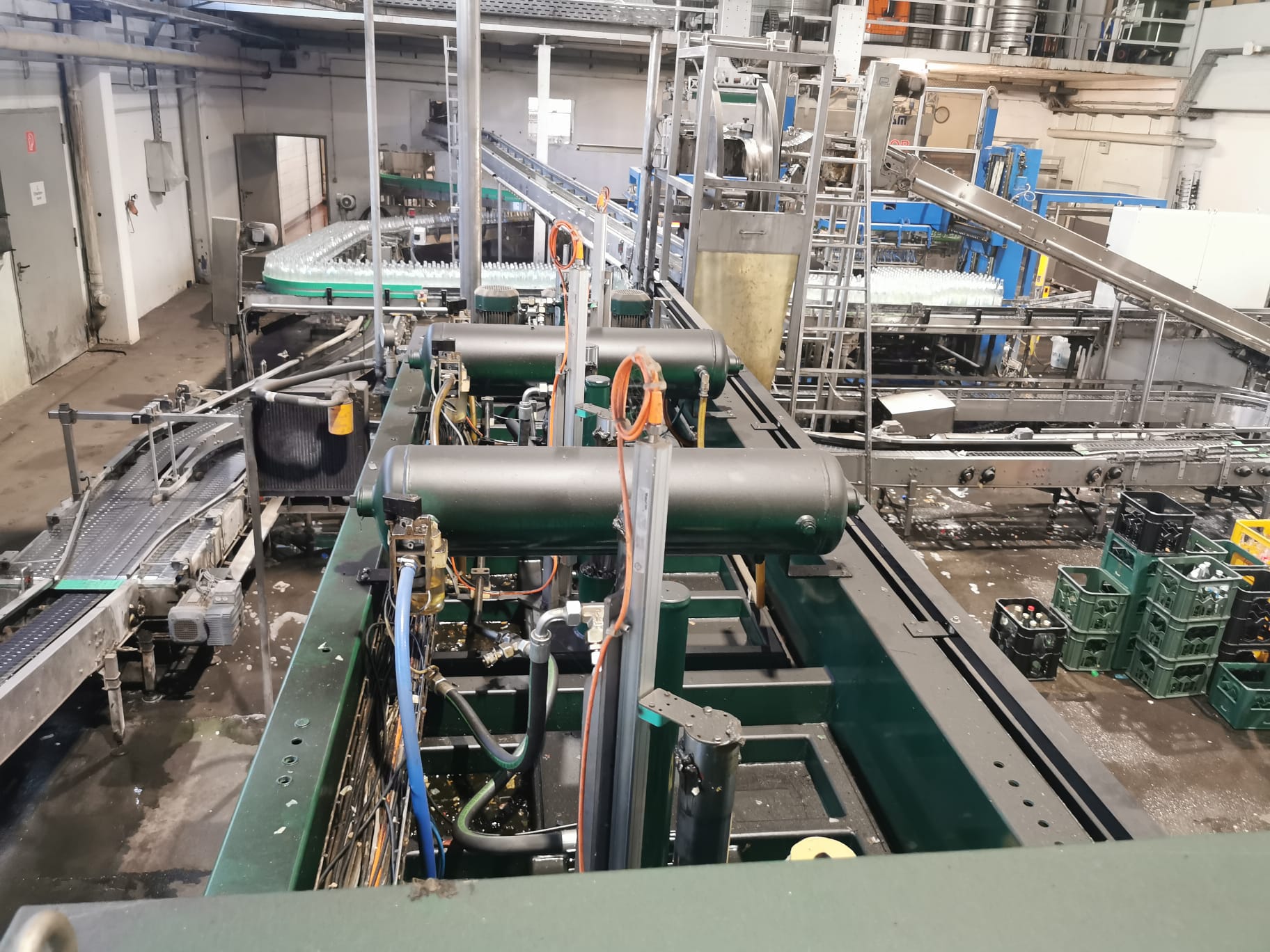

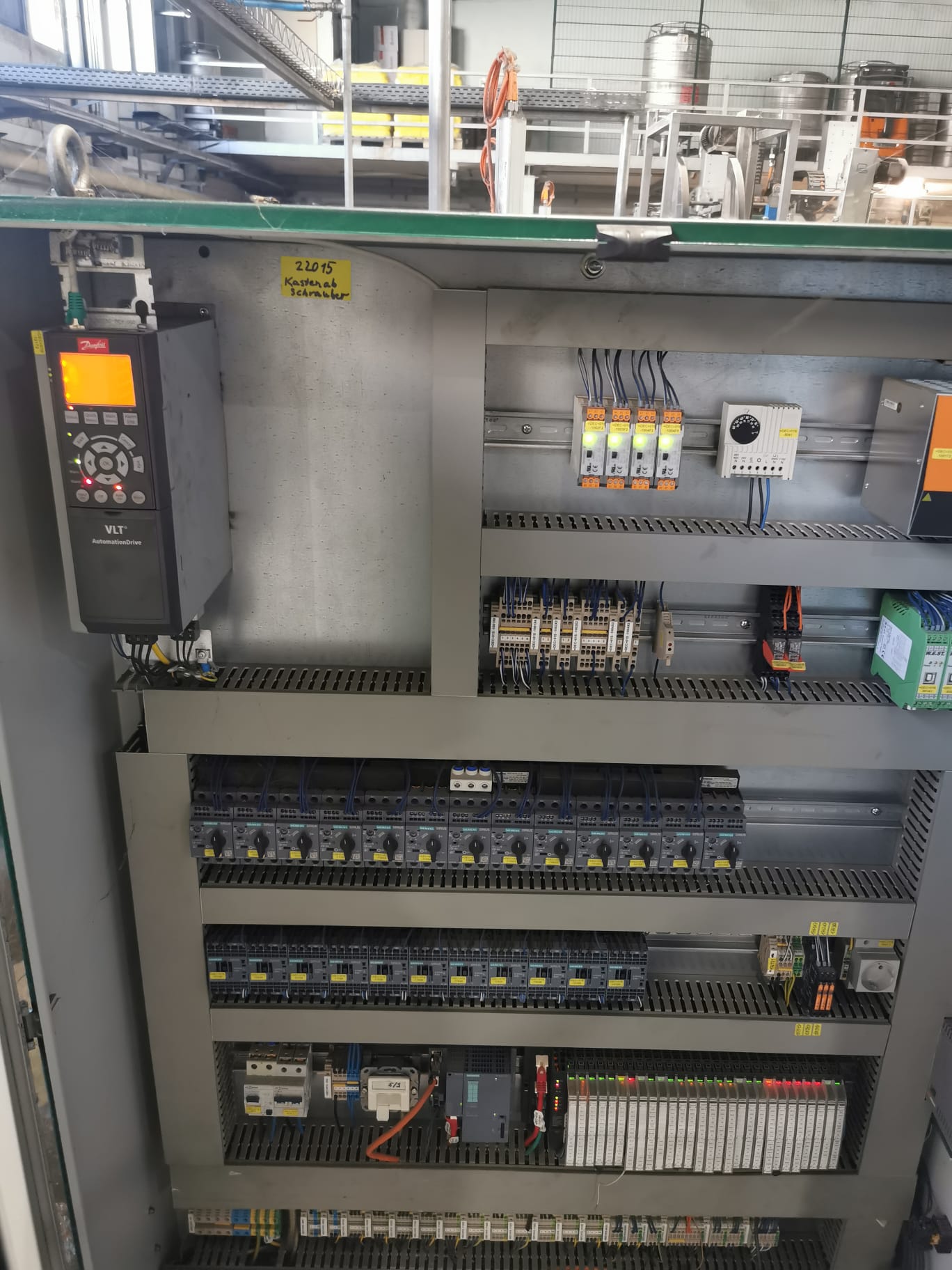

Overview This RINK KM 690/4K empty bottle unscrewing machine, manufactured in 01/2012, is designed for the automatic removal of screw caps from returnable empty bottles directly inside the crate. The machine is installed in the empty bottle infeed section and removes screw closures before the bottles are transported further towards the bottle washer. The machine is equipped with 4 units, each with 4 x 3 unscrewing heads, allowing multiple bottles to be processed in parallel inside the crate. In operation, the crates are transported continuously under the unscrewing sections. The head units lower cyclically onto the bottles, unscrew the closures and then return to the upper home position. The machine is operated via a Siemens SIMATIC Panel touch display integrated into the stainless steel control cabinet. Technical Data Manufacturer: RINK GmbH & Co. KG Machine Type: Empty bottle unscrewin ...

Overview This RINK automatic screw cap remover (unscrewer) was manufactured in 2020 and is designed for the automatic removal of screw caps from returnable glass bottles before the containers enter the bottle washing process. The machine was installed in a high-capacity returnable glass bottling line with a capacity of approximately 2,000 crates per hour. Systems of this type are typically positioned upstream of the bottle washer to ensure that bottles enter the cleaning process without closures. The machine is configured for 0.75 L GDB bottles in 12-bottle crates and includes format equipment for different crate variants. The system operates with cross-flow crate transport and a crate infeed direction from left to right. The installation includes a cap discharge system and blower unit for removing closures from the bottles. The machine was built with modern electrical components and is  ...

Decorker, Fabr. Rink, Type: KM 670/2K as box uncorker, 2-head, 2,000 K/h, clock machine Running direction: li->re with decorker plate for 24 module box 0.33 lt, box longitudinal run attached control cabinet in VA with Siemens S7-300 control and operating module OP-Siemens

Unscrewer / Uncorker, Fabr. Rink, type: KM 740/2K E QL, box unscrewer/uncorker, 2-head for screw cap, with 1-head decorker plate, already removed and stored.

Rink 2 head uncorker and 2 head unscrewer when changing formats. Set up for 20 x 0.5l bottles Control system Siemens S7 (conversion) 2014

Manufacturer: RINK Machine type: Capsule Roller Year of manufacture: 09/2022 Electrical Specifications - Rated voltage: 230/400 V - Network type: TNS - Mains frequency: 50 Hz - Full load current: 4.5 A - Short circuit resistance: 10 kA - Isolating device: 10 kA - Pre-fuse: 3x6 A Protection - Enclosure protection rating: IP 55 Find more here - / Contact us at -

Overview The crate decapping machine was complete renewed in 2016 by the company Hormes. The machine was previously used in a German company. Tech Specs: Capacity: app. 2.800 crates/h Formats: 0,7 l GDB in 12er crates 0,5 l GDB in 12er crates Crate dimension: 356 x 275 x 257 mm (0,5 l GDB) 356 x 275 x 346 mm (0,7 l GDB) Electrical control Siemens S7 control Caps For the decapping of aluminium and plastic caps, 28 mm

Main extruder : KME 1-90-36R, main drive 255 kW Co Extruder Inner Layer : KME 45-30 Co Extruder Outer Layer: KME 45-36BR, New Screw Condition : good, straight from production. Compact design, 1 common control cabinet Note : 3-layer pipe head up to 315 mm available

Main extruder : KME 1-90-36R, main drive 255 kW Co Extruder Inner Layer : KME 45-30 Co Extruder Outer Layer: KME 45-36BR, New Screw Condition : good, straight from production. Compact design, 1 common control cabinet Note : 3-layer pipe head up to 315 mm available

KRAUSS MAFFEI TWIN SCREW EXTRUDER (photos before reconditioning), Mod.KMD 2-90 KK, used for profiles, n.2 parallel screws diam. 90 mm 20 L/D Max 30.5 rpm, 40 kw d.c.drive, installed power 180 kw, feeding hopper, max production with PVC profile 240 kg/h, complete with control cabinet, Heating 28.5kW,, 5 Zones Heating and 2 Last Barrel Oil Cooling Barrel +1 Zone Adapter 4 Zones Double Die, degassing point, Measures 4.3 L x 1. 2 W x 2.3 (m) H (incl Hopper) ,, Approx.weight 4.3 Ton

used spare part IMM - Column warehouse no.: 501285 manufacturer: KRAUSS MAFFEI Typ: Saeule year of construction: neu Column for intensifier match the machine size Krauss Maffei 501285 There are a total of 6 columns available, they are brand new and unused. Total length 965 mm, diameter 124 mm piston, piston rod diameter 85 mm.

Gross volume: 300 ltr. Net volume: 220 ltr. 1 x Head Material: mild steel.

maximum board thickness. 800 gsm Corrugated board types: N, E, F Speed 400 m / min. Max. Inching 10 m / min. maximum thickness of the folded box 20 mm maximum inlet width 1100 mm Dimensions 15 x 1.70 x 1.90 m Weight 7.6 T required power 15 kW required compressed air 6 bar Compressed air capacity 60 L

Swiss type CNC Manurhin KMX TWIN 207 is a double-spindle automatic machine with automatic feeding of bars. The CNC lathe was produced in 2000 in France. Technical data : - type of automatic lathe: Swiss Type - control: NUM - Swiss control - number of axles: 6 - turning diameter up to: 20 mm - diameter of passage Ø: 28 mm - number of turns: 150-8000 rpm - feed: 10/15 m / min - number of tools: 8 + 8 + 4 + 4 pcs - spindle power: 2.2 kW - tailstock: counter spindle - machine weight: 5000 kg Lathe equipment: - two main spindles / two opposite spindles - material feed with FMB Doppel-Turbo - counter spindle: 150-6000 rpm - chip conveyor - Manurhin / Schlichting-System clamps - coolant filtration

Coolant storage device consisting of metal tank (tank size: 16 litres), coolant pump, hoses and fitting.

used 2 row Fortuna head machine mobile maximum hourly output 2400 pieces per srtück.Compact machine robust construction easy cleaning.Payment and delivery on request. Weight range 35-80 grams round buns 2-row Painted on rolls checked and cleaned Dimensions: Height: 170 cm Width: 100 cm Depth: 70 cm

Complete gate line , with log task - Remote controlled clamping car - Gate Müller with sideware crosscut saw, complete mechanization, cut saw Paul S900 SH 180 mm, sour paul KME II /1000, chopping system Rudnick&Enners 200/600 etc.......

Offer via gebr. Thread cutting machine with pipe saw RA21 Made GEORG FISCHER type KM2, built 1997 Technical data: Thread diameter 3/8" - 2" Power connection 200 - 240 V / 50 Hz With mobile undercarriage with threaded cutting jaws 3/8", 1/2", 3/4", 1", 11/4", 11/2",2" used, in good condition.

workpiece length: 3250 mm swing diameter: 630 mm grinding wheel diameter: 900 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Serveral Steadies Dresser Cooland System The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 3.400 mm y-travel: 1.250 mm z-travel: 2.000 mm Control: TNC-430PA table-size: 4.700 X 1.200 mm V- travel: 500 tool taper: ISO 50 milling head -swivable: 0.001º/0.001º Grad main drive: 37 kW Chip coveyor: inkl handwheel: HR-410 Tools changer: 60 pos. milling head: Automatic Head 45º weight of the machine ca.: 35 t - Automatic Head 45º INCLUDED - Automatic Head 45º 0.001º/0.001º - Head 45º Max. Speed 3.000 rpm - 45º Head Taper ISO-50 - Twist Head Contiuous INCLUDED - Twist Head Max Speed 3.000 rpm - Twist Head Taper ISO-50 - Ram with Quill - Quill Diameter 150 mm. - Quill Taper ISO-50 - Pick up station AITEK for 45º and Twist Heads - Rotary Table ZEATZ Ø 1200 INCLUDED - RENISHAW MP 16+SP2/1 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Fortuna Head Machine Type: KM5 5 rows Weight range: 35-80 grams Hourly output: max. 5500 pieces With flour spreader cut + round off analog control can also be synchronized with a proofing cabinet 400V 50Hz Height: 170cm Width: 200cm Depth: 100cm

Fortuna bread roll system  Type: KM5 5-row Fortuna Head Machine Fortuna proofing cabinet Peeling tape sheet metal deposition 58x78cm Mehler digital control Technical data: 380V – 50Hz

cross-section width:: 40 (45) mm cross-section heigth:: 25 mm feed:: 1 - 999.999,9 mm speed of feed:: 1 - 60 m/min cuts max.:: 100 Schnitte/m Condition: used, Specification: circular knife cutting machine - second-hand for cutting rings, discs and profiles - diameter max.: 45 mm - 3 hoses or strands: 6 - 20 mm - 2 hoses or strands: 20 - 30 mm - 1 hose or string: 30 - 45 mm - cross section width max.: 40 mm - cross-section height max.: 25 mm - feed speed: 1 - 60 m/min, infinitely variable - Cutting capacity max.: 100 cuts/min depending on material and cutting length - Cutting length: 1 - 999.999,9 mm - Step jump: 0.1 mm - Feed by servo drive - Cutting by servo drive - Pulsed feed - Connected load approx.: 5 kW - Operating voltage: 3 x 400V, 50Hz, PE - Weight approx.: 550 kg - Dimensions (L/W/H): 1,940 x 890 x 175 ...

Bread roll and bread roll line Fortuna + Kövy with Fortuna head machine KM 6 with settling belt Built in 1999 Maximum hourly output 8400 pieces Weight range: 40-80gr In need of an overhaul
