SCHAUDT cf used machines

Ground precision ball screw, D50mm, 1725mm, Schaudt Mikrosa, new As good as new in original packaging! The high quality part comes from a spare parts warehouse of a mechanical processing of a large car manufacturer, is completely as new and in the original packaging. Attention: We have many, in stock, high quality ball screws in different versions in the diameters 32, 40, 50, 63 and 83mm. Please have a look at our website of IPV GmbH. Ball screw, Type 0/500.04.100.01, D50 mm, 1725 mm, Fa. Schaudt Mikrosa Ball screw diameter 50 mm, Pitch 10 mm, Length of thread 1445 mm Length of ball screw nut 93 mm, Max. total stroke 1352 mm, Total length of the spindle 1725 mm Diameter for coupling with motor 35 mm Diameter bearing seat A 40 mm, Bearing seat B 40 mm Functional guarantee! We cannot provide a conventional guarantee and warranty for second-hand parts. However, we gi ...

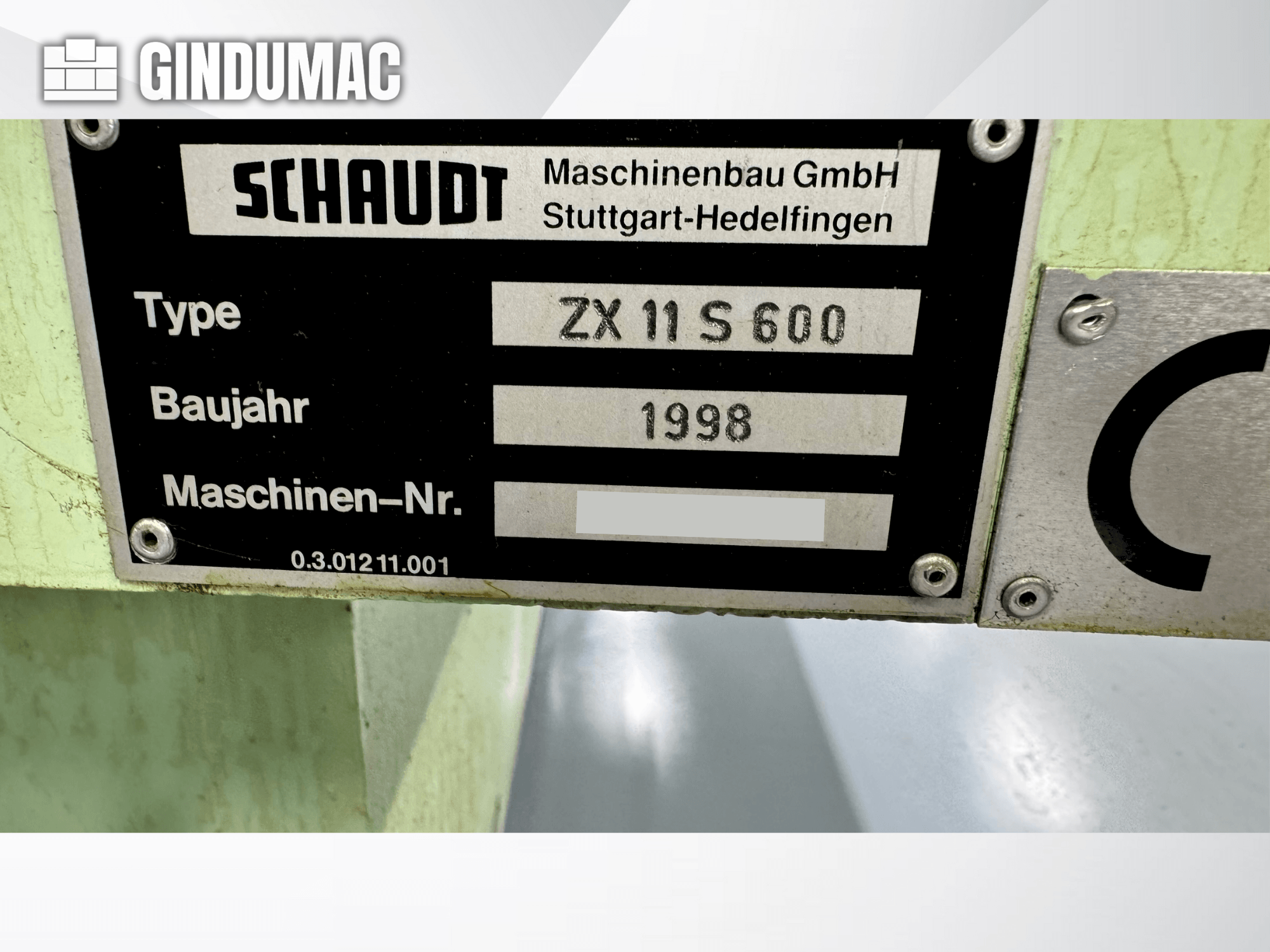

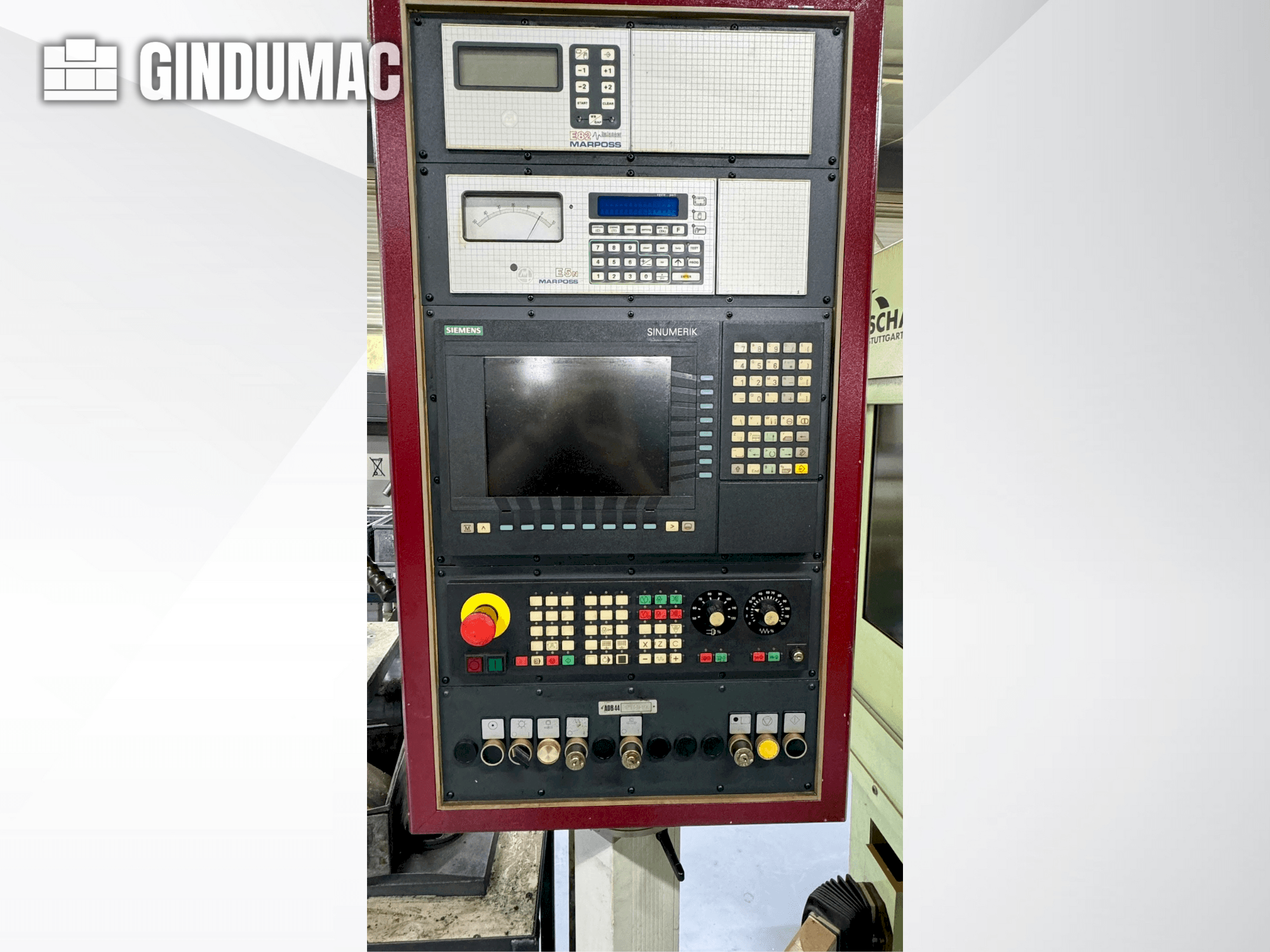

This Schaudt ZX 11 grinding machine was manufactured in 1998. It includes a Knoll VRF 450/2250 system and features transport dimensions of approximately 8 loading metres at a maximum height of 2.2 meters, weighing around 7.5 tons. Accessories include a measuring and positioning system, tailstock, and a special chuck for shaft parts. A great opportunity to buy this Schaudt ZX 11 grinding machine. Contact us for further details regarding this grinding machine.

This Schaudt Mikrosa SASL 125 was manufactured in 1989. A centerless external grinding machine, it features NC-controlled operations and hydrodynamic axis bearing. Both wheels can be dressed via a controlled axis. Refurbished by UHLMAN Werkzeugmaschinen-Service in 2021/22, it has been regularly maintained. Consider the opportunity to buy this Schaudt Mikrosa SASL 125 centerless grinding machine. Contact us for more information.

Schaudt ZX11 - Premium Overhauled [RETROFIT] - Compact cross slide CNC grinding machine - Tip height: 180 mm - Grinding length: 600 mm - Control: Siemens Sinumerik ONE or Fanuc - Workpiece weight: approx. 80kg - Workpiece headstock: MK4 - Tailstock: MK4 - Installation dimensions: approx. 2,700x2,400 mm Options: (other options also possible) - Balancing & grinding sensors - In-process measuring device for length & Ø - Dressing spindle for diaform roller - B-axis for swivelling grinding headstock - Automatic door drive - suitable automation - Peak increase - u.v.m. on request / customer request

Schaudt PS51 600 - Premium Overhauled [RETROFIT] - CNC production grinding machine for large-scale production - Tip height: 180 mm - Grinding length: 600 mm - Control: Siemens Sinumerik ONE or Fanuc - Workpiece weight: approx. 300kg - Workpiece headstock: MK5 - Tailstock: MK5 - Installation dimensions: approx. 4,100x2,800 mm Options: (other options also possible) - Balancing & grinding sensors - In-process measuring device for length & Ø - Dressing spindle for diaform roller - Automatic door drive - Grinding headstock swivelled to fixed stop - suitable automation - Peak increase - u.v.m. on request / customer request

Schaudt ZX11 - Premium Overhauled [RETROFIT] - CNC grinding machine for individual requirements - Tip height: 180 / 250 mm - Grinding length: 2,500 mm - Control: Siemens Sinumerik ONE or Fanuc - Workpiece weight: approx. 600kg - Workpiece headstock: MK5 - Tailstock: MK5 - Installation dimensions: approx. 7,200x2,600 mm Options: (other options also possible) - Balancing & grinding sensors - In-process measuring device for length & Ø - Dressing spindle for diaform roller - B-axis for swivelling grinding headstock - Internal loop device - Upgrade to non-circular & thread grinding - Automatic door drive - suitable automation - Peak increase - u.v.m. on request / customer request

Schaudt PF4 1000 - Premium overhaul [RETROFIT] - CNC grinding machine for individual requirements - Tip height: 180 mm - Grinding length: 1,000 mm - Control: Siemens Sinumerik ONE or Fanuc - Workpiece weight: approx. 300kg - Workpiece headstock: MK4 - Tailstock: MK4 - Installation dimensions: approx. 4,500x2,400 mm Options: (other options also possible) - Balancing & grinding sensors - In-process measuring device for length & Ø - Dressing spindle for diaform roller - B-axis for swivelling grinding headstock - Second / Third External Loop Unit - Internal loop device - Upgrade to non-circular & thread grinding - Automatic door drive - suitable automation - Peak increase - u.v.m. on request / customer request

BRAND: SCHAUDT MIKROSA YEAR: 2012 MODEL: KRONOS S250 APPLICATION TYPE: GRINDING LOCATION: IRELAND MACHINE TYPE: GRINDING MACHINES AVAILABILITY: IMMEDIATELY Technical Information GENERAL DATA MEASUREMENTS WIDTH: 6500 MM MEASUREMENTS DEPTH: 4600 MM MEASUREMENTS HEIGHT: 2232 MM MACHINE WEIGHT: 8800 KG CONTROL UNIT BRAND: SIEMENS MODEL: SINUMERIK 840D CNC MAIN LANGUAGE: ENGLISH CNC LANGUAGE CUSTOMIZABLE: YES MAIN DRIVE SPINDLE SPEED RANGE: 80 1/MIN NUMBER OF AXIS: 5 WORKPIECE WORKPIECE DRM: 1.5 - 35MM WORKPIECE X: 245 MM MEDIA MAIN ELECTRONIC CONNECTION: 400 V OIL WATER SEPARATOR: YES INTERNAL COOLING: YES Additional Equipment - PAK AUTOMATION/KAWASAKI LOADING/UNLOADING ROBOTIC SYSTEM - TYCO FIRE SUPPRESSION SYSTEM - CHILLER - LTA OIL MIST EXTRACTION - HKS COOLANT FILTRATION SYSTEM - VARIOUS GRINDING WHEELS - GRINDING WHEEL STANDS Additio ...

Grinder Schaudt BHU 40A Swing diameter: 400mm Center distance: 630mm The technical data can be found in the pictures. approx. transport dimensions and approx. weight: 3.5m x 2m x 2m, 3,500 kg Location of the machine: 76661 Philippsburg The machine can be viewed on site. It is in pristine condition. You can make an appointment for a viewing at any time. We'd love to hear from you.

A conventional Schaudt external cylindrical grinding machine is available. Center distance: 1000mm, center height: 180mm, max. grinding diameter: 350mm, max. grinding length: 1000mm, plunge grinding length: 100mm, swivel range: 45°, machine dimensions X/Y/Z: approx. 3200mm/1700mm/1700mm, weight: approx. 4500kg. An on-site inspection is possible.

Grinding length: 500 mm Grinding diameter: 300 mm Grinding wheel diameter: 400 mm Equipped with: - Bezel - Grinding wheels Country of origin: Germany Machine LxWxH: 2300 x 1700 x 1700 mm Machine Weight: 3500 kg

Center height: 180 mm Grinding diameter: Ø 290 mm Distance between centers: 1000 mm Lots of equipment

We have stored an associated coolant system Knoll type VRF 450/2250 (built in 1997) at a freight forwarder, so it is not on the pictures. The machine is fully functional and is available immediately.

grinding diameter: 300 mm grinding length: 600 mm workpiece weight: 80 kg grinding wheel diameter: 508 mm Control: Siemens type: 840 C grinding spindle speed: 45 m/s power capacity - grinding motor: 7,5 kW z-axis: 865 mm x-axis: 250 mm centre distance: 1000 mm number of turns of spindle head: 1-800 U/min total power requirement: KVA weight of the machine ca.: 4,85 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: ca. 360 mm grinding length: 1500 mm serial number: 12013 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: mm grinding length: mm feed in: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding diameter: mm grinding length: mm centre height: mm total power requirement: kW weight of the machine ca.: t required space: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

grinding length:600 mm centre height:180 mm swing dia.:360 mm workpiece weight:80 kg max. dia. of grinding wheel:500 mm grinding wheel width:80 mm grinding wheel hole diameter:203,2 mm peripheral speed:45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

grinding diameter:300 mm grinding length:600 mm centre height:190 mm z-axis:865 mm x-axis:250 mm clamping length:1000 mm peripheral speed:45 m/sec grinding slide swivable +/-:8 ° grinding wheel width x diameter:80 x 508 mm work piece spindle speed:1 - 800 U/min weight of the machine ca.:5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device

Steam Boiler CHP Power Plant with 240 MW Pyroflow CFB Boiler A combined heat and power (CHP) plant in very good condition, with an electrical capacity of 88 MVA and a thermal capacity of 240 MW. The plant is designed to operate primarily on wood-based biomass, with coal as a backup fuel. This is a complete power plant, still in full operation, and includes all technical systems from fuel feeding to the dispatch of electricity and live steam. The equipment has been exceptionally well maintained and extensively upgraded throughout its lifetime, meeting the most stringent modern quality standards. The steam boiler utilises Circulating Fluidised Bed (CFB) technology with the commercial-type PYROFLOW, manufactured in Finland by Ahlström in 1989. This CFB boiler delivers a steam flow of 100 kg/second at a pressure of 137 bar and a temperature of 535ºC. The primary fuel has been wood-ba ...

Turbine Turbine mileage: 30,000 hours Counter-pressure turbine Manufacturer KKK Initial commissioning in 2002 Type: CFR5 G6a Power Max: 2500 kW Operating power: 2200 kW, Speed 23000 rpm, Fresh steam pressure: 65 bar, Fresh steam pressure temperature: 480 C, Evaporation pressure: 1-17 bar, Investments in 2002, Total steam forming station renewed from 63 bar to 2.5 bar in 2002, El. Generator Leroy Somer, el. Power 2 MW, 525 V, 2488 kVA renewed, Complete measuring, control, control technology of the turbine renewed, steam turbine renewed With Energy Installed boiler power Boiler I Coal Steam generation: 20 t/h, 63 bar, 495 C Boiler II Coal Steam generation: 13 t/h, 34 bar, 425 C Boiler III: Combined burner for oil and gas, steam generation: 20 t/h, 17 bar, 285 C General overhaul of the entire plant from 2002 to 2004, steam generator renewed, automatic charcoal and  ...

Turbine Operating Hours of Turbine: 30.000h Back-pressure turbine Manufacturer: Fa. KKK First Start-up: 2002 Type: CFR5 G6a Power Max: 2500 kW Operational efficiency: 2200 kW, Revolution number: 23000 U /min, Live steam pressure: 65 bar, Live steam pressure temperature: 480 °C, Evaporation pressure: 1-17 bar, Investments in the year 2002 , Entire steam transforming station from 63 bar to 2,5 bar in the year 2002 renewed, El. Generator Fa. Leroy Somer, el. Power 2 MW, 525 V, 2488 kVA, renewed, Entire measuring -, governing and control of the turbine renewed, Steam turbine renewed with Energy Production Installed boiler efficiency: Boiler I , Hard coal, Steam generation: 20 t/h, 63 bar, 495 °C Boiler II , Hard coalr Steam generation: 13 t/h, 34 bar, 425 °C Boiler III: , Combination burner for oil and gas, Steam generation: 20 t/h, 17 bar, 285 °C General overha ...

Back-pressure turbine Manufacturer: Fa. KKK First Start-up: 2002 Operating Hours of Turbine: 30,000h Type: CFR5 G6a Power Max: 2500 kW Operational efficiency: 2200 kW Revolution number: 23000 rpm Live steam pressure: 65 bar Live steam pressure temperature: 480 oC Evaporation pressure: 1-17 bar Investments in the year 2002 Entire steam transforming station from 63 bar to 2.5 bar renewed in 2002, El. Generator Leroy Somer, el. Power 2 MW Renewed measuring Entire -, governing and control of the turbine renewed Steam turbine renewed Installed boiler efficiency: Boiler I Hard coal Steam generation: 20 t/h, 63 bar, 495 oC Boiler II Hard coal Steam generation: 13 t/h, 34 bar, 425 oC Boiler III: Combination burner for oil and gas Steam generation: 20 t/h, 17 bar, 285 oC General overhaul of the entire plant from 2002 to 2004 Steam generator renewed automatic cole-loader ...

Francis Shaw 90mm coldfeed rubber extruder.Year: 1992. Machine No.4846Vented. Side power roller feed,L/D ratio 20:1,H series David Brown gearbox,Thrige Scott 63kW, 2000rpm DC variable speed motor.Machine fully overhauled, cleaned/painted and fitted with NEW electrical control panel. With provision for 5 x TCU's.
