SCM sandya used machines

Wide belt sander SCM Sandya 40 M1 year of construction 2000 S/N AE/020761 Manufacturer SCM Group S.p.A Italy Sanding width 1.350 mm Workpiece thickness min 4-170mm 1 sanding unit, calibration 250mm diameter Roller hardness °Shore 55 Vacuum table       Main motor 11 kW ( 15 HP) Sanding belt length 2,620 mm Feed max 19 m/min Feed stepless Fixed working height 900 mm Sanding belt blow-off device Electropneumatic segment control Belt change side left SYEL CN 51 control unit Carpet feed with speed controller Electronically controlled sanding belt oscillation Main motor with disc brake Rubber coated pressure rollers Automatic carpet centring Automatic table positioning Air requirement Nl/min 15 Operating voltage 400V/ 50 Hz Total power 40 Amp Dimensions: L x W x H= 1917mm x 2134 x 2365mm Weight approx. 2540 kg

I sell a wide belt grinding machine SCM Sandya 16 S 110, built in 2012. Configuration: 18.5 KW hard-rubber grinding cylinder 15 KW hard-rubber grinding cylinder 11 KW combi unit soft-rubber cylinder + pneumatic shoe. Working width 1100mm. Pressure rollers for short elements. Compressed air Clean for all units. Weight 2750kg 3 motors 18,5 + 15 + 11kW Incl. full documentation. Condition AS NEW ! The machine did very little work. Available the same.

Calibrating sanding machine SCM SANDYA 20 mod. 20 M3 135 used Year of manufacture 2003 Nr. AE/024903 series maximum workable width mm. 1350 Forward speed 3.5-18 mt/m with inverter workable height 4-170 mm vacuum hob KW 7.5 Composition: I° group: calibrating roller in grooved steel D. 250 - KW 22 motor II° group : sanding roller d. 250 hardness 45 SH - motor 2 speed KW 9/11 rpm 1400/2800 III° group: combined roller d. 170 hardness 30 SH + 46-sector sectioned elastic buffer - motor KW 11 with inverter I° group : scotch brite satin roller Flat positioner with workpiece tape development mm. 2620 x 1370 II° and III° belt blowers Automatic belt centering Electronic intervention I° roller / II° roller / III° roller / buffer

Key data: 950 mm, 2 , 170 mm

Motor 18.5 kw Roller diameter 100 mm Rollers Steel + Rubber Dimensions 1350 x1670 x2000 mm Weight 1000 kg

working width 1100mm Calibration unit with metal shaft Combi unit with rubber roller and boot Pneumatic boots Oscillation with photocells Material thickness gauge smooth adjustment of paper speed motor power 11kW pneumatic belt tensioning sanding belt length 2620mm Activating machine functions from the control panel

working width 900mm Combi unit with rubber roller and boot electric table adjustment Material thickness gauge two feed gears star/delta boot weight 760kg

Excellent condition - Fully operational - Loading / Transport possible! Total installed power approx. 30 KW Sanding width 1100 mm Workpiece thickness from 4 mm up to 170 mm Motorized height positioning with digital reader Device for automatic positioning of the table according to the required thickness Belt conveyor with 2 feed speeds: 4.50 m/min and 9 m/min Aggregate 1: steel calibration roller with diameter approx. 180 mm, motor power 15 KW Aggregate 2: combined roller and sanding pad aggregate, motor power 11 KW

Sanding width 1350 mm. Workpiece thickness: 4 - 170 mm Equipped with 3 aggregates, 1st steelroller, motor 22kW 2nd roller 65? Shore, motor 15kW 3th Kombi unit, motor 12kW, combination roller with 45? Shore and pneumatic controlled sanding shoe cleaning brush at outfeed Electrical height adjustment of the transport table. Pneumatic sanding belt tension. Sanding belt oscillation. Pneumatic sanding belt cleaning Throughput speed with variator Workpiece thickness measurementm with manual setting at the machine feed Sanding belt dimensions: 1370 x 2620 mm 5 rollers on in- and outfeed table

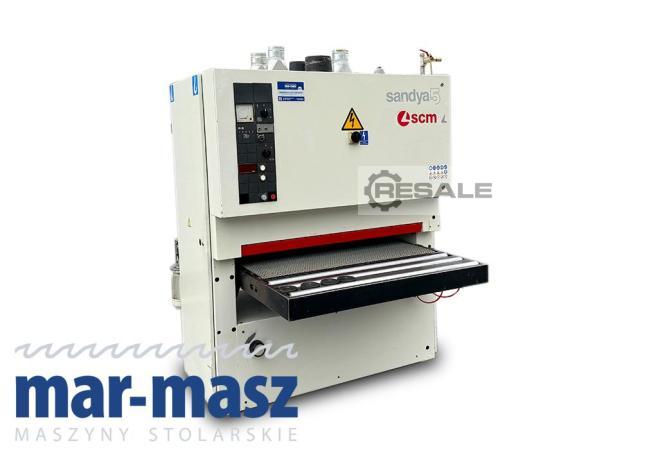

Part number 7790 SPECIFICATIONS - max workpiece width 1100mm - max workpiece height 170mm - 2 generators: - rubber roller, pressure roller 1) Metal corrugated roller for calibration - rubber roller, pressure roller 2) rubber roller, grooved + boot + metal roller - rubber roller, pressure roller - motor power of generator I and II 11kW -from the bottom: - 3 metal rollers, sliding - pulling tape 2 metal rollers, sliding - pneumatic oscillation of belts - Electric + manual table lifting (for precise adjustment) - 2 types of feed speed - with air brake - working pressure 8bar - Diameter of the extraction port 2x160mm, 4x100mm - overall dimensions l/w/h 2000x1600x2100mm - weight 1170kg ADVANTAGES – unpainted – Italian production – 2 generators – DTR documentation – used grinder, very good condition Net price: 36900 PLN Net price: 878 ...

calibrating sanding machine SCM SANDYA 16S - 135 second hand machine carpet in rubber max. working width mm. 1350 machine composed by 2 belts : 1° belt : roller in rubber diam. mm.200 . shore 80 2° belt : combined roller in rubber diam. mm.160 . shore 35 + electronic pad belts size mm. 2620 x 1370 motor power Hp 20 volt. 380/50

S 400 elite S 32 professional format circular saw Trimming length 3200 mm max. cutting height 138/98 mm 90/45 with scribble max. saw blade diameter 400 mm Speed Main saw blade 4000/5000 rpm Engine power 7 kW 9.5 hp 400 V 50 Hz Prescribing 0.55 kW/0.75 hp Upper protective hood Suction nozzle diameter 120 mm Weight 715 kg G&STÜ-5504842 Option: Angular cutting device with grid division G&STÜ-5510403

SCM C30 4-fold combination machine Format Circular Saw Dressing Thickness Planer Machine Milling Machine Planing width 300mm Planing shaft: 3-tersa knife shaft Dressing table length: 1200mm Passage height: 3-200mm Format sliding table: 1070mm Besaeumlaenge Cutting height: 80mm Saw 90°-45° swivel Engine power: 400V 2 hp S1 Milling machine rigid 90° Milling machine rpm: Speeds of 4200-6300 rpm or 5000-7500 rpm G&STÜ-5500030 relkag21 SPECIAL PRICE: Fits in any small workshop!!!!!

Engine power: 400V 2 PS S1 Planing width 260 / 300 mm Drum: 3-Tersamesserwelle Dressing table length: 1040 mm / 1200 mm Clearance height: 3-200 mm Formatschiebetisch: 1070mm be hemline Cutting height: 80 mm Saw-45 ° 90 ° swivel Milling machine 90 ° starr Blower rpm: Speed of 4200-6300 rpm or 5000-7500 RPM G & STÜ 5500027 260mm planing width! SPECIAL PRICE NET OF 3599.- G & STÜ 5500030 300mm planing width! SPECIAL PRICE NET OF 3999,-

AUTOMATIC BORING machine 35 spindles SCM TOP 35 second hand machine electric movement of boring head 0° / 90° technical details : n. 35 spindles center distance between spindles mm 32 center distance between first and last spindle of the drill head mm.1088 max. stroke of boring unit mm. 140 n.02 motors Hp 3 each one operating pressure atm 6-8 weight kg.800 volt. 380/50

FLOW​ METER SV5204 IFM

SCM TECH Z5 5200 CNC woodworking center was built in 2015 in Italy by SCM Group S.p.a. This extremely efficient machine is used for precision machining of wood and wood-based materials (chipboard, plywood, etc.). It enables a number of complex operations to be performed, such as vertical drilling, horizontal drilling, grooving with a saw blade along the X axis and standard milling. The machining process is performed in 5 axes by means of a work head located inside a movable machining station. It consists of a boring head with vertical/horizontal spindles and integrated blade and electro-spindle with automatic tool exchange system. The machining station moves over a work table with suction cups that ensure secure holding of the workpiece during machining. On the inner base of the work table, in turn, there is a device designed for easy shavings removal. Each axis is driven by high-powe ...

Table milling machine SCM T 120 C. SUVA protection Maintenance: Malawer AG Spindle 30 mm 2900/4400/6000/7800/10000 RPM Weight 450 kg Masch No. 20474 L x W x H: 115 x 90 x 86 (150) cm Built in 1961 Subject to changes, errors, prior sale! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

ROUTER type SCM R9

THICKNESS PLANER type SAC SUERI RS 53 S second hand machine CE mark : Yes technical details : useful working width mm. 530 maximum (minimum) working height mm. 300 (3) maximum removal mm. 8 variable feed speed by inverter m / min. 4 ÷ 16 motorized table positioning with electronic reading n.4 knives "Tersa" main motor power Hp 5,5 volt. 380/50

THICKNESS PLANER type SAC SUERI RS 53 S second hand machine CE mark : Yes technical details : useful working width mm. 530 maximum (minimum) working height mm. 300 (3) maximum removal mm. 8 variable feed speed by inverter m / min. 4 ÷ 16 motorized table positioning with electronic reading n.4 knives "Tersa" main motor power Hp 5,5 volt. 380/50

THICKNESS PLANER type SAC SUERI RS 53 S second hand machine CE mark : Yes technical details : useful working width mm. 530 maximum (minimum) working height mm. 300 (3) maximum removal mm. 8 variable feed speed by inverter m / min. 4 ÷ 16 motorized table positioning with electronic reading n.4 knives "Tersa" main motor power Hp 5,5 volt. 380/50

THICKNESS PLANER type SAC SUERI RS 53 S second hand machine CE mark : Yes technical details : useful working width mm. 530 maximum (minimum) working height mm. 300 (3) maximum removal mm. 8 variable feed speed by inverter m / min. 4 ÷ 16 motorized table positioning with electronic reading n.4 knives "Tersa" main motor power Hp 5,5 volt. 380/50

surface planer , thickness planer , spindle moulder . machines SCM L'Invincibile second hand machines in Excellent working conditions NOT separate sale thickness planer model SCM S 63 l'Invincibile : useful working width mm. 630 maximum (minimum) working height mm. 240 (3) maximum removal mm. 8 variable feed speed mt./min. 6 ÷ 18 motorized table positioning with reading n.4 knives "Tersa" main motor power Hp 7,5 volt. 380/50 surface planer model SCM F52 l'Invincibile working width mm. 520 tables length mm. 3000 ground cast iron tops n.4 knives tilting guide up to 45° motor power Hp 5,5 volt. 380/50 spindle moulder with tilting spindle model SCM T160 l’Invincibile spindle tilting by electric -5 ° / + 45 ° spindle lifting by electric motor power Hp 5,5 shaft diameter mm. 50 volt. 380/50

MULTI MOULDERS machine with 7 shafts type SCM SUPERSET 23 PLUS . with SLIDE and RETURN PIECES type MAHROS RP/4 second hand machine CE mark : Yes volt. 380/50 - Composition (7 shafts , 7 independent engines): 1° shaft : lower horiz . motor power Hp 7,5 2° shaft : right vertical . motor power Hp 7,5 3° shaft: left vertical (automatic). motor power Hp 7,5 4° shaft : upper horiz. motor power Hp 10 5° shaft : upper horiz. motor power Hp 10 6° shaft : lower horiz. motor power Hp 7,5 7° shaft : universal 360° . motor power Hp 10 grove table inlet length mm. 2400 feed speed: from 5 to 35 mt./min max. useful working width mm. 230 max. useful working height mm. 120 shaft diameter mm.40 automatic lubrication system weight kgs. 4300

CIRULAR SAW type SCM SI 400 EP NEW machine . prompt delivery CE regulation: YES CN control "READY" 2 controlled NC axes (lifting and tilting of the blade) - blade lifting and tilting management - tool data settings with automatic correction of the height of the blade with respect to the inclination - manual, semiautomatic and automatic mode with 99 storable programs digital display on the parallel guide n.02 reversible stops on the squaring guide extension floor out with scoring unit : YES max diameter saw blade 400 mm length of the squaring carriage mm 3200 main blade motor power Hp 9.5 scoring unit motor power Hp 1,7 3 main blade rotation speed rpm. 3000 /4000 / 5000 volt. 380/50 YEAR 2022
