SEIGER slz used machines

Key data: 1010 mm, 3000 mm

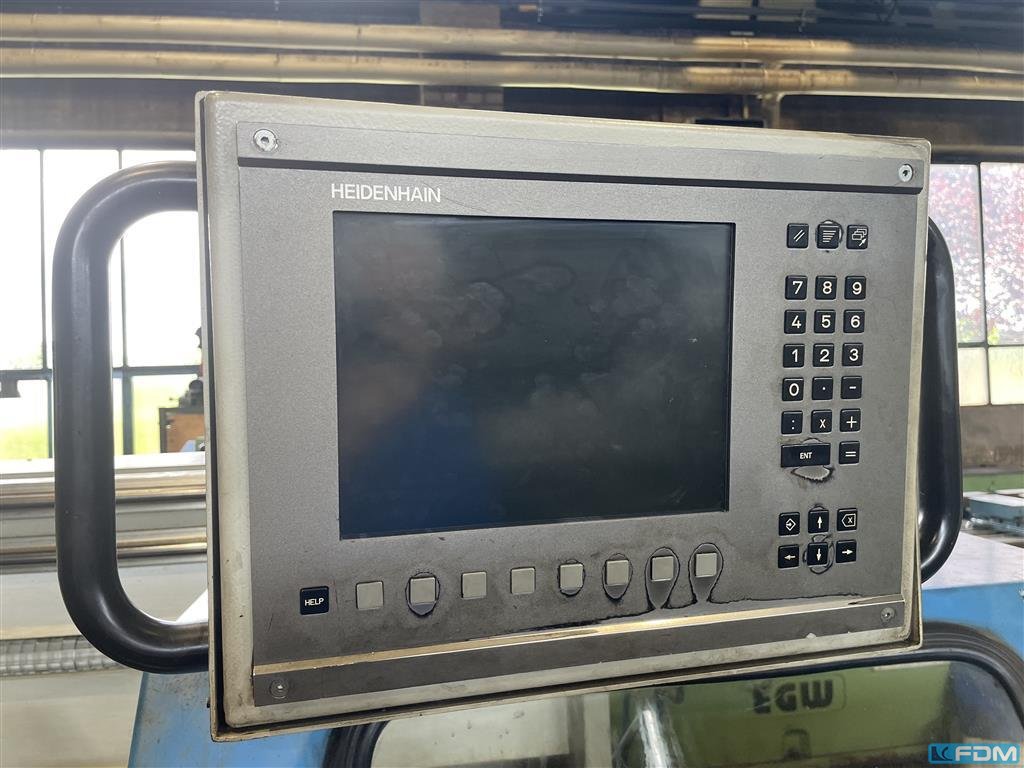

Cycle lathe Seiger SLZ 1000 Year of construction 2009 Cycle lathe Seiger SLZ 1000 Year of construction 2009 Center width 3000mm Circulation over bed 1010 Circulation via face slide 650 Drive at 100% ED 37KW at 60/ ED 52KW Max. torque approx. 9000NM Speed 5-900rpm X Feed force max 240000N Z Feed force max 16000N Control Heidenhain Manual Turn with face plate and steady rest The offer is aimed exclusively at tradespeople within the meaning of §14 BGB

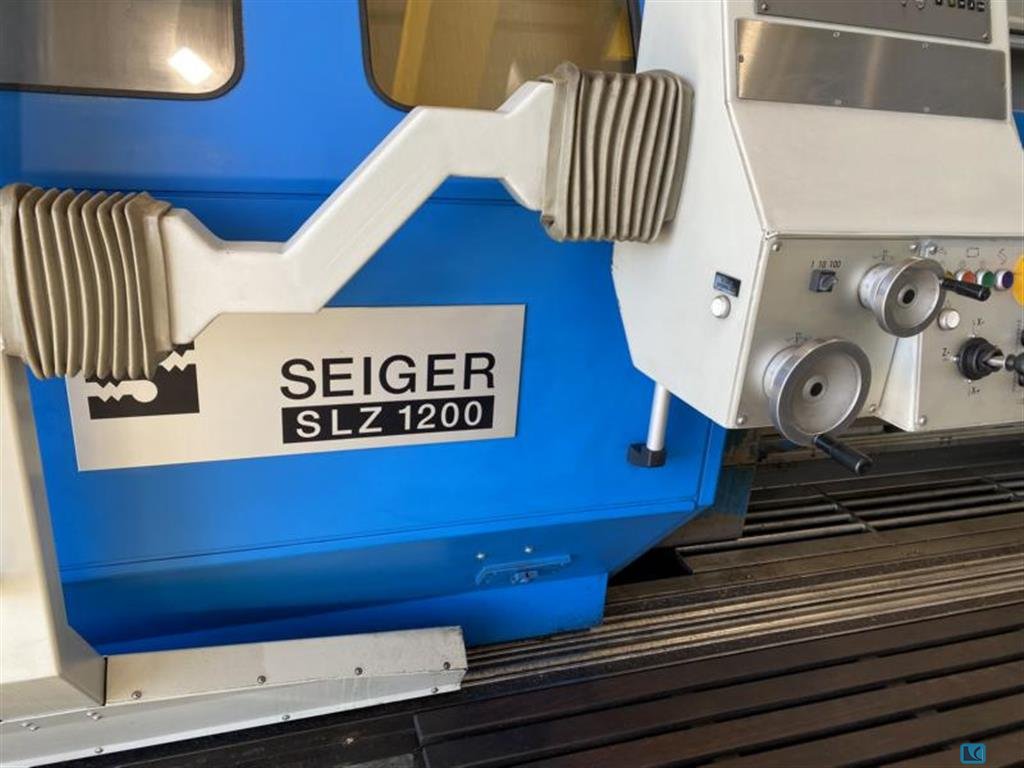

Heavy Duty Lathe Seiger SLZ 1200 x 3000 with Siemens Sinumerik 810D Cycle Control (Teach-In) The heavy duty lathe Seiger SLZ 1200 x 3000 is equipped with a Siemens Sinumerik 810D cycle control (Teach-In). The machine was most recently used as a faceplate and frontal lathe and therefore operated without a tailstock and without steady rests . However, the machine can still be structurally equipped with appropriate steady rests or a tailstock and used for classic center work. Configuration with AC main drive, large faceplate, hydraulic unit, separate control cabinet, and 2 chip conveyors . Working Area Distance between centers: 3,000 mm Swing diameter over bed: 1,200 mm Swing diameter over cross slide: 850 mm Cross slide travel: 620 mm Bed width: 750 mm Spindle Spindle nose: DIN 55027 size 11 Spindle diameter front bearing: 190 mm Spindle bore: 104 mm Speed range: 5 – 900 ...

Horizontal turning machine manufactured in 2014. This SEIGER SLZ 500E features a center distance of 1500 mm and a swing diameter over the bed of 500 mm. It is equipped with a powerful main drive of 20/25 kW and a maximum spindle torque of approximately 1400 Nm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ 500E machine we have for sale. Contact us for further details regarding this machine.

Horizontal turning machine manufactured in 2006. This SEIGER SLZ 500E features a center distance of 1500 mm and is equipped with Siemens / Heidenhain cycle control for enhanced precision. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ 500E machine we have for sale. Contact us for further details.

Key data: 800 mm, 4000 mm

Description Seiger SLZ 800E cycle lathe incl. milling unit Details Machine no. 4443 Year of construction 2008 Control Siemens Sinumerik Turning diameter 800 mm Turning length 4,000 mm Face plate 800 mm, 4 jaws Face plate 500 mm, 4 jaws 3-jaw chuck 400 mm Lynette up to 450 mm (2 different) Accessories various jaw sets powered tool Permissible workpiece dimensions: between tips without setting stick 2,000 kg with a setting stick 2,200 kg with two sets 2,500 kg flying in the face plate 750 kg Machine dimensions incl. cladding 2,000 mm + Tip Wide x 2,750 mm x 2,000 mm incl. documentation

Description Seiger lathe SLZ 800E x 4000 Details Machine no. 4443 Year of construction 2008 Siemens Cycle Control Spindle holder according to DIN 55027 size 11 Spindle bore Ø 130 mm Spindle diameter in the front bearing 170 mm Spindle taper 1:20 Drive power 20/28 kW Main spindle speed switching stage "I" 9-1,800 min-1 Main spindle speed switching stage "II" 9-400 min-1 Maximum torque: 3,200 Nm Center width 4,000 mm Circulation Ø above the bed 810 mm Circulation Ø above the face slide 540 mm Bed width 480 mm Machine dimensions 2,000+center width x 2,750 x 2,000 mm Permissible workpiece masses between points without setting stick 2,000 kg Permissible workpiece masses between points with a setting stick 2,200 kg Permissible workpiece masses between tips with two setting sticks 2,500 kg Permissible workpiece masses flying i ...

turning diameter: 570 mm turning length: 2000 mm control: total power requirement: 15 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 2000 mm : 980507 x-axis: 7000 mm z-axis: 10000 mm : 65 mm total power requirement: 15 kW weight of the machine ca.: 3,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning length: 1500 mm greates pass round over bed: 490 mm turning dia. over face-slide: 280 mm control: Heidenhain Manual Plus Speed range - up to: 3000 U/min spindle bore: 65 mm power capacity - workpiece power: 12/16 (100/60%) kW weight of the machine ca.: 3,5 t Equipment/Accessories: - Steady rest - Chuck - Tool holders - Drill bits - Tips - Multifix holder The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 1600 mm turning length: 6200 mm control: Siemens type: Sinumerik turning diameter over slide rest: 1300 mm transmission ratio: . 3-jaw chuck: Schunk Rota Plus 3-jaw-chuck diameter: 630 mm bed width: 750 mm live tooling: steady: 1200 mm steady: 670 mm steady: 408 mm total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your busines ...

turning diameter: 1010 mm turning length: 6000 mm control: Siemens type: Sinumerik 840D turning diameter over slide rest: 650 mm 3-jaw chuck: Schunk Rota Plus 3-jaw-chuck diameter: 500 mm bed width: 750 mm steady: 820 mm Rotating speeds: 1100 U/min length of gap: 500 mm steady: 450 mm spindle passage: 104 mm workpiece weight: 7000 kg main drive: 52 kW turning speeds: 5-900 U/min total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessorie ...

turning diameter: 1010 mm turning length: 6000 mm control: Siemens type: Sinumerik 840D turning diameter over slide rest: 650 mm 3-jaw chuck: Schunk Rota Plus 3-jaw-chuck diameter: 500 mm bed width: 750 mm steady: 450 mm Rotating speeds: 1100 U/min length of gap: 500 mm steady: 450 mm spindle passage: 104 mm workpiece weight: 7000 kg main drive: 52 kW turning speeds: 5-900 U/min live tooling: total power requirement: . kW weight of the machine ca.: . t dimensions of the machine ca.: . m Serial number: 262/01 Machine number: 08122394 Quick-change tool post Coolant system Monitor Chip conveyor The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items ...

turning diameter: 570 mm turning length: 2000 mm control: Heidenhain TURN PLUS centre height: 265 mm rapid travel - longitudinal/face: 10/7 m/min spindle turning speed range: 1-2500 U/min total power requirement: kW weight of the machine ca.: 3,6 t dimensions of the machine ca.: 5,5 x 2 x 2 m Equipment: Heidenhain TURN PLUS CNC control 3-jaw manual chuck Multifix tool holder 3 steady rests The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Horizontal turning machine manufactured in 1999. This SEIGER SLZ570x2000 features a swing over bed of 570 mm and a turning length of 2000 mm. It is equipped with a Siemens SINUMERIK ManualTurn control unit and offers a spindle speed range of 1-3000 rpm. If you are looking to get high-quality turning capabilities, consider the SEIGER SLZ570x2000 machine we have for sale. Contact us for further details.

turning diameter: 570 mm turning length: 1000 mm control: MANUALplus 620 swing diameter over face slide: 340 mm spindle bore: 93 mm spindle turning speed range: 1 - 3000 U/min transmission ratio: 2 rapid power traverse in X-and Z direction: 7 / 10 m/min max. workpiece weight -without tailstock: 500 kg max. workpiece weight between centres: 1000 kg workpiece weight in steadies max.: 1250 kg main drive motor: (100/60% ED) 20 / 25 kW Dimensions (LxWxH): 2,94 x 2,20 x 1,96 m max. torque on the spindle: ca. 1400 Nm weight of the machine ca.: 3,4 t * HEIDENHAIN MANUALplus 620 control system - Control system expansion for ICP and DIN programs, incl. thread repair * Automatic 8-station SAUTER turret with driven stations, VDI shank D=30 mm, mounted in front of the turning center (limits achievable turning diameter and tailstock operations, reduces turning length) * 2-speed planetary gearbox, auto ...

turning diameter:1600 mm turning length:6200 mm spindle bore:130 mm turning speed range:5 - 710 U/min turning diameter over bed slide:1250 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus, diameter 630 mm 3 x fixed liners (1200 / 570 / 400 mm) Coolant system and chip conveyor Miscellaneous accessories

turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden

turning diameter:1600 mm turning length:6200 mm turning diameter over bed slide:1250 Turning rate:5 - 710 U/min. total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus Dia. 630 mm 3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyor diverse accessories

Step conveyors, step lift conveyors KÖBERLEIN & SEIGERT Type A 400 / 2000Feeding technology, feeding system, incline conveyors, inclined conveyors, steep conveyorsFabr. No.03-3964 Year of construction 2003Slide width 400 mmSlide thickness 40 mmConveyor stages 10 piecesTransfer height on the incline conveyor 2200 mmTransfer height on the side of the feeder 1800 mmFilling height 750 mmConveying slope 75Motor power 1.5 kWMotor speed 1450 rpm. Mains connection 400 volts, 50 Hz- Low-wear sliders- Electromechanical drive-

swing diameter: 370 - 800 mm weight of the machine ca.: 650 kg dimensions of the machine ca.: 2*0,4*1,3 m Open steady rest / setting block - fixed with 4 quills Bed width approx. 360 mm Total base width approx. 720 mm Centre height approx. 500 mm Space requirement approx. 1950 x 400 x 1300 mm Weight approx. 650 kg Working range: approx. Ø 370 - 800 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Screw press, collection container, pre-tank

total power requirement:12 kW weight of the machine ca.:4,6 t

Bezel, Luenette, Self-Centering Luenette RÖHM SLZP-52180 ID. NO.: 685652 - S05 4-645-003-0 Clamping diameter: Ø 50 - 80 mm Swing: 180 mm Dimensions: 430 x 300 x 80 mm

6-colour format: 720 mm<br>TYP: 500, 6 INTAGLIO + 1 FLEXO, PAPIER & FOLIEN 50-150 GSM, ROLLS of 800 MM WIDTH: 750 MM;<br><br>Still in operation: Yes<br>Verf Gbar: immediately

6-colour format: 900 MM<br>ROTOPAK 1/S, 50-200 G, WEB WIDE: 820 MM, ROLLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
