SODICK AQ325L wire EDM was built in 2002 in Japan by Sodick Co., Ltd. The machine, distinguished by its exceptional precision and reliability, is an excellent choice for the production of parts with complex geometries, i.e. dies, punches and tools. The electrical erosion technology used in the machining process enables difficult shapes to be achieved in even the hardest materials. This method also minimises or completely eliminates the need for other secondary processes, such as polishing. The SODICK AQ325L is designed for machining workpieces with a maximum weight of 450 kg. The machining process is performed in a dielectric-filled work tank using a wire with a maximum diameter of 0.30 mm. The workhead moves in five axes X,Y,Z,U,V with feeds of 350 mm, 250 mm, 220 mm, 80 mm and 80 mm respectively. The use of a dielectric increases the surface quality and dimensional accuracy of the w ...

The Sodick AQ325L with the LN1W control is a high-precision CNC wire EDM (Submersible Wire EDM) machine specially designed for tool and mold making as well as for machining complex geometries in hardened or difficult-to-machine materials. A core feature of this series is the use of linear motors on the main axes (X and Y axis). In contrast to classic spindle drives, linear motors offer backlash-free, highly dynamic and wear-free power transmission, resulting in exceptional surface quality, high dimensional accuracy and minimal risk of wire breakage. Technical data (Sodick AQ325L / LN1W)Travel (axes)X-axis: 350 mmY-axis: 250 mmZ-axis: 220 mmU-axis: 80 mmV-axis: 80 mmMax. Konik angle: $\pm 20^\circ$ at 80 mm workpiece heightTable and workpieceClamping table (L x W): 600 x 400 mmDimensions work container (inside): approx. 895 x 650 mmMax. Workpiece weight (in submerged state): 300 kgMax. Wo ...

This 5-axis Sodick AQ535L wire EDM machine was manufactured in 2007. It features an X-axis travel of 550 mm, Y-axis travel of 350 mm, and Z-axis travel of 300 mm. The work table size is 790 x 500 mm, with a maximum workpiece weight capacity of 800 kg. If you are looking to get high-quality wire EDM capabilities, consider the Sodick AQ535L machine we have for sale. Contact us for further details.

This 5-axis Sodick AQ300L wire EDM machine was manufactured in 2004. It features a maximum workpiece weight of 660 lbs and a wire diameter range of 0.006 to 0.012. The machine is equipped with linear motor drives for enhanced precision. If you are looking to get high-quality electrical discharge machining capabilities, consider the Sodick AQ300L wire EDM machine we have for sale. Contact us for further details.

A Sodick CNC wire EDM machine is available. Travel X/Y/Z: 750mm/500mm/400mm, travel U/V: 770mm/520mm, max. workpiece dimensions X/Y/Z: 1050mm/750mm/400mm, max. workpiece weight: 1500kg, wire diameter range: 0.15mm-0.3mm. Machine dimensions X/Y/Z: approx. 2100mm/2800mm/2350mm, weight: approx. 5300kg. Documentation available. An on-site inspection is possible.

X/Y/Z axis travel (mm):750 x 500 x 400 U/V axis travel (mm):770 x 520 Work tank dimensions (W x D x H, mm):1264 x 973 Max. workpiece weight (kg):1500 Distance from floor to table top (mm):1000 Machine dimensions (W x D x H, mm):2100 x 2860 x 2390 Machine weight (kg):5600

SODICK AG40L die-sinking EDM was built in 2011. This highly efficient machine is used for precision electrical discharge machining of workpieces with a maximum weight of 550 kg, enabling complex shapes to be achieved in even the hardest materials. Furthermore, workpieces machined in this way do not require other secondary processes to be undertaken, such as polishing. The installed CNC control has a useful “perfect active control” function for simultaneous control of high-speed electrical discharges and axis movements, using 1 Gbit/s serial communication technology. The SODICK AG40L LN2 sinker EDM is offered with extensive equipment, consisting of, among others, an EROWA measuring probe, a 4-position linear tool changer and tooling. The total weight of the machine is 3900 kg. Technical specifications of the SODICK AG40L die-sinking EDM - feed in X/Y/Z axis: 400/300/270 mm - work ...

Wire EDM machine SODICK A 600 manufactured in 1997. Technical parameters of the SODICK A 600 EDM machine: - table travel (X axis): 600 mm - table travel (Y axis): 400 mm - Z axis travel: 270 mm - maximum dimensions of the processed part (width x depth x height): 800 x 550 x 260 mm - maximum weight of the workpiece: 900 - auxiliary table travel (U axis x V axis): 70 x 70 mm - wire diameter: 0.1 ~ 0.3 mm - maximum wire speed: 250 mm / sec. - wire tension: 0.2 ~ 2.8 kgf - cutting inclination at an angle: + -15 degrees per 100 mm of thickness - height from the floor to the surface of the working table: 1000 mm - machine tool dimensions (width x depth x height): 2188 x 2645 x 2100 mm - machine tool weight: 3700 kg

This 3s Sodick AG55L die-sinking edm machine was manufactured in 2008. With a magazine capacity of 32 positions and a maximum workpiece weight of 1000 kg, it offers robust capabilities for precision machining. The X travel reaches 550 mm and Y travel extends to 400 mm, making it suitable for various applications. Consider the opportunity to buy this Sodick AG55L die-sinking edm machine. Contact us for further details.

This 3-axis Sodick AG40L LN2 was manufactured in 2015. It features an X-axis travel of 400 mm, Y-axis travel of 300 mm, and Z-axis travel of 270 mm. The machine has been operated for 13,161 hours and is currently connected and available for inspection/testing. If you are looking to get high-quality die-sinking capabilities, consider the Sodick AG40L LN2 machine we have for sale. Contact us for further details.

EDM machine Sodick AQ 327L BJ 2006 EDM machine Sodick AG 60L BJ 2020

This 5-axis Sodick SLC400G was manufactured in 2014. It features an X-axis travel of 400 mm, Y-axis travel of 300 mm, and Z-axis travel of 250 mm. The machine also includes U/V travel of 150 x 150 mm. If you are looking to get high-quality wire EDM capabilities, consider the Sodick SLC400G machine we have for sale. Contact us for further details.

Control: Sodick Max.travel range: X 600 mm Y 400 mm Z 350 mm U x V axis travel 150 x 150 mm Work tank dimensions: 1050 x 710 mm Dialectric tank capacity: 800l Made in Japan

Key data: 400 mm, 300 mm, 250 mm

Type: Wire EDM Machine Ident Number: 22606 Category: Wire EDM Machines / EDM Manufacturer: Sodick Model: SLC 400 G Premium + Year of construction: 2015 Travel: 400 x 300 x 250 mm [ X x Y x Z ] max. workpiece weight: 500 kg U / V axis: 150 x 150 mm Cutting in a water bath Radiator Working tank 850 x 610 mm Taper +/- 25° at tool height 130 mm Control SPW

Key data: 500 mm, 350 mm, 250 mm

Type: Wire EDM Machine Ident Number: 22604 Category: Wire EDM Machines / EDM Manufacturer: Sodick Model: VZ 500 L Year of construction: 2010 Travel: 500 x 350 x 250 mm [ X x Y x Z ] max. workpiece size X: 960 mm max. workpiece size Y: 670 mm max. workpiece size Z: 245 mm max. workpiece weight: 850 kg with automatic wire threading Cutting in a water bath U/V axes +/- 80 x 80 mm Taper 15° at 120 mm height Control LN2W

Key data: 750 mm, 550 mm

Type: Die-sinking EDM machine Ident Number: 22605 Category: Die-sinking EDM machines / EDM Manufacturer: Sodick Model: AG 60 L Year of construction: 2012 Travel: 600 x 420 x 370 mm [ X x Y x Z ] Table size X: 750 mm Table size Y: 550 mm max. workpiece weight: 1500 kg Electrode changer: 6-fold Control: LN2 Quill clamping fixture: EROWA ITS Working container: 950 x 740 x 450 mm

Key data: 750 mm, 550 mm

Type: Die-sinking EDM machine Ident Number: 22603 Category: Die-sinking EDM machines / EDM Manufacturer: Sodick Model: AQ 55 L Year of construction: 2007 Travel: 500 x 400 x 350 mm [ X x Y x Z ] Table size X: 750 mm Table size Y: 550 mm Electrode changer: 32-fold Working basin: 950 x 725 x 410 mm Quill clamping fixture: EROWA

Key data: 600 mm, 400 mm, 350 mm

For sale Sodick CNC wire EDM machine type ALC 600G. Used CNC wire EDM machine with minimal soot traces. Type ALC600G Premium • With linear motors in X, Y, U and V directions • With Smart Pulse (SP) CNC generator • High-speed wire feeder unit • Smart Linear • Automatic wire feeder in 9 seconds • Triple filtration system •Jumbo 20kg wire roll feeder is standard • Smart control with 19" TFT multi touch screen Technical data machine: Travel X-Y axis: 600 x 400 mm Travel U-V axis: 150 x 150 mm Travel Z-axis: 350 mm Max. workpiece dimensions: 800 x 570 x 310 mm (in a water bath) 800 x 570 x 340 mm (coaxial flushing) Working tank dimensions: 1050 x 710 mm Max. workpiece weight: 1000 kg Distance between floor and top of the table: 995 mm Controlled axes: 5 (X, Y, Z, U, V) Max. positioning speed m/min: 2.0 Wire diameter ø: 0.1–0.3 mm (optionally 0 ...

Wire EDM machine Sodick AQ 537L with few operating hours

Manufacturer: Sodick Type of Machine : Starting hole drilling machine Model: K1CS-M792 Year of manufacture: presumably 2000 Find more here - .ucymachines/ Contact us at - sales@ucymachines

X-axis: 570mm, Y-axis: 370mm, Z-axis: 350mm, working area dimensions: 1050x720mm, U/V-axes: 120x120mm, taper angle: ±20°, max. workpiece dimensions: 770x520x340mm, max. workpiece weight: 1t, wire diameter: 0.15-0.3mm, wire tension: 3-23N, max. wire feed: 420mm/s, floor-to-table distance: 995mm, dielectric tank external dimensions: 725x2550mm, weight empty: 600kg, capacity: 800l, connected load: 15kVA, control: Sodick LQ33W, length: 2600mm, width: 2740mm, height: 2390mm, machine footprint: 3700x3900mm, machine weight: 4.6t, cutting time: 13,775h, machine-on time: 62,484h, with Super-Pika, wire chopper, SMS box with wall-mounted enclosure, an on-site inspection is possible.

Key data: 600 mm, 400 mm

with CNC control, Fabr. SODICK, type: LN2, travels: X-axis: 350 mm, Y-axis: 250 mm, Z-axis: 270 mm, with automatic Tool changer with 4 tool positions, resolution: 0.0001 mm, work table (ceramic), size: 600x400 mm, max. workpiece weight: 550 kg, max. electrode weight: 50 kg, dielectric capacity: 400 l, machine dimensions: 2080x1955x2350 mm, machine weight: 3200 kg, with CO2 extinguishing system, drained . Cutting time: 1690 h

This 3-axis Sodick Picka PF-32A was manufactured in 2010. Its an electron-beam processing machine designed for high-precision surface treatments. Features include a vacuum chamber, a max workpiece size of 300 × 200 × 100 mm, and a beam diameter of up to 60 mm. Ideal for applications requiring fine finishing. Contact us for more information.

Key data: 400 mm, 300 mm, 220 mm

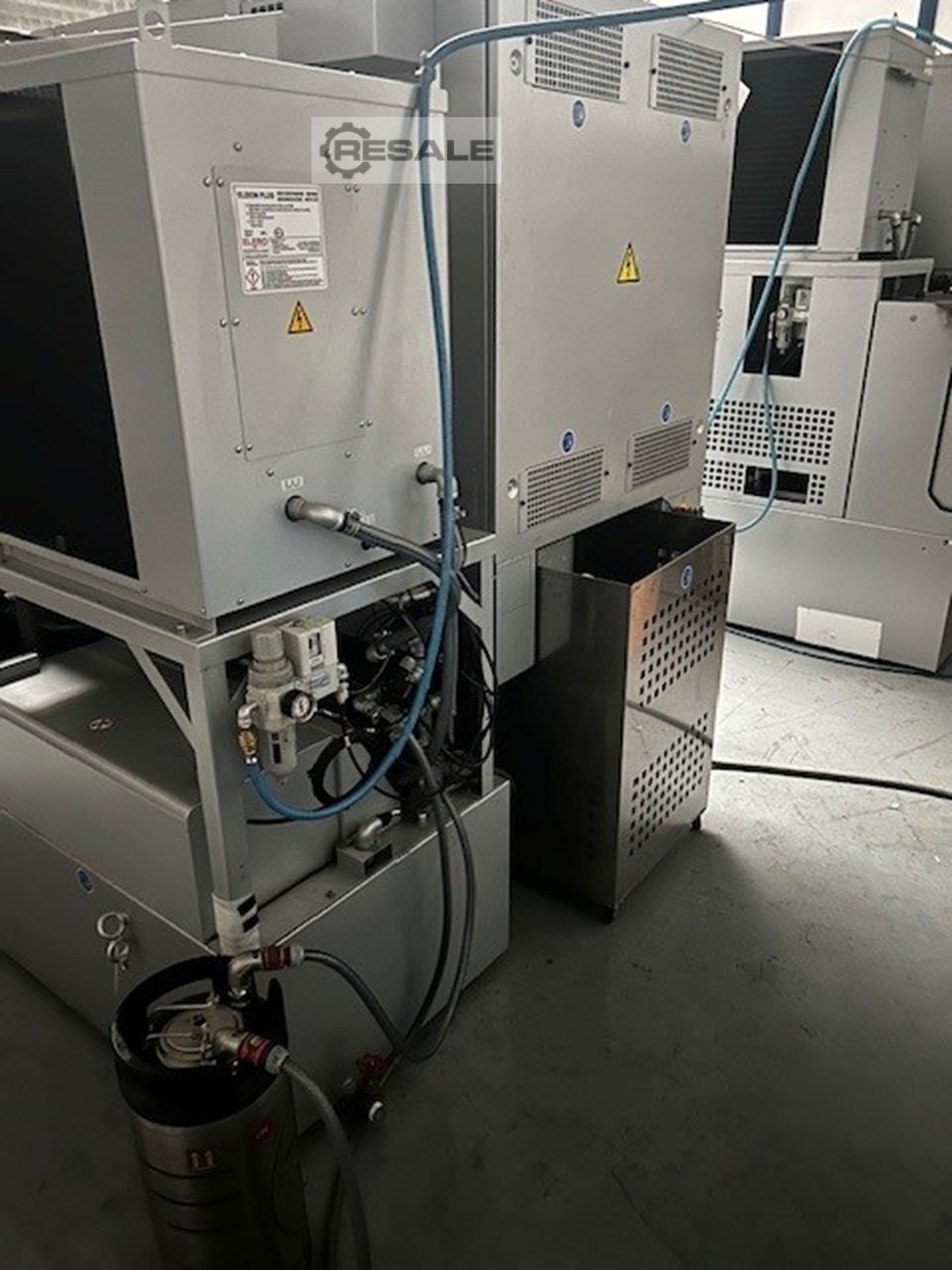

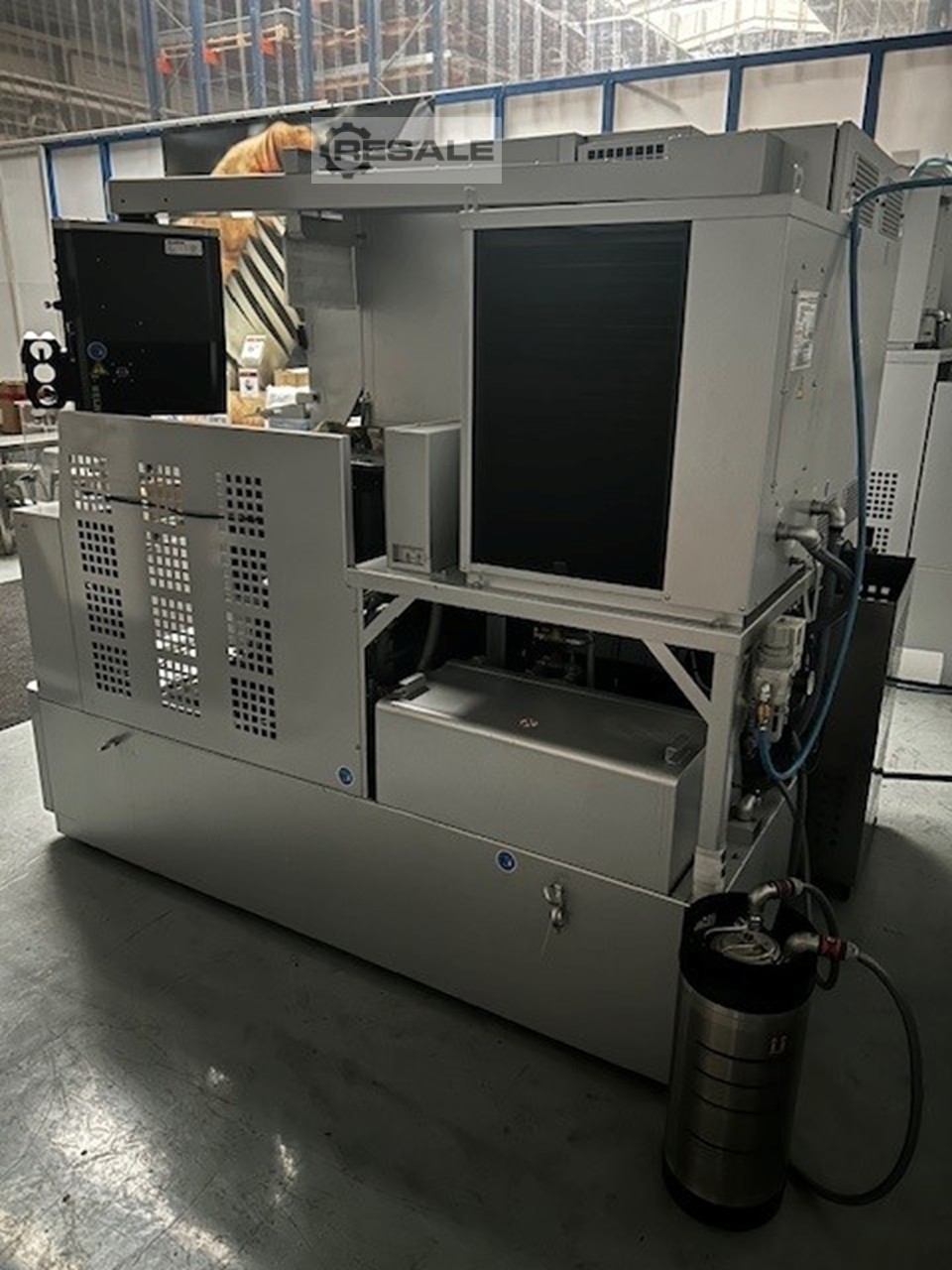

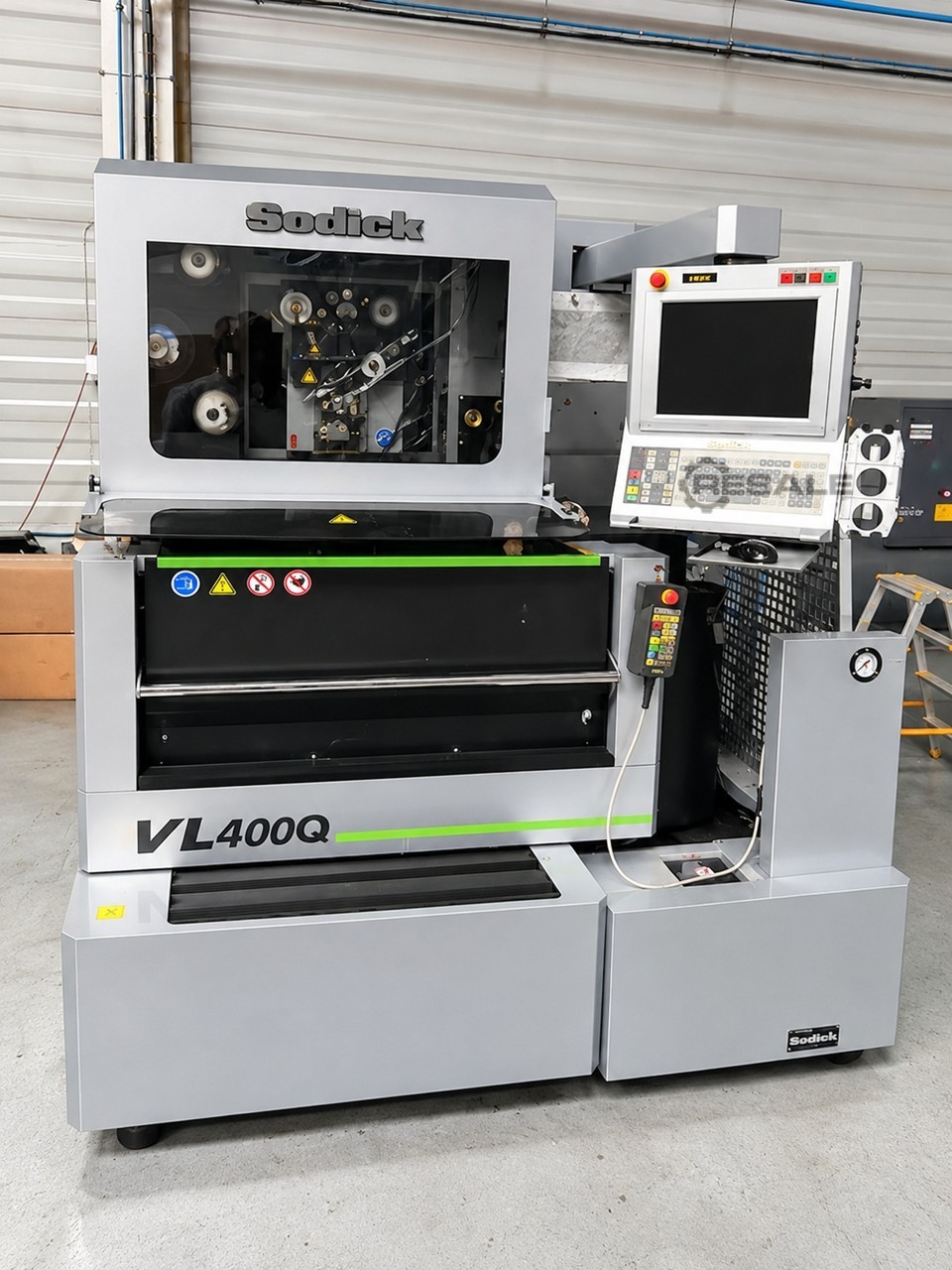

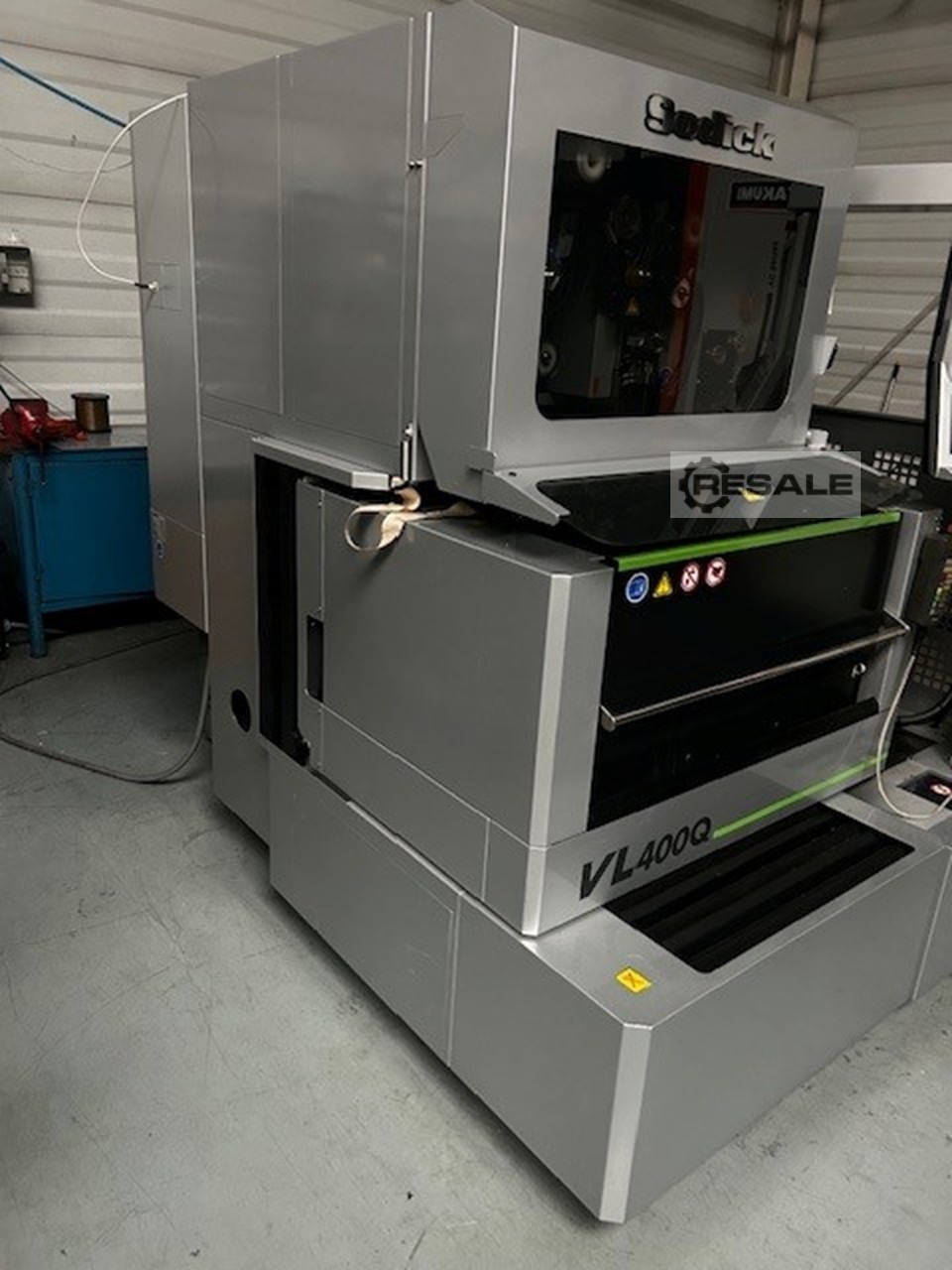

Manufacturer: SODICK Model No.: VL 400Q Year: 2020 Condition: Used Stock number: 9621 Max. travel length of the X-axis: 400 mm Max. travel length of the Y-axis: 300 mm Max. travel length of the Z-axis: 220 mm Feed length in U-axis (+-): 80 mm Feed length in the V-axis (+-): 80 mm Maximum wire gauge: 0.1 -0.3 mm Tank dimensions: 860 x 690 mm Machine height: 2020 mm Machine length: 1990 mm Machine width: 2310 mm Machine weight: 2750 kg
