13 TACCHELLA used machine for sale

GENERAL Project No.: 905670 Quantity: 1 pcs. Manufacturer: TACCHELLA Type: Elektra 1018 MPC Control: MPC Year of Make: 1999 Condition: Used machine Layers approx.: less than 1 layer DESCRIPTION CYLINDRICAL GRINDING Max. grinding diameter 350 mm Max. grinding length 1000 mm Center height 180 mm Center width 1000 mm GRINDING SPINDLE UNIT Travel in X/Z 350/1180 mm Max. rapid traverse speed in X/Z 10/10 m/min Grinding headstock can be swivelled manually Belt-driven grinding spindle for external grinding wheel right with max. diameter x width x bore 400x50x127 mm left with max. diameter x width x bore 450x80x203 mm Max. circumferential speed 35 m/s2 Max. power at ED 10-40/100% 7.5 kW Mounting MK5/ASA4 TAILSTOCK Tailstock can be moved manually Tailstock quill holder MK4 Cylinder Fine Adjustment Tailstock Manual Dresser with dressing tile on tailstoc ...

TACCHELLA ELEKTRA 1518 MPC CNC grinding machine was built in Italy in 1999. Characterised by high reliability and performance, the machine is used in the process of highly accurate grinding of the external rotating surfaces of workpieces with a maximum length of 1500 mm and a diameter of 350 mm. The TACCHELLA CNC shaft grinding machine has a large workspace with tailstock, grinding wheel spindle and workpiece spindle. After placing a shaft with a maximum weight of 50 kg in the spindle holder, the workpiece is ground at high speed by an incremental encoder driven grinding wheel with a maximum diameter of 450 mm. In order to simplify the machining process, the ELEKTRA 1518 MPC CNC grinding machine is equipped with state-of-the-art features, such as the HOFLER BALANCE SYSTEMS VM 24 operator panel and a functional and user-friendly FAGOR CNC controller, which allows full control of the m ...

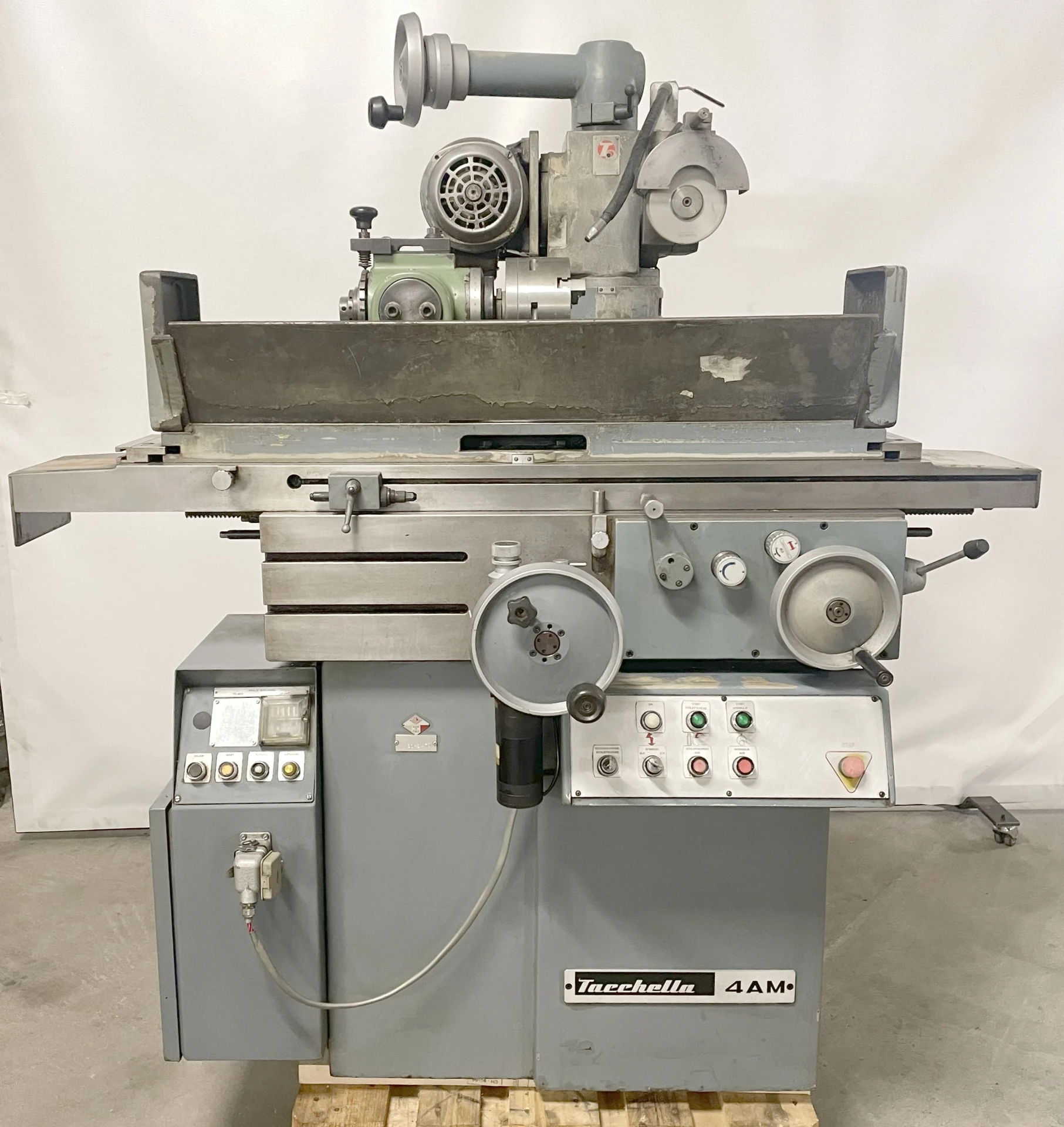

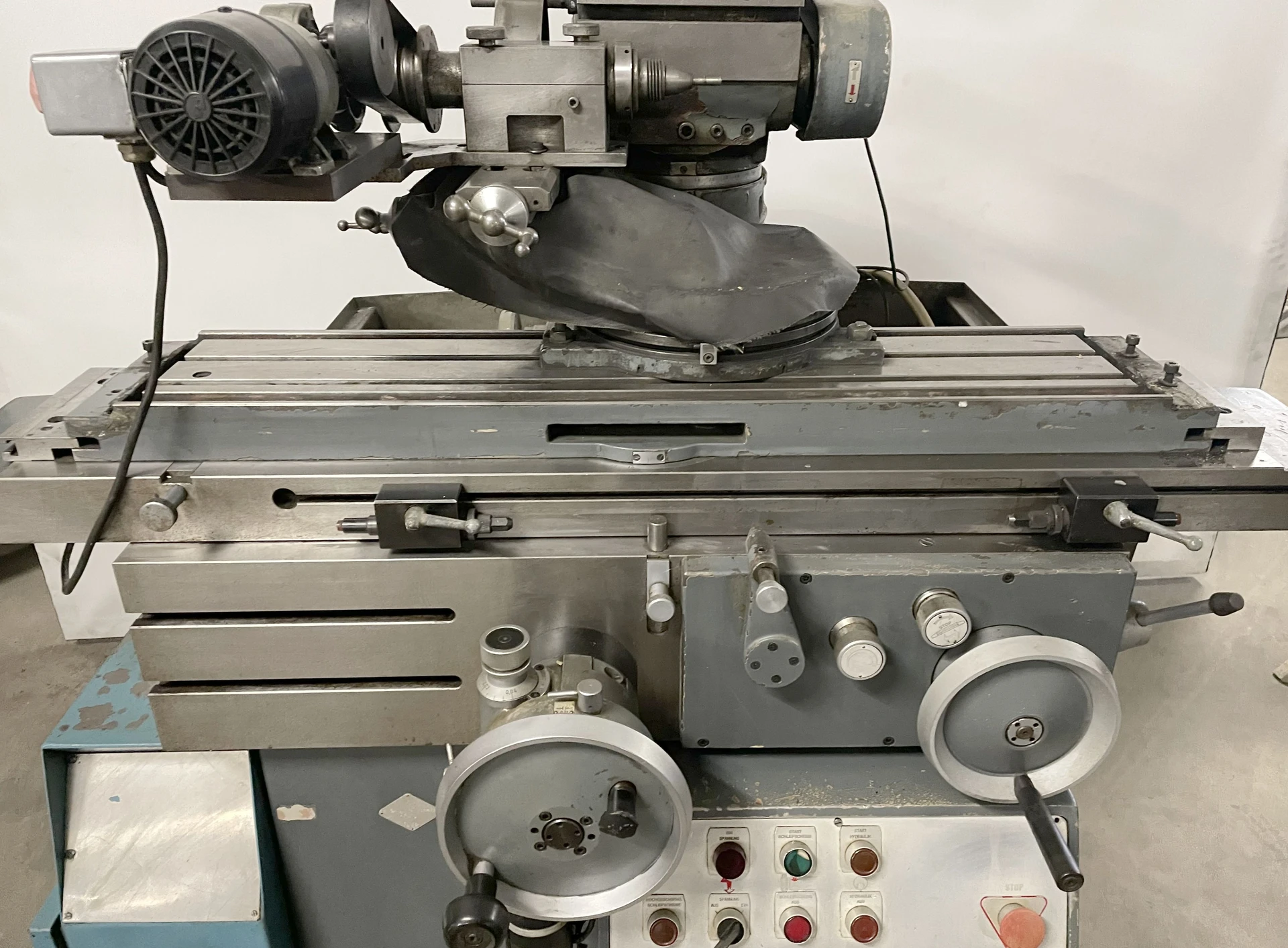

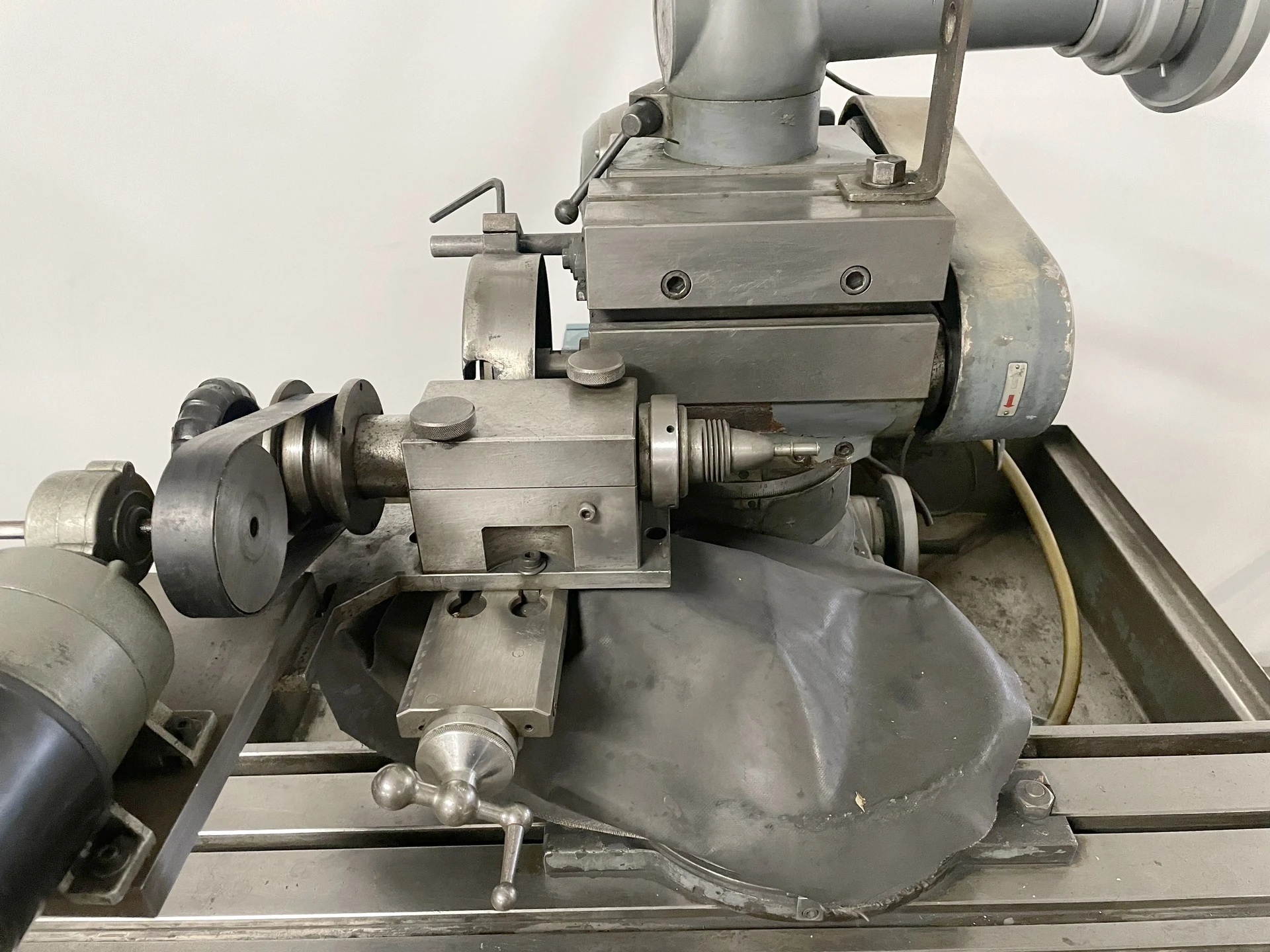

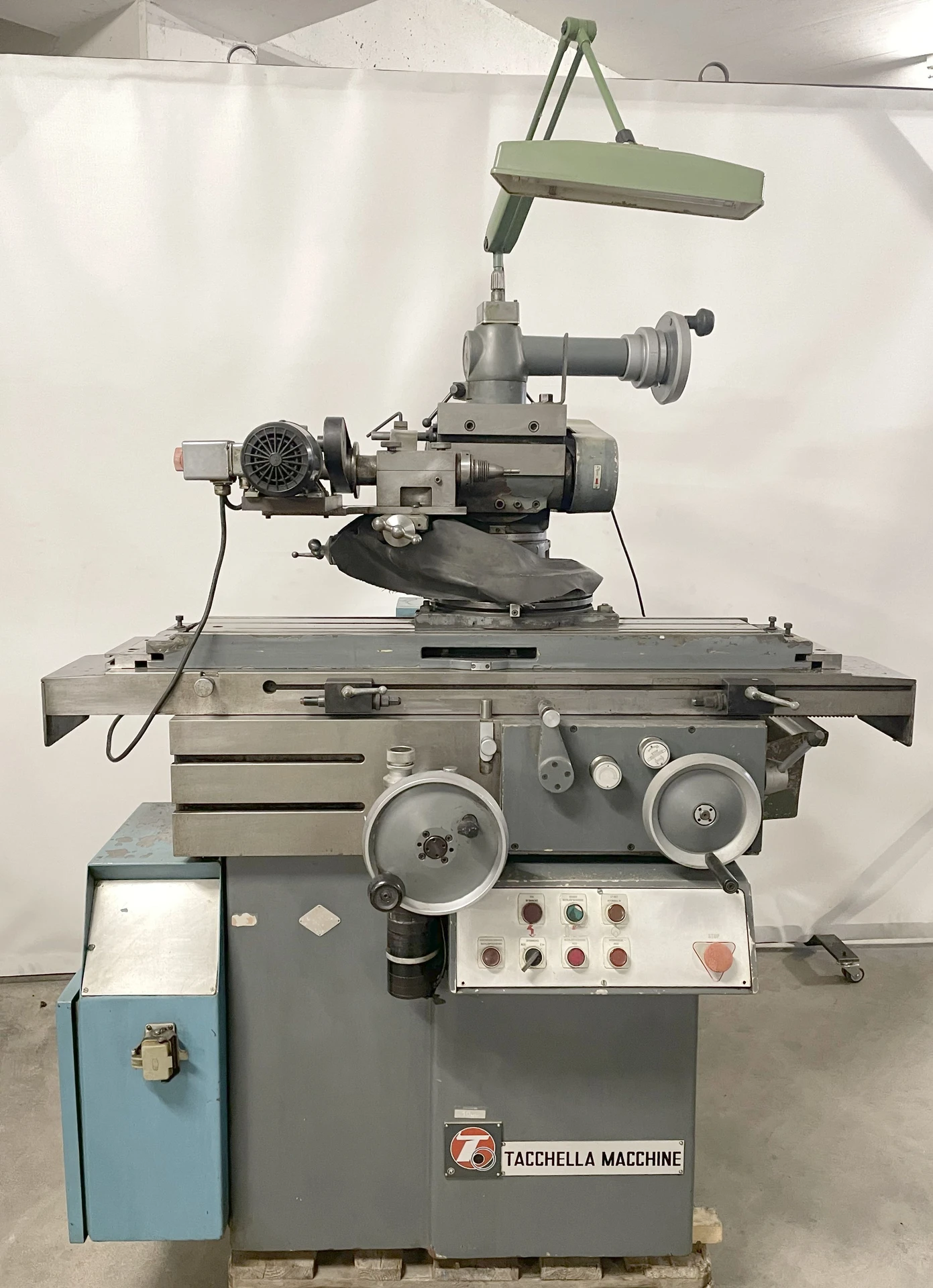

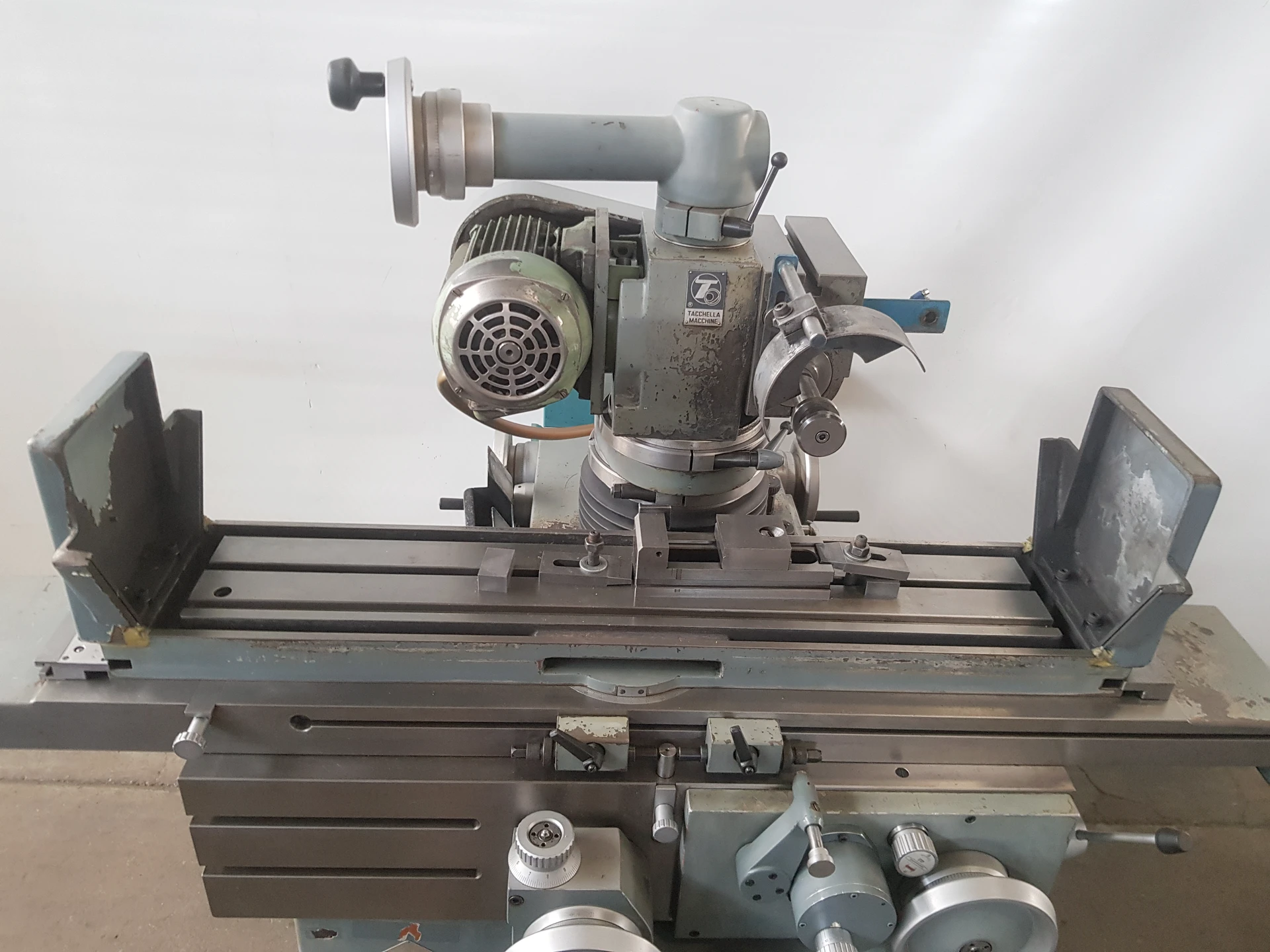

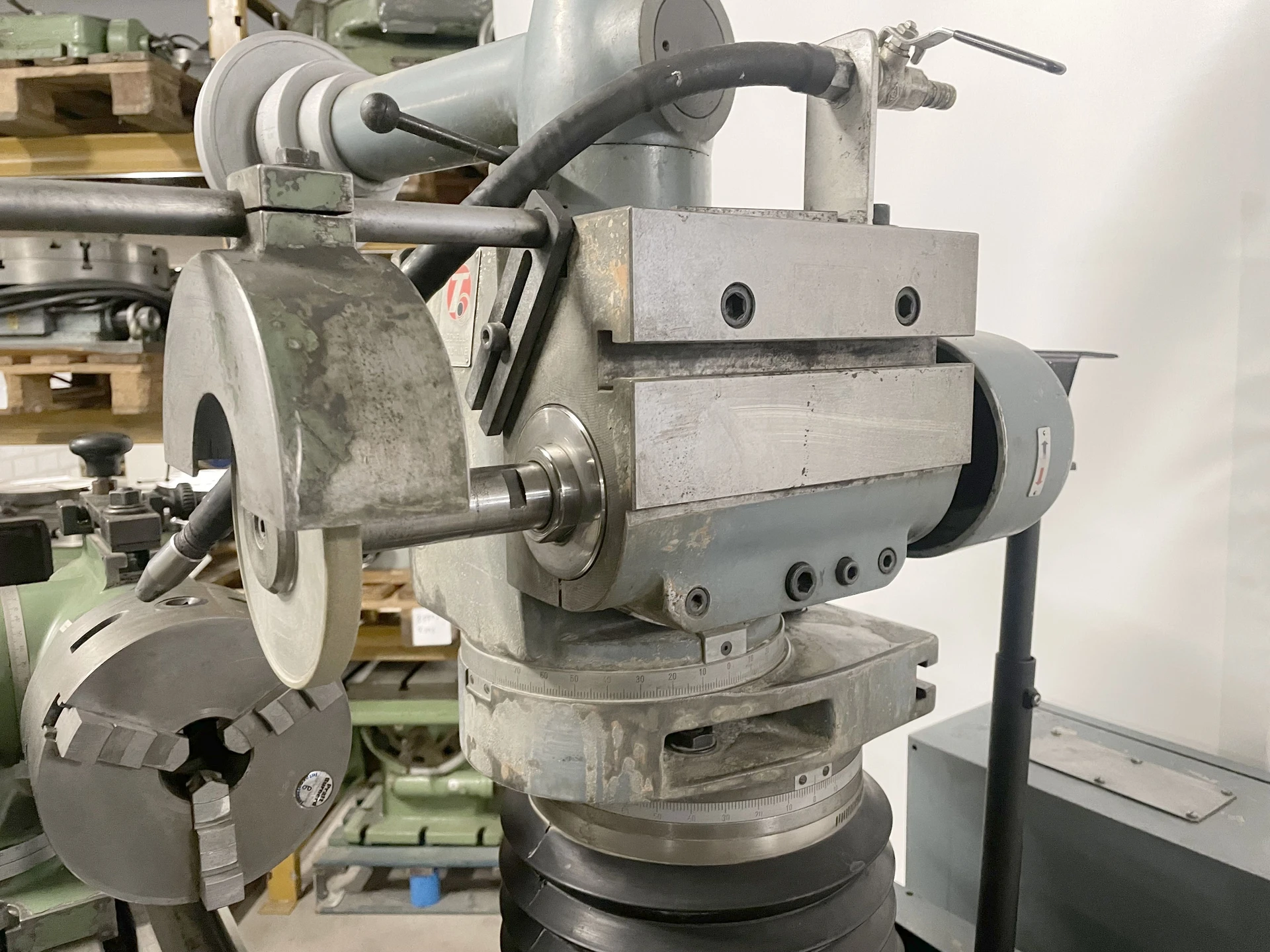

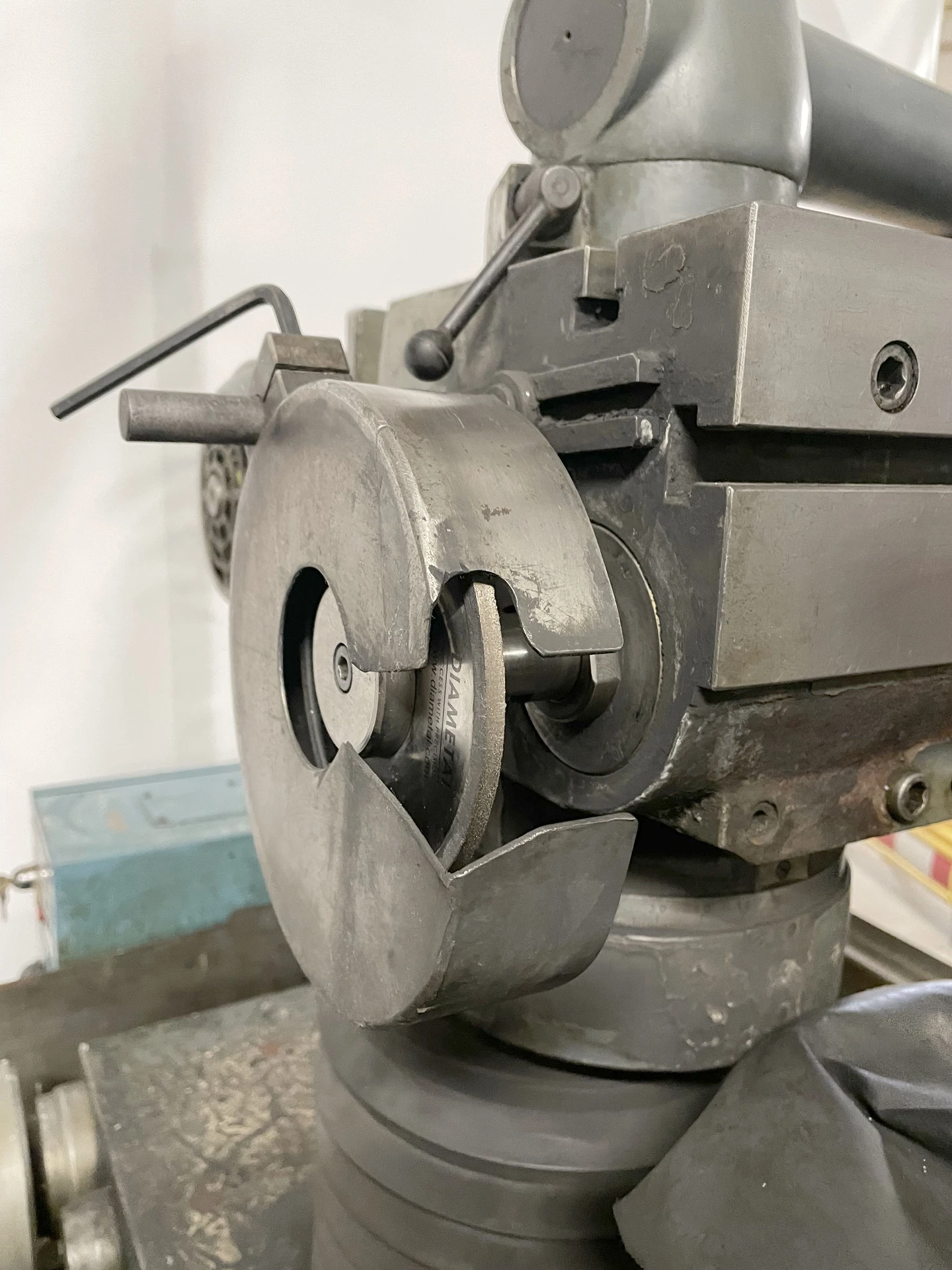

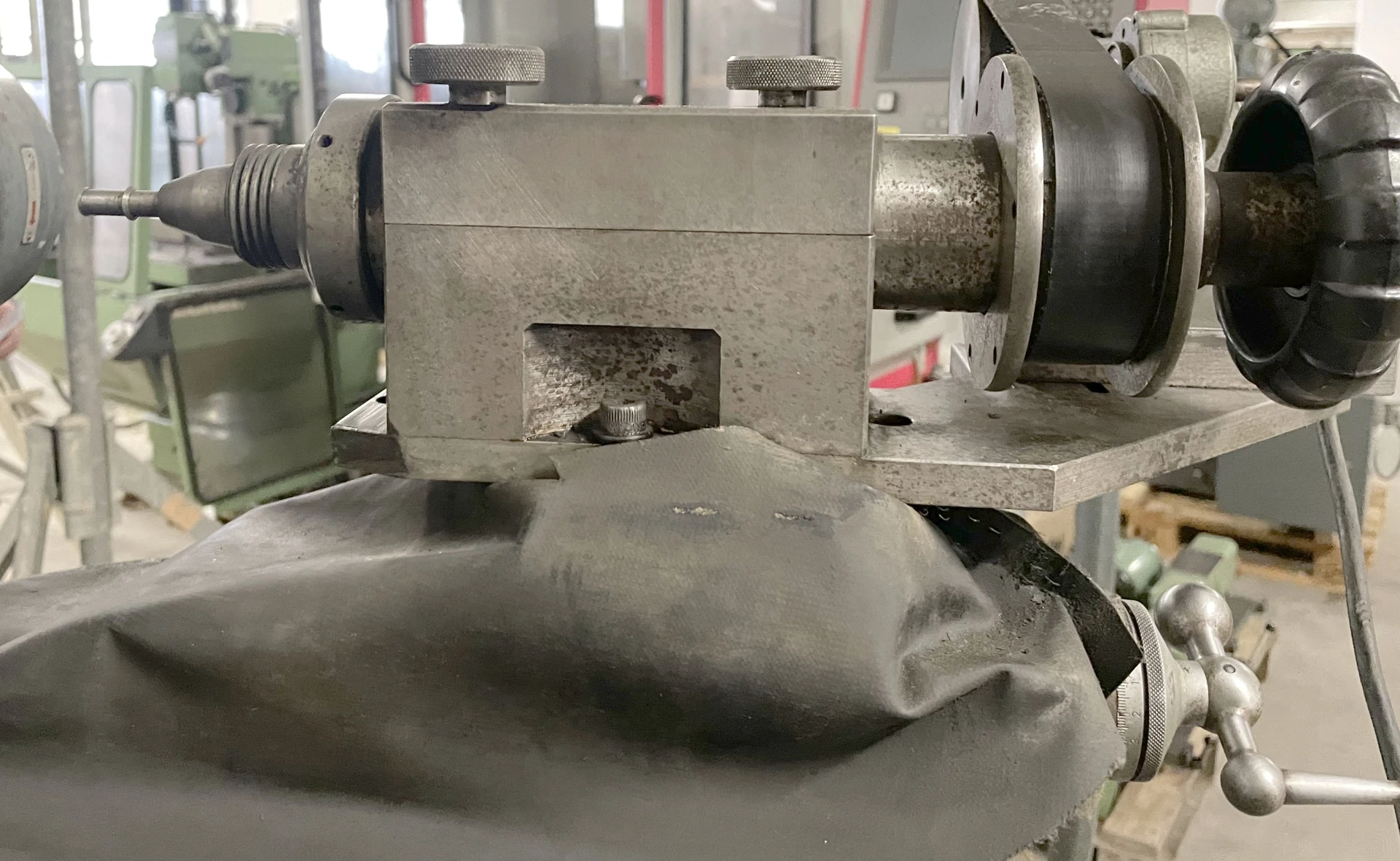

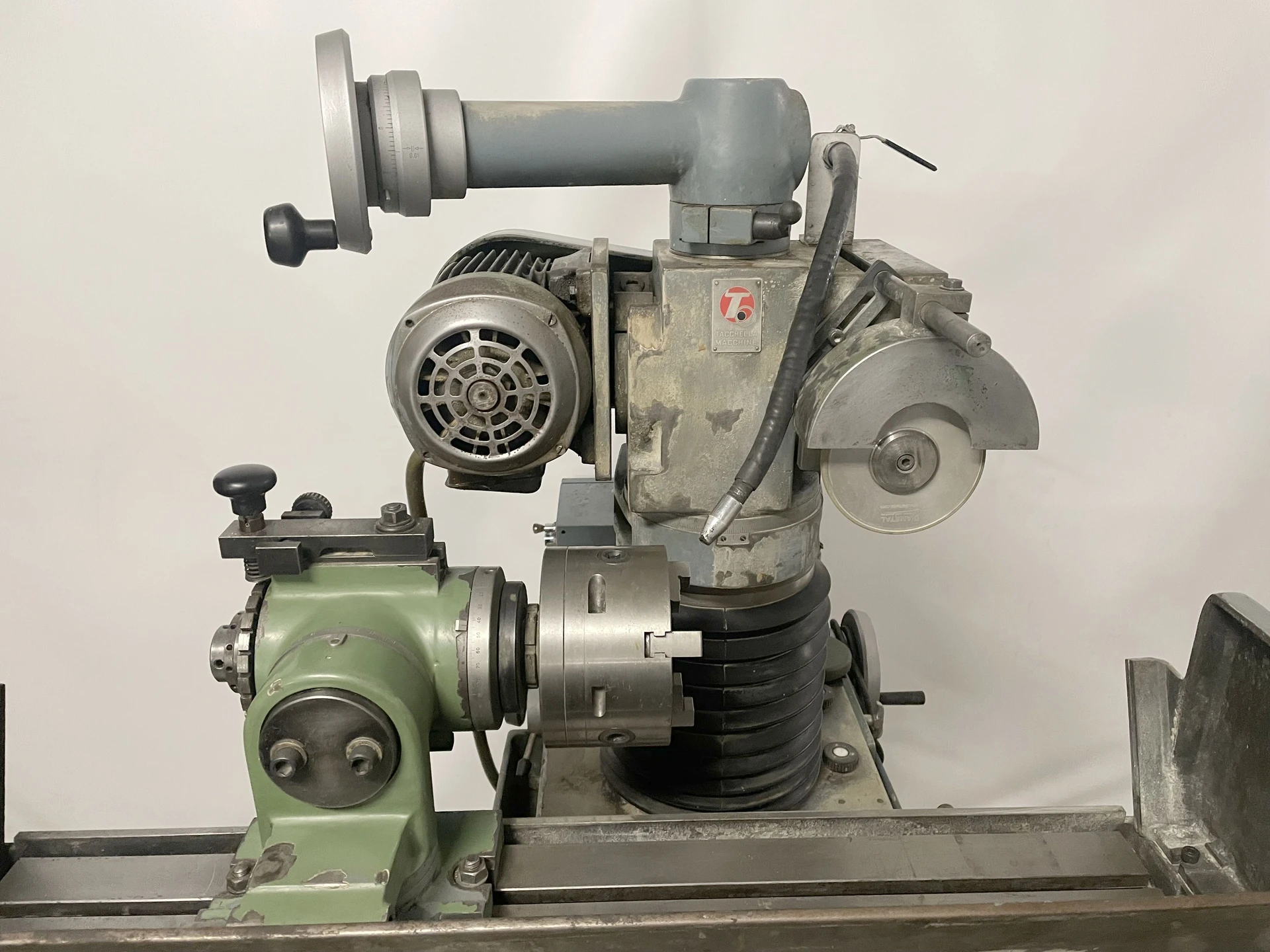

TACCHELLA 4 AM ist eine Werkzeugschleifmaschine mit hoher Präzision, ausgelegt für große Genauigkeit und Zuverlässigkeit. Arbeitsreichweite: Spitzenhöhe 125 mm, Spitzenweite 550 mm, Tischlänge 900 mm, Tischbreite 130 mm, max. Schleifdurchmesser 250 mm, Schleifscheibendurchmesser 200 mm, Längsbewegung des Tisches 400 mm, Querweg des Schleifkopfes 200 mm. Technische Daten: Schleifspindel stufenlos verstellbar von 2200 bis 6400 t/min, Anschluss 50 Hz 3x 380 V; Abmessungen Maschine L 1400 x B 1300 x H 1700 mm. Zubehör: Teilapparat und 3-Backenfutter Ø 160 mm. Erreicht enge Toleranzen; typische Einsatzbereiche: Automotive, Luftfahrt, Werkzeugbau, Uhrmacherei und Medizintechnik Technische Daten ohne Gewähr

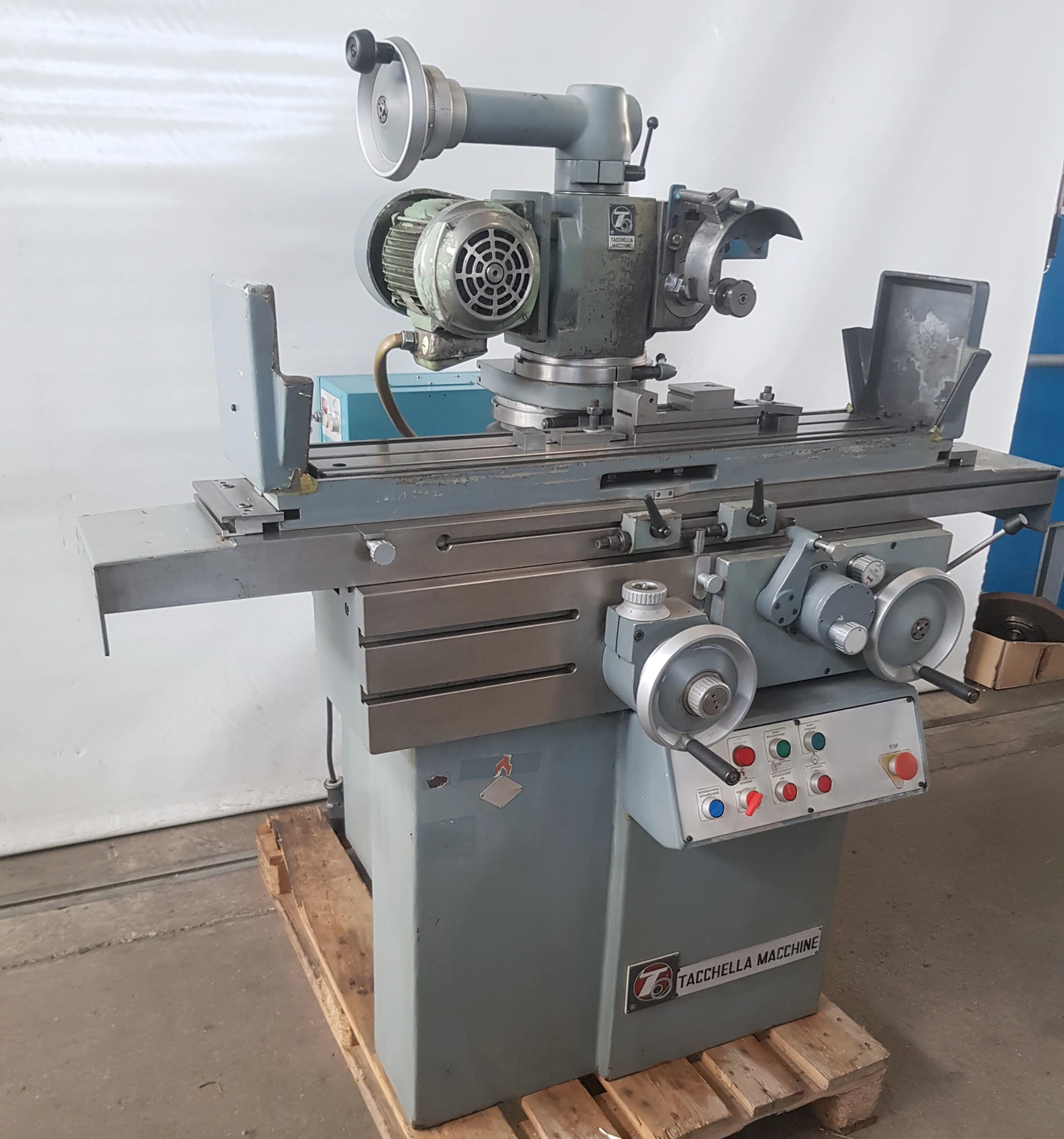

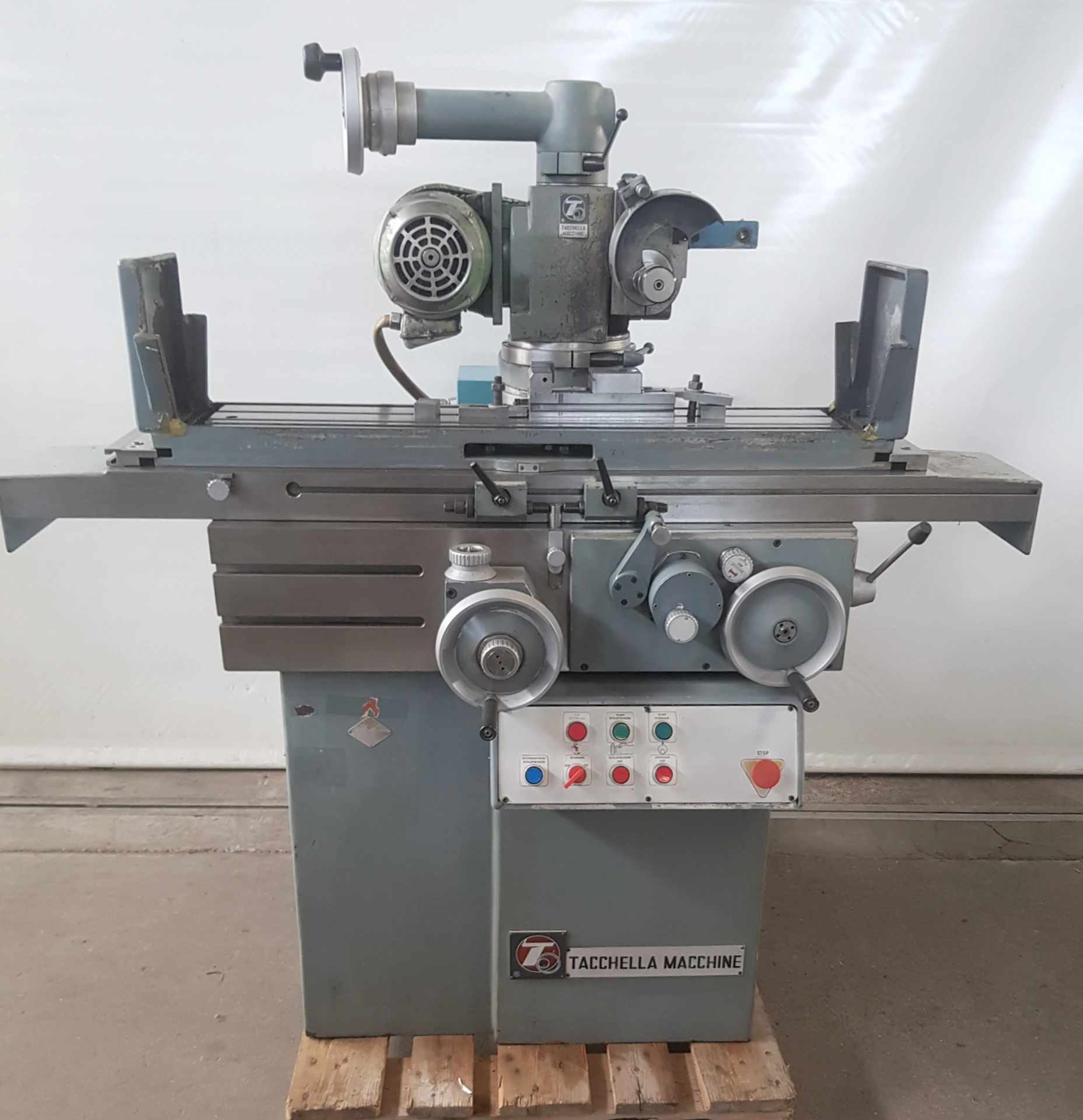

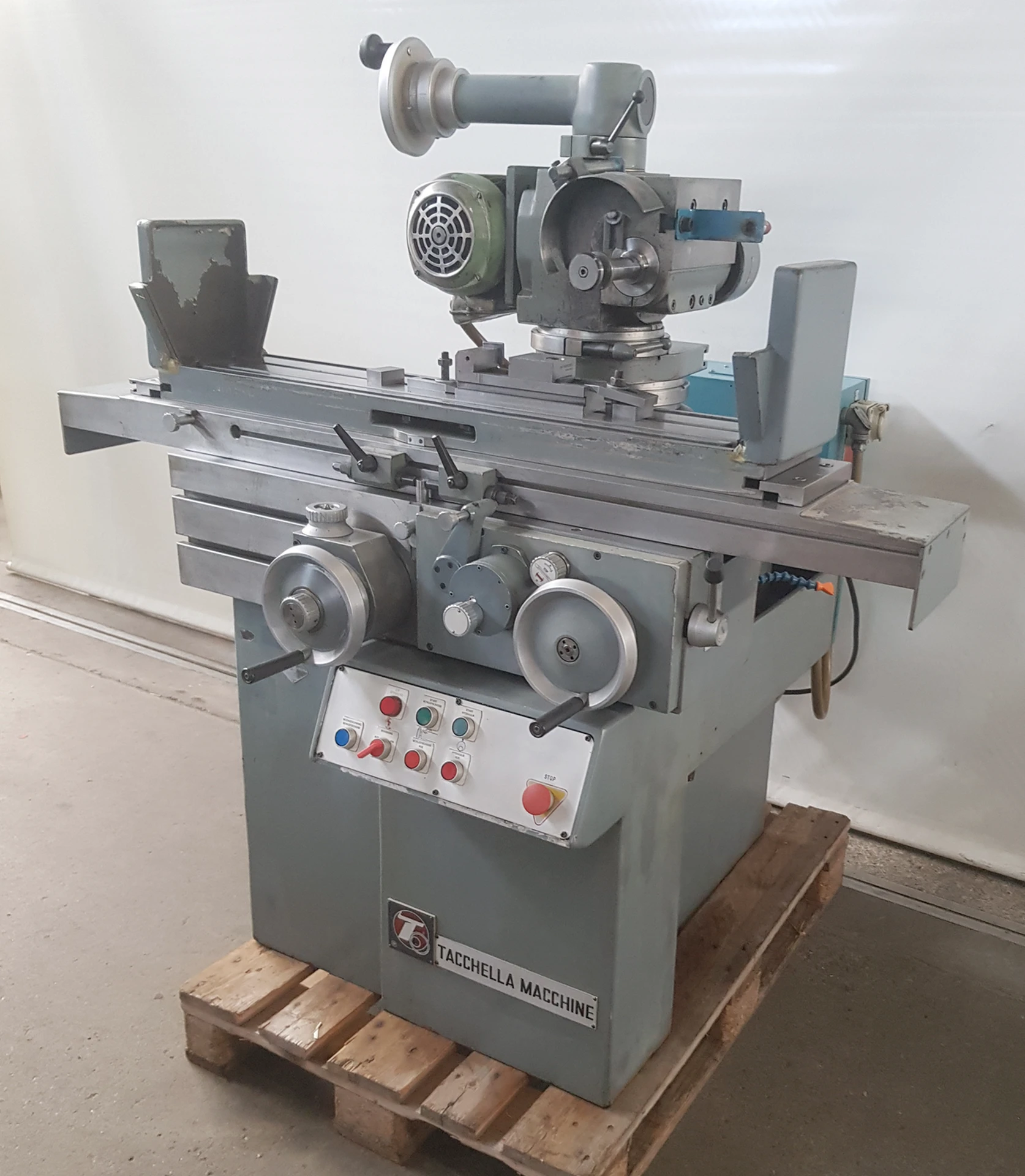

TACCHELLA 4 AM ist eine Werkzeugschleifmaschine für Präzision, hohe Genauigkeit und Zuverlässigkeit. Kapazitäten: Spitzenhöhe 125 mm, Spitzenweite 550 mm, Tisch 900×130 mm, max. Schleif-Ø 250 mm, Scheibe Ø200 mm, Längsweg 400 mm, Querweg 200 mm. Daten: Spindel stufenlos 2.200–6.400 t/min; Anschluss 50 Hz 3x380 V; Maße L1400×B1300×H1700 mm. Zubehör: Lampe. Erreicht enge Toleranzen; Branchen: Automotive, Luftfahrt, MedTech, Uhrenbau, Werkzeugbau. Technische Daten ohne Gewähr

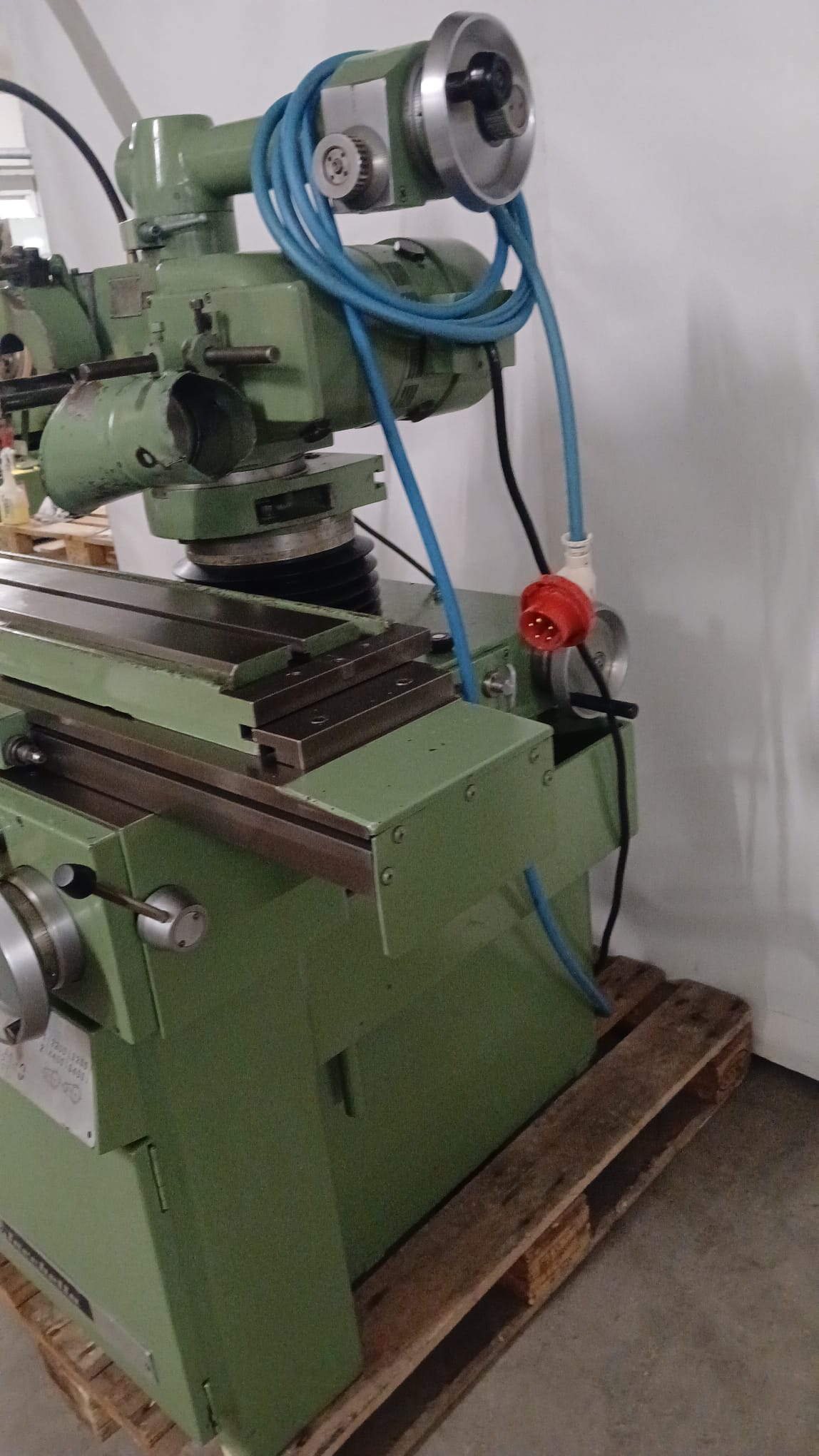

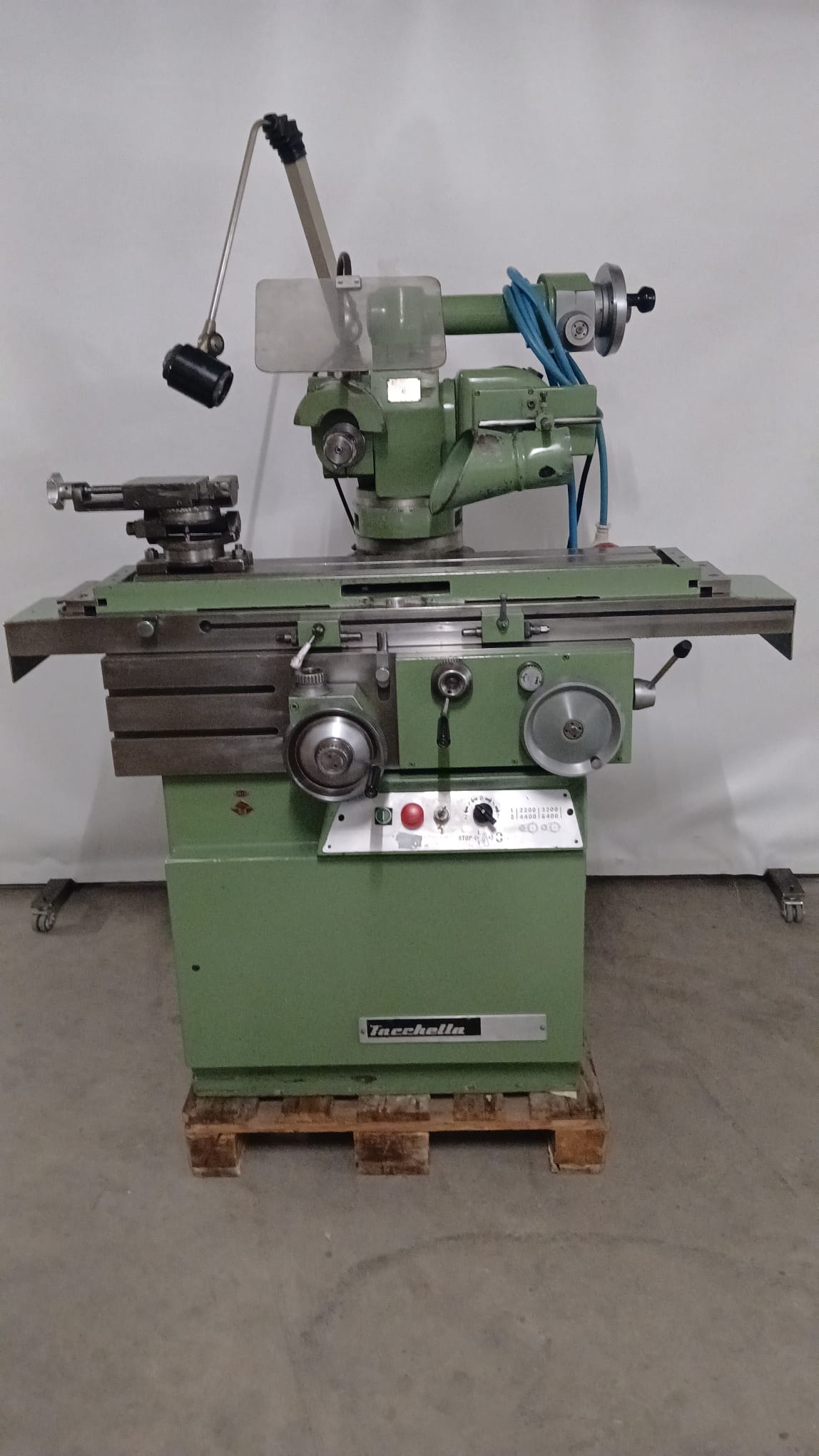

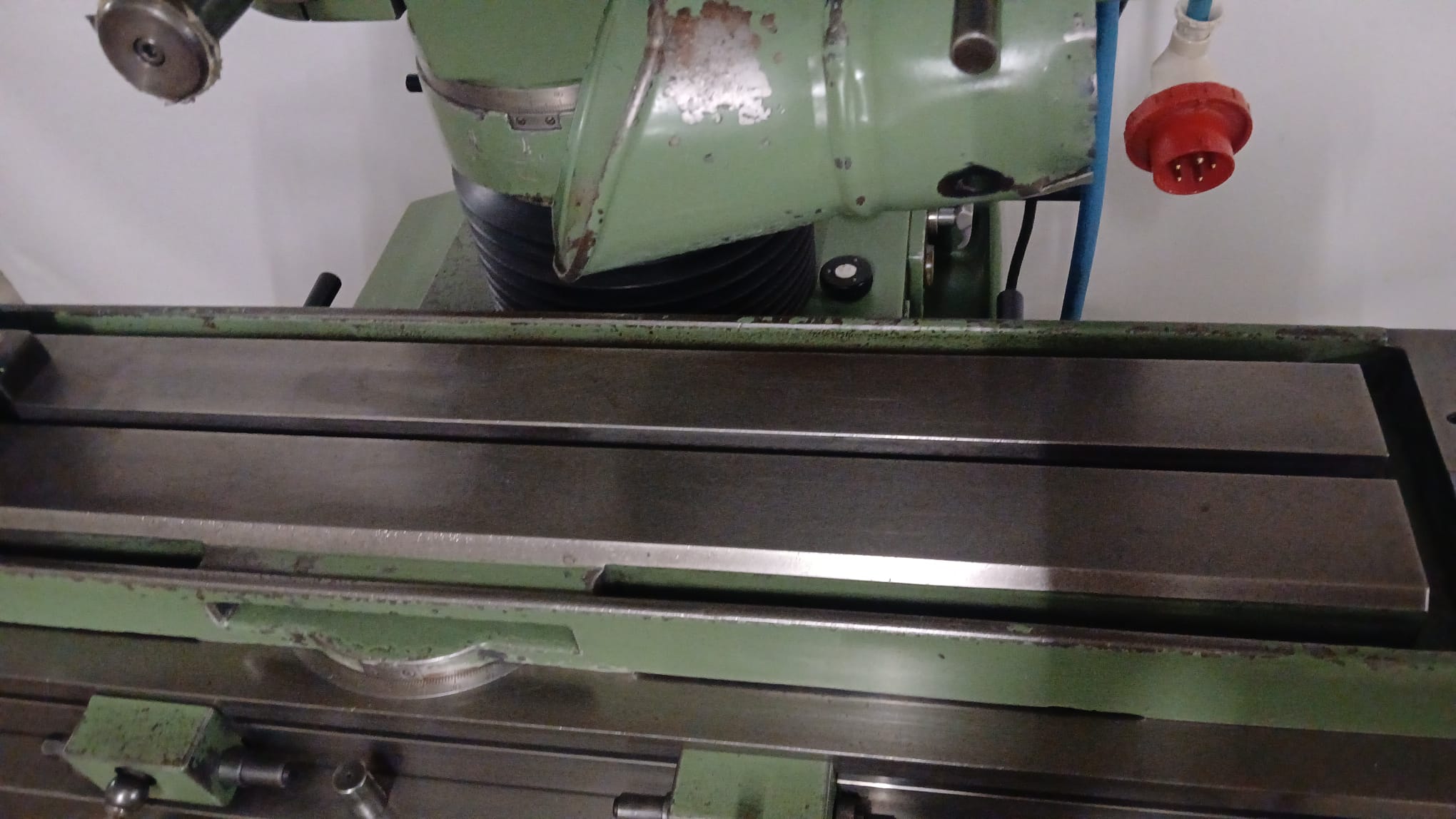

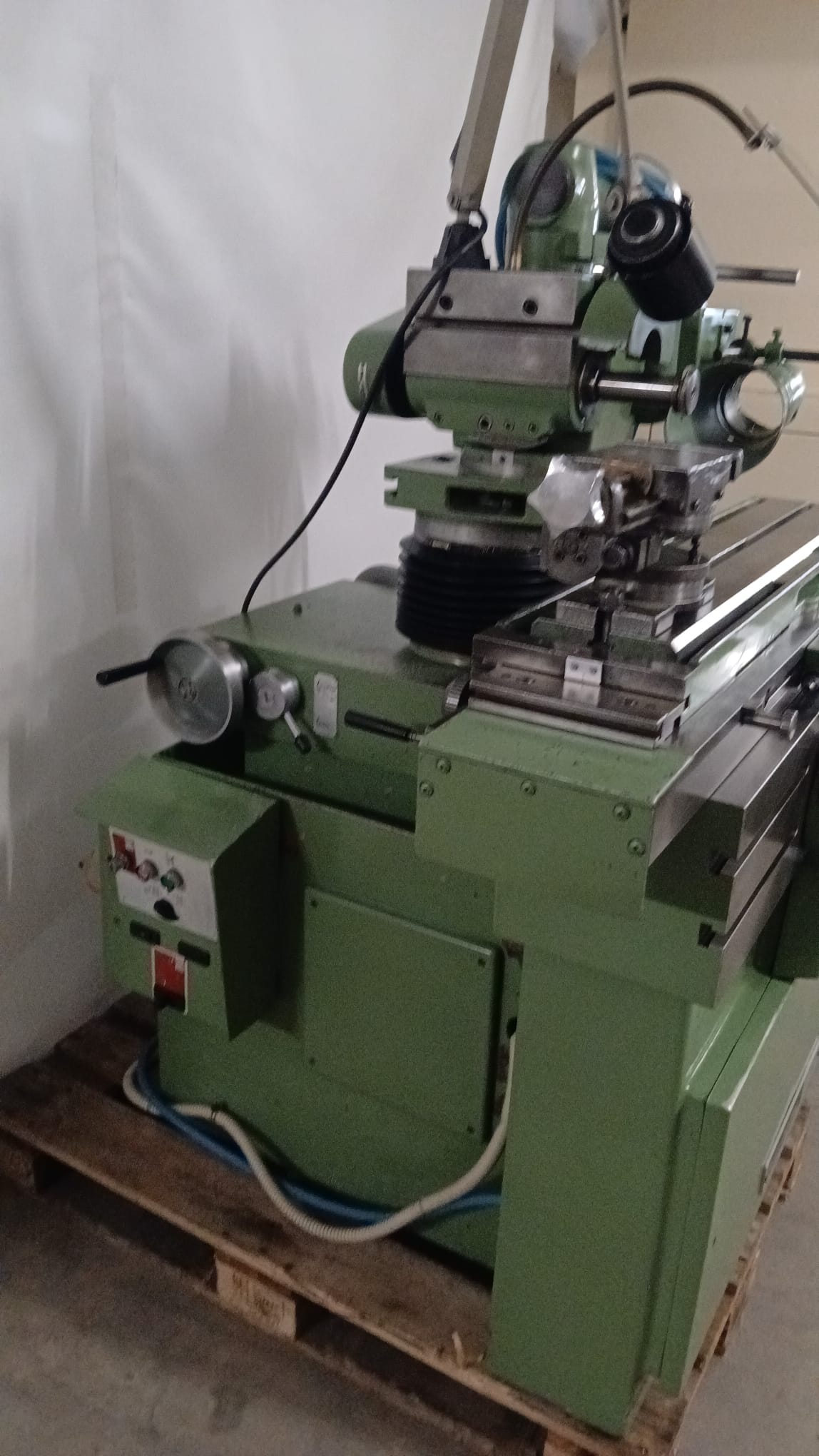

TACCHELLA 4 M ist eine Werkzeugschleifmaschine, ausgelegt für hohe Präzision, Genauigkeit und Zuverlässigkeit. Arbeitsvermögen: Spitzenhöhe 125 mm, Spitzenweite 550 mm, max. Schleifdurchmesser 250 mm, max. Schleifscheibendurchmesser 200 mm; Tisch 900×130 mm; Längsweg 400 mm, Querweg 200 mm. Technische Hauptdaten: Schleifspindeldrehzahl 2200–6400 t/min; Anschluss 50 Hz 3x380 V; Gewicht ca. 1050 kg; Abmessungen L1400×B1300×H1700 mm. Zubehör: Satz Schleifscheiben. Erreicht enge Toleranzen; geeignet für Automobil, Uhrenindustrie, Werkzeugmaschinenbau, Luftfahrt und Medizintechnik Technische Daten ohne Gewähr

TACCHELLA 4 AM ist eine Werkzeugschleifmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Spitzenhöhe 125 mm, Spitzenweite 550 mm; Tisch 900x130 mm; max. Schleifdurchmesser 250 mm; Schleifscheibendurchmesser 200 mm; Längsbewegung 400 mm; Querweg 200 mm. Schleifspindel stufenlos 2200–6400 t/min; Anschluss 3x380 V 50 Hz; Abmessungen L1400xB1300xH1700 mm. Ermöglicht enge Toleranzen; typische Einsatzbereiche: Automotive, Luftfahrt, Uhrmacherei, Werkzeugbau und Medizintechnik. Technische Daten ohne Gewähr

grinding diameter: 350 mm grinding length: 1000 mm centre height: 180 mm Control: Fanuc 180-T grinding wheel diameter: 450 mm grinding wheel width: 80 (100) mm power capacity - grinding motor: 7,5 kW table speed -stepless-: 10 m/min grinding spindle head - swivable: +5 / -180 ° turning speed range - workpiece spindle: 10 - 800 U/min grinding head swivelling: 0 - 15 ° workpiece weight max.: 120 kg taper in tailstock-quill: MK 4 tailstock quill stroke: 35 mm dressing device: voltage: 400 V total power requirement: 18 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,75 x 2,25 x 1,80 m band filter unit: 1,75 x 1,20 x 0,80 m - Serial No.6769 - Universal Cylindrical Grinding Machine with internal grinding spindle - CNC-controlled B-Axis for automatic. swivel of spindle head The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

A universal external and internal cylindrical grinding machine Tachella, refurbished in 2021, is available. Center distance: 600mm, center height: 120mm, max. grinding diameter: 240mm, max. grinding length: 600mm, X/Z travel: 600mm/250mm, max. workpiece weight: 100kg/40kg. Machine dimensions X/Y/Z: approx. 2700mm/1900mm/1700mm, weight: approx. 2500kg. Documentation available. An on-site inspection is possible.

Universal cylindrical grinding machine TACCHELLA 715 UA, Information about technical data are not binding., Machine available subject to prior sale., Height centres: 150 mm, Distance between centres: 750 mm, Wheel dimension: 450x50x127 mm, Wheel speed: 1450 rpm - Variable and programmable, Spindle motor power: 7.5 Kw, Internal grinding spindle speed: 16.000 rpm, Weight: 3.600Kg

grinding diameter: - mm grinding length: - mm centre height: - mm diameter: - mm length: - mm tool adaptor: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal cylindrical grinding machne TACCHELLA ELEKTRA-Evo 1018 MPC - FANUC 21i MPC, Information about technical data are not binding., Machine available subject to prior sale., Height centres: 180 mm, Distance between centres: 1000 mm, Wheel dimension: 508x80x203,2 mm, Wheel speed: 2000 rpm - Variable and programmable, Spindle motor power: 8,2 Kw, Internal grinding spindle speed: 30.000 rpm, Weight: 6.500Kg

Internal Device TACCHELLA 612 complete with spindle, dressing unit, Information about technical data are not binding., Machine available subject to prior sale.

Universal tool and cutting grinding machine TACCHELLA 4 AM - Universal device, Hydraulic movement of the table., Information about technical data are not binding., Machine available subject to prior sale., Longitudinal travel x axis: 400 mm, Cross travel y axis: 250 mm, Clearance between worktable and spindle axis: 375 mm, Wheel speed: 3000/6000 rpm, Wheel dimension: 200x20 mm, Spindle motor power: 1,5 Kw, Weight: 1150 Kg, Accessories: Cooling system, motorized dividing device
