6 TRAUB cnc turning centers used machines

Machine Details Stock number 1105-03756 Machine type CNC turning and milling center Brand TRAUB Type TNA 300 Year of construction 1996 Control type CNC Control Traub TX 8 H Storage location warehouse Country of origin Germany Delivery time by arrangement Freight base EXW Technical details Turning length 450 mm Control Traub TX 8F Turning diameter above the paddling carriage 275 mm Turning diameter over bed 400 mm Speed range 4000 rpm Number of tools 12 pcs. Sledge path plan 210 mm Sledge path lengthwise 450 mm Quill diameter 75 mm Quill stroke 125 mm Total power requirement 22 kW Machine weight ca. 3.2 t Space requirement approx. 3 x 2.00 x 2.10 m Information 3 AXIS MACHINE WITH LIVE TOOLS incl. chip conveyor 12-cavity tool turret SAUTER with 12-cavity tool turret VDI 30 MIT DRIVEN TOOL HOLDERS AND C AXIS Towing tailstock with quill Three-jaw power chuc ...

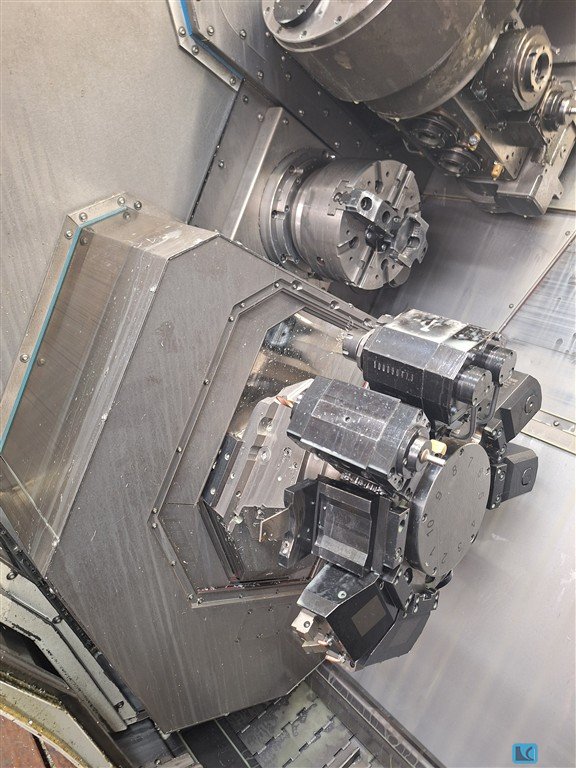

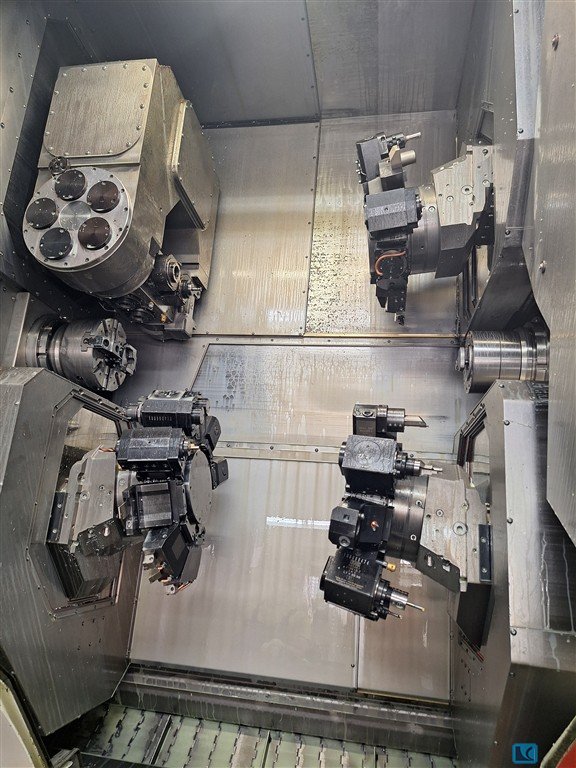

turning diameter: 275 mm turning length: 900 mm control: TRAUB TX8i Main- opposite spindle: spindle passage: 65 mm power capacity at 100 % load: 25,20 kW power capacity at 40 % load: 30,20 KW max. torque at 40% / 100% load: 180 / 135 Nm spindle turning speed - stepless: 1 - 5.000 U/min spindle diameter in front bearing: 110 mm C-axis: 1 - 500 U/min worktool support: No. 1 x-axis: 290 mm y-axis: 165 mm z-axis: 600/950 mm B - axis: 360 ° rapid traverse X/Y/Z: 18 / 18 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 kN number of tools: 2x2 + 2x2 number of driven tools: 2x2 + 2x2 mm toolpiece turning speed range: 8.000 / 2.000 U/min power capacity at 25 % load: 5,80 kW max. torque at 25% load: 4x18,6 / 4x74 Nm tool taper: TRAUB Ø60 worktool support: No.2 / No.3 / No.4 x-axis: 170 mm z-axis: 600/950 mm y-axis: +/- 60 mm rapid traverse X/Y/Z: 18 / 15 / 30 m/min feed capacity X/Y/Z: 10 / 10 / 7 k ...

Traub TNA500 SN 253 Year of manufacture 1997 Spindle 2800 1/min 12-Tool Turret It has powered tools Power 46kVA

turning diameter: 12,7 mm turning length: 50 mm control: Traub System TX 8i turning speeds: 12000 U/min c-axis: 0,001° c-axis: 0,001 ° gripping station: 12,7 mm speeds: 12000 U/min rapid traverse: 15 m/min turret (x-stations): 6 worktool system: 5+3 worktool system: 3 Werkzeugsysteme total power requirement: 2,5/4 kW weight of the machine ca.: 2 t dimensions of the machine ca.: 2,4 x 1,1 x 1,7 m driven tools: 6+4+4 Rev+S7+S8 CNC turning machine Traub TNL 12K with barloader LNS Tryton 112 Motor drive S8 (rear working with driven tools possible) Motor drive S7 (front working with driven tools possible) The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Traub TNL 20 – 9B Machine No. 11920182 Year of construction 2022 TX8i-s control (with Polyform / Helical / 19" multi-touch with gesture technology) Alternating operation: Use as a short or long-turning lathe Main spindle D20 (with 10,000 rpm) with C-axis Sub-spindle D20 with X/Z/C axis Tool carrier top X/Y/Z/H/B axis with 8 tool holders Tool carrier lower X/Y/Z/H axis with 8 tool holders Recirculating apparatus with 4 tool positions Cooling lubricant mist extraction and filter system Automatic CO2 extinguishing system Accuracy Package Tool breakage control device (Wkz beam above) Tool breakage control device (Wkz beam below) Hinge Belt Chip Conveyor Coolant system with 20 to 80 bar pump Charging magazine FMB Turbo 2-20 Sliding device for loading magazine Portal workpiece removal unit Workpiece conveyor belt

CNC automatic lathe Traub TNL 32-7 • Version TNL32/TNL32K alternating mode • Control TX8i-s • Main spindle passage 32 mm, with C-axis • Counter spindle incl. partial hollow stress • Revolver top X/Y/Z/H axis: 10 shots dual drive • Revolver bottom X/Y/Z/H axis: 9 shots total drive; Counter spindle sep. Drive • RAPP 8-fold; Total drive 3 tools IK • Workpiece deflection unit with linear gripper • Coolant supply 3 bar • Coolant supply 8 bar • Hinge belt chip conveyor, discharge height 1000mm • Glass scale X-axis turret top/bottom • Compact belt filter for cooling lubricant: filter fineness approx. 30-40 μm • Bar loading magazine FMB LSK 38, for rods 3.2 m (original price at that time 340.000,- €uro)

Machining diameter max: 36 mm Maximum spindle speed: 6300 rpm No. of Spindles: 2 Controller: Traub TX8i Toolchanger 1: No. of tools: 12 positions X-axis travel: 50 mm Z-axis travel: 50 mm Toolchanger fronside: No. of tools: 7 positions Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 370 mm Z-axis travel: 250 mm Toolchanger backside: No. of tools: 5 Speeds: 150 - 3000 Rpm 300 - 6000 Rpm Max. diameter: 40 mm X-axis travel: 73 mm Barfeeder: FMB Turbo 5-42 Barlength: 3200 mm Bardiameter: 5 - 42 mm Country of origin: Germany Machine LxWxH: 3400 x 1300 x 1700 mm Machine weight: 4000 kg

Key data: 65 mm

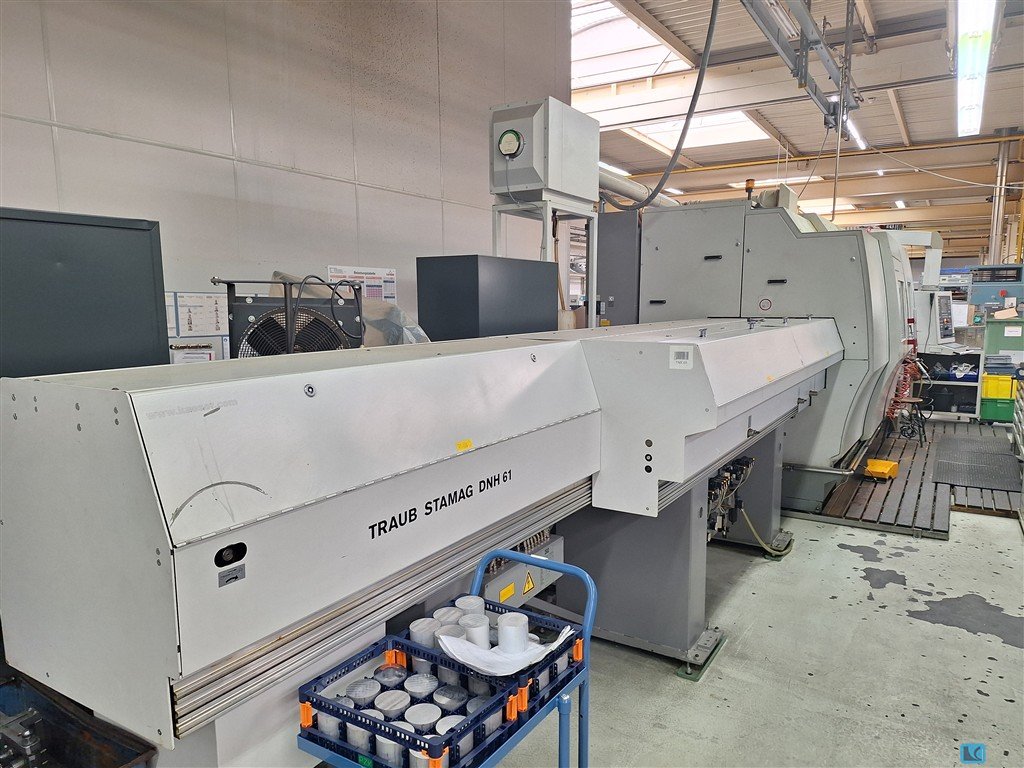

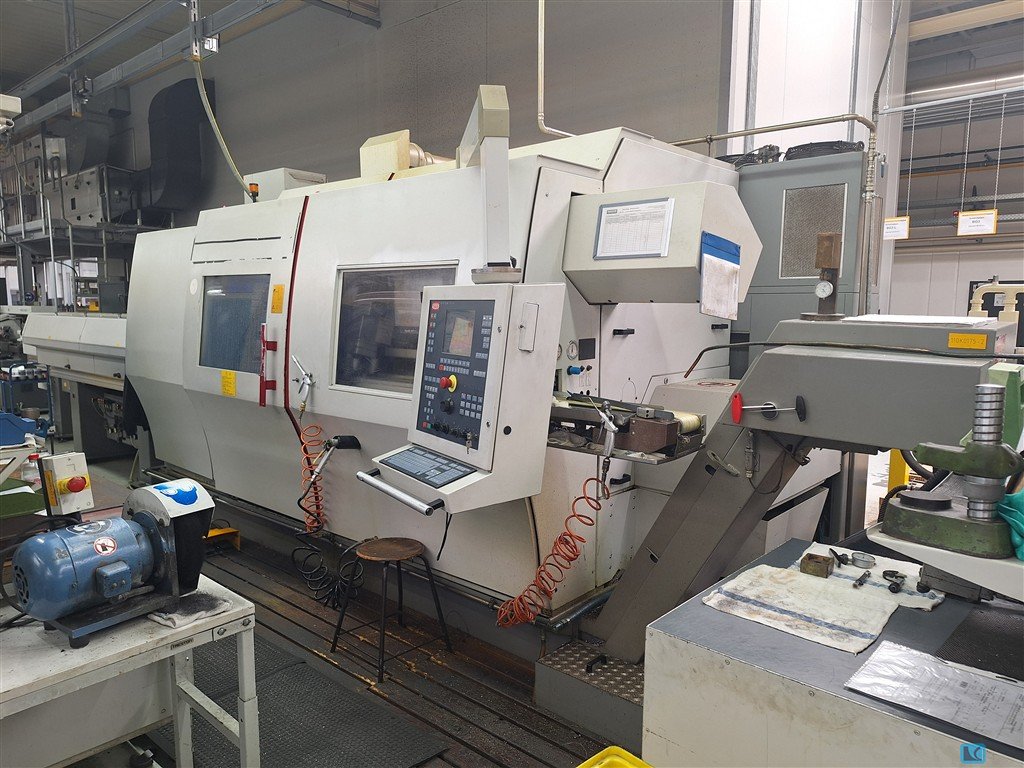

CNC Turning and Milling Center CNC lathe used CNC universal lathe Manufacturer: Traub Type: TNA 300 Year of Make: 1996 Spindle ø 65mm Tailstock Powered tools Conveyor Control TX8H FlexIPS Collet chuck with collets from 5mm to 65mm Three-jaw chuck Various tool holders fixed, rotating and angle-rotating Etc... incl. bar loading magazine Traub DNH 61 3000, year of construction 1996 incl. many accessories! Location of the machine: Nahe 93047 Regensburg The machine can be viewed on site. It is still energized and works perfectly. We would love to hear from you.

Inv. Num. : 8535 Type: TNL 18P Producer: TRAUB Created: 2013 Parameters: Control system: TRAUB SYSTEM TX 8i-p Max. rod diameter: 20 mm Maximum turning length: 180 mm Number of Spindles: 2 pieces Maximum spindle speed: 8000 1/min Length: 2500 mm Width: 1460 mm Height: 2250 mm Weight: 4000 kg Equipment: Bar Feeder

max. bar material dia.: 65 mm max. swing diameter: 175 mm max. bar length: 3.000 mm control: System TX 8F travel -x axis: 140 mm travel -z axis: 520 mm CNC lathe | TRAUB - TNC 42/65 DG equipped with bar loader. The machine is in a well-maintained condition and can be inspected at any time under power. The machine videos from the production plant will be shared on request. Technical data of the machine will follow soon. We ask for your understanding ! - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: TNC65 | TNC-65 |TNC 42-65 DG | TNC 42/65DG The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Universal CNC lathe INDEX G 400 RATIO Line Hersteller [manufacturer]: INDEX Type [ type]: G 400 Control unit: Siemens C200-4D incl. milling of cylindrical tracks Incl. handwheel Baujahr[construction year]: 10/2004 Turning length 1250 Main spindle D102 with swing-in gear 1700 Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE TOOL CARRIER 1 COMPL. AXES X,Y,Z,B with turning/milling operation Disc turret VDI40 10 stations MILLING SPINDLE HSK A63 Tool carrier axles 2 XZ Disc turret VDI40 10 stations SUB-SPINDLE D102 DIRECT DRIVE 1300Nm Size 11 Hollow Clamping Cylinder 102 ARB-SPI ALIGNMENT. AND SWITCHING DEVICE DISC MAGAZINE ON THE LEFT OF THE HSK63 SINGLE-SWING GEARBOX WITH 32 TOOL HOLDERS DISC MAGAZINE RIGHT COMPL. M.32 TOOL HOLDERS HSK 63A Travel path: X= 320mm Z=1250mm Displacement measuring system X-axis glass mast. (abs) Fe ...

TRAUB TNS 65 D / 5 - Axis CNC Lathe -For complete technical data, see data sheets -Control TX8 D -Built in 1994 -Rod passage 65 mm -Hydraulic bar loading magazine -Various driven tool holders -Tool holder -Three-jaw chuck -Complete documentation Hebkn Auovug Uls S Tel

turning diameter: 480 mm turning length: 800 mm control: System TX8F turning diameter over slide: 240 mm spindle passage: 65 mm chuck diameter: 200 mm turning speeds: 4000 U/min power capacity: 30 kW total power requirement: kW weight of the machine ca.: 4,3 t dimensions of the machine ca.: m powered tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle passage: 80 mm max. turning diameter: 460 mm Max. Turning length: 1.000 mm control: System TX 8F max. Spindle speed: 2.800 U/min. CNC lathe | TRAUB - TNA 500 The machine is in a well-maintained condition. The machine videos from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA500 | TNA-500 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

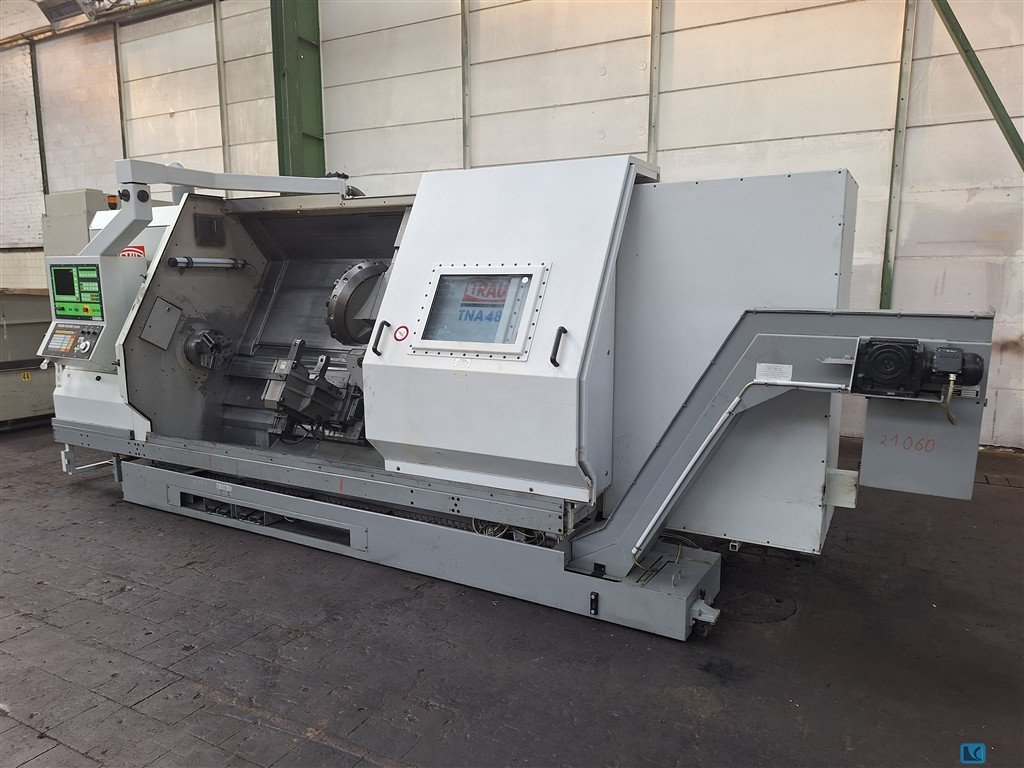

spindle passage: 80 mm max. turning diameter: 395 mm Max. Turning length: 750 mm control: System TX 8H max. Spindle speed: 3.150 U/min. CNC lathe | TRAUB - TNA 400 The machine is in a well-maintained condition. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags:TNA400 | TNA-400 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

turning diameter: 5-42 mm turning length: 3200 mm control: Traub TX8i x-axis: 50 mm z-axis: 50 mm total power requirement: kW weight of the machine ca.: 4000 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

CNC control Traub System TX8 D, with 1 turret with 12 tool positions, bar passage 60 mm, with fleece filter system and chip conveyor

CNC control Traub System TX8 D, with 1 turret with 14 tool positions and 1 turret with 9 tool positions, driven tools, max. turning length approx. 1000 mm, bar passage 80 mm, power 73 KW, with fleece filter system and chip conveyor

CNC control Traub System TX8 F, with 1 turret with 6 tool positions and 1 turret with 6 tool positions, driven tools, bar passage 30 mm, with fleece filter system, coolant device and aut. Bar loading magazine

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY KBF 452/500

Key data: 800 mm, 600 mm, 500 1/min

CNC control Traub System TX8 I, bar passage 42 mm, max. turning length 450 mm, max. speed 8000 rpm, 2 turrets with 10 tool positions each, driven tools, coolant device, chip conveyor KNOLL 240 S-1/50, filtration system/compact belt filter RESY

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

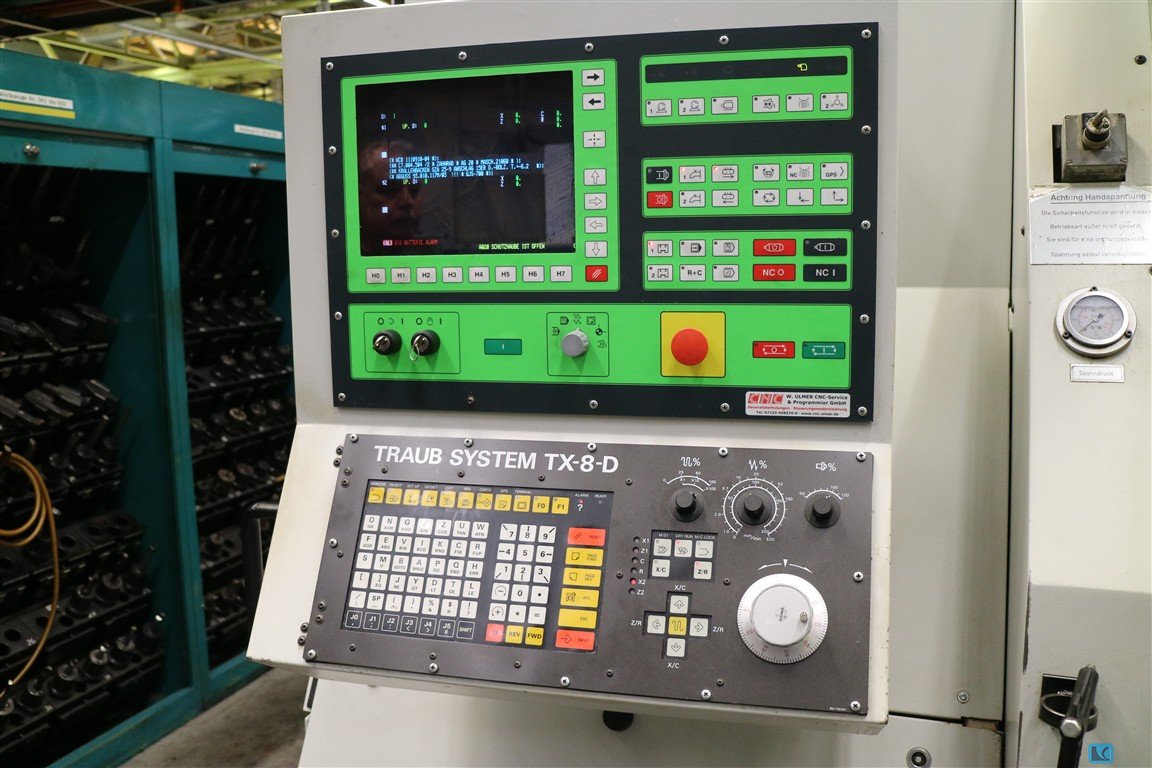

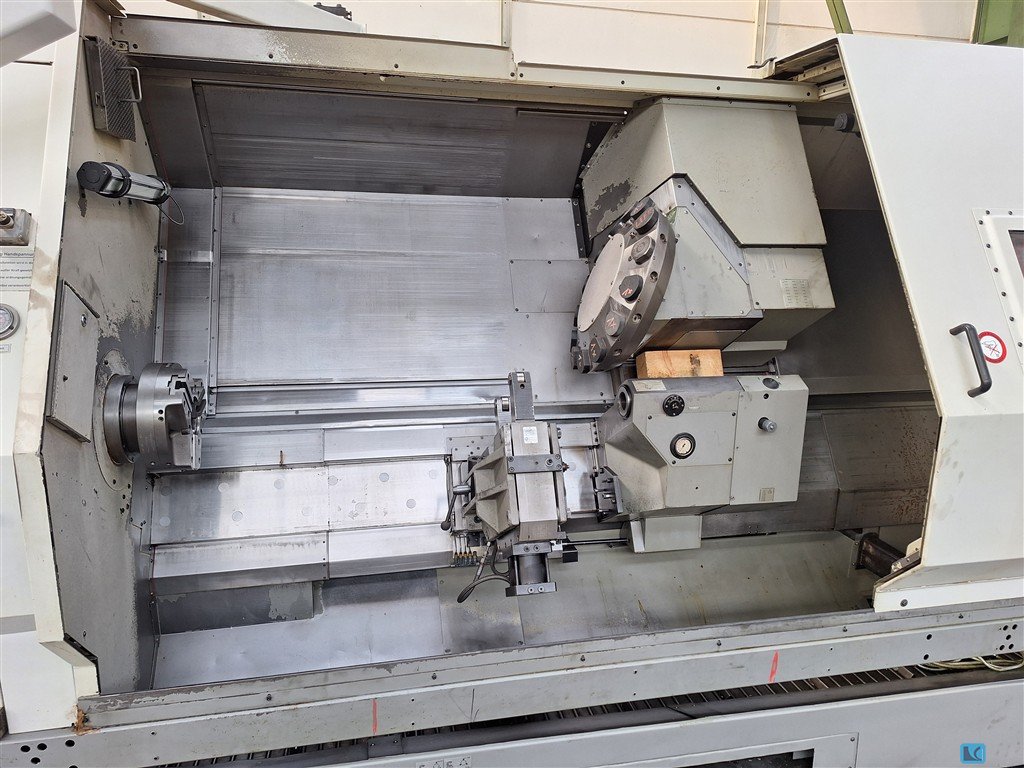

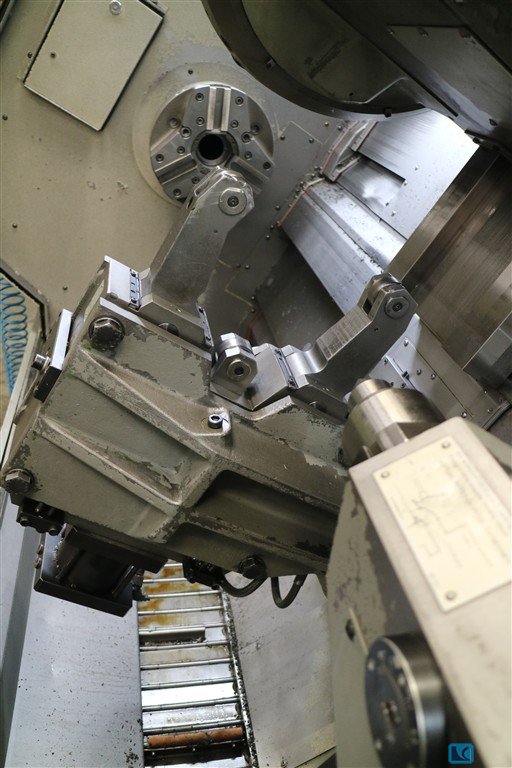

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Fully functional Traub lathe built in 1972 Location of the machines: 76661 Philippsburg The machines can be viewed on site at any time. They are in our warehouse and work perfectly. You can make an appointment for a viewing at any time before bidding on +49 (0) 72 55 / 39 73 337. We would love to hear from you.

CNC Swiss Automatic Lathe TRAUB TNL 32 9P With control TX 8 i - p Year of Make: 2016 Spindle bore: 32 mm MAIN SPINDLE Speed range: Max. 6400 rpm C Axis SUB-SPINDLE Speed range: Max. 6000 rpm C Axis TOOL TURRET TOP: Speed range: Max. 12000 rpm 10 speed turret ( All driven ) TOOL TURRET ABOVE: Speed range: Max. 12000 rpm 9 speed turret ( All driven ) REAR UNIT Number of stations: 8 Of which powered: 3 ( T 12 , 13 and 14 ) Speed T12 + T 14 ( 12000 rpm ) Speed T 13 : ( 4000 rpm ) With the following accessories: Full protection cab with interior lighting Various powered tools Various tool holders IEMCA Boss 338 Bar Feeder - HD KSS Pump 20 bar Chip conveyor Operating Instructions
