14 TSUGAMI used machine for sale

TSUGAMI MA 3 H - 10P Horizontal Machining Center 10 - Compartment Pallet Changer -Control FANUC 11-M -Travel X/Y/Z 340x260x400mm -10 - Compartment pallet change -B - Axis 360 DEGREES -Indexing 0.001mm -Speed range 36-5000 rpm -Feed range 1-6000 mm/min -Rapid traverses 12/meter-min -Tool holder BT 40 -Double-arm gripper -Tool magazine 62 stations -Drive power / spindle motor 7.5 KW -Electronic handwheel -Chip conveyor -Central lubrication -Coolant device -RS 232 data interface -Spindle oil cooler -Documentation Dimensions: LxWxH 4x2.4x2.4 meters / Weight 7000Kg

Key data: 32 mm, 32 mm, 320 mm

Stock number: 4010 CNC lathe SWISS TYPE Manufacturer: TSUGAMI, Type: BO326E-II - 2016 Machines NO.: 23031A, Year of manufacture: 2016 Specifications: Size capacity 32 mm Ø Ma. turning length (fixed guide bush) 320 mm Ma. Turning length (Rotary guide bush) 70 mm Max. threading force of the main spindle M 10 Max. speed drilling capacity 12 mm Main spindle effect 3.7/5.5 kw Sub-spindle Sub spindle speeds 8000 rpm Spindle bore 32 mm Driven tool transformer 6000 ( 4800) - 1 kW pr/min Subspindle effect 2.2/3.7 kw Control Fanuc 32i-B Fabr. Axis Controlled X1-X2-Z1-Z2-Y1-Y2 Opreation time 6575 hours Length: 2400 mm, Height: 2000 mm, Width: 1500 mm, Weight: 3500 kg

TSUGAMI B0206E-II Sliding Headstock CNC Lathe TECHNICAL FEATURES: Year: 2014 NC Type: FANUC series 32i-B Number of axes: 6 X1 Axis Fast Feed Speed: 24000 [mm/min] X2 Axis Fast Forward Speed: 24000 [mm/min] Z1 axis fast feed speed: 32000 [mm/min] Z2 axis fast feed speed: 32000 [mm/min] Y1 Axis Fast Feed Speed: 15000 [mm/min] Y2 Axis Fast Feed Speed: 15000 [mm/min] Maximum diameter in bar: 20 [mm] Minimum speed. Spindle: 200 [rpm] Maximum speed Spindle: 10000 [rpm] C-axis indexing accuracy: 0.001 [°] Spindle power: 3.7 [kW] Minimum speed. Spindle: 200 [RPM] Maximum speed Spindle: 12000 [rpm] C-axis sub-spindle indexing accuracy: 0.001 [°] Spindle power: 2.2 [kW] Number of end device positions: 8 Number of comb positions 1 : 5 Number of motorized comb stations 1 : 3 Comb Turning Tool Speed 1: 8000 [rpm] Number of counter-operation positions: 8 Number of counte ...

TSUGAMI B0385L Swiss-Type CNC Sliding Headstock Lathe Year: 2014 Condition: Tooling included (as shown in photos) Specifications subject to buyer verification Machining Capacity • Max barstock diameter: 32 mm • Max machining length: 100 mm • Max main spindle drilling diameter: 13 mm • Max main spindle tapping: M12 • Max back spindle chucking diameter: 38 mm • Max back spindle drilling diameter: 12 mm • Max back spindle tapping: M12 • Max cross drilling diameter: 10 mm • Max cross tapping: M8 • Max tool spindle slotting cutter diameter: 45 mm Spindle Speeds • Main spindle speed: 200 – 6,000 RPM • Back spindle speed: 200 – 7,000 RPM • Tool spindle speed: 200 – 5,000 RPM Tooling & Axes • Total tool capacity (standard): 20 tools • Tool size: 20 × 20 × 125 mm • Controlled linear axes: 5-axis Ra ...

equipped with Iemca Boss 338HD/32 barfeed new in 2017 - fixed and rotating bushing - evacuation of long pieces through the sub spindle + external apparatus - chip conveyor - some colllets+guide bushings - Fanuc 32i-B Control.

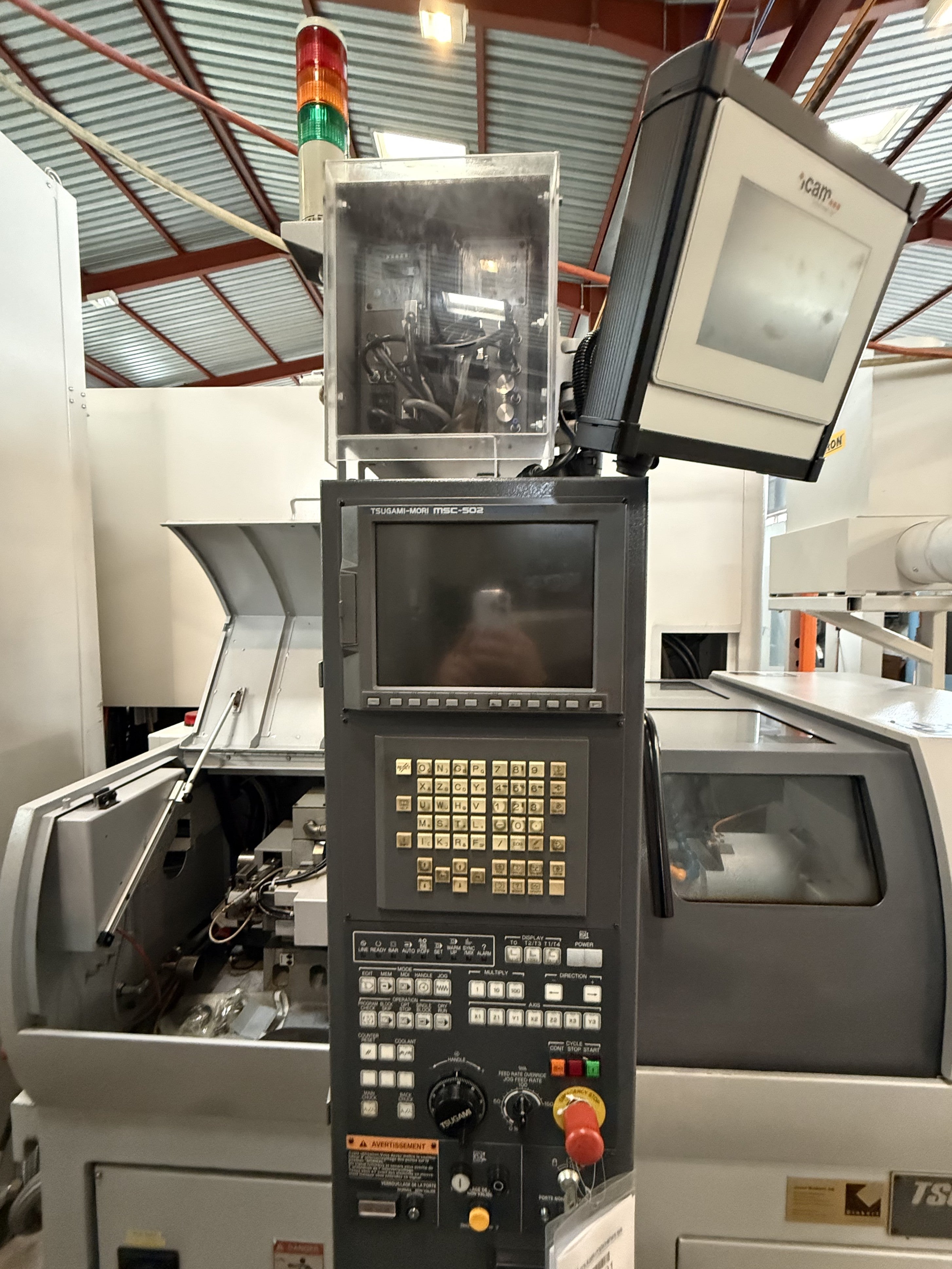

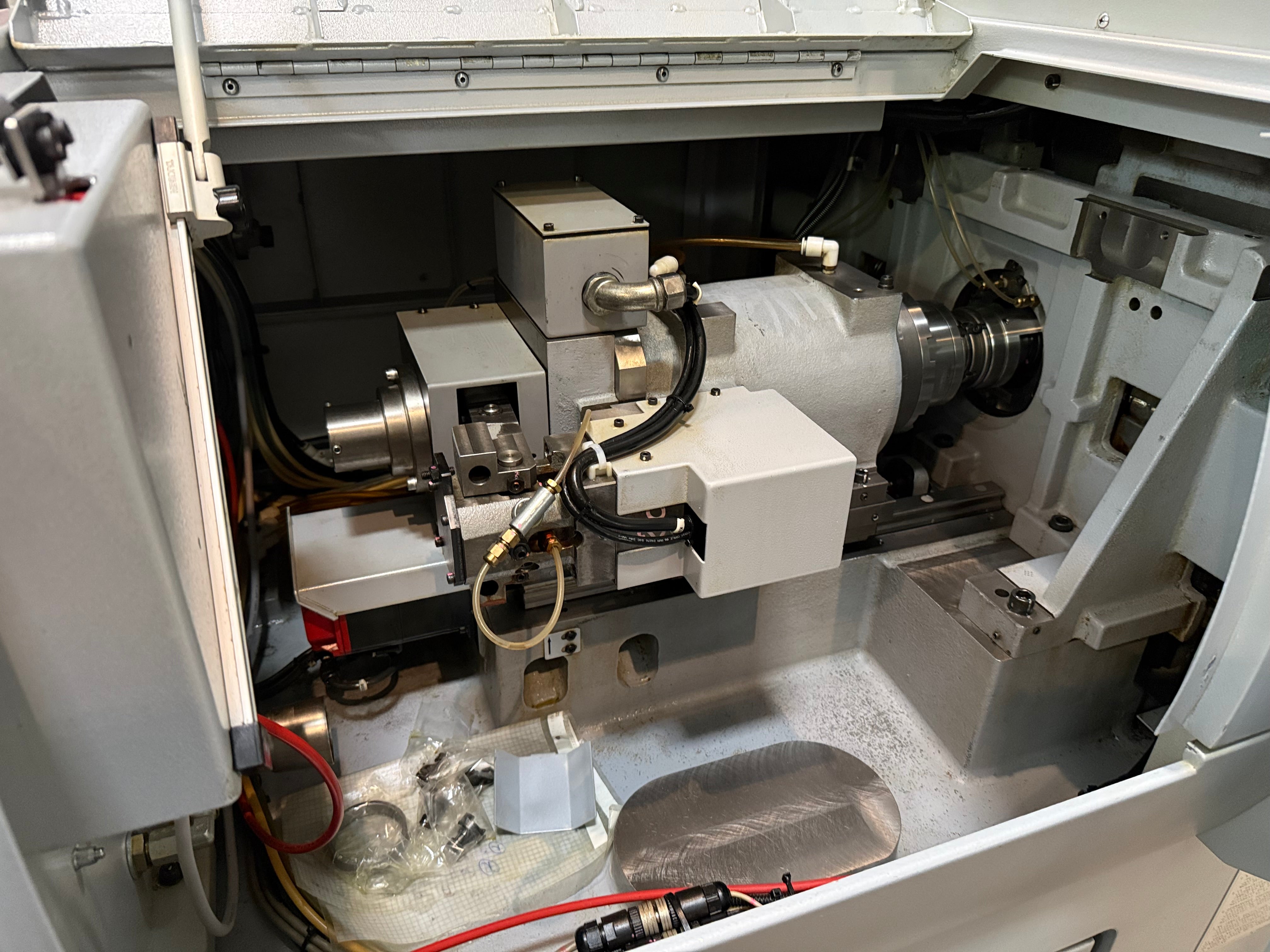

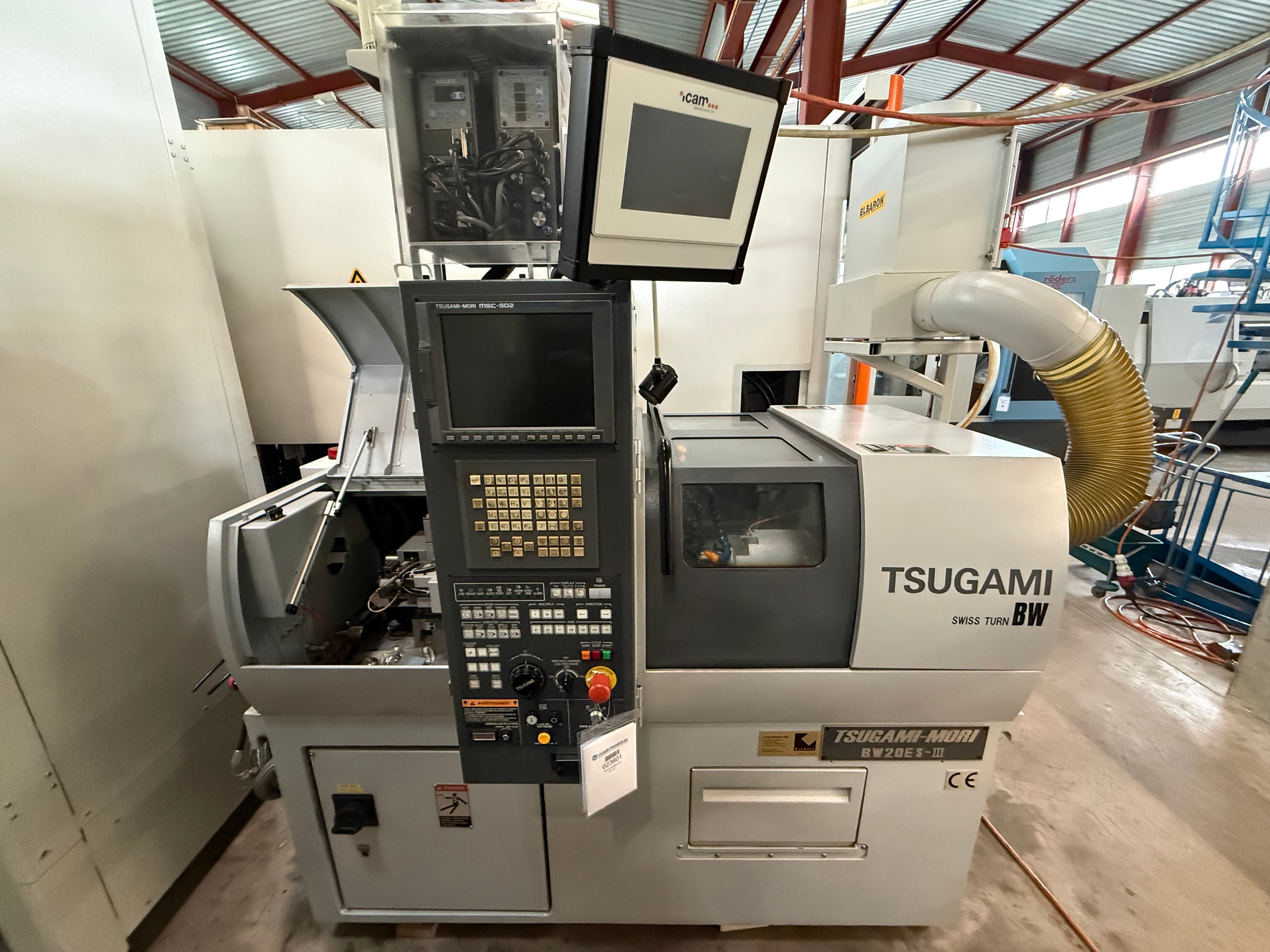

TSUGAMI BW 20 E ist ein CNC Langdrehautomat hoher Präzision, ausgelegt für hohe Genauigkeit und Zuverlässigkeit. Arbeitskapazitäten: 9 Achsen, 2 Spindeln, max. Aussendurchmesser 20 mm, 20 Werkzeuge. Technische Hauptdaten: Spindeldrehzahlen stufenlos 200–10.000 U/min, Spindelleistung 1,1/3,7 kW, Eilgang 24 m/min; Anschluss 50 Hz 3×400 V; Gesamtbedarf 12 kVA; Gewicht ca. 2.500 kg; Abmessungen 1800×1300×1800 mm. Zubehör: Stangenlademagazin LNS Express 220, Teilefänger, Lampe, Kühlmitteleinrichtung, Ölnebelabsaugung ELBARON, Satz Spannzangen, Werkzeughalter und Service-Schlüssel. Erreicht enge Toleranzen; Anwendungen: Automotive, Uhrmacherei, Maschinenbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

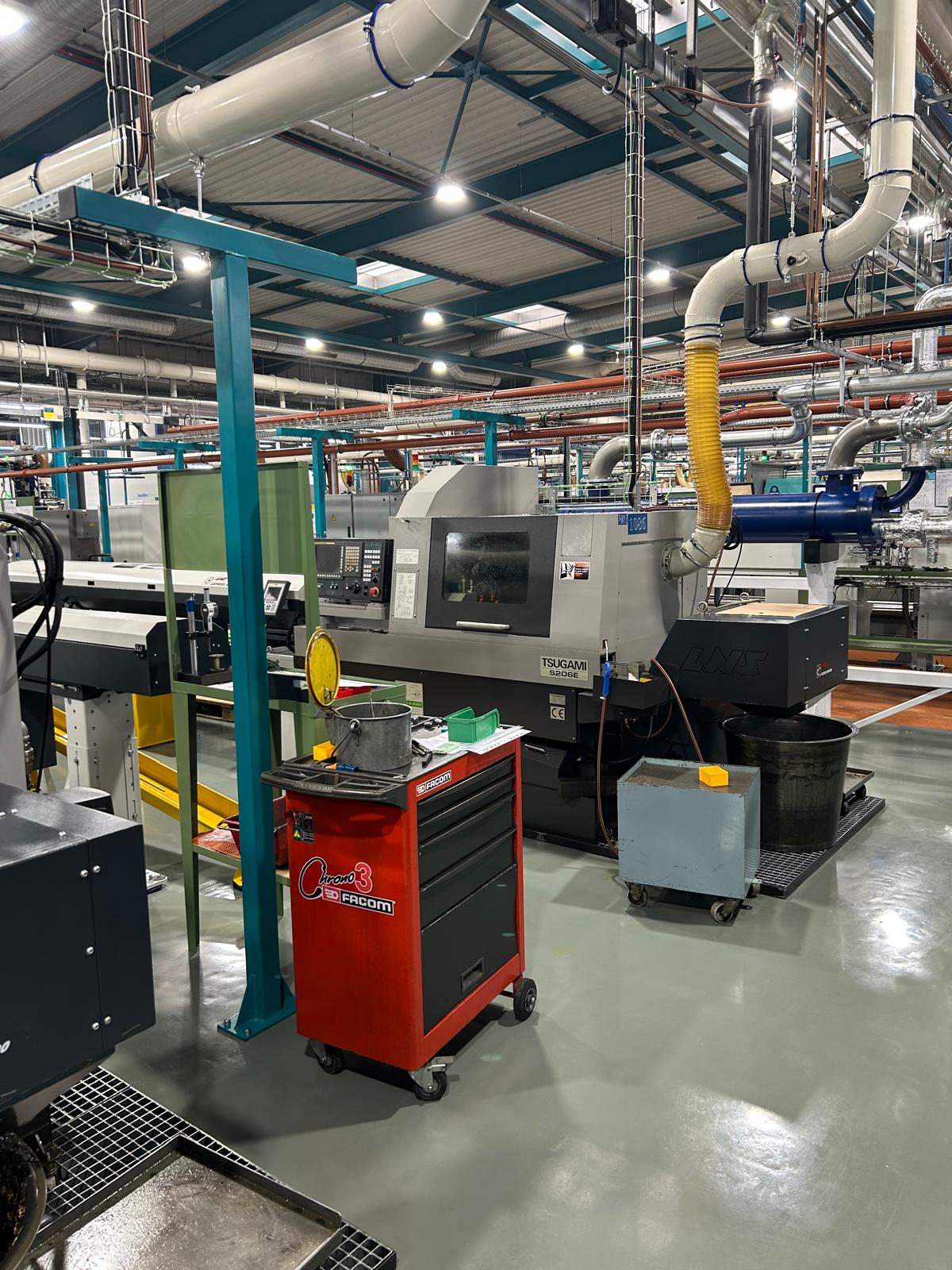

TSUGAMI S 206 E ist ein CNC Langdrehautomat (CNC Swiss type), konzipiert für Präzision, hohe Genauigkeit und Zuverlässigkeit. Leistungsdaten: Drehdurchmesser 6–20 mm, maximale Drehlänge 210 mm, Spindeldurchlass 20 mm; 6 Achsen, 2 Spindeln, 25 Werkzeuge. Technische Daten: Spindeldrehzahlen 200–10.000 rpm, Spindelleistung 3,7 kW, Eilgang 35 m/min, Anschluss 50 Hz 3x400 V, Gewicht ca. 3300 kg, Abmessungen L2110×B1200×H1885 mm. Zubehör: LNS Lademagazin EXPRESS 320. Ermöglicht enge Toleranzen; typische Einsatzbereiche: Automotive, Uhrmacherei, Maschinenbau, Luftfahrt und Medizintechnik. Technische Daten ohne Gewähr

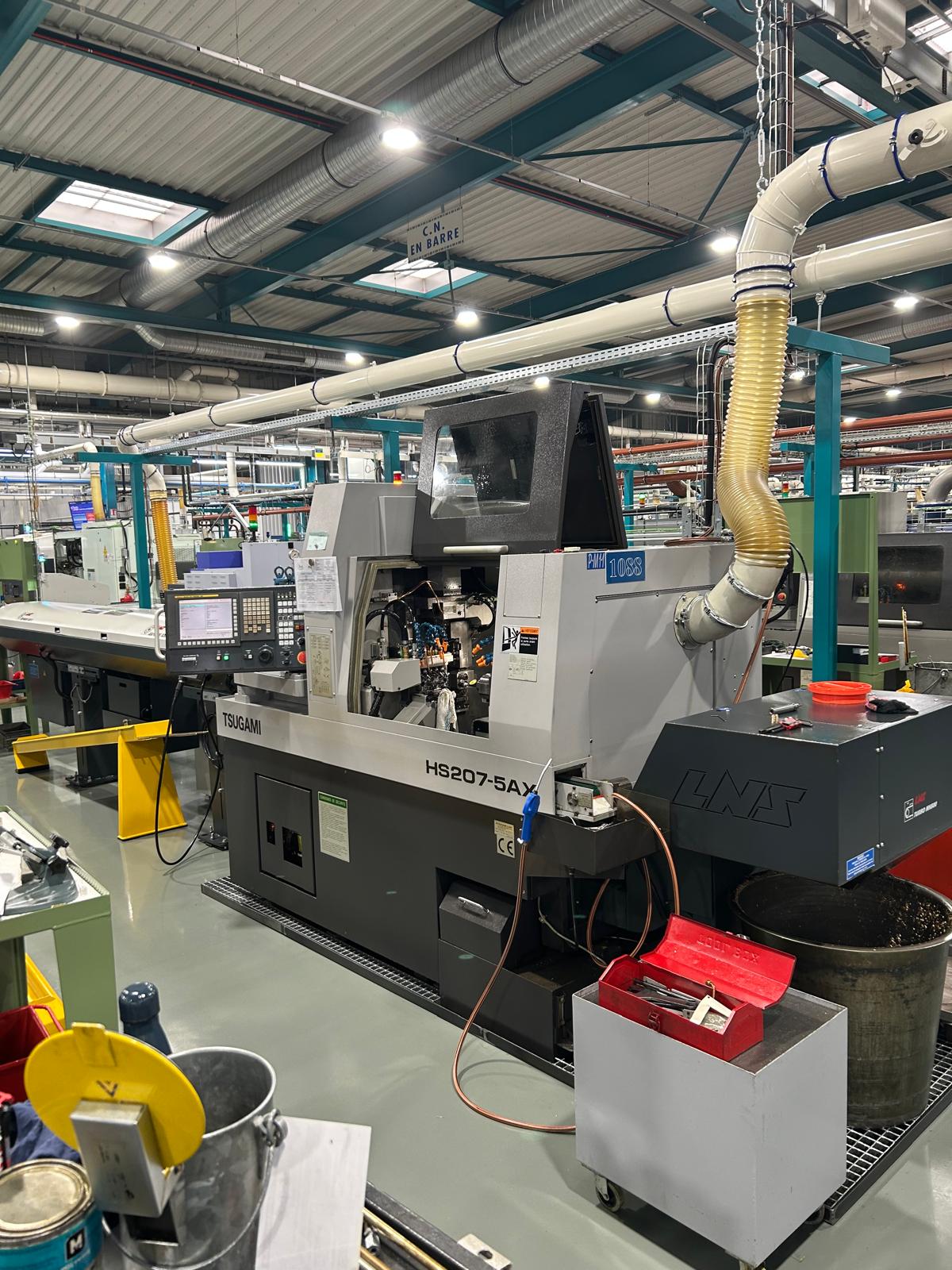

TSUGAMI HS 207-5AX ist ein CNC-Langdrehautomat (Swiss-Type) mit hoher Präzision, großer Genauigkeit und Zuverlässigkeit. 5 Achsen, 2 Spindeln; Drehdurchmesser 3–20 mm; Drehlänge max. 250 mm; Spindeldurchlass 20 mm. Drehzahlen 200–10.000 t/min; Spindelleistung 3,7 kW; Leistung Gegenspindel 2,2 kW; 35 Werkzeuge; Eilgang 32 m/min; Anschluss 50 Hz 3x400 V; Gesamtleistung 14,6 kVA; Gewicht ~3300 kg; Abmessungen 2110×1200×1885 mm. Lader LNS EXPRESS 320. Entwickelt für enge Toleranzen bei Präzisionsbauteilen. Technische Daten ohne Gewähr

spindle passage: 12 mm Control: Fanuc type: LB 2 bar loader: FMB total power requirement: kW weight of the machine ca.: 1,4 t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

sliding headstock CNC lathe, year 2001. Used machine in good condition. More info & price on IndustrialBuyer.

This 7-axis TSUGAMI BS32CE-V was manufactured in 2008. It features a maximum turning diameter of 32 mm and a turning length of 250 mm. The machine is equipped with two spindles, offering main spindle speeds of 200 – 7000 rpm and sub-spindle speeds of 200 – 6000 rpm. If you are looking to get high-quality turning capabilities, consider the TSUGAMI BS32CE-V swiss type turning machine we have for sale. Contact us for further details.

This 9-axis TSUGAMI TMB 2E swiss type turning machine was manufactured in 2012. It features a main and counter spindle both with speeds up to 6,000 rpm and 11 kW power. The machine includes a 16-position turret and a milling spindle that reaches 10,000 rpm. It supports rapid traverse rates up to 50 m/min on X and Y axes, and 36 m/min on Z-axis. Consider the opportunity to buy this TSUGAMI TMB 2E swiss type turning machine. Contact us for more information.

This 6-axis TSUGAMI HS32 swiss type turning machine was manufactured in 2011. It features a maximum bar capacity of 32 mm and is equipped with a Fanuc 32i-B CNC control system. The main and sub-spindle speeds reach up to 8,000 rpm, with live tool speed up to 5,000 rpm. Consider the opportunity to buy this TSUGAMI HS32 swiss type turning machine. Contact us for more information about this machine.
