3 VECOPLAN shredders used machines

4 shaft shredder for crushing of thick-walled pipes. Supply via feeding shaft (not in scope of delivery, can be manufactured alternatively) Manufacturer Vecoplan Drive: Rotorshaft 1: 37 kW Rotorshaft 2-4: 30 kW (each)

ORDER NO. 7026 TECHNICAL SPECIFICATIONS - inlet width 740mm - inlet height 300mm - shaft width 780mm - shaft diameter 1000mm - knife length 780mm - number of knives 2pcs - sieve dimensions 55x55mm - 4 toothed pulling shafts from the bottom - lower shaft motor 5,5kW - 3 toothed pulling shafts from above - upper shaft motor 5,5kW - belt feeder - feed belt length 4300mm - feed belt width 600mm - belt feed motor 2,2kW - main engine 90kW - reverse gear, - autorewers - overall dimensions of the machine length / width / height 4600x2350x1700mm - overall dimensions of the feeder length / width / height 4550x980x970mm - total weight about 11000kg – German production, – used chipper, very good condition Net price: 295900 PLN Net price: 66494 EUR depending on the price 4.45 EUR (Prices may fluctuate with higher fluctuations)

Manufacturer: Vecoplan Model: VAZ 1300 Year of Manufacture: 2011 Type of Machine : Shredder System Technical Details: - Year of Manufacture: 2011 - Operating Hours: 4,718 - Throughput (depending on material): - Shredding stage P-3: approx. 1,300 kg/h - Shredding stage P-4: approx. 1,000 kg/h Performance Data: - Permissible load lifting device: 600 kg - Max. lifting speed: approx. 6 m/min Shredding performance (depending on screen hole size): - With 15 mm screen: approx. 700–800 kg/h - With 20 mm screen: approx. 1,000 kg/h - With 30 mm screen: approx. 1,300 kg/h Conveyor capacity: - Scraper chain conveyor: approx. 25 m³/h - Scraper chain conveyor speed: approx. 18.8 m/min - Screw conveyor speed: approx. 4.5 m/min Condition: - Shredder is disassembled. - In photos, hopper is rotated 90° and placed loosely. - No discharge conveying system (scraper chain conveyor) included.  ...

1 piece scratch chain foerderer 650/500 mm (W/D) length 38 m; good

1 piece of scratch chain foerderer 900/500 mm (W/T) length = 34 m; Very good

Part Number 7685 SPECIFICATIONS - inlet width 440mm - inlet height 300mm - shaft width 480mm - shaft diameter 440mm - number of knives 2pcs - sieve size 50x50mm - toothed pulling shaft from above and below - shaft motor 0.78/1.1kW - electric autorewers (adjustable) - with conveyor belt - length of the infeed belt 4006mm - width of the feeding belt 380mm - Belt feed front/back - main motor 30kW - dimensions length/width/height 6100x1100x1100mm - weight about 2000kg ADVANTAGES – made in Germany – with a belt feeder – autorewers – used chipper, very good condition Net price: 76900 PLN Net price: 18094 EUR depending on the price of 4.25 EUR (Prices may change with higher fluctuations)

Vecoplan hacker, type 65/22/5 Technical data: - max. infeed width 650 mm - max. infeed height 220 mm - 3 feed rollers at the bottom - 2 feed rollers at the bottom - with new through rollers - excl. drive motor

VECOPLAN VAZ 120/105 U, single shaft shredder for wood, cardboard and paper, transport size : LxWxH 2,49 x 1,88 x 1,35 mt., Infeed size 1,2 x 1,05 m., 235 mm rotor Ø, rotor width 1.070 mm, Weight: approx. 2300kg, Rotor speed: 120 rpm, 18,5 kw 34.5A Electric motor with turbo clutch, V-belt drive, 2-stage, spur gearbox, motor speed 1.455 rpm 400V 50 Hz IP54 des.B3, Cobstructed in 1999, few hours worked, offered reconditioned., installed power - used power in work: about 60-65% : 20, availability: 2 weeks

Drum chipper / chipper / wood shredder Refurbished (Workshop Overhauled) Vecoplan Drum chipper type VTH-55/14/2 Factory overhauled (refurbished) with new bearing (spherical roller bearing), tested rotor and new drive motor Knives and counterknives new Feed width/height: 550 x 140 mm Rotor diameter: 500 mm Feed rollers: 2 pieces Screen perforation: 55 x 55 mm Drive power: 45.0 kW Feed motors: 2 x 3.0 kW Weight: approx. 3,200 kg (approx. 4,000 kg incl. steel construction) Year of manufacture: 1981 / overhauled 2007 Machine colour: RAL 6011 Reseda green Cleavers and counter-knives, new incl. 6 pcs. cleavers, new incl. steel substructure H = 700 mm without electrical installation Drum chippers | Wood chippers | Hacker | Chopping Machine | Wood chipping machine | Shredders | Wood shredder ######################################################### Vecoplan drum ch ...

System includes a Vecoplan shredder, a scraper chain conveyor, and a lifting-tilting device with safety guard, the system was used for recycling plastic, 1) Vecoplan shredder VIZ 1300 S, with hood-type feed hopper, base frame, discharge electrode, scraper chain conveyor, lifting-tilting device, feed length: 1250mm, feed width: 1300mm, type: electric motor with V-belt drive, rated motor power: 90kW, rated motor current: 169A, motor speed: 750/min, protection class: IP55, rotor diameter: 495mm, number of cutting crowns: 87 pcs., dimensions of cutting crowns: 40x40mm, rated rotor speed: 185/min, rotor speed range: 95-265/min, screen hole diameter: 40mm, drive side: right (standard), overall length: approx. 2850mm, overall width: 2515mm, overall height: approx. 1350mm, weight: approx. 7200kg, 2) Scraper chain conveyor, trough width: 500mm, section length: 2700mm, screw diameter: 315mm, screw ...

VECOPLAN VAZ 1300, multi-purpose single shaft shredder, 45 Kw drive, in its electrical, mechanical and hydraulic parts, Knives : 40 x 40 mm, Rotor lenght : 1.300 mm, horizontal hydraulic ram, hydraulic power station, control panel, constructed in 2007, the machine is offered totally reconditioned, installed power - used power in work: about 60-65% : 45 kW, availability: immediate, working width: 1.300 mm, conditions: reconditioned, type: single shaft, multi-purpose shredder

SPECIFICATIONS: Hopper opening: 1300 x 600 mm Installed power: 15 kW Rotor: Ø 250 mm Rotor width: 600 mm 014 Knife Screen: 16 mm EQUIPMENT: Replacement Knife

A large-format single-shaft shredder Vecoplan is available. Rotor diameter: 370mm, effective rotor length: 1300mm, speed: 120rpm, knife rows: 37, knife dimensions X/Y: 40mm/40mm, feed opening X/Y: 1400mm/1300mm, hopper volume: approx. 3m³. Machine dimensions X/Y/Z: 3200mm/2400mm/1500mm, weight: approx. 5500kg. An on-site inspection is possible.

VECOPLAN VAZ M-K-T- 1600, 1.600 mm long rotor, rotor diameter 370, rotor rpm 200, HI-TORQUE a.c.motor 110 kW, n.42 cutting pieces 60x60 mm, screen size 60 mm (or different), horizontal ram, hydraulic pack, Electric cabinet, Total dimensions : LxWxH mt.4,315 x 2,885 x 1,600, Total weight kg.7.200 ca, Machine offered totally reconditioned, Our offer includes a MTA chilling unit, installed power - used power in work: about 60-65% : 110 kW, working width: 1.600 mm, conditions: reconditioned, type: Single shaft

Pipe belt conveyor in mint condition VECOPLAN type VRF 500 P. Never used before! Including drive station and deflection station, without belt! Drive station with 15 kW Flow rate approx. 200 m³/h Length approx. 65 running metres, diameter 500 mm

The Vecoplan VAZ 2000 M F-T is a robust heavy-duty single-shaft shredder manufactured in 2007 for industrial recycling applications. Suitable for plastics, films, wood, paper, cardboard, EBS/RDF, and commercial waste. Formerly part of a production line for LDPE PCR film bales, the production line was modernized and rebuilt in 2024. Successful tests for processing used pallets and cardboard cores have been carried out. The processing of wood and cardboard cores is technically unproblematic. The machine condition has been documented by Vecoplan, and the required spare parts for recommissioning have already been ordered. The sale is due to an internal department closure and the associated restructuring of operational processes. Rotor length approx. 2,000 mm, hydraulic ram for uniform material feeding, flipper/airspring counter-knife system for high operational reliability, Torque/HiTorc dri ...

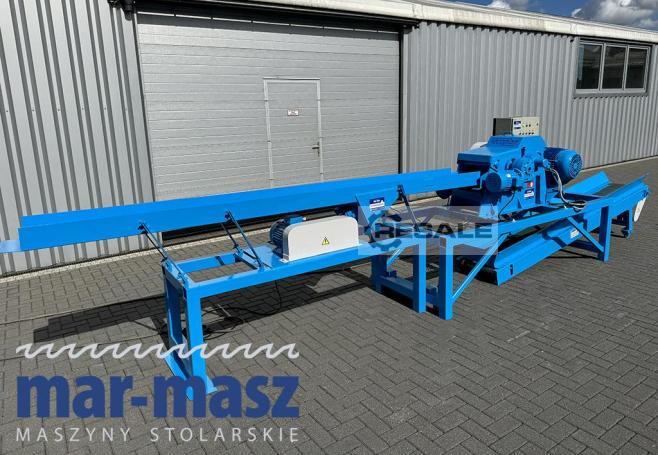

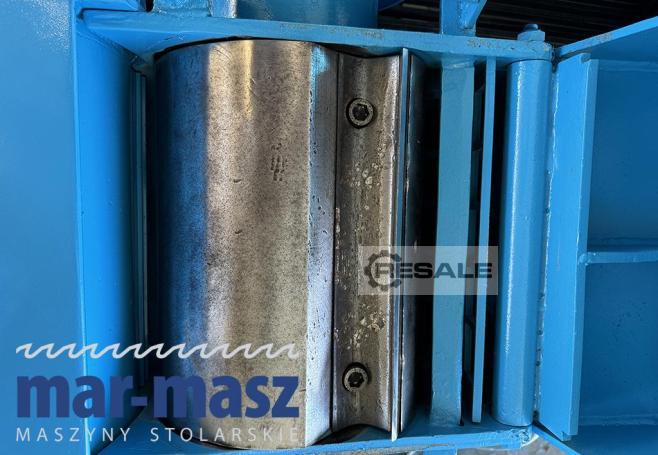

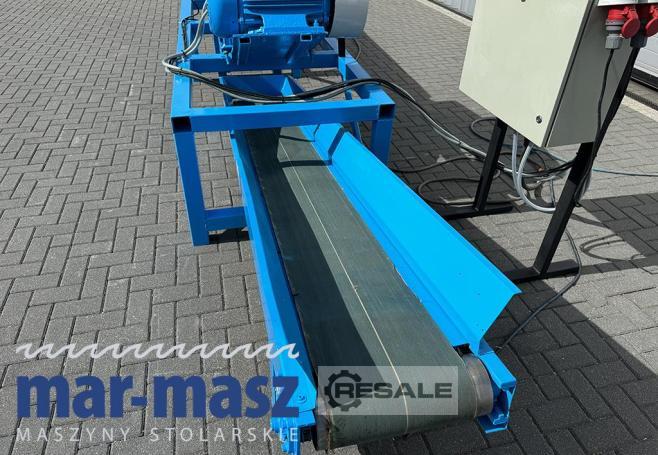

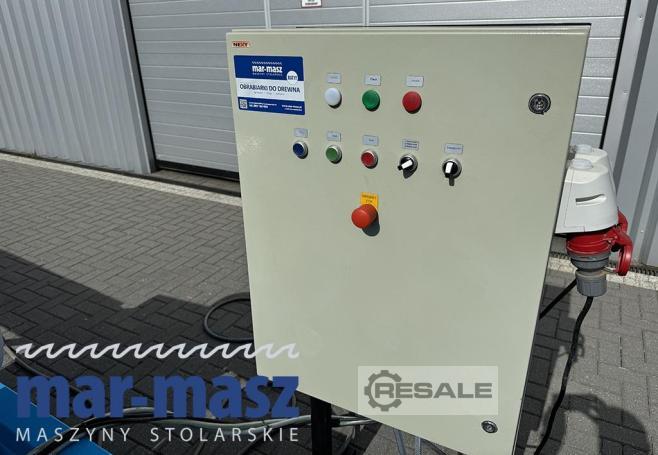

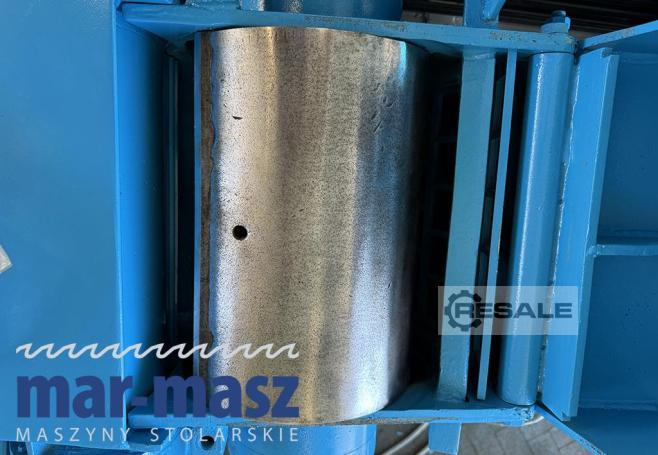

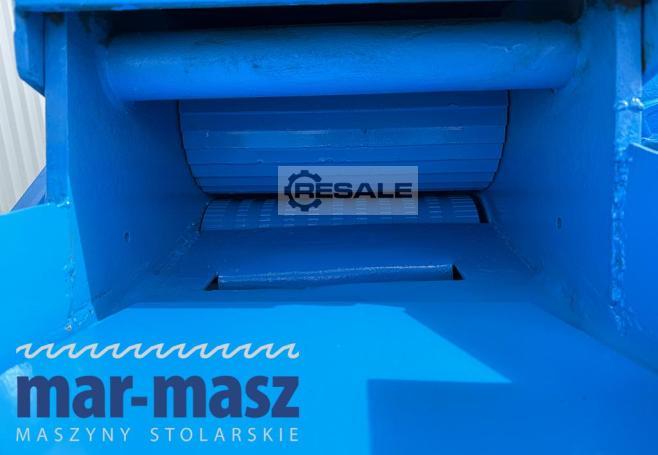

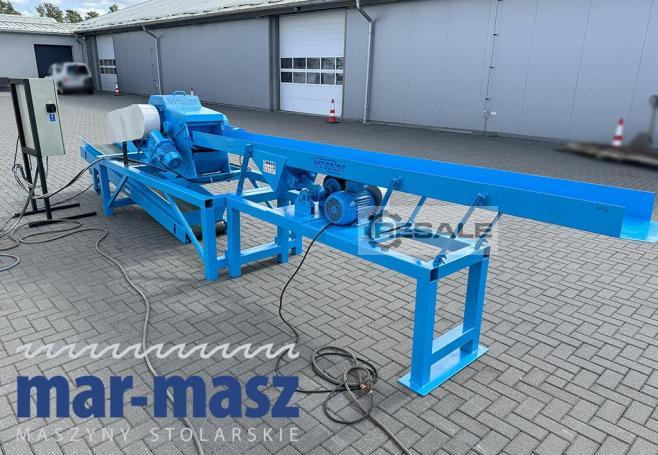

Numer katalogowy 7742 DANE TECHNICZNE - szerokość wlotu 350 mm - wysokość wlotu 140 mm - szerokość wału 345 mm - średnica wału 290 mm - ilość noży 2 szt - wymiar sita 55x55mm - wał ciągnący zębaty z góry i dołu - silnik wałów 2×1,5kW - elektryczne autorewers (z możliwością regulacji) - z wibrorynną - długość, szerokość wibrorynny 3750×355 mm - wymiar cała wibrorynny 3750x620x1210mm - odbiorczy z taśmociągiem 2970x340mm - wymiar całkowity taśmociągu 3000x630mmx750mm - silnik główny 22 kW - wymiary dł/szer/wys 3000x1100x1500mm - waga około 2500 kg ATUTY – produkcja niemiecka – wibrorynna – z odbiorczym podajnikiem taśmowym – autorewers – rębak używany, stan bardzo dobry Cena netto: 47900 PLN Cena netto: 11405 EUR w zależności od ceny 4,20 EUR (Ceny mogą się zmieniać wraz z wyższymi wahaniami)

Inlet cross section: 2500 x 1900 mm drive: 2 x 110 kW rotor flight circle: Ø 745 mm rotor speed: approx. 93 RPM rotor design: 185 PCs. cutting plates 50 x 50 x 25 mm screen perforation: Ø 70 mm counter knives: with cutting gap adjustment machine weight: approx. 29,000 kg

Shredder, industrial shredder, 2 wave star breakers, glass shredder, rotor scissors, star mill, garbage shredder, two-shaft shredder, two-shaft shredder, shredder with filler for wheel loader used The shredder can also be used as a single position. Manufacturer: SANT'ANDREA NOVARA Type: G30/1570 Built in 2003 Speed of the fast wave: 17.7 rpm Speed of the slow wave 9.3 rpm Turning monent. 11875 Nm Engine VEM 22 kW 400/690 V Dimensions Shredder: approx. 2500 x 1000 x height approx. 400 mm with motor 1500 mm Dimensions of cutting unit approx. 1600 x 810 mm Throw-in height approx. 4.6 m Throw-in funnel approx. 3 x 2 m the drop-in funnel is closed by a percular upward opening slider approx. 2.5 x 1.5 m. Total dimensions of the steel construction: approx. 3 x 2 x 8 m In the shredder, used glass was broken for a foam glass bulking system. Originally, the recycling of fluo ...

STYRO-CUT 350 Shredder for Polystyrene specifications Motor power: 5.5 kW / 380 V Throughput: approx. 4 m³ / hour (depending on material and sieve) Speed: 2,900/min. Dimensions: W x D x H: 640 mm x 1,500 mm x 2,400 mm Volume reduction: 70 – 80 % Weight: approx. 170 kg Insertion opening: Ø 280 mm Height insertion: 1,600 mm Granulate size: up to 6 mm STYRO-CUT 350 is a device for shredding (granulating) the polystyrene (EPS). The packaging residues, sections are entered into the insertion funnel and the material is automatically sucked in by the device. The material is shredded by the device in a single step, granulated and filled into bags or transported to the silo. The device reduces the volume by 70-80% and thus also reduces the cost of storage and transport. Un contaminated ESP granules can be reused in the production of new products from EPS. The produced granu ...

Ready exhibition machine built in 2016 Mercodor ZM 44 Cutting Chamber 500 x 380 mm knife 14 3 mm hook drive 7,5 kw

Ready exhibition machine MERCODOR ZM 52 Year 2015 Mercodor Shredder ZM 52 Cutting area 650 x 540 mm or 1050 x 540 mm with 22 kw

Specifications Cutting width: 7.5x40-80 mm Year of construction: 1999 Productivity: approx. 300 sheets (DIN A4, 70g/m²) Price: on request Cutting speed: 250 mm/s the safety step: 2+1 wg DIN 32757 P-1,O-1,T-2 wg. DIN66399 Power supply: 400 V / 6 kW Maximum pressure: 9 tons Power supply: 400V/4kW Pressing force: 3.64 kg/cm² Year of construction: 1999 Bale size: 550x450x350 mm Productivity: - Bale weight: - Price: on request We have several channel balers and balers in our warehouse and we cordially invite you to contact us!

the two shaft shredder with knives 14 mm 3 hooks and 7.5 kw

This is a second hand machine with 22 kw. Knife 24 3 mm hook complete with Hopper, base and switchgear.
