WMW ZEULENRODA pye used machines

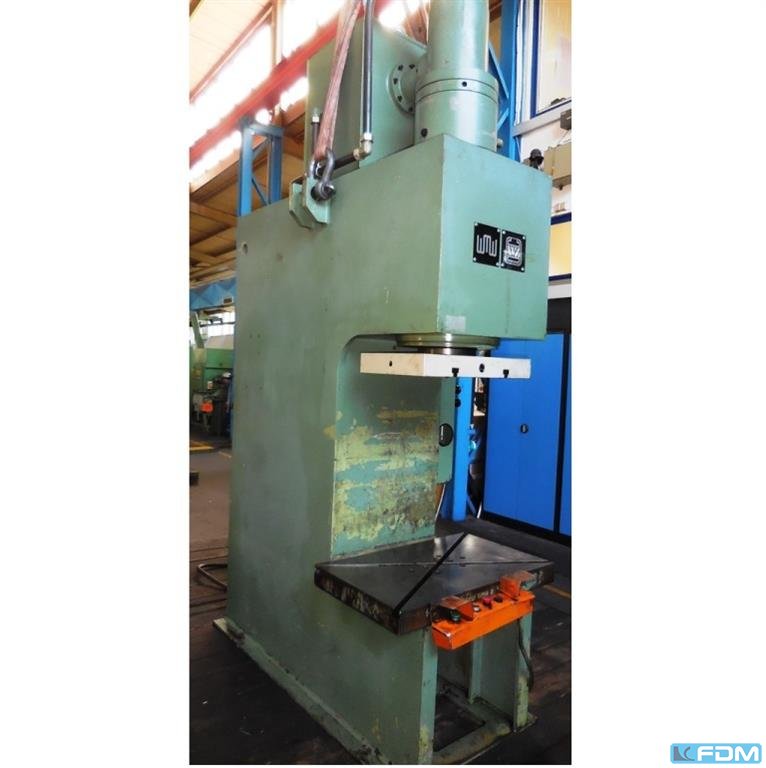

- C-Frame construction - Die height 850 mm - Thickness bolster plate 100 mm - Throath C Side 360 mm -

pressure: 160 t stroke: 500 mm total power requirement: 20,5 kW weight of the machine ca.: 7,5 t Rated force: 160 Mp (˜ 1600 kN / 160 tons) Operating pressure: 144 kp/cm² Speed: Downward: 200 mm/s Upward: 250 mm/s Ram stroke: 500 mm Throat depth: 360 mm Max. distance (table to ram): 800 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 63 t stroke rate in continuous stroke: 90 min force: 2200 Nm Torque: 12500 Nm no. of strokes: 56 / 90 Hub/min Labour performance: 5,5 kW sheet thickness - max.: 6,3 / 3,2 mm cutting surface: 1600 mm² distance between columns: 320 mm throat: 315 mm min. ram stroke: 8 mm max. ram stroke: 120 mm ram adjustment: 70 mm ram surface: 400 x 500 mm tool hole in ram: 40 mm tool shank hole (depth x diameter): 92 mm T-slots: 2 Stk total power requirement: 6 kW weight of the machine ca.: 5,5 t Rated force: 630 kN (63 tons) Maximum sheet thickness: 3.2 mm Ram stroke: 8–120 mm Stroke rate: 56 / 90 strokes per minute Shut height (table to ram): 560 mm Ram adjustment: 70 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 160 t throat: 360 mm stroke: 500 mm table surface area: 1250x630 mm ram surface: 1000x450 mm table height: 1000 mm dayligth: 800 mm weight of the machine ca.: 8 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 24591 Specifications: - Max. pressing force 25 t - Max. ram stroke 500 mm - Lifting speed 0 - 40 mm/s - Return 0 - 200 m/min - Installation height 800 mm - Projection to the middle of the ram 360 mm - Pusher clamping surface 440 x 360 mm - Plunger clamping pin 40 mm - Table size 630 x 500 mm - Table height above floor 710 mm - Thermoforming force 10 t - Largest deep-drawing depth 160 mm - Drive 400 V / 4 kW - Space requirement approx. W 800 x H 2720 x D 1150 mm - Weight approx. 2500 kg

Offer 24088 Technical data approx.: - Max. pressing force 40 t - Max. ram stroke 500 mm - Lifting speed 0 - 6 m/min - Return 0 - 27 m/min - Installation height 800 mm - Projection to the middle of the ram 360 mm - Plunger clamping surface 500 x 400 mm - Plunger clamping pin 40 mm - Table size 700 x 500 mm - Table bore / breakthrough 180 mm - Table height above floor 700 mm - Oil filling quantity approx. 300 ltr - Drive 400 V / 13 kW - Space requirement approx. W 1250 x H 2950 x D 1800 mm - Weight approx. 3300 kg - with: - two-handed operation

pressure: 250 t throat: 360 mm Table dimensions: 1250 x 630 mm table diameter: 250 mm dimension of ram: 850 x 450 mm dayligth: 800 mm piston stroke: bis 500 mm diameter of piston: 400/360 mm ram stroke speed: abwärts 200 mm/sec ram stroke speed: aufwärts 110 mm/sec total power requirement: 20,5 kW weight of the machine ca.: 8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25374 Specifications: - Max. pressing force 100 t - Max. ram stroke approx. 500 mm - Lifting speed 25 mm/sec. - Return 125 mm/min - Installation height approx. 1000 mm - Projection to the middle of the ram 380 mm - Pusher clamping surface 530 x 400 mm - Plunger clamping pin 40 mm - Table size 750 x 560 mm - Table hole / through hole in the table 200 mm - Table height above floor 720 mm - Oil filling quantity approx. 200 ltr - Drive 400 V / 11 kW - Space requirement approx. W 1150 x H 3250 x D 1850 mm - Weight approx. 4600 kg

pressure: 160 t stroke: 810 mm throat: 360 mm table-size: 900 x 630 mm dimension of ram: 750 x 450 mm dayligth: 800 mm diameter of pistons: 400/360 mm ram stroke speed: 200 mm/sec total power requirement: 17 kW weight of the machine ca.: 7 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 63 t, 500 mm

table - 750x560 mm lower ejector

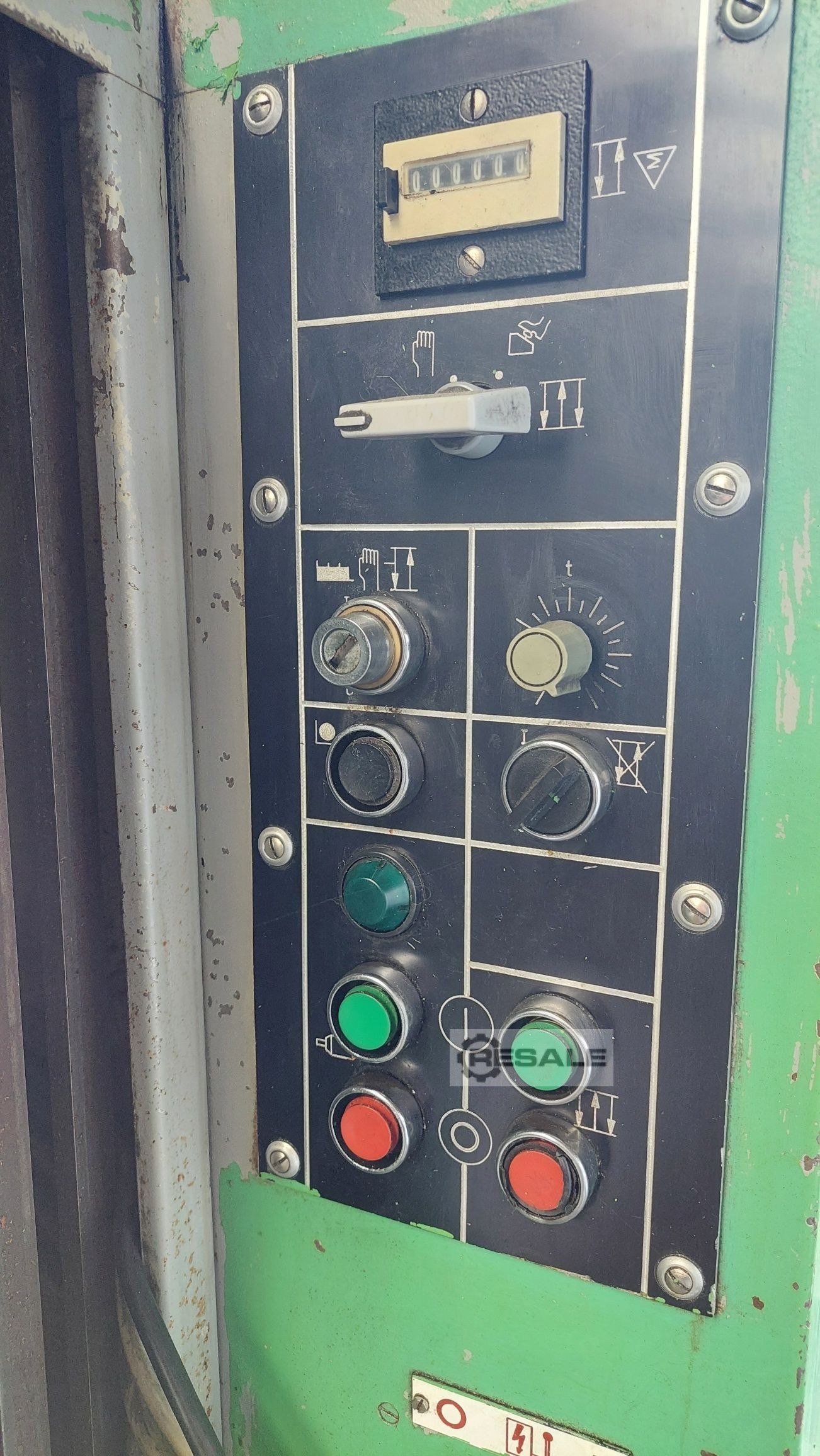

Offer 25272 Technical data: - Max. pressing force 25 t - Max. ram stroke 500 mm - Lifting speed 0 - 2.4 m/min - Return 0 - 12 m/min - Installation height 800 mm - Projection to the middle of the ram 360 mm - Pusher clamping surface 440 x 360 mm - Plunger clamping pin 40 mm - Table size 630 x 500 mm - Table bore / breakthrough 180 mm - E. footswitch - 2 hand control panel - Drive 400 V / 8.75 kW - Space requirement approx. W 800 x H 2750 x D 1150 mm - Weight approx. 2000 kg

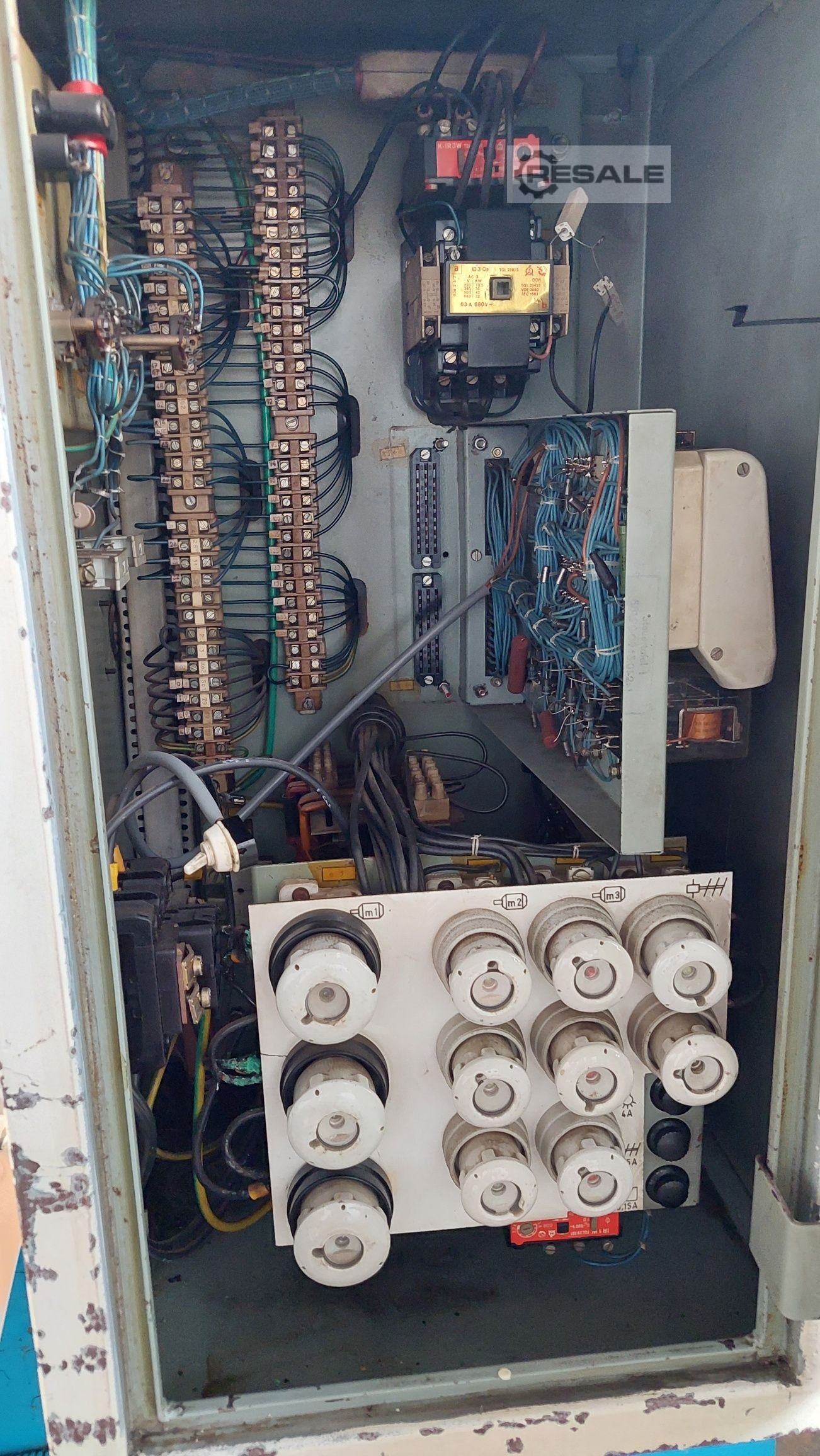

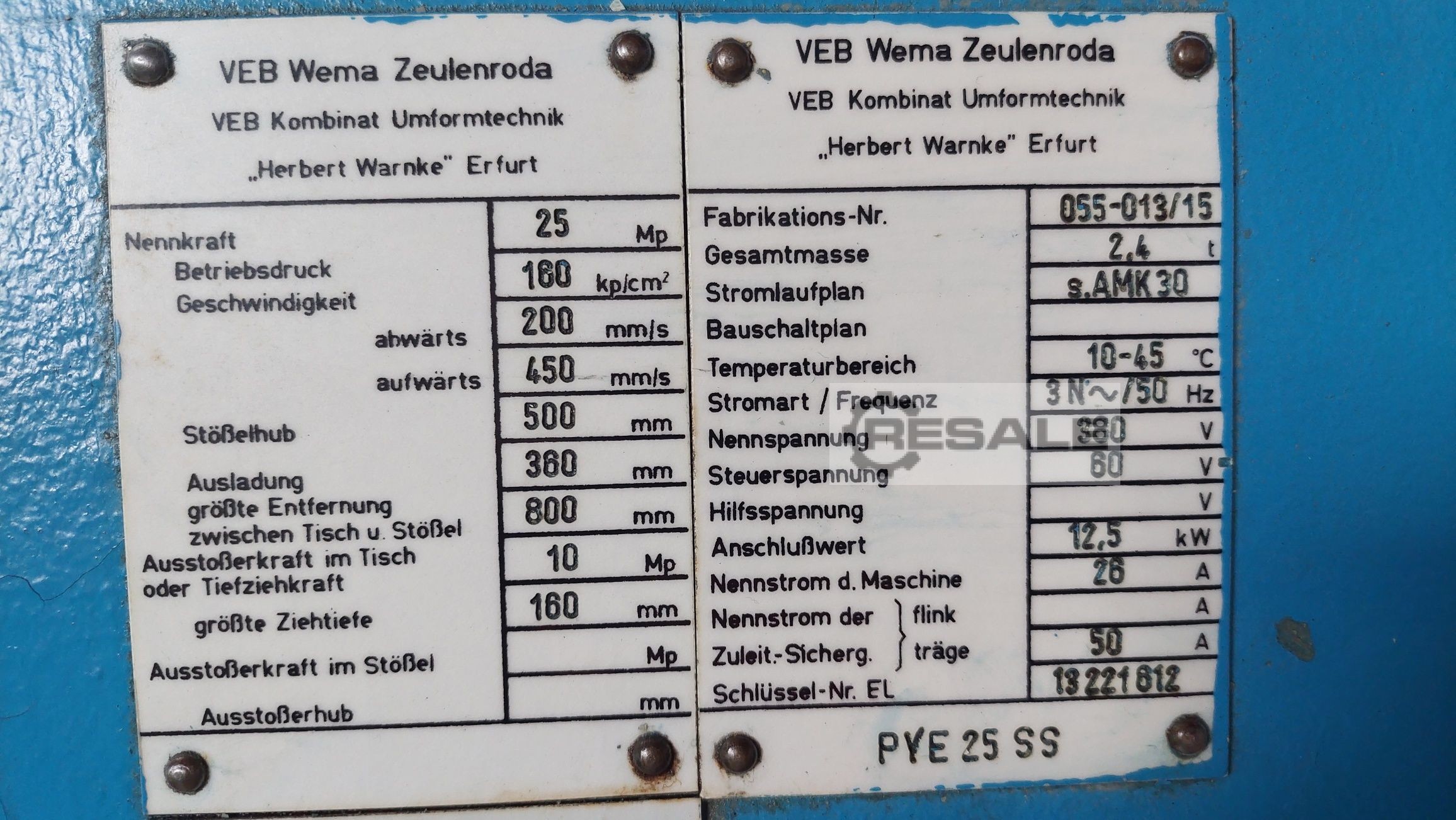

Offer 25274 Hydraulic – single-column press with drawing cushion Technical data: - Max. pressing force 25 t - Max. ram stroke 500 mm - Lifting speed 200 mm/sec - Return 450 mm/sec - Installation height 800 mm - Projection to the middle of the ram 380 mm - Pusher clamping surface 440 x 360 mm - Plunger clamping pin 40 mm - Table size 630 x 500 mm - Table bore / breakthrough 180 mm - Drawing cushion 10 t - E. footswitch - 2 hand control panel - Drive 400 V / 12.5 kW - Space requirement approx. W 800 x H 2750 x D 1150 mm - Weight approx. 2400 kg

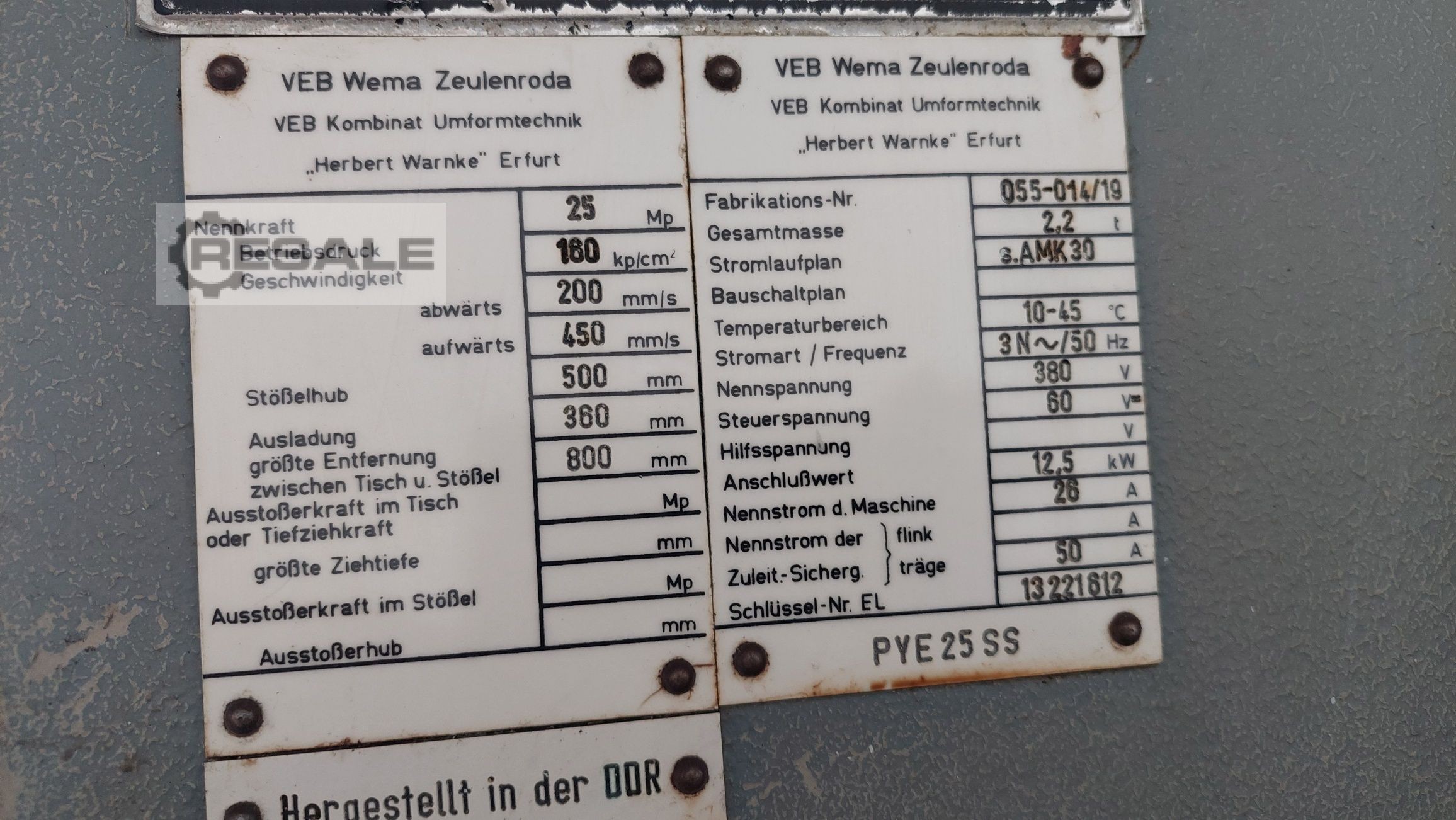

Offer 25275 Technical data: - Max. pressing force 25 t - Max. ram stroke 500 mm - Lifting speed 200 mm/sec - Return 450 mm/sec - Installation height 800 mm - Projection to the middle of the ram 380 mm - Pusher clamping surface 440 x 360 mm - Plunger clamping pin 40 mm - Table size 630 x 500 mm - Table bore / breakthrough 180 mm - E. footswitch - 2 hand control panel - Drive 400 V / 12.5 kW - Space requirement approx. W 800 x H 2750 x D 1150 mm - Weight approx. 2200 kg

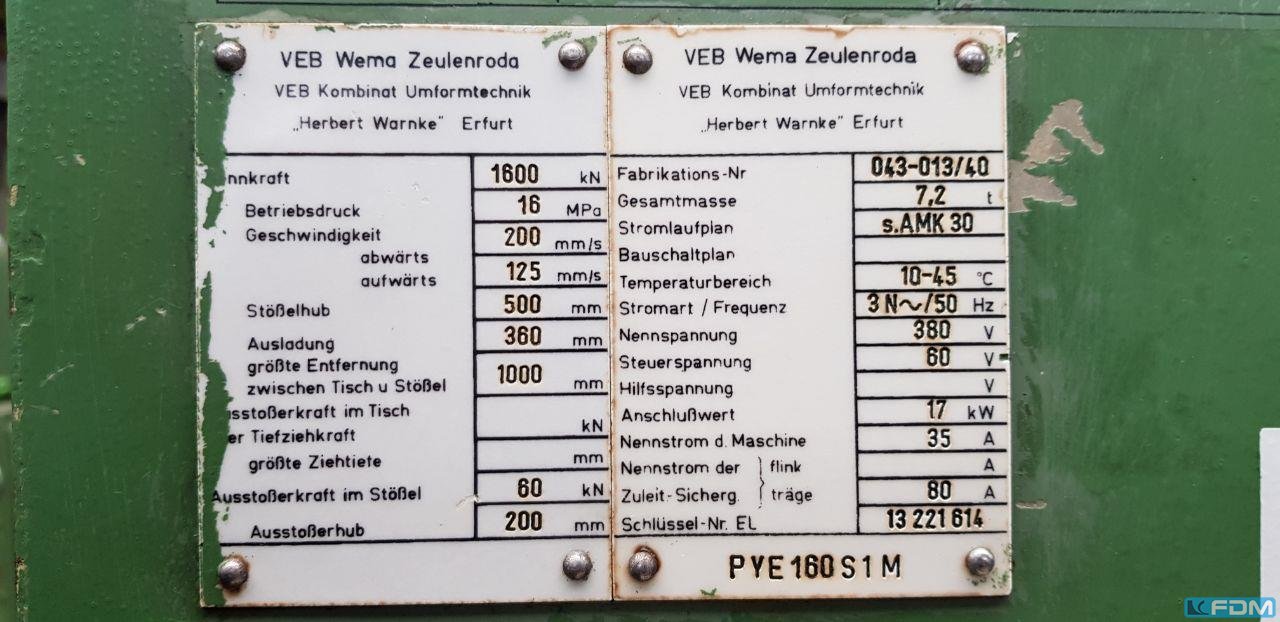

pressure:160 t throat:360 mm stroke:500 mm total power requirement:17 kW weight of the machine ca.:7,2 t dimensions of the machine ca.:2,0 x 0,95 x 3,70 m table-size:900 x 630 mm Documents:vorhanden

pressure:160 t throat:360 mm stroke:500 mm Documents:vorhanden

pressure:40 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:660 / 1000 mm table surface area:630 x 500 mm hole in the table:200 mm table height over floor:1060 / 720 mm ram surface:450 x 360 mm speed down:60 mm/s speed up:300 mm/s power requirement:7,5 kW weight:2,75 t dimensions (WxDxH):1,0 x 1,8 x 3,05 m additional plate in table:height approx. 340 mm

pressure:25 t throat:355 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:500 x 500 mm hole in the table:180 mm table height over floor:700 mm ram surface:250 x 250 mm power requirement:7,5 kW weight:2,1 t dimensions (WxDxH):1,45 x 0,9 x 2,55 m

pressure:100 t throat:360 mm stroke:500 mm distance table/ram, max. stroke up, adjustment up:800 mm table surface area:900 x 560 mm table height over floor:710 mm ram surface:630 x 400 mm speed down:200 mm/s speed up:200 mm/s power requirement:17,0 kW weight:5,0 t Dimensions (WxDxH):1,2 x 1,9 x 3,3 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2

Eccentric C stand press, little used C frame - eccentric press, used Type: PED 63.3 S4 manufacturer: WMW Year of construction: 1994 Pressing power / rated pressure: 63 t Sheet thickness / material thickn. 3.2 mm Table size / surface of bed: 800 x 580 mm Hole in the table / hole in table: 300 mm diameter. Stroke / stroke of slide: 8... 120 mm Number / number of strokes: 56 / 90 / min Tappet adjustment / adjustment of slide: 70 mm The maximum distance between Table and plunger / max distance between table and slide: 560 m Projection / Cap: mm Power of main motor / power of main motor: 6 kW Weight / weight: 5.5 t

Double Column - Hydraulic Press RASTER ZEULENRODA (WALTER) Type WUP S 60Masch. No. 136 / 7 (156-165) Year of manufacture 1999Basic machine from 1987, in 1999 Overhauled with new controlPressure capacity 60 ton. Stand width 1090 mmStand passage laterally 265 mm (one-sided) Plunger area 650 x 300 mmAdditional plate on ram 990 x 550 x 60 mmTable area 990 x 550 mmPlunger stroke max. 320 mmInstallation height 330 or 390 mmTable height above floor 980 mmHydraulics Operating pressure 320 barRapid traverse downward 75

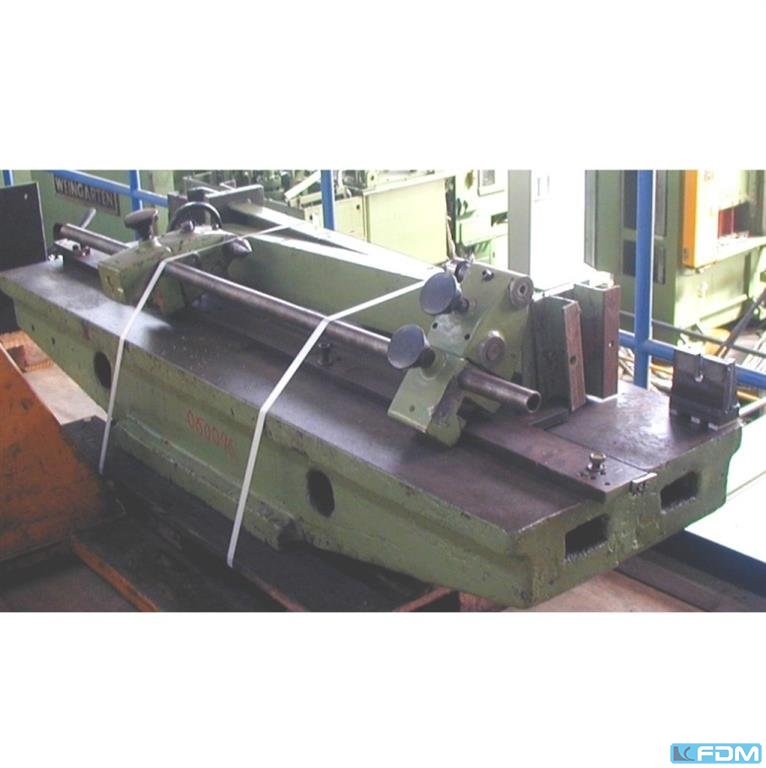

table length:2000 mm table width:600 mm table height:300 mm mounting surface:700 x 600 mm centre distance:1200 mm centre height:160 mm Dimensions (WxDxH):2,0 x 0,6 x 0,3 m

pressure: 40 t stroke: 250 mm total power requirement: 6 kW weight of the machine ca.: 3 t distance between columns: 600/350mm mm table surface area: 860x620 mm ram surface: 860x620 mm table height: 900 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Press capacity: 315 ton Ram stroke adjustable: 30 - 100 mm Slide adjustment: 100 mm Shut height (stroke down, adjustment up): 370 mm Table surface area : 1600 x 1100 mm Slide area: 1600 x 1100 mm Hole in table: 600 x 180 mm Number of strokes: 15 - 180 s.p.m. Table height over floor: 1200 mm Required power: 170 kW Height over floor approx.: 4900 mm Dimensions L x W x H: 4900 x 1900 x 4900 mm Weight of machine approx.: 55 ton

Press capacity: 315 ton Ram stroke adjustable: 30 - 100 mm Slide adjustment: 100 mm Shut height (stroke down, adjustment up): 370 mm Table surface area : 1600 x 1100 mm Slide area: 1600 x 1100 mm Hole in table: 600 x 180 mm Number of strokes: 15 - 180 s.p.m. Table height over floor: 1200 mm Required power: 170 kW Height over floor approx.: 4900 mm Dimensions L x W x H: 4900 x 1900 x 4900 mm Weight of machine approx.: 55 ton

Key data: 100 t

Sale due to switch to eccentric press Pressing force 100 tons Loading depth 360 mm Stroke 500 mm Daylight 800 mm Plunger area 530 x 400 mm Table height above floor 710 mm Working speed 10mm/sec Approach speed 150 mm/sec Return speed 150 mm/sec Required power 17 kW Dimensions L x W x H 1,400 x 2,000 x 3,200 mm Weight of the machine approx. 5.1 t Year of manufacture 2001 Price is net, VAT can be claimed. Loading facilities available All information without guarantee
