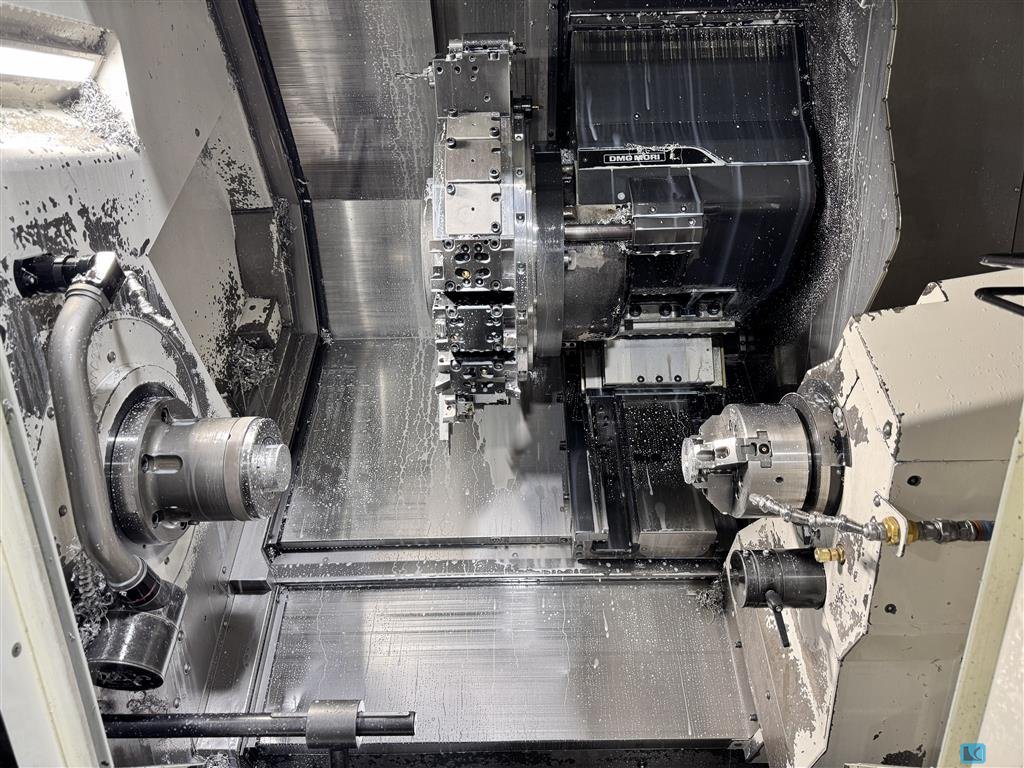

2 DMG MORI nlx 2500 sy / 700 used machines

turning diameter: max. 356 mm turning length: 705 mm control: M730 UM Mapps CELOS greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A2-8 spindle bore: 80 (91) mm C-Axis: 0,001 ° Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle bore: 43 mm C-Axis: 0,001 ° axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: 0,27 sec. Driven Tool Positions:: Spindle speed - driven tools: max. 10.000 min -1 power capacity - driven tools: 5,5 / 4,2 kW total power requirement: 41 kVA weight of the machine c ...

turning diameter: max. 366 mm turning length: 705 mm control: M 730 BM MAPPS IV greates pass round over bed: 920 mm Swing dia. over traverse guideway: 742 mm Main spindle:: turning speed range - main spindle: 4.000 min/-1 power capacity - main spindel: 18,5 / 15 kW spindle nose: JIS A-8 spindle bearing diameter: 140 mm spindle bore: 91 mm max. usable bar diameter: 80 mm chucking diameter: 250 mm Subspindel:: Spindle speed range subspindle: 6.000 min/-1 power capacity - Sub spindle: 11 / 7,5 kW spindle nose: JIS A2-5 spindle bearing diameter: 85 mm spindle bore: 43 mm max. usable bar diameter: ( - ) mm chucking diameter: 170 mm axis stroke:: x-travel: 260 mm z-travel: 795 mm Y - Axis: +/-50 mm rapid traverse ( X / Y / Z ): 30 / 10 / 30 m/min turret:: number of toolpositions: 12 pos. tool taper: BMT 60 Schank height for square tool: 25 mm Drill shank diameter: 50 mm turret change time: ...
