used Profile Steel Cutters for sale

– Capacity 50 tons – Hydraulic – 4 stations – Foot control – Electric backgauge - Emergency stop Ebhzaoz – With 10 stamps (8, 10, 12, 14, 16, 18, 20, 22, 24, 26 mm) – Peddinghaus punching recording – Documentation – 400 V

: 45 mm: 40 mm: 120x120x10 mm: 65 t: 250 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 45 mm: 40 mm: 120x120x10 mm: 65 t: 500 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Punching force: 55 ton Punching capacity: Ø 40 in 10 mm steel Projection: 250 mm Scissors: 120 x 120 x 10 mm angle steel 90º 300 x 15 mm flat steel 40 mm round steel Notching LxWxD: 90 x 42 x 10 mm Equipped with: - Electric length stop 2000 mm - Various accessories - 2 stations machine Country of origin: Spain Motor power: 5 kW Machine LxWxH: 1670 x 1160 x 2090 mm Machine weight: 1400 kg

Universal Ironworker RobustStrong machine Punching capacity 1100 kN max. punching capacity diameter 40 x 20 mm, Throat 610 mm Flat steel up to 600x15 mm or 400x20 mm Angle 152x152x13 mm Round steel 50 mm Drive power approx. 9 kW Strokes per minute 28 / stroke = 20 mm max. stroke 80 mm Weight approx. 3300 kg Incl. Large support table for punch 700 x 550 mm Notching station with table 550x350 mm electric contact stop, 2 foot switches various stamps and matrices Manual, CE Conformity

puncher: 55.0 tround bar steel: 40.0 mmsquare edge steel: 40.0 x 40.0 mmL-beam: 120 x 120 x 10 mmhole punching press: capacity (dia. x thick.): Ø 40.0 x 10.0 mmshear: flat material: 300 x 15 / 200 x 20 mmtotal power requirement: 3.0 kWweight: 1320 kgrange L-W-H: 1600 x 800 x 1680 mm good condition - barely used () current new price approx. 18.600 euros Special price on requestFurnishing:- electro-hydraulic profile steel shear with 4 work stations Flat steel scissors Profile steel scissors Hole punch Notching station- electrical contact length stop- continuous stroke adjustment- Support table at hole punching & notching station including sliding stops- 2x freely movable foot switches- Material scraper- side storage options- various accessories- Emergency stop button- Connection cable including 16A plug- Operation manual Machine link:https://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.ph ...

Specifications: - Flat steel shears cut up to 350 x 6 mm - 200 x 12 mm - Profile steel shears - cuts - L-steel at 90° to 80 x 8 mm - Bar steel shears - cuts - round steel up to 30 mm - Square steel up to 25 mm - punching force 380 KN - radius 175 mm - perforates in steel up to 27 mm Ø in 10 mm - Drive 400 V / 2.2 kW - Space requirement approx. W 500 x H 1280 x D 1000 mm - Weight approx. 900 kg

Compressive force max.: 55 kN Projection: 175 mm Punching stroke adjustable: 0 - 28 mm Number of strokes at 15 mm stroke: 30 Adjustable notch stroke: 0 - 60 mm Hydraulic drive: 380 V, 3 kW Required space: 1170 x 620 x 1470 mm Weight: 930 kg

round bar steel: 30 mmsquare edge steel: 25 mmL-beam: 80 x 80 x 8 mm: 200 x 13 / 350 x 6 mm: 40 tthroat: 175 mmwork stroke: 32 mmwork height max.: 980 mmhole diameter in sheet thickness: 20 x 15 / 38 x 8 mmtotal power requirement: 3,0 kWweight of the machine ca.: 0,62 tDimensions (LxWxH): 1,0 x 0,8 x 1,3 0Profile steel scissors with- 1 foot trigger- Support tables- Rectangular notcher- Hole punch including toolsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

punching pressure: 45.0 tpunch diameter: 22 in 15.0 mmpunch diameter: 38 in 8.0 mmround bar steel: 30.0 mmsquare edge steel: 25.0 L-beam: 100 x 10.0 mmshear: flat material: 300 x 12.0 mmadjustment of stroke: 0 - 55 mmwork height max.: 940 / 1140 mmstrokes per minute: 34 punch diameter: max. 110 mmvoltage: 400 Vtotal power requirement: 4.5 kWweight: 1245 kgdimensions: 1520 x 590 x 1700 mm from a maintenance workshop New price ~ 13.000 euros Special price on requestFurnishing:- electro-hydraulic profile steel shear- Punching station, flat steel shears, angle/profile steel shears,.. notching station- continuous adjustment of the stroke path- very compact design- Support table at notching and punching station- side support tables- 1x manually adjustable contact length stop- 1x freely movable foot switch- Central lubrication Machine link:http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php ...

Hydr . Flat profile and bar steel shears with notching device and hole punching Specifications: - Flat steel shears cut up to 375 x 10 mm - 220 x 20 mm - Profile steel shears - cuts L-steel at 90° to 130 x 13 mm - Steel bar shears - cuts round steel up to 45 mm - Square steel up to 45 mm - Notching device - with square notching device 100 x 42 x 10 mm - Hole punch - punching force 600 KN - with stop table - Projection 300 mm - perforated in steel up to 28 mm Ø in 15 mm - or 34 mm Ø in 12 mm - manual length stop - Drive 400 V / 4 kW - Space requirement approx. W 600 x H 1550 x D 1500 mm - Weight approx. 1300 kg

punching pressure: 80.0 tpunch diameter: 28 x 20.0 mmpunch diameter: 57 in 9.0 mmthroat: 320 mmround bar steel: 45.0 mmsquare edge steel: 45.0 L-beam: 150 x 13.0 mmshear: flat material: 300 x 20.0 mmadjustment of stroke: 0 - 55 mmwork height max.: 1130 / 890 mmstrokes per minute: 34.0 punch diameter: max. 160 mmvoltage: 400 Vtotal power requirement: 7.5 kWweight: 2095 kgdimensions: 1760 x 710 x 1830 mm New price ~ 24.000 euros Special price on requestFurnishing:- electro-hydraulic profile steel shears with a large radius- Punching station, flat steel shears, angle/profile steel shears,.. notching station- continuous adjustment of the stroke path- very compact design- Support table at notching and punching station- KINGSLAND electrical contact length stop- Protective devices at workstations- 2x freely movable foot switches- User manual (PDF) Machine link:http://mhp.logotech.de/hpm/v7/Date ...

Specifications: Cutting performance Max. round bar diameter: 36 mm Max. thickness of the square bar: 30 mm Max. flat steel thickness: 200 mm Stroke rate: 45 1/min Weight, approx.: 1760 kg Dimensions (LxDxH), approx.: 2300 x 850 x 1550 mm For further technical data, see pictures. Equipment: Device for cutting : - Round rods - square rods -Strap iron -Angles - T-profiles - Corner profiles - for hole punching

round bar steel: 40 mmsquare edge steel: 40 mmL-beam: 120 x 120 x 10 mmpressure: 55 tengine output: 5,5 kWweight of the machine ca.: 1250 kgdimensions of the machine ca.: 1650 x 1100 x 1900 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DATA ON THE MACHINE Machine type: Profile steel shears / unclinking machine Manufacturer: MUBEA Muhr u. Bender Model: BF11N Condition: used Price: 1,450 Euro net plus VAT Location Warstein , Germany Reference M-MUB-1220 Description We offer you a used profile steel shear from the manufacturer MUBEA Power 32t Weight approx. 1t Our offer is aimed at professionals who are covered in accordance with section 14 GewO in accordance with the trade order. The offer is subject to change, intermediate sale reserved. Please provide your full contact details to receive a quote with our terms and conditions and payment terms. Errors in the descriptions and offers are reserved!

Punching force: 1000 kN (punches e.g. 40 mm in 22 mm material), with search device via foot switch for punching Projection: 340 mm Cuts 400 x 20 mm or 500 x 15 mm on flat steel shears Support table with stop on the punching side Two separate foot switches for the punching and shearing side, so that independent punching and shearing can be carried out Assortment of tools is included in the price

Punching force: 550 kN (punches e.g. 30 m in 16 mm material), with search device via foot switch for graining Projection: 550 mm Cuts 350 x 13 mm or 230 mm on the flat steel shears Two separate foot switches for the punching and shearing sides, so that punching and shearing can be carried out independently Assortment of tools is included in the price

Offer 23294 Specifications: - Flat steel shears - knife length 470 mm - for flat material 450 x 15 mm - or 300 x 20 mm - Sectional steel shears - L- steel at 90° 140 x 13 mm - at 45° 70 x 7 mm - T-steel at 90° 70 mm - Bar steel shears - round steel 50 mm - Square steel 42 mm - Notching device - rectangular notching 52 x 90 x 12 mm - Punch punch - punching force approx. 750 KN - - Infinitely variable stroke 0 - 70 mm - Perforates in steel up to 30 mm Ø in 20 mm - Projection 310 mm - Hydraulic drive 400 V / 7.5 kW - Space requirement approx. W 1600 x H 1850 x D 1400 mm - Weight approx. 2400 kg - With: - 2 E. foot switches for two separate workstations - Slewing ring

Punching force: 750 kN (punches e.g. 30 mm in 22 mm material), with search device via foot switch for punching Projection: 320 mm Cuts 450 x 15 mm or 300 x 20 mm on flat steel shears Support table on the punching side Two separate foot switches for the punching and shearing side, so that independent punching and shearing can be carried out Assortment of tools is included in the price

Specifications: Punching force: 35 t Projection: 145 mm Flat steel: 150 x 13 mm / 360 x 5 mm Angle iron: 75 x75 x 8 mm Hole punch: ø 25 x 12 mm / ø 30 x 10 mm Rated current: 6.9 A Connection: 400 V Weight, approx.: 500 kg Dimensions (WxDxH), approx.:750 x 980 x 1500 mm Equipment: - Punch / die for slotted hole - Foot control

+ ATTENTION - PRICE DROP! + Prices are rising, ours are falling! + Our prices are reduced by 50% now, + due to warehouse restructuring! + Also, consider taking a look at our other offers in stock. Sheet Metal- & Profile Steel Shear Mubea KBL 11 with notcher and punching press manufacturer: Mubea type: KBL 11 mach.-Nr.: 107/3019/7 year of construction: ? comm.-Nr.: 0250/125/200/0575 stock-Nr.: 1911 + Regular Price: 2.750,- € > Reduced Price: 1.375,- € BN + All prices are shown without taxes (net price) Technical Data (According to manufacturer) Flat Steel Shear blade length: 220 mm sheet metal up to: 11 mm flat steel up to: 125 x 13 mm Profile Steel Shear angle irons up to: 80 x 9 mm T-iron up to: 80 x 9 mm U- and I-iron up to: NP 10 hubs: ca. 55 / min. Steel Bar Shear steel bars up to: 35 mm square steel up to: 32 mm Notcher  ...

Max. punching force: 700 kN Projection: 510 mm Cuts on flat steel shears 500 x 18 mm Punches e.g. 30 mm diameter in 20 mm flat bars Quick-change device Assortment of tools is included in the price Weight: 3,000 kg

Specifications Type: KBLH 700 Dimensions (LxWxH): 1850 x 680 x 2050 mm Working height: 700 mm Cutting length: 510 mm Knife length: 520 mm Max. shear cross-section: 3500 mm Stroke of the scissors, infinitely variable: 0 – 45 Max. stroke number of scissors: 11 PMG knife for: L-steel 90°+45°/ T-steel 90° Required power : 8.5 kW Weight approx.: 2950kg

Specifications: Weight approx. 1.2 tons Drive power 7.5 kW Projection punch 310 mm Table size 700 x 600 mm Height approx. 1.9 m Width x depth approx. 1200 x 600 mm Performance: Hole punch 550 kN , projection 0 mm , punch 30 mm in 15 mm Flat steel shears : 320 x 13 mm Notching device with rectangular tool up to 10 mm Round steel 35 mm Square 32 mm Angle steel 120 x 13 mm

Punching force: 400 kN (e.g. punches 20 m in 15 mm steel) Cuts 150 x 10 mm on the flat steel shears Foot switch for stroke release Quick-change device Assortment of tools is included in the price

Punching force: 400 kN (e.g. punches 20 m in 15 mm steel) Cuts 150 x 10 mm on the flat steel shears Foot switch for stroke release Quick-change device Assortment of tools is included in the price

pressure: 50 t: 150 x 16 mmstroke: 28 mm: 12 mmplate length: 250 mmsquare edge steel: 45 mmround bar steel: 50 mmsheet thickness: 13 mmtotal power requirement: 3,5 kWweight of the machine ca.: 2,5 tdimensions of the machine ca.: 1,8 x 1,0 x 1,6 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hydr. Flat, - Profile and bar steel shears with cut-out device and punch punch Offer number: 15229 Make: MUHR + BENDER Type: KBLH 700 Machine no: 01562869552445 Built: 1986 Technical data: - two separate working cylinders, - it can be used at two workstations - work at the same time - Flat steel shears - knife length 520 mm - for flat material 500 x 18 mm - Profile steel shears - L- steel at 90° 130 x 12 mm - at 45° 90 x 10 mm - T-steel at 90° 180 mm - Bar steel scissors - Round steel 65 mm - Square steel 60 mm - Cut-out device - rectangular tool for material up to 12 mm - Punching hole - Punching force approx. 700 KN - Stroke infinitely variable 0 - 75 mm - punches in steel up to 30 mm in 20 mm - Extension 510 mm - Hydraulic drive 400 V / 8.5 kW - Space requirement approx. W 1850 x H 2100 x D 750 mm -  ...

Description: Max. width 1070mm 2 sets of blades with automatic pusherweight approx.: 0 x 0 x 0 kg, Approx. Onsite Dimension. (l x w x h): 2,100 x 2,200 x 1,600 mm

round bar steel: 32 mmsquare edge steel: 30 mmL-beam: 80 x 80 x 8 mm: 80 x 13 mm: 36 tthroat: 170 mmwork stroke: 28 mmwork height max.: 980 mmmaterial thickness: 28 x 13 mmhole diameter in sheet thickness: 25x10 / 30x8 mmtotal power requirement: kWweight of the machine ca.: 0,8 tdimensions of the machine ca.: 1,2 x 0,8 x 1,9 mProfile steel scissors with- 4 workstations- 1 foot trigger- hydr. drive- Support tables- Rectangular notcher- Hole punch including toolsThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

round bar steel: 50 mmsquare edge steel: 40 x 40 mmL-beam: 140 x 13 mmPunch power: 900 kNhole punching press: throat: 510 mmhole punching press: max. length of stroke: 29 mmhole punching press: capacity (dia. x thick.): 31 x 20 mmnotching: l + T material: 80 x 14 mmno. of strokes: 40 / 45 Hub/mintotal power requirement: 4 kWweight of the machine ca.: 3,7 tdimensions: 2,1 x 0,7 x 2,12 mAccessories: various punches and diesThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

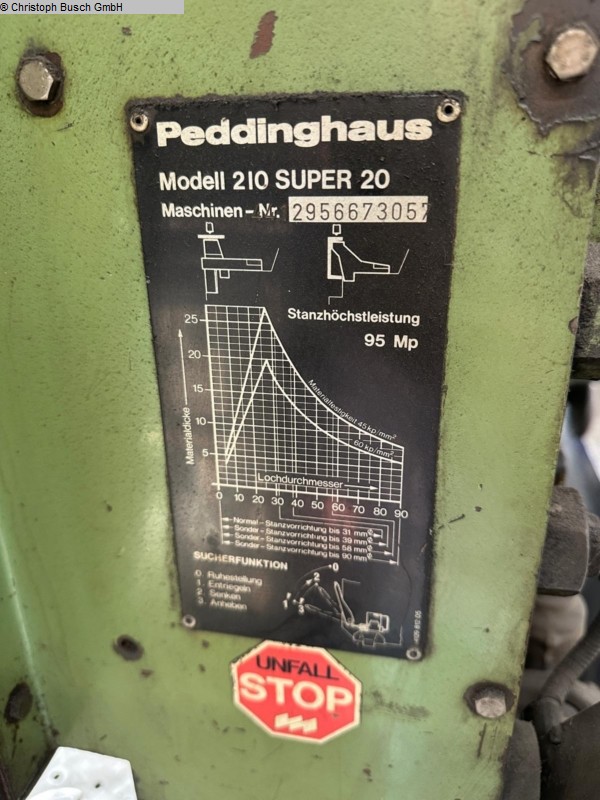

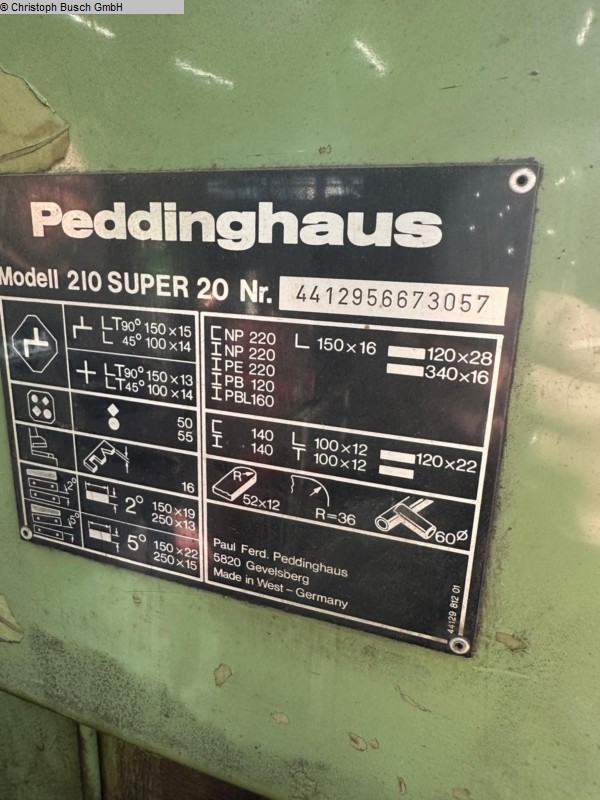

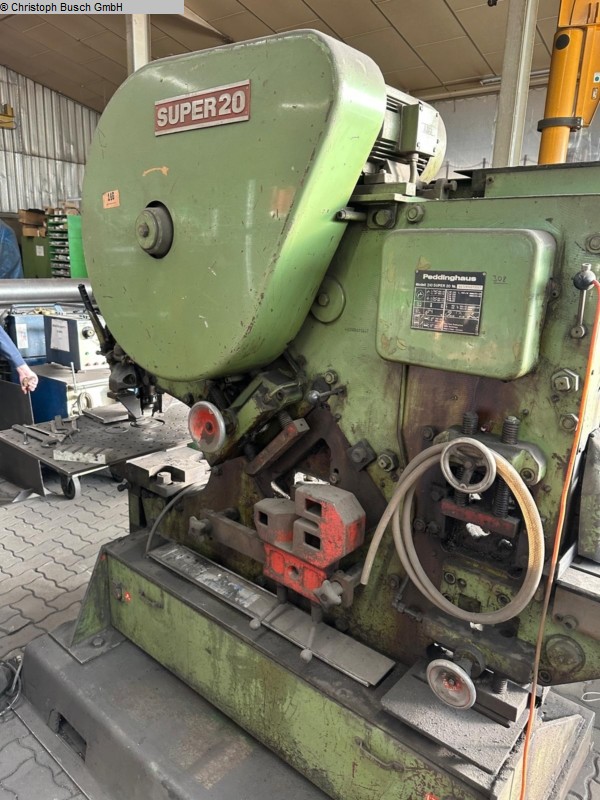

Machine type: Profile steel shears with punching Manufacturer: PEDDINGHAUS Model: 5-fold combined profile steel shears with punching Condition: very good Offer type: used machine Specifications: Achievement: round = Ø 20 mm, flat = 80 x 12 mm Angle steel = 50 x 50 x 6 mm T-steel = 50 x 6 mm Drive type: by hand Note: two machines on a stable, mobile substructure Weight: 200 kg The machine is in a very good and immediately ready condition and can be visited and demonstrated by us. We would be pleased if you are interested in our offer. Errors, changes and prior sale reserved.

Sectional steel shears, Mas. No. 4423251690035 See photos

round bar steel: 50 mmsquare edge steel: 45 mmL-beam: 140 x 13 mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mab Standort preiswert gegen Gebot abzugeben!The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 23278 Specifications: - Sheet metal and flat steel shears, knife length 175 mm - cuts flat steel up to 50 x 15 mm - or up to 140 x 8 mm - Profile - steel bar shears - cuts - angle steel up to 80 x 8 mm - Round steel up to 28 mm - Square steel up to 25 mm - Hole punch - punching force 275 KN - Stroke 24 mm - Projection 155 mm - perforated in steel up to 20 Ø in 10 mm - or up to 27 Ø in 6.5 mm - Drive 400 V / 3 kW - Space requirement approx. W 500 x H 1500 x D 855 mm - Weight approx. 450 kg - various punches + matrices

punching and shearing capacity: 380 kN Punches e.g. 30 mm holes in 10 mm steel Shears on the flat steel shears to 300 mm to 12 mm steel Further technical data on request With a range of stamps and dies as desired

pressure: 110 tpunching cross-cut in cmm: stroke: mmtotal power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mMaximum punching force: 1100 knMaximum shear force: 1700 kNPunch projection: 510 mmHoles 31 in 25 mmFlat steel: 500 x 22 mmHydraulic hold-down for the flat steel knifeSquare notcherThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Technical data: Round steel 27 mm Square steel -- mm Angle steel 100 x 10 mm Flat steel 10 mm Punching pressure 40 tweight approx.: 2,800 kg, Approx. Onsite Dimension. (l x w x h): 700 x 800 x 1,800 mm

Max. punching capacity: 600 kN Max. shear capacity: 1000 kN Punches 20 mm holes in 19 mm steel Shears on flat steel shears to 500 mm up to material thickness of 12 mm steel Further technical data on request With an assortment of stamps and dies as desired

round bar steel: 45 mmsquare edge steel: 40 mmL-beam: 120 x 13 mmflat steel: 500 x 12 mmpunching pressure: 60 tthroat: 510 mm: 500 x 12 oder 400 x 16 mmpunch diameter: 27 in 17 mmpunch diameter: 39 in 12 mmoil volume: 80 ltotal power requirement: 7,5 kWweight of the machine ca.: 2,4 tdimensions of the machine ca.: 1,8 x 0,9 x 1,8 mHydraulic machine with 5 stations so punching, notching, shearing flat iron, angle iron, solid material, punching with hand lever, profile steel side with foot switch. Punching discharge: 510 mm! All performance data refer to a material strength of 450 N / mm².Electric 380 voltThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. punching capacity: 600 kN Max. shear power: 800 kN Punches 27 mm holes in 16 mm steel Shears on the flat steel shears to 400 mm up to material thickness of 16 mm steel Hydraulic hold-down device on flat steel shears Further technical data on request With an assortment of punches and dies as desired Weight: approx. 2,000 kg

pressure: 80,0 / 110 tpunching cross-cut in cmm: 27,0 in 20 mmL-beam: 120 x 13 mmL-beam: T 120 x 12 mmshear: flat material: 500x18 / 400x19 mmthroat: 510 mmwork height max.: 1050 mmtotal power requirement: 6,5 kWweight: 1650 kgrange L-W-H: 1750 x 850 x 1850 mm very good condition ()Furnishing:- hydraulic, combined profile steel shears with release station with punching station .. punching capacity 800kN Flat steel shears .. Shear capacity 100kN Angle steel scissors Angle steel knife for cutting 90 ° & 45 ° miters Cutting angle steel + T-steel + I-steel- Support table at the notching station- Scraper at the punching station- Freely movable foot switch- Central lubrication- Safety devices- Operating instructions (PDF)The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 22562 Hydraulic profile and bar steel shears with notching device and hole punch Specifications: - Flat steel scissors - Flat steel - 500 x 18 mm - or: 300 x 22 mm - Profile steel shears - L- and T-irons at 90° 120 x 13 mm - at 45° 90 x 10 mm - Round steel 45 mm - Square steel 40 mm - Notcheter - With square notch for sheets up to 13 mm - Jack width / depth 65 / 85 mm - With triangular notch for sheets up to 13 mm - Notch depth 70 mm - Hole punch - Punching force approx. 80 t - Projection 510 mm - Stroke approx. 10 to 29 mm - perforates in steel up to 39 mm Ø in 16 mm - perforates in steel up to 30 mm Ø in 20 mm - Stroke rate at 20mm hole. / Scissors 30 / 20 1/min - E. contact stop - various punches + matrices - Drive 400 V / 7.5 kW - Dimensions W 900 x H 1800 x D 1800 mm - Weight approx. 260 ...

Max. punching and shearing capacity: 1000 kN Receptacle for hole diameters up to 90 mm Punches 31 mm holes in 25 mm steel Shears on the flat steel shears to 500 mm up to material thickness of 18 mm steel Further technical data on request With an assortment of punches and dies as desired Weight: approx. 3,000 kg

Offer 22646 Hydraulic profile and bar steel shears with notching device and hole punch Specifications: - Flat steel scissors - Flat steel - 400 x 16 mm - or: 300 x 18 mm - Profile steel shears - L- and T-irons at 90° 130 x 12 mm - Square steel / round steel 40 / 40 mm - Notcheter - with square clinker for sheet metal up to approx. 13 mm - Latch depth approx. 70 mm - Latch width approx. 52 mm - Hole punch - Punching force approx. 60 t - Projection 400 mm - Stroke approx. 10 to 50 mm - perforated in steel up to Ø 31 in 15 mm - Material stop - div. 10 pcs punches + matrices - Drive 400 V / 5.5 kW - Dimensions W 1100 x H 2000 x D 1700 mm - Weight approx. 2100 kg

pressure: 80,0 tpunching cross-cut in cmm: 31,0 in 25 mmshear: flat material: 500x18 / 300x22 mmL-beam: 150 x 12 mmround bar steel: 50 + 25 mmsquare edge steel: 50 + 30 mmthroat: 510 mmblade length: 500 mmwork height max.: ca. 1.100 mmtotal power requirement: 7,5 kWweight of the machine ca.: 3200 kgdimensions of the machine ca.: 2000 x 1000 x 2100 mm from a maintenance workshopFurnishing:- Robust electro-hydraulic combined profile steel shears- Notcher, hole punch, bar steel knife, profile knife and tin snips- Stop table at the hole punch, with blank holder- Stop table at the notcher- 2x floating footswitches- Stroke adjustment for fast stroke sequence- 1x PEDDINGHAUS contact length stop: 1.000 mm- Safety devices- Operating instructions in GermanThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Max. punching and shearing capacity: 500 kN Punches e.g. 20 mm holes in 20 mm steel Shears on the flat steel shears on 350 mm to 13 mm steel Further technical data on request With an assortment of punches and dies as desired

Hydr. comb. Sectional steel shears with hole punch Specifications: - Flat steel shears: - Knife length 420 mm - Cutting capacity, flat up to 400 x 18 mm - Profile steel bar shears: - Angle steel 120 x 10 mm - Square steel / round steel 30 / 32 mm - Notching device: - Sheets up to 13 mm - Latch width / latch depth 52 / 70 mm - Hole punch: - Punching force 800 KN - Projection 250 mm - Punches in steel up to e.g. 31 mm Ø in 18 mm or 25 mm Ø in 20 mm - E. footswitch - Drive 400 V / 4.0 kW - Space requirement approx. W 600 x H 1700 x D 980 mm - Weight approx. 1200 kg -with: - E. footswitch - E. Stroke - Various punches with die - Stop support table - Separate tool cabinet

Scissors: for flat steel: 80 x 10 mm Shear: For L & t 90 / 45 ° 70 x 70 x 7/50 x 50 x 6 mm Rod steel scissors around until: 28 mm square up: 25 mm Notching device for material thickness up to: 7 mm Drive motor: 380 V, 1.3 kW Weight: 400 kg Space: 1000 x 650 x 1480 mm

round bar steel: 25 mmsquare edge steel: 22 mmL-beam: 70 x 7 mmcutting capacity: 100 x 10 mmplate thickness: 10 mmtotal power requirement: 1,3 kWweight of the machine ca.: 0,6 tdimensions of the machine ca.: 1,1 x 0,65 x 1,5 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
