CNC Plasma Cutting Machines AJAN SHP 130

AJAN SHP 130 plasma cutting machine was built in 2017 in Turkey by Ajan Elektronik Servis San. Ve Tic. Ltd. Şti. The machine has been used regularly and has a new plasma torch.

The AJAN SHP 130 is used for precision cutting of sheet metal in both unit and series production. Cutting is performed automatically on a 3000 x 2000 mm work table, according to a previously prepared program. The stable plasma arc, generated by a high-performance PG 130 A source, ensures efficient cutting and maintains optimal operating parameters even during intensive use. Contaminants generated during machining are effectively removed by an extraction system, which increases operator safety and comfort. All this is complemented by an intuitive CNC controller, which facilitates the preparation of cutting programmes and the operation of the machine. This makes the AJAN SHP plasma cutting machine an excellent solution for industrial plants that produce precision parts for various industries.

Technical specifications of the AJAN SHP 130 plasma cutting machine
- CNC controller
- work table area (L x W): 3000 x 2000 mm
- AJAN PG 130 A plasma source
year of manufacture: 2016
maximum power consumption: 26 kW
maximum input current: 40 A
power supply: 3x 400 VAC; 50 Hz
weight: 440 kg

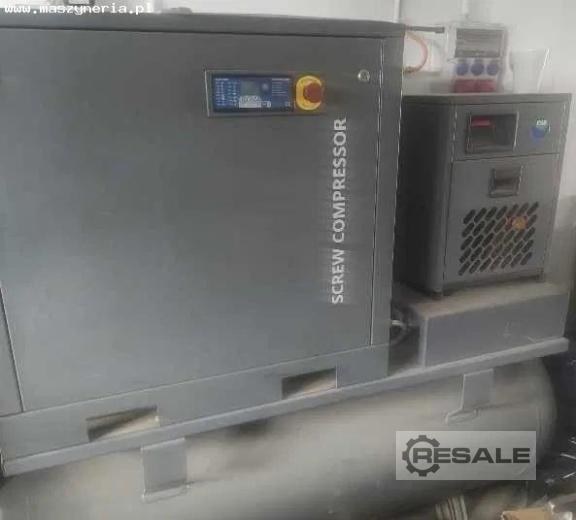

- WALTER SKTG 5.5P COMBO rotary screw compressor with tank
year of manufacture: 2017
maximum working pressure: 10 bar
capacity: 700 l/min
input power: 5,5 kW
- refrigerated air dryer: WALTER WDF 53
- extraction system
- power supply of the SHP130 machine: 3x 400 V; 50 Hz

seller offer No. resale 170144638
