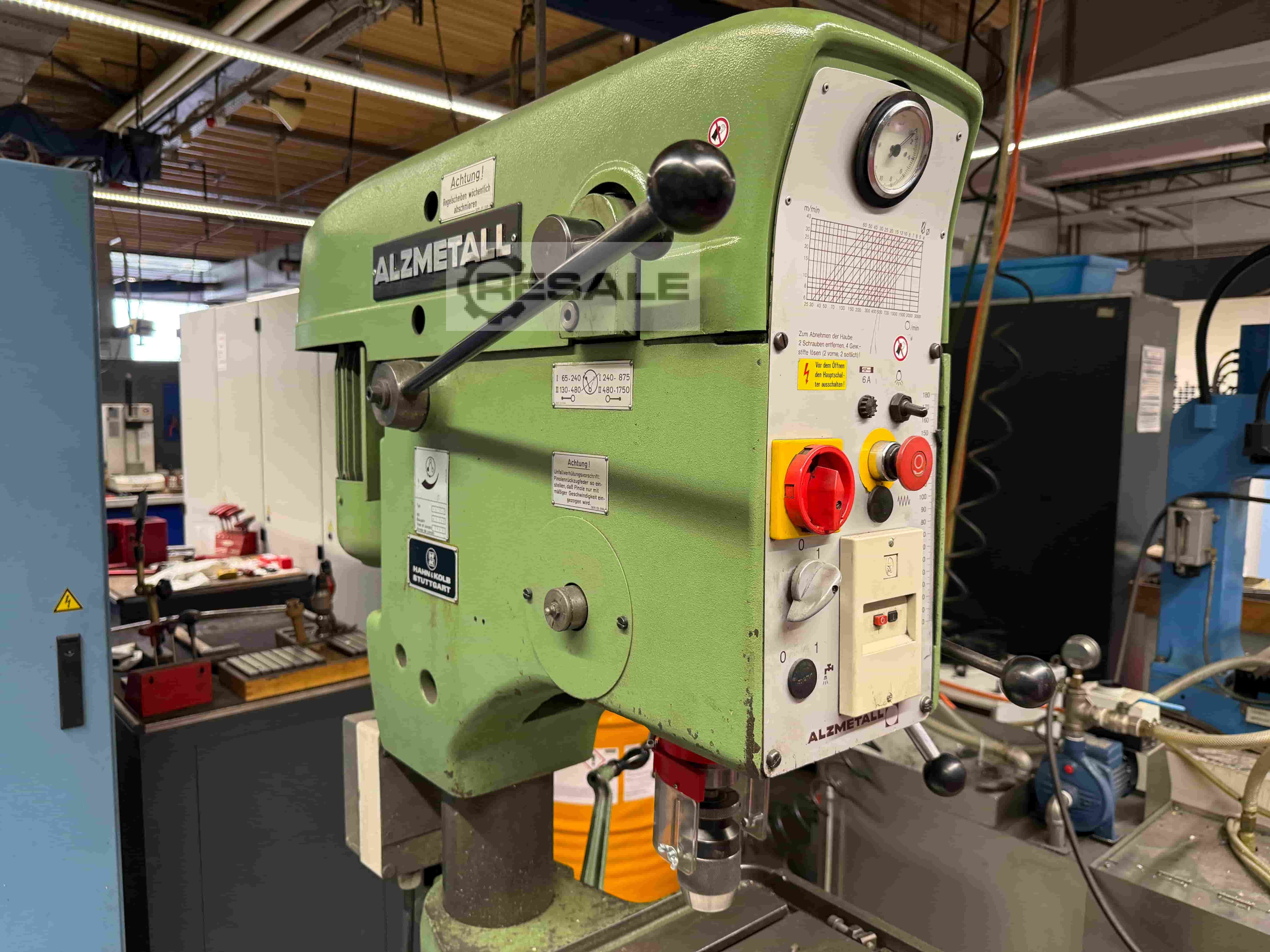

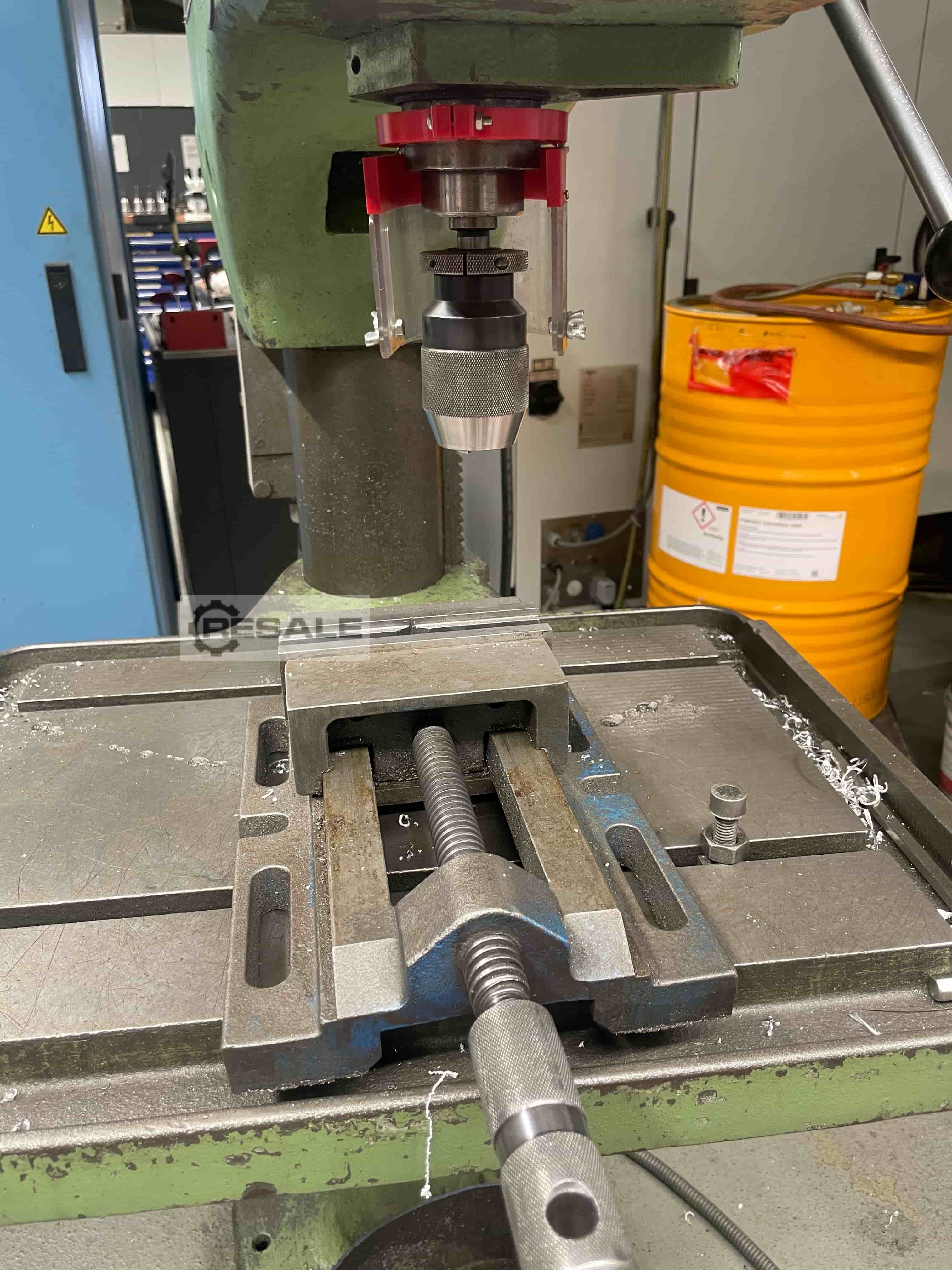

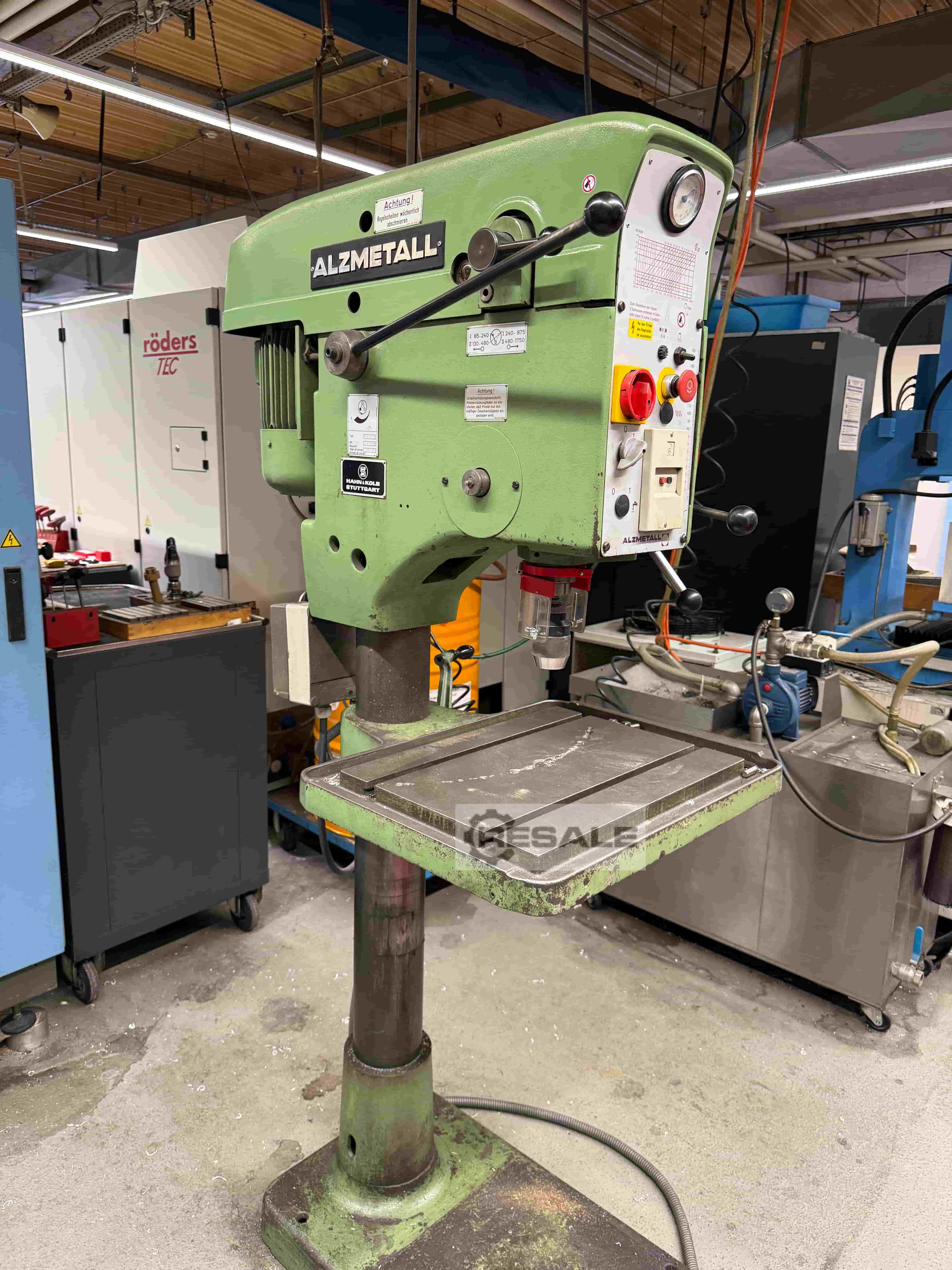

Lot 526: Alzmetall Pillar Drilling Machine

Heavy-Duty Pillar Drilling Machine
A benchmark in robust shop-floor equipment, the Alzmetall AB3ESV provides highly accurate, high-torque manual pillar drilling for versatile industrial fabrication.



Technical Details
‍

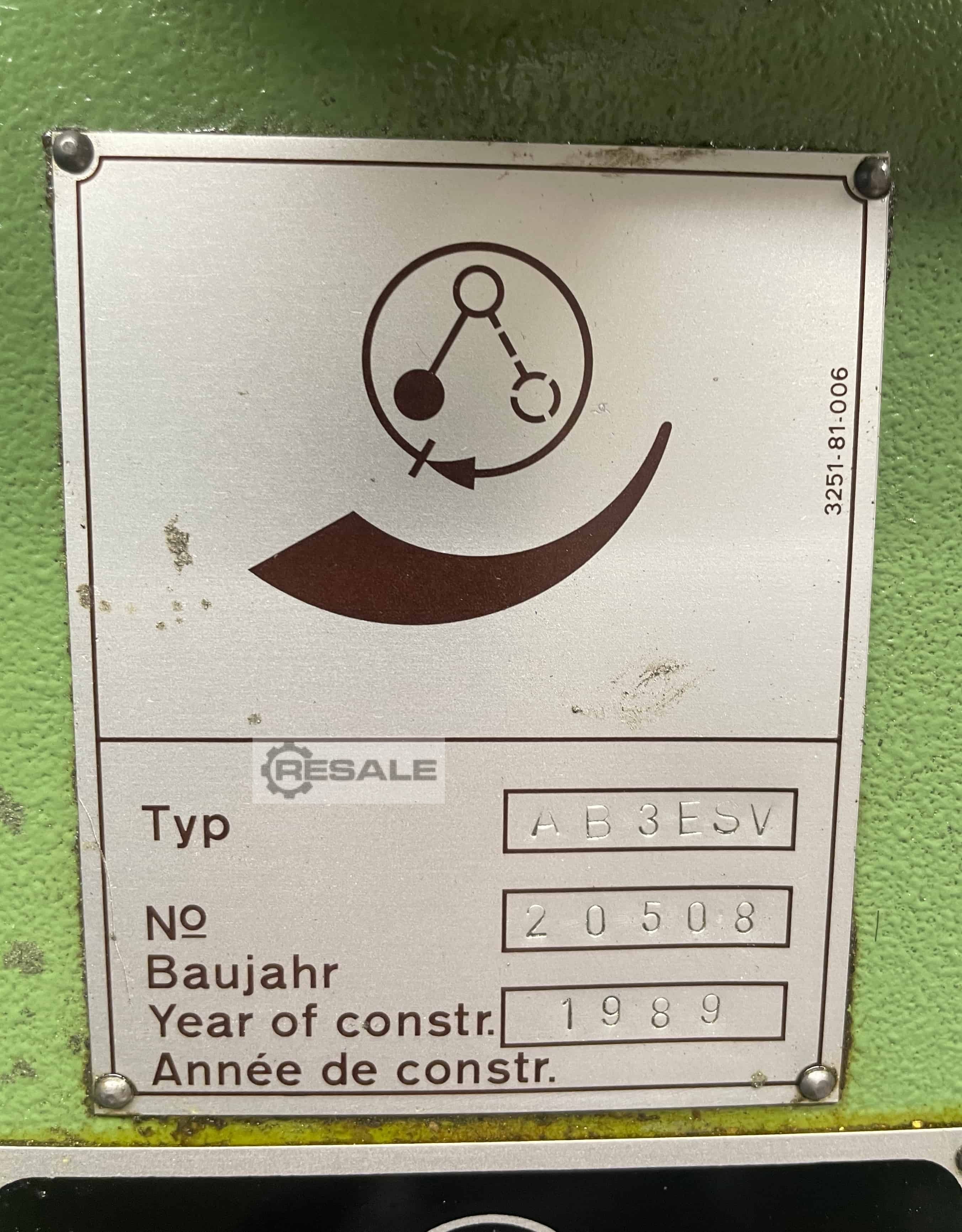

1. Machine identification data

Name: Pillar Drilling Machine
Manufacturer: Alzmetall
Model: AB3ESV
Machine number: 20508
Year of manufacture: 1989

2. Operational parameters

Bore capacity in steel: Ø 28 mm
Drill capacity in cast iron: Ø 35 mm
Bore stroke: 165 mm
Throat depth: 285 mm

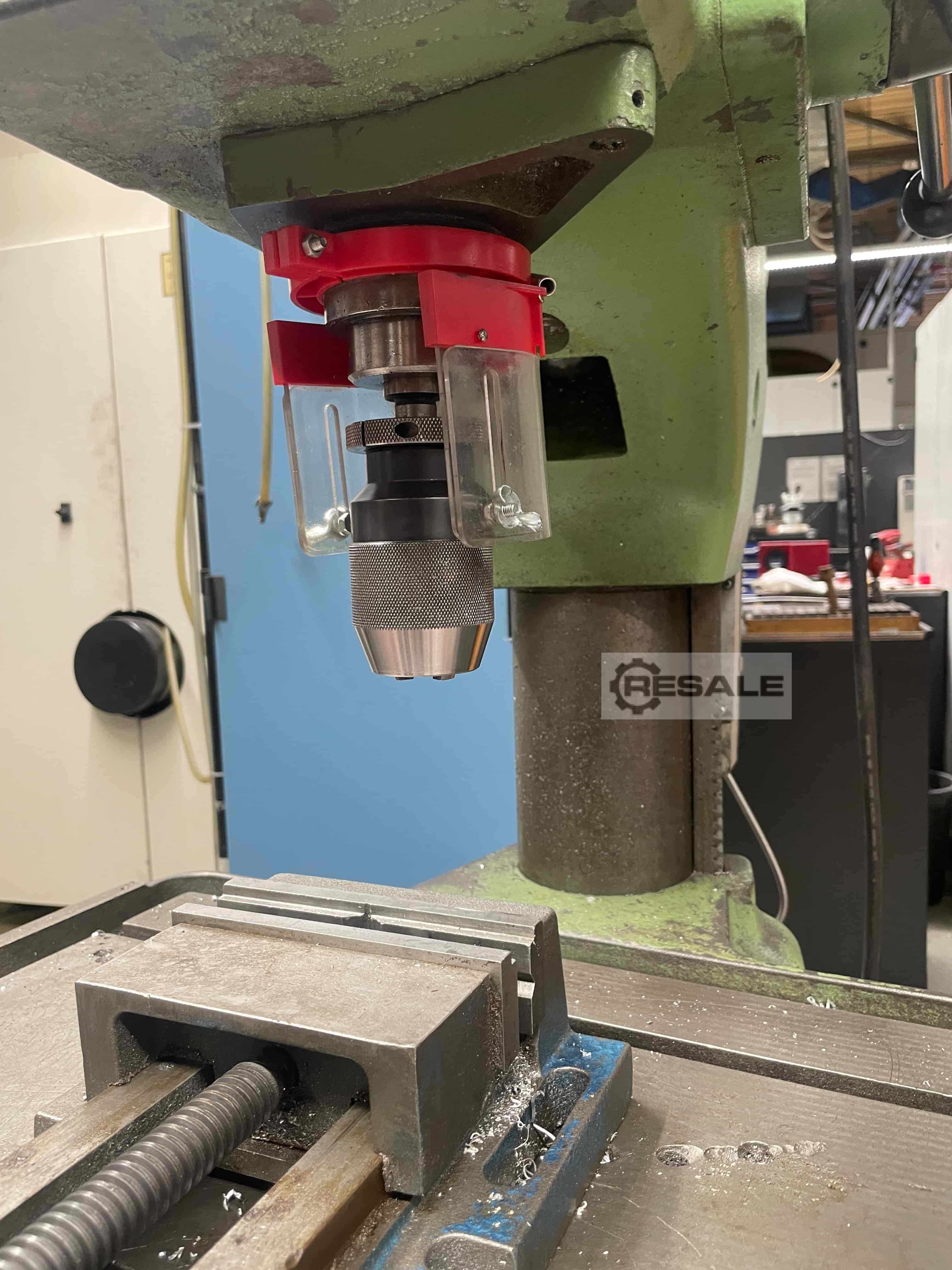

Spindle taper: MT 3 (MK 3)

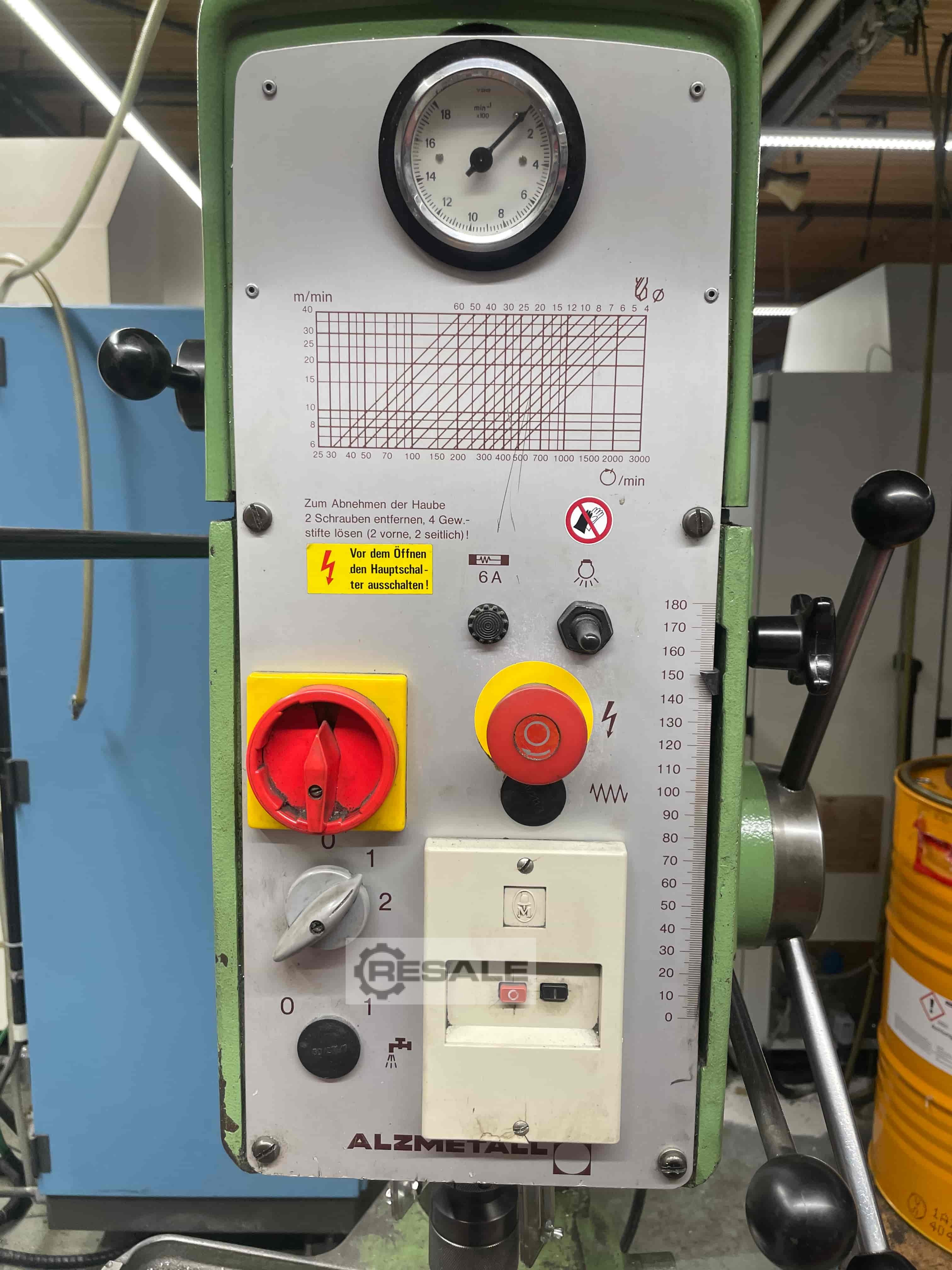

Spindle speed: 65 – 1,750 rpm
Feed rate: 0.1 / 0.2 / 0.3 mm/rev
Distance spindle to table: 80 – 680 mm

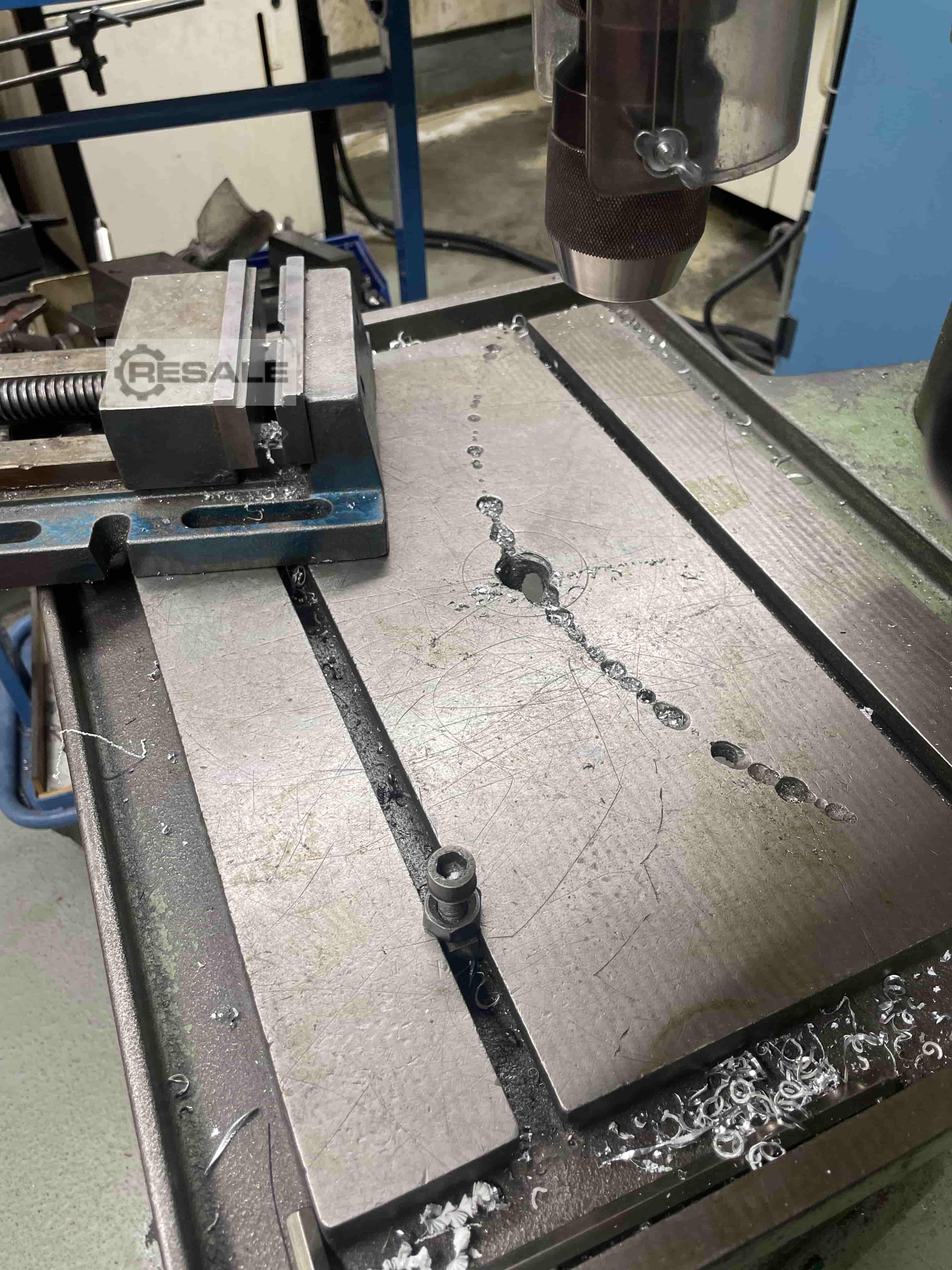

Table clamping surface: 500 x 370 mm
Table adjustment (vertical): 600 mm
Table rotation: 360°
Column diameter: Ø 130 mm
Total power requirement: 7.5 kW

3. Weights

Total machine weight: approx. 275 kg

4. Dimensions

Overall machine dimensions (Width x Length x Height): approx. 600 x 900 x 1900 mm
‍


Disclaimer: The technical specifications provided are for general reference only and have been sourced from publicly available information for the same or similar model.
