Layer PE-X and PE-RT Pipe Extrusion Line BATTENFELD UND INOEX Diverse

Screw ø:: 60 mm Screw length:: 25 Complete extrusion line for the production of
3-layer PE-Xb, PE-Xc and PE-RT pipes
Year of Make: 2001

Available diameters:

14 x 2 / 16 x 1.5 / 16 x 2 / 17 x 2 / 18 x 2 / 20 x 2 / 25 x 2.3

Line speed: approx. 35 m/min

Description:

Single Screw Extruder Battenfeld BEX 1-60-30B
Capacity: 200 kg/h (for PE-X)
AC drive
Bimetal screw and barrel: 60 mm, L/D = 25 (renewed in 2025)
BMCtouch (PC has been replaced with a new one)
Integration of BEX co-extruders
Integration of scales and gravimetric dosing unit (DOS-3)
Melt pressure and melt temperature sensor
Material hopper
Nozzle adapter

2 x Co-extruder Battenfeld BEX E 30.1 KSY1 x 25D
Capacity: 18 – 20 kg/h (for EVOH and adhesion promoters)

Nozzle Head PE-X-50
Co-extrusion ring for EVOH and adhesion promoters

Vacuum Calibration V2-63 VA – 9 m
Electromotive length adjustment
Measurement and control of water pressure and vacuum

Cooling section K 63 VA – 27 m
2 x circular pumps (1.1 kW each)
 

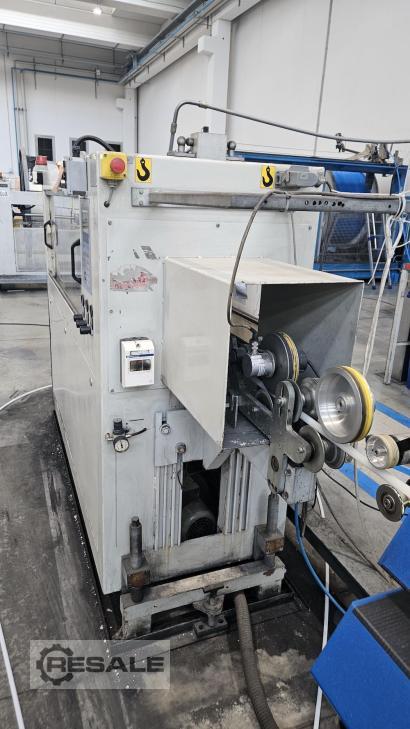

Deduction P 100 BVE
Ribbon trigger
Remote control
Length measurement with sawing program
Speed control 0 – 10 V
Profiled trigger straps with 2 grooves
Air conditioner for the control cabinet

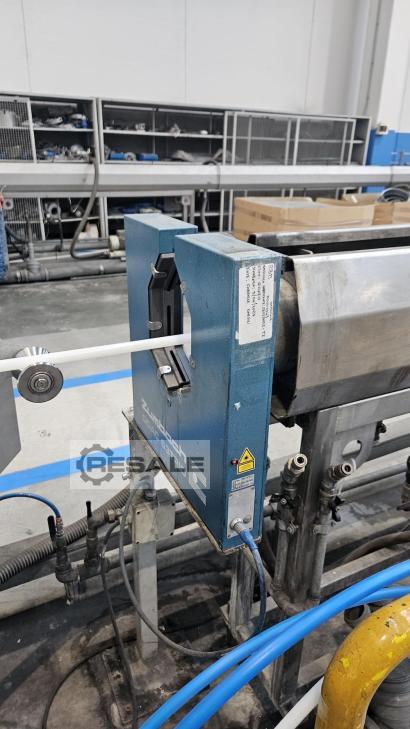

Automation system aurex ERS36 (ERS-M 32) from INOEX
For measuring and controlling wall thickness, defect detection, signal surface evaluation, diameter measurement as well as eccentricity and ovality measurement for 3 individual layers
Thermal nozzle centering
Vacuum control
Ultrasonic Signal Display
Logging of quality and operating data

Gravimetric material weighing and dosing system from INOEX
2 x Single Scale igs. M1 Type TW20 – TW1400
1 x Main Component IGS. D6 Type TW 200 – TW1400
2 x minor component igs. D6 Type TW20 – TW 350
suitable for granules
Integrated into the BMC control system

Condition: used, fully functional

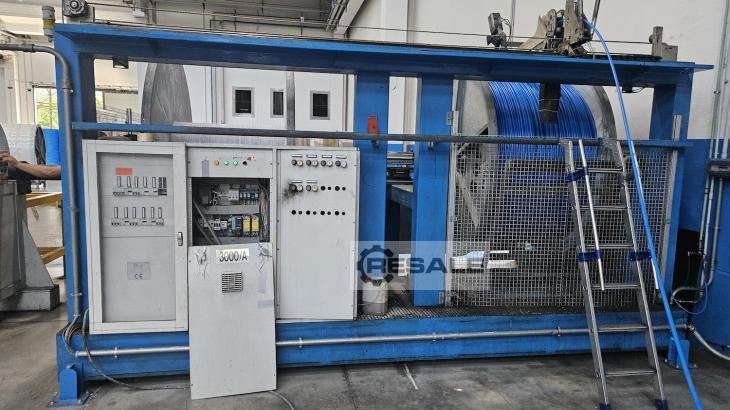

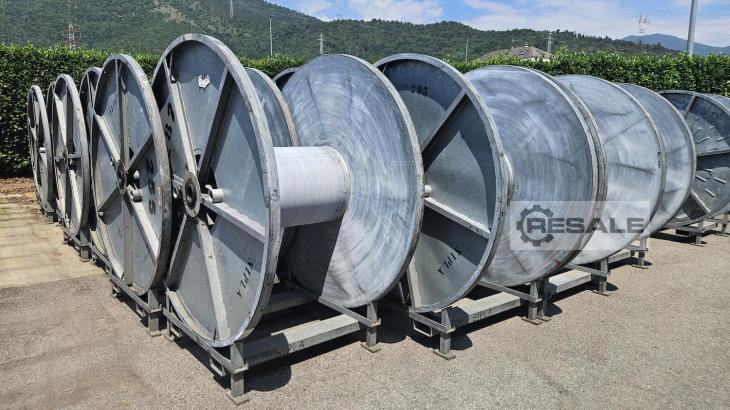

Option: A Balzanelli TR 2000 FE winding machine and approx. 200 pieces of tubular drums are available for a separate surcharge.
