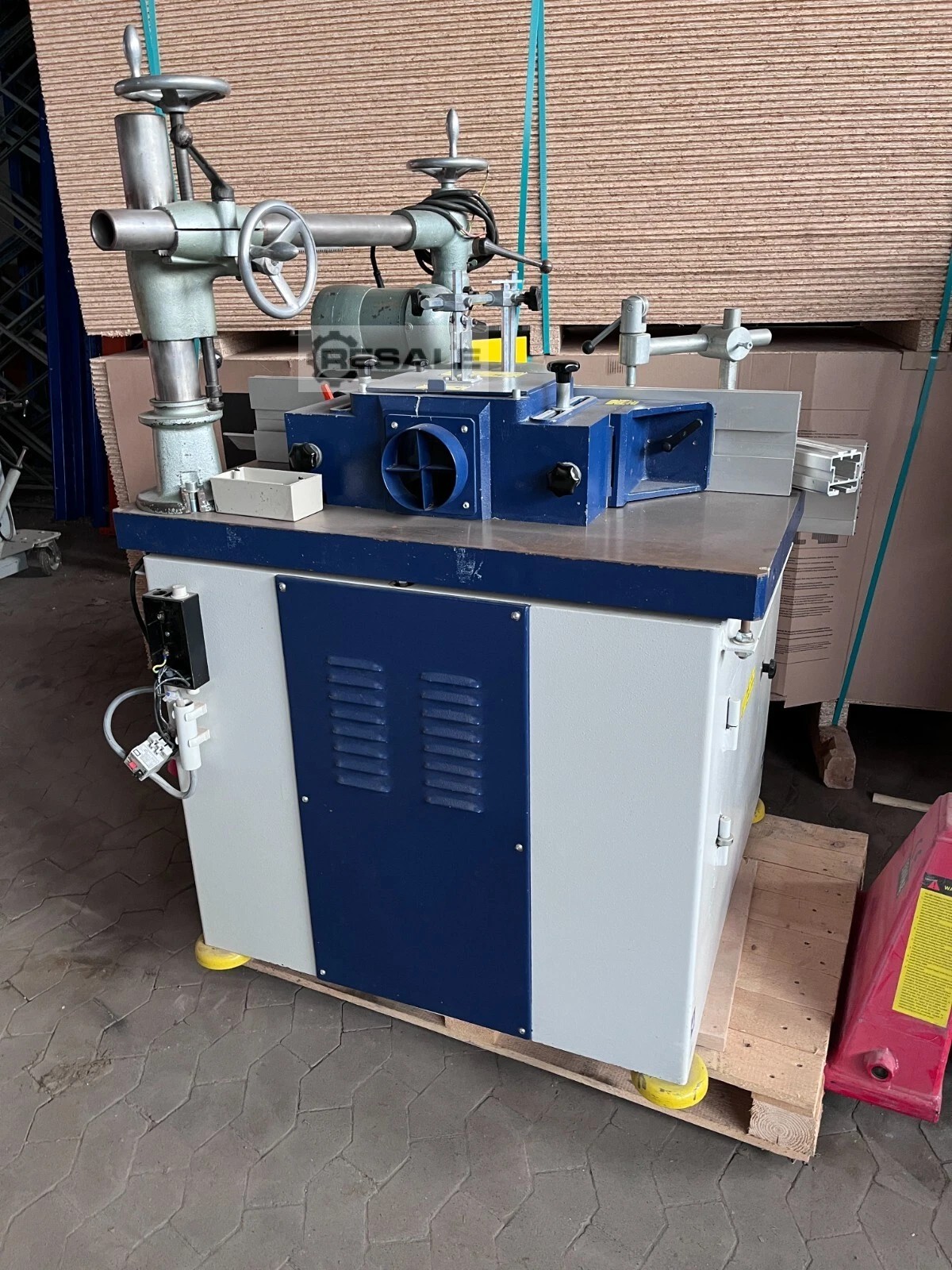

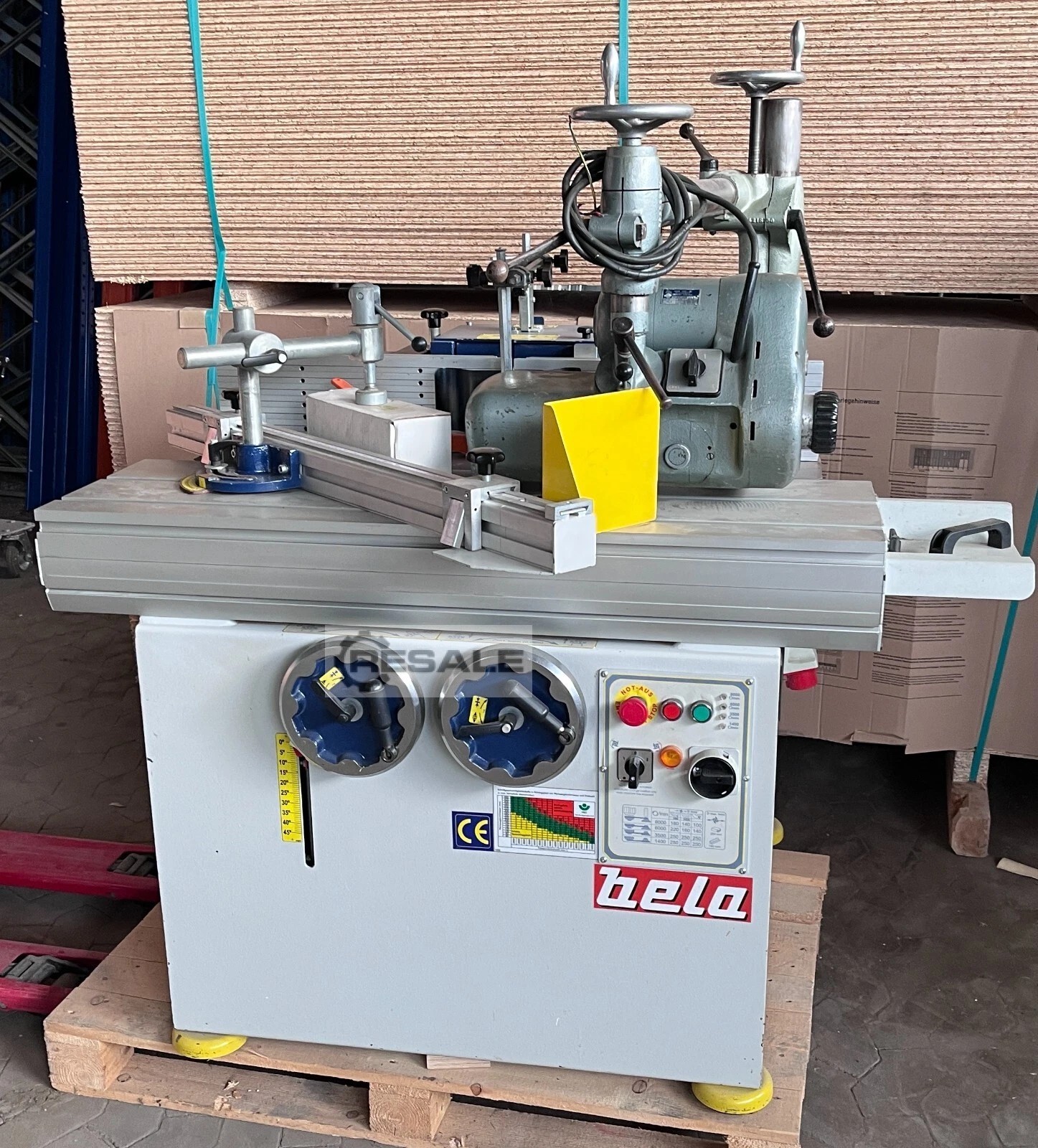

Bed Milling Machines BELA T1000S

Sliding table 1150 x 350 mm, solid double-sided tilting unit bearing, 190 mm tool clearance in the table with under-table dust extraction, large split integral safety milling fence with fine adjustment and central rack and pinion adjustment (tool clearance up to 250 mm), 4 speeds with speed indicator, clockwise and counterclockwise rotation of the milling spindle, spindle swivel 45° to the rear, large cast iron machine table, hold-down clamp with angle stop


Space required (L x W x H)

mm 2700 x 1600

Table size mm 1000 x 850

Table height mm 850

Slide size mm 1150 x 350

Slide travel mm Up to 1135

Spindle swivel ° Up to 45

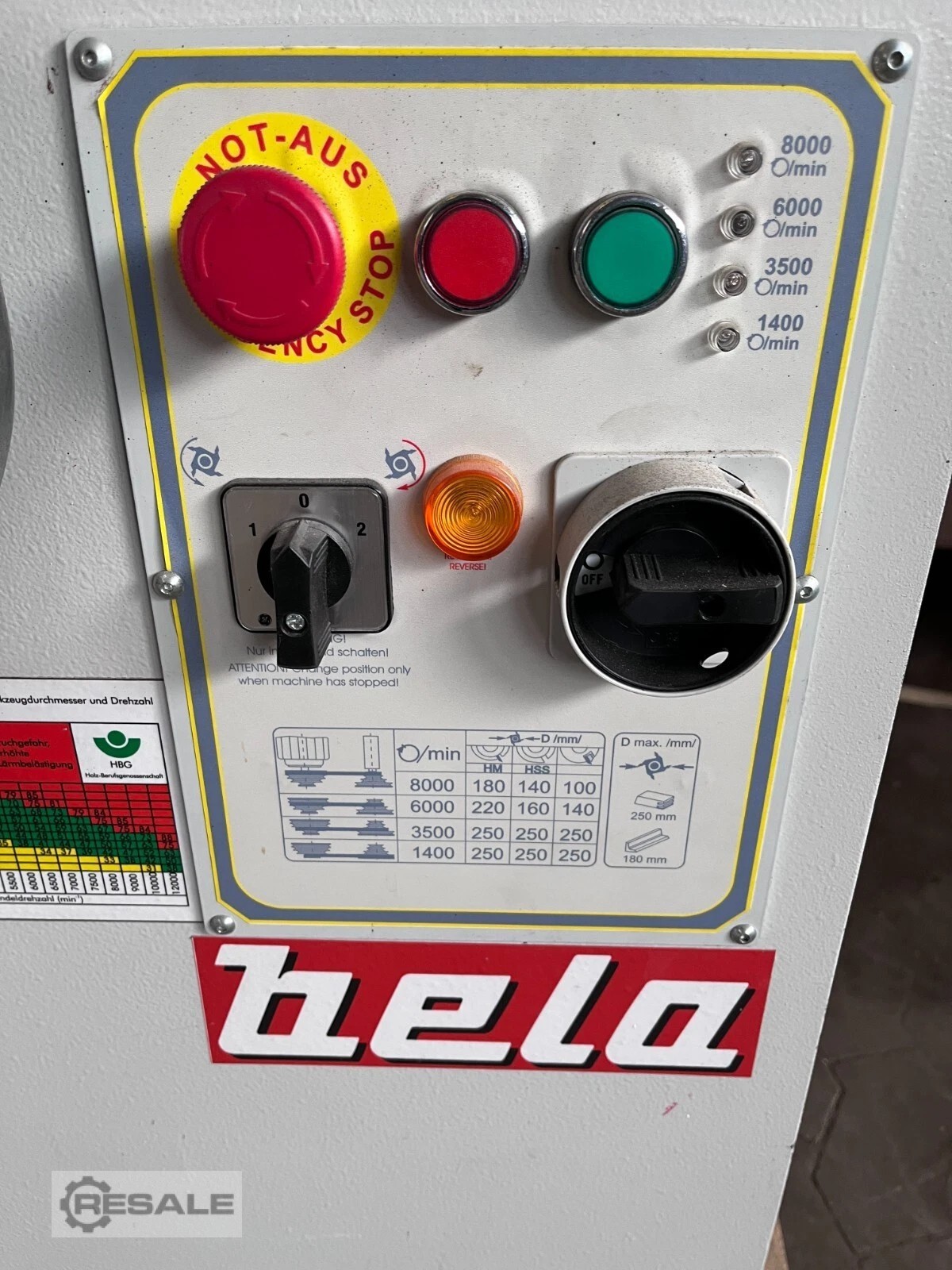

Spindle speed (4) rpm 1400/3500/6000/8000

Spindle stroke mm 175

Spindle working length mm

125 Spindle diameter mm 30

Tool diameter Max. mm 250

Tool diameter countersunk mm 190

Dust extraction port mm 2 x 120 mm

Power input kW 4.0 / 400V

Weight approx. kg 360
seller offer No. resale 169903519
