boring mills, machining centers used for sale (574)

Special production plant of the brand Friulmac for the production of (standard) garden houses, wooden houses, log houses etc. System Block construction and block plank construction tools, milling and suction device. As good as new!

CNC machining centers for drilling, staping, milling, wedge grooves. Working range: 4400 x 300 mm Max working width mm: 210 Max material thickness mm: 100

Type: MZ73031A Number of spindles 3 Distance between first and last spindle 50 mm Adjustable drilling speed Height of the working table 820 mm Table dimensions 735×440 mm Number of clamps 2 Motor power 1,5 kW 400 V Motor r.p.m. 2800 r.p.m Working air pressure 6-8 bar Weight 75 kg Transporting dimensions 900x700x1500 mm

Fitting drill Ganner L x W x H: 1.20 x 0.80 x 1.40 m + stops Weight approx. 400 kg Built in 1987 The machine is in good condition, ready for operation. Changes, errors, intermediate sale reserved ! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

C.M.S. CNC Turret Head Machining Center Model TRIAX R-65 Sn 285, 1986 IBH controller modus 1 (2) vacuum tables- each 48” deep x 60” long. (1) five station lathe section. Max. part 6.5” x 45” (2) vacuum pumps 5 hp. each. Total of (30) routers. (6) station turret with (5) routers per station. Consisting of; (2) stations of (5) routers each - 2 ½ hp. each. (4) stations of (5) routers each – 8 hp. each. Digitizing table for flat work or carving. Lathe section for spindle work (fluting, carving). Unit complete with extra parts and lots of tooling.

CNC WORKING CENTER type ALBERTI EDIT 3000 composition : 1. boring unit ( axe X and Y ) , vertical nad horizontal independent mandrins 2. vertical router 3. horizontal router CNC 90 by TPA volt. 380/50

Machine to the dowel, drill and saw the company EKM spezialmaschinen connection value: 4,4 kW 1 pneum. Workpiece clamping system 1 drill head with 5 spindles in row spacing 25 mm / 40 mm / 40 mm / 25 mm 4 piece glue - and plugs Tools 4 piece adjustable on width 220 mm Under table saw Control PLC Siemens Simatic Fully functional replacement for PLC program on CD,. Shipping dimensions: L 1500 mm x W 1500 mm x H 2400 mm Machine weight: 1000 kg Condition good, fully functional

Double-sided fully automatic hydraulic cutting - milling - drilling machine PADE NST double-sided fully automatic hydraulic cutting - milling - drilling machine Production of chairs, tables, frames, and furniture parts Max work length 2100 mm Tilt-10° â +45° Rotation-10° â +50° 2 saw blades diameter 400 mm 2 drilling heads left, right can be rotated through 360 °, 8 spindle cross-shaped grid M2fi2 2 additional horizontal drilling heads from behind can be rotated by 360 °, 8 spindle cross-shaped grid 2 milling spindles bore wave 30 mm 1 motor for longitudinal adjustment of 1.5 kW 2 Saegemotore 2.2 kW 4 boring Motors 2.2 kW

Line boring machine Ayen with 32 mm grid Bahvy3bjt2 with attacks Pneum.. Holders Motor 0.55 kW L x W x H: 250 x 80 x 200 cm Weight 420 kg Year of construction 1983 The machine is in good condition, ready to use. Subject to changes, errors, prior sale! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

Kettenstemmer GF L x W x H: 120 x 70 x 270 cm Weight 570 kg Baeqvhtqms Year of construction 1983 The machine is in good condition, ready to use. Subject to changes, errors, prior sale! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

Hettich-blue-mini-MAX Hardware drilling machine Type Blue-Max-mini Spindle number 4 Table-top model Motor 0.75 KW 400V 50 Hz Masch. No. 01395 Manual drill feed without stand (optional) Built in 1995 G & 2827-M3I2J

AUTOMATIC CUTTING , BORING and MOULDING machine model BALESTRINI FTA second hand machine suitable for assembling part of chairs, tables, frames, small furniture, wheelchair frames, etc. the BALESTRINI FTA performs the operations of cutting , milling and drilling at the end of the piece, either singularly or differently combined. all movements of the machine are controlled by pneumatic devices and sliding carriage is hydraulic composed by 3 working units : 1 - Cutting unit circular saw max. diam. mm.400 motor power hp 3 2- Boring unit boring head with 7 mandrins motor power Hp 3 max. working stroke of boring unit mm. 130 3- Moulding unit vertical spindle for moulder motor power Hp 5,5 spindle diam. mm.30 hydraulic sliding carriage

Motor power: 1,5 kW. Max. mortise width: 180 mm. Max. mortise depth: 180 mm. Chain width: 2x10 mm. Machine dimensions: 600x950x1900 mm. Weight: ~200 kg.

Hardware drill Ruchser RU EBL2, 5-S Masch. No. 00664-2-96 Weight approx. 700 kg Built in 1996 L x W x H: 350 x 80 x 130 cm The machine is in good condition, ready to use. Spare parts/service MATEC CH-4952 Eriswil/DE-79618 Rheinfelden Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

Working length: 3.200 mm Machine is equipped with: -3 drilling units from below with 3 spindle-head - 2 holders from above -1 pressure cylinder on the side The control was by the customer through a control, serial: Siemens,. newer built; replaced.

Working length: 1,800 mm equipped with: -2 drilling units with three drills -Insertion device for pot hole hinges -2 Bohraggregte for hinges, etc.

automatic CUTTING BORING and MOULDING machine BACCI TTF1 2TM . second hand machine working conditions : Excellent hydraulic drive of all the movements volt. 380/50 CE mark : YES Machine suitable for assembling part of chairs, tables, frames, furniture, wheelchair frames, etc. The BACCI TTF1 2TM performs the operations of cutting , milling and drilling at the end of the piece, either singularly or differently combined . the milling unit is composed of n.02 spindle moulders ( anti-splinter system ) machine composed by 3 working units : 1- Cutting unit : circular saw max.diam. mm.400 motor power Hp 3 2- Boring unit : boring head with 5 mandrins motor power Hp 3 3- Moulding unit . with automatic movement of the carriage on recirculating ball bearings n.02 spindle moulders (anti-splinter) motor power Hp 7,5 spindle diam. mm.35 hydraulic unit motor power Hp 2

AUTOMATIC END CUTT OFF and BORING MACHINE Type BALESTRINI I2F machine for chairs composed by 3 working units : - circular saw diam. mm.350 motor power hp 3 - boring unit boring head with 5/7 mandrins motor power Hp 3 max. working stroke of boring unit mm. 130 - vertical spindle for moulder motor power Hp 5,5 spindle diam. mm.30 pneumatic sliding carriage machine composed by 3 working units : 1) circular saw for cutting to length of pieces 2) boring unit equipped with multi bit drilling head 3) vertical spindle for moulding the machine may be used for a variery of job requirements , including the end cutting off , moulding curved surfaces and boring end cutting , or end cutting off amd moulding for finger jointing , or end cutting , etc.

AUTOMATIC END CUTT OFF and BORING MACHINE Type BALESTRINI IF Special machine for chairs automatically cuts and bores all type of parts of chairs and furniture components . composed by : - circular saw diam.mm.350 motor power hp 3 - boring unit ( boring head with 5/7 mandrins ) motor power Hp 3 max. working stroke of boring unit mm. 130 net weight kgs.400 Volt. 380/50

AUTOMATIC BORING machine 35 spindles SCM TOP 35 second hand machine electric movement of boring head 0° / 90° technical details : n. 35 spindles center distance between spindles mm 32 center distance between first and last spindle of the drill head mm.1088 max. stroke of boring unit mm. 140 n.02 motors Hp 3 each one operating pressure atm 6-8 weight kg.800 volt. 380/50

Type of Machining Drilling Milling X-axis working area 3000 mm Y-axis working area 1200 mm Main electrospindle power 3.5 KW Number of axes controlled 3 axes Total number of drilling spindles 35 X-axis working area 3000 mm Y-axis working area 1200 mm Maximum workpiece throughput 60 mm Workpiece holding pliers yes No. of pliers 2 Automatic panel unloading system yes With motorized transfer Drilling operator unit 3 DRILLING OPERATOR UNIT 1 Group: Top Spindles for vertical drilling: 18 Spindles for horizontal drilling in the X direction: 6 Horizontal drilling spindles in the Y direction: 4 Total number of vertical + horizontal spindles: 28 DRILLING OPERATOR UNIT 2 Group: Lower Spindles for vertical drilling: 18 Spindles for horizontal drilling in the X direction: 6 Horizontal drilling spindles in the Y direction: 4 Total number of vertical + horizontal spindles: 28 DRILLING OPERATOR UNIT 3 G ...

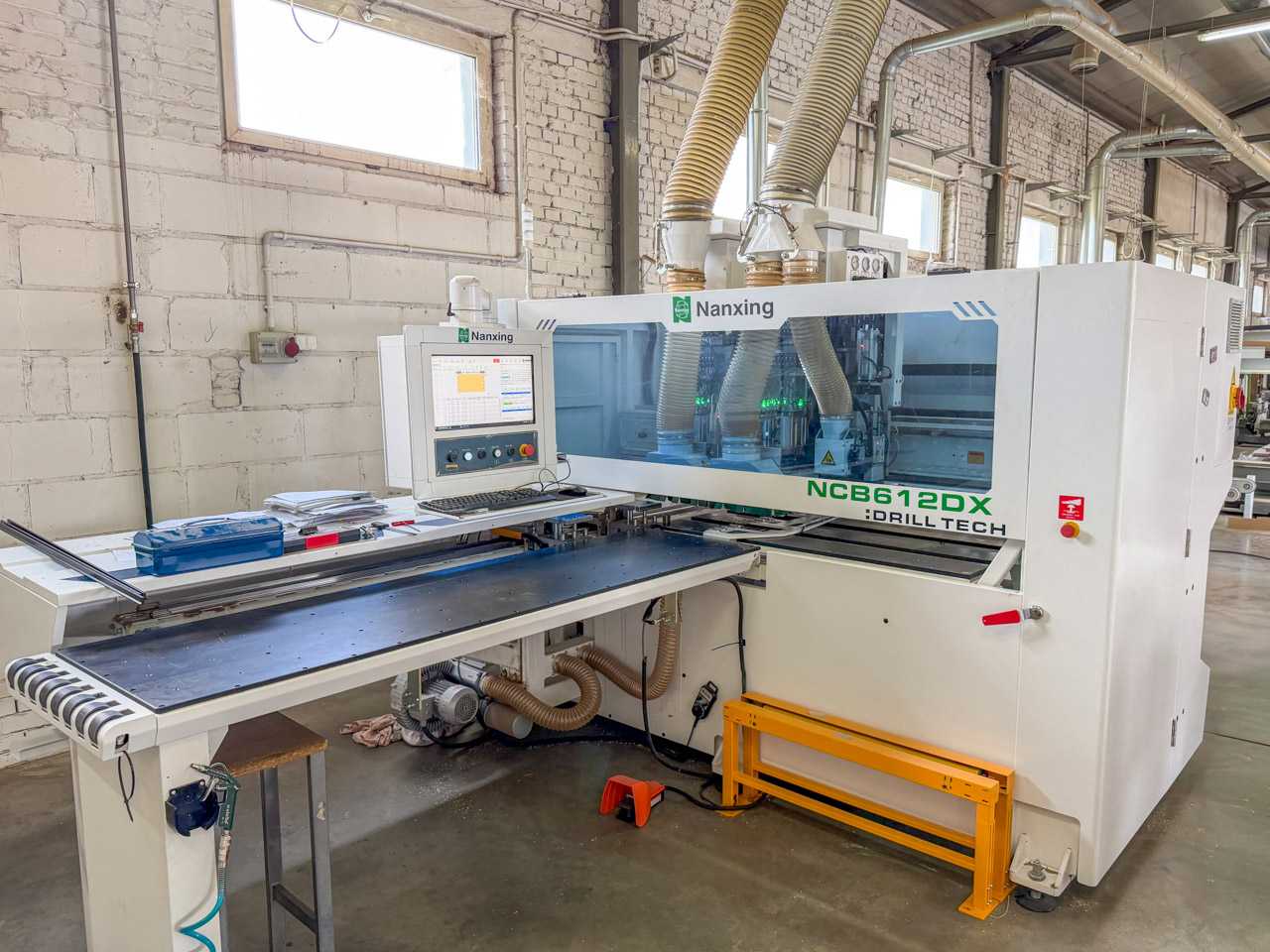

X-axis working area 2500 mm Y-axis working area 1300 mm Main electrospindle power 6 KW Number of axes controlled 3 axes Total number of drilling spindles 84 X-axis working area 2500 mm Y-axis working area 1300 mm Maximum workpiece throughput 80 mm Workspaces 1 Workpiece holding pliers yes 2 pliers Automatic panel loading system yes Motorized transfer Automatic panel unloading system yes With motorized transfer Drilling operator unit 2 DRILLING OPERATOR UNIT 1 Group: Top Spindles for vertical drilling: 32 Spindles for horizontal drilling in the X direction: 2 Spindles for horizontal drilling in the Y direction: 8 Total number of vertical + horizontal spindles: 42 DRILLING OPERATOR UNIT 2 Group: Lower Spindles for vertical drilling: 32 Spindles for horizontal drilling in the X direction: 2 Spindles for horizontal drilling in the Y direction: 8 Total number of vertical + horizontal spindles ...

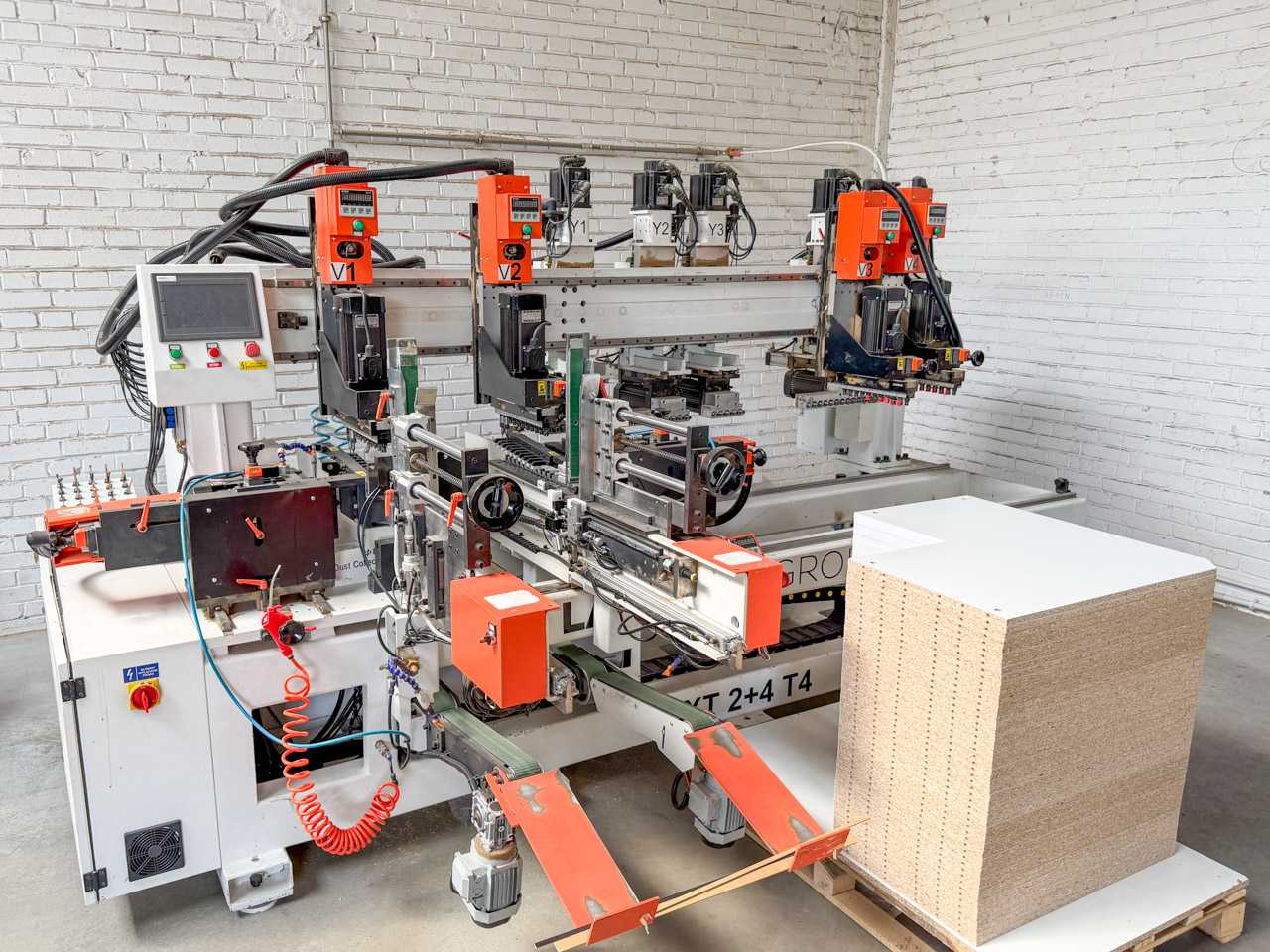

Max. panel width 400 mm Max. panel length 2200 mm Number of upper vertical groups 4 Side horizontal assemblies yes Vertical Upper Assemblies Yes Horizontal Groups Yes Max. panel length 2200 mm Max. panel width 400 mm Number of upper vertical groups 4 Number of side horizontal groups 6 CE marked safety regulations yes Total installed power 20 KW Auction-ID: A1-48024-2

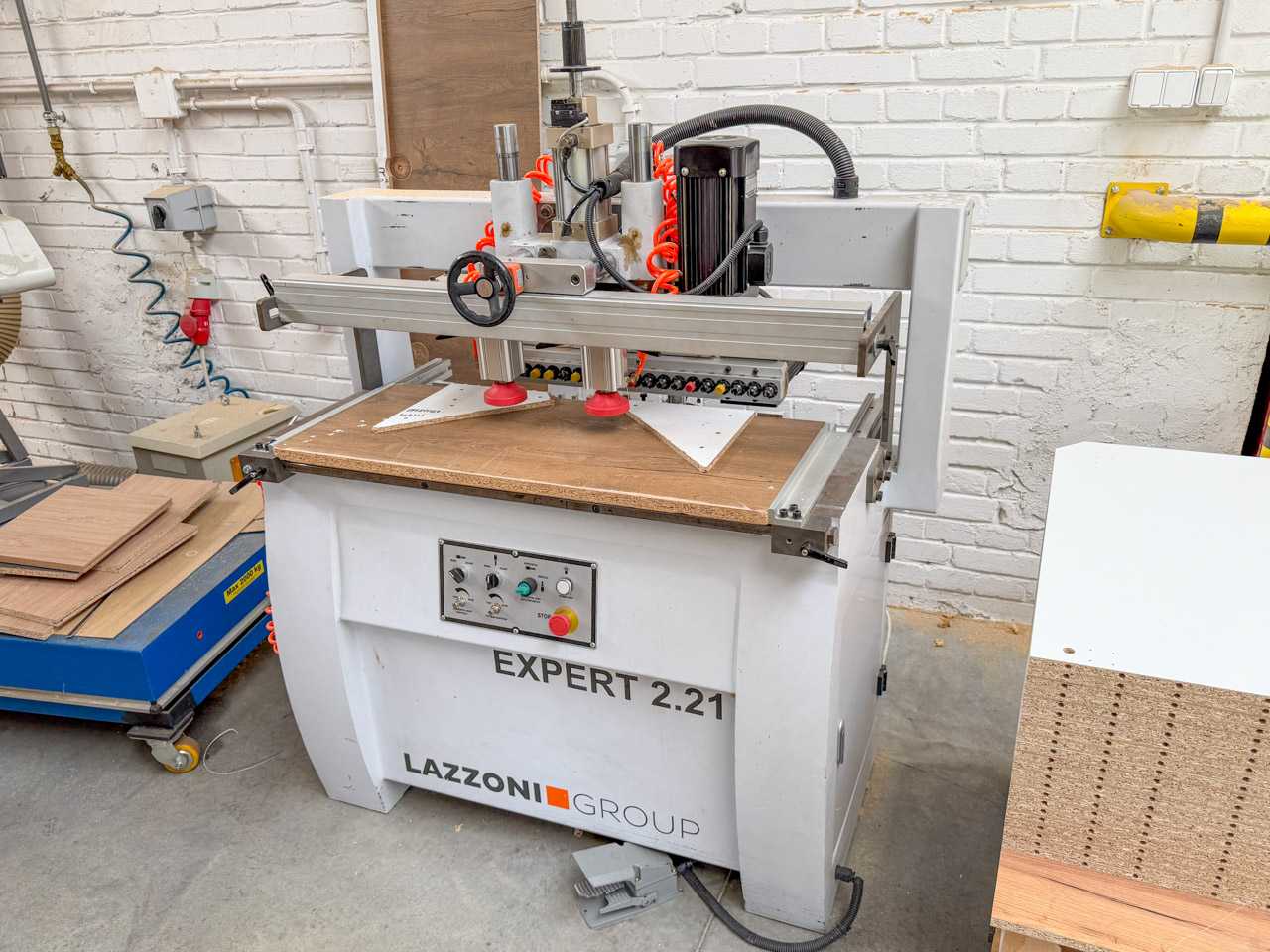

Vertical Upper Assemblies Yes No. of pressers 2 Number of upper vertical groups 1 CE marked safety regulations yes Total installed power 3 KW Auction-ID: A1-48024-3

HURCO BMC 20 / BMC 20P CNC Vertical Machining Centre Type: CNC vertical machining centre Manufacturer: Hurco Model: BMC 20 Control: GSK CNC Axes: 3-axis Machine configuration: Vertical spindle machining centre Table size: approx. 760 x 350 mm X-axis travel: approx. 560–610 mm Y-axis travel: approx. 355 mm Z-axis travel: approx. 355–406 mm Spindle taper: SK40 Spindle speed: approx. 60–6000 rpm Spindle motor power: approx. 7.5 kW / 10 HP Tool changer: 16-position automatic tool changer, Maximum table load: approx. 250 kg / 550 lbs Voltage: 3-phase Frequency: 50–60 Hz Machine dimensions: approx. 2,200 x 2,250 x 2,250 mm Machine weight: approx. 2,500–2,850 kg Condition: Used Functionality: Powered on; spindle and machine movement observed in video; full functionality Description This Hurco BMC 20 / BMC 20P is a CNC vertical machining centre suitable for milling, drilling, tapping ...

Technical details Serial number: 1000039423 Power: 21 kW Voltage: 400 VAC Full load current: 36 A Air supply: 6.5 bar Suction flow rate: 30 m/sec Dimensions: 5300 × 2300 × 2300 mm Weight: 2,500 kg Condition: Used (very few working hours) Additional notes: For further technical information, please refer to documents 1-01.pdf, 1-02.pdf and 1-03.pdf Auction-ID: A7-40554-1

Auction-ID: A7-47846-7

Fanuc drill type A048 year 1991 Auction-ID: A1-47531-13

4 axis NIKKEN; tool magazine 18 positions Auction-ID: A1-47531-9

spindle: HSK-E25; fast feeds 30m/min; resolution: 0.1 μm; tool magazine 18 positions Auction-ID: A1-47531-5
