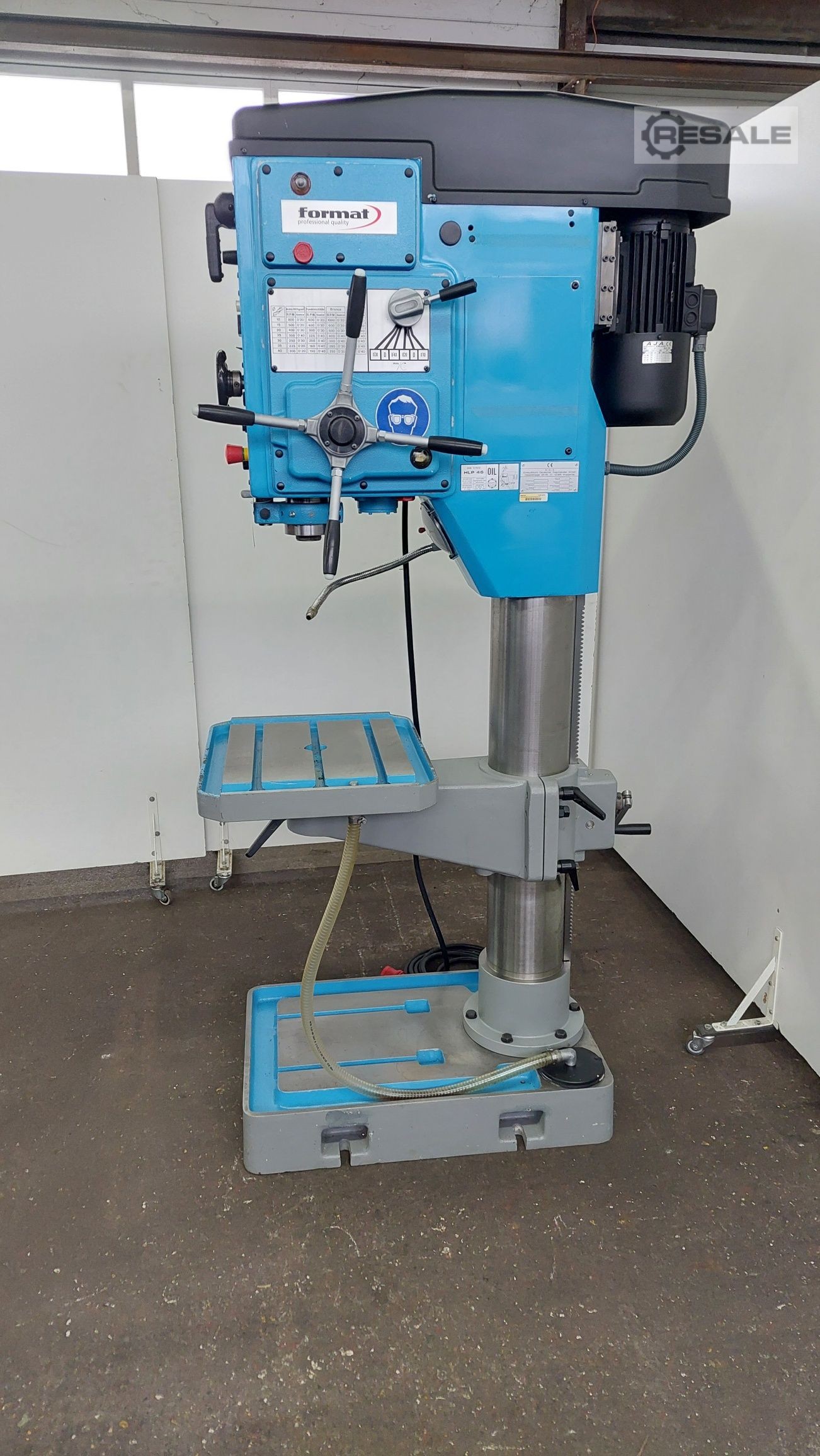

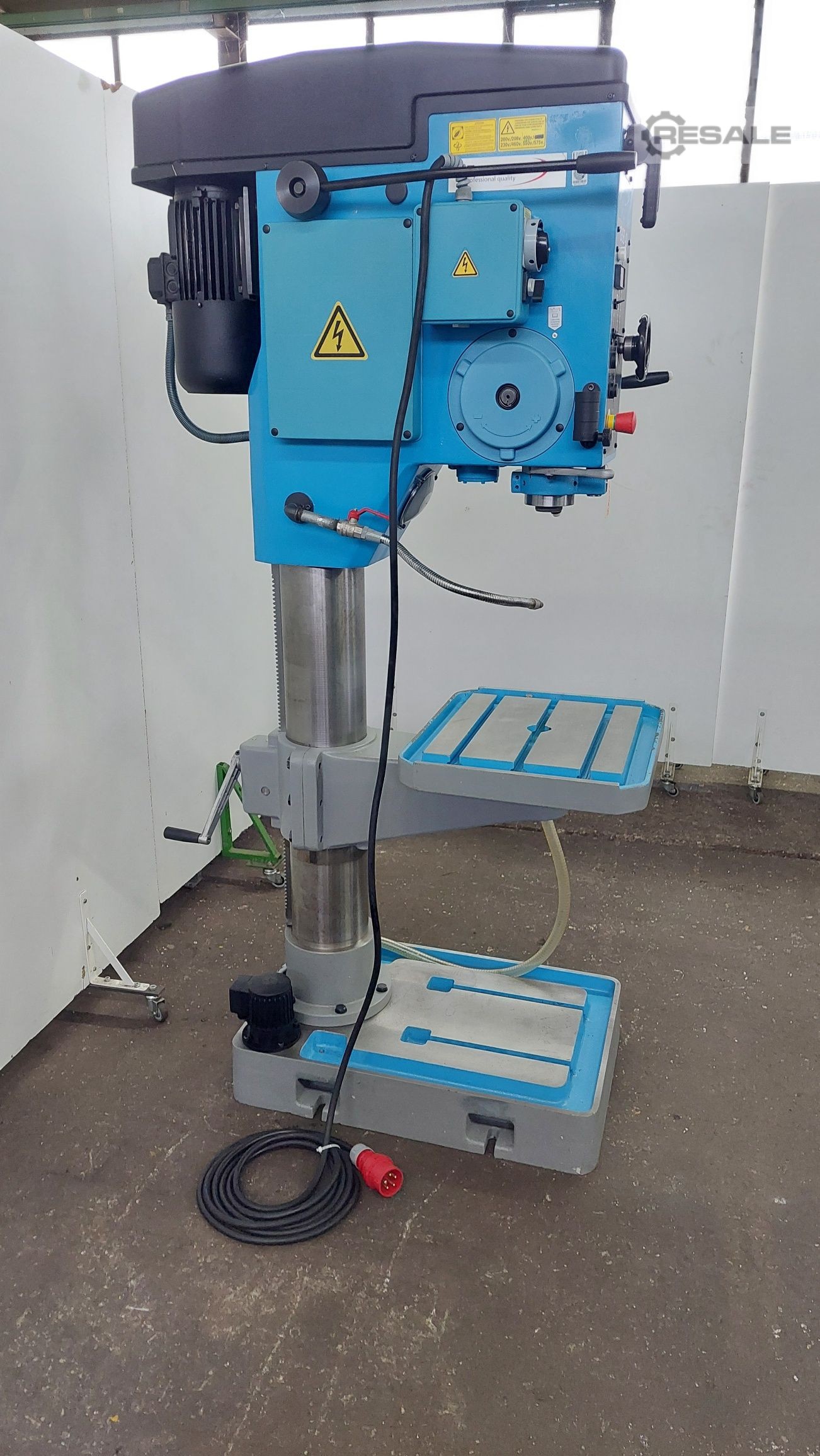

High Performance Drilling Machines FORMAT GSB 40

Offer 26444

Technical data:

- Drilling capacity in steel ST 60 40 mm
- Drilling capacity in steel ST 60 45 mm
- Drilling spindle holder MK 4
- Drilling spindle stroke 200 mm
- Projection 385 mm

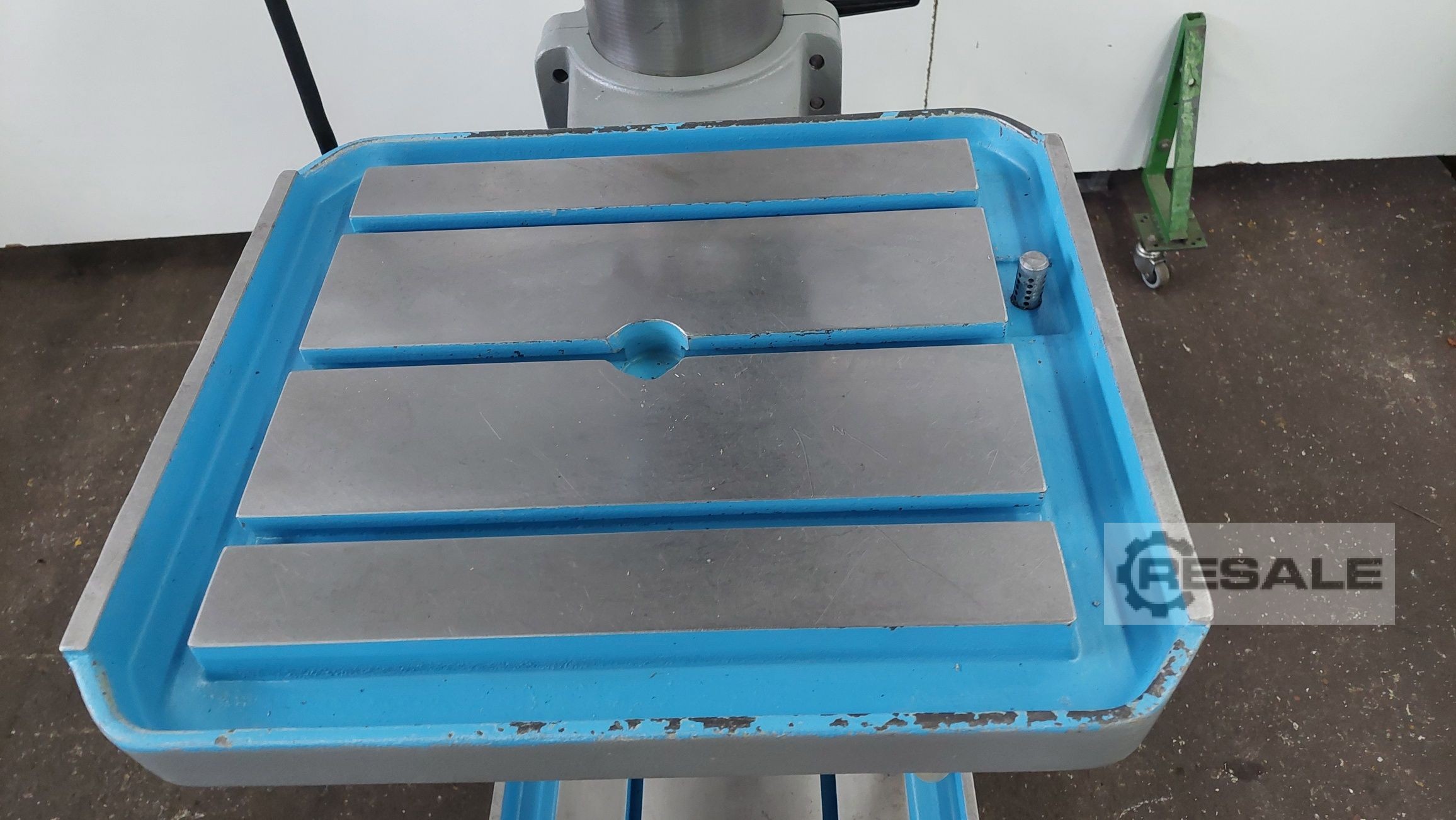

- Table with 2 T-slots with hand crank height-adjustable
- Table size 550 x 480 mm
- min. / max. distance table / drilling spindle 120 / 650 mm
- Column diameter 200 mm

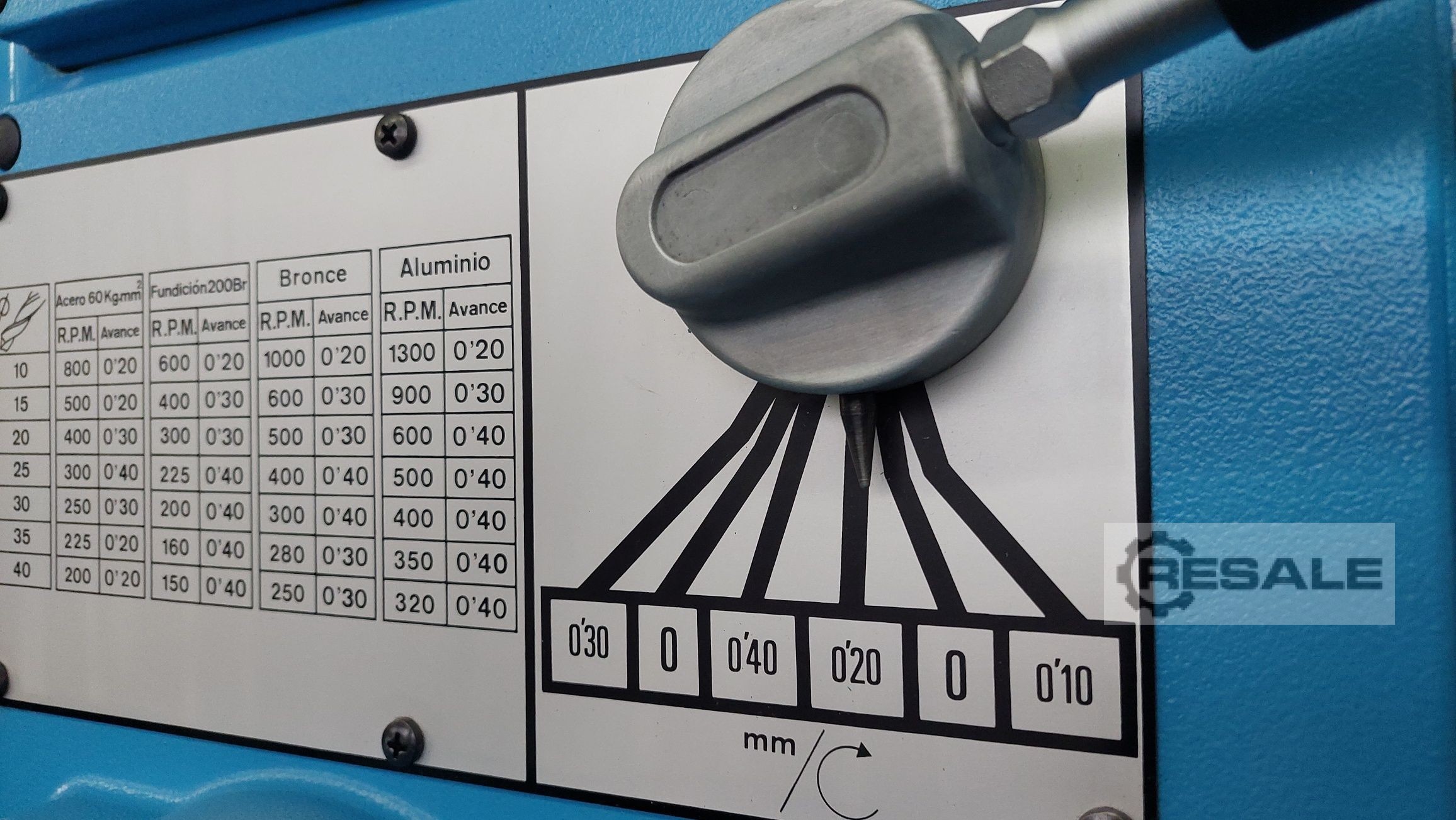

- Feeds-Electromagnetic 0.1 - 0.2 - 0.3 - 0.4 mm/rev.
- With overload protection
- Drilling spindle speeds infinitely variable in 3 stages 60 - 1900 rpm.
- Drive 400 V / 3 kW
- Space requirement approx. W 700 x H 2120 x D 1100 mm
- Weight approx. 700 kg
- with: - Tapping device
- Coolant device
- Digital speed display

The machine can be viewed at the location 63322 Rödermark by appointment.
Erich Mieth Company: Tel. 06074-90877
Monday - Friday: 9:00 a.m. - 12:00 p.m. and 2:00 p.m. - 5:00 p.m.

The price includes 19% VAT. You will receive an invoice with VAT.
Sale only to commercial buyers.

Payment by bank transfer before picking up the machine.

seller offer No. resale Lg.-Nr. 26444
