Profiling Systems FRAMECAD FL650

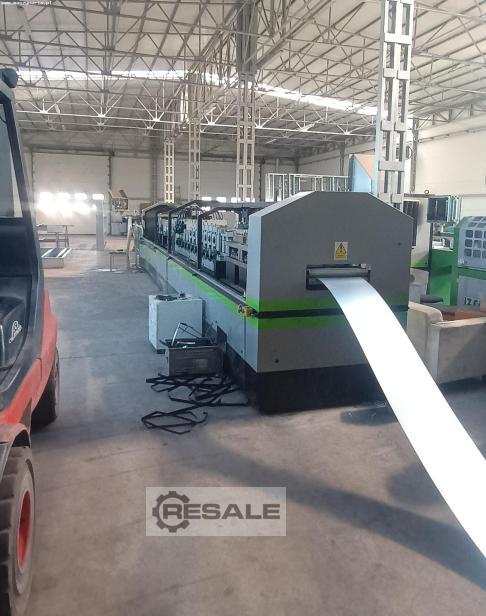

FRAMECAD FL650 roll forming line was built in 2009 in New Zealand by Framecad Solutions Ltd. This state-of-the-art and compact production line is used in the production of precision C- and U-type cold-formed profiles, used as steel floor joists in a wide range of construction projects. The entire machining process is fully automatic and is performed with the highest accuracy. The strip, with a maximum thickness of 1.95 mm, is uncoiled from the coil towards the workspace with a roll forming system. Each profile is precisely formed, cut, punched and individually marked. Large service holes are also made to facilitate the assembly of electrical, HVAC and plumbing systems.

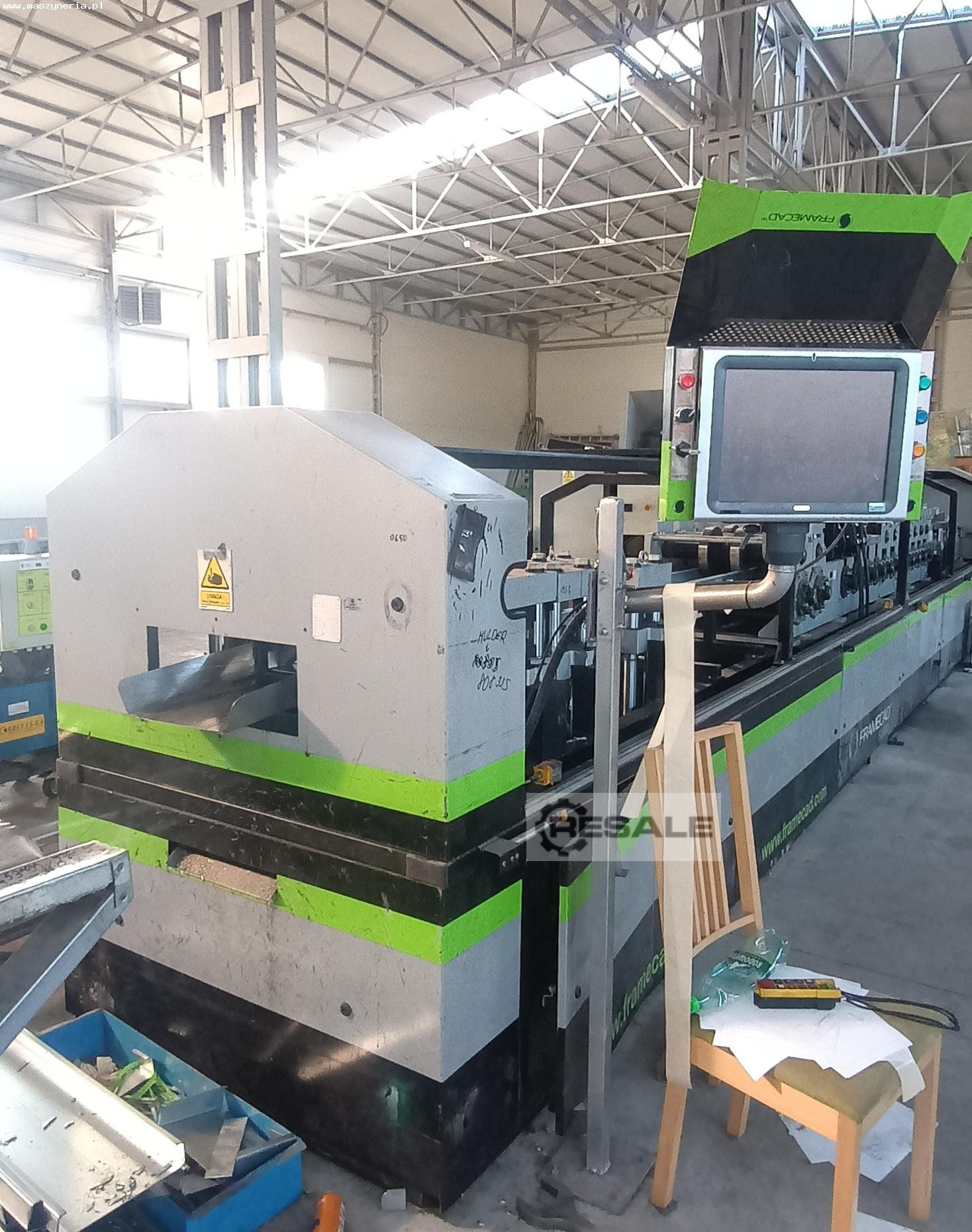

The FRAMECAD roll forming line is operated via a touchscreen panel with an intuitive interface that significantly simplifies the daily work of the operator. The full integration of advanced design software with the controller makes it one of the most intelligent building systems on the market. The installed FRAMECAD Factory software is fully networkable, which maximises productivity and enables remote diagnostics of the machine.The FRAMECAD FL650 roll forming line weighs approximately 7000 kg.

Technical specifications of the FRAMECAD FL650 profiling machine
- controller based on Linux operating system
- software: FRAMECAD Factory
- profile type: C, U
- profile size: 250 or 254 mm
- maximum strip thickness: 1.95 mm
- minimum strip thickness: 1.15 mm
- number of rollers: 13
- number of floor tool functions: 6
- typical production M51251405 capacity (depending on type of M51251405 production): 440-1200 m/h
- sheet metal straightener
- sheet metal decoiler
- capacity of sheet metal decoiler: 3000 kg
- maximum diameter of coil on decoiler: 1500 mm
- printer
- hydraulic accumulator
- hydraulic cooling
- main drive power: 20 kW
- hydraulic power: 10 kW
- hydraulic oil tank capacity: 120 l
- power supply: 3x 380-480 V
- dimensions (L x W x H): 8900 x 1250 x 1600 mm
- weight of the FRAMECAD FL650 machine: approx. 7000 kg

(The technical parameters given were obtained from the machine manufacturer’s website. Their accuracy cannot be guaranteed and they may therefore differ slightly from reality.)
