Drum coater GLATT GC Smart 350

• Non-EX version
• For coating and coating tablets using the film coating process

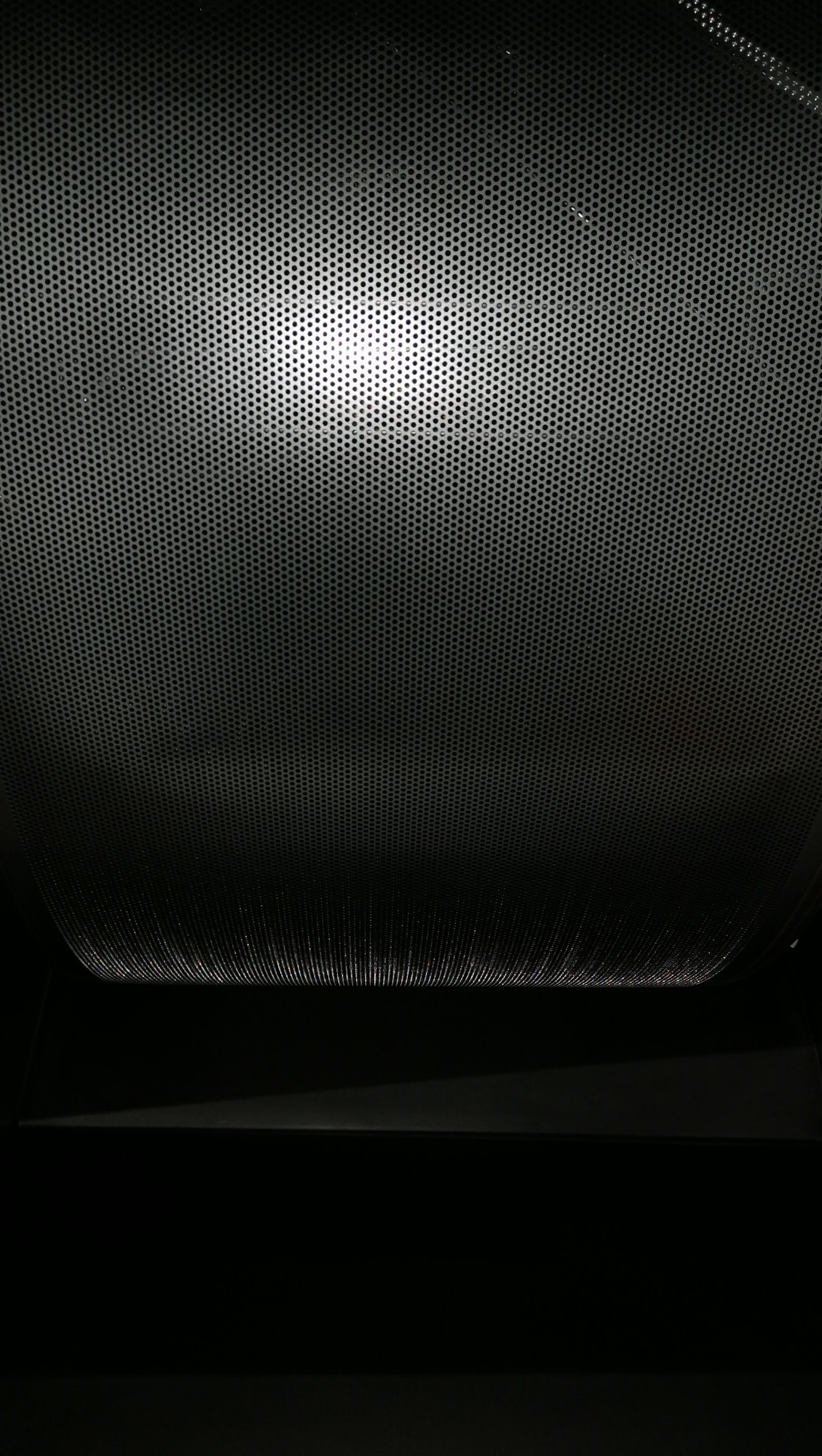

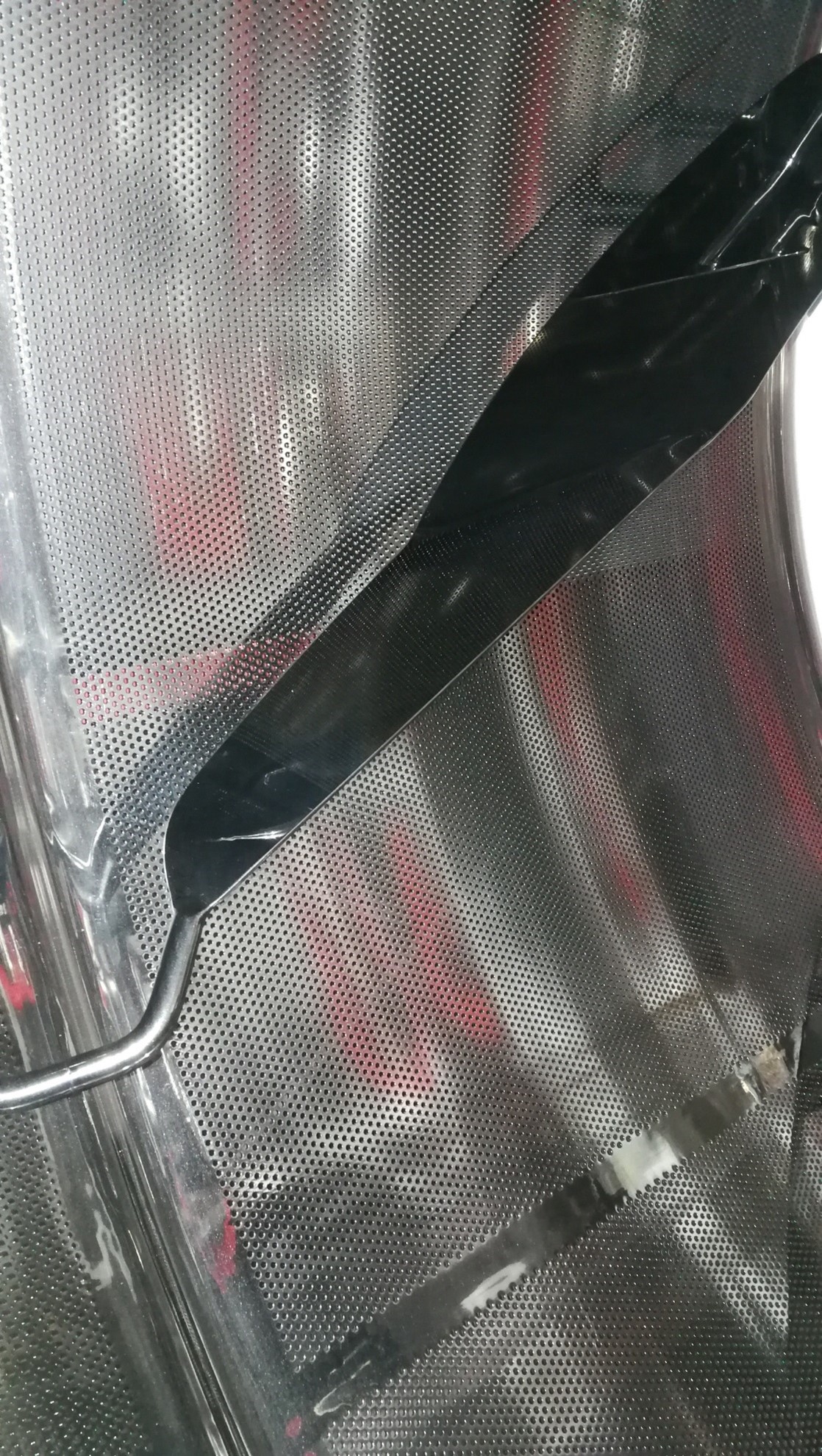

• Drum fully perforated with mixing paddles Smooth SU 4.12, hole diam. 3 mm
• Drum material AISI 316L
• Drum usable volume 331 litres, drum Ø 1. 450 mm, opening diam. 550 mm
• Batch size 79-265 kg (filling volume 30-100%, density 0.8 kg/dm3)

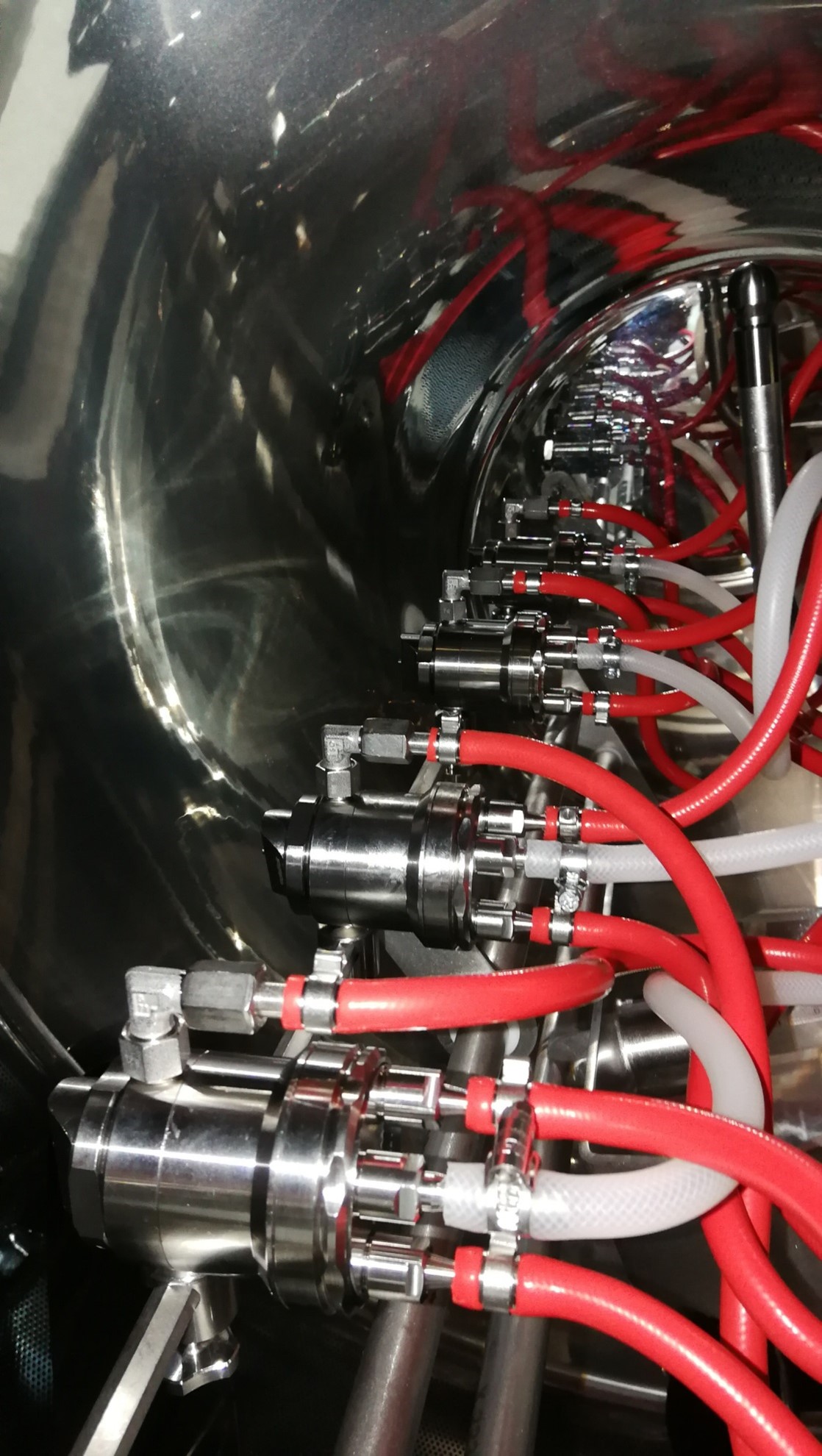

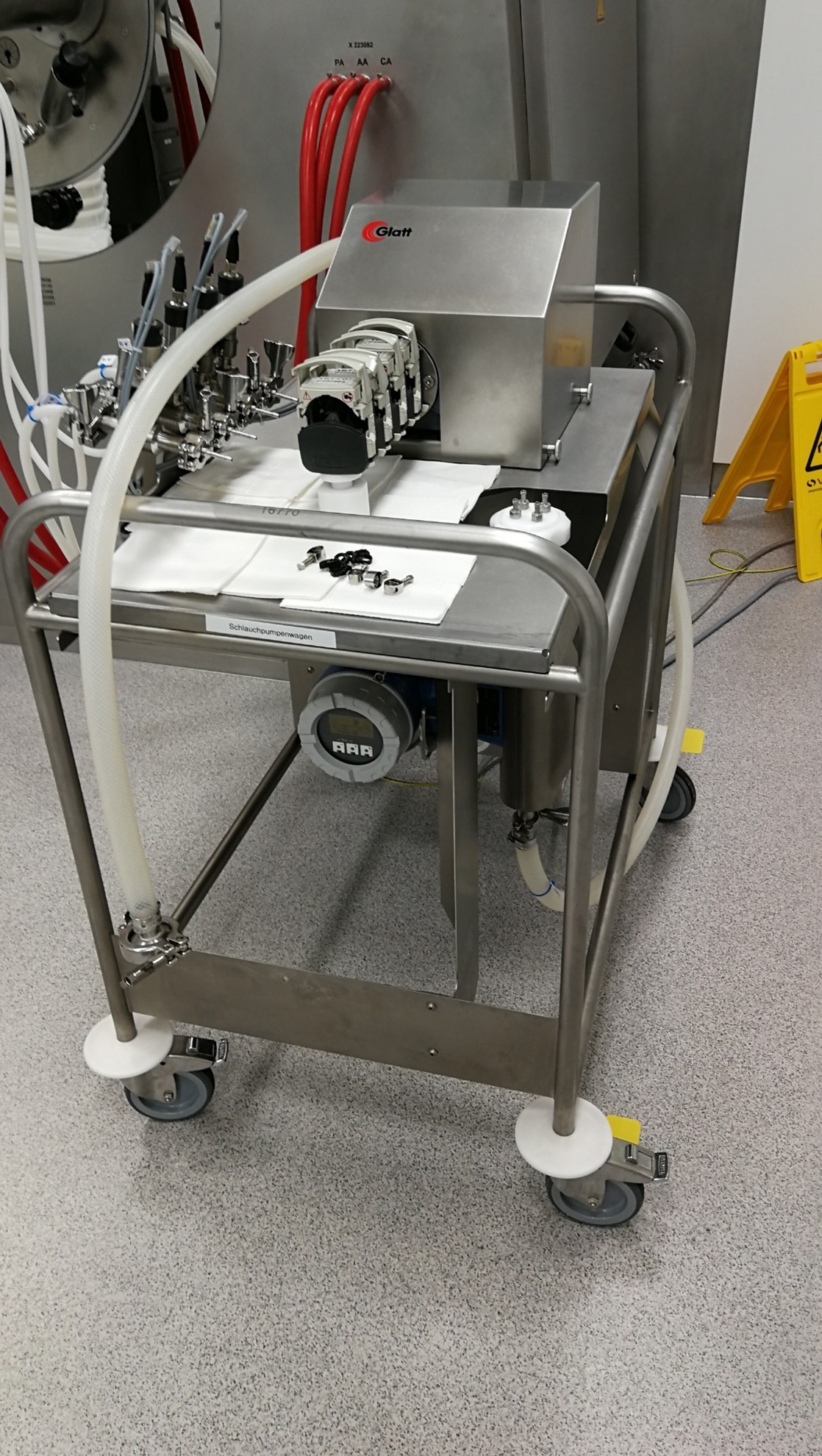

• Spray nozzle Glatt GCSD 3.1 with multi-head peristaltic spray pump with pump trolley
• Filling chute
• SmartScoop discharge with discharge hopper
• Supply air system Glatt M6/F9 with temperature and volume flow measurement
• Supply air fan
• Supply air filter 3. H13
• measuring device for DEHS filter test
• Frost protection heating (steam)
• Dehumidification 32°C/40% rH, independently controlled
• Humidification with preheater
• Electric pure steam generator Defensor Mk5
• Bypass shut-off damper during sugar coating
• Exhaust air system with temperature measurement
• Exhaust air dust extraction system 1-stage active, GCS design, Automatic blow-out system for cleaning the filter stage (pre-coating)
• Exhaust air filter 1-stage static, H13/H14
• Measuring device for DEHS filter test
• Drying bypass to prevent sticking
• Sound insulation
• Cleaning station CVSI 06 for WIP cycle
• Cleaning nozzles drum outside + inside
• Machine control Siemens S7-300 CPU317-2
• GlattView MEGA Process control via Beckhoff IPC with RAID 1 function, 21 CFR Part 11 compliant (as of 2014)
• HMI
• Languages User interface German/English
• Operating system Microsoft Windows 7
• GlattView data integration for batch report, process data, recipe parameters, data upload SCADA, data download MES
• Remote maintenance access via VPN
• GlattView control panel with 19 monitor
• Drive 400/230/24V/50Hz
• New parts for an upgrade of the supply and exhaust air system to the current status are included (not yet installed)
• New Beckhoff IPC with Windows 10 operating system is included (not yet installed)
• In operation from 2015 to 2021 with approx. 10-15% utilisation/year (approx. 1,900 operating hours)
• Photos show a similar coater, deviations possible
• The equipment has already been dismantled and stored in Germany near Frankfurt am Main.
seller offer No. resale 99-0845
