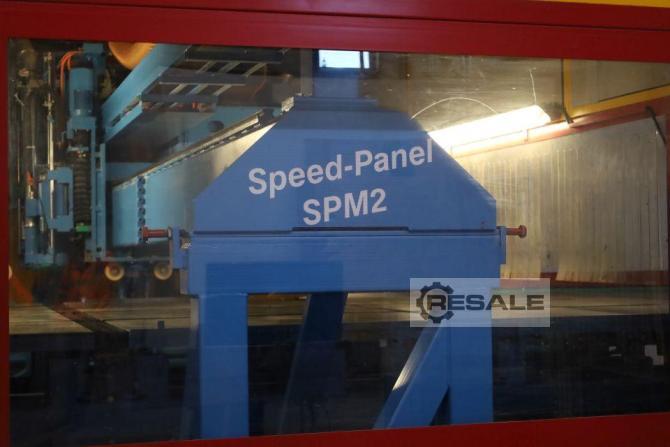

Processing Centers HUNDEGGER SPM-2 Speed Panel

Plate Processing Machine
Manufacturer: Hundegger
Type: SPM-2 Speed Panel
Year of Make: 2011

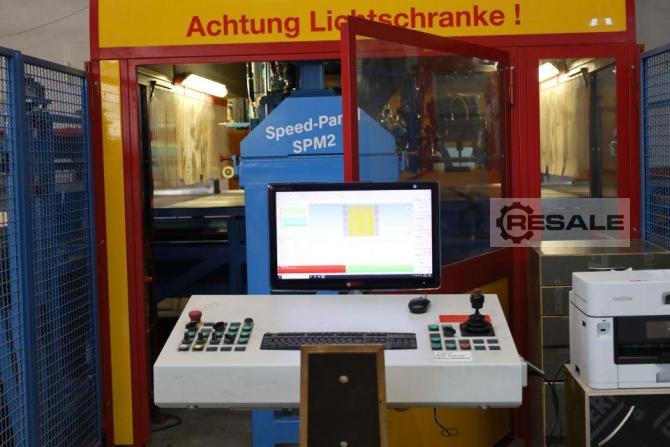

CNC control

SPM-2 for panel format 3,200 x 2,600 mm

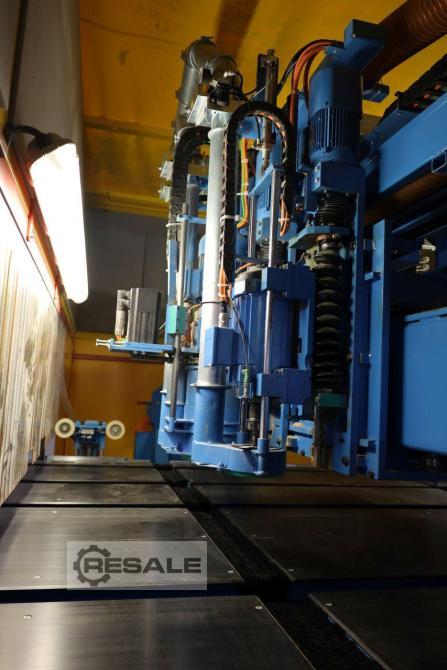

Milling unit 6 kW
Max. speed: 23,500 rpm
Milling tools Outer diameter max.: 100 mm
Cutting length of milling tools max.: 60 mm
Z-axis: positioned + moved by spindle units

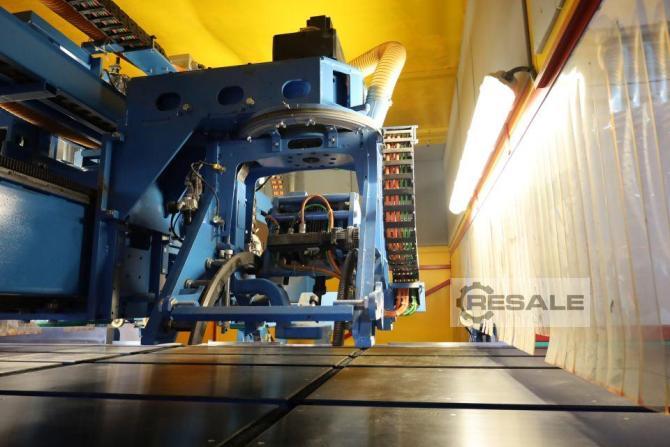

5-axis milling unit 6 kW
Milling spindle motor: 6 kW frequency-controlled
Max. speed: 23,500 rpm
Milling unit can be rotated 360° in the Z-axis
Inclination up to 46° to the Z-axis
Milling tools outer diameter max.: 20 mm
Cutting length of milling tools max.: 60 mm
Z-axis: moved + positioned by spindle units

Ink-jet labeling head
Max. font height: 50.8 mm
Colour prints possible
Z-axis pneumatically operated,
Head can be automatically swivelled by 180°

Automatic stacking system
Electronically controlled lift table
Stroke max.: 1,000 mm
Max. load: 4,000 kg
Lift table can be lifted from the front with forklift or
To be unloaded from above with a crane

Circular saw unit 2.2 kW
Saw blade Ø: 180 mm
Cutting width: 3 mm
Rotation angle servo motor adjustable: 360°
Drive power tool: 2.2 kW
Speed: 6,000 rpm (vc=56.5m/s)
Cutting depth max. 40 mm
Z-axis electromotive via trapezoidal spindle
Suction directly on the tool
Processing portal:
with a linear guide guided and servo-motorized
powered combi support, where all
machining units.

gripping and positioning carriages with four pneumatic,
individual movable material grippers.
Grab and positioning trolleys run on circular guides.
The guide is supported by coated infeed and outfeed tables.

Electromotive-driven transverse push-off ruler
for pushing off the finished panel parts.

Availability from 11/2026


seller offer No. resale L2170
