Foundry machines IDRA OL MG 500

IDRA OL MG 500 die casting machine
Year: 1984 | S/N: 6362 | Used


DESCRIPTION:
THIS MACHINE IS ON THE PART OUT AND SCRAP LIST

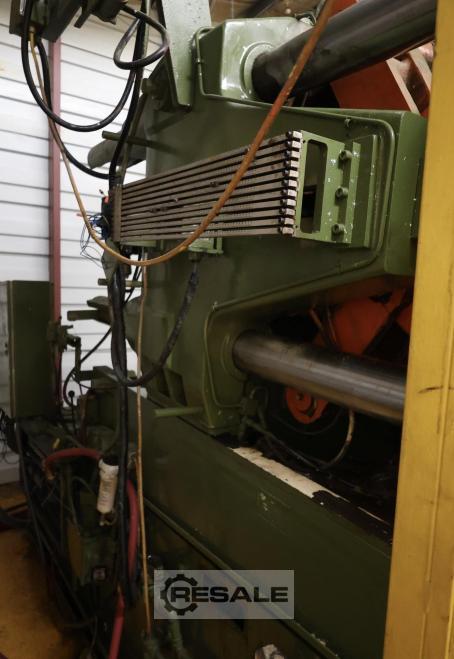

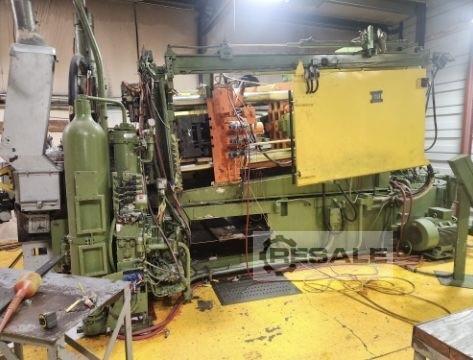

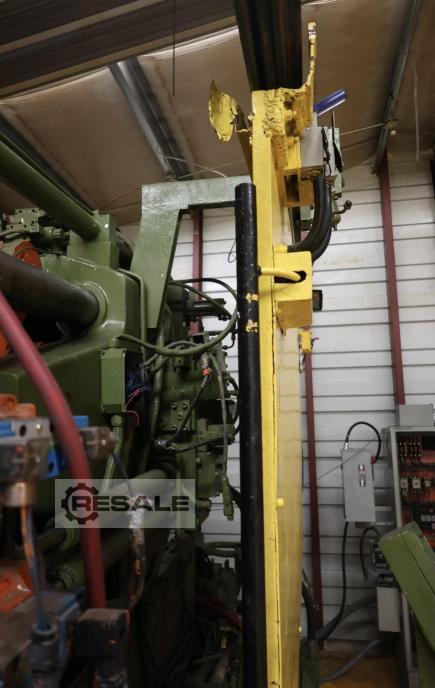

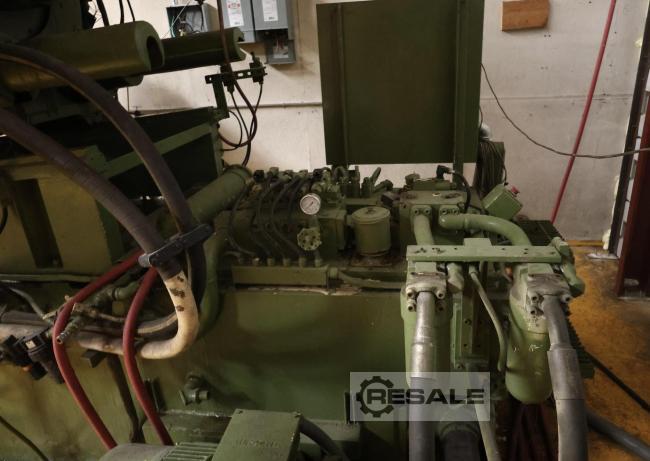

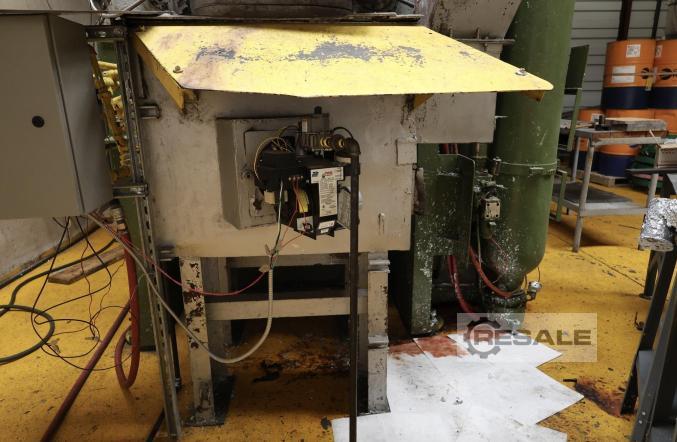

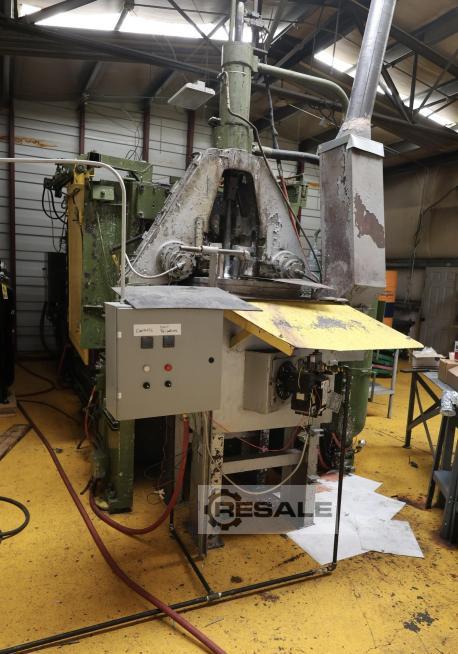

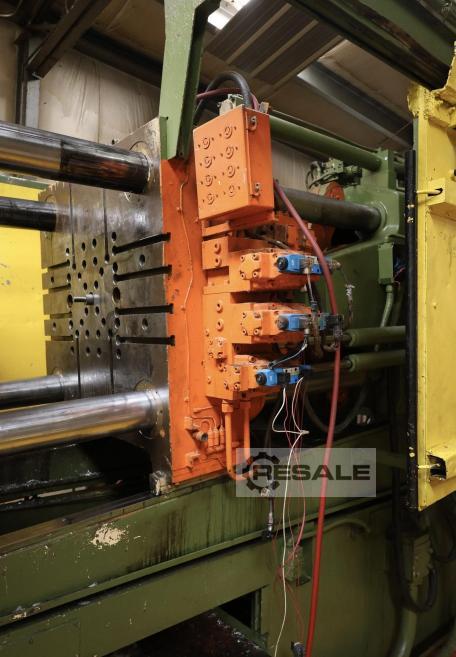

This Hot Chamber Die Casting Machine 500 Ton is manufactured by Idra. The control was updated in 2017.

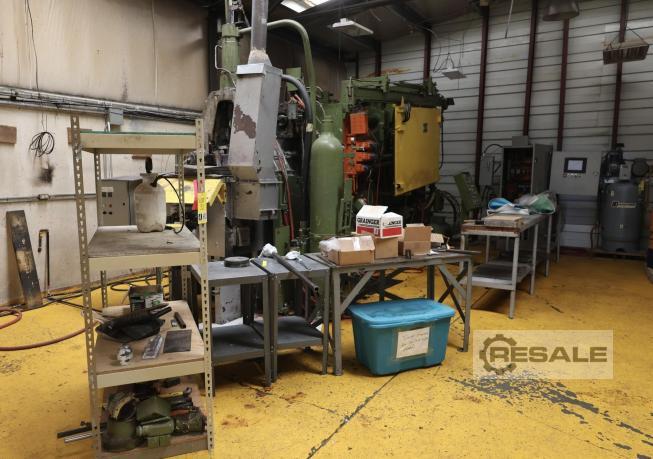

Located at our warehouse in Preston, Idaho and is ready for inspection and shipping.

We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our remarkable customers.
Included specifications are gathered from various sources such as firsthand inspection, owner or operator interviews, manuals, and OEM research. All machinery specifications, condition and details are represented accurately to the best of our knowledge.
Confirmation by purchasing entity is recommended and encouraged prior to purchase. Price, location, and specifications are subject to change.


SPECIFICATIONS:

TONNAGE 500 T 453.593 t
WEIGHT 54,000 lbs 54,000 lbs
DIE CLOSE
Locking Force: 500 tons
Distance Between Tie Bars (WxH): 25.6 x 25.6 inch
Tie Bar Diameter: 5.1 inch
Movable Platen (WxH): 41.7 x 41.7 inch
Die Height (Min-Max): 13.8-31.5 inch
Die Stroke: 26.4-0 inch

INJECTION
Die Injection Force (min-Max): 0-22 tons
Shot Weight (aluminum)(Min-Max): 0-19.8 lbs

EJECTION
Ejection Force: 30 tons
Ejection Stroke: 5.9 inch

GENERAL
Machine Weight (54,000 lbs)
Size (LxWxH) 24.6 x 8.5 x 11.5 ft
