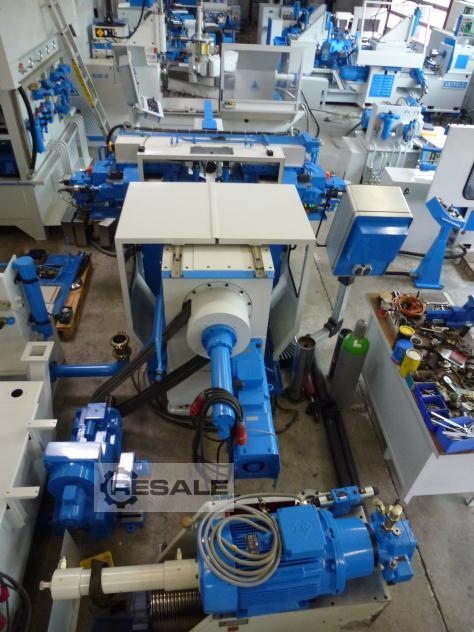

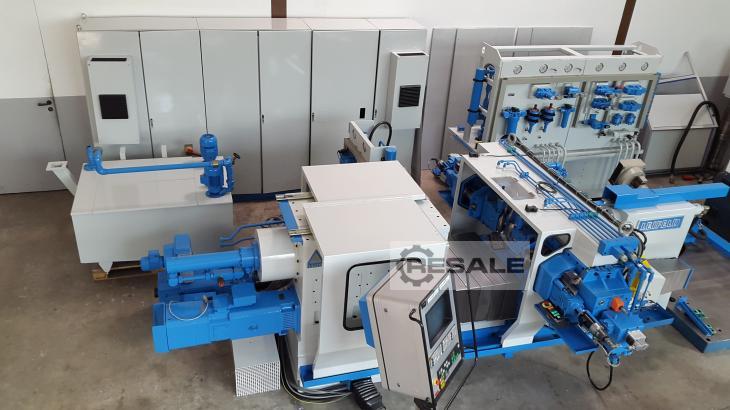

Metal spinning machines LEIFELD DW 236 CNC

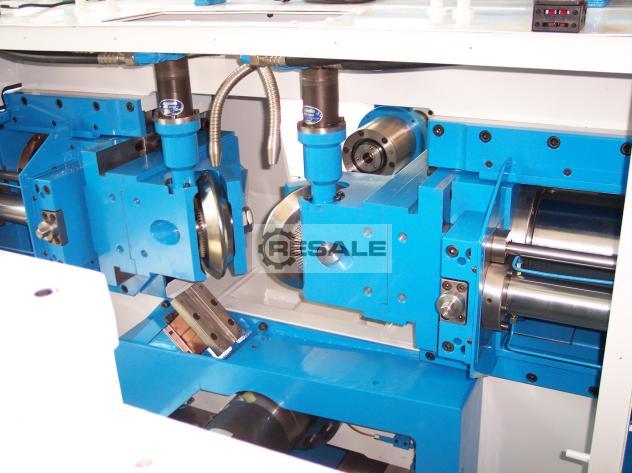

- Two-roller technology - 180° arrangement of wheels

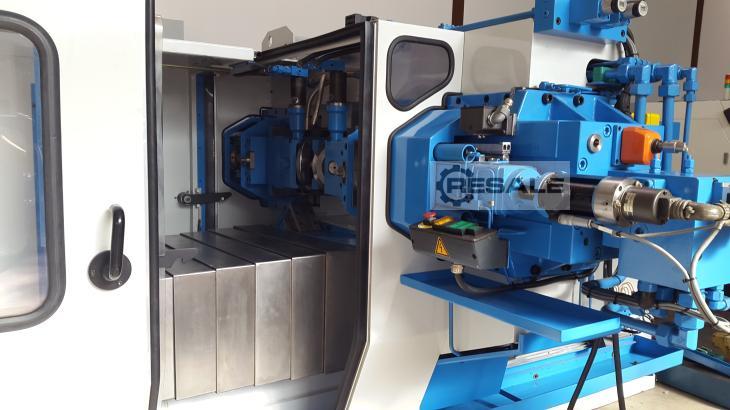

- Closed work area with coolant and lubricant equipment
- Hydraulic roundabout centering device
- Gearbox with oil circulation lubrication
-Temperature

Specifications:

Workpiece diameter (max.): 360 mm
Blank diameter (max.): 380 mm
Workpiece length (max.): 600 mm
Center width (max.): 1,340 mm
Tip width (min.): 200 mm

Tool holder DIN 55026: Gr. 11

Force per axis (transverse) (max.): 117 kN
Axle force (longitudinal)/feed axle (max.): 140 kN

Stroke (transverse): 190 mm
Stroke (longitudinal): 690 mm

Feed axis speed: (max.) 1.8 m/min
Rapid traverse (longitudinal): 7.0 m/min

Adjustment roller (axial): 0-20 mm

Stroke ejector: 380 mm
Ejector force: 26 kN

Tailstock stroke: M51264527 800 mm
Tailstock M51264527 force: 5-19 kN

Speeds (infinitely adjustable): 6-231-387 min-1
25-850-1,550 min-1

Main drive (DC motor): 33 kW
Longitudinal drive (DC motor): 30 kW
Hydraulic drive: 4.6/17.3 kW

Operating voltage: 400 V
Frequency: 50 Hz
Connected load (normal/peak load): 90/120 kVA

Weight: approx. 17 t
