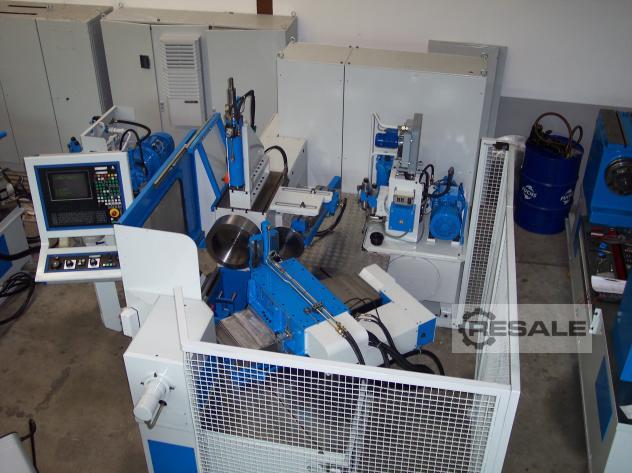

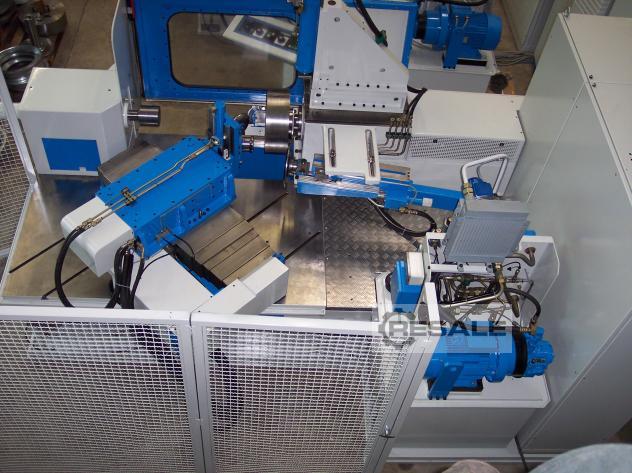

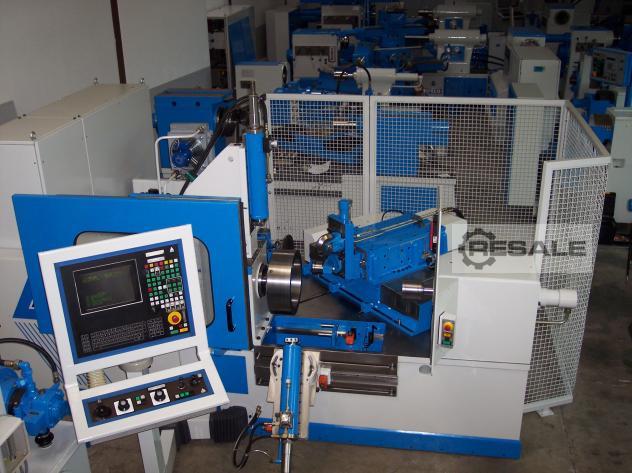

Metal spinning machines LEIFELD PNC 106

- Hydraulic roundabout centering device
- Blank counter holder
- Machining unit BAE 1 (on the spindle box) optional 2.
- Processing unit KA (in front of the machine)
- Double reel seat

Specifications:

Blank diameter (max.): 700 mm
Tip width : 800 mm

Tool holder DIN 55027: Gr. 6

Axis force (transverse) (max.): 22 kN
Axis force (longitudinal) (max.): 20 kN

Stroke (transverse): 250 mm
Stroke (longitudinal): 400 mm

Cross speed: (max.) 7.0 m/min
Longitudinal speed: (max.) 7.0 m/min

Stroke ejector: 200 M51264527 mm

Tailstock stroke: 400 M51264527 mm

Speeds (infinitely variable): 100-3,800 rpm

Main drive: 11 kW
Hydraulic drive: 7.5 kW

Operating voltage: 400 V
Frequency: 50 Hz
Connected load: approx. 20 kVA

Weight: approx. 7,000 kg

seller offer No. resale 168339734
