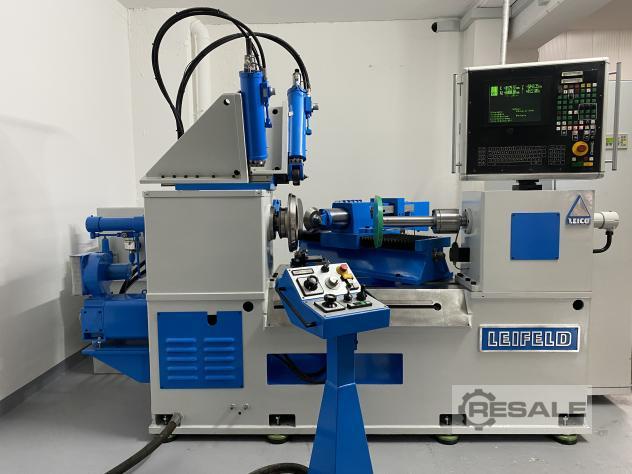

Metal spinning machines LEIFELD PNC 350

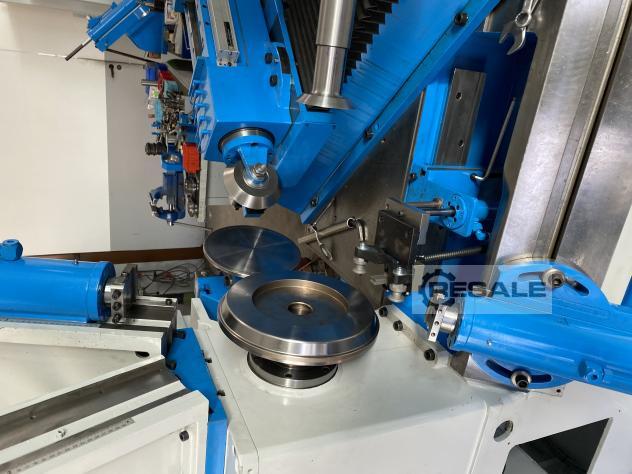

- Hydraulic roundabout centering device
- Blank counter holder
- Machining unit BAE 1 (on the spindle box) optional 2.
- Processing unit KA (in front of the machine)

Specifications:

Blank diameter (max.): 700 mm
Tip width : 825 mm

Tool holder DIN 55027: Gr. 6

Axis force (transverse) (max.): 22 kN
Axis force (longitudinal) (max.): 20 kN

Stroke (transverse): 250 mm
Stroke (longitudinal): 400 mm

Transverse speed: (max.) 6.0 m/min
Longitudinal speed: (max.) 6.0 m/min

Stroke ejector: 200 M51264527 mm

Tailstock stroke: 400 M51264527 mm

Speeds (infinitely variable): 100-2,800 rpm

Main drive: 11 kW

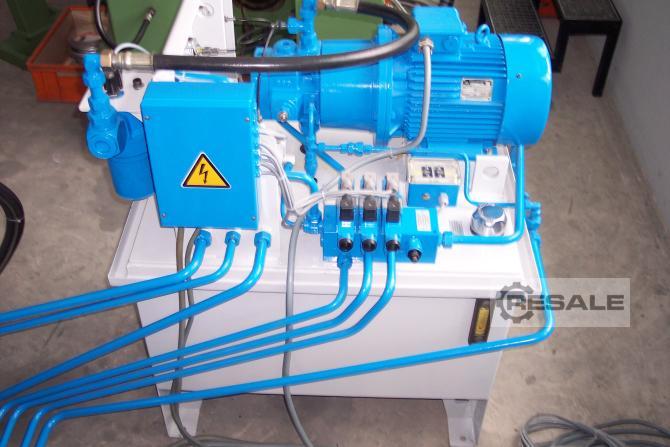

Hydraulic drive: 7.5 kW

Operating voltage: 400 V
Frequency: 50 Hz
Connected load: approx. 20 kVA

Weight: approx. 3,500 kg
seller offer No. resale 168339736
