machines and plants for process engineering used for sale (7,499)

Stock# U824V-1 Used butterfly type valve by ChemValve (CH) with DIN 300, PN10. Carbon steel design. Contact parts layered with teflon. Valve is operated pneumatically. Valve type PTSGWA1-WD1.

Stock number: U2386-1 Used rotary film evaporator by Corning (UK). Evaporator has 50 l rotating evaporating flask, driven via gearbox with adjustable rotation and el motor 0.37 kW, 1425 rpm, 380 V, 50 hz. Ex design (EExdIIBT4). Heating of flask by coil inside the bath tank - can be used on steam, oil or water. Height of bath adjustable hydraulicaly by manually operated pump. Machine is equipped with two receiving tanks, condensator and all connections. All glass is made by QVF.

Stock # U2352-4 Used stainless steel lab size mobile fluid bed dryer by Glatt model GPCG-1. Working volume of drying chamber up to 4.5 l. Operating pressure 0.79 bar. Machine is equipped with two stainless steel cones - one for coating process, second for drying. Coating cone is also equipped with 4 stainless steel screens. Nozzle not included. Electric power supply for heating 4 kW. Working temperature range from 10 up to 140 C. Dryer is equipped with centrifugal fan driven by el. motor 2.2 kW, 2850 rpm, 220-230/380-400 V, 50 hz. Compressed air - pressure 6 bar.

Stock# U2347-12 Used hydraulic press for removing paste/paint from mixing can. Press consist of carbon steel supporting column with height 399 cm mounted to base with dimensions 700 mm x 700 mm. Pressing head is mounted on cart which is rised and lowered by mechanical hoist which is driven by el. motor 0.37/1.5 kW, 380 V, 50 hz and is able to work up to weight range 2000 kg. Pressing head is designed for work on mixing cans with internal diamater 1100 mm. Top of pressing head is equipped with 6 clamps for mounting it on product container. Stroke of piston about 1150 mm. Piston is poweder from hydraulic device, driven by el motor 0.55 kW. Maximal working pressure up to 150 bar. Last time used in paint industry.

Stock # U2347-3 Used mixer by Netzsch (DE) type VPI 550 with butterfly/tri-foil agitator. Mixer has contact parts designed in stainless steel. Shaft has a working length 650 mm and is equipped with butterfly agitator, with three paddles and external diameter 1080 mm. Agitator is diven by el. motor 48 kW and is hydraulically risen up to about 130 cm. Machine is equipped with local control pane and electric cabinet. Machine is also equipped with hydraulicaly operated post for mixing can. Mixing pan is not included.

Stock# U2347-1 Used mixer by Buhler (CH) type SPM-50-HT with butterfly/tri-foil agitator for work on vacuum. Mixer has contact parts designed in non-corrosive steel. Mixing shaft has length about 1750 mm and is equipped with butterfly agitator, with three paddles and external diameter 1040 mm. Top cover is equipped with two pneumatic accutators and fits mixing pans with diameter 1100 mm. Cover can be rised up to 500 mm. Agitator is belt driven by el motor 45 kW, 1470 rpm, 380/660 V, 50 hz. Mixer is hydraulically risen about up to 90 cm. Machine is equipped with local control panel by Siemens with touchpad and electric cabinet. Machine is also equipped with hydraulicaly operated post for mixing can. Working pressure in mixing tank can reach 0.3 bar. Machine had been working on paints. Mixing pan is not included.

Stock # U2333-1 Used carbon steel jacketed paddle type mixer by Kates (PL) type 2M1.6. Total volume 1700 l, working volume about 1600 l. Mixing chamber is designed for work on pressure up to 0.14 bar in working temperature range from 5 - 40 C. Mixer has mixing shaft with 6 paddles and two rods working close do front walls. Shaft is driven by el. motor 55 kW, 1483 rpm in Ex design, through gearbox with reduction i = 72.71, what gives working rotation of shaft up to 20.39 rpm. Mixing chamber is covered with carbon steel cooling jacket with volume 75 l. Working pressure on jacket up to 0.5 bar at temperature in range from 5 up to 40 C. Mixer has top inspection manway with bolted lid and diameter 500 mm. Central bottom discharge with pneumatically operated valve. Mixer is mounted on carbon steel supporting construction. Machine is able to work as Ex II3GcIIA T3 /ATEX. Mixer is equipped  ...

Stock# U2308-10 Used stainless steel (316) vertical basket centrifuge by Ametek/Tolhurst Centrifugals (USA) type Batch-Master model B-M with perforated bowl size 48" (1219,2 mm) diameter x 30" (762 mm) height. Machine is designed for periodical work with automated discharge of cake. Working rotation of bowl from 0 up to 1080 rpm. Top feeding, bottom discharge. Machine is mounted on carbon steel supporting frame. Bowl is driven by hydraulic device with power 30 kW, 1470 rpm, 380 V, 50 hz, design Ex. Included control panel and stainless steel conical chute.

Stock# U2308-7 Used stainless steel contact parts polish made V type tumbling blender with total volume 4500 l. Working volume 3000 l. Mixer has two inspection/feeding inlets with bolted lids, each with diameter 450 mm. Central conical discharge with diameter 245 mm, with manually operated valve. There is an internal supporting shaft/baffle inside the mixing chamber. Machine is driven by el. motor 18.5 kW, 1480 rpm, 380 V, 50 hz, through belts and gearbox type WD650. Working rotation of mixing chamber up to 8 rpm. Supporting frames and operating platform designed in carbon steel. Includes technical documentation.

Stock# UG6276 Used vertical disc agitator/dissolver by Test SA (PL) type MP-11/1000Ex. Machine can work on 1000 l mixing pans and is equipped with disc agitator. Driven by motor 11 kW, 1440 rpm. Working rotation of agitator adjusted in range from 0-1000 rpm. Mechanical rising and lowering of agitator up to height 1250 mm. Dimensions: H 3180 mm x W 800 mm x L 1200 mm. Ex proof design - ExII2GcIIBT3. Includes technical documentation. New 2014. Mixing pan not included.

Stock# U2293-1 Used stainless steel contact parts horizontal hammer mill by Pallmann (Germany) type PHM 600-350. Mill has internal dimensions of milling chamber L 600 mm x W 350 mm. Top of milling chamber is manually rised. At the bottom mill has a discharge outlet through the screen. At the top of milling chamber there is installed static knife for grinding of product. Rotor has diameter 500 mm x width 345 mm. On the rotor there are 24 rows with hammers, each row consist of 4 hammers. Total number of hammers is 96. Rotor and hammers are designed in non-corrosive steel. Rotor is belt driven by el. motor 75 kW, 2975 rpm, 380/660 V, 50 hz. Mill has side feeding inlet with dimensions 350 mm x 265 mm. Product is moved into milling chamber through three screws. Screws are driven by el. motor 0.55 kW, 2800 rpm, 220/380V, 50 hz and varispeed gearbox with manual adjustment of outgoing rotatio ...

Stock number: U2293-2 Used carbon steel grinding/refining mill by Pallmann (Germany) model PR8. Mill has bolted rotor with diameter 795 mm and stator with diameter 800 mm. Belt driven by el. motor 100 kW, 1480 rpm, 380 V, 50 hz. Manual adjustment of gap between milling plates. Mill has mounted 5 nozzles for feeding gas or liquid inside the milling chamber. Front door bolted with central feeding inlet through feeding chute. Bottom discharge.

Stock number: U2110-1 Used decanter centrifuge by KHD HUMBOLD WEDAG type S3-2, designed in stainless steel AISI 304. Machine has bowl with internal diameter of scroll 610 mm and is driven by 37 kW electric motor. Maximum rotation speed of bowl 2050 rpm. Unit also is equipped with hydraulic pump and is installed on carbon steel frame. Machine had been designed for work on waste waters. With machine are included spare carbon steel bowl, gearbox and electric motor. Not included control panel and documentation.

Stock number: UG5830 Used chamber filter press by FILTRI DIEMME model GIGANTE 1500. Frame type 1500 mm x 1500 mm /90. Press has 85 pp plates with bottom feeding inlet. Filtration surface about 321 m2. Press is equipped with control panel, Willet sludge pump designed for work on pressure 10 bar, polymer dosing system, cake washing system, photocell safety system. Plates designed for work on pressure up to 15 bar. Closing pressure 385 bar. Dimensions: length 10 m x width 2 m x height 2 m. Reported output up to 30 m3 of sludge per hour.

Auction-ID: A3-46198-3361

Auction-ID: A1-48031-68

With Piusi pump and hand gun. Auction-ID: A1-48031-66

Content unknown Auction-ID: A1-48031-77

Powered by petrol engine, including JCB breaker. Auction-ID: A1-48031-101

- Power group powered by diesel engine. - With pump and fuel nozzle Auction-ID: A1-48031-87

With pump and fuel nozzle Auction-ID: A1-48031-67

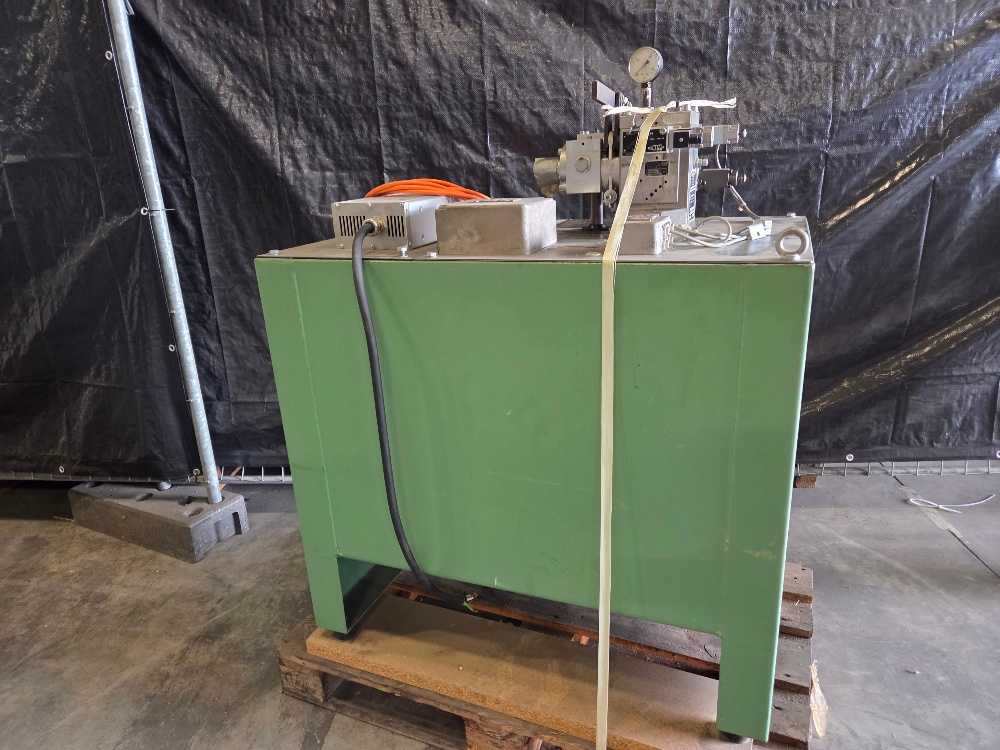

- Includes: - 1 x OLEOMEC hydraulic power unit: 3 KW-1430 rpm motor, maximum pressure 100 Bars. - 1 x OLEOMEC hydraulic power unit: 4 KW-2850 rpm motor, maximum pressure 100 Bars. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. Auction-ID: A7-48426-58

1500l FPA water tanks are equipped with the following as standard: - Inlet opening with a diameter of 32.5 cm, closed with a steel cover with a rubber gasket - Baffles to prevent water from splashing during transport - Runoff stump - FPA tanks: they are made of steel and galvanized according to EN 1461. Auction-ID: A1-48257-6010

1500l FPA water tanks are equipped with the following as standard: - Inlet opening with a diameter of 32.5 cm, closed with a steel cover with a rubber gasket - Baffles to prevent water from splashing during transport - Runoff stump - FPA tanks: they are made of steel and galvanized according to EN 1461. Auction-ID: A1-48257-6006

FPA water tanks are equipped as standard with: - Inlet opening with a diameter of 32.5 cm, closed with a steel cover with a rubber gasket - Baffles to prevent water from splashing during transport - Runoff stump - FPA tanks: they are made of steel and galvanized according to EN 1461. Auction-ID: A1-48257-6005

1500l FPA water tanks are equipped with the following as standard: - Inlet opening with a diameter of 32.5 cm, closed with a steel cover with a rubber gasket - Baffles to prevent water from splashing during transport - Runoff stump - FPA tanks: they are made of steel and galvanized according to EN 1461. Auction-ID: A1-48257-6008

1500l FPA water tanks are equipped with the following as standard: - Inlet opening with a diameter of 32.5 cm, closed with a steel cover with a rubber gasket - Baffles to prevent water from splashing during transport - Runoff stump - FPA tanks: they are made of steel and galvanized according to EN 1461. Auction-ID: A1-48257-6009

1500l FPA water tanks are equipped with the following as standard: - Inlet opening with a diameter of 32.5 cm, closed with a steel cover with a rubber gasket - Baffles to prevent water from splashing during transport - Runoff stump - FPA tanks: they are made of steel and galvanized according to EN 1461. Auction-ID: A1-48257-6007

Auction-ID: A7-48385-24

Diesel, capacity 220 lt, never used Overall dimensions: 900 x 700 x 700 mm Weight: 30 kg Auction-ID: A7-48339-261
