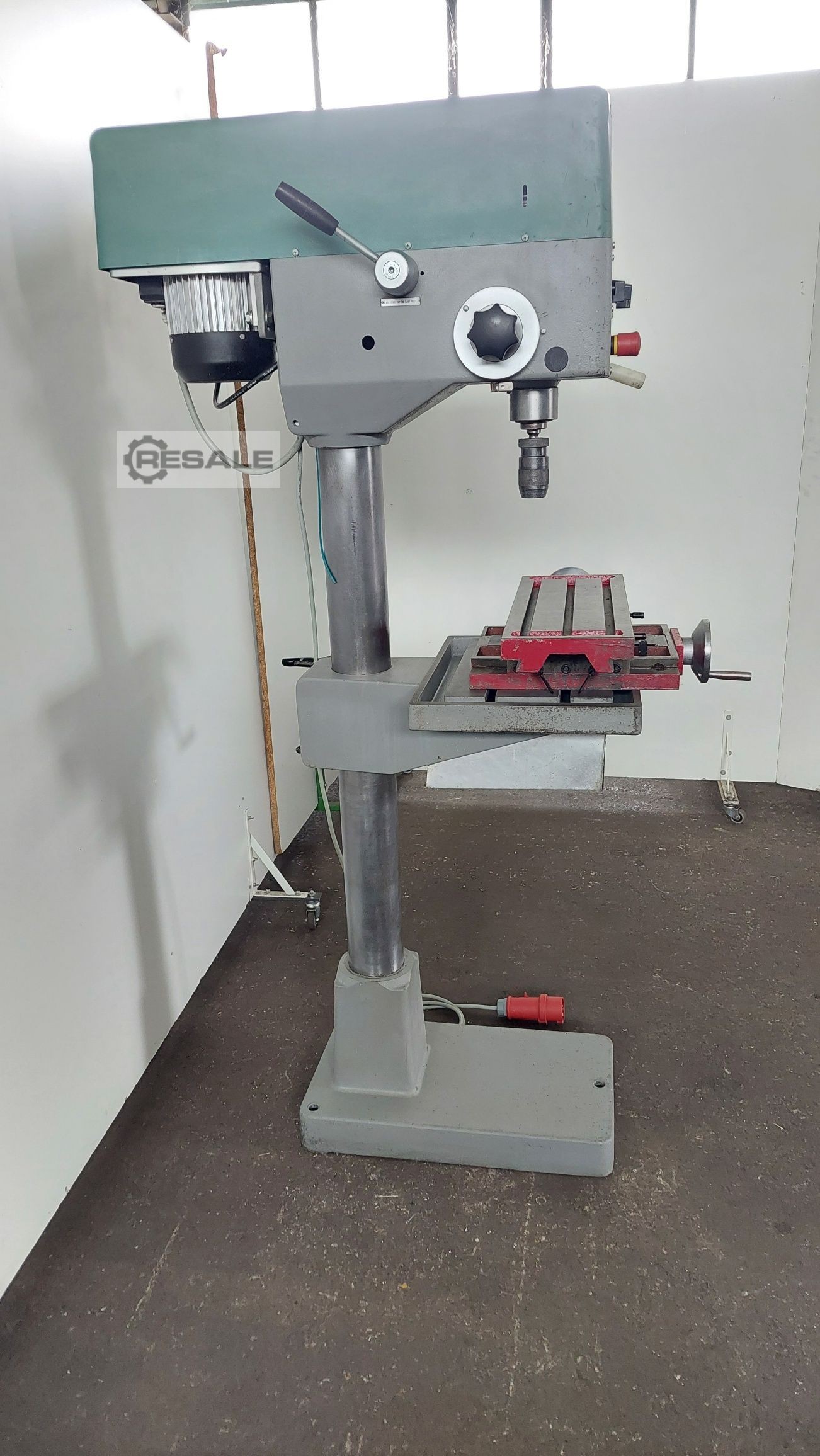

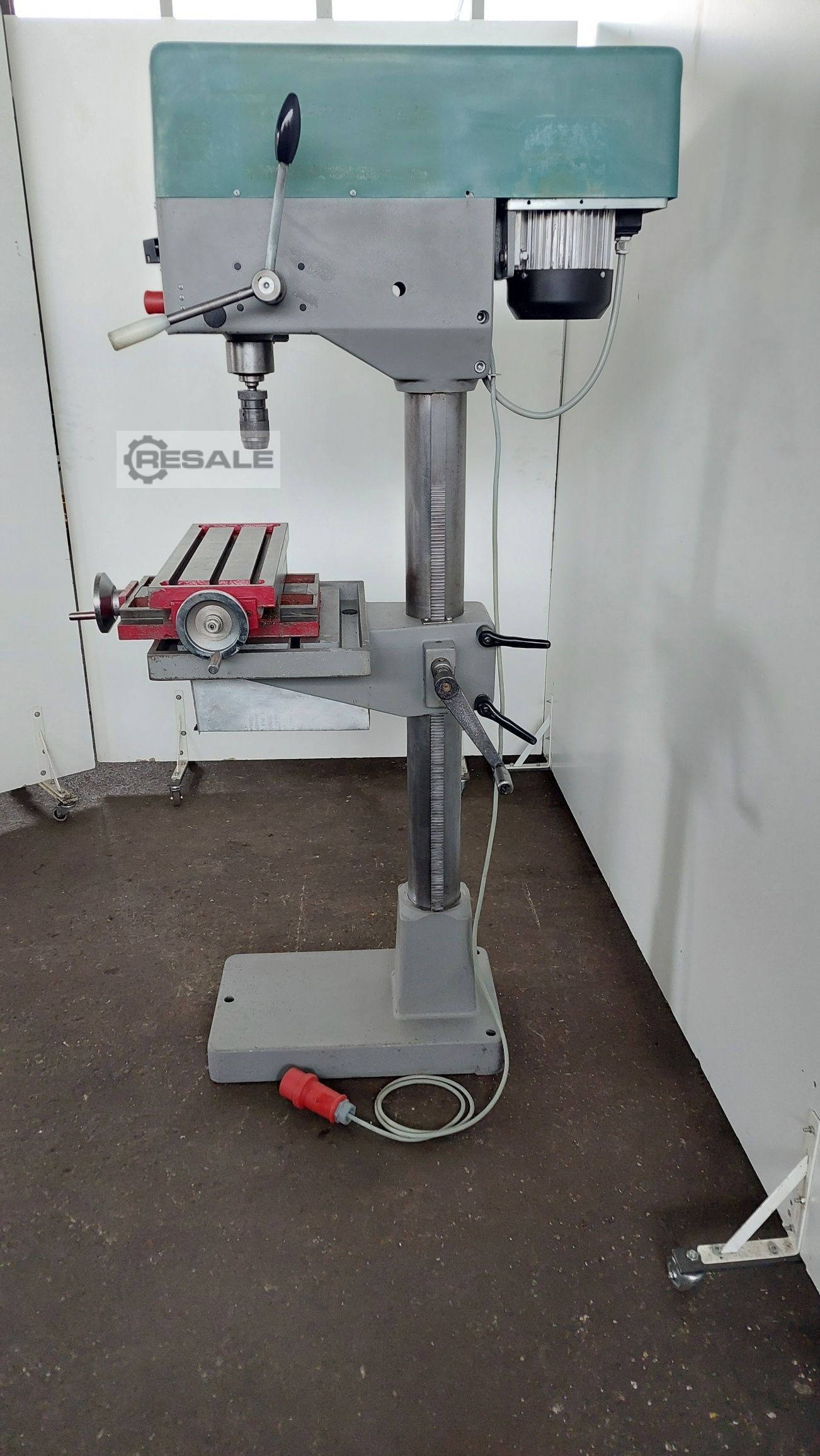

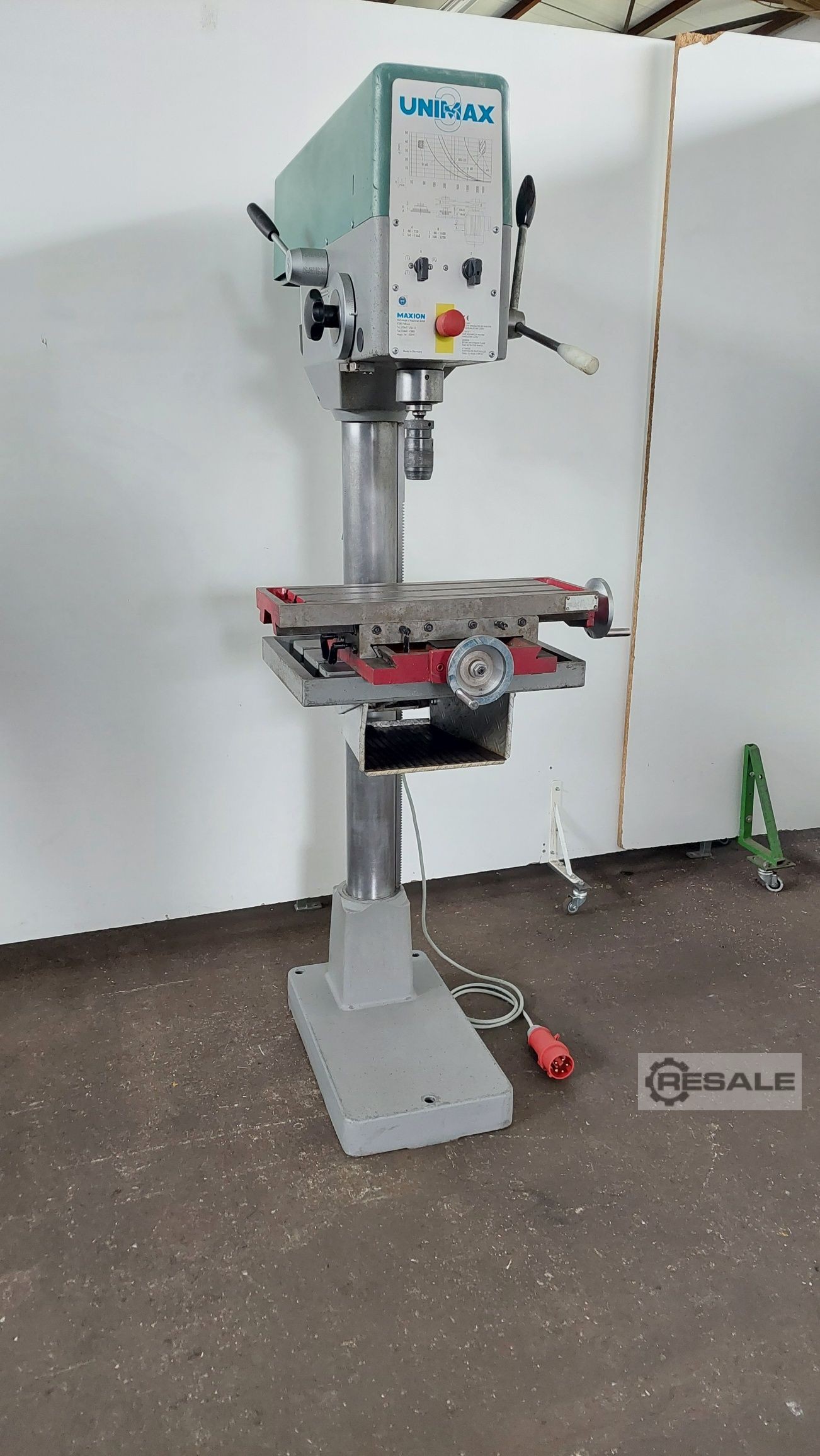

High Performance Drilling Machines MAXION UNIMAX 3
metal working machines / boring mills and machining centers / High Performance Drilling Machines
Offer 26119 Technical data: - Drilling performance in steel ST 60 30 mm - Drilling spindle holder MK 3 - Drilling spindle stroke 125 mm - Drilling spindle speeds infinitely variable 80 - 3200 rpm - Tapping option by reverse / counterclockwise rotation up to M 20 - Projection 260 mm - Max. distance ...
Manufacturer: MAXION
Model:UNIMAX 3
Type of machine: High Performance Drilling Machines
item-No.: 169362843
Quantity: 1
Date: 20.04.2026
Year of manufacture: 2005
Location:
Germany
63322 Rödermark
Price:
Seller-item-No.:Lg.-Nr. 26119
Offer 26119
Technical data:
- Drilling performance in steel ST 60 30 mm
- Drilling spindle holder MK 3
- Drilling spindle stroke 125 mm
- Drilling spindle speeds infinitely variable 80 - 3200 rpm
- Tapping option by reverse / counterclockwise rotation up to M 20
- Projection 260 mm
- Max. distance table - drilling spindle 825 mm

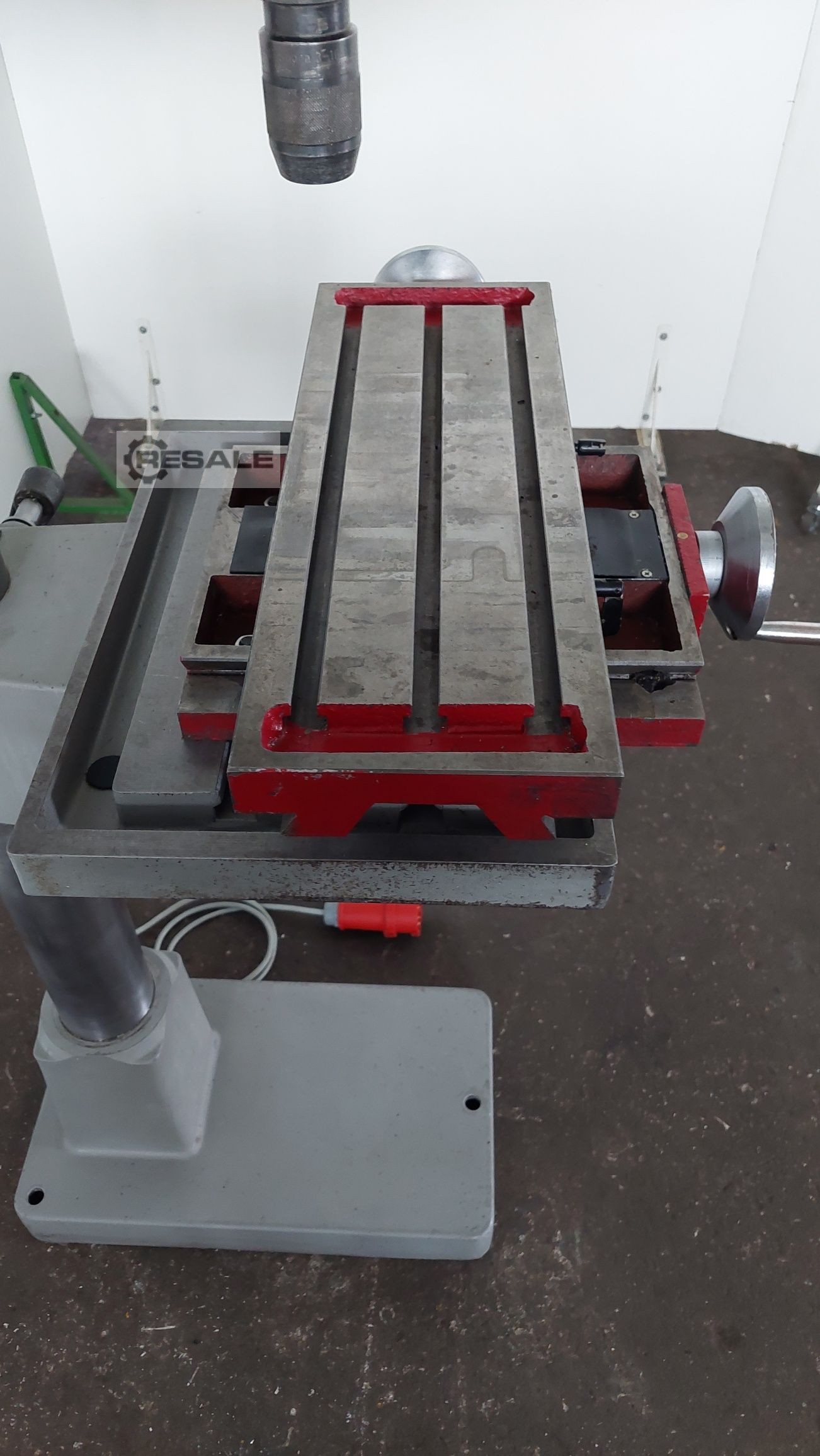

- Table with 2 T-slots 500 x 360 mm
- Height adjustable via rack with hand crank
- Drive 400 V / 0.8 / 1.5 kW
- Space requirement approx. W 500 x H 1900 x D 950 mm
- Weight approx. 230 kg
- Cross table with handwheels
Technical data:
- Drilling performance in steel ST 60 30 mm
- Drilling spindle holder MK 3
- Drilling spindle stroke 125 mm
- Drilling spindle speeds infinitely variable 80 - 3200 rpm
- Tapping option by reverse / counterclockwise rotation up to M 20
- Projection 260 mm
- Max. distance table - drilling spindle 825 mm
- Table with 2 T-slots 500 x 360 mm
- Height adjustable via rack with hand crank
- Drive 400 V / 0.8 / 1.5 kW
- Space requirement approx. W 500 x H 1900 x D 950 mm
- Weight approx. 230 kg
- Cross table with handwheels
