other textile machines used for sale (241)

1 BRÜCKNER open width belt relax dryer type OR-SR-24/5-0, year 2006, working width 240 cm, 5 gas heated fields

1 UNITECH stenter type Redevo, year 2014, width 220 cm, 6 fields, gas heating, combined pin and clip horizontal chain, BIANCO finishing padder, MAHLO weft streigthener

1 KAPPA pinking machine type 41L, cutting width 410 mm, machine supplied with 3 cutting knives: 1 serrated knife with 4 mm gauge serration installed, 1 serrated knife with 4 mm gauge serration spare, 1 flat straight knife, table size 900 mm x 435 mm, manual actuation

1 HOZA (Germany) pinking machine type EZM 60 (Zigzag cutting), knife width 600 mm, electrically actuated, year 2019, laser for cutting line indication, machine controlled per PLC, knife with 4 mm serration gauge, up to 30 cuts per minute, 3 x 380 V, 50 Hz,

1 KAPPA pinking machine type 51N (Zigzag cutting), knife width 500 mm, power driven swatch and sample cutting machine, serrated knife with 4 mm serration gauge, year 2022, precise and accurate thanks to mechanical movement of the cutting board (turn wheel), exchange of knife is effortless and fast, motor 1,5 kW (2 HP)

1 LOCK INSPECTION SYSTEMS tunnel metal detector type Garmentcheck MET 30+, year 2000

Manufacturer: Brueckner Model: Power-Predry HDVB3 CF 20/2 Year of Manufacture: 2016 Application: Thermal treatment of flat textile webs Working Width: 600 mm min. to 2000 mm max. Web Speed: 2.5 m/min min. to 50 m/min max. Drive Side: Right Operating Side: Right Number of Drying Fields: 2 Field Lengths - Infeed conveyor belt: 2.4 m - Infeed tower: 0.7 m - Drying fields: 1.6 m (with 1 heating and ventilation section) - Outfeed tower: 0.7 m Ventilation and Heating - Ventilation System: Classic-Flow with adjustable flaps for upper and lower airflow - Heating Medium: Gas - Circulation Temperature: 75 to 150 degrees C - Exhaust Air Volume: max. 6000 m3/h Electrical and Safety Data - Operating Voltage: 400 V AC, plus/minus 5%, 50 Hz - Control Voltage: 230 V AC, 50 Hz / 24 V DC - Signal Voltage: 24 V DC - Noise Emission: equivalent continuous sound level at workstation, A-weighted: ...

Manufacturer: Rieter Model: Scragg DCS1200 Type: Texturizing Machine Year of manufacture: 1990 General renovation: 2012 Condition: Used Quantity available: 2 machines TECHNICAL SPECIFICATIONS - 216 spindles - Oiling device - Air jets for intermingling - Yarn brake sensors and cutters - Take up tube: 285 mm x 67 mm inner bull nosed Find more here - / Contact us at -

Manufacturer: Guidici Model: TG20 Super 4 Type: Texturizing Machine Year of manufacture: 1990 Condition: Used TECHNICAL SPECIFICATIONS - 288 spindles - Oiling device - Air jets for intermingling - Yarn brake sensors and cutters - Take up tube: 285 mm and 230 mm Find more here - / Contact us at -

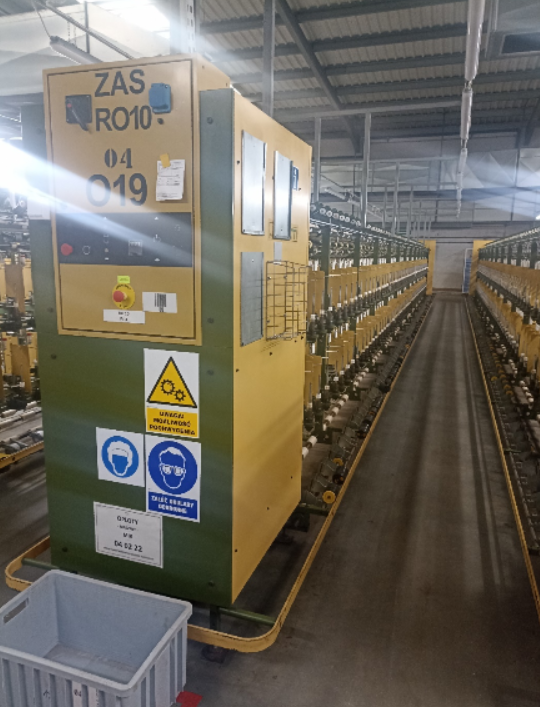

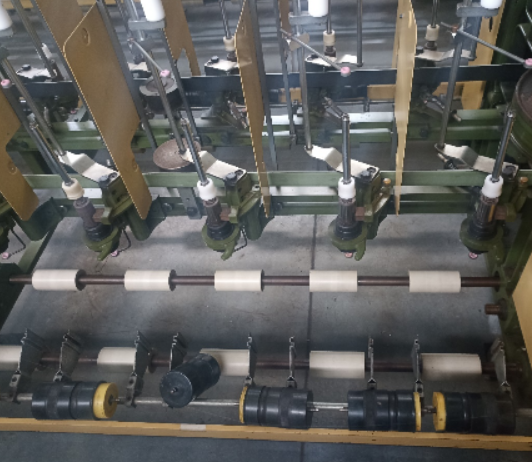

Manufacturer: Ratti Model: R331 Type: Double Covering Machine Year of manufacture: 1990 Condition: Used Quantity available: 2 machines TECHNICAL SPECIFICATIONS - 240 spindles - Take up: 120 bobbins, 197 x 47 mm, inner diameter 44 mm Find more here - / Contact us at -

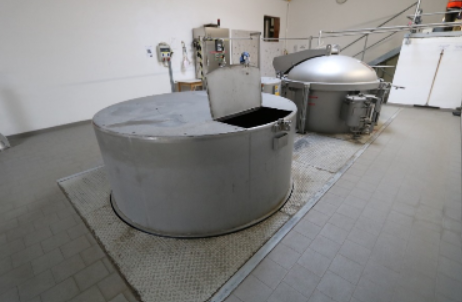

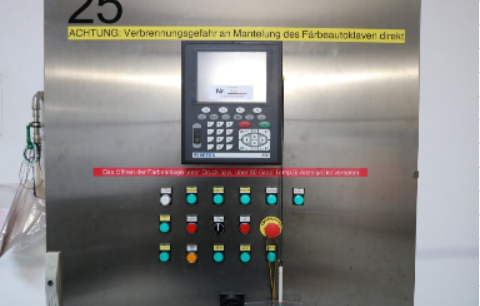

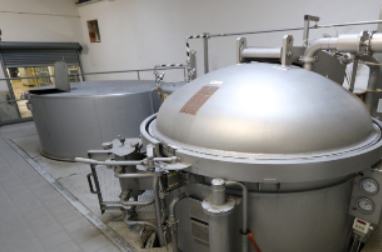

Manufacturer: LAIP Model: 198-HT Type: High Temperature Yarn Dyeing Machine Year of manufacture: 2008 Condition: Used, was working before dismantling TECHNICAL SPECIFICATIONS - Package diameter range: 1760 to 3000 mm - 2 sets of carriers, each set with 2 carriers - Spindles for 21 cm diameter packages - 64 bobbins per level - Total PES dyeing capacity: 1,300 kg - Control system: 777 Setex controller - Designed for synthetic yarns, primarily PES (polyester Find more here - / Contact us at -

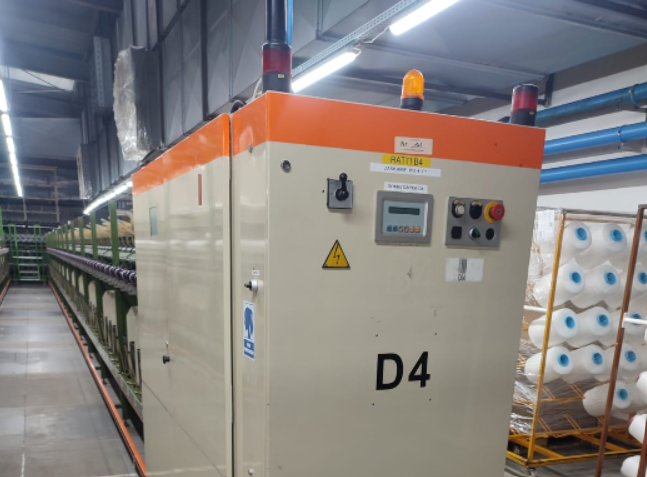

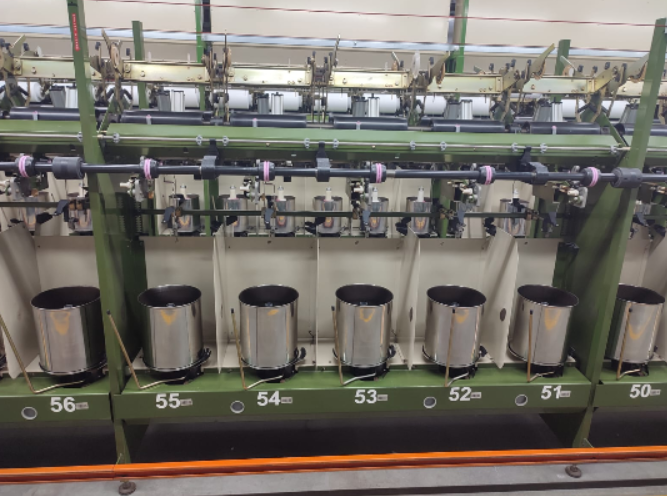

Manufacturer: Ratti Model: R325N12012 NT220 Type: Covering Machine Year of manufacture: 1998 Condition: Used TECHNICAL SPECIFICATIONS - 120 spindles - Cylinder diameter: 225 mm - Take up tube: 285 mm Find more here - / Contact us at -

Manufacturer: Klieverik Model:TC151 / 3500 Year of Manufacturer: 2000 Type of Machine:Calender Working width: 3,500 mm - Machine is dismantled and stored in warehouse - Machine is without Oil heating boiler - Machine is without electrical control system Find more here - / Contact us at -

Carding Machine - Manufacturer: Spinnbau - Year of Manufacture : 2012 - Working width: 2.500 mm Setup: - Card Feeder - Weighing Scale - Breast Cylinder 2x Worker / Stripper - 1x Transfer Roller - Main Cylinder 6x Worker / Stripper - 1x Take-off Roller Cross Lapper - Manufacturer: Autefa - Model: CL3000 - Year of Manufacture : 2012 - Working width: Input: 2.500mm - Output: 2.500 mm - max. Speed: 100 m/min Including: - All Control Cabinets - Control Panel with HMI Find more here - / Contact us at -

Manufacturer: Automatex Model: CBF Year of Manufacture: 2008 Technical Specifications: - Working width: 2.500 mm - RPM: 1200 - Needle Density: 2x 460 N/m - Needles: 5000 N/m - Stroke: 60 mm - Needle boards: 1 set (two boards) Find more here - / Contact us at -

Manufacturer: Trützschler Model: ZNM-D Year of Manufacture: 2011 Technical Specifications : - Working width: 3.600mm - Cutting positions: 3 double cuts Additional information: - Machine is WITHOUT Control System! Find more here - / Contact us at -

Manufacturer: Texnology Model: MASCOTT-Plus-25-30-CRZ-1 Year of Manufacture: 2010 Specifications: - Working width: Feeding: 2.5 m; Exit: 3.5 m - Speed: 70 m/min Additional information: - Includes control system, cabinet and panel Find more here - / Contact us at -

A complete thermobonding nonwoven production line is available for sale as one full package. Feeding Unit - Manufacturer: Trutzschler - Year: 1995 - Setup: 3-way bale opener, 8-chamber multimixer, Trutzschler FBK 536 Carding Machine - Manufacturer: Spinnbau Bremen - Year: 1995 - Working width: 2,300 mm - Setup: 2x doffer, 3 random rollers - Speed: 10 to 100 m/min Calendar - Manufacturer: Ramisch Kleinewefers - Year: 1995 - Working width: 2,300 mm - Setup: 2 hot cylinders with water cooling system Winding Unit - Manufacturer: Spinnbau Bremen - Year: 1995 - Working width: 2,300 mm - Setup: Automatic winding, automatic cutting, automatic roll change Oil Heating Section - Type 1: Natural gas heating system, manufacturer BT Boiler, max. temperature 280 degrees C, hot oil system - Type 2: Electric resistance heating, manufacturer AURA Included with the Line - All control cabinets a ...

Manufacturers and Models: - Tima Tec - Varioroll Type 418 - PLEVA - RF110-AF120 - Erhardt + Leimer - CN 4007 - Menzel - S104413 Technical Data - Working width: 3,300 mm - Years of Manufacture: 1999 to 2005 Line Components - Unwinder - Dancer with sliding plate storage - Surface smoother - Microwave sensor - Metal detector - 4 coating chambers - Inspection stand - Winder Find more here - / Contact us at -

A complete air-jet loom with integrated Jacquard machine is available for sale. The system is built on a Dornier air-jet base loom fitted with a Staubli Jacquard machine. The complete unit was integrated and delivered by Vaupe. Base loom manufacturer: Dornier Jacquard machine manufacturer: Staubli System integrator: Vaupel - Model: EWM 90-180 E - Year of manufacture: December 2003 - Supply voltage: 400 V - 50 Hz - CE certified: Yes - Made in Germany Find more here - / Contact us at -

Manufacturer: FEHRER Model: NL9/S Year of Manufacture: 1991 Specifications: - Stroke: 60mm / max. 1,200 RPM - Needles: 1x 3,000 N/m - Working width: max. 2,600 mm Including: - Control Panel - Control Cabinet Find more here - / Contact us at -

Manufacturer: Ratti Year of Manufacture: 2008 Model: R 325N DT Number of spindles: 90 Number of sections: 10 Spindle type: Tangential belt drive Max. mechanical spindle speed: 9,000 min-1 Max. technological spindle speed: 7,000 min-1 Spindle pitch: 366 mm Whorl diameter: 52/64 mm Twisting range: 40 to 1,869 / 32 to 1,519 tpm Yarn count range: 167 to 560 dtex Feed Package - Type: Bobbin - Max. length: 290 mm - Max. diameter: 250 mm - Volume (smooth yarn): 4,500 g Winding - Number of winding decks: 1 - Traverse gear: UDR - Max. bobbin diameter: 250 mm - Traverse stroke: 250 mm - Tube diameter x length: 69 x 290 mm - Max. mechanical winding speed: 200 m/min - Max. technological winding speed: 170 m/min Machine Frame Dimensions - Number of sections: 10 - Length per section: 1,830 mm - Total machine length: 19,000 mm - Machine width: 860 mm - Max. height: 1,756 mm - Height t ...

Manufacturer: Ratti Year of Manufacture: 2008 Model: R 325 NF Spindles per section: 14 Number of sections: 1 to 12 Total number of spindles: 126 Spindle type: DT 140 Spindle drive: Tangential belt Max. mechanical spindle speed: 14,000 min-1 Min. mechanical spindle speed: 6,000 min-1 Max. technological spindle speed: 12,000 min-1 Whorl diameter: 35 mm Twisting range: 59 to 2,777 tpm Yarn count range: 33 to 330 dtex Feed Package - Type: Cops (ring-spun bobbin) - Feed package length: 420 mm Winding - Number of winding decks: 1 - Traverse gear: UDR - Max. bobbin diameter: 250 mm - Traverse stroke: 200 mm - Tube diameter x length: 56 x 230 mm - Max. mechanical winding speed: 150 m/min - Max. technological winding speed: 140 m/min Machine Frame Dimensions - Length per section: 1,830 mm - Total machine length: 2,554 + (1,830 x n) mm - Machine width: 860 mm - Max. height: 2,1 ...

Manufacturer: Lezzeni Model: CLV/C 200 Year of Manufacture: 2008 CE certified: Yes Number of spindles: 32 Spindle pitch: 200 mm Max. twisting spindle speed: 5,000 RPM Max. stroke (hub): 420 mm Spindle type: HZ 55/21 Electrical Data - Mains supply: 400 V - 3 phase - 50 Hz - Nominal current draw: 12 A - Main motor current: 12 A Motors and Drive - Spindle drive motor: 4 kW - 4 pole - 230/400 V - 50 Hz - Stroke control motor: 0.09 kW - 6 pole - 230/400 V - 50 Hz - Spindle drive belt: TFL 7S 8460 x 40 mm - Yarn brake type: 003353 Machine Dimensions - Machine length: 5,405 mm - Machine width: 1,800 mm - Machine depth: 700 mm Find more here - / Contact us at -

A low-tension fabric inspection and shearing machine Unglaub with newly covered transport rollers is available. Working width: 1900mm, material thickness range: 0.2mm-3mm, max. inspection material speed: 40m/min, inspection material groups: I-IV. Documentation available. An on-site inspection is possible.

Manufacturer: Klieverik Type: GTC-3400 Year of Manufacture: 2005 CE Mark: Yes Working width: 3,400 mm Voltage: 400 V / 50 Hz Current: 27 A Find more here - / Contact us at -

The machine is in full working order. On-site viewing is available.

Rated power: 20 kW, voltage: 400 V AC, includes a silo. On-site viewing is available, the system is fully operational.

A Klieverik roll-to-roll sublimation and transfer printing calendar is available. Media width: 3200mm, max. working width: 3200mm, heating cylinder diameter: 195mm, max. temperature: 220°C, process speed: 1.25m/min, production capacity: approx. 135m²/h. Machine dimensions X/Y/Z: approx. 4150mm/1200mm/1550mm, weight: approx. 1900kg. Documentation available. An on-site inspection is possible.
