CNC Micro-Milling Machining Center PRIMACON PFM 24 mediMill
other machines and plants / other machines and plants
A Primacon CNC high-precision vertical machining center for machining small workpieces in the medical sector is available. Axis travels X/Y/Z: 240mm/240mm/240mm, table dimensions X/Y: 350mm/300mm, max. table load: 60kg, spindle speed: 40000rpm, tool holder: HSK-25, feed rate: 12m/min, rapid ...
Manufacturer: PRIMACON
Model:PFM 24 mediMill
Type of machine: CNC Micro-Milling Machining Center
item-No.: 169944790
Quantity: 1
Date: 01.08.2026
Year of manufacture: 2009
Location:
Germany
Deutschland
Price:
Machine in stock:No
Seller-item-No.:INNO32087

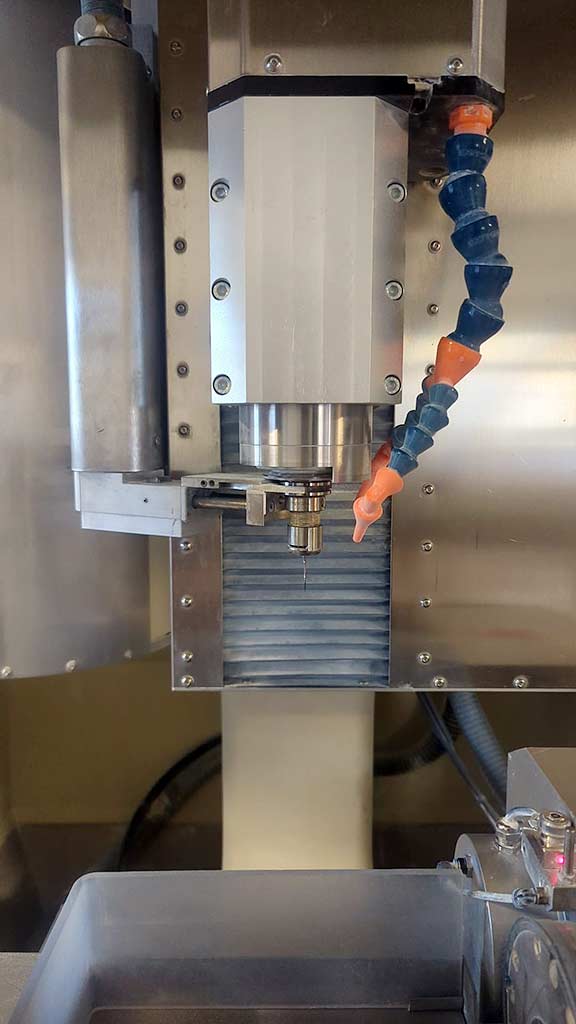

A Primacon CNC high-precision vertical machining center for machining
small workpieces in the medical sector is available. Axis travels
X/Y/Z: 240mm/240mm/240mm, table dimensions X/Y: 350mm/300mm, max.
table load: 60kg, spindle speed: 40000rpm, tool holder: HSK-25, feed
rate: 12m/min, rapid traverse: 12m/min, positioning accuracy:
+/-0.001mm, repeatability: +/-0.0005mm. Machine dimensions X/Y/Z:
approx. 1900mm/1600mm/2200mm, weight: approx. 1000kg, control:

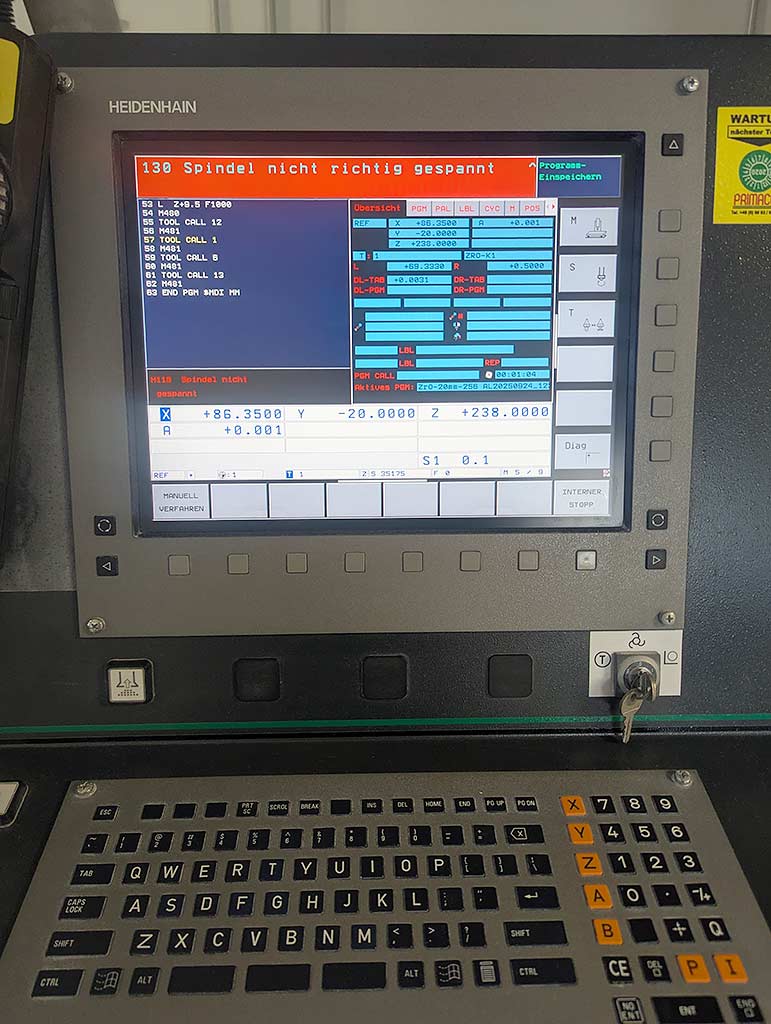

Heidenhain. The spindle is occasionally not clamped correctly during

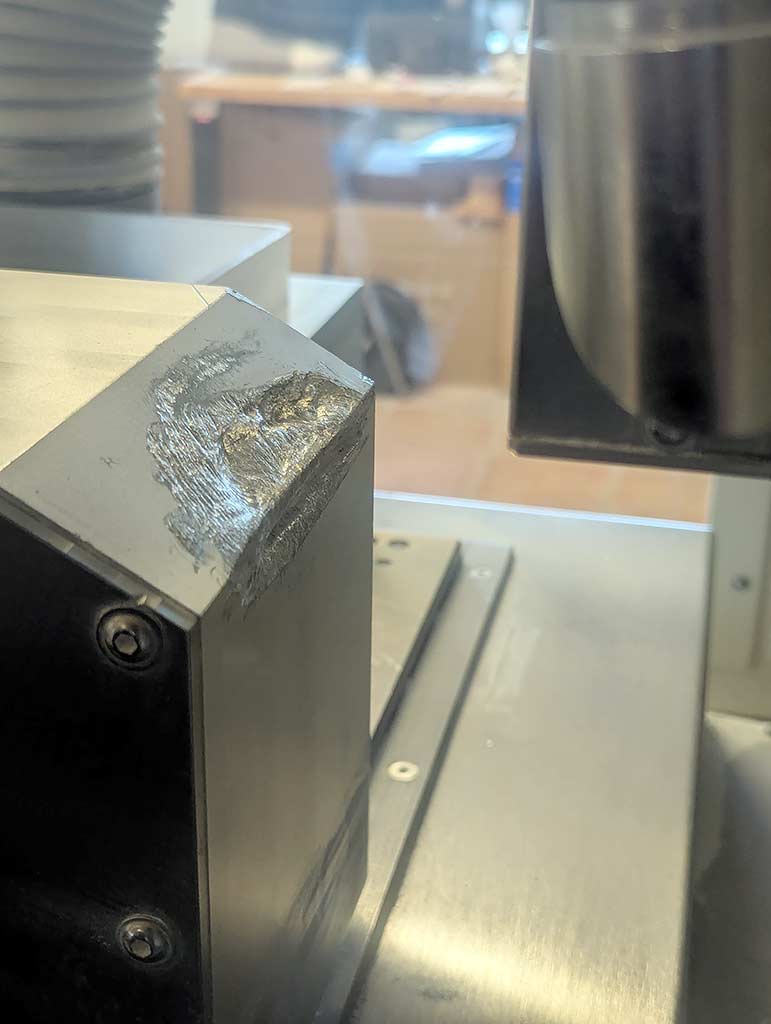

the tool change process. The ventilation hose of the Z-axis rubs
against the A-axis block. Documentation available. An on-site
inspection is possible.
