Specifications:

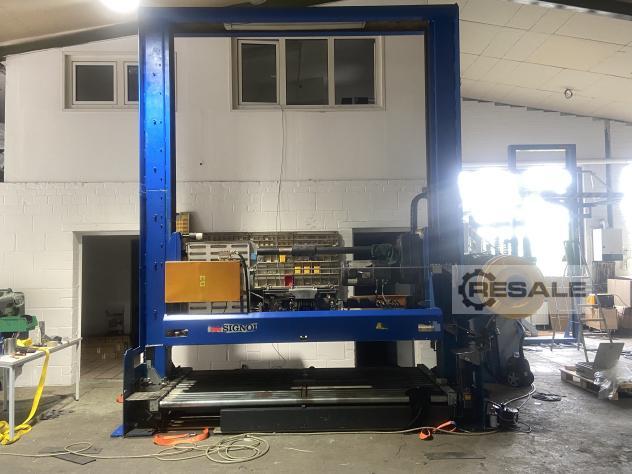

SIGNODE Pallet strapping machine with press type MODULEX 3
•Turnstile
• Strapping without/with pressing pressure (for corrugated board
industry)
• With MD strapping head 9 -13 mm 2000 Newton
• Belt guide system with 4 belt channels (3 bayonets),
of which 1 movable strapping head
• AutoFeed belt circulation system
• Quick-change belt dispenser
• Strapping possible without bayonets (strapping is done by the
fixed strap guides)
Electrical connection data:
3-pole circuit breaker 25A
Control: Siemens PLC S7 controller
Connection voltage: 415V, 3Ph, N, PE, 50 Hz
Power consumption: 7 kW
Control voltage: 24 V, DC
Transport weight: approx. 7,000
Belt guide systems:
Rated operating current: 20 A
Number of guided tours: 4
Number of bayonets: 4
Belt spacing: 425 / 610 / 795 mm
Parcel dimensions
Width: max. 2,500 mm (free flow) ; min. 500 mm
Height: max. 2,550mm ; min. 610 mm (pressed)
Pressure plate: Pressing force: 3 - 48 kN
Pressure plate guide: parallel by means of rack and pinion on bolted
steel running profiles
Roller conveyor
Usable width: 2,680mm
Mounting 15717451 length: 1,473 rrm
Installation height: 380 nm (standard)
Speed: 14.2 (standard)
Pallet positioning: automatic
Pallet centering: automatic
Lifting turnstile: modular
Strapping heads
Type: MD Head
Number: 3, of which 1 head can be moved;
Belt Conveyor/
Retraction speed: 1.6 m/sec.
Clamping force: 0 - 1,200 N
Strap qualities: Polyester / Polypropylene
The press is currently dismantled.
On request, we can install the press at the customer's site.
The press has no centering
