machines and plants for process engineering used for sale (7,611)

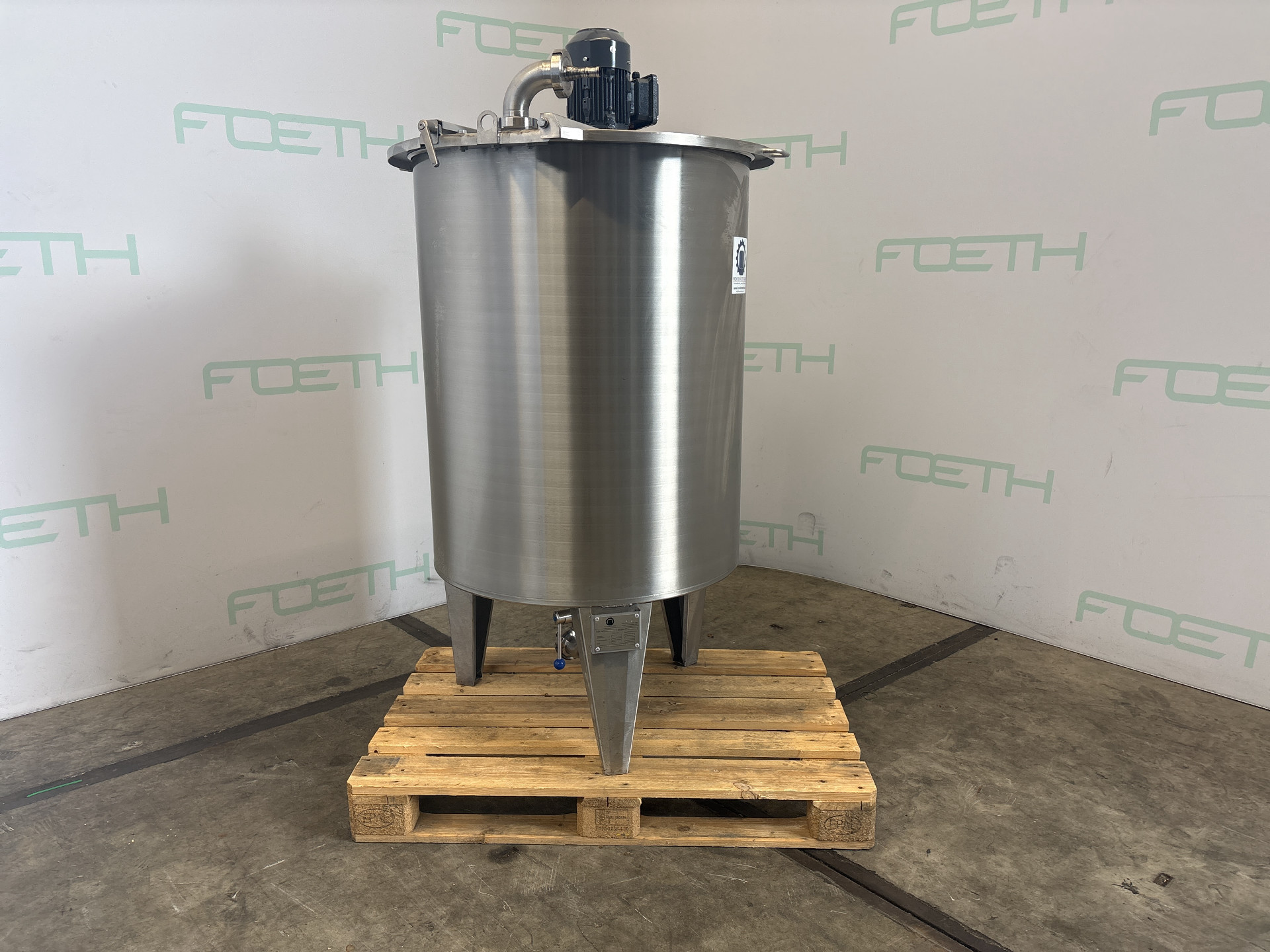

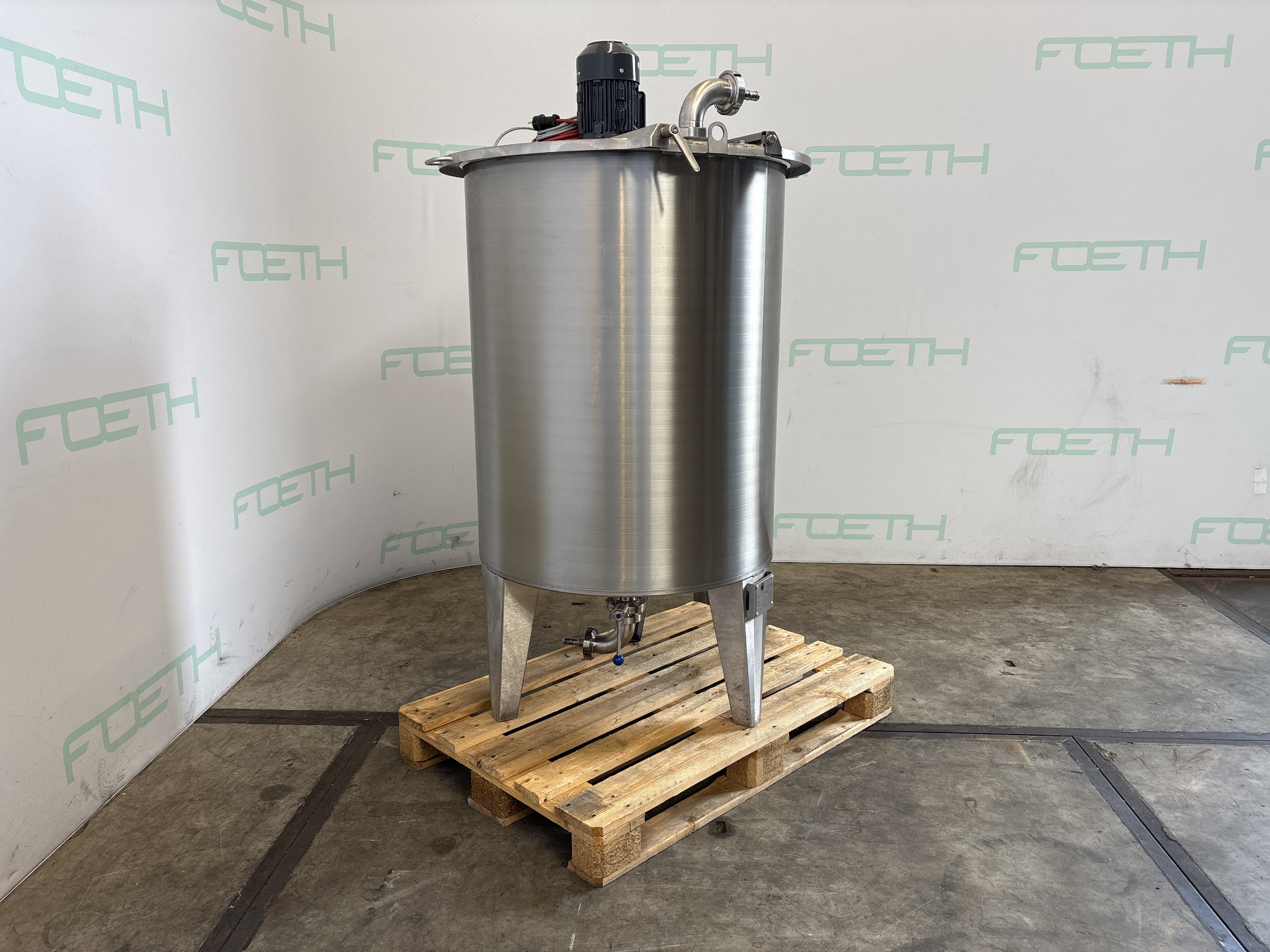

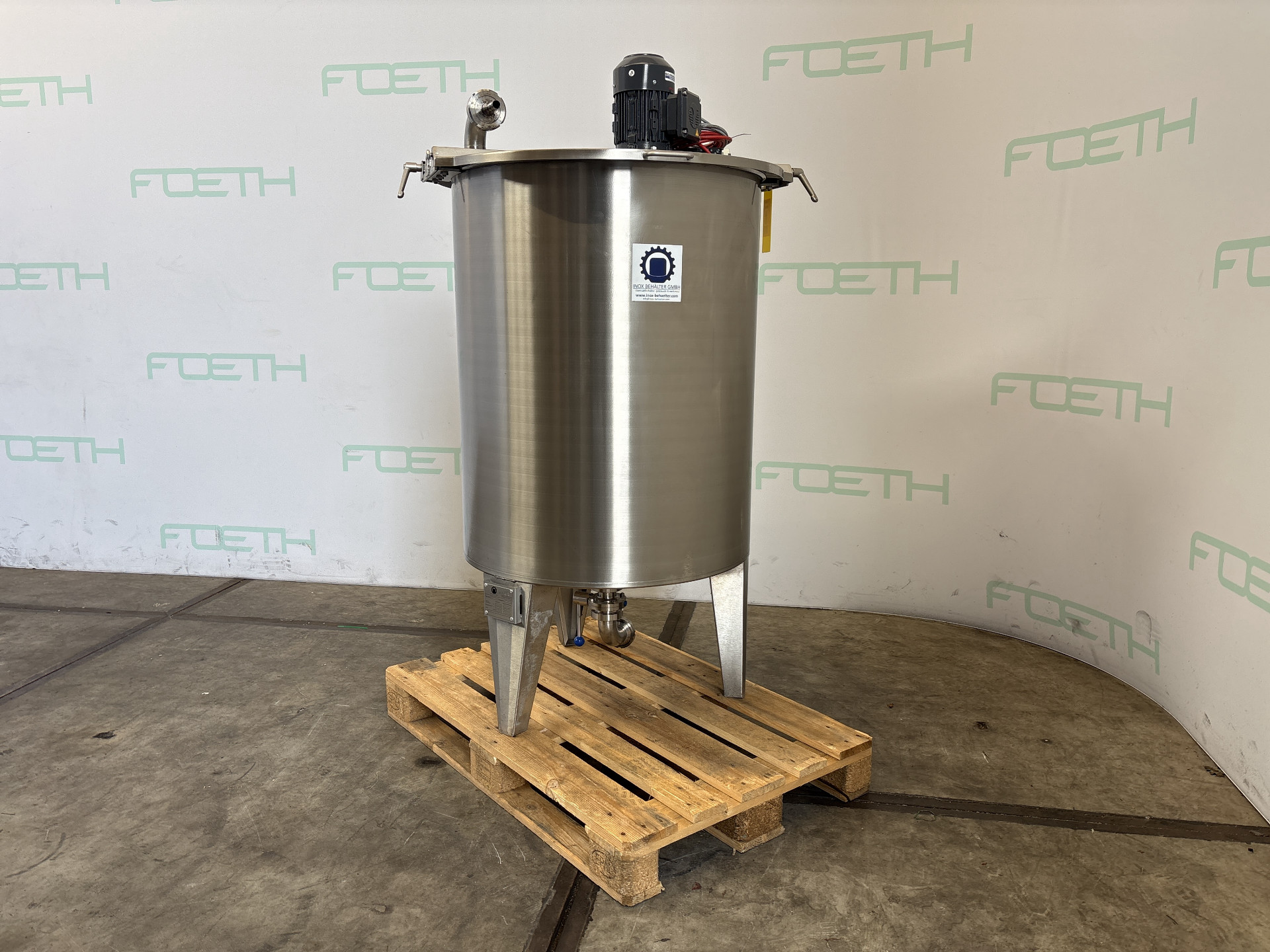

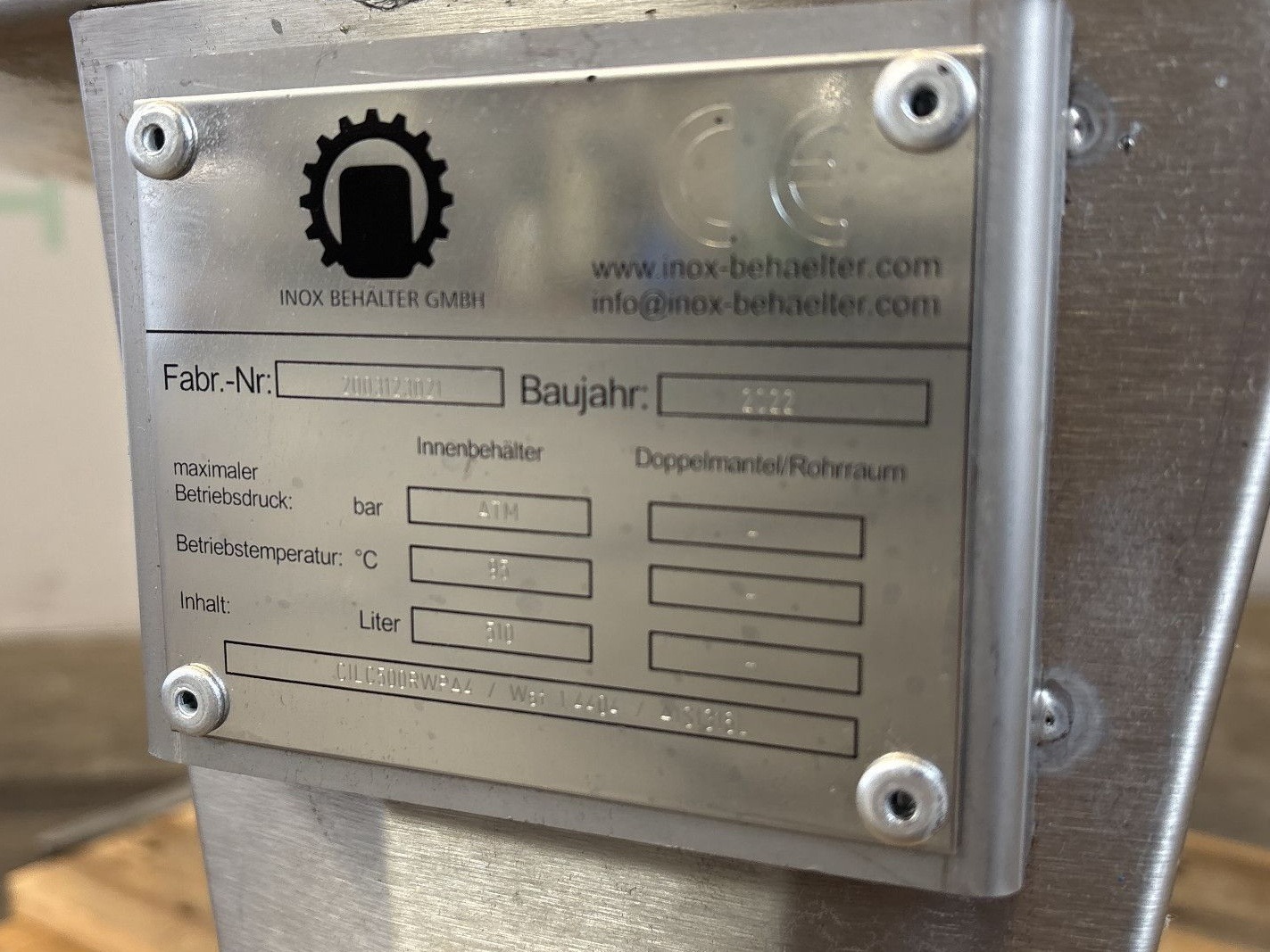

General SKU317Y655 LocationBarneveld CEcheck Main Features MaterialStainless steel Volume510 Ltr. Motor0.75 KW Specified Features - Stirring vessel Closed stirring vesselcheck Capacity510 l Vessel sizesø 800 x 1000 mm Hollow bottomcheck Flat top sidecheck With covercheck Manhole(800 x 300 mm half shape top cover) Top connectionsDN50 OutletDN50 Max. temperature95°C With propellor stirrercheck Motor0,75 kW, 230 V, 1415 rpm Speed mixing shaft1415 rpm MaterialStainless steel 1.4404 (316L) General MakeINOX Behälter GmbH Serial2003123021 Type510 l Year of construction2022 Mounted on legscheck With switchcheck Floorspace1,0 x 1,0 m Total height1,8 m Weight120 kg Extra Specifications- frequency inverter attached to power cableOils & fatPaints & coatingsStirring vesselsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemica ...

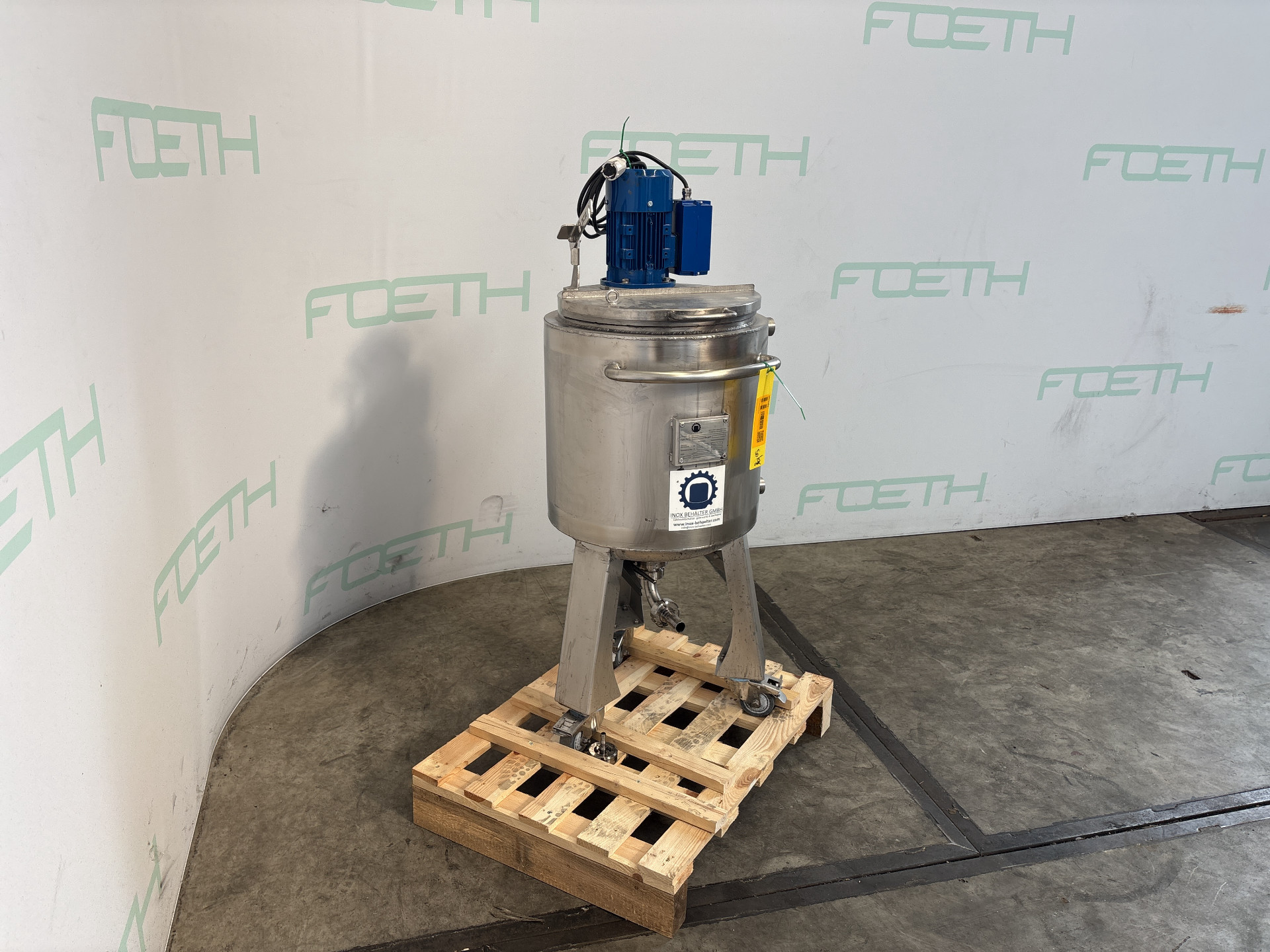

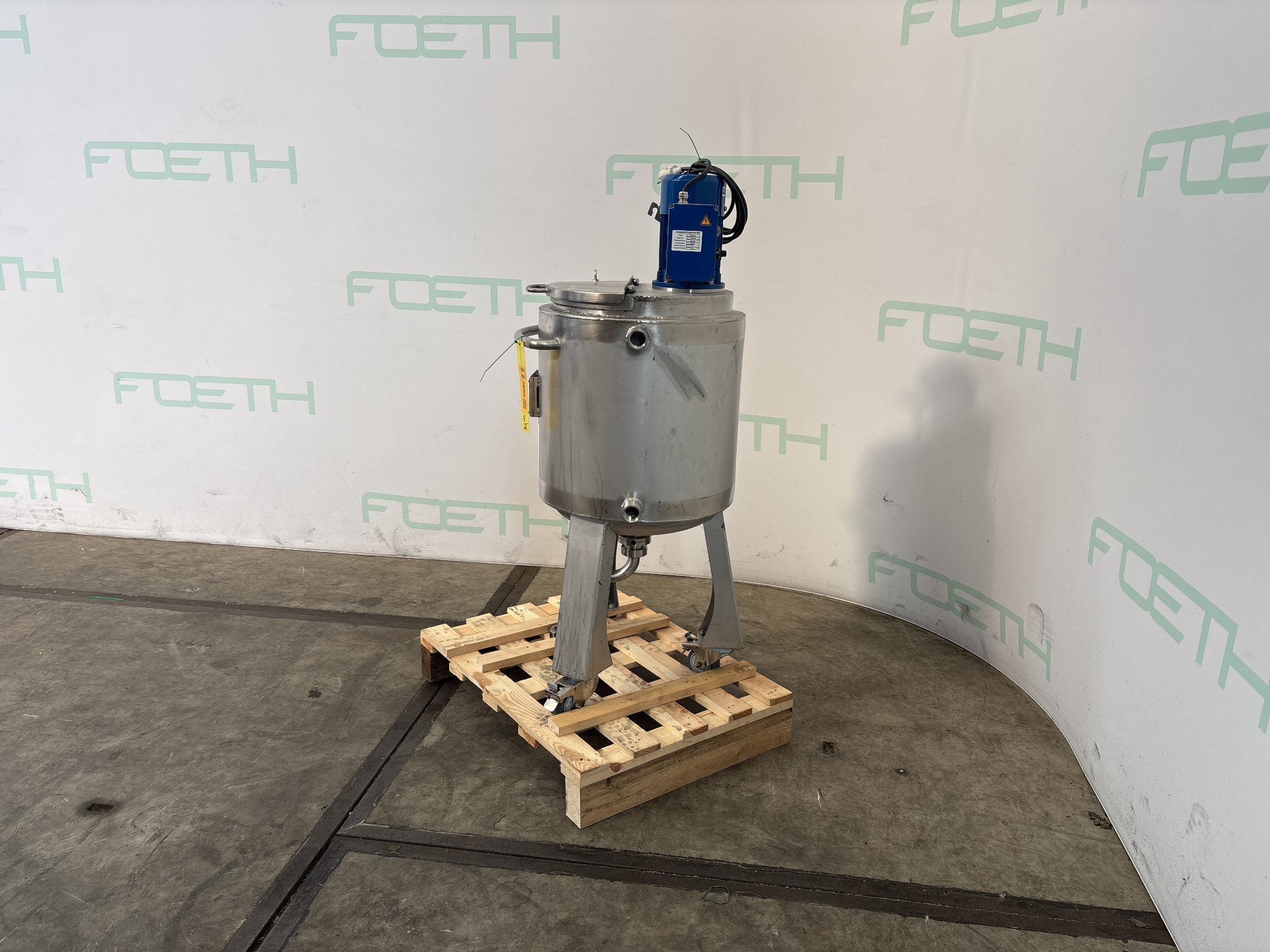

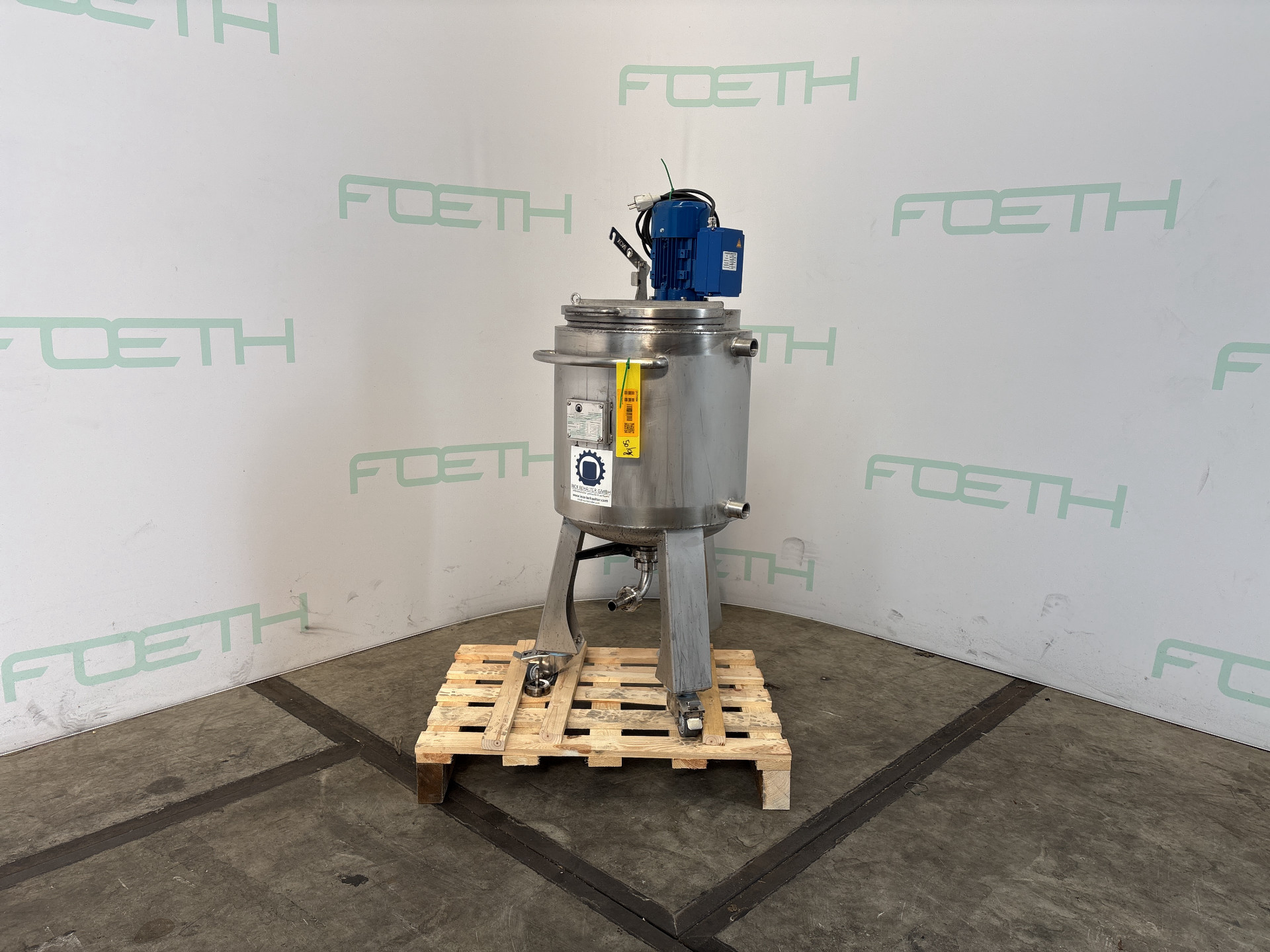

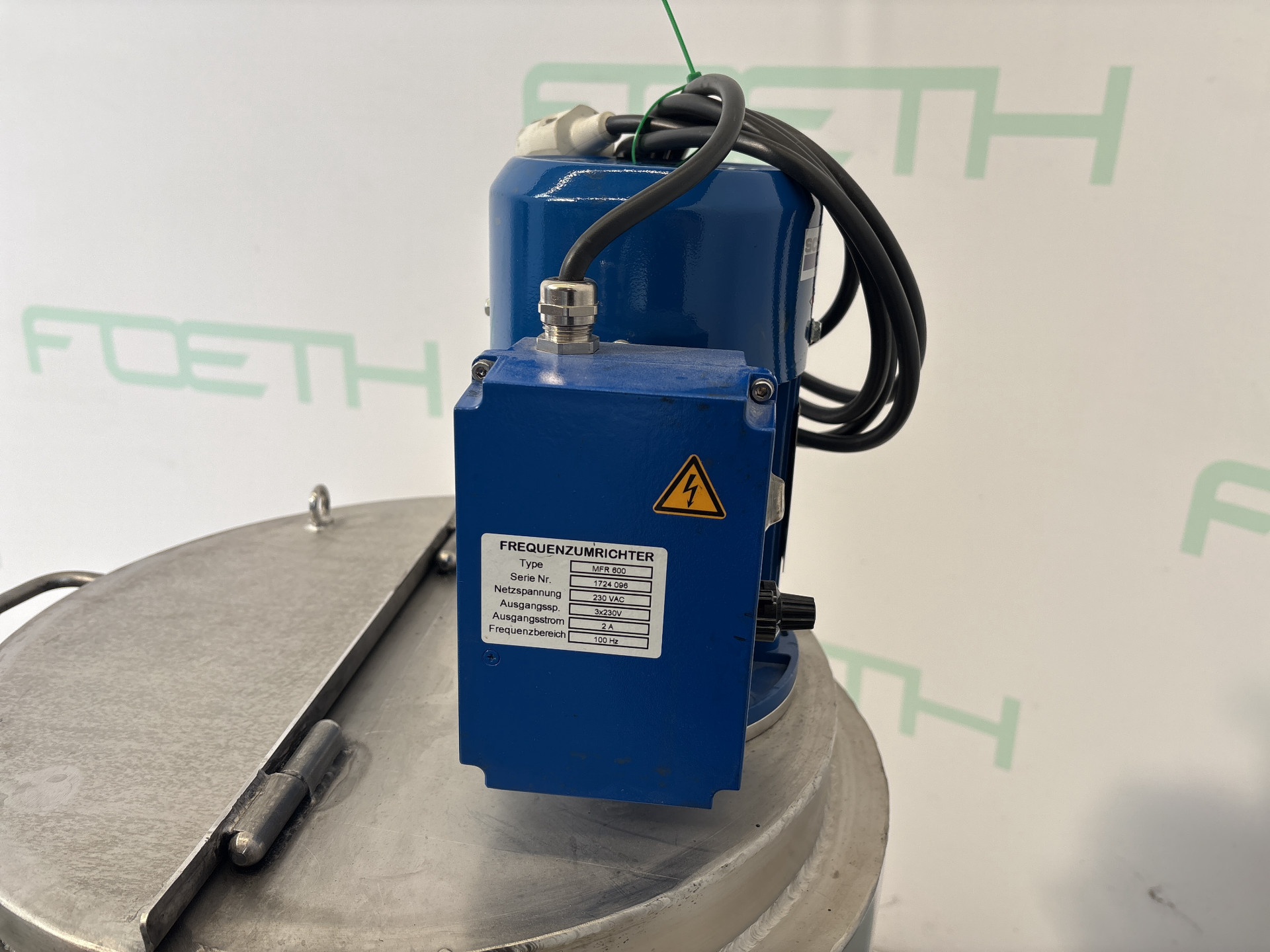

General SKU317Y656 LocationBarneveld MakeINOX Behälter GmbH Serial20003121096 Pressure Working pressure jacket0.5 Bar Main Features MaterialStainless steel Volume50 Ltr. Motor0.37 KW Specified Features - Stirring vessel Closed stirring vesselcheck Capacity50 l Vessel sizesDia 450 x 500 mm Dished bottomcheck With covercheck Manholecheck OutletDN25 With jacketcheck Max. temperature80°C With propellor stirrercheck Motor0,37 kW (230 V, 1375 rpm) Speed mixing shaft2750 rpm MaterialStainless steel 1.4404 (316L) With jacketcheck General Type50 l Year of construction2018 Year of construction2018 Mounted on legscheck With switchcheck Floorspace0,6 x 0,6 m Total height1,2 m Weight75 kg Extra Specifications- frequency inverter on motor) Technical specs Extra information- frequency regelaar op motor (max 100 Hz)Oils & fatPaints & coatingsStirring vesselsPowder ...

General SKU317Y657 MakeQVF Engineering GmbH Type100 l Pressure Working pressure1 Bar Vacuum possiblecheck Working pressure jacket0.5 Bar Main Features MaterialGlass Volume100 Ltr. Motor0.55 KW Specified Features - Stirring vessel Closed stirring vesselcheck Capacity100 l (160 l) Vessel sizesDia 500 x 1500 mm Dished bottomcheck With covercheck Top connections(4x) OutletDN50 With jacketcheck Max. temperature200 deg C With turbo stirrercheck Motor0,55 kW (380 V, 1400 rpm) Speed mixing shaft0 - 450 rpm MaterialGlass With jacketcheck General Mounted on legscheck LocationBarneveld With switchcheck Floorspace0,95 x 0,95 m Total height2,75 m Weight350 kg CEcheck ATEX designedcheckOils & fatPaints & coatingsStirring vesselsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalBiotechnologyRubberAgrochemicalsSpicesPlastic & ...

General SKU378X940 MakeAlfa Laval LocationBarneveld TypeAQ4L-FM Pressure Working pressure10 Bar Main Features MaterialStainless steel Surface154.5 m2 Size length2040 mm Sizes width480 mm Specified Features - Plate heat exchanger Plate heat exchangerscheck Heating surface154,5 m² Capacity140 Ltr. Number of platens311 Plate sizes1500x370 mm ConnectionsDN100 Max. temperature100 °C Capacity2600 kW MaterialStainless steel 1.4301 (304) General No.30125-29313 Year of construction2021 Floorspace2,1x0,5 m Total height1,9 m Weight1150 kgOils & fatPaints & coatingsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalBiotechnologyRubberPlate heat exchangersAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesSolventsDetergent & surf.Other pharmaceuticsCosmeticsFood additivesSugarLubricants & oleoDairyAnimal feedOt ...

General SKU383W1174 MakeHermann Waldner LocationBarneveld Pressure Working pressure3 Bar Vacuum possiblecheck Working pressure jacket4 Bar Main Features MaterialStainless steel Volume170 Ltr. Motor0.55 KW Specified Features - Stainless Steel Reactor Reactorcheck Capacity170 l. Vessel sizesDia. 800x850 mm Dished bottomcheck Top connectionscheck OutletDN30 With jacketcheck Max. temperature150°C With propellor stirrercheck Motor0,55 kW (380 V, 950 rpm (Ex)) Speed mixing shaft0-390 rpm With jacketcheck Stainless Steel Reactors MaterialStainless steel 1.4571 (316Ti) General No.1389 Year of construction1983 Mounted on legsand wheels With switchcheck Floorspace1,00x1,20 m Total height2,40 m Weight500 kg Extra SpecificationsCoating inside, outside off jacket 1.4306Oils & fatPaints & coatingsPowdered foodsGeneric medicinesOintmentsStainless Steel ReactorsTea,  ...

General SKU397X1139 MakeDSP LocationBarneveld CEcheck TypeEF600 Pressure Working pressure7 Bar Vacuum possiblecheck Working pressure jacket5.5 Bar Main Features MaterialStainless steel Surface0.29 m2 Cake220 Ltr. Specified Features - Nutsche filter Nutsche filtercheck Filter surface0,29 m² Capacity220 l. Vessel sizesø 750 x 670 mm Plate sizesø 610 mm Vessel can be tiltedcheck Top connections3x DN25 Liquid outletDN50 With jacket(16 l.) Max. temperature— 10 / 200 °C MaterialStainless steel 1.4301 (304) With jacketcheck General No.439 Year of construction2005 Mounted on wheelscheck Floorspace1,10 x 1,10 m Total height1,75 m Weight560 kgGeneric medicinesFine chemicalsOther chemicalBiotechnologyAgrochemicalsNutsche filtersOther pharmaceuticsCosmeticsBiopharmaceuticalAPIDSPIndustries > Pharmaceutical > Generic medicinesIndustries > Chemical > Fine chemic ...

General SKU440X1395 LocationBarneveld MakeAlpine TypeA 250 CW Main Features Motor35 KW Inlet diameter130 mm Specified Features - Pin Mill Pin disc millcheck 2 Driven rotorscheck Rotor sizeø 250 x 20 mm Grinding room sizeø 1200 x 170 mm Number of pins on house side:140 Number of pins on door side:68 Pin diameter7 mm With hoppercheck InletDia 130 mm and Dia. 125 mm (2x) Feeding with rotating valve(cryogenic screw) Motor22 kW (400V, 2945 rpm): 11 kW (380V, 2910 rpm) Speed2945 and 2910 rpm Pin Mills MaterialStainless steel 1.4305 (303), Stainless steel 1.4552 General No.84491.1 Year of construction1993 Floor space2x1,2 m Total height2 m Weight1250 kg Extra Specificationswith:- cryogenic jacket screw: Messen griesheim, type:120sb/sp2000. year:1993 Total lengt: 3500 mm. width:350 , height: 500 mm. Motor with variator: 1,1kW (400V, 1455rpm). Screw speed: 35-215 r ...

General SKU440X1396 LocationBarneveld MakePallmann TypePP-6 Material Rotor materialAlloy special steel 1.7386 (X11CrMo9-1) Main Features MaterialMild steel Motor30 KW Specified Features - Miscellaneous Mill Turbo cone millcheck 2 Driven rotorscheck Rotor sizeø 600 x 120 mm: ø 700 x 300 mm Grinding room sizeø 760 x 200 mm House jacketed2x Inlet190 x190 mm Feeding with vibro feeder(Not available but possible) Motor11 kW, 380 V, ± 1480 rpm: and 30kW, 380 V, 1465 rpm Speed11 kW: ± 1480 rpm. and 30 kW: ± 2051 rpm With jacketcheck Miscellaneous Mills MaterialSilicon steel 1.5023 General No.0768759 Year of construction1968 Floor space1,2 x 1,4 m Total height1,4 m Weight900 kg Extra Specificationssold :as is: , this means no mechanical test of mill and motors.Priced attractively due to the age of the unitPaints & coatingsPowdered foodsGeneric medicinesStarchAg ...

General SKU440X1406 LocationBarneveld CEcheck MakeBusch Pressure Working pressure0.06 Bar Vacuum possiblecheck Main Features MaterialMild steel Volume160000 Ltr. Motor3 KW Specified Features - Vacuum pump Pumpcheck Number of pumps:1 Capacity160 m³/hr With motor3 kW 400 V 1465 rpm Inlet25 mm Outlet45 mm MaterialMild steel General TypeMink MM 1324 AV Mach.No.D09007871 Year of construction2009 Floorspace1,1 x 0,5 m Total height1 m Weight200 kgOils & fatConsumer wastePaints & coatingsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalBiotechnologyRubberAgrochemicalsSpicesPlastic & polymersVacuum pumpsCatalysts & fillersFeed additivesOrganicsPaper & otherSolventsDetergent & surf.Other pharmaceuticsCosmeticsE-waste & metalFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeveragesD ...

General SKU440X1456 MakePallmann TypePP-6 No.0772828 Year of construction1972 Material Rotor materialAlloy special steel 1.7386 (X11CrMo9-1) Main Features MaterialMild steel Capacity30 KW Specified Features - Miscellaneous Mill Turbo cone millcheck 2 Driven rotorscheck Rotor sizeø 600 x 120 mm: ø 700 x 300 mm Grinding room sizeø 760 x 200 mm House jacketed2x Inlet190 x190 mm Feeding with vibro feeder(Not available but possible) Motor11 kW, 380 V, 1480 rpm and 30 kW, 380 V, 1480 rpm Speed11 kW: ± 1090 rpm and 30 kW: 1480 rpm With jacketcheck Miscellaneous Mills MaterialSilicon steel 1.5023 General LocationBarneveld Floor space1,2 x 1,4 m Total height1,4 m Weight750 Extra Specificationssold :as is: , this means no mechanical test of mill and motors.Priced attractively due to the age of the unit&:nbsp:Paints & coatingsPowdered foodsGeneric medicinesStarchAg ...

General SKUR1308 MakeAnhydro TypeSFP-59 (Spin Flash Dryer) No.E-866.219C Year of construction2006 Mounted on framecheck Main Features MaterialStainless steel Motor18.5 KW Inlet diameter400 mm Specified Features - Spray dryer Spray dryerSpin Flash Dryer Drying tower dia.800 mm Cylindrical height± 2200 mm OutletDN 315 Motor11 kW 380-400-415/660-690 Volt Evaporation capacity347 kg/h (water) Air heating (gas)check With fan(2x) Capacity1: 3154 m³/h: 2: 6000 m³/h Motor1: 11 kW: 2: 18,5 kW MaterialStainless steel 1.4301 (304) General LocationBarneveld Floorspace2,1x2,1 m Total height4,5 m Extra Specificationswith:- feed vat Ø1000 mm, motor: 11kW 1500 rpm,RECONDITIONEDPowdered foodsGeneric medicinesFine chemicalsStarchReconditionedBiotechnologyCatalysts & fillersFeed additivesCosmeticsDairySolid pharmaceuticsDyes & pigmentsAPISpray dryersMinerals & inorganicAnhydr ...

General SKU014F047 MakeMixaco Maschinenbau Neuenrade LocationBarneveld TypeCM-2000 D Main Features MaterialStainless steel Volume1600 Ltr. Motor90 KW Specified Features - Cold mixer Cold mixer:Container mixer: (1x) Capacity1600 Ltr, Useful capacity 800 Ltr Vessel sizesdia. 1500x750mm (brand new :OEM: vessel) With cover(jacketed) Outletdia. 300mm With motor90 KW, 380 Volt MaterialStainless steel 1.4301 (304) General No.22.856 Year of construction1993 With switchgear(as is) Floorspace3,2x1,8 M Total height3,0 M Weight10.000 KG Extra Specifications-- RECONDITIONED -- Technical specs Extra informationbrand new oem vesselPowdered foodsGeneric medicinesTea, herbs & coffeeReconditionedAgrochemicalsSpicesPlastic & polymersCatalysts & fillersDiscountDetergent & surf.Other pharmaceuticsCosmeticsSugarAnimal feedSolid pharmaceuticsDyes & pigmentsMinerals & inorganicCold mi ...

General SKU040Z162 MakeBrogli AG Allschwill TypeMH-2000 No.2931 Year of construction1989 LocationBarneveld Pressure Working pressure0.5 Bar Vacuum possiblecheck Main Features MaterialStainless steel Volume2000 Ltr. Motor21 KW Specified Features - Processing vessel Open stirring vessel:Vacuum processing vessel: (1x) Capacity2000 Ltr Vessel sizesdia. 1530x1100mm, Vessel WITHOUT jacket Dished bottomcheck Flat top sidewith mechanic lifting (2,2 LW, 380 Volt) With covercheck Outletdia. 90mm With anchor stirrer:scraper stirrer: Motor8,5/12,0 KW, 380 Volt With homogeniser(± 750/1500 Rpm) Motor18,0/21,0 KW MaterialStainless steel 1.4301 (304) With jacketcheck General With switchgearcheck Floorspace3,8x2,0 M Total height2,9 M Weight7000 KG Extra Specifications- Equipped with 2 spiral stirrers (:Helix:) -- RECONDITIONED -- Technical specs Extra informationVesse ...

General SKU053E227 MakeMixaco Maschinenbau Neuenrade LocationBarneveld TypeCM-1000 S Main Features MaterialStainless steel Volume800 Ltr. Motor37 KW Specified Features - Cold mixer Cold mixer:Container mixer: (1x) Capacitymax. 800 Ltr (useful capacity) Vessel sizesdia. 1450x1000mm (conical vessel) With covercheck Outletdia. 500mm With motor37,0 KW, 380/660 Volt With motor4,0 KW, 220/380 Volt :tilting motor: MaterialStainless steel With jacketcheck General No.22800 Year of construction1992 Mounted on framecheck With switchcheck Floorspace2,9x1,9 M Extra Specifications-- RECONDITIONED -- Technical specs Extra informationconical vesselPowdered foodsGeneric medicinesTea, herbs & coffeeReconditionedAgrochemicalsSpicesPlastic & polymersCatalysts & fillersDiscountDetergent & surf.Other pharmaceuticsCosmeticsSugarAnimal feedSolid pharmaceuticsDyes & pigmentsMinerals & ...

General SKU206Y009 LocationBarneveld CEcheck Main Features MaterialStainless steel Volume3750 Ltr. Motor37 KW Specified Features - Paddle dryer Paddle dryercheck Continuouscheck Capacitybruto: 3770 l. Trough sizesø 895 x 6000 mm Inlet250 x 250 mm Outlet470 x 230 mm With jacketcheck Motor37 kW 400 V 1475/219 rpm With jacketcheck General MakeVomm Milano Serial875A - 341/98 TypeTM/ES-900 L / Item ES1 Year of construction1998 Mounted on framecheck Floorspace6,6 x 1 m Total height2,1 m Extra SpecificationsWith a screw feeder / screw dosing unit with hopper: 680 × 680 × 680 mm: approx. 350 l: 2x blowers: heat exchanger.Powdered foodsGeneric medicinesPaddle dryersStarchBiotechnologyAgrochemicalsPlastic & polymersCatalysts & fillersFeed additivesOrganicsSugarAnimal feedSolid pharmaceuticsBiopharmaceuticalMinerals & inorganicVomm MilanoIndustries > Food & Feed > Powd ...

General SKU214W272 LocationBarneveld MakeQVF Glasstechnik TypeS-ROB45/300/SH/3SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface4.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface4,5m³ Tube capacity22 ltr Number of tubes:128 Tube diameter14 mm Tube length1000 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity53 ltr Shell diameter300 mm Shell length850 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150 2x Cover connectionsDN80 2x MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) General No.98087 Year of construction1998 Floorspace0,42x1,40m Total height0,42m Weight190kg Technical specs Extra ...

General SKU226Y113 LocationBarneveld CEcheck Dimensions Cake capacity71 Pressure Working pressure6 Bar Main Features MaterialStainless steel Pressure10 Bar Surface4.35 m2 Specified Features - Filterpress Filter presscheck Filter surface4,35 m² Number of platens12 Internal platen sizes500 x 500 mm External platen sizes630 x 630 mm Platen thickness60 mm and 90 mm Cake capacity71 l. Central inletDN50 Connectionscheck With hand valvescheck Hydraulic closingcheck With feeding pompcheck Capacity20 m³/h Motor9,2 kW 400 V 2885 rpm MaterialPolypropylene, Stainless steel 1.4404 (316L) General MakeStrassBurger Filter GmbH Serial012006726213 TypeW-MFP 630/1 E-E Year of construction2013 With switchgear(as is) Floorspace2,50 x 1,20 m Total height1,60 m Weight2000 kg Extra Specifications12 plates: 1 head plate, 5 membrane plates, 4 intermediate plates, 1 end plat ...

General SKU226Y114 MakeGFP Link GmbH SerialD14012 TypePilot Plant Evaporator Pressure Working pressure1 Bar Vacuum possiblecheck Main Features Capacity150 Ltr./Hr. Surface3.08 m2 Specified Features - Falling film evaporator Falling film evaporatorforced circulation batch evaporator Capacity25—75 kg/h: Condensor: 150 kg/h Number of stages:1 TypeVertical tube heat exchanger Year of construction2002 Heating surface3.08 m² Tube capacity16.78 l Shell capacity245.6 l Max. temperature150 °C With vapour evaporatorcheck TypeHeater + separator Capacity1400 l / 370 l (separators) With jacketcheck Max. temperature130 °C With pump6x MaterialStainless steel 1.4301 (304), Stainless steel 1.4435 (316L) With jacketcheck General Year of construction2002 LocationBarneveld With switchgear(as is) Floorspace3,63 x 2,18 m Total height6,5 m Weight2000 kg Extra Specifica ...

General SKU226Y115 LocationBarneveld CEcheck Pressure Vacuum possiblecheck Main Features MaterialStainless steel Volume600 Ltr. Surface2.4 m2 Specified Features - Tray dryer Tray dryercheck Stainless steel housingcheck Stainless steel trayscheck Heating surface6x 0,4 m² Drying chamber capacity600 l. Drying chamber sizes500 x 1120 x 680 mm Max. temperature-20°C/+150°C Number of trays6 Tray sizes400 x 1000 mm Distance between the trays100 mm With 1 doorcheck With vacuum pumpcheck Motor5,5 kW, 380 V., 1420 rpm MaterialStainless steel 1.4301 (304) General MakePerinox Serial05.107.41.1 TypeVTS Year of construction1993 revision 2005 Mounted on framecheck With switchgear(as is) Floorspace1,30 x 1,40 m Total height2,10 m Weight1450 kg Extra SpecificationsWith steam heating condenser,&:nbsp:Regloplas temperature control unit, type P140,&:nbsp:Siemens touchsc ...

General SKU226Y116 LocationBarneveld CEcheck Pressure Working pressure4 Bar Vacuum possiblecheck Working pressure jacket6 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume1200 Ltr. Motor35 KW Specified Features - Processing vessel Closed stirring vesselcheck Capacity400 l. (580 l.) Vessel sizesø 880 x 1320 mm Dished bottomcheck Dished top sidecheck With jacket45 l. Max. temperature140 °C, Jacket: 180 °C With paddle stirrerHydrolysis stirrer Motor4 kW Speed mixing shaft7—84 rpm With homogeniserConti-TDS Motor22 kW, 300—3600 rpm MaterialStainless steel 1.4404 (316L), Stainless steel 1.4435 (316L), Stainless steel 1.4571 (316Ti) With jacketcheck General MakeYstral SerialY-PS 638134 TypeYstral Process System Year of construction2009 With switchgear(as is) Floorspace5,40 x 5,00 m Total height3,60 m Weight7000 kg Extra Spe ...

General SKU226Y117 MakeKühner AG Serial967006.44 / 967006.20 TypeISF-1-W Main Features RefrigiratedYes MaterialStainless steel Specified Features - Incubator Number of compartments:1 Internal width930 mm Internal depth650 mm Internal height600 mm Electric heating1600 watts Number of doors:1 Motor1600 watts, 220-240 V. With cooling compressorcheck Motor220 V. General Mach.No.967006.44 /967006.20 Year of construction1996 LocationBarneveld With switchgear(as is) Floorspace1,28x0,77 m Total height0,70 m Weight400 kg Extra Specifications2x incubator shaker,&:nbsp:cool liquid R134aOils & fatPaints & coatingsGeneric medicinesOintmentsBiotechnologyFeed additivesOrganicsOther pharmaceuticsFood additivesDairyConfectionerySolid pharmaceuticsBeveragesDyes & pigmentsBiopharmaceuticalAPIIncubatorsKühner AGIndustries > Food & Feed > Oils & fatIndustries > Chemical > Paints  ...

General SKU226Y118 LocationBarneveld Main Features MaterialStainless steel Specified Features - Miscellaneous filter MaterialStainless steel 1.4404 (316L), Stainless steel 1.4571 (316Ti) General MakeGEA Wiegand Serial354320.90-1 Year of construction2015 Floor space3,19 x 1,27 m Total height1,92 m Weight800 Extra SpecificationsMain components—&:nbsp:One sanitary process/buffer tank (524 L, unpressurized, closed design, with cooling jacket, spray ball for CIP, DN200 hand-hole), with magnetic stirrer, 0,55kW, 400V, 369rpm— One closed-loop RO membrane unit, product-contact parts in stainless 1.4404— Feed pump, 200 µm edge-gap strainer, tube-bundle heat exchanger (loop cooler), one 3838 membrane housing, control and sampling valves, safety/relief valveFlow rates—&:nbsp:Feed pump (41P01): max 1,200 L/h (~1.2 m³/h at 55 bar)— Loop pump (01P01): max 15,000 L/hPressure  ...

General SKU226Y119 LocationBarneveld MakeBiospectra AG/ MBR bio process vessel Type75 liter No.2014-F1-2001.R Pressure Working pressure3.2 Bar Vacuum possiblecheck Working pressure jacket5 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume75 Ltr. Motor1.5 KW Specified Features - Bioreactor Reactorcheck Capacity75 l Vessel sizesDia. 250 x 900 mm Dished bottomcheck Top connectionscheck OutletDN25 With jacket( 11 l ) Max. temperature150°C With propellor stirrerRushton-turbine Motor1.5 kW (400V) With jacketcheck Bioreactors MaterialStainless steel 1.4435 (316L) General Year of construction2001 Floorspace1,2 x 0,9 m Total height2,2 m Weight500 kg Extra SpecificationsWith: Biospectra AG advanced Bioncontrol System, model: ABS-newMBR02 heat exhanger: alfa laval, 30bar, max 205/225°CGeneric medicinesFine chemicalsBiotechnologyAgroche ...

General SKU226Y120 LocationBarneveld MakeMBR Bio Reactor Pressure Working pressure3.2 Bar Vacuum possiblecheck Working pressure jacket5 Bar Vacuum possible jacketcheck Main Features MaterialStainless steel Volume450 Ltr. Motor5.5 KW Specified Features - Bioreactor Reactorcheck Capacity450 l. Vessel sizesDia. 500 x 1600 mm Top connectionscheck OutletDN35 With jacket( 29 l.) Max. temperature+150°C With propellor stirrerRushton-turbine Motor5,5 kW (400 V, 1440 rpm) With jacketcheck Bioreactors MaterialStainless steel 1.4435 (316L) General Serial8066 / 1099-F-2000.M Type450 l. Year of construction2000 Floorspace3,3 x 1,2 m Total height3 m Weight2500 kg Extra SpecificationsWIth:- Reactor: 100 l., Dia. 350x850 mm pressure vessel: 3,2bar,&:nbsp: jacket 5 bar. Max. temp.: -10/+150°C, outlet DN35,stirrer: Rushton-turbine, 0,75kW, 400V- 2x heat exhanger: alfa la ...

General SKU226Y121 LocationBarneveld Main Features MaterialStainless steel Capacity1200 Ltr./Hr. Motor6.5 KW Specified Features - Separator Separatorcheck Capacity65 l. Motor6,5 kW (400 V, 2920 rpm) With variable speed drive(frequency converter) Max. rotor speed9631 rpm InletDN25 Liquid outletDN25 Solids outletDN63,5 Mounted on stainl. steel framecheck MaterialStainless steel 1.4435 (316L) General MakeAlfa Laval Serial4111046 TypeBTPX 205SGD-34CDP Year of construction2000 Mounted on mild steel frameStainless steel frame With switchgear(as is) Floorspace1,88 x 1,31 m Total height1.70 m Weight1000 kg Extra SpecificationsThe separator is mounted on a platform.Some spare parts and machine-specific tools are includedVolume 65 l., pressure 3 Bar, allowable temperature 140°C,&:nbsp:Cooling jacket, volume 38 l., pressure 1Bar, allowable temperature 140°COils & fatG ...

General SKU226Y423 LocationBarneveld CEcheck Main Features MaterialStainless steel Specified Features - Miscellaneous filter Filtercheck MaterialStainless steel 1.4435 (316L) General MakeFiltrox AG Serial9125248 TypeCMF Pilotanlage Year of construction2008 Floor space1,10x2,50 m Total height2,25 m Weight800 Extra Specificationspressure 8 bar, allowable temperature 100°C, with4x membrane filter, 2x 800 Nm and 2x 5 Nm,&:nbsp: Stainless steel vessel, 110 l., hot water vessel,&:nbsp: Alfa Laval heat exchanger, type M3-base, volume 1,5 l., 9 bar, temp max 105°C ETS heat exchanger, typ: GK10-40/1/1-K-14-V, 10bar, 100°C and 180°C centrifugal pump: hilge, typ: euro-Hygia 1, 1m³/h, 1,5kW centrifugal pump: hilge, typ: euro-Hygia 2, 8m³/h, 7,5kWEndress+ Hauser flow valves, Siemens touchscreen control, type Simatic panel, Yokogawa control.Oils & fatConsumer wastePaints & coat ...

General SKU226Y424 MakePermeare Tecnologie di Separazioni Membrana SerialH043/H392C//2003 TypePermalab RO-NF Main Features MaterialStainless steel Specified Features - Miscellaneous filter Filtercheck MaterialStainless steel 1.4435 (316L) General Year of construction2003 LocationBarneveld Mounted on wheelscheck Floor space0,90x0,55 m Total height1,60 m Weight105 kg CEcheck Extra SpecificationsNano filtration and Reverse Osmosis pilot plant,Membrane material: thin film polyamide membrane, four layers, length 305mm, internal tube diameter 15,9mm, external diameter 46,5mm,&:nbsp:With process tank, volume 10 l.,material: 316L,&:nbsp:max operating temperature 50°C,&:nbsp:max size of eventual suspended solids in the feed solution 20 UmCat high pressure plunger pump, type 3CP1231, pressure up to 70 bar, 1,5 kW, 230 V., 1410 rpm,&:nbsp:output DN35Oils & fatConsumer wastePaint ...

General SKU226Y425 LocationBarneveld CEcheck Main Features MaterialMild steel Specified Features - Peristaltic pump Pumpcheck Number of pumps:1 With motorcheck With frequency invertercheck Peristaltic pumps MaterialMild steel General MakeWatson Marlow Type704 U/R Floorspace0,45 x 0,40 m Total height0,35 m Weight25 kgOils & fatPaints & coatingsGeneric medicinesOintmentsFine chemicalsStarchBiotechnologyRubberPeristaltic pumpsPlastic & polymersFeed additivesDetergent & surf.CosmeticsFood additivesSugarLubricants & oleoConfectioneryDyes & pigmentsAPIWatson MarlowIndustries > Food & Feed > Oils & fatIndustries > Chemical > Paints & coatingsIndustries > Pharmaceutical > Generic medicinesIndustries > Pharmaceutical > OintmentsIndustries > Chemical > Fine chemicalsIndustries > Food & Feed > StarchIndustries > Chemical > BiotechnologyIndustries > Chemical > RubberPumps > Perist ...

General SKU226Y681 MakeAPV TypeT 4 No.58033 Year of construction2002 LocationBarneveld Pressure Working pressure6 Bar Main Features MaterialStainless steel Surface0.5 m2 Specified Features - Plate heat exchanger Plate heat exchangerscheck Heating surface0,5 m² CapacitySide 1: 0,7 l.: Side 2: 0,8 l. Plate sizes± 42 x 450 mm Connections4x 24 mm Max. temperature0 — 155 °C Capacity29 kW MaterialStainless steel 1.4306 (304L) General Floorspace0,2 x 0,68 m Total height0,64 m Weight100 kgOils & fatPaints & coatingsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemicalsStarchOther chemicalBiotechnologyRubberPlate heat exchangersAgrochemicalsSpicesPlastic & polymersCatalysts & fillersFeed additivesSolventsDetergent & surf.Other pharmaceuticsCosmeticsFood additivesSugarLubricants & oleoDairyAnimal feedOther feedConfectionerySolid pharmaceuticsBeverag ...

Please visit our at Foeth[dot]com for more information about this machine. What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldwide -- You are welcome to inspect the machine in Barneveld, The Netherlands. Please visit us in Barneveld for many more machines!
