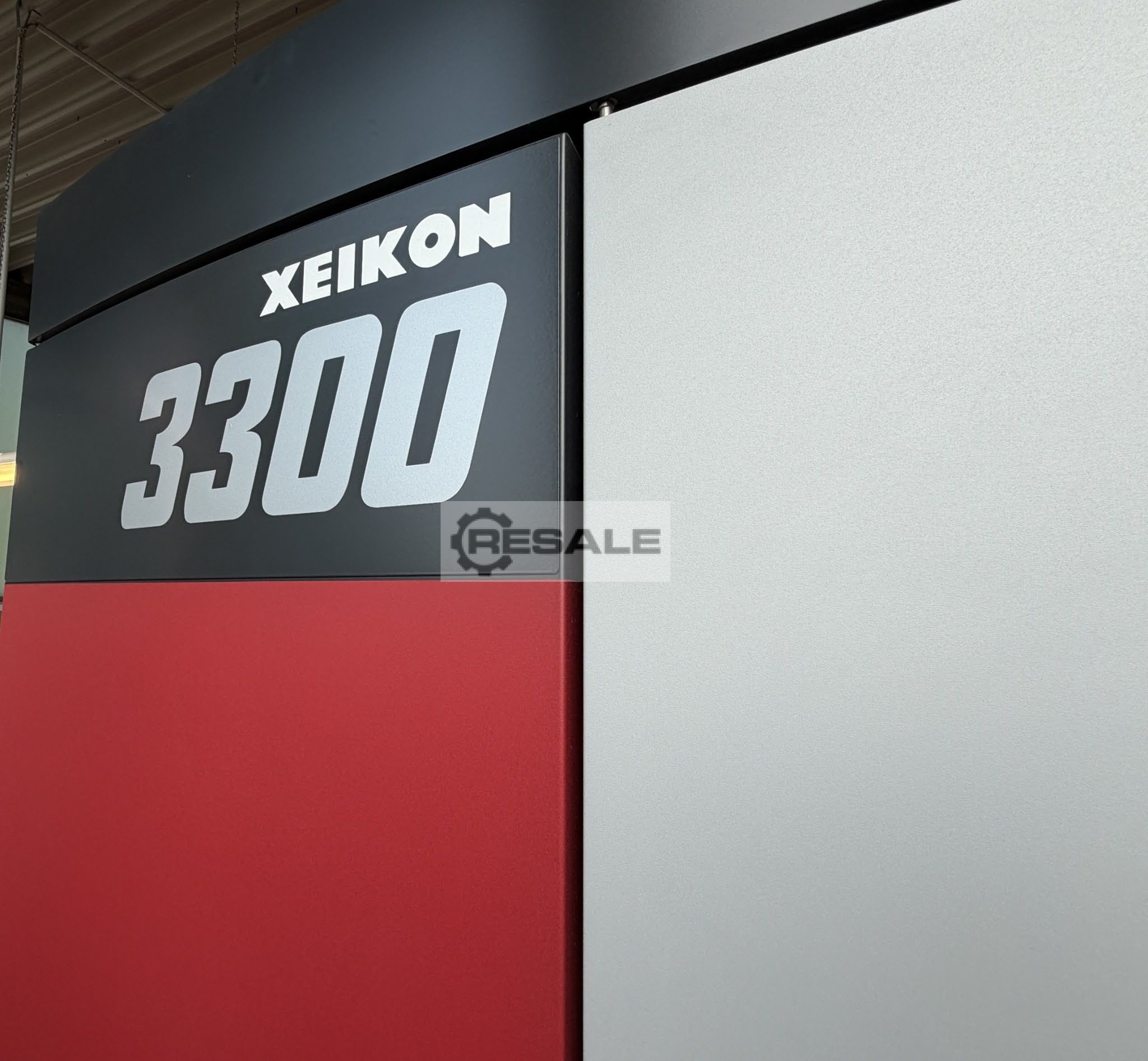

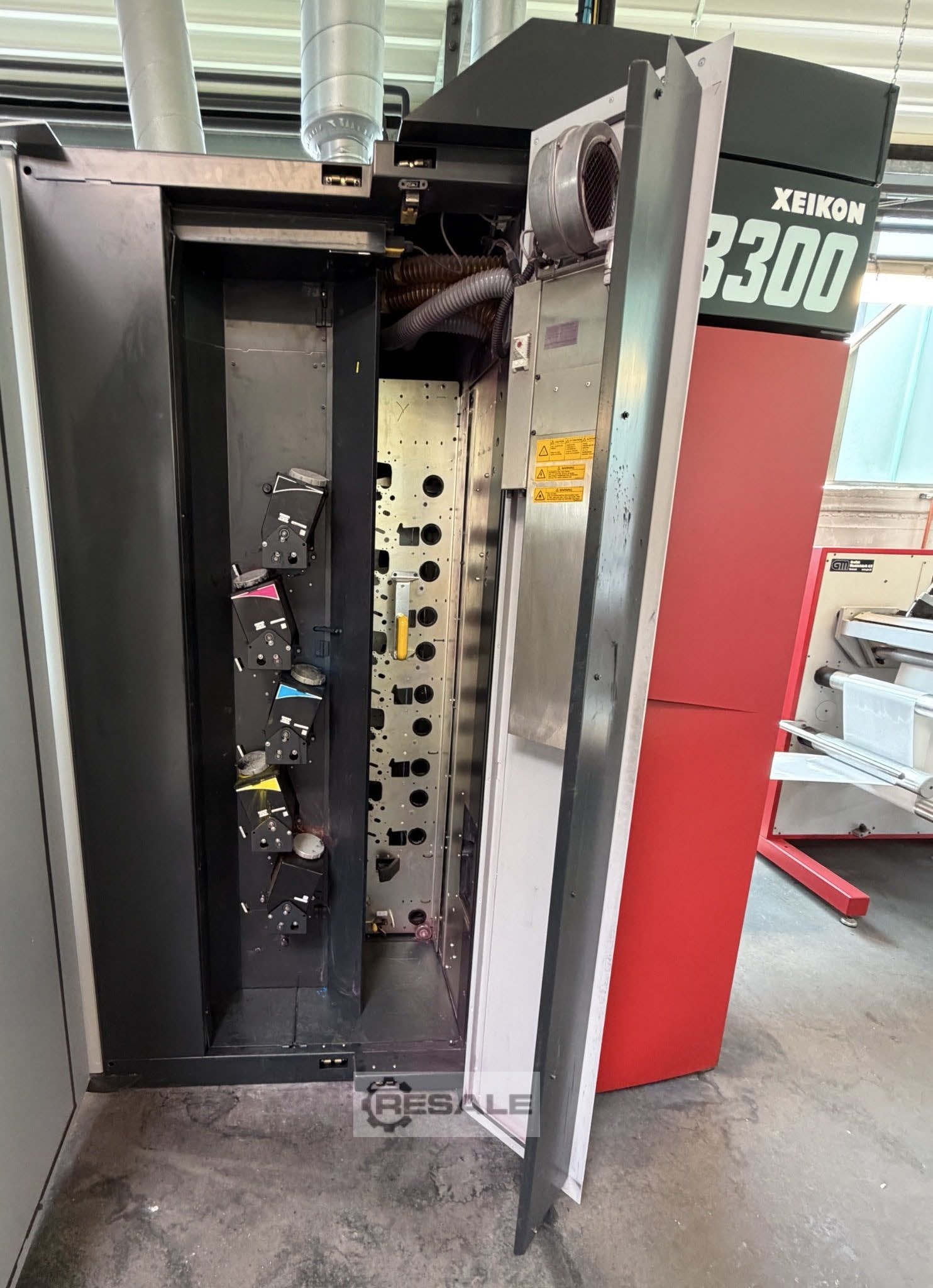

XEIKON 3300 QA-I

Model Xeikon 3300 QA-I
year 2011
Commissioned December 2011
Current operating hours approx. 28,000 h
Current A3 counter reading 28,400,531 A3 (as of Oct 7, 2026)
Printing process Dry toner electrophotography with LED matrix
Color configuration 5/0 simplex; fifth color station for spot colors, security toner, or opaque white
resolution 1200 dpi at 4 bits per dot; spatial resolution 1200 × 3600 dpi with variable dot density
Print width 322 mm
Material width 200–330 mm
Web speed 19.2 m/min
Repeat length Unlimited
Grammage 40–350 g/m²
Media thickness 40–350 μm
Substrates Self-adhesive labels (paper, PP, PET, vinyl); film, aluminum-based foils, carton, and paper
Density and registration control Inline, standard feature
Toner Xeikon QA-I toner; Pantone-certified according to product description
Performance Up to 700,000 m/month according to product description

Feature Unwinder Rewinder
Type (per nameplate) XUN330XE XRN5R2V5
Serial number (per nameplate) 111117 111238
Year of manufacture (per nameplate) 2011 2011
Unit designation XUN 330 XE XRN 330 with 3-knife cutting unit
Max. roll weight¹ 300 kg 200 kg
Max. roll diameter¹ 1,000 mm 550 mm
Max. speed¹ 72 m/min 32 m/min
Tension control¹ Constant Constant
Air shaft (per description)¹ 76 mm or 152 mm available 76 mm or 152 mm
seller offer No. resale 170315354
