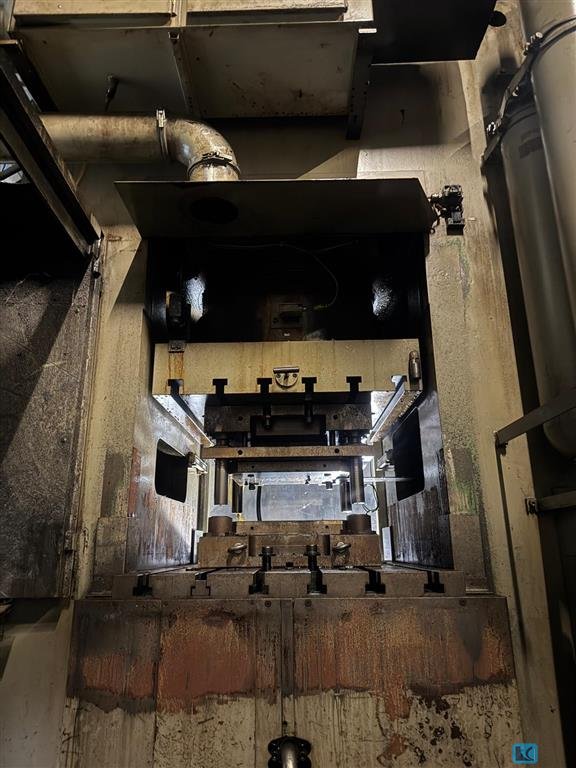

FEINTOOL GKP F 160 hydraulic press was built in Switzerland. The automatic fine blanking press combines several workpiece machining stages into one precise process and significantly saves time and effort. As a result of fine blanking, parts with a maximum thickness of 6 mm obtain a characteristic even surface and accurately defined edges that cannot be achieved with other machines. The FEINTOOL GKP-F hydraulic punching press features a robust, stable construction and a total force of 160 tonnes. Offered with the machine a sheet metal feeder with a maximum thickness of 6 mm and a width of 210 mm allows for completely automatic machining. The automatic punching press underwent extensive modernisation in 1999. The total weight of the GKP-F 160 press is 9000 kg. Technical data of the FEINTOOL GKP F 160 fine blanking press - maximum sheet metal thickness: 6 mm - maximum sheet metal wi ...

MAX CAPASITY 80 T

FEINTOOL GKP F 100T fine blanking press was manufactured in Switzerland in 1974. The machine, distinguished by its robust, stable design, can perform several demanding machining steps in one precise process, saving time and labour. Workpieces with a maximum thickness of 6 mm thus achieve an extremely even surface and precisely defined edges that are impossible to achieve on other machines. The machining process can be fully automated when the FEINTOOL GKP F 100/160 hydraulic blanking press is retrofitted with a sheet metal feeder. The total weight of the machine is approximately 9 tonnes. Technical data of the FEINTOOL GKP F 100T hydraulic press - maximum workpiece thickness: 6 mm - maximum sheet metal width: 210 mm - total force including auxiliary functions: 160 t - shearing force: 100 t - hydraulic counterweight force (upper table): 1-40 t - hydraulic force of ring jaw (lower ...

CAPASITY 25/40

CONTROLS   PC controller BECKHOFF PRESS DESIGN   drive system: knuckle-joint SLIDE   total force (nominal): 250 to   stroke: 61 mm   stroke rate (max.): 60 /min COUNTER RAM   nominal force: 75 to   stroke: 15 mm V-RING   nominal force: 75 to   stroke: 13 mm TOOL DIMENSIONS   lower table (left-right): 540 mm   lower table (front-back): 540 mm   upper table (left-right): 540 mm   upper table (front-back): 540 mm   shut height max.: 320 mm   ram adjustment: 145 mm   distance between columns (H-frame): 560 mm   passline opening (free passage in side columns): 270 mm STRIP-FEEDER   feeder type: roll feeder   sheet width max.: 250 mm   sheet thickness max.: 10 mm   feeding step max.: 999.99 mm   sheet length min: 1900 mm   pilot release system: yes   band lubrication system: yes Complete refurbished fineblanking press: * disassembly into indiv ...

PRESS DESIGN   drive system: knuckle-joint   frame design: H-frame, monoblock SLIDE   total force (nominal): 160 to   stroke: 60 mm   stroke rate (max.): 72 /min COUNTER RAM   nominal force: 40 to   stroke: 60 mm V-RING   nominal force: 50 to   stroke: 13 mm TOOL DIMENSIONS   lower table (left-right): 470 mm   lower table (front-back): 470 mm   upper table (left-right): 500 mm   upper table (front-back): 470 mm   shut height max.: 277 mm   ram adjustment: 80 mm   distance between columns (H-frame): 500 mm   passline opening (free passage in side columns): 220 mm STRIP-FEEDER   feeder type: roll feeder   sheet width max.: 210 mm   sheet thickness max.: 6 mm   feeding step max.: 180 mm ELECTRICAL SPECIFICATIONS   mains voltage: 380 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1950 mm   space requiremen ...

Capacity: 250 - 400 ton V ? Ring nominal force: 20 - 200 ton Counter ram nominal force: 10 - 100 ton Ram stroke: 30 - 200 mm V-Ring stroke: 40 mm Counter ram stroke: 40 mm Daylight: 760 mm Ram surface: 800 x 800 mm Table surface: 810 x 1000 mm Max. die size: 765 x 760 x 610 mm Number of strokes: 40 s.p.m. Approach speed: 120 mm / sec Return speed: 135 mm / sec Working speed: 5 - 50 mm / sec Die Weight total: 2400 kg

CONTROLS   PC controller BECKHOFF C 6140 PRESS DESIGN   drive system: hydraulic   frame design: H-frame, monoblock   quick die change system: yes   feedstock transport direction: left to right SLIDE   total force (nominal): 410 to   stroke: 200 mm SLIDE (HYDR. PRESS)   approximation velocity max.: 200 mm/s   working velocity min.: 8 mm/s   working velocity max.: 80 mm/s   return velocity max.: 150 mm/s COUNTER RAM   nominal force: 120 to   stroke: 40 mm V-RING   nominal force: 250 to   stroke: 40 mm TOOL DIMENSIONS   lower table (left-right): 820 mm   lower table (front-back): 1250 mm   upper table (left-right): 820 mm   upper table (front-back): 1250 mm   shut height max.: 410 mm STRIP-FEEDER   feeder type: roll feeder   sheet width max.: 450 mm   sheet thickness max.: 16 mm   feeding step min.: 1 mm   feeding step max.: 999.9 mm   s ...

CONTROLS   PLC SIEMENS S7 PRESS DESIGN   drive system: link drive   feedstock transport direction: left to right SLIDE   total force (nominal): 80 to   stroke: 50 mm   stroke rate (max.): 80 /min COUNTER RAM   nominal force: 22 to   stroke: 8 mm V-RING   nominal force: 25 to   stroke: 15 mm TOOL DIMENSIONS   lower table (left-right): 420 mm   lower table (front-back): 420 mm   upper table (left-right): 420 mm   upper table (front-back): 420 mm   shut height max.: 220 mm   ram adjustment: 80 mm   distance between columns (H-frame): 450 mm   passline opening (free passage in side columns): 200 mm OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 180 mm   sheet thickness max.: 5 mm   feed velocity max.: 999 m/min STRIP-FEEDER   feeder type: roll feeder   sheet width max.: 180 mm   sheet thickness max.: 5 mm   feeding step max.: 999 m ...

CONTROLS   PLC BECKHOFF SLIDE   total force (nominal): 880 to   stroke: 305 mm   cutting velocity min.: 5 mm/s   cutting velocity max.: 70 mm/s   closing velocity: 200 mm/s   returning velocity: 200 mm/s V-RING   nominal force: 400 to   stroke: 40 mm COUNTER RAM   nominal force: 200 to   stroke: 40 mm TOOL DIMENSIONS   lower table (left-right): 1010 mm   lower table (front-back): 1600 mm   upper table (left-right): 1000 mm   upper table (front-back): 1000 mm   shut height max.: 460 mm LEVELLER UNIT   sheet width max.: 400 mm   sheet width (min): 100 mm   sheet thickness max.: 12 mm   sheet thickness min.: 1.6 mm STRIP-FEEDER   feeder type: roll feeder   sheet width max.: 450 mm   sheet thickness max.: 16 mm   feeding step min.: 1 mm   feeding step max.: 999.9 mm   sheet length min: 3950 mm   speed max.: 48 m/min   Vertical adjustme ...

CONTROLS   PC controller BECKHOFF PRESS DESIGN   drive system: knuckle-joint SLIDE   total force (nominal): 160 to   stroke: 60 mm   stroke rate (max.): 70 /min COUNTER RAM   nominal force: 40 to   stroke: 14 mm V-RING   nominal force: 50 to   stroke: 10 mm TOOL DIMENSIONS   lower table (left-right): 480 mm   lower table (front-back): 520 mm   upper table (left-right): 480 mm   upper table (front-back): 520 mm   shut height max.: 314 mm   ram adjustment: 80 mm   distance between columns (H-frame): 500 mm   passline opening (free passage in side columns): 220 mm STRIP-FEEDER   feeder type: roll feeder   sheet width max.: 210 mm   sheet thickness max.: 6 mm   feeding step max.: 999.9 mm   sheet length min: 2000 mm   pilot release system: yes   band lubrication system: yes Complete refurbished fineblanking press: * disassembly into individu ...

CONTROLS   PC controller BECKHOFF Offer for services of complete Overhaul of a Customer-Owned Fineblanking Press FEINTOOL GKP 160 Scope of Overhaul • Complete disassembly into individual components • Inspection of all parts, including crack testing of critical components • Overhaul of the drive system, new motors • Reworking and precise alignment of all guideways • Complete overhaul of the hydraulic cylinders • Overhaul of the clamping tables • Installation of a new hydraulic unit • Renewal of the pneumatic system • Renewal of the electrical system Modernisation / Retrofit • Combined table • Servo feed systems • Central lubrication system • RAZIOL band lubrication • New brake/clutch unit • BECKHOFF PC-based control system with touch panel • PILZ safety control system • Implementation of CE conformity Notes • Special options and customer-specific ext ...

SLIDE   total force (nominal): 80 to   stroke rate (max.): 72 /min TOOL DIMENSIONS   lower table (left-right): 470 mm   lower table (front-back): 420 mm   upper table (left-right): 400 mm   upper table (front-back): 400 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 1600 mm   space requirements -front/back-: 1400 mm   total height: 2500 mm   total weight approx.: 6000 kg

SLIDE   total force (nominal): 40 to   stroke rate (max.): 110 /min TOOL DIMENSIONS   lower table (left-right): 300 mm   lower table (front-back): 280 mm   shut height max.: 180 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 1835 mm   space requirements -front/back-: 1500 mm   total height: 1800 mm   total weight approx.: 2500 kg

SLIDE   total force (nominal): 80 to   stroke rate (max.): 120 /min V-RING   stroke: 90 mm TOOL DIMENSIONS   lower table (left-right): 420 mm   lower table (front-back): 420 mm   upper table (left-right): 420 mm   upper table (front-back): 420 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 2970 mm   space requirements -front/back-: 1665 mm   total height: 242 mm   total weight approx.: 6000 kg

PRESS DESIGN   drive system: hydraulic SLIDE   total force (nominal): 40 to   stroke: 45 mm   stroke rate (max.): 110 /min TOOL DIMENSIONS   lower table (left-right): 300 mm   lower table (front-back): 280 mm   shut height max.: 90 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 1835 mm   space requirements -front/back-: 1500 mm   total height: 1800 mm   total weight approx.: 2500 kg

PRESS DESIGN   quick die change system: yes SLIDE   total force (nominal): 100 to   stroke: 20 mm   stroke rate (max.): 80 /min TOOL DIMENSIONS   lower table (left-right): 430 mm   shut height max.: 220 mm Approx. 79 million strokes

CONTROLS   PC controller BECKHOFF PRESS DESIGN   drive system: servohydraulic   frame design: H-frame, tie rod   quick die change system: yes   feedstock transport direction: left to right SLIDE   total force (nominal): 1100 to   stroke: 130 mm   stroke rate (max.): 60 /min COUNTER RAM   nominal force: 330 to   stroke: 40 mm V-RING   nominal force: 500 to   stroke: 40 mm TOOL DIMENSIONS   lower table (left-right): 960 mm   lower table (front-back): 960 mm   upper table (left-right): 960 mm   upper table (front-back): 960 mm   shut height max.: 470 mm OVERALL SPECIFICATIONS (COIL LINES)   sheet width max.: 500 mm   sheet thickness max.: 16 mm   coil weight max.: 8 to   feedstock transport direction: left to right COIL CHAIR   coil weight max.: 8 to   stroke: 700 mm DECOILER   coil weight max.: 8 to   max. diameter of coil: 1800 mm   m ...
