HAEUSLER vrm used machines

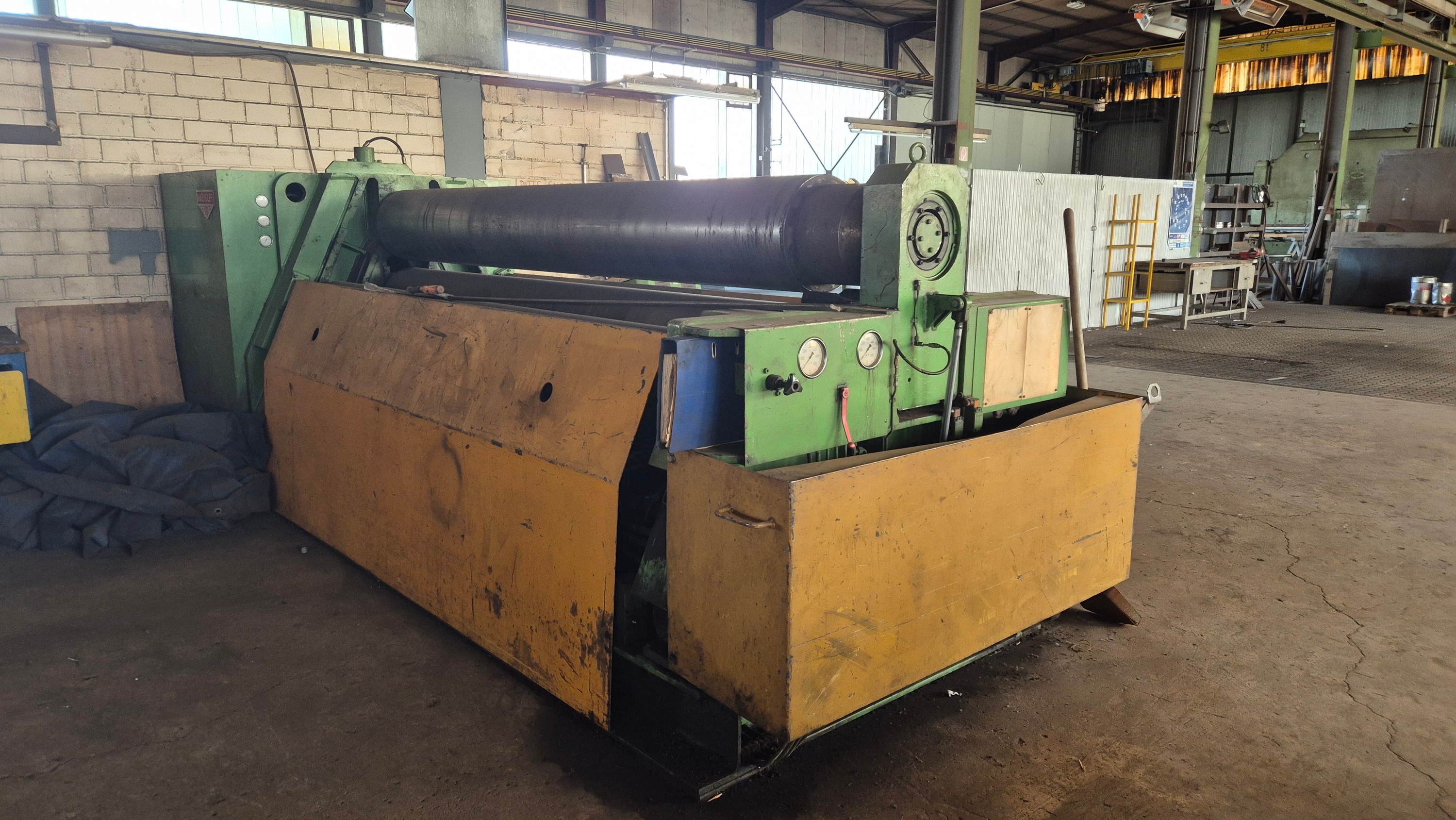

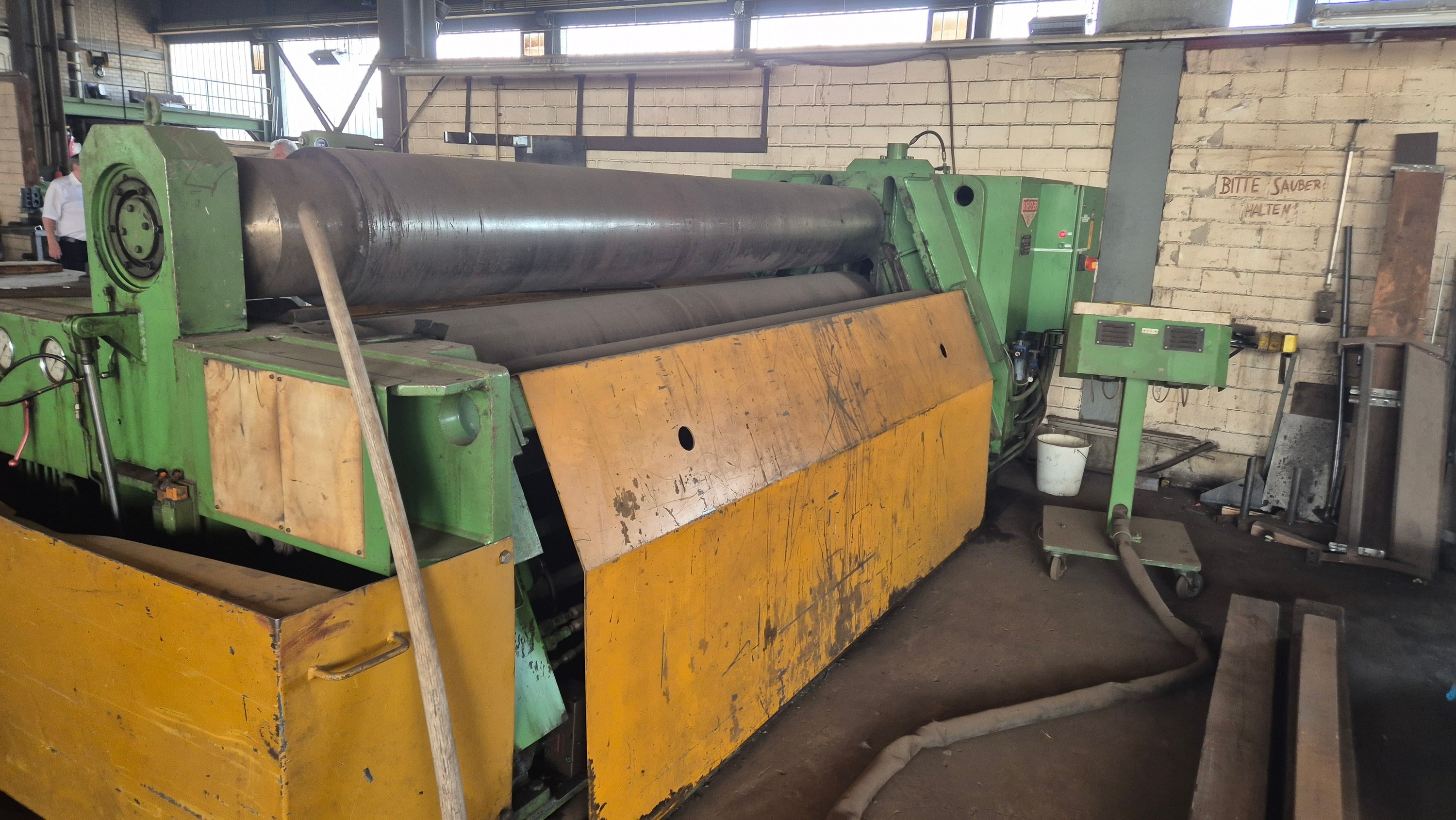

Technical data: maximum sheet width: 3000 mm maximum plate thickness at maximum yield of 240 N / mm² on bending: 35 mm On bending length: 2,2 x S Diameter of roller upper roller: 552 mm Bottom roll: 532,4 mm Side rolls: 400 mm

specifications: Max sheet width 3,000 mm Max sheet thickness at max yield strength 240 N/mm2 when bending to max. sheet width 35 mm when rounding Bend length 2.2 x S Max passage between rollers 145 mm Roller diameter upper roller 552 mm Underroller 532.4 mm Side rollers 400 mm Number of rollers 4 Powered rollers 2 top and bottom roller Drive of the rollers hydraulically Arrangement of the rollers symmetrically Rotation speed of the rollers 2-4 m/min Adjustable rollers 3 Type of adjustment of the rollers hydraulically Adjustment speed lower roller 0-200 mm/min. Side rollers 0-700 mm/min. Brake of the rollers pneumatic Actuation of the folding bearing hydraulically Operating voltage 3 x 380 V / 50 Hz Display device of the roll positions 4 x optical/analog Weight of the machine approx. 42 to Area 2.71 x 6.4 m Height 3.12 m

sheet width: 4000 mm plate thickness: 30 / 35 mm pre-bending: 30 mm diameter of upper rolls: 570 mm side roll diameter: 450 mm diameter of lower rolls: 540 mm bending speed: 4 m/min min. bending diameter: 650 mm total power requirement: 60 kW weight of the machine ca.: 52 to dimensions of the machine ca.: - m The machine was overhauled in 2022 Equipment: - Hydraulic 4-roller round bending machine - Roll material: 61 MnCrMo 43 - Driven rolls: 2 Top-and bottom roll -- Drive: over 2 hydro motors direct flanged -- Adjustment speed bottom roll: 0-200 mm/min -- Adjustment speed side rolls: 0-700 mm/min - Speed compensation between top-and bottom roll: automatic - Operation of the tilting bearing: hydraulic - Tilting of the top roll: hydraulic - Bearing block: hydraulic - Indicator device of roll position: digital The data for this ad was created with ModulMWS - the software solution of Logo ...

sheet width: 4000 mm plate thickness: 30 / 35 mm pre-bending: 30 mm diameter of upper rolls: 570 mm side roll diameter: 450 mm diameter of lower rolls: 540 mm bending speed: 4 m/min min. bending diameter: 650 mm total power requirement: 60 kW weight of the machine ca.: 52 to dimensions of the machine ca.: - m The machine was overhauled in 2022 Equipment: - Hydraulic 4-roller round bending machine - Roll material: 61 MnCrMo 43 - Driven rolls: 2 Top-and bottom roll -- Drive: over 2 hydro motors direct flanged -- Adjustment speed bottom roll: 0-200 mm/min -- Adjustment speed side rolls: 0-700 mm/min - Speed compensation between top-and bottom roll: automatic - Operation of the tilting bearing: hydraulic - Tilting of the top roll: hydraulic - Bearing block: hydraulic - Indicator device of roll position: digital The data for this ad was created with ModulMWS - the software solution of Logo& ...

sheet width: 4000 mm plate thickness: 30 / 35 mm pre-bending: 30 mm diameter of upper rolls: 570 mm side roll diameter: 450 mm diameter of lower rolls: 540 mm bending speed: 4 m/min min. bending diameter: 650 mm total power requirement: 60 kW weight of the machine ca.: 52 to dimensions of the machine ca.: - m The machine was overhauled in 2022 Equipment: - Hydraulic 4-roller round bending machine - Roll material: 61 MnCrMo 43 - Driven rolls: 2 Top-and bottom roll -- Drive: over 2 hydro motors direct flanged -- Adjustment speed bottom roll: 0-200 mm/min -- Adjustment speed side rolls: 0-700 mm/min - Speed compensation between top-and bottom roll: automatic - Operation of the tilting bearing: hydraulic - Tilting of the top roll: hydraulic - Bearing block: hydraulic - Indicator device of roll position: digital The data for this ad was created with ModulMWS - the software solution of Logo& ...

- Force lower rol upper roll 1178 Ton - Cone bending attachment - Hardned and grounded rolls - Width between upper and lower roll 200 mm - Power 180 kW

- Force lower rol upper roll 1178 Ton - Cone bending attachment - Hardned and grounded rolls - Width between upper and lower roll 200 mm - Power 180 kW

- Force lower rol upper roll 1178 Ton - Cone bending attachment - Hardned and grounded rolls - Width between upper and lower roll 200 mm - Power 180 kW

- Smallest bending diameter 640 mm - Pressing force against upper roll 5800 kN - Conical bending attachment - Central lubrication - Equipped for change rolls 570 / 500 / 430 mm

A Haeusler CNC large-format 4-roll plate bending machine is available. Number of rolls: 4, Roll width: 3050mm, Max. prebending plate width: 3000mm, Max. prebending plate thickness: 60mm, Max. rolling capacity at max. plate width and 3500mm bending diameter: 70mm, Roll diameter top/bottom/side: 620mm/600mm/500mm, Max. top roll load: 12000kN, Operating speed: 4m/min, Connected load: 132kW, Weight: approx. 85t. Including cone bending device. Documentation available. An on-site inspection is possible.

Technical data: 4 bending rolls Max bending range: 3,000 mm external switching and Control Panel, as well as counter holder

Hyundai RB Onsan Factory, located at Ulsan in South Korea produces welded pipes by means of LSAW – Longitudinal Submerged Arc Welding process. The line is offered complete, featuring advanced HAEUSLER (Switzerland) core equipment. This facility is capable of producing welded pipes with the following specifications: Diameter: 22 to 80 inches Thickness: 6.4 to 25.4 mm Length: 6,000 to 12,200 mm The production line is equipped with a comprehensive suite of machinery altogether ensuring seamless and efficient production of LSAW pipes, including: • Plate edge milling • 3-roll bending • Post bending • Tack welding • Inside welding • Outside welding • Copander • End facing • Pipe inside washing • Hydrostatic tester • X-ray • Semi-correction • Pipe roll conveyor with skid system

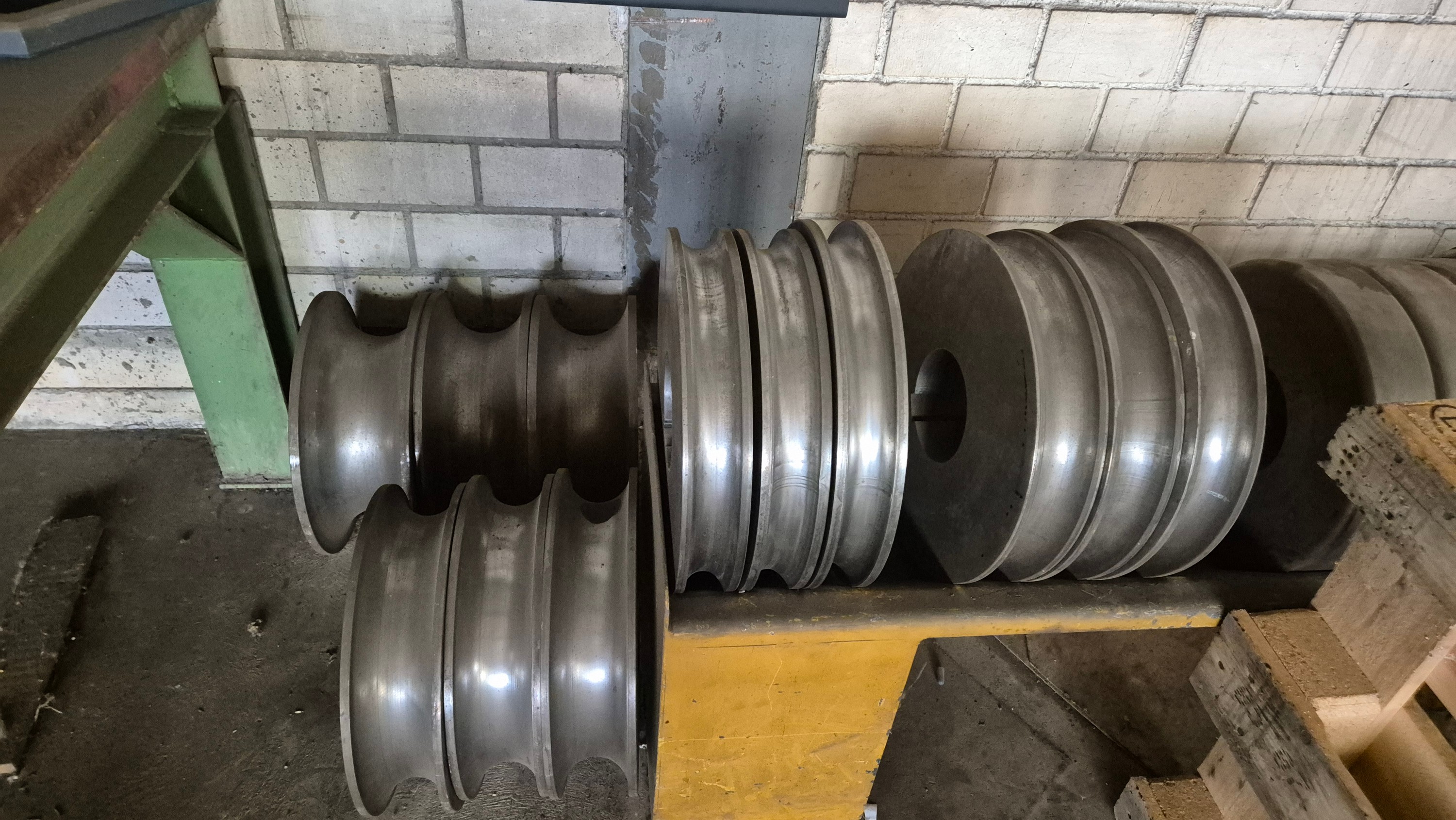

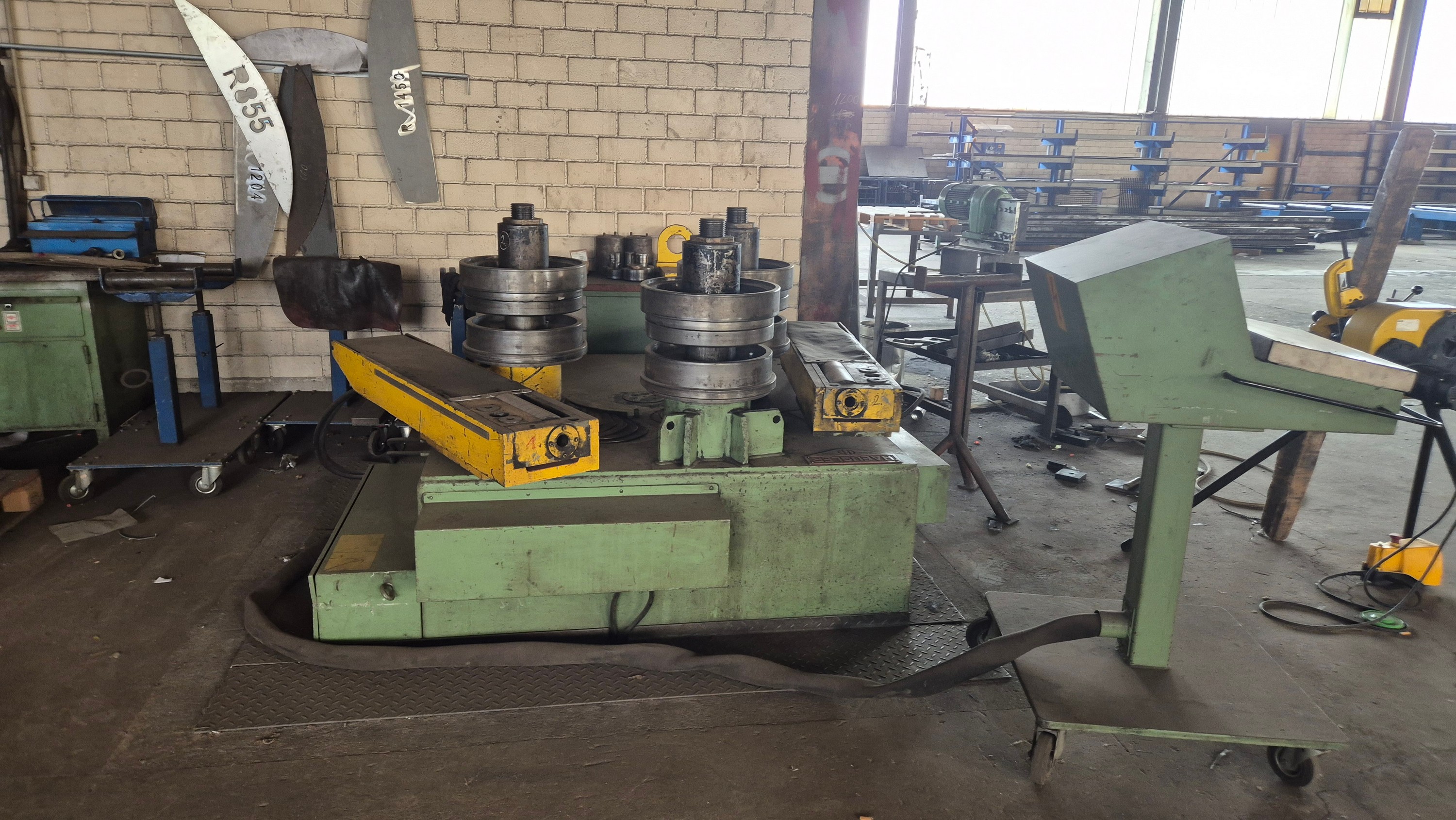

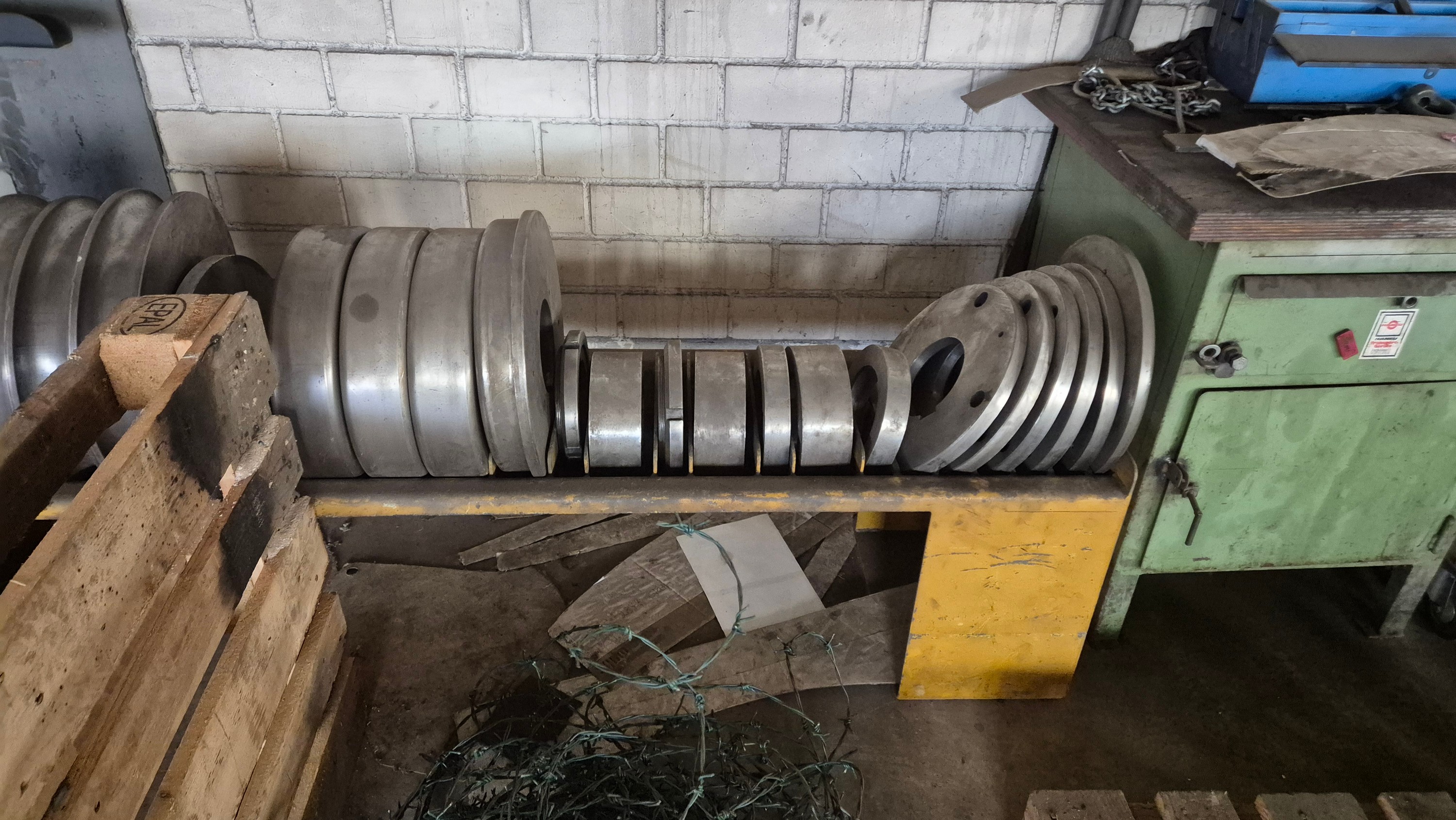

Manufacturer: HAEUSLER Model: HPR 330 V+H Year of Manufacture: 2007 Approximately 10 pallets of tools for round bar processing are included, with diameters of 60.5, 137, 91, 168, 76, 51, 152, 129, etc. Condition : Machine currently not in use and therefore not fully assembled Technical Data: - Maximum bending moment (at 240 N/mm² yield strength): 200–330 cm³ - Number of bending rolls: 3 - Roll arrangement: asymmetric / symmetric - Roll diameter: 520 mm - Driven rolls: all 3 - Roll drive: hydraulic - Working speed: 0–7 m/min, stepless - Speed compensation between upper and lower rolls: automatic - Roll rotation reversal: electro-hydraulic - Adjustable bending rolls: 2 - Adjustment of bending rolls: hydraulic - Roll position display: digital, 0.1 mm accuracy - Roll bearings: roller bearings - Number of pressure roller systems: 2 - Adjustment of pressure roller systems: hydrauli ...

Bending length: 4200 mm pre-bending: 34 mm Bending strength: 38 mm power capacity: kW Number of rollers: 4 Stk Adjustable rollers: Stk diameter of upper rolls: 540 mm diameter of lower rolls: 500 mm side roll diameter: 365 mm work speed: 0 - 8 m/min total power requirement: 55 kW weight of the machine ca.: 35 t Control: Haeusler Bendtronic 2.0 dimensions of the machine ca.: 7.5 x 2.1 x 2.4 m Equipped with: - Haeusler BENDtronic 2.0 control system - Smallest possible bending diameter with upper roller Ø540mm: 595mm (depending on springback) - Roller bearings: Self-adjusting roller bearings - Max. cylinder force against upper roller: 3,245kN - Roller material: 42CrMo4 (1.7225) - Speed compensation between upper and lower roller: automatic when the two-roller drive option is selected - Roller adjustment: hydraulic - Tilting of the lower roller and both side rollers for cone bending: infini ...

Bending length: 4200 mm pre-bending: 34 mm Bending strength: 38 mm power capacity: kW Number of rollers: 4 Stk Adjustable rollers: Stk diameter of upper rolls: 540 mm diameter of lower rolls: 500 mm side roll diameter: 365 mm work speed: 0 - 8 m/min total power requirement: 55 kW weight of the machine ca.: 35 t Control: Haeusler Bendtronic 2.0 dimensions of the machine ca.: 7.5 x 2.1 x 2.4 m Equipped with: - Haeusler BENDtronic 2.0 control system - Smallest possible bending diameter with upper roller Ø540mm: 595mm (depending on springback) - Roller bearings: Self-adjusting roller bearings - Max. cylinder force against upper roller: 3,245kN - Roller material: 42CrMo4 (1.7225) - Speed compensation between upper and lower roller: automatic when the two-roller drive option is selected - Roller adjustment: hydraulic - Tilting of the lower roller and both side rollers for cone bending: infini ...

Bending length: 4200 mm pre-bending: 34 mm Bending strength: 38 mm power capacity: kW Number of rollers: 4 Stk Adjustable rollers: Stk diameter of upper rolls: 540 mm diameter of lower rolls: 500 mm side roll diameter: 365 mm work speed: 0 - 8 m/min total power requirement: 55 kW weight of the machine ca.: 35 t Control: Haeusler Bendtronic 2.0 dimensions of the machine ca.: 7.5 x 2.1 x 2.4 m Equipped with: - Haeusler BENDtronic 2.0 control system - Smallest possible bending diameter with upper roller Ø540mm: 595mm (depending on springback) - Roller bearings: Self-adjusting roller bearings - Max. cylinder force against upper roller: 3,245kN - Roller material: 42CrMo4 (1.7225) - Speed compensation between upper and lower roller: automatic when the two-roller drive option is selected - Roller adjustment: hydraulic - Tilting of the lower roller and both side rollers for cone bending: infini ...

Bending length: 4200 mm pre-bending: 34 mm Bending strength: 38 mm power capacity: kW Number of rollers: 4 Stk Adjustable rollers: Stk diameter of upper rolls: 540 mm diameter of lower rolls: 500 mm side roll diameter: 365 mm work speed: 0 - 8 m/min total power requirement: 55 kW weight of the machine ca.: 35 t Control: Haeusler Bendtronic 2.0 dimensions of the machine ca.: 7.5 x 2.1 x 2.4 m Equipped with: - Haeusler BENDtronic 2.0 control system - Smallest possible bending diameter with upper roller Ø540mm: 595mm (depending on springback) - Roller bearings: Self-adjusting roller bearings - Max. cylinder force against upper roller: 3,245kN - Roller material: 42CrMo4 (1.7225) - Speed compensation between upper and lower roller: automatic when the two-roller drive option is selected - Roller adjustment: hydraulic - Tilting of the lower roller and both side rollers for cone bending: infini ...

Ribbon system Covema-Schwabe Y.O.M. 1994 User manual with functional overview - Machine control elements - Program overview - Commissioning and storing removal Reel MHM 2 - hydraul. Spreading (motor 1.5 kW / 1500 U) - hydraul. Pressure roller - with drive max. coil weight - 2 t Coil outside through. - 1650 mm Coil inner throughm. - 350 - 460 mm Bandwidth - 400 mm Feed machine VRMA 32/96 Bandwidth 320 mm Straightening roller sifm. - 40 mm, 7 pcs Straightening head can be done by hydraul. to open Intermediate air central. Controller more info on request

Machine Type: Kieserling Six-Roll Pipe Straightening Machine Working range Ø 5 to Ø 45 mm Flow Direction: Right to Left Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 35 Year of construction Refurbished in 2023 Location: Solingen Weight approx. 2,000 kg with substructure and drives Country of origin: Germany Delivery terms ex works

Machine type: Kieserling VRM 20 Flow Direction: Right to Left Target speed with 3-speed manual transmission, m/min 37.5 / 50 / 75 Main operation 1.5KW Make Kieserling, type VRM 20 Location: Solingen NRW Length 2,200 mm Width 500 mm Height 1,700 mm Weight approx. 600Kg Country of origin: Germany Delivery condition Ex-works Solingen, free loaded truck

Machine Type: Kieserling Six Roll Straightening Machine Working range from Ø 18 mm to Ø 100 mm Flow direction: from left to right Speed 37.5 / 50 / 75 m/min. Make Kieserling, type VRM 75 Location Solingen Length 1,970 mm Width 980 mm Height 1,900 mm Weight approx. 3,900 kg Country of origin: Germany Delivery time approx. 12 weeks Other: The machine is completely overhauled by our specialist company.

Machine Type: Kieserling Six-Roll Pipe Straightening Machine Working range Ø 3 to Ø 20 mm Flow Direction Right to Left Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 000 Weight approx. 800 kg Country of origin: Germany Delivery time approx. 8 weeks

Machine Type: Kieserling Six-Roll Straightening Machine Working range Ø 6 to Ø 60 mm Flow Direction Left to Right Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 60 Weight approx. 3,800 kg Country of origin: Germany Delivery time approx. 12 weeks

Machine Type: Kieserling Six Roll Pipe Straightening Machine Working range Ø 5 to Ø 45 mm Flow Direction Left to Right Speed 37 / 50 / 75 meters/min Make Kieserling, type VRM 35/45 Location Solingen Weight approx. 2,800 kg Country of origin: Germany Delivery time approx. 12 weeks Delivery condition ex works Other: Important: the machine is currently being overhauled by our company. The pictures show a machine we have just delivered. The one offered here will be in equivalent condition at the time of delivery!

material width: 0200 mm material thickness: 3,00 mm no. of straightening rolls: 21 sheet thickness - min.: 0,50 mm diam. of the rolls ca.: 30 mm speed: 56 m/min total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Hydraulic drive All rollers driven Side belt guide with handwheel PSS300 control The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
