39 KALLFASS used machine for sale

The Kallfass packaging line consists of: -TRANSPORT HANDLING -KALLFASS UNIVERSA 500 FILM WRAPPING MACHINE M. No.: M 05.20.1614 // Commission No.: 25.156.72 // Age: 2020 Packaging output (cycle rate): Up to 85 cycles/minute (standard model), up to 120 cycles/minute Cross-seal bar length: approx. 550 mm / Seal bar clearance height: max. 200 mm -KALLFASS COMPACT 650 S SHRINK TUNNEL M. No.: BE 05.20.1920 // Commission No.: 25.156.72 // Age: 2020 Working height: Adjustable from approx. 800 to 900 mm / Temperature: Infinitely adjustable up to approx. 190°C -CONVEYOR BELT -LABELER MODEL T43 P/N: A100047 // S/N: 834 // Age: 2020

Fully automatic side sealing machine UNIVERSA 400 NT Used machine; Year of manufacture 2001 How does it work and stands Description: Fully automatic flow wrapping machine for packaging products – independent length – with full wrapping and without foil overlap. Maximum performance is approx. 40 cycles/min. The product is fed via a conveyor belt at the same time. wrapped in a semi-tubular film over a forming shoulder. The product indexing is done via a horizontally scanning light barrier. The feed belt is set to different product widths can be easily adjusted. After wrapping the product with The foil is cross-welded with a permanently heated welding system. The longitudinal welding is generated by a continuous side welding device. The altitude of the forming shoulder and welding equipment is manually adjustable. The remaining foil strip is picked up on a foil win ...

Technical data: Welding punch: 450mm permanently heated Punch passage height: max. 150mm Punch Transition: Length Compensation Longitudinal welding: permanently heated welding wedge Foil: Half tube approx. 12-80μm max diameter 400mm Max. film roll width: max. 600mm Conveyor belt: inlet and outlet 400mm wide Product output: up to 85 cycles/min Transport speed: 10-30m/min Working height adjustable: 780-930mm Overall length: 1950mm Overall width: 1650mm Overall height: 1850mm Control Panel: Sytron Colour: Kallfass anthracite Rated Power/ Rated Current: 3.5KVA / 5.1A Power connection: 400Volt DS/ 50Hz with protective conductor

1 piece Kallfass Shrink Tunnel Compact 450 SO Year of construction 2003

1 piece Kallfass Shrink Tunnel Standard 650 NT Year of construction 2003

1 piece Kallfass feed conveyor (laying conveyor) Year of construction: 2016, delivered 2017 1 piece Kallfass Universa 500 Servo Year of manufacture: 2016, delivered 2017 1 piece Kallfass Shrink Tunnel Compact 650 DD built in 2017, (2 heating bowls at the top and 2 heating bowls at the bottom) 1 piece of removal belt

Kallfass KFP-4000-4 Stacking Package length 2500mm Feeding to planer feeder Conveyor for spacers Net price

ALLFASS Foil packaging machine with shrink tunnel Plant consists of: 1) Kallfass Universa 8060/200 foil sealing machine 2) Compact 650SO shrink tunnel 3) Outfeed conveyor system - Extra 4) Storage device for wrapped packages - Extra The goods to be packaged are film-wrapped and sealed inside the Inversa and then shrink-wrapped in the Compact-tunnel. Via a conveyor system the wrapped packages are transported to a parcel storage station. Further technical info => check photos

Year of manufacture 1997 Foil Packing Machine Angle welding machine Manual installation Shrink tunnel Mobile substructure Price on request. We deliver and install worldwide!

Kallfass banding machine with shrink tunnel particularly suitable for long parts (wood, parquet, etc.) Trays or newspapers in a stack. Built in 1999 Punch width 950mm Max. film width 820mm Film (flat shrink film): up to 120 μm Film roll outer diameter: max. 400 mm Film roll width: top 650 mm, bottom 620 mm Passage width: 950 mm Passage height, adjustable: 400 mm In-line conveyor belt: length 2000 mm, Goods conveyor belt in the outfeed: length 2000 mm Welding system: in profile form, permanently heated, temperature thermostatically controlled, Specially coated, maintenance-free, completely odourless: Pneumatically operated welding punch with safety brake cylinders: Film tear and separation control: Foil pre-dispensing at the bottom for extremely light products Foil rolls at the top and bottom for laying with motorised drive Welding punch protection to protect the produ ...

Kallfass Universa 400 with shrink tunnel and gripper section Kallfass Universa 400 NT built in 2003 The system is immediately available. The price of the complete system includes the Universa 400. The machine is technically overhauled and is in very good condition. Technical data: - Length of transverse welding punch: 450mm - Welding punch passage: max. 200mm - Min. product length: 80mm - Automatic length compensation to reduce the punch gap - Welding stamp monitoring - Side welding monitoring - Foil retaining plate Pwq9ya - Control: Siemens S7-300 - Operating terminal with Sütron BT20 - Welding punch with replaceable sealing strip - Side weld wheel-knife combination, can also be exchanged for a knife system - Processable films PE and PO - Year of construction 2003 - Kallfass Standard shrink tunnel - Gripper section with inline belt - Curved band can be optional ...

Packaging machine Kallfass Universa 5050; good condition; cleaned and tested; Frame size 500x500mm; Passage height 100mm; with Tunnel Compact 650 S; Passage width 650mm; Passage height max.400mm; Cooling fans L-sealer Kallfass Universa 5050; good condition; cleaned and checked; frame size 500x500mm; product hight max.100mm; with tunnel Compact 650 S; working width 650mm; working hight max.400mm; cooling unit.

Kallfass Universa 400 with shrink tunnel and grab section Kallfass Universa 400 Year 2006 The system is immediately available. The Universa 400 is included in the price of the complete system. The machine is technically overhauled and is in very good condition. Technical data: - Length of cross welding punch: 450mm - Welding punch passage: max. 200mm - Min. product length: 80mm - automatic length compensation to reduce the punch gap - Welding punch monitoring - Control: Siemens S7-300 - Operating terminal with Siemens touch panel - Welding punch with replaceable welding strip - Side welding knife combination, can also be exchanged for a wheel knife system - Processable films PE and PO - Year of construction 2006 - Kallfass Compact 450 SO shrink tunnel - Gripper section with inline belt - Book magazine on gripper section - Ionization for blocking loose leaves - Cur ...

Kallfass Universa 400 with shrink tunnel and grab section Kallfass Universa 400 NT Year of construction 2003 The system is immediately available. The Universa 400 is included in the price of the complete system. The machine is technically overhauled and is in very good condition. Technical data: - Length of cross welding punch: 450mm - Welding punch passage: max. 200mm - Min. product length: 80mm - automatic length compensation to reduce the punch gap - Welding punch monitoring - Side sweat monitoring - Foil holding plate Pwq9ya - Control: Siemens S7-300 - Operating terminal with Sütron BT20 - Welding punch with replaceable welding strip - Side welding wheel-knife combination, can also be exchanged for a knife system - Processable films PE and PO - Year of construction 2003 - Shrink tunnel Kallfass Standard - Gripper section with inline belt - Curved band can be ...

Shrink Wrap/Foil Sealing

Shrink Tunnel Kallfass Standard 450 N; State as is; checked only for function; Inlet width 400mm; Pass-through height 200mm; Cooling fan. Shrink tunnel Kallfass Standard 450 N; condition as is; only chekced on function; width 400mm; hight 200mm; cooling unit.

Description Item #8445 – SHRINK WRAPPER Manufactured by KALLFASS Model UNIVERSA 500, With a Model Compact 650-SO Shrink Tunnel 650mms wide tunnel entrance, up to 400mms high, 1200mms length, up to 17.5metres per minute. 415volts, 50/60Hz, 3Phase.

Kallfass Universa 8060 Spezial (1999) Type: Automatic L-sealer / shrink wrapping machine Format Max. product size: approx. 800 × 600 mm Max. height: approx. 200 – 250 mm (depending on setup) Material Film type: polyolefin (PO), polyethylene (PE), PVC shrink film Film width: up to approx. 800 mm Performance Output: up to ~25–35 cycles/min (depending on product &, operator) Machine Data Year: 1999 Power supply: 400 V / 3-phase / 50 Hz Compressed air: required Machine type: semi-automatic or automatic (depending on configuration) Equipment / Features automatic or manual infeed (configuration dependent) L-sealing frame (angle sealer) integrated or inline shrink tunnel (optional/combined line) adjustable sealing time and temperature conveyor belt system film roll holder with easy loading electronic control panel safety guards and emergency stop quick format changeover suitable for sin ...

Mains connection: 3P + PE, operating voltage: 400V, frequency: 50/60Hz, control voltage: 24V DC, connected load: 3.5kVA, rated current: 4.8A, total current: 4.8A, upstream fuse: 3×16A. The machine is in perfect condition. An on-site inspection is possible.

Vollautomatische Seitenschweißmaschine zur Verpackung von Produkten – unabhängig von ihrer Länge – mit Volleinschlag und ohne Folienüberlappung. Mit neuem Querstempel. Fully automatic side sealing machine for packaging products – regardless of their length – with full wrap and without film overlap. With new cross seal bar. Vollautomatische Seitenschweißmaschiene mit Einschweißtunnel - Fully-Automatic Side Sealer Kallfass Universa 400 - Mini 400 Year 2004 - Serial-No. M 05.04.226 Anlage bestehend aus / System consisting of: Handanlage / Hand fed Station MGZ 400 Seitenschweißmaschiene / Fully-Automatic Side Sealer Kallfass Universa 400 Einschweißtunnel / Shrink tunnel Kallfass Mini 400 Technische Daten / Technical Data: Länge Querstempel / Length of cross seal bar 450mm Verpackungsleistung [Takte/min] / Production speed max. up to 85 packs/min Produktlänge / P ...

Semi-Automatic Foil sealing machine Kallfass KC 8060/650 Winkelschweißmaschine /Semi-Automatic Foil sealing machine Kallfass KC 8060/650 Großformat Winkelschweißmaschine / Large Size Foil sealing machine Baujahr / Year 1985 - Serial-No. V 7.85.029 Schweißrahmenabmessungen / Sealing Frame size 600 x 800mm Schrumpftunnel Abmessungen Breite 710mm und Höhe 290mm Shrink Tunnel Dimensions Width 710mm and High 290mm Durchlasshöhe Produkte 280mm Folie, Halbschlauchfolie 12 - 80 μm Transportbandgeschwindigkeit 2,5 - 12 Meter / Minute Verpackungsleistung, max. 20 Takte / Minute Spannungsversorgung 208 - 480 Volt

Size: 550 mm Technical details: Speed: 120 Tacts er minute Equipments: Kallfass Universa 500 Servo Fully automatic, continuous side welding machine Type: Hybrid side sealer with continuous product flow Product Feed:Simple feeding system, compatible with products of different lengths and automatic production lines Transport:Vacuum conveyor belt Motion Control:SIEMENS® SIMOTION® with servos for all product-related drives Operator Interface:SIEMENS TP 270 touch panel Operation Mode:Continuous product flow with intermittent cross-sealing Kallfass Compact 650 D High-Performance Energy-Saving Shrink Tunnel Type:High-performance energy-saving shrink tunnel Heating System:Patented ring nozzle heating system in double design Blower:Frequency-controlled, Inchtornado-style Inch hot air flow for uniform shrinking Transport:Maintenance-free plastic modular belt, continuously adjustable speed Film  ...

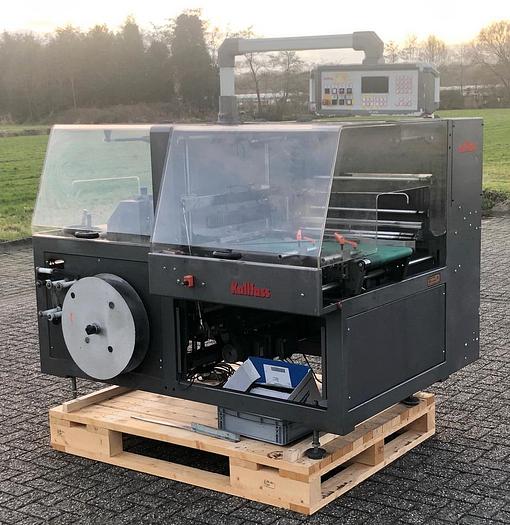

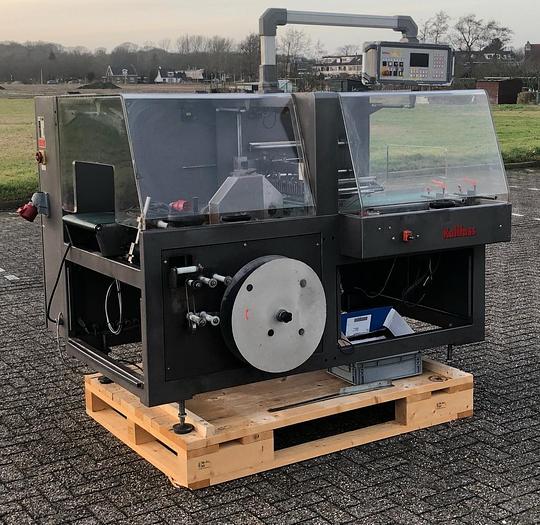

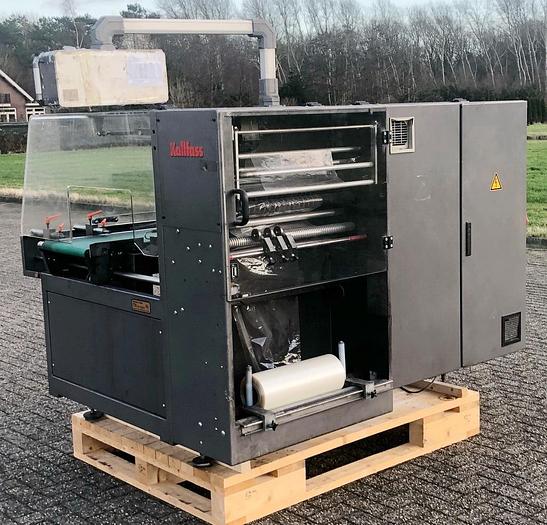

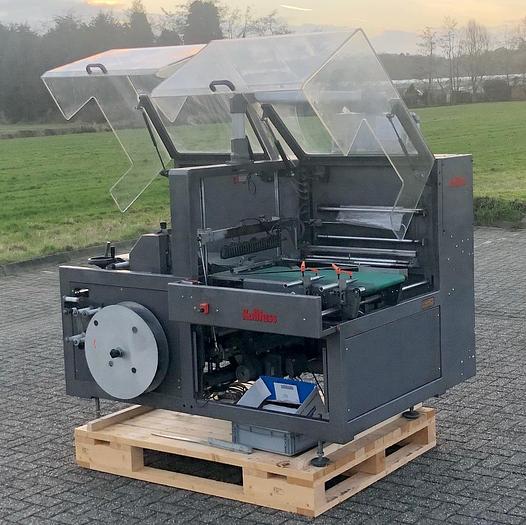

Sealer - wrapping machine, Make Kallfass, Model Universa 400 NT, Year 2000, Working width 400 mm x unlimted, Min. Product length 100 mm, Product length Unlimted, Passage height 200 mm, Capacity up to 60 cycles per minute, Working width: 400 mm x unlimted, Min. product length: 100 mm, Max. product length: Unlimted, Passage height: 200 mm, Capacity: up to 60 cycles per minute

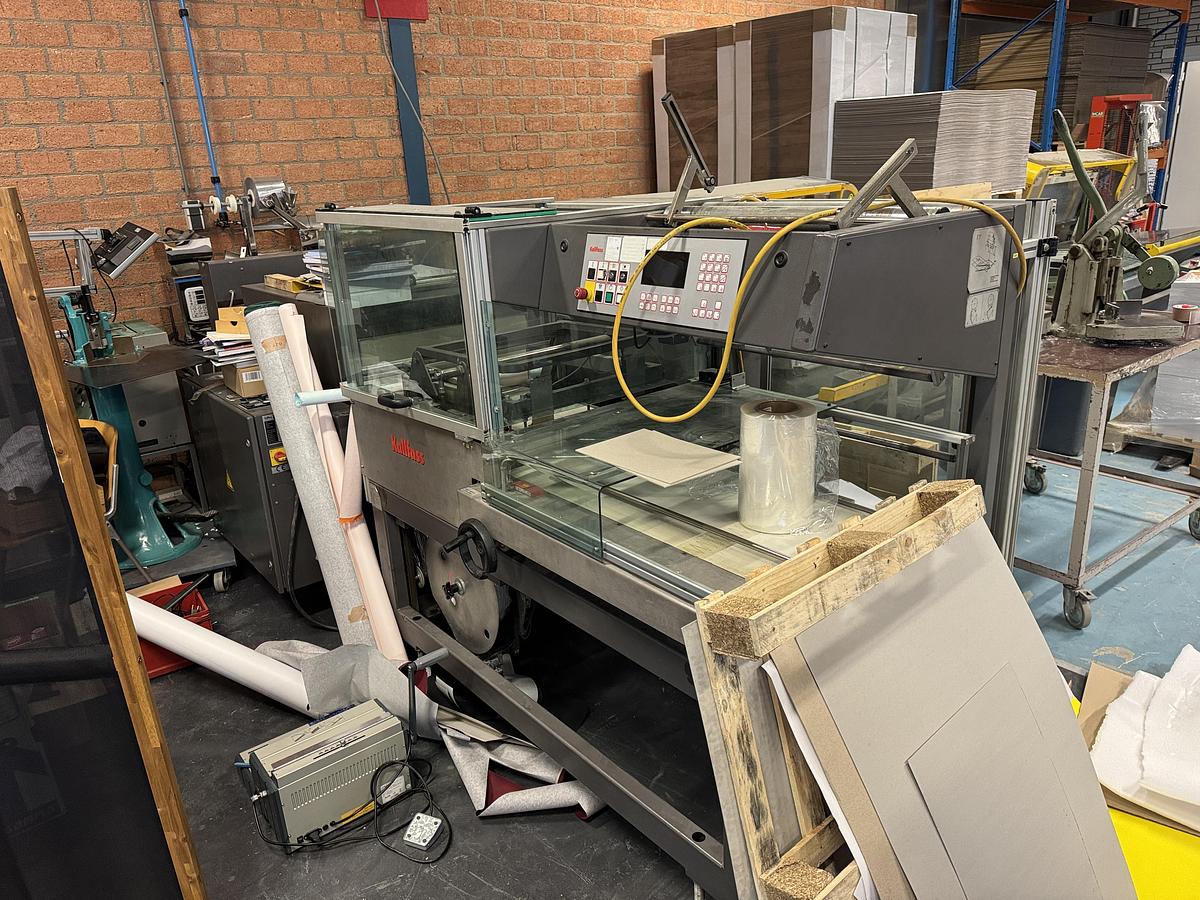

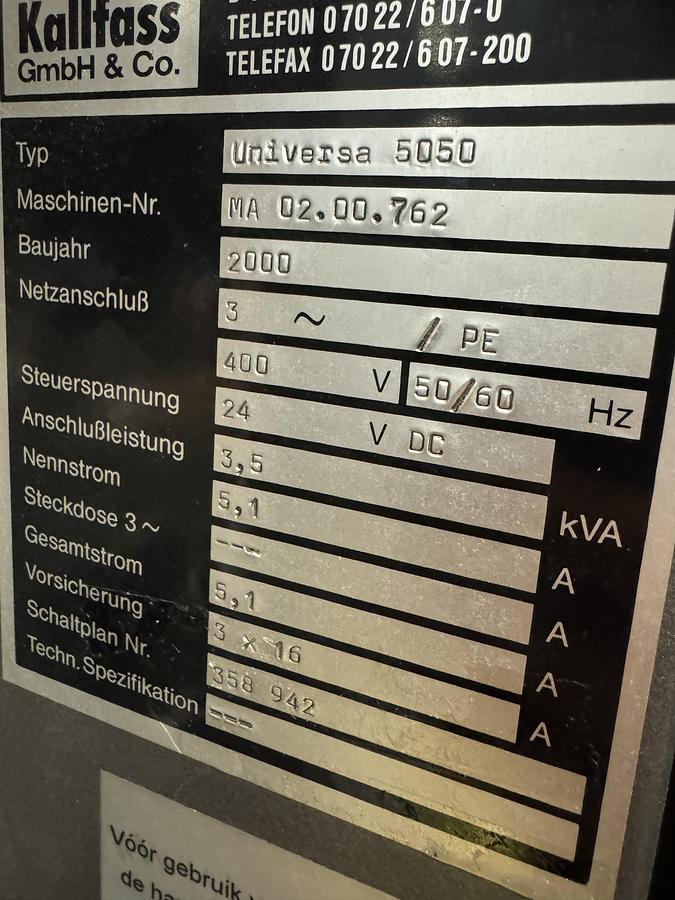

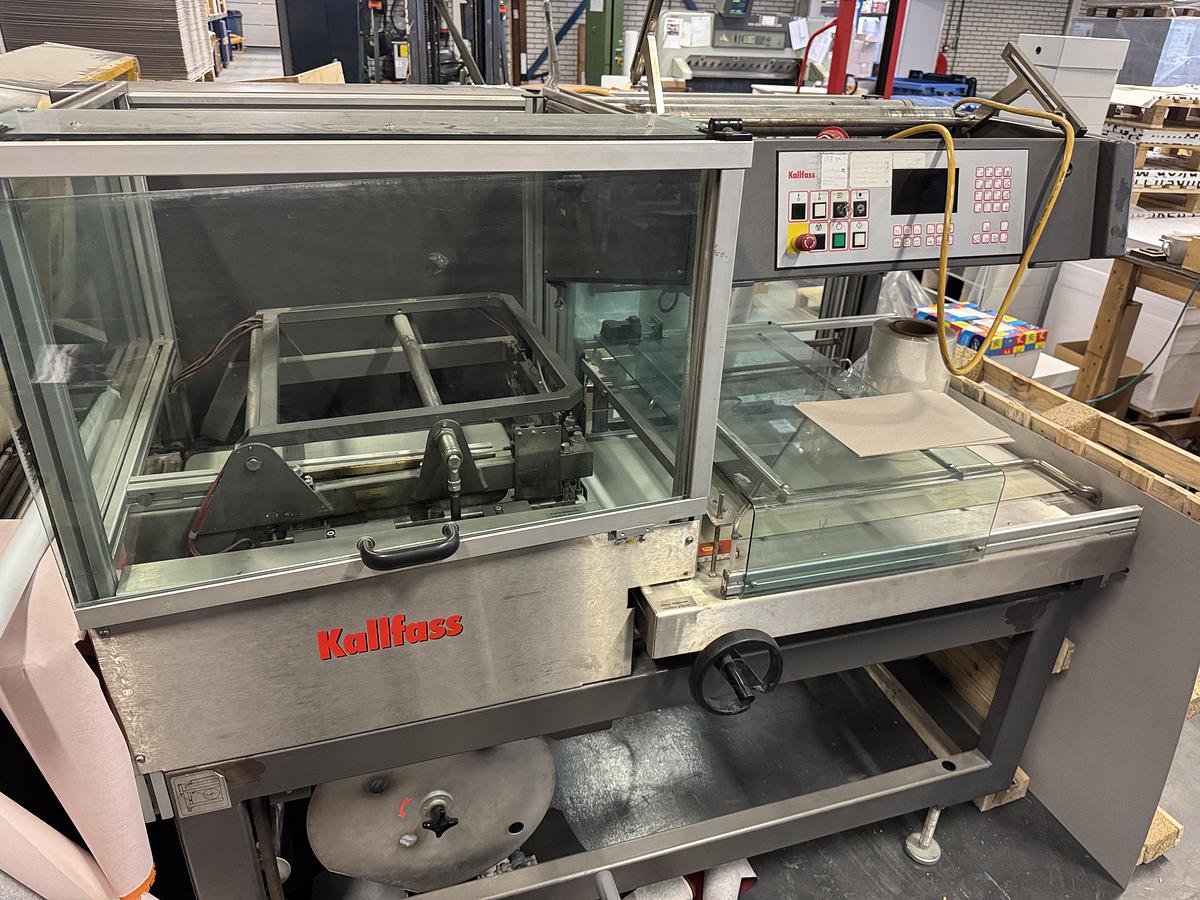

Kallfass universa 5050 sealing machine, kallfass compact 650 shrinktunnel, year 2000, welding width 525 mm, clearance: 150 mm, speed up to 35 cycles per minute, fully automatic
